PREFACE
This Manual is a part of the Sprayer unit and
shall be properly maintained！ You are required
to read this Manual prior to operation for
purpose of proper operation and maintenance.
In case of any problem, please contact
your local dealer.
This Sprayer is allowed to be operated,
maintained and serviced by professionals
familiar with it and with sufficient knowledge
for safe operation.
The warranty will be void in case any human
injury, sprayer damage or performance
degradation occurring due to unauthorized
modification to this machine.
TABLE OF CONTENTS
I. Principal Functions 1
II. Structure, Operating Principles and
Features 1
III. Part Descriptions and Technical
Parameters 2
IV. Precautions 4
V. Operating Instructions 7
VI. How to operate the spray head and
recommended pesticide 9
VII. Structural Diagram and Details 11
VIII. Cleaning and Maintenance 13
IX. Storage 13
X. Troubleshooting 13
XI. Packing List 14
I. PRINCIPAL FUNCTIONS
This sprayer is a new generation of highly
efficient sprayer comfortable for back-
mounting, convenient to operate, uniform in
atomization in addition to its economical and
safe advantages. This Sprayer is applicable for
pest-controlling of various crops, flowers and
garden plants cleaning of public places as well
as hygiene and disease control of fowl and
livestock houses.
II. STRUCTURE, OPERATING PRINCIPLES
AND FEATURES

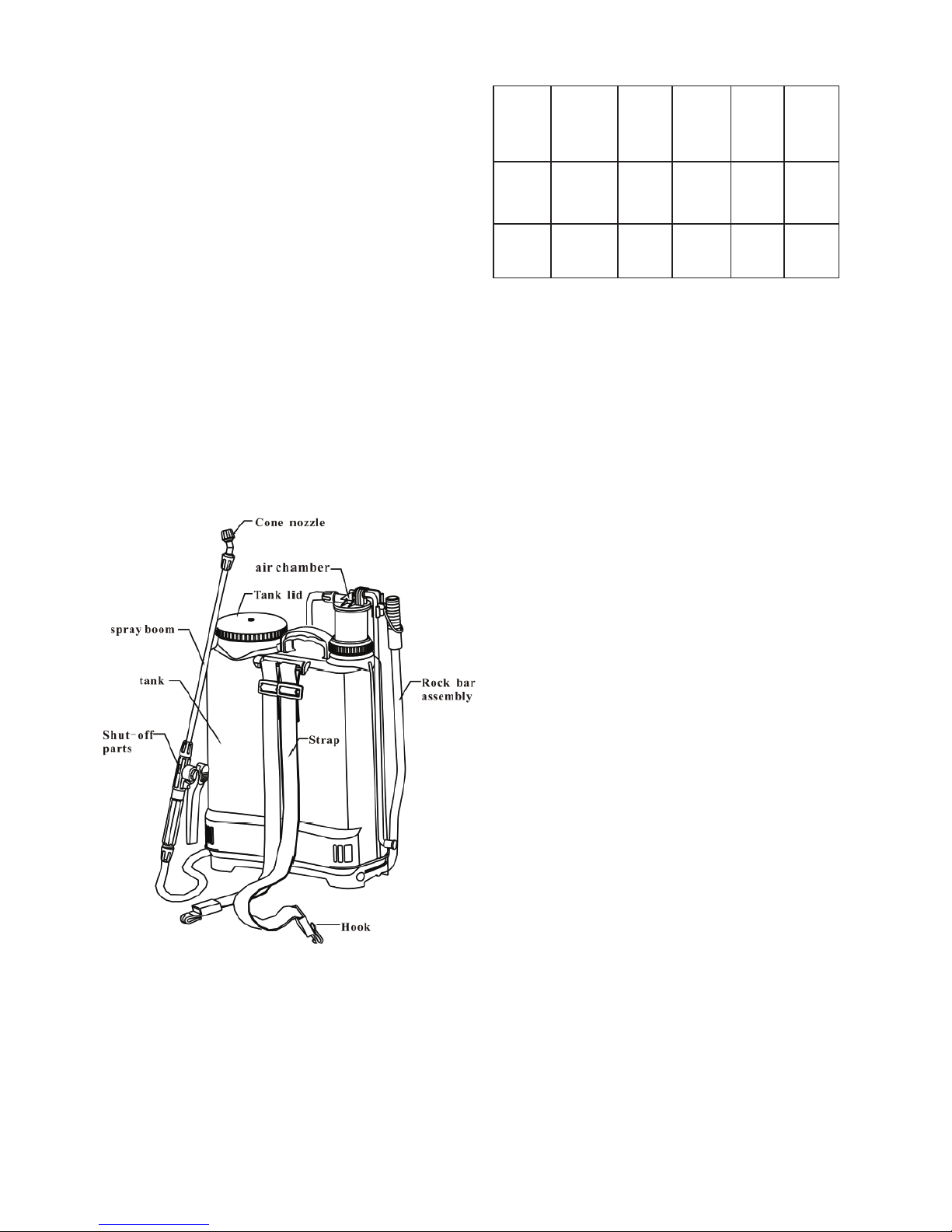

STRUCTURE:
This Sprayer consists of five units: a tank, a
pump, a spraying unit (tube, switch, a spray
boom, and a spray head), a rock bar unit and
a strap.
PRINCIPLES:
The leather cup moves up/down in the pump
cylinder due to the swinging of rock bar unit
to produce a pressure difference between the
inside and outside of the pump which will drive
the valve sheet to open and close so as to
pump the mixture into the chamber which will
be sprayed like fog through the spraying unit.
FEATURES:
1. The tank is ergonomically designed to
imitate the curve of human back to ensure
close contact with and comfortable carrying
on the back. The built-in chamber offers
compact and leak-free structure.
2. Come with a piston pump to ensure simple,
safe, leak-free and labour-saving operation.

3. It comes with a hold-and-release switch
to allow flexible, leak-proof and sound
operation, ideal for both spot spraying and
continual spraying.
4. A variety of nozzles are available
depending on the practical demands to
attain optimum spraying result.
5. The whole unit is made of premium
materials to ensure high resistance to
acid, base and corrosion, in addition to
proven air-tightness and durability.
III PART DESCRIPTIONS AND TECHNICAL
PARAMETERS
Type: Knapsack
Volume of Tank: 16L
Operating Pressure: 0.2~0.4Mpa
Operating Stroke: 40-80mm
Dia. Of leather cup: 45mm
Net Weight of Unit: 2.85kg
Overall Size: 360×180×505 mm
Spraying
nozzle
type
Pressure
Mpa Flow L/min Spray nozzle
type
Pressure
Mpa Flow L/min
Single
Cone 0.3~0.4 0.6~0.7 Double Cone
spraying
nozzle
0.2~0.4 1.1~1.4
Single
Fan 0.2~0.30 0.6~0.8 Four-hole adjustable
nozzle
0.3~0.4 0.8 ~1.2
IX. PRECAUTIONS
In addition to strict compliance with safety rules
in the manual, you are required to :
1. Prohibit the use of special working fluid.
2. Follow the safety directions given by
pesticide manufacturer in dealing with
pesticides.

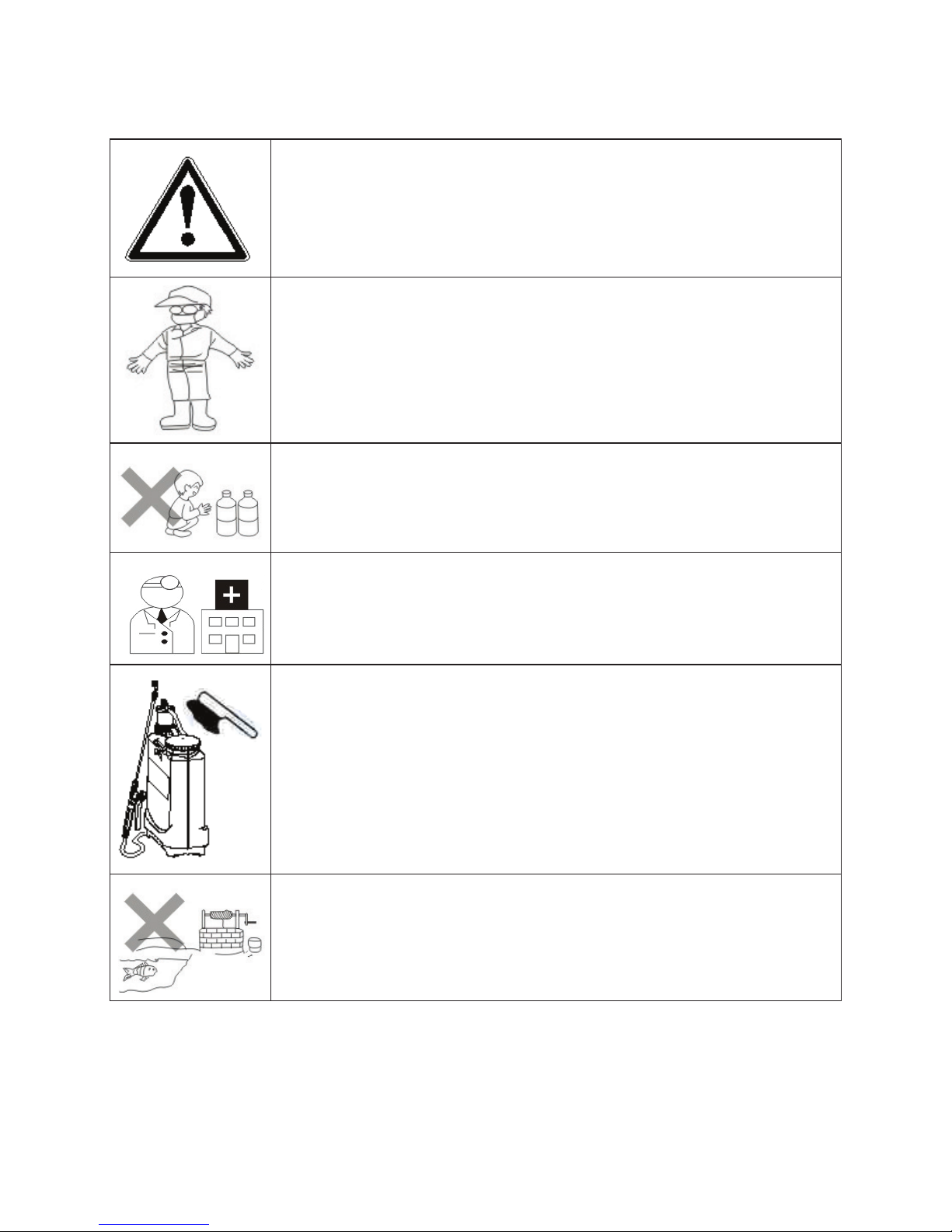

HAZARDS
You are required to read this Manual and follow the instructions on operation and safety for
purpose of proper operation.
The operator shall wear a mask, operation hat, protection clothes, water-proof glove and
rubber boot etc.
Storage and warehousing of pesticide. The pesticide shall be kept out of the reach of children.
Disposal of pesticide shall follow the safety instructions furnished by its producer.
In case of inhaling: Immediately leave the poisonous place to a well-ventilated place to lie
down for a rest. In case of intoxication via skin contact, please rinse with water immediately.
In case of ingestion, induce vomiting with clean water or salt water and go to hospital as soon
as possible.
Upon finish of operation, the sprayer shall be cleaned to avoid possible corrosion or
blocking, while preventing the mixing of residues with chemical of next operation, which may
compromise the spraying performance or do harm to crops.
The residual chemical shall be kept in a container instead of being poured into the field,
ground and rivers. The empty bottles and bags shall either be collected and sent to the
manufacturer for proper disposal or buried in a barren land with deep under-ground water
level and small rainfall far from living areas and water sources.

HAZARDS
Persons affected by fatigue,
poor health, injury, pesticide
allergy or during pregnancy
shall never engage in
pesticide dispensing. Alcohol
drinking immediately after
the spraying is prohibited.
Never use strong acid,
strong alkaline, and other
strong solutions. Never use
highly-toxic and highly-
persistent pesticide for
pest control of vegetables,
melon crops, fruit trees, tee,
herbal medicines etc. And
the harvesting time after
pesticide application shall be
long enough.
Neither spray against any
human or animal nor spray
against adverse wind during
operation.
Don’t leave the Sprayer at
a public place unattended.
Otherwise, it may endanger
public security.
PRECAUTIONS
The chemical for application
in this Sprayer shall not
exceed 45°C
Never loosen the tube nuts
after the air chamber has
been pressurized, in order
to avoid being injured by the
high-pressure chemical.
Trial spraying with clean
water and a check of tank,
hose, spray gun for possible
leakage are required prior
to operation. Meanwhile, a
little lubricant grease shall
be applied to the seal ring or
other moving parts to reduce
grinding and resistance.
The preparation of chemical
shall follow the instructions
and formula furnished by
the pesticide manufacturer.
Unauthorized altering of the
dilution rate of chemical is
prohibited, which may either
endanger the human being
and animal, or result in the
failure of pest control.
Upon the finish of operation,
you shall change clothes and
wash those exposed part
of body such as hands and
face. In case of highly toxic
pesticide and germicide, a
shower after operation is
required to ensure safety.

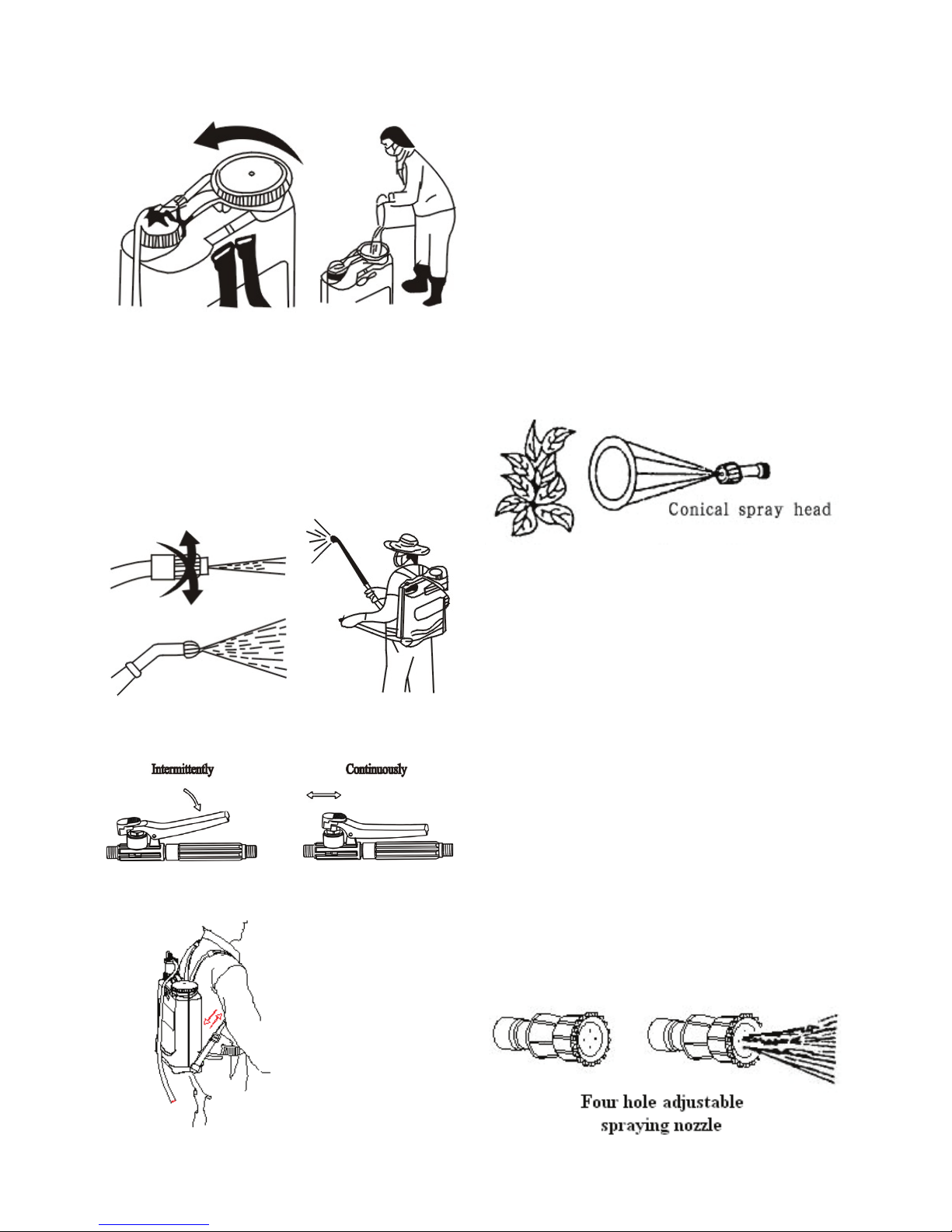

V. OPERATING INSTRUCTIONS
Unscrew the lid of spray tank and fill it with
prepared mixture through a strainer carefully
before replacing the tank lid. Mount the
sprayer on your back and turn the rock bar
to boost the gas pressure in the air chamber
before holding the shut-off to spray in
spot spraying or continual spraying form.
1. Diagram for Switch Control
2. Adjust the strap to a proper position.
VI. INSTRUCTIONS FOR RECOMMENDED
PESTICIDES
Isoprocarb (MIPC):
For control of planthopper, leafhopper on rice
fields. Mix 150-200ml MIPC (20%) with 75-
100kg water. Employ the conical spray head
to spray evenly with the wind on one side and
crossly spray in multi rows . Capable of killing
common thrips and leeches. Safe to spiders and
natural predators of planthopper. Toxic to fish
and bee, and be harmful to tuber crops.
Chlorothalonil:
For prevention of stalk rot on wheat by mixing
11 g 75% wettable powder with 6 kg water for
each 100 square meters; For prevention of leaf
mold and spot blight on vegetable by mixing
135-150 g wettable powder with 60-80 kg
water. Employ the conical spray head to spray
evenly with the wind, on one side and crossly
spray in multi-row. For prevention of downy
mildew on fruit trees by mixing 75-100 g 75%
wettable powder with 30-40 kg water. Employ
the adjustable spray head with four apertures
to spray evenly with the wind, resulting in
significant loss of chemical. Being toxic to fish,
please operate far away from fish pond.

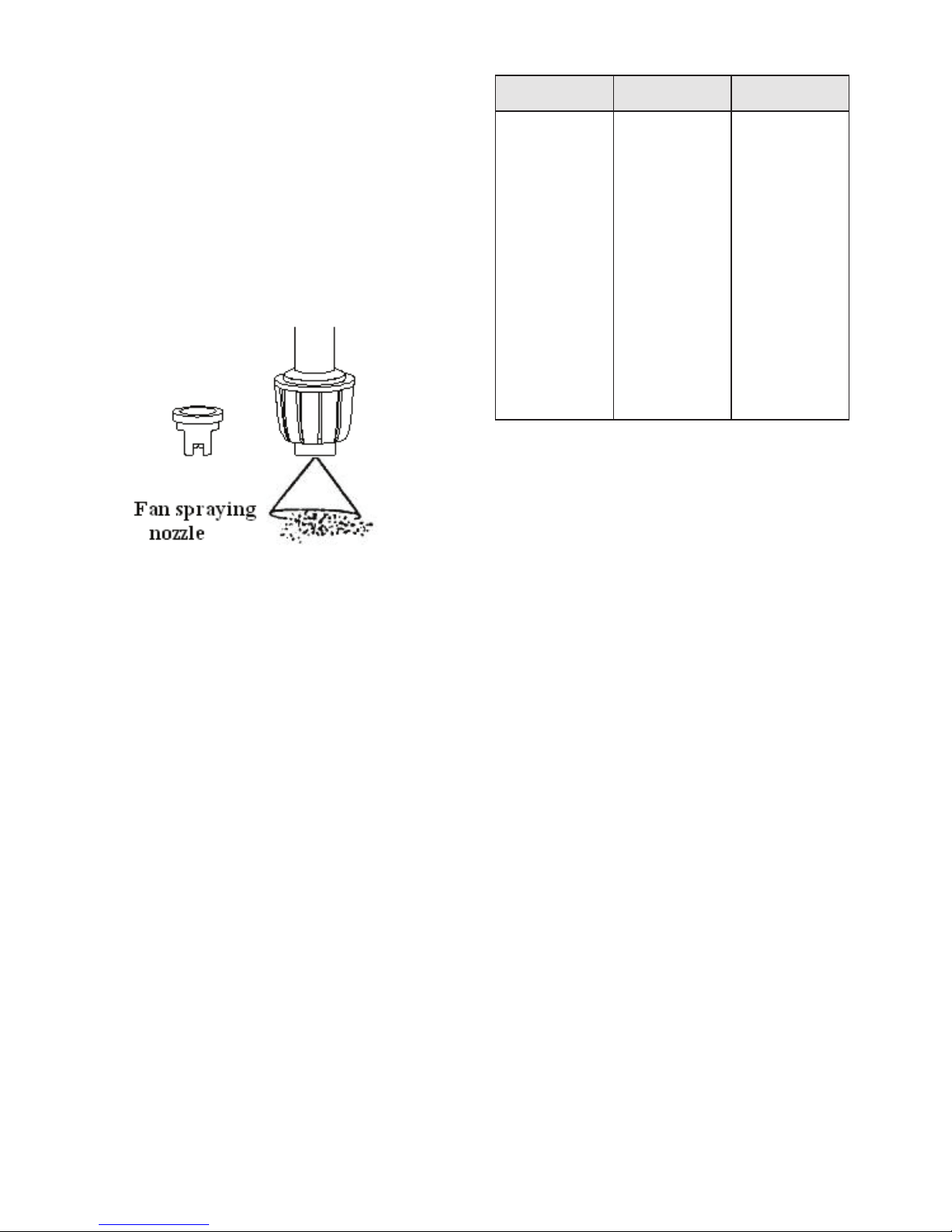

Fluazifop-butyl:
Applicable for annual graminaceae weeds with
strong inhibition to budlets of weed. Safe to
broad-leaf crops. Of no force for dicotyledonous
weeds. Toxic to fish. Employ the fan-style spray
head to spray evenly with the wind, on one
side and in parallel advance manner. Be sure
to avoid hurt other unintended crops due to
pollution by the chemical fog.
Crops To Control Dilute rate
Wheat,
barley, bean,
cole, peanut,
beet, potato
etc.
cockspur
grass, hairy
crabgrass,
oat grass,
dentes foxtail,
green foxtail,
Chinese
sprangletop
and other
annual
graminaceae
weeds
Mix 40g-50g
active
ingredient
with 60kg
water to
spray in one
mu(appr.0.16
acre).

S/N DESCRIPTIONS QTY S/N DESCRIPTIONS QTY
1 Cone Nozzle 1 12 Strap 2
1Nozzle Cap 1 13 Shoulder Pad 2
2Cone Sprinkle Sheet 1 14 Hook 2
3Split Sheet 1 15 Inlet Plug 1
4Seal Gasket 16× 11×2 1 16 Tank Lid 1
5Elbow 1 17 Big Seal Ring 1
2 Spray Boom 1 18 Big Strainer 1
3 Spray Boom Nut 2 19 Air Chamber Cover 1
4 Fastening Sleeve 2 20 Felt Ring 1
5O-Ring 15×3 2 21 Tank 1
6 Shut-Off Parts 1 22 Stopper Buckle 1
1Spacing Cap 1 23 Hexagonal Bolt M8×40 2
2Shut-Off Handle 1 24 Cotter Pin 2×5 1
3Shut-Off Nut 1 25 Rock Bar Clip 1
4Shut-Off Spring 1 26 Rock Bar Collar 1
5Valve Plug 1 27 Rock Bar Sleeve 1
6Valve Plug O-Ring 9.5×1.9 1 28 Rock Bar Assembly 1
7Seal Ring 1 29 Air-Chamber 1
8Shut-Off Pin 1 30 Leather Cup 1
9Shut-Off Body 1 31 Seal Ball 2
10 O-Ring 18.×2.65 1 32 O-Ring 20.5×2.5 1
11 Shut-Off Strainer 1 33 Fastening Cap 1
12 Handle Bar 1 34 Cylinder 1
7 Flared Sheath 2 35 Seal Ball Holder 1
8Plastic Tube Sheath 2 36 Fan Nozzle 1
9Plastic Tube 1 37 30° Dual Nozzle 1
10 Stirrer 1 38 Four-Hole Adjustable 1
11 Strap Buckle 4

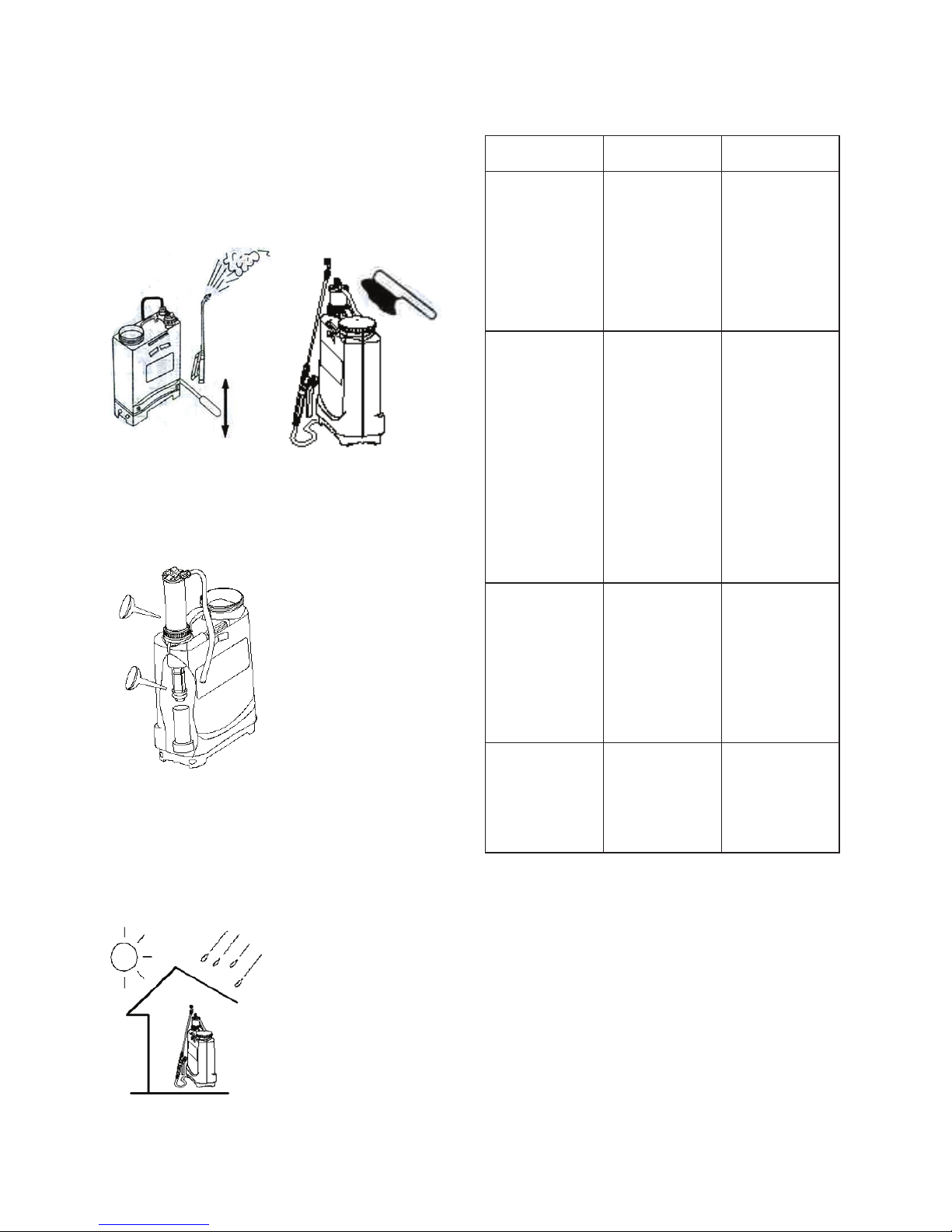

VIII. CLEANING AND MAINTENANCE
After use, the surface of the Sprayer shall be
washed in an allowed cleaning site; the inner
part should be cleaned with high-pressure
injection till the drainage becomes clean.
The Spraying parts shall be lubricated after
cleaning.
X. STORAGE
The spray should be stored in a dry place indoor
out of reach of children.
XI. TROUBLESHOOTING
Problems Causes Solutions
In case of
leakage or
poor spraying
performance
Seal rings at
various joints
may loose or
be damaged.
Leakage of
the cylinder
Tighten or
replace ;
Hard to turn
the rock bar
The shut-off
strainer or
the spray
nozzle
has been
blocked;
Clean the
strainer and
spray nozzle
immediately;
Apply
lubricant
grease to
various
moving part.
In case of
decreasing of
pressure
Broken
leather cup,
damaged
seal ball or
loose seal
ball holder.
Replace the
leather cup
or seal ball,
or tighten
the seal ball
holder.
It produce no
pressure to
turn the rock
bar
Seal ball may
be displaced
or lost.
Re-install
seal ball.

XII. PACKING LIST
S/N DESCRIPTIONS UNIT QTY REMARK
1 Main unit of sprayer set 1
2 Operating Instruction Pc(s) 1
3 Seal ring set 1
4 Leather cup Pc(s) 1
5 Four-hole adjustable nozzle Pc(s) 1
6 Fan nozzle Pc(s) 1
7 30º dual nozzle Pc(s) 1
8 Fastening sleeve Pc(s) 2
9 Stopper buckle Pc(s) 1
10 Rock bar collar Pc(s) 1
11 Certificate of Compliance Pc(s) 1
12 Guarantee card Pc(s) 1

WARRANTY
Thank you for purchasing a quality GARDENMATE product. This product has been manufactured and tested to
specifications for internal distribution. All GARDENMATE products have a limited warranty of 12 months from
the date of purchase against defects in material and manufacturer workmanship. Damage or injury due to the
incorrect installation and application of the products is not covered under warranty.
For all warranty related claims or queries, please contact GENTECH INDUSTRIES on [phone]/793.
