Graco AirPro 312579 User manual

Instructions-Parts
AirPro™Gravity
Feed Airspray Gun 312579H
ENG
Conventional, HVLP, and compliant guns for specialty industrial applications.
For professional use only.
100 psi (0.7 MPa, 7 bar) Maximum Air Inlet Pressure
See page 3 for model information.
Important Safety Instructions
Read all warnings and instructions in
this manual. Save these instructions.
ti11095A
ll 2 G

Related Manuals
2312579H
Contents
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Gravity Feed without Cup . . . . . . . . . . . . . . . . . . 3
Gravity Feed with Plastic Cup . . . . . . . . . . . . . . . 3
Gravity Feed with 3M™PPS™Cup . . . . . . . . . . . 3
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Gun Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Conventional Guns . . . . . . . . . . . . . . . . . . . . . . . 5
HVLP Guns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Compliant Guns . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Ground the Gun . . . . . . . . . . . . . . . . . . . . . . . . . 6
Flush Before Using Equipment . . . . . . . . . . . . . . 6
Adjust Spray Pattern . . . . . . . . . . . . . . . . . . . . . . 7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pressure Relief Procedure . . . . . . . . . . . . . . . . . 8
Apply Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Volatile Organic Compounds (VOC) Regulation . 8
Daily Gun Maintenance . . . . . . . . . . . . . . . . . . . . . . 9
General Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Clean Gun and Cup . . . . . . . . . . . . . . . . . . . . . . . 9
Clean Nozzle and Air Cap . . . . . . . . . . . . . . . . . 10
Compliant Cleaning Methods . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fluid Inlet Fitting Replacement . . . . . . . . . . . . . 14
Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Repair Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 22
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 22
Related Manuals
Manual Language
313089 Chinese
313091 Dutch
313092 Finnish
313093 French
313094 German
313096 Italian
313097 Japanese
313098 Korean
313100 Portuguese
313101 Russian
313102 Spanish
313103 Swedish

Models
312579H 3
Models
Gravity Feed without Cup
Gravity Feed with Plastic Cup
Gravity Feed with 3M™PPS™Cup
Orifice
Size
in. (mm)
Conventional HVLP Compliant
Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar)
0.055 (1.4) 289002 A N/A 289005 A 29 (0.2, 2.0) 289008 A 35 (0.24, 2.4)
0.070 (1.8) 289003 A N/A 289006 A 29 (0.2, 2.0) 289009 A 35 (0.24, 2.4)
Orifice
Size
in. (mm)
Conventional HVLP Compliant
Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar)
0.055 (1.4) 289011 A N/A 289014 A 29 (0.2, 2.0) 289017 A 35 (0.24, 2.4)
0.070 (1.8) 289012 A N/A 289015 A 29 (0.2, 2.0) 289018 A 35 (0.24, 2.4)
Orifice
Size
in. (mm)
Conventional HVLP Compliant
Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar) Model Series
Max.
HVLP/Compliant
Air Pressure
psi (MPa, bar)
0.055 (1.4) 289020 A N/A 289023 A 29 (0.2, 2.0) 289026 A 35 (0.24, 2.4)
0.070 (1.8) 289021 A N/A 289024 A 29 (0.2, 2.0) 289027 A 35 (0.24, 2.4)

Warnings
4312579H
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this
equipment. The exclamation point symbol alerts you to a general warning and the hazard
symbols refer to procedure-specific risks. Refer back to these warnings. Additional, product-
specific warnings may be found throughout the body of this manual where applicable.
WARNING
FIRE AND EXPLOSION HAZARD
Flammable fumes, such as solvent and paint fumes, in work area can ignite or explode.
To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric
lamps, and plastic drop cloths (potential static arc).
• Keep work area free of debris, including solvent, rags and gasoline.
• Do not plug or unplug power cords or turn lights on or off when flammable fumes
are present.
• Ground all equipment in the work area. See Grounding instructions.
• If there is static sparking or you feel a shock, stop operation immediately. Do not
use equipment until you identify and correct the problem.
• Keep a working fire extinguisher in the work area.
PRESSURIZED EQUIPMENT HAZARD
Fluid from the gun/dispense valve, leaks, or ruptured components can splash in the
eyes or on skin and cause serious injury.
• Follow Pressure Relief Procedure in this manual, when you stop spraying and
before cleaning, checking, or servicing equipment.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts
immediately.
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not exceed the maximum working pressure or temperature rating of the lowest
rated system component. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See
Technical Data in all equipment manuals. Read fluid and solvent manufacturer’s
warnings.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your Graco distributor for
information.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and
hot surfaces.
• Do not kink or overbend hoses or use hoses to pull equipment.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.

Gun Selection
312579H 5
Gun Selection
Conventional Guns
Excellent atomization and high production
rates typically with some reduction in transfer
efficiency.
HVLP Guns
An HVLP gun is a high transfer efficiency gun
which limits the air pressure at the air cap to
10 psi (0.07 MPa, 0.7 bar) maximum. In some
areas, an HVLP gun is required for compliance
with environmental standards.
Compliant Guns
A compliant gun is a high transfer efficiency
gun which has been tested to have a transfer
efficiency greater than or equal to HVLP guns.
The Graco compliant guns have no restrictions
on air cap pressures, but the gun inlet pres-
sure must remain under 35 psi (0.24 MPa,
2.4 bar) to remain in compliance.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in
the operating area of the equipment to help protect you from serious injury, including
eye injury, inhalation of toxic fumes, burns, and hearing loss. This equipment includes
but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
•Gloves
• Hearing protection
WARNING

Setup
6312579H
Setup
1. Shut off the air supply.
2. Install a shutoff valve (not supplied) down-
stream of the air regulator to shut off gun
air.
3. Install an inline air filter (not supplied) to
clean and dry the gun air supply.
4. Connect a clean, dry, filtered air supply to

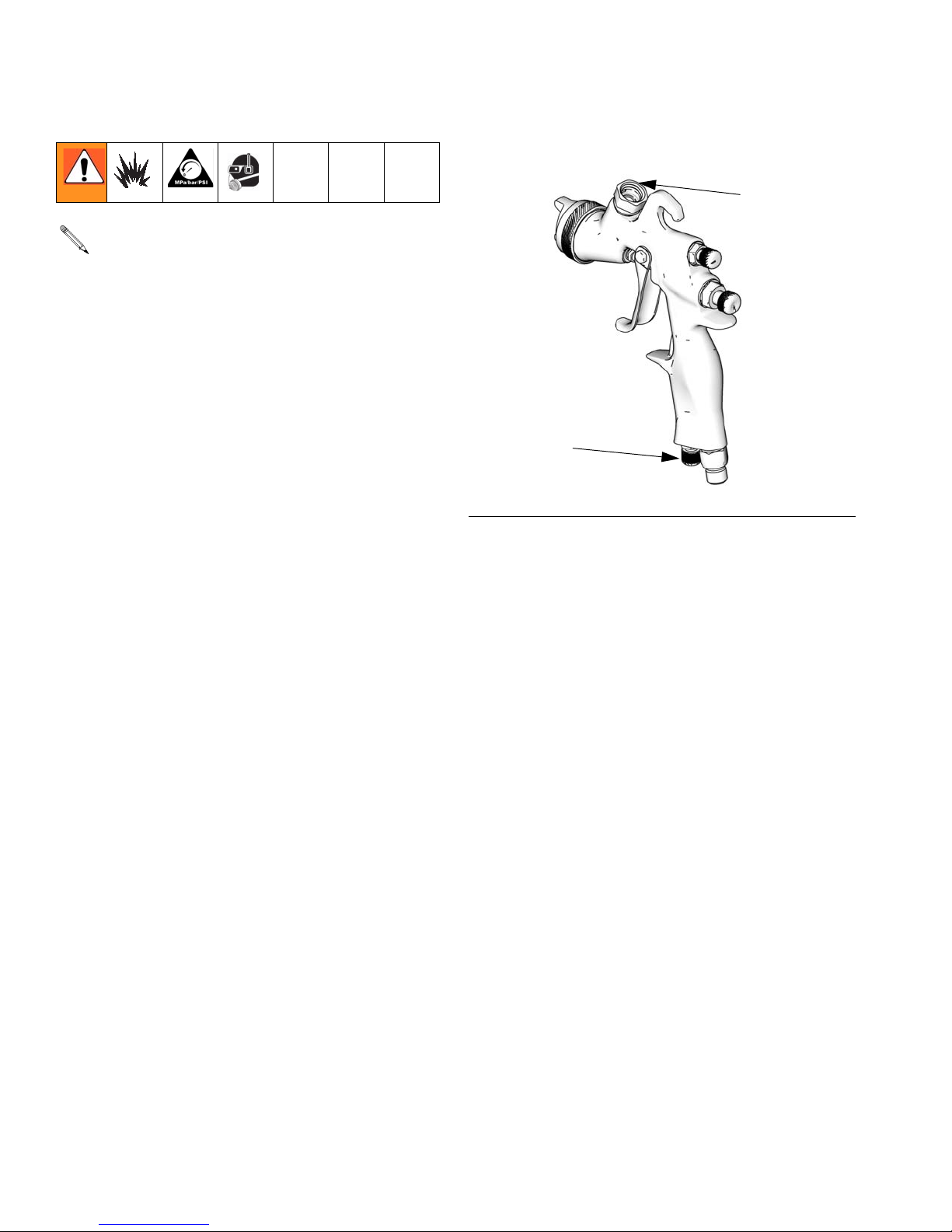

the air inlet fitting. See FIG. 1.
5. Connect the fluid supply to the fluid inlet
fitting.
Ground the Gun
Check your local electrical code for detailed
grounding instructions.
Ground the gun through connection to a
Graco-approved conductive air supply hose.
Flush Before Using Equipment
The equipment was tested with lightweight oil,
which is left in the fluid passages to protect
parts. To avoid contaminating your fluid with
oil, flush the equipment with a compatible sol-
vent before using the equipment. See Flush,
page 9.
• Check that your shop air provides
adequate air flow. See Technical
Data, page 20, for minimum cfm
requirements.
• Recommended 5/16 in. (7.9 mm) ID
hose, optional 3/8 in. (10 mm) ID air
hose.
• Set shop air pressure regulator (not
supplied) according to paint manu-
facturer’s recommendation. See
maximum compliant air pressure on
air cap.
• Make sure no air restrictions, such as
low-volume cheater-valves, obstruct
the air flow. If an air adjusting valve is
desired, use a Graco adjustable air
valve (234784).
FIG. 1
fluid inlet
air inlet
ti11306A

Setup
312579H 7
Adjust Spray Pattern
1. Rotate the air cap to achieve desired spray
pattern. See FIG. 2.
2. To achieve full fan pattern, open the air
control valve by turning the knob fully coun-
terclockwise. See FIG. 3.
3. To create a round pattern, turn the pattern
air off by turning the air control valve fully
clockwise. See FIG. 3.
4. Trigger gun and adjust gun air pressure.
Refer to Technical Data, page 20, for inlet
air pressure.
5. To establish the correct fluid flow, turn the
fluid control valve counterclockwise until no
restriction of the trigger movement is felt,
then turn out another half turn.
6. To reduce fluid flow, turn the fluid control
valve clockwise.
7. Spray a test pattern. Evaluate the spray
pattern size and atomization.
8. To achieve a narrow spray pattern, turn air
control valve clockwise.
9. To improve atomization, reduce the fluid
flow rate. Increasing the air pressure can
improve atomization but may result in poor
Transfer Efficiency (TE) or non-compliant
operation.

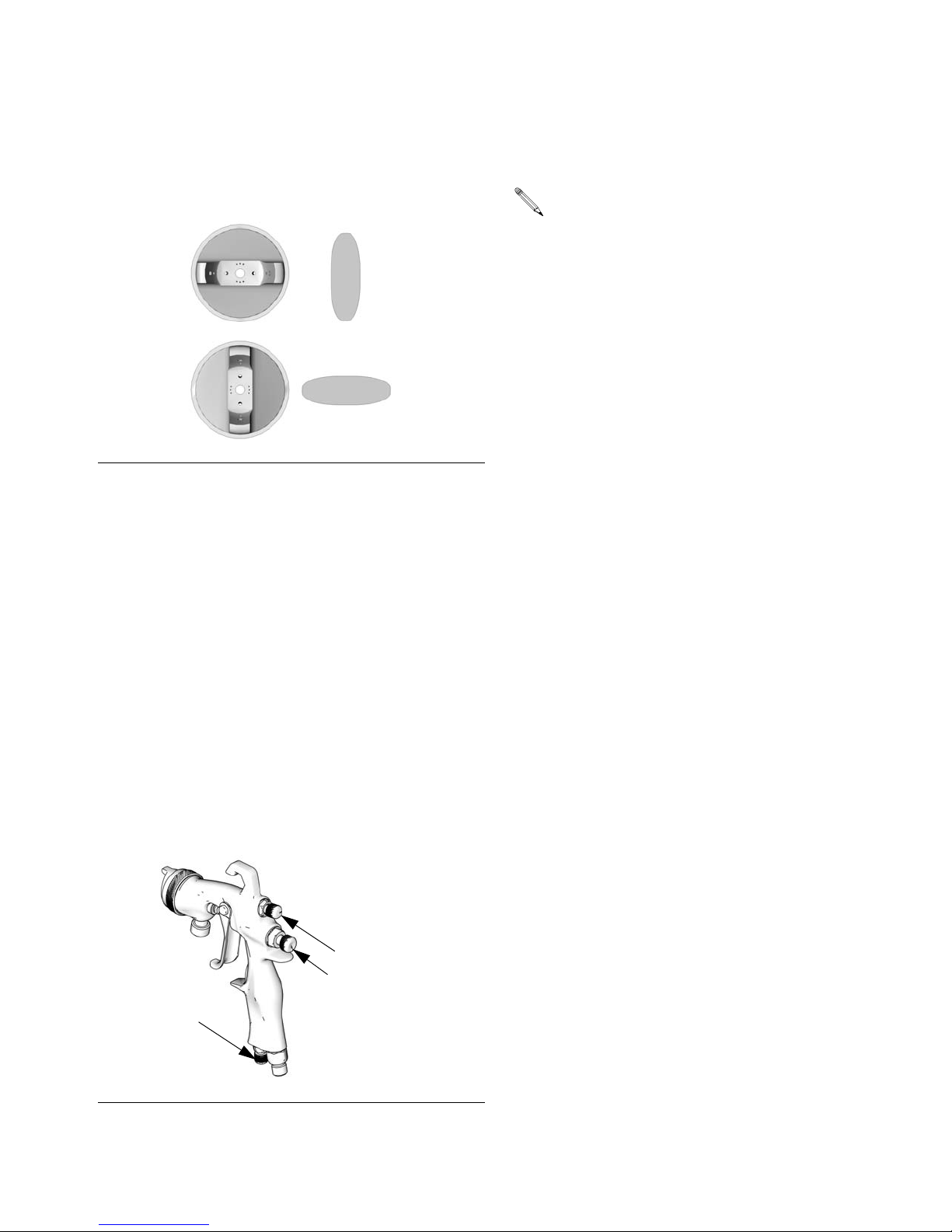

FIG. 2
FIG. 3
ti4839a
fluid control valve
air control valve
ti11097a
air inlet valve
• If the fluid control valve is turned clock-
wise all the way, the gun will emit only
air.
• If you cannot achieve the correct fluid
flow with the fluid control valve, a differ-
ent sized nozzle may be necessary. For
smaller fluid flow, use the next size
smaller nozzle. For a larger fluid flow,
use the next size larger nozzle.

Operation
8312579H
Operation
Pressure Relief Procedure
1. Turn off the gun air supply.
2. Trigger the gun to relieve pressure.
Apply Fluid
1. Fill the cup with material. Do not fill past the
full markings on cup.
2. Turn on the shop air to the gun. Set atomiz-
ing pressure with the gun fully triggered.
3. Adjust the pattern size and shape. See
page 7.
4. To achieve the best results when applying
fluid:
• Keep the gun perpendicular and
6 to 8 inches (150 to 200 mm) from the
object being sprayed.
• Use smooth, parallel strokes across the
surface to be sprayed with 50% overlap.
When using the HVLP spray gun, instead of a
conventional airspray gun, you may need to
use a slightly slower hand movement and
make fewer passes with the gun to coat a part.
This is due to the reduced spray velocity pro-
duced by lower HVLP air pressures, along with
a larger fluid particle size because there is less
air to blow off solvents than is produced by
conventional airspray. Take care to avoid runs
or sags as you spray.
Volatile Organic Compounds
(VOC) Regulation
In certain states, spraying solvents that release
VOCs into the atmosphere when cleaning a
spray gun is prohibited. To comply with these
air quality laws, you must use a cleaning
method that prevents the escape of VOC
vapors into the atmosphere. See Compliant
Cleaning Methods, page 10.
CAUTION
Excessive atomizing air pressure can
increase over-spray, reduce transfer
efficiency, and result in a poor quality finish.
Regulatory agencies in certain states prohibit
the operation of a spray gun above 10 psi
(69 kPa, 0.7 bar) atomizing air cap pressure.
See Troubleshooting, page 11, if you
experience an irregular pattern.
Clean air line filters as directed by the
manufacturer.

Daily Gun Maintenance
312579H 9
Daily Gun Maintenance
General Tasks
Follow the Pressure Relief Procedure,
page 8.
• Frequently lubricate the gun moving
parts with a drop of non-silicone oil.
• Do not disassemble the spray gun if you
are having a spray pattern problem. See
Troubleshooting, page 11, for information
on how to correct the problem.
• Clean the fluid and air line filters daily.
• Check for fluid leakage. Tighten fittings
or replace equipment as needed.
Flush
Flush before using the equipment, before
changing colors, and when you are done
spraying. Use solvent that is compatible with
gun wetted parts and with the fluid that will be
sprayed.
1. Follow Pressure Relief Procedure,
page 8.
2. Dispose of any paint in the cup.
3. Fill the cup with a small amount of solvent.
4. Spray into a grounded metal waste
container until the equipment is clean.
5. Follow Pressure Relief Procedure,
page 8.
Clean Gun and Cup
1. Flush, page 9.
2. Dampen a soft cloth with solvent and wring
out the excess. Point the gun down and
wipe off the outside of the gun and cup.
3. Make sure cup lid vent hole is clear.
4. Blow dry gun inside and out. Lubricate.
CAUTION
Solvent left in gun air passages could result
in a poor quality paint finish. Do not use any
cleaning method that may allow solvent into
the gun air passages.
• Do not point gun up while cleaning it.
• Do not wipe gun with a cloth soaked in
solvent; wring out the excess.
• Do not immerse the gun in solvent.
See Compliant Cleaning Methods,
page 10, to comply with air quality laws if
applicable.
CAUTION
• Do not submerge gun in solvent. Solvent
dissolves lubricant, dries out packings, and
clogs air passages.
• Do not use metal tools to clean air cap
holes as this may scratch them and distort
the spray pattern.
• Use a compatible solvent.
See Compliant Cleaning Methods,
page 10, to comply with air quality laws if
applicable.

Daily Gun Maintenance
10 312579H
Clean Nozzle and Air Cap
1. Remove air cap (13), trigger gun, remove
nozzle (11), and soak both in a compatible
cleaning solution.
2. Clean air cap, nozzle, and front of the gun
with a soft-bristle brush dipped into com-
patible solvent. Do not use a wire brush or
metal tools.
3. Use a soft implement, such as a toothpick,
to clean out air cap holes.
4. Trigger the gun while you install the fluid
nozzle with the gun tool. Tighten the nozzle
securely to 155-165 in-lb (17.5-18.6 N•m)
to obtain a good seal.
5. Install the retaining ring (14) and
air cap (13).
6. After cleaning the gun, lubricate the follow-
ing parts with lubricant 111265 daily:
• fluid control valve threads
• trigger pivot pin
• fluid needle shaft
Compliant Cleaning Methods
1. Place spray gun in a gun washer that com-
pletely encloses the gun and components
during cleaning, rinsing, and draining.
2. Spray solvent through the spray gun into
a closed gun cleaning station.
CAUTION
Trigger the gun whenever you tighten or
remove the nozzle. This keeps the needle tip
away from the nozzle seating surface and
prevents the tip from being damaged.
When reassembling, make sure the
air cap matches the color etched onto
the side of the nozzle (gold, brown, grey,
blue, etc.).

Daily Gun Maintenance
312579H 11

Daily Gun Maintenance
12 312579H

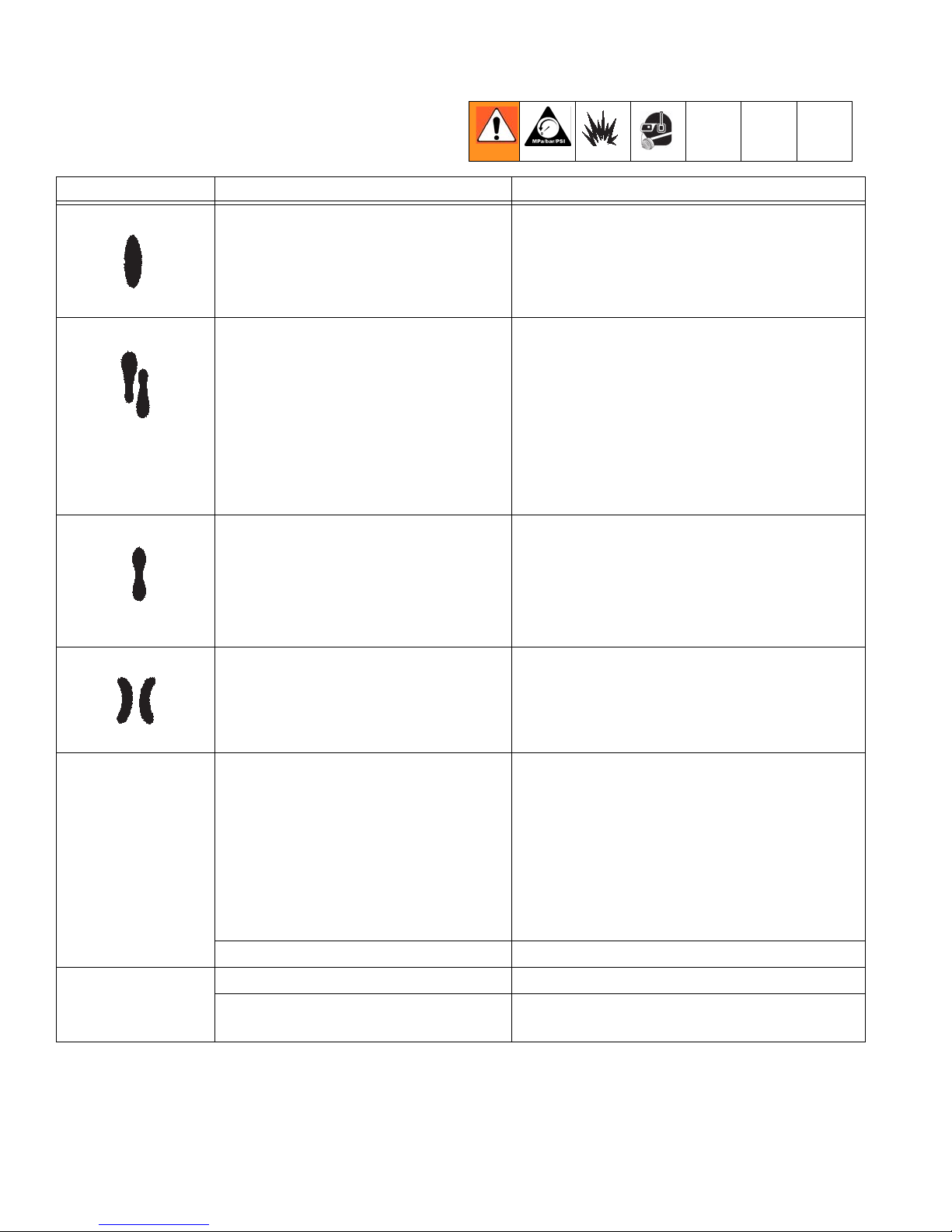

Troubleshooting
Problem Cause Solution
Spray Pattern Normal pattern. No action necessary.
Spray Pattern Dirty or damaged air cap or fluid
nozzle. Rotate air cap 180°.
If pattern follows air cap, problem is in air
cap (13). Clean and inspect. If pattern is
not corrected, replace air cap.
If pattern does not follow the air cap, the
problem is with the fluid nozzle. Clean
and inspect the nozzle. If the pattern is
not corrected, replace nozzle.
Spray Pattern Pressure too high for viscosity of
material being sprayed.
Reduce air pressure and increase mate-
rial viscosity.
Correct pattern by narrowing fan size with
fluid control valve (8).
Spray Pattern Dirty or distorted air horn holes. Clean and inspect air cap. If pattern is not
corrected, replace air cap.
Gun spitting Air getting into paint stream. Check if cup is empty and fill.
Tighten fluid nozzle (11).
Check and tighten needle packing nut (17).
Check fluid nozzle (11) for damage.
Replace fluid inlet gasket (3)
Damaged fluid nozzle seal (19). Replace seal (19).
Will not spray Cup is empty. Fill cup.
Fluid control valve (8) turned too
far clockwise.
Adjust valve (8) counterclockwise.
Right
Wrong
Heavy top
or bottom
Wrong
Split pattern
Wrong

Daily Gun Maintenance
312579H 13
Excessive air
blowing back Loose fluid nozzle (11). Tighten fluid nozzle (11).
Damaged fluid nozzle seal (19). Replace seal (19).
Excessive air leak
behind
trigger.
Worn u-cups/air valve. Repair gun (Kit 289408). Be sure to use
all included parts.
Worn trigger. Replace trigger (part 289140). If leak per-
sists repair gun (Kit 289408).
Problem Cause Solution

Repair
14 312579H
Repair
See Parts, page 16, for callout references.
Disassembly
1. Unscrew retaining ring (14) to remove air
cap (13b). Check o-rings (13a and 13c)
and replace if necessary.
2. Trigger gun while unscrewing nozzle (11) to
prevent needle damage.
3. Check o-ring (19) and replace if necessary.
4. Remove fluid control valve (8), spring (26),
needle (9), and nut (7). Inspect. Replace
tip (9c), needle (9), and u-cup seal (20) as
necessary. If replacing needle tip, use low
strength thread adhesive on needle tip
threads.
5. Remove spring (28) and push the air valve
assembly (6) out the back of the gun.
Inspect. Replace air valve assembly (6)
and u-cup seal (20) as necessary. Use tool
(33) to install u-cup seal.
6. Remove trigger nut (22), trigger pin (21),
wave washer (18), and trigger (10).
7. Unscrew needle packing nut (17) and
remove u-cup packing (16) and
spreader (15).
8. Remove air control valve assembly (5).
Inspect and replace as necessary.
9. Remove air inlet valve assembly (27).
Inspect and replace as necessary.

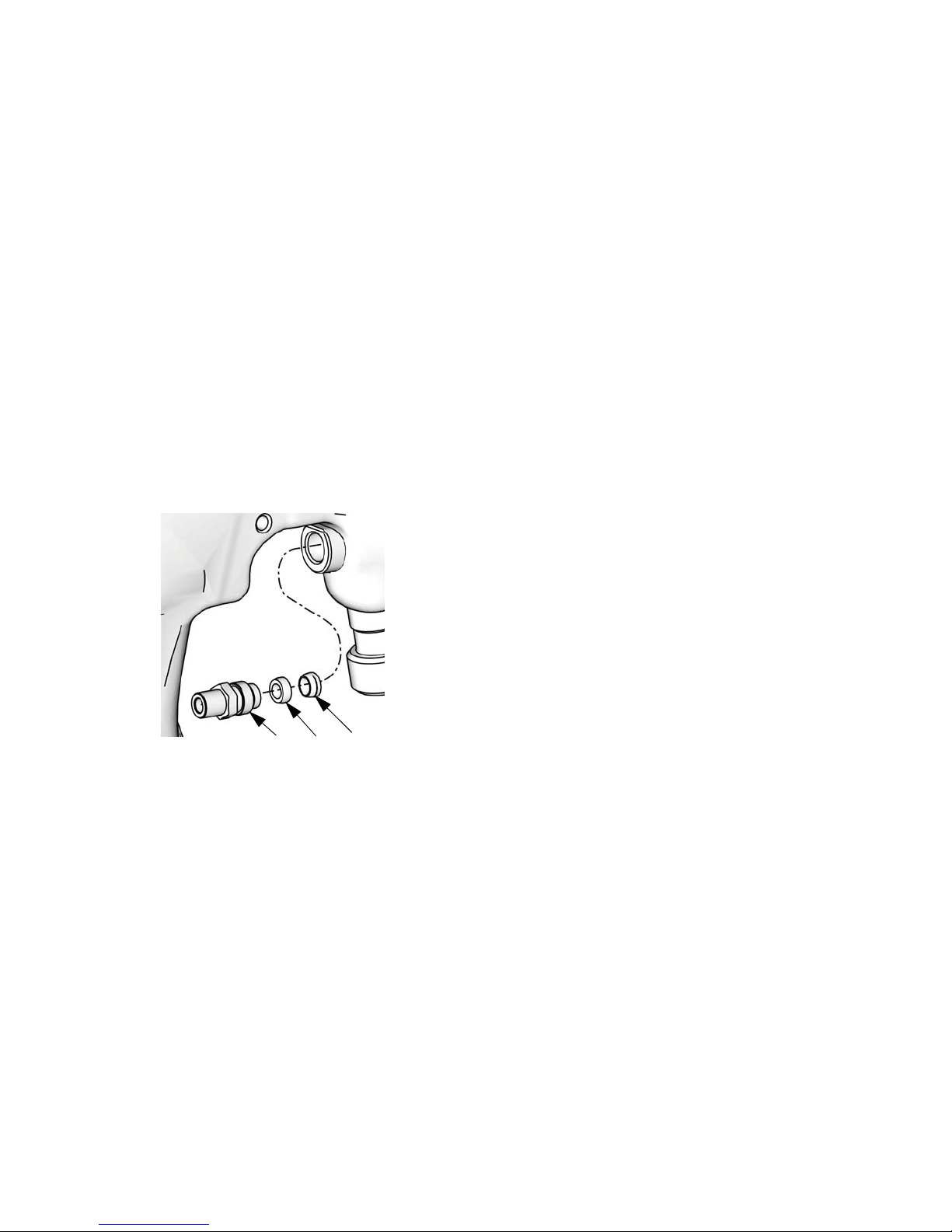

Fluid Inlet Fitting Replacement
1. Remove fluid inlet fitting (4).
2. Remove fluid inlet gasket (3) from gun body
and discard.
3. Apply thread sealant to replacement fluid
inlet fitting (4) threads.
4. Snap the fluid inlet gasket (3) securely onto
the fluid inlet fitting (4).
5. Screw in fluid inlet fitting (4) and torque to
155-165 in.-lb (17.5-18.6 N•m).
6. Replace washer (28) as required.
Follow Pressure Relief Procedure, page 8.
PRESSURIZED EQUIPMENT HAZARD
• Fluid inlet gasket (3) must be replaced if
fluid inlet fitting (4) is removed from spray
gun.
• Failure to replace gasket (3) may result in
air leakage into the fluid section causing a
non-vented gravity cup to become
pressurized.

Repair
312579H 15
Reassembly
1. Install air control valve assembly (5) with
valve turned fully counterclockwise to outer-
most position. Torque to 85-90 in-lb
(9.6-10.2 N•m).
2. Install air inlet valve assembly (27) with
valve turned fully counterclockwise to outer-
most position. Torque to 205-215 in-lb
(23.2-24.3 N•m).
3. Lubricate u-cup spreader (15) and u-cup
packing (16). Install spreader (15) with
tapered end facing rear of gun. Install u-cup
packing (16) with open end facing front of
gun. Install packing nut (17). Torque to
3 in-lb (0.3 N•m).
4. Install wave washer (18) with cupped side
toward the gun body. Lubricate and apply
thread retainer to trigger pin (10). Install trig-
ger (10), trigger pin (21), and trigger
nut (22). Torque to 15-20 in-lb
(1.7-2.2 N•m).
5. Install air valve assembly (6), spring (28),
and nut (7). Torque to 175-185 in-lb
(19.8-20.9 N•m).
6. Install needle (9) and spring (26). Lightly
lubricate and install fluid control valve (8).
7. Trigger gun while replacing nozzle (11).
Torque to 155-165 in-lb (17.5-18.6 N•m).
8. Install air cap assembly (13) and retaining
ring (14).
15
16
17 ti11226a

Parts
16 312579H
Parts
Pull trigger before installing nozzle
(11).
Insert spreader (15) with tapered end
facing rear of gun. Insert u-cup (16) with
open end facing front of gun.
Apply lubricant.
Apply low strength thread retainer.
Apply thread sealant.
Torque to 85-90 in-lb (9.6-10.2 N•m).
Torque to 15-20 in-lb (1.7-2.2 N•m).
Torque to 175-185 in-lb (19.8-20.9 N•m).
Torque to 155-165 in-lb (17.5-18.6 N•m).
Install with valve assembly turned fully
counterclockwise to outermost position.
Torque to 205-215 in-lb (23.2-24.3 N•m).
Torque to 3 in-lb (0.3 N•m).
1
2
3
4
5
6
7
8
9
10
11
12
20
6
5
28
20
7
8
6
8
13c
11
19
21
18
1
9
13b
14
13a
15
23
36
27
23
26
9a
9b
9c
22
17 16
3
2
7
4
1
3
3
4
3
3 4
11 10
9
5
33
3
3
11 10 11
12
10
37
3
ti11224a

Parts
312579H 17
★Included in Gun Repair Kit 289790.
✖Included in Trigger Repair Kit 289143
(contains 5 of each part).
+ Included in Needle Packing Repair Kit
289455 (contains 5 of each part).
* Included in Air Valve Repair Kit 289408.
◆Included in Air Cap Seal Kit 289791
(contains 5 of each part).
✓Included in Retaining Ring Kit 289079.
❖Included in Cup Gasket Repair Kit 289213
(pack of 10).
❄Included in Gun Body Kit 289022.
† Included in Fluid Inlet Gasket Kit 24A560,
package of 5 (purchase separately).
--- Not sold separately.

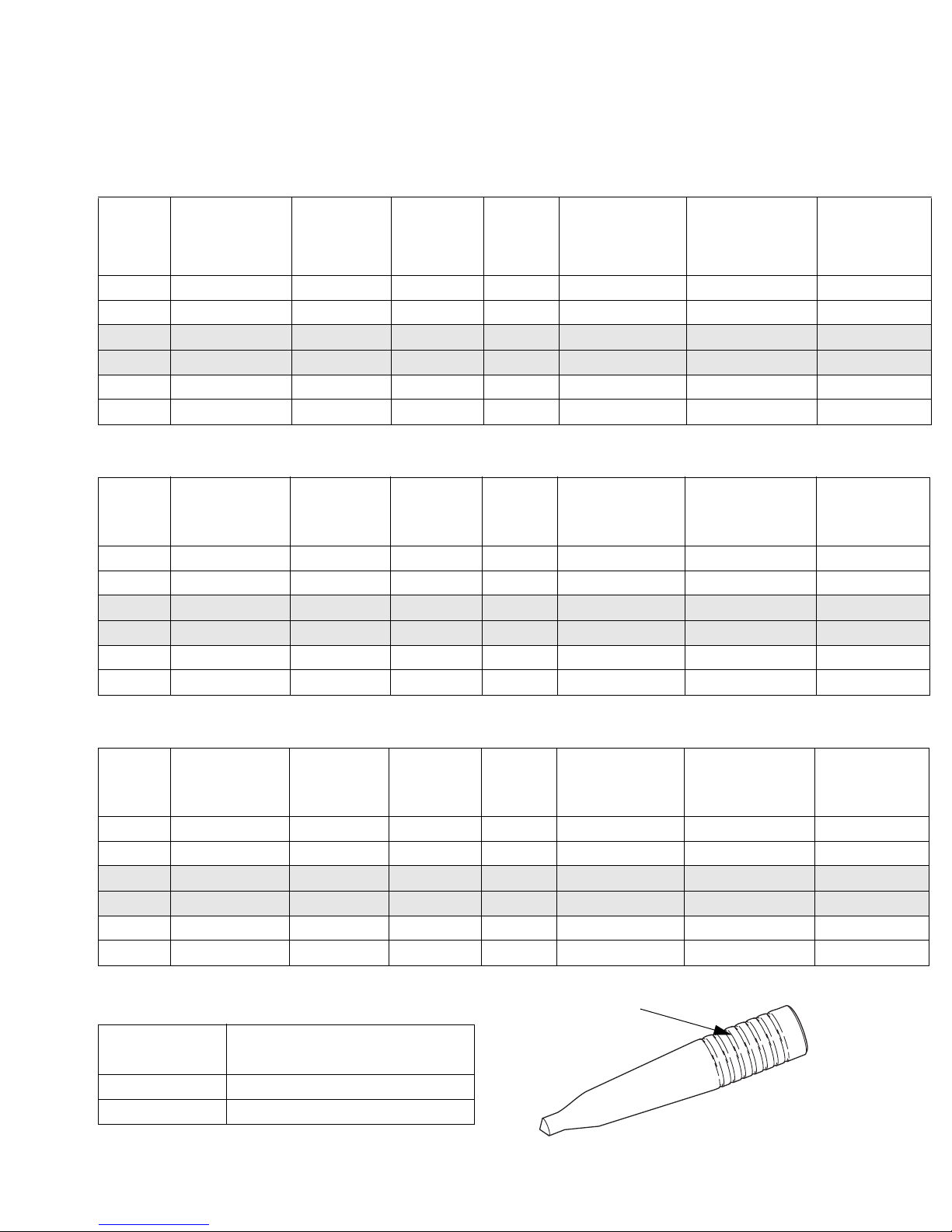

Ref. Part No. Description Qty.
1❄--- BODY, gun 1
3❄†--- GASKET, fluid inlet 1
4❄289792 FITTING, fluid inlet,
includes gasket
(item 3)
1
5 289796 VALVE, air control
assembly 1
6*★289039 VALVE, air, assembly 1
7* 289052 NUT, air valve, u-cup
assembly 1
8 289097 VALVE, fluid control 1
9 See p. 19 NEEDLE, assembly 1
9a --- NUT, needle 1
9b --- NEEDLE 1
9c See p. 19 TIP, needle 1
10 289140 TRIGGER 1
11 See p. 19 NOZZLE, fluid 1
13 See p. 19 AIR CAP, assembly
(includes 13a-13c) 1
13a★◆✓ --- WASHER 1
13b★◆✓ --- O-RING 1
13c See p. 19 AIR CAP 1
14✓--- RING, retaining 1
15★+--- SPREADER, u-cup 1
16★+--- PACKING, u-cup 1
17 289793 NUT 1
18✖--- WASHER, wave 1
19★111457 O-RING 1
20* --- PACKING, u-cup 1
21✖--- PIN, pivot 1
22✖--- NUT, pivot pin 1
23 289451 FITTING, air inlet 1
26• --- SPRING, compression 1
27 289142 VALVE, assembly,
air inlet 1
28* --- SPRING, compression 1
29 289794 TOOL, gun 1
33*★--- TOOL, installation,
seal 1
36 289452 NUT, air plug,
not assembled 1
37❖★ --- WASHER, uhmw 1
38 289770 CUP, gravity, 650 cc 1
38a 289195 FILTER, cup
(not shown)
Ref. Part No. Description Qty.

Accessories
18 312579H
Accessories
Cups
Repair Kits
Air Valves
Cleaning Kit
3M™PPS™Cups and Accessories
Test Gauge
Hoses
Tips
Part No. Description
289797 Cup, aluminum, 23 oz (650 cc)
289802 Cup, aluminum, 34 oz (1 liter)
289770 Cup, plastic, 23 oz (650 cc)
192407 Cup Holder
Part No. Description
289455 Needle Packing Repair Kit
289790 Gun Repair Kit
289791 Air Cap Seal Kit
289143 Trigger Repair Kit
289408 Air Valve Repair Kit
289213 Cup Gasket Kit, 10 pack
289079 Retaining Ring Kit
289022 Gun Handle Replacement Kit
24A560 Fluid Inlet Gasket Kit, 5 pack
24C310 Nozzle O-Ring Kit, 5-pack
Part No. Description
234784 Air Control Valve with Gauge
235119 Gun Air Regulator Assembly
239655 Swivel Air Valve
Part No. Description
105749 Cleaning Brush
111265 Gun Lubricant
15C161 Ultimate Gun Cleaning Kit
Part No. Description
234941 Cup and Collar, 6 oz, 8-pack
234771 Cup and Collar 25 oz, 8-pack
234937 Cup and Collar 32oz, 4-pack
234940 Lid and Liner, 6 oz, 50-pack
234772 Lid and Liner, 25 oz, 50-pack
234938 Lid and Liner, 32 oz, 25-pack
234942 Ratio Film, insert, 6 oz, 50-pack
15F531 Ratio Film, insert, 25 oz, 100-pack
234939 Ratio Film, insert, 32 oz, 100-pack
289486 Gravity Cup Assembly, 25 oz,
includes cup, collar, lid, liner, and
adapter
289795 Gravity Feed Adapter
15E470 Lid Dispenser
15E469 Liner Dispenser
15E467 Gun Tray
Part No. Description
289803 HVLP Verification
Part No. Description
239631 4 ft Air Whip Hose Assembly (5/16 in.)
239636 15 ft Air Hose Assembly (5/16 in.)
239637 25 ft Air Hose Assembly (5/16 in.)
Part No. Description
24E484 .030 SST Needle Tips (Pack of 5)

Repair Kits
312579H 19
Repair Kits
Without Gravity Cup
With Gravity Cup
With 3M PPS Cup
Needle Tips
Model Spray Type
Nozzle
Size
in. (mm)
Air Cap
Kit
(13a-13c)
Nozzle
Kit
(11, 19)
Needle
Assembly Kit
(9a-9c)
Needle/
Nozzle Kit
(9a-9c, 11, 19)
Needle Tip
Kit
(9c, 5-pack)
289002 Conventional 0.055 (1.4) 289773 289780 289799 289493 288185
289003 Conventional 0.070 (1.8) 289773 289767 289786 289494 289001
289005 HVLP 0.055 (1.4) 289771 289776 289786 289495 289001
289006 HVLP 0.070 (1.8) 289771 289801 289786 289496 289001
289008 Compliant 0.055 (1.4) 289772 289779 289799 289497 288185
289009 Compliant 0.070 (1.8) 289772 289559 289799 289498 288185
Model Spray Type
Nozzle Size
in. (mm)
Air Cap Kit
(13a-13c)
Nozzle
Kit
(11, 19)
Needle
Assembly Kit
(9a-9c)
Needle/ Nozzle
Kits
(9a-9c, 11, 19)
Needle Tip Kit
(9c, 5-pack))
289011 Conventional 0.055 (1.4) 289773 289780 289799 289493 288185
289012 Conventional 0.070 (1.8) 289773 289767 289786 289494 289001
289014 HVLP 0.055 (1.4) 289771 289776 289786 289495 289001
289015 HVLP 0.070 (1.8) 289771 289801 289786 289496 289001
289017 Compliant 0.055 (1.4) 289772 289779 289799 289497 288185
289018 Compliant 0.070 (1.8) 289772 289559 289799 289498 288185
Model Spray Type
Nozzle Size
in. (mm)
Air Cap Kit
(13a-13c)
Nozzle
Kit
(11, 19)
Needle
Assembly Kit
(9a-9c)
Needle/ Nozzle
Kits
(9a-9c, 11, 19)
Needle Tip Kit
(9c, 5-pack))
289020 Conventional 0.055 (1.4) 289773 289780 289799 289493 288185
289021 Conventional 0.070 (1.8) 289773 289767 289786 289494 289001
289023 HVLP 0.055 (1.4) 289771 289776 289786 289495 289001
289024 HVLP 0.070 (1.8) 289771 289801 289786 289496 289001
289026 Compliant 0.055 (1.4) 289772 289779 289799 289497 288185
289027 Compliant 0.070 (1.8) 289772 289559 289799 289498 288185
Grooves
Needle Tip Kit
(5-pack)
4 288185
7 289001
Grooves
ti14043a

Technical Data
20 312579H
Technical Data
* Produces 10 psi (0.07 MPa, 0.7 bar) spraying pressure at air cap.
** All readings were taken with the fan valve fully open (fan full size) at the assumed operator
position. Sound power was tested per ISO 9614-2.
Maximum Air Inlet Pressure . . . . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7 bar)
Maximum HVLP/Compliant Inbound Air Pressure:
HVLP gravity feed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 psi (0.2 MPa, 2.0 bar)*
Compliant gravity feed. . . . . . . . . . . . . . . . . . . . . . . . . . 35 psi (0.24 MPa, 2.4 bar)*
Air Consumption:
Conventional Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.3 CFM at 43 psi (0.3 MPa, 3.0 bar)
HVLP Gun. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.4 CFM at 29 psi (0.2 MPa, 2.0 bar)
Compliant Gun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.2 CFM at 35 psi (0.24 MPa, 2.4 bar)
Fluid and Air Operating Temperature Range 32°F to 109°F (0°C to 43°C)
Spray Gun:
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4 npsm (R1/4-19)
Weight with cup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3 lbs (0.6 kg)
Sound Data:
Conventional
Sound pressure at 43 psi (0.3 MPa, 3.0 bar). . . . . . . . 79.52 dB(A)**
Sound power at 43 psi (0.3 MPa, 3.0 bar). . . . . . . . . . 88.05 dB(A)**
HVLP
Sound pressure at 29 psi (0.2 MPa, 2.0 bar). . . . . . . . 83.9 dB(A)**
Sound power at 29 psi (0.2 MPa, 2.0 bar). . . . . . . . . . 90.8 dB(A)**
Compliant
Sound pressure at 35 psi (0.24 MPa, 2.4 bar). . . . . . . 81.8 dB(A)**
Sound power at 35 psi (0.24 MPa, 2.4 bar). . . . . . . . . 88.7 dB(A)**
Gravity Cup Size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 oz (0.68 liter) cup
Wetted Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 303 stainless steel, 17-4 PH stainless
steel, PEEK, acetal, UHMWPE
