GardenWize SWGSL231 User manual

Solar Round
Ball Fountain
with Battery Back-Up Solar Pump
SWGSL231
These instructions contain important information for using the product for the first time.
Please keep this instruction for later reference. They should always accompany the product
in the event of transfer a new user.
OVERVIEW
The solar pump is designed for fountain, pond
or outdoor use. In order for the solar pump to
operate, the solar panel needs to be in direct
sunlight.
This solar pump is equipped with battery pack and
can be switched on and off by a touch switch on
the control housing. In the evening, the built-in
white LEDs will light automatically.
CAUTION: Do not
strike the solar
panel. Do not let
the pump run dry
for long time.
Do not lift the
pump by the power
cord. Operate in
freshwater only.
Streetwize Accessories:
Unit 1, Royce Trading Estate, Ashburton Road West,
Trafford Park, Manchester M17 1RY
Sales enquiries: [email protected]
Technical enquiries: [email protected]
0161 447 8597
www.streetwizeaccessories.com
CLEANING & MAINTENANCE
Pump: lf, after a period of time, the pump starts to lose power or stops working check for the build
up of sediment, scale or dirt in the filter. Remove the pump cover and the impeller cover. Clean them
and the filter by fresh water.
Solar panel: The panel should be cleaned periodically with a soft tissue. Regular cleaning of
the panel is advised to maintain optimum conversion of the sun’s energy into direct current.
FUNCTIONALITY PROBLEMS
Pump does not operate even thought the solar module is in full sunlight.
- No connection to the solar module - check connection to the solar module.
- Impeller is blocked - To clean the pump, remove the front plate and the impeller.
Use a small brush or steam of water to remove any debris.
Pump does operate but there is no water running through the fountain head check for the build
up of sediment or scale in the tubes or the filter- clean the tubes and the filter.
TECHNICAL DATA
Solar Panel 2W LED Light 4pcs white LED light
Operation Voltage 6V DC Cable Length 5M
Water Flow Max. 200LPH Lithium Battery 3.7V 2000mAh
M17 1RY

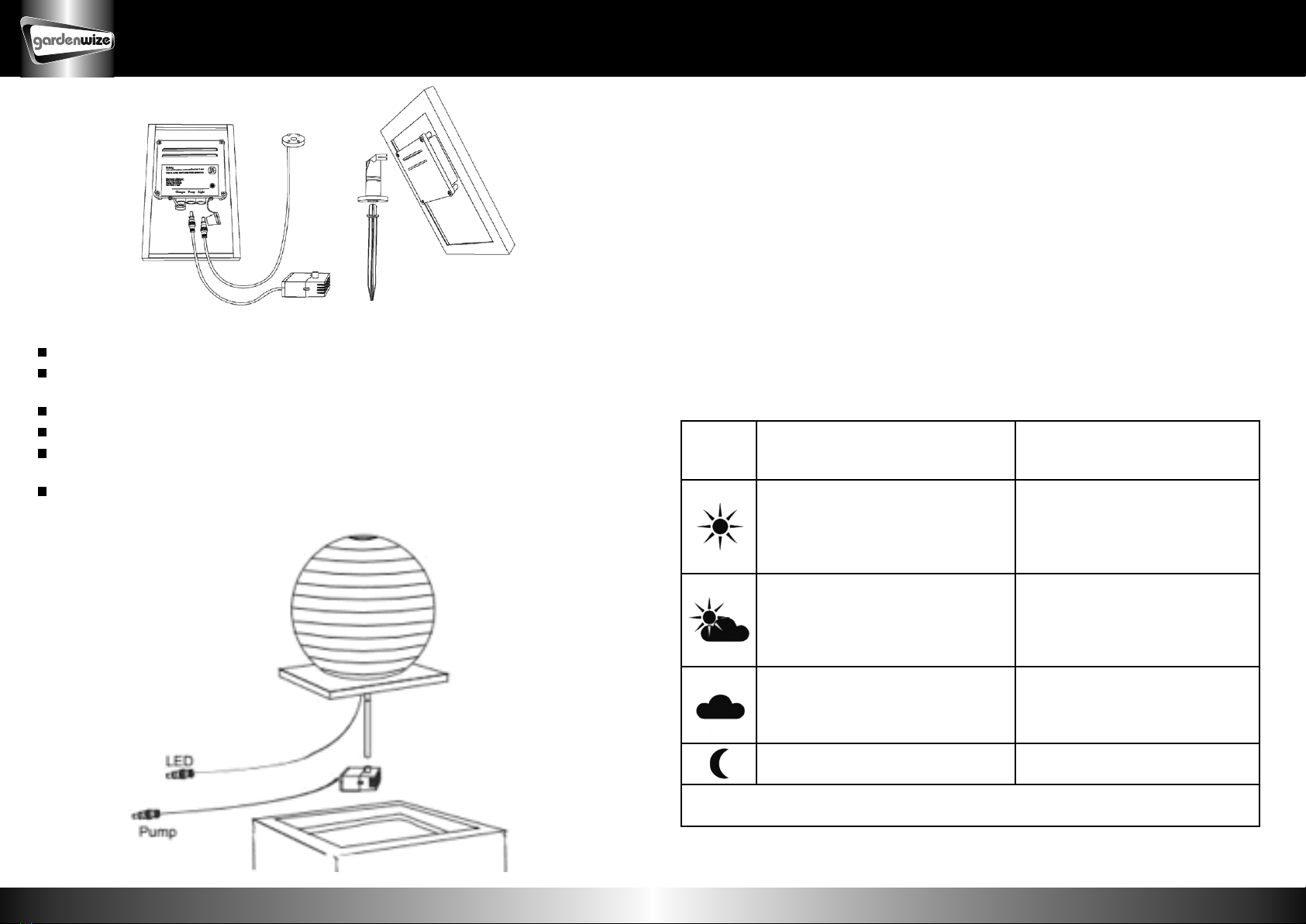

ASSEMBLING AND USING YOUR PRODUCT
Unpack all components carefully;
Connect the hose from the top jug to the vent of the pump and place the pump underwater and
make sure that, it is fully immersed in water;
Connect the pump cable to the socket of the control housing on the rear side of the solar panel;
Connect the LED light cable to the socket of the control housing;
Make sure direct sunlight shines on the solar module when selecting the right place for the solar
module. By this way the built-in battery will be charged.
The solar fountain is now ready to use.
OPERATING INSTRUCTIONS
This solar pump is designed primarily to operate in sunlight hours and always charge extra energy to
battery to allow use later “on demand” in cloudy day or night time. The pump will turn to solar mode
automatically on next day in sunlight hours. The pump will never run on battery mode until your press
the button.
Turn on the pump: short press the ON/OFF position to turn on the pump, the pump will run
certain hours (refer to battery status) and turn to solar mode automatically. The pump will operate
automatically next day in direct sunlight.
Charge the battery: press and hold on 3 seconds to turn OFF the pump and charge the full solar
energy to battery during day time, turn on the pump when you need it (on demand).
Battery status:
Green: battery is full charged. Pump will run around 6-8 hours.
Orange: battery is half charged. Pump will run around 2-6 hours.
Red: battery needs charges. Pump will run less than 1 hour.
(Note: In order to protect battery, don’t manually turn on the pump frequently)
Note: The indicator light is solid when charging battery.
PUMP PERFORMANCE IN DIFFERENT WEATHER CONDITION:
Weather 1. Pump on
2. Charge extra solar energy to
battery
1. Pump off
2. Charge full solar energy to
battery
Solar runs the pump and charges
the battery. Pump performance is
maintained when the clouds pass.
Pump runs on fully half an hour longer
into the evening.
Battery should be fully charged in 1
day.
Solar runs the pump and supplies extra
energy to the battery. Performance
is maintained when the clouds pass.
Pump will only run a shorter period of
time into the evening.
Battery will take 2 to 3 days to fully
charge.
Pump will only run when there is
sufficient power from the battery. Little
or no battery charging occurs so pump
performance is not maintained.
Battery will take several days to fully
charge.
No solar power is available, pump will
not run and battery will not charge.
Battery will not charge.
If the pump stops running when cloudy or night, and you want to force the pump running for
certain hours, short press to turn on the pump, the pump will run hours until battery flat.
