Garland EC0-E-20 User manual

FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
ELECTRIC CONVECTION OVENS
Models: ECO-E10, EC0-E-20,
ICO-E10, ICO-E-20
Toll Free Phone, (US & Canada): [phone]
Toll Free Fax, (US & Canada): [phone]
http://www.garland-group.com

Page 2 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)

Page 3FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
ELECTRIC CONVECTION OVENS
Models: ECO-E10, EC0-E-20,
ICO-E10, ICO-E-20
Contents:
Control Panel Up to 7/25/94 ....................................................................................................... Page 4
Two Key Control Panel After 8/12/94 .......................................................................................... Page 6
Door Components ...................................................................................................................... Page 8
Oven Components .................................................................................................................... Page 10
Main Exterior ............................................................................................................................ Page 12
Revision History ........................................................................................................................ Page 17

Page 4 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
ICO/ECO
CONTROL PANELS
Up to 7/25/94
PS93-06 REV. 0
ELECTRONIC CONTROL
MANUAL CONTROL

Page 5FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Control Panels Electric
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
Manual Controls
11657901 Control Panel 1 1 17 Nov. 92
1719801 Control Panel 1 1 17 Nov. 92
31657902 Overlay 1-Speed 1 1
1657904 Overlay 2-Speed 1 1
5 1006493 Pilot Light Green 1 1
6 1006498 Pilot Light Amber 1 1
71019203 Switch 1 - Speed 1 1
1019207 Switch 2 - Speed 1 1
8 1019209 Switch 1 1
9 1181000 Momentary Push Switch 1 1
10 1749201 Panel Bracket 1 1
11 1314001 Dial 2 2
1314121 Insert 2 2
13 1285701 1 Hour Timer 230V 1 1
1258601 12 Hour Timer 230V 1 1
14 1032400 Thermostat 1 1
* 9005400 Mercury Contactor 1 1
Electronic Control
2
1657799 2 Key & 8 Key Panel 1 1 17 Nov. 92
1657798 Cook’N Hold Panel 1 1 17 Nov. 92
1719899 2 Key & 8 Key Panel 1 1 17 Nov. 92 25 Jul. 94
1719898 Cook’N Hold Panel 1 1 17 Nov. 92 25 Jul. 94
4
1657702 Overlay 2 Key 1 Speed (Long Overlay) 1 1 Jun. 90 Aug. 94
1657704 Overlay 2 Key 2 Speed (Long Overlay) 1 1 Jun. 90 Aug. 94
1657706 Overlay 8 Key 1 Speed (Long Overlay) 1 1 Jun. 90
1657710 Overlay 8 Key 2 Speed (Long Overlay) 1 1 Jun. 90
1657710 Overlay Cook ‘N’ Hold (Long Overlay) 1 1 Jun. 90
1399000 2 Key Overlay (Short) 1 1 Jun. 90
1399100 8 Key Overlay (Short) 1 1 Jun. 90
1541600 12 Key Overlay 1 1 Jun. 90
5 1006498 Amber Pilot Light 28V 1 1
71019203 Switch - 1 Speed 1 1
1019207 Switch - 2 Speed 1 1
8 1019209 Switch 1 1
9 1018100 Momentary Push Switch 1 1
10 1749201 Panel Bracket 1 1
12 9007200 Knob 2 2
15
1517704 Controller 2 Key 1 1 Jul. 94
1517706 Controller 2 Key 1 1 Jul. 94
1544801 Controller Cook ‘N’ Hold 1 1
16 9006800 Temperature Probe 1 1
17 1516600 Key Lock 1 1
* 9005400 Mercury Contractor 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 6 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
ICO/ECO
TWO KEY CONTROL PANEL
AFTER 8/12/94
PS94-15 REV. 0

Page 7FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Two Key Control Panel
(After 8/12/94)
ITEM PART # DESCRIPTION QUANTITY
ECO ICO
1 1719897 Control Panel 1 1
2 1657712 Overlay - @ Speed 1 1
31270000 Amber Pilot Light (Gas) 1 1
1006498 Amber Pilot Light (Electric) 1 1
4 1019207 Rocker Switch - 3 Position 1 1
5 1019209 Rocker Switch - 3 Position 1 1
6 1720501 Knob 2 2
7 1749201 Panel Bracket 1 1
8 1181000 Momentary Push Switch 1 1
91517706 2 Bottom Controller - Gas 1 1
1517707 2 Bottom Controller - Electric 1 1
10 9006800 Prob 1 1
11 1771601 Relay - 120V - Gas 1 1
1771602 Relay - 240V - Electric 1 1
12 1269800 Transformer - Gas 1 1
13 1516300 Module - Propane Gas 1 1
1516301 Module - Natural Gas 1 1
14 1774702 Module Mounting Bracket 1 1
15 1774701 Module Mounting Plate 1 1
16 1671100 Polar Fan - 115V - Gas 1 1
1671101 Polar Fan - 230V - Electric 1 1
17 1774402 Cooling Fan Mounting Bracket 1 1
* 90020991 Thermistor 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 8 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
ICO/ECO
RIGHT AND LEFT DOOR COMPONENTS
PS93-02 REV 0

Page 9FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Control Panels Electric
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
1029279 Left Door Assy With Window 1 1
1029277 Left Door Assy Solid (Opt.) 1 1
1029278 Right Door Assy Soild 1 1
1029276 Right Door Assy With Window (Opt.) 1 1
1 1016700 Oven Door Handle 1 1
2 1016702 Oven Door Handle End (Top) 1 1
3 1016701 Oven Door Handle End (Bottom) 1 1
4 1016703 Oven Door Spacer 2 2
51011605 Left Oven Door Panel (W/Window) 1 1
1011606 Left Oven Door Panel (Solid)
6 1011707 Handle Spacer Tubing 2 2
7 1021904 Door Catch (Mounted on Door) 1 1
8 1021902 Door Catch (Mounted on Frame) 1 1
9 1010999 Oven Door Window 1 1
10 1011895 Left Door Frame 1 1
11 1019701 Roller Pin 1 1
12 1302800 Upper Door Bearing Retainer 2 2
13 1010589 Hinge Bracket Assembly with Bearing 2 2
14 1011201 Steel Tubing Chrome Spacer 2 2
15 1011799 Left Door Liner Assembly With Window 1 1
1011798 Left Door Liner Assembly Solid 1 1
16 8004004 Allen Head Cap Screw 1/4 - 20 x 3-3/16 2 2
17 1011402 Right Door Panel Solid 1 1
1011403 Right Door Panel With Window
18 1011897 Right Door Frame Solid 1 1
1011896 Right Door Frame With Window 1 1
19 1011502 Right Door Liner Solid 1 1
1011599 Right Door Liner With Window
20 1014201 Left Door Rod (Short) 2 2
21 1014200 Right Door Rod (Long) 2 2
22 1021100 Roller Chain 2 2
23 1015000 Turnbuckle 2 2
24 1019600 Micro Switch 1 1
25 1533400 Micro Switch Cover (Insulation Paper) 1 1
26 1533800 Micro Switch Bracket 1 1
27 1581600 Top Door Seal 1 1
28 1581601 Slide Door Seals 2 2 17 Nov. 92
1581601 Left Side Seal Only 1 1 17 Nov. 92
29 1534500 Bottom Door Seal 1 1
30 1304201 Side Door Bracket 2 2 17 Nov. 92
1304201 Left Side Door Bracket Only 1 1 17 Nov. 92
31 1304202 Top Door Bracket 1 1
32 1719001 Right Door Seal 1 1 17 Nov. 92
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 10 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
ICO/ECO

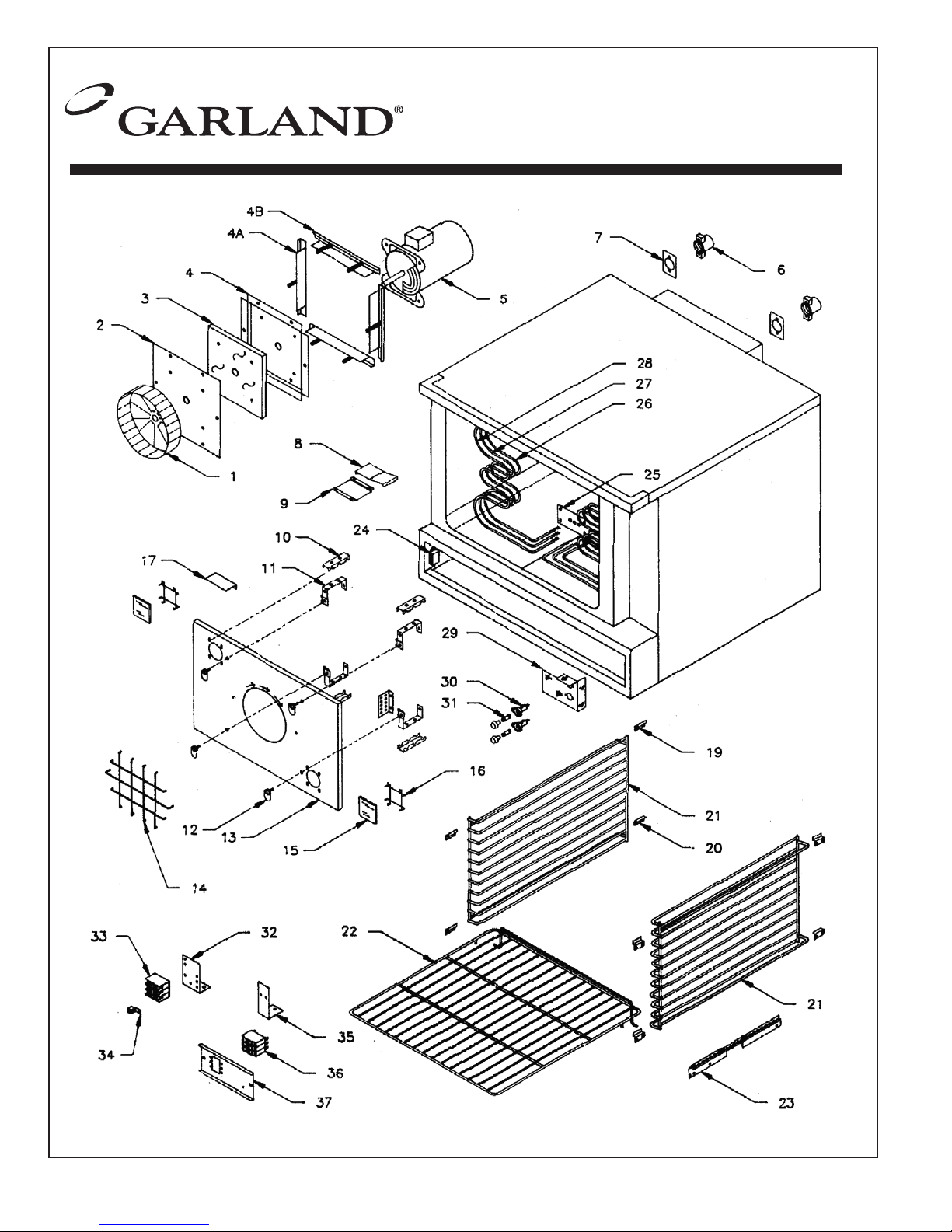

OVEN COMPONENTS - ELECTRIC
PS93-09 REV 0

Page 11FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Oven Components
Electric
ITEM PART # DESCRIPTION QUANTITY Date
ECO ICO FROM UP TO
1 1025302 Blower Wheel 1 1
2 1011906 Motor Mount Plate 1 1
3 1012100 Insulation (Marinite) 1 1
4 1012000 Motor Mount 1 1
4A 1012498 Motor Mount Brace - Side 2 2
4B 1012499 Motor Mount Brace - Top & Bottom 2 2
51686703 Motor 1/2 HP 1 Speed 1 1
1686702 Motor 1/2 HP 2 Speed 1 1
*1003099 Motor Assy (Items 1, 2, 3, 4, 5) 1 Speed
1003904 Motor Assy (Items 1, 2, 3, 4, 5) 2 Speed
6 1025800 Lamp Socket Porcelain 2 2
71025900 Lamp Socket Gasket 2 2
1026050 Lamp Bulb 2 2
8 1300900 Vent Slid Housing 1 1
9 1300901 Vent Slide 1 1
10 1547600 Element Clamp 4 4
11 1547200 Air Baffle Spacer Button 4 4
12
8005000 1/4 Turn Pin 4 4 Jun. 88
8995199 1/4 Turn Pin Receptacle
1031901 Thumb Screws Jun. 88
13
1539899 Air Baffle Assembly GCE
1539898 Air Baffle Assembly CC (Optional)
1539896 Air Baffle Assembly SS (Optional)
14 1014500 Blower Inlet Cover 1 1
15 9004800 Glass Light Cover 2 2
16 1534400 Glass Retainer 2 2
17 1547500 Air Vane Top 1 1
1547400 Air Vane Center 1 1
19 1317600 Rack Guide Clip (Upper) 4 4
20 1317601 Rack Guide Clip (Lower) 4 4
21 1315700 Rack Guide 2
1315701 Rack Guide - Deep 2
22 1012600 Oven Rack 5
1012700 Oven Rack - Deep 5
23 1015799 Capillary Tube Guard 1 1
24 1020101 Magnetic Catch 2 2
25 1025400 Rear Element Cover SS 1 1
1025401 Rear Element Cover SS 460V
26
1011097 Element Rear 208 V 1 1
1011094 Element Rear 236 V 1 1
1011088 Element Rear 460 V 1 1
27
1011098 Element Center 208 V 1 1
1011095 Element Center 236 V 1 1
1011096 Element Center 460 V 1 1
28
1011099 Element Front 208 V 1 1
1011096 Element Front 236 V 1 1
1011090 Element Front 460 V 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 12 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Oven Components
Electric
ITEM PART # DESCRIPTION QUANTITY DATE
ECO ICO FROM UP TO
*
1032199 Element Assembly 208 V
1032198 Element Assembly 236 V
1032197 Element Assembly 460 V
29 1535000 Wire Shield 1 1
30 1130102 Fuse Holder 2 2
31 1130103 Fuse 2 2
32 1081022 Terminal Block Mounting Bracket 1 1
33 1193900 Terminal Block 1 1
34 1028400 Ground Lug 1 1
35 1267900 Load Control Panel Brace 1 1
36 1026200 Circuit Breaker 1 1
1026201 Circuit Breaker 460 V
37 1268210 Circuit Breaker Bracket 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 13FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
NOTES

Page 14 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
IC0/ECO

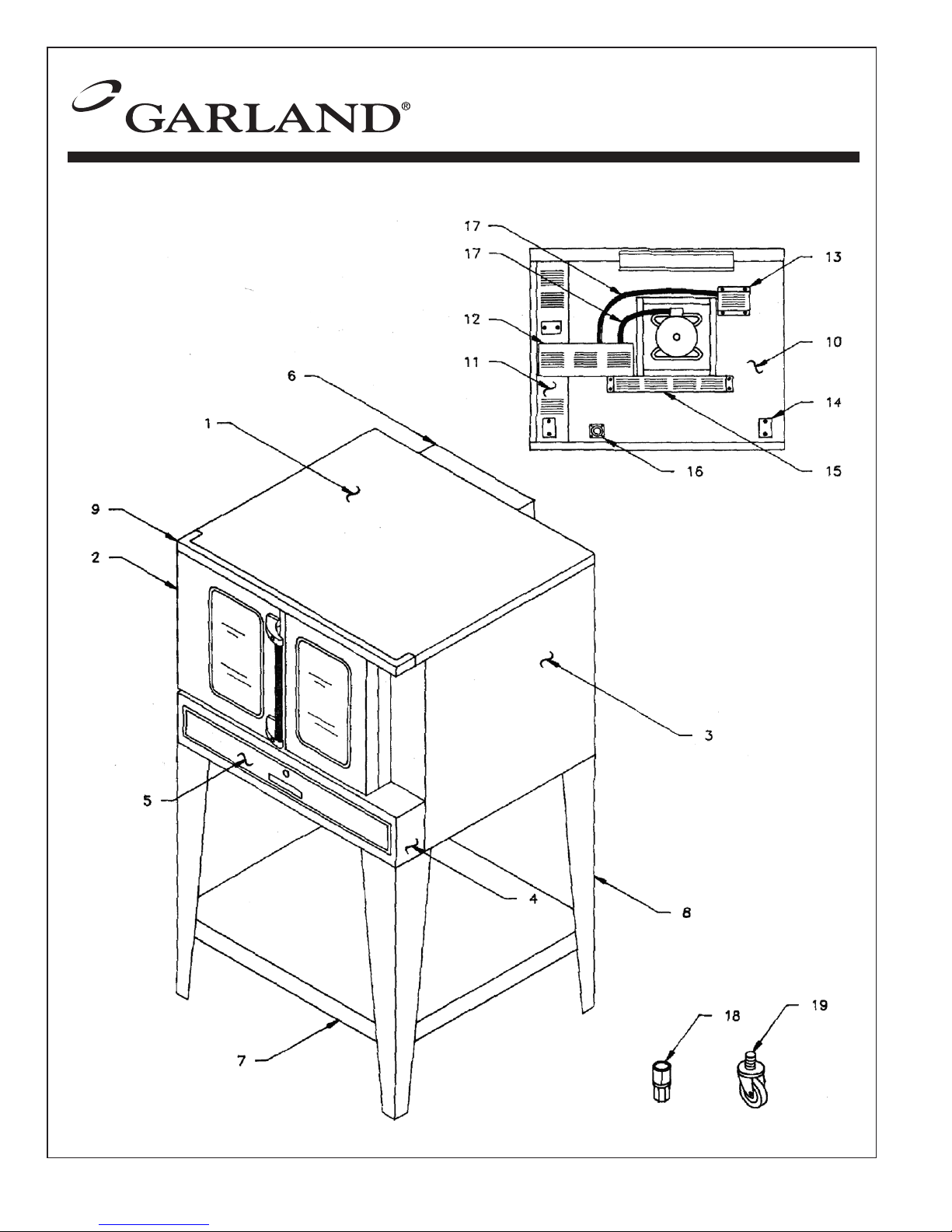

MAIN EXTERIOR - ELECTRIC
PS93-08 REV 0
REAR VIEW

Page 15FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Main Exterior
Electric
ITEM PART # DESCRIPTION QUANTITY Date
ECO ICO FROM UP TO
1
1300603 Main Top Standard - CR 1
1300602 Main Top Standard - SS 1
1300601 Main Top Deep - CR 1
1300600 Main Top Deep - SS 1
2
1300504 Left Body Side - Painted 1
1300505 Left Body Side - SS 1
1300502 Left Body Side - Deep - Painted 1
1300503 Left Body Side - Deep - SS 1
3
1300504 Right Body Side Painted 1 Nov. 92
1300505 Right Body Side - SS 1 Nov. 92
1300506 Right Body Side - Painted 1 Nov. 92
1300507 Right Body Side - SS 1 Nov. 92
1300502 Right Body Side - Painted 1 Nov. 92
1300503 Right Body Side - SS 1 Nov. 92
1300508 Right Body Side - Painted 1 Nov. 92
1300509 Right Body Side - SS 1 Nov. 92
41301899 Combustion Chamber Assembly 1 1 Nov. 92
1721099 Combustion Chamber Assembly 1 1 Nov. 92
5 1301803 Combustion Chamber Door 1 1
6 1024700 Vent Cover 1 1
7
1684203 Lower Rack Support - Painted 1 May 93
1684204 Lower Rack Support - SS 1 May 93
1684205 Lower Rack Support - Painted 1 May 93
1684206 Lower Rack Support - SS 1 May 93
1756203 Lower Rack Support - Painted 1 May 93
1756204 Lower Rack Support - SS 1 May 93
1756205 Lower Rack Support - Painted 1 May 93
1756206 Lower Rack Support - SS 1 May 93
8
1684789 Leg Assy - Painted - Single Deck 4 4 May 93
1684788 Leg Assy - SS - Single Deck 4 4 May 93
1300793 Leg Assy - Painted - Double Deck 4 4 May 93
1300790 Leg Assy - SS Double Deck 4 4 May 93
1753299 Leg Assy - Painted - Single Deck 4 4 May 93
1753298 Leg Assy - SS - Single Deck 4 4 May 93
1753399 Leg Assy - Painted - Double Deck 4 4 May 93
1753398 Leg Assy - SS - Double Deck 4 4 May 93
9
1301100 Main Top Front Veneer 1 1
1302600 Main Top Side Veneer 2
1302601 Main Top Side Veneer Deep 2
10 1014710 Main Back 1 1
11 1015508 Rear Control Panel Selection 1 1
12 1014813 Junction Box Cover 1 1
13 1014809 Light Box Cover 1 1
14 1046500 Rear Patch 3 3
15 1046500 Element Box Assembly 1 1
16 1032500 Knock Out Plate 1 1
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 16 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
ECO/ICO Main Exterior
Electric
ITEM PART # DESCRIPTION QUANTITY Date
ECO ICO FROM UP TO
17
1029430 BX Cable 2 2
1028501 BX Cable Straight Connector 3/8 2 2
1028500 BX Cable 90 Degree Connector 3/8 1 1
18 1236100 Square Foot Insert 4 4
19
1027500 Caster Without Brake 2 2
1027501 Cater With Brake 2 2
1303597 Caster Pads - Painted - Single Deck 4 4
1303596 Caster Pads - SS - Single Deck
1302099 Caster Pads - Painted Double Deck May 93
1755999 Caster Pads - Painted - Double Deck May 93
1755998 Caster Pads - SS Double Deck May 93
* NOT ILLUSTRATED
RECOMMENDED STOCK PARTS

Page 17FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
GARLAND PARTS IDENTIFICATION
Revision History
REV. # PAGE # ITEM # NOTE DATE
1 3 Index Updated Entire Book Reworked Jan 29/04

Page 18 FORM # ECO/ICO-E10 Electric Convection Ovens (Rev1)
NOTES

Page 19FORM # ECO/ICO E-10 Electric Convection Ovens (Rev1)
NOTES
