Getting Started
 WARNING
See the Important Safety and Product
Information guide in the product
box for product warnings and other
important information.
Before you use your device for the
rst time, you should complete these
tasks.
1. Mount the device (page 2).
2. Register the device (page 4).
3. Check for updates:
• Software updates (page 4).
• Free map update (page 5).
4. Download the full owner’s manual
(page 5).
5. Enter a truck or RV prole
(page 6).
Mounting the Device
 WARNING
This product contains a lithium-ion
battery. To prevent the possibility of
personal injury or product damage
caused by battery exposure to extreme
heat, remove the device from the
vehicle when exiting or store it out of
direct sunlight.
Before you use your device on battery
power, you should charge it.

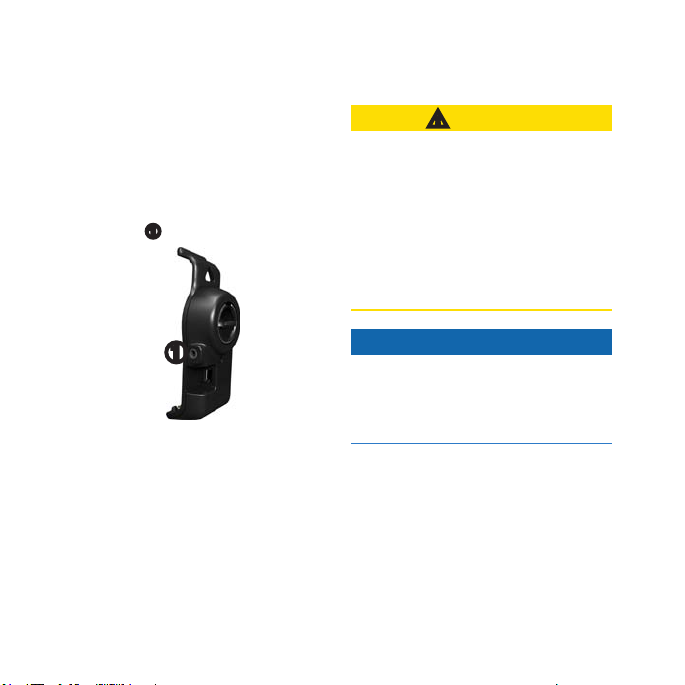

1. Plug the vehicle power cable ➊
into the mini-USB connector ➋
on the cradle ➌ .
➋
➊
➌
➍

dēzl560QuickStartManual EN-3

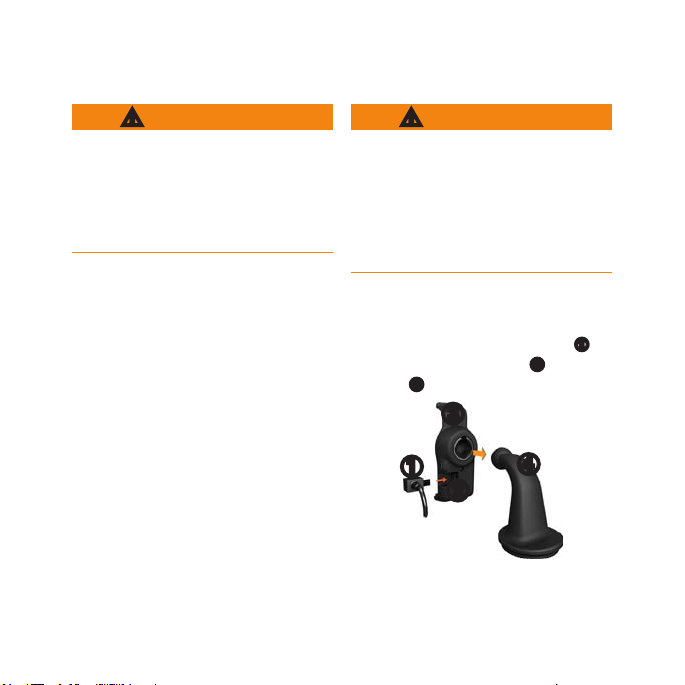

2. Snap the cradle onto the arm ➍ .
3. Slide the locking lever ➎ on the
base to the unlocked position.
➎
4. Slide the disk on the bottom
of the arm into the base until it
clicks.
5. Slide the locking lever to the
locked position.
6. Fit the bottom of the device into
the cradle.
7. Tilt the device ➏ back until it
snaps.
➏
8. Plug the other end of the vehicle
power cable into a power outlet in
your vehicle.
After you have connected the
device to vehicle power, the
following occurs.
• The device turns on.
• The device acquires satellite
signals. When at least one of
the bars is green, your
device has acquired satellite
signals.
NOTE: The device may need
a clear view of the sky to
acquire satellite signals.

EN-4 dēzl560QuickStartManual
• The device charges as you
drive. in the status bar
indicates the status of the
internal battery.
About myDashboard
Use myDashboard to register your
device, check for software and map
updates, access product manuals and
support, and more.
Setting Up myDashboard

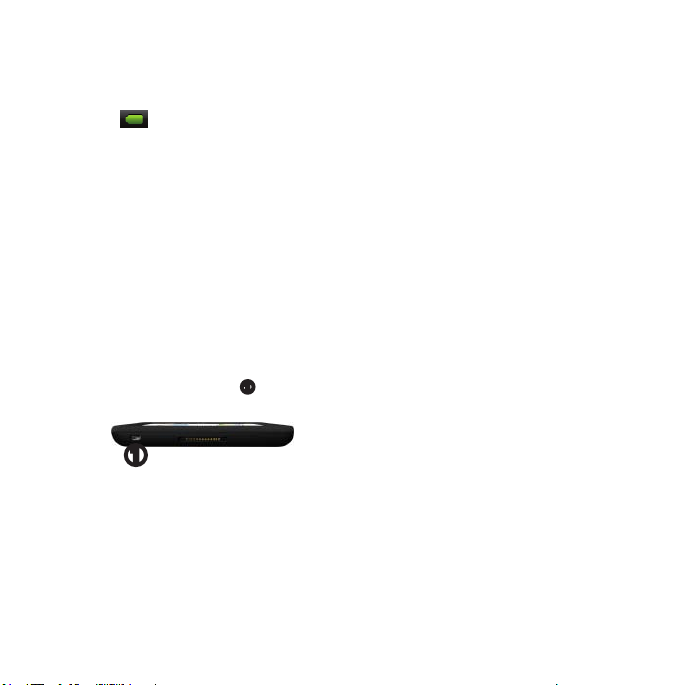

1. Connect the USB cable to the
micro-USB connector ➊ on the
device.
➊
2. Connect the USB cable to the
USB port on your computer.
3. Go to www.garmin.com
/dashboard.
4. Follow the on-screen instructions.
Registering the Device
1. From myDashboard, click
Register Now.
2. Follow the on-screen instructions.
3. Keep the original sales receipt, or
a photocopy, in a safe place.
Updating the Software
1. Open myDashboard (page 4).
2. If necessary, under Software
Updates, click Update Now.
3. Follow the on-screen instructions.

dēzl560QuickStartManual EN-5
nüMaps Guarantee™
Your device is eligible for one
free map update within 60 days of
acquiring satellites while driving with
your device. You are not eligible for
the free map update if you register
by phone or wait longer than 60
days after the rst time you acquire
satellites while driving with your
device. For more information, go to
www.garmin.com/numaps.
Updating Maps
1. Open myDashboard (page 4).
2. Register the device (page 4).
3. If necessary, under Map Updates,
click Update Now.
4. Follow the on-screen instructions.
Downloading the Owner’s
Manual
The owner’s manual for your device
is available on the Garmin Web site.
The owner’s manual for the dēzl
includes more information about the
device features for semi-trailer trucks
and RVs.
1. Open myDashboard (page 4).
2. Click Manuals.
3. Click Download next to the
manual you want.
4. Click to save the le to your
computer.

EN-6 dēzl560QuickStartManual
Entering a Truck or RV
Prole
 WARNING
Entering your vehicle prole does
not guarantee that your vehicle’s
characteristics will be accounted for
in all route suggestions. It is your
responsibility to account for your
vehicle’s height, length, weight,
and other relevant restrictions when
driving. Always defer to all posted
road signs and road conditions when
making driving decisions.
Before you can operate in Truck or
RV mode, you must enter your truck
or RV prole.
Truck transportation mode is selected
the rst time you turn on your device.
You can select Switch Mode to enter
an RV prole.
1. When the warning screen appears,
touch Agree.
2. Touch Yes to enter your truck
prole.
3. Follow the on-screen instructions.

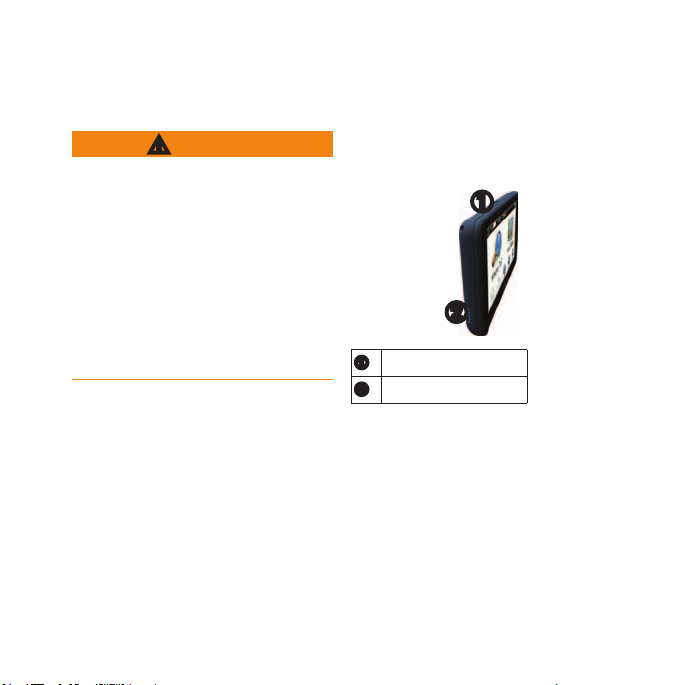

Device Overview
➊
➋
➊
Power key
➋
microSD
™
card slot
Resetting the Device
You can reset the device if it stops
functioning.
1. Hold the Power key for 8 seconds,
and release it.
The device turns off.

dēzl560QuickStartManual EN-7
2. Wait 1 second.
3. If the device is using battery
power, press and release the
Power key.

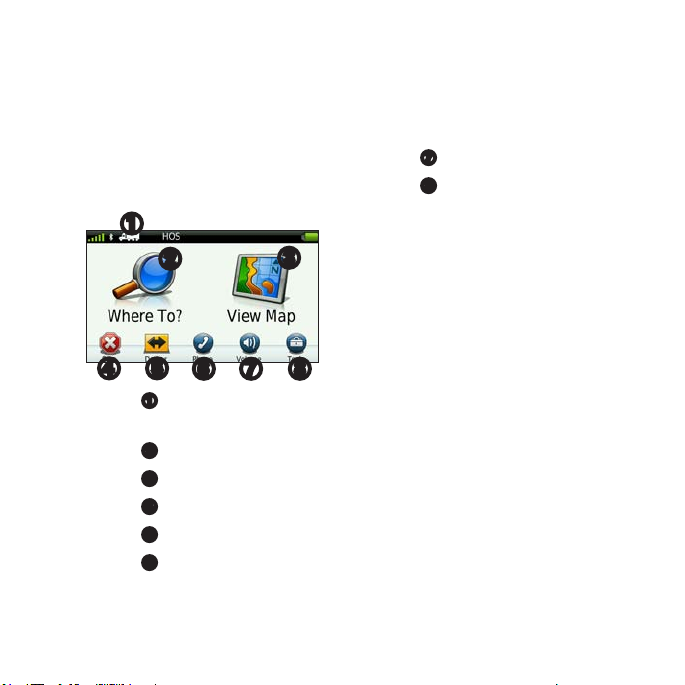

Using the Main Menu
➊
➋➌
➍➐ ➑ ➎➏
• Touch ➊ to select a transportation
mode.
• Touch ➋ to nd a destination.
• Touch ➌ to view the map.
• Touch ➍ to stop a route.
• Touch ➎ to detour a route.
• Touch ➏ to make a call when
connected to a compatible mobile
phone.
Go to www.garmin.com/bluetooth
for information.
• Touch
➐ to adjust the volume.
• Touch ➑ to open the menu of
tools and settings.
Finding Trucking Points
of Interest
The detailed maps loaded in your
device contain trucking points of
interest, such as rest areas, truck
stops, and weigh stations.
1. From the main menu, touch
Where To? > Points of Interest >
Trucking.
2. Select a category.
3. If necessary, select a subcategory.
4. Select a destination.
5. Touch Go!.

EN-8 dēzl560QuickStartManual
Using Exit Services
You can nd services such as fuel,
food, lodging, rest areas, vehicle
repair, truck stops, and weigh stations
at upcoming highway exits. The
device displays available services
based on the usage mode. Exit
service information is available only
on controlled access roads, such as
interstates.
NOTE: Exit services are not available
for Pedestrian mode.
1. While navigating a route, from the
main menu, touch Where To? >
Exit Services.
2. Select an option.
Following Your Route
notice
The speed limit icon feature is for
information only and does not replace
the driver’s responsibility to abide
by all posted speed limit signs and to
use safe driving judgment at all times.
Garmin will not be responsible for
any trafc nes or citations that you
may receive for failing to follow all
applicable trafc laws and signs.
Your route is marked with a magenta
line on the map. If you depart from
the original route, your device
recalculates the route. A speed limit
icon could appear as you travel on
major roadways.
When you are driving in Truck mode
or RV mode, a tone may sound
and may appear, indicating that
truck suitability for this roadway is
unknown. Always obey posted signs

dēzl560QuickStartManual EN-9
and regulations.
➊➋
➌
➍➎ ➏
➐➑➒➓
• Touch ➊ to view the next turn.
The turn indicator also tells you
which lane you should be in to
prepare for your next maneuver,
when available.
• Touch ➋ to view the turn list.
• Touch ➌ to zoom in and zoom
out.
• Touch ➍ to view warning
information, when available
(page 6).
• Touch
➎ to view information
about the location.
• Touch and drag ➏ to view a
different area of the map.
• Touch ➐ to return to the main
menu.
• Touch and hold ➐ from any
screen to return to the main menu.
• Touch ➑ to display a different
data eld.
• Touch ➒ to view trip information.
• Touch ➓ to change the speed limit
if the speed limit icon shown on
the map is incorrect.
This icon displays an indicator for
a truck speed limit.

EN-10 dēzl560QuickStartManual
Using a Backup Camera
If a composite video backup camera
has been installed in your vehicle, you
can view the output of the camera on
your device.
Connect the camera to the video-
in jack ➊ on the cradle.
➊
The camera output appears when a
video signal is present.
About Trafc
 CAUTION
If you choose to recalculate your
route when you are navigating in
Truck mode, the recalculated route
might include roads that have not
been veried for truck accessibility.
You should use caution and good
judgment and obey all posted signs
and regulations.
notice
Garmin is not responsible for the
accuracy or timeliness of the trafc
information. Trafc information is not
available in all areas.
Your device can receive FM Trafc
Message Channel (TMC) trafc
content. The FM TMC trafc
subscription is automatically enabled
and does not require an additional
subscription purchase to activate. The
FM TMC trafc receiver is integrated
