Garmin nuvi 1300 Series Instruction manual

•
GARMINe
nOvi® 1300 series
quick start manual
© 2009 Garmin Ltd. or its subsidiaries
190-01050-01 Rev. A Printed in Taiwan
·th these nOVi mooelS:
for use WI
--~-:-~1300,1310 1340,1350,137 1 lI..,P1'1~~
March 2009

4:1 .
Where To?
o GPS satellite strength.
8 Bluetooth® technology status.
@) Touch to select a usage mode.
o Current time. Touch to change
time settings.
@) Battery status.
o Touch to find a destination.
o Touch to view the map.
o Touch to make a call when
connected to a compatible
mobile phone.
@) Touch to adjust the volume.
@ Touch to use the tools such as
settings and Help.
nOvi 1300 Series QUick Start Manual
Mini-USB
connector
microSD™
card slot
Microphone
Speaker
Power button:
Press to turn the nOvi on and off.
•
See the Important Safety and Product
Information guide in the product box for
product warnings and other important
information.
2

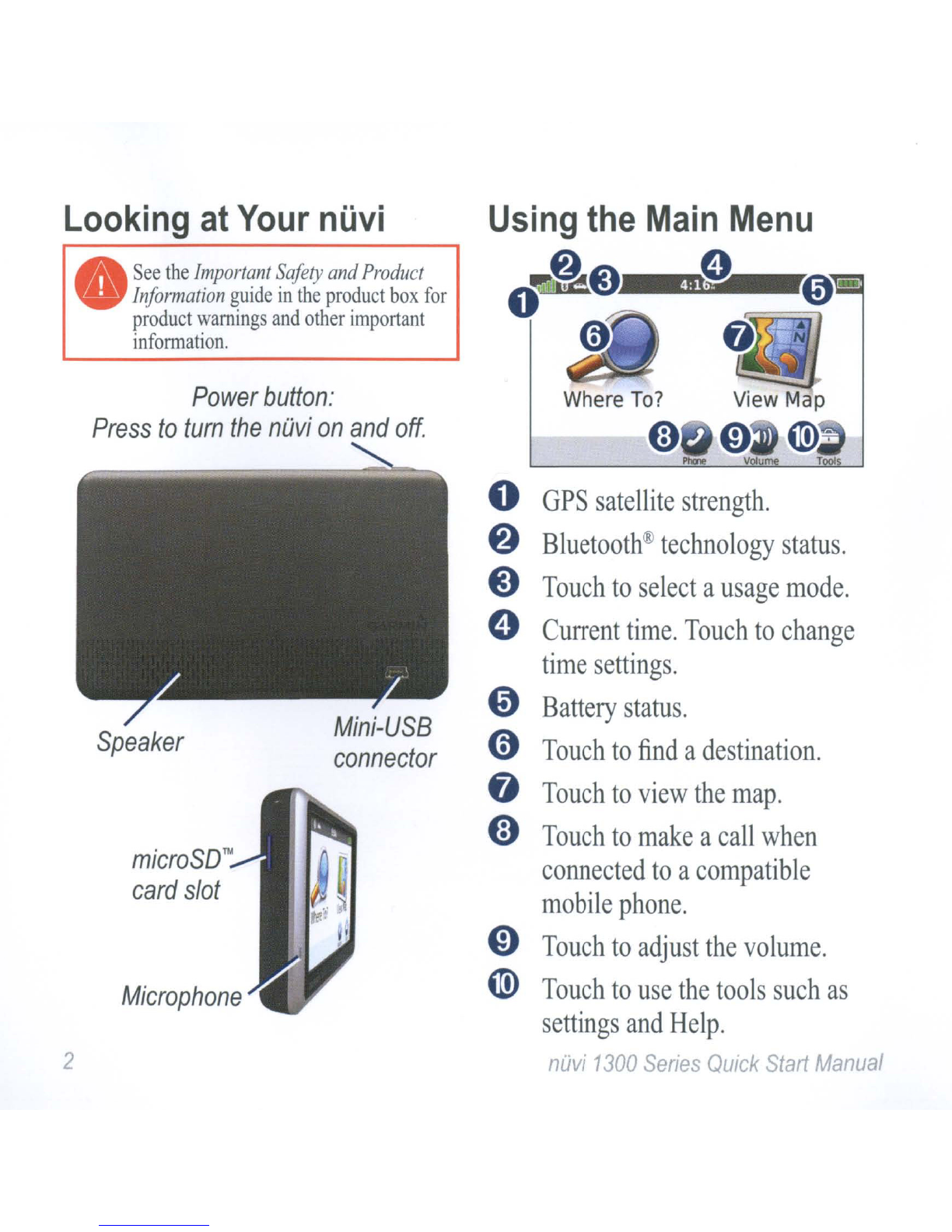

Looking at Your nuvi

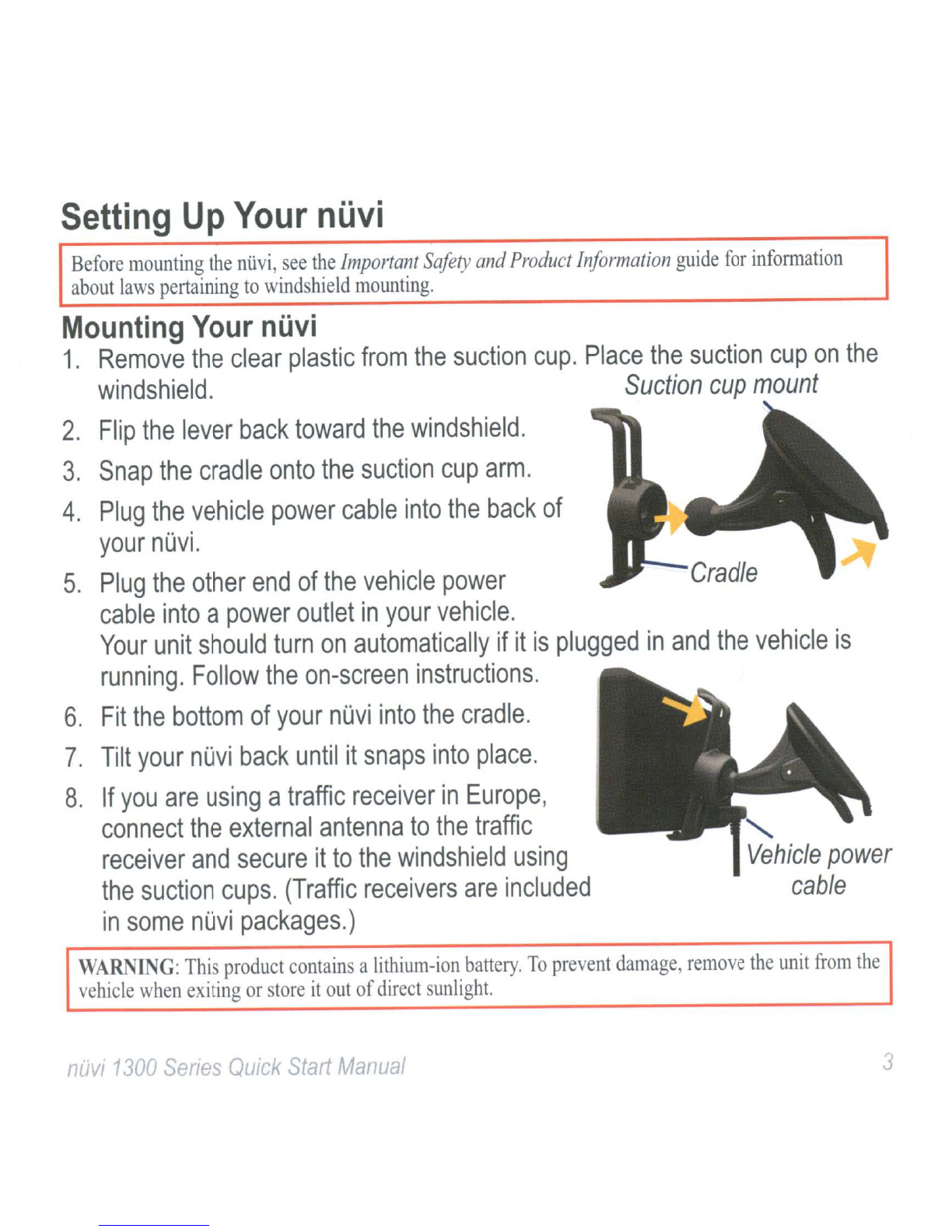

Setting Up Your nuvi
Before mounting the ntivi, see the Important Safety and Product Information guide for information
about laws pertaining to windshield mounting.
Cradle
"-
Vehicle power
cable
Mounting Your nuvi
1. Remove the clear plastic from the suction cup. Place the suction cup on the
windshield. Suction cup mount
2. Flip the lever back toward the windshield.
3. Snap the cradle onto the suction cup arm.
4. Plug the vehicle power cable into the back of
your nuvi.
5. Plug the other end of the vehicle power
cable into a power outlet in your vehicle.
Your unit should turn on automatically if it is plugged in and the vehicle is
running. Follow the on-screen instructions.
6. Fit the bottom of your nuvi into the cradle.
7. Tilt your nuvi back until it snaps into place.
8. If you are using a traffic receiver in Europe,
connect the external antenna to the traffic
receiver and secure it to the windshield using
the suction cups. (Traffic receivers are included
in some nuvi packages.)
WARNING: This product contains a lithium-ion battery. To prevent damage, remove the unit from the
vehicle when exiting or store it out of direct sunlight.
nuvi 1300 Senes Quick Start Manual
3

Acquiring Satellites
1. Go outdoors to an open area,
away from tall buildings and trees.
2. Turn on your nOvi.
Acquiring satellite signals can take a
few minutes. The Il!IiIil bars indicate
satellite strength. When at least one
of the bars is green, your niivi has
acquired satellite signals.
Using the Power Button
Press and quickly release the Power
button to view additional options:
• Touch and to adjust the
screen brightness.
• Touch Lock Screen to prevent
accidental screen touches. When
your niivi screen is locked, the
screen backlight will dim.
• Touch Turn Off to turn off your
nUvi. You can also tum off the
niivi by pressing and holding the
Power button for 2 seconds.
4
Resetting Your nOvi
If your niivi stops functioning, reset
your niivi by pressing and holding the
Power button for 10 seconds.
Finding Points of Interest
1. Touch Where To? > Points of
Interest.
2. Select a category and a
subcategory.
3. Select a destination, and touch
Go!.
4. If necessary, touch Start to
navigate the route.
To enter letters contained in the
name, touch Where To? > Points of
Interest> Spell arne.
To search for a location in a different
area, touch Where To? > ear.
nuvi 1300 Sertes QUick Start Manual

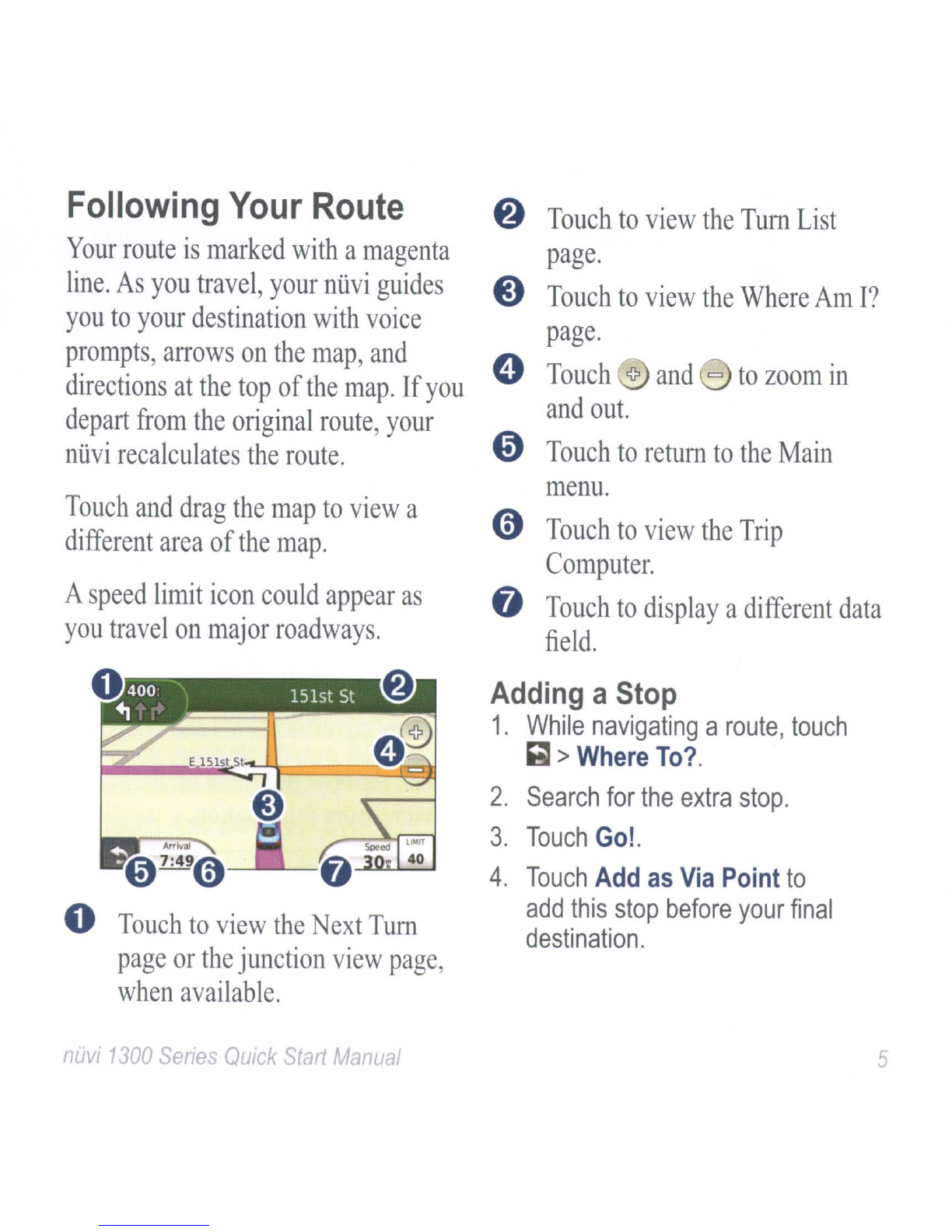

Following Your Route
Your route is marked with a magenta
line. As you travel, your ntivi guides
you to your destination with voice
prompts, arrows on the map, and
directions at the top of the map. If you
depart from the original route, your
ntivi recalculates the route.
Touch and drag the map to view a
different area of the map.
A speed limit icon could appear as
you travel on major roadways.
E lSlst SI
Arrival
07:
49
0
o Touch to view the ext Tum
page or the junction view page,
when available.
nuvi 1300 Senes QUick Stalt Manual
Touch to view the Tum List
page.
Touch to view the Where Am I?
page.
Touch <? and = to zoom in
and out.
@) Touch to return to the Main
menu.
o Touch to view the Trip
Computer.
o Touch to display a different data
field.
Adding a Stop
1. While navigating a route, touch
~ > Where To?
2. Search for the extra stop.
3. Touch Go!.
4. Touch Add as Via Point to
add this stop before your final
destination.
5

Taking a Detour
1. While navigating a route, touch Q.
2. Touch or
Using FM TMC Traffic
• OTE: Garmin is not responsible
for the accuracy of the traffic
information.
The FM Traffic Message Channel
(TMC) traffic receiver is included in
some niivi packages.
The traffic receiver and the niivi must
be in data range of an FM station
transmitting TMC data to receive
traffic information. You do not need
to activate the subscription included
with your FM traffic receiver. The
subscription activates automatically
after your niivi acquires satellite
signals while receiving traffic signals
from the pay service provider. Go to
www.garmin.com/traffic or www
.garmin.com for more information.
o
Ifa severe traffic delay occurs on
your route while you are navigating,
the niivi automatically recalculates
the route. The traffic icon changes
color to indicate the severity of traffic
conditions on your route or on the
road you are currently traveling.
• NOTE: Heated (metallized)
windows could degrade the
performance of the traffic receiver.
Viewing Advertisements
(North America Only)
If your niivi package includes a traffic
receiver, you could receive location-
relevant advertisements and coupons.
Touch the advertisement on the screen
to view more information.
CAUTIO : Do not attempt to
write down the coupon codes while
driving.
nuvl 1300 Senes QUIck Start Manual

Using Hands-Free
Features
Bluetooth wireless technology is
available on some niivi models.
To use the hands-free features, you
must pair your phone and your niivi.
To pair and connect, your device and
the niivi must be turned on and near
each other.
Pairing Your Phone
1. Enable the Bluetooth component
on your phone.
2. On your nuvi, touch Tools>
Settings> Bluetooth.
3. Touch the button below Bluetooth,
and touch Enabled> OK.
4. Touch Add Device> OK.
5. Select your phone, and touch OK.
6. Enter the Bluetooth PIN (1234) for
your nuvi in your phone.
nOvi 1300 Series Quick Start Manual
Calling aNumber
1. Select Phone> Dial.
2. Enter the number, and touch Dial.
3. To end a call, touch &> End
Call.
Receiving aCall
When you receive a call, the
Incoming Call window opens.
• Touch Answer to answer the call.
• Touch Ignore to ignore the call
and stop your phone from ringing.
Charging Your nuvi
• Connect the vehicle power cable.
• Connect the USB cable (included
in some packages).
• Connect an AC adapter (optional
accessory).
7

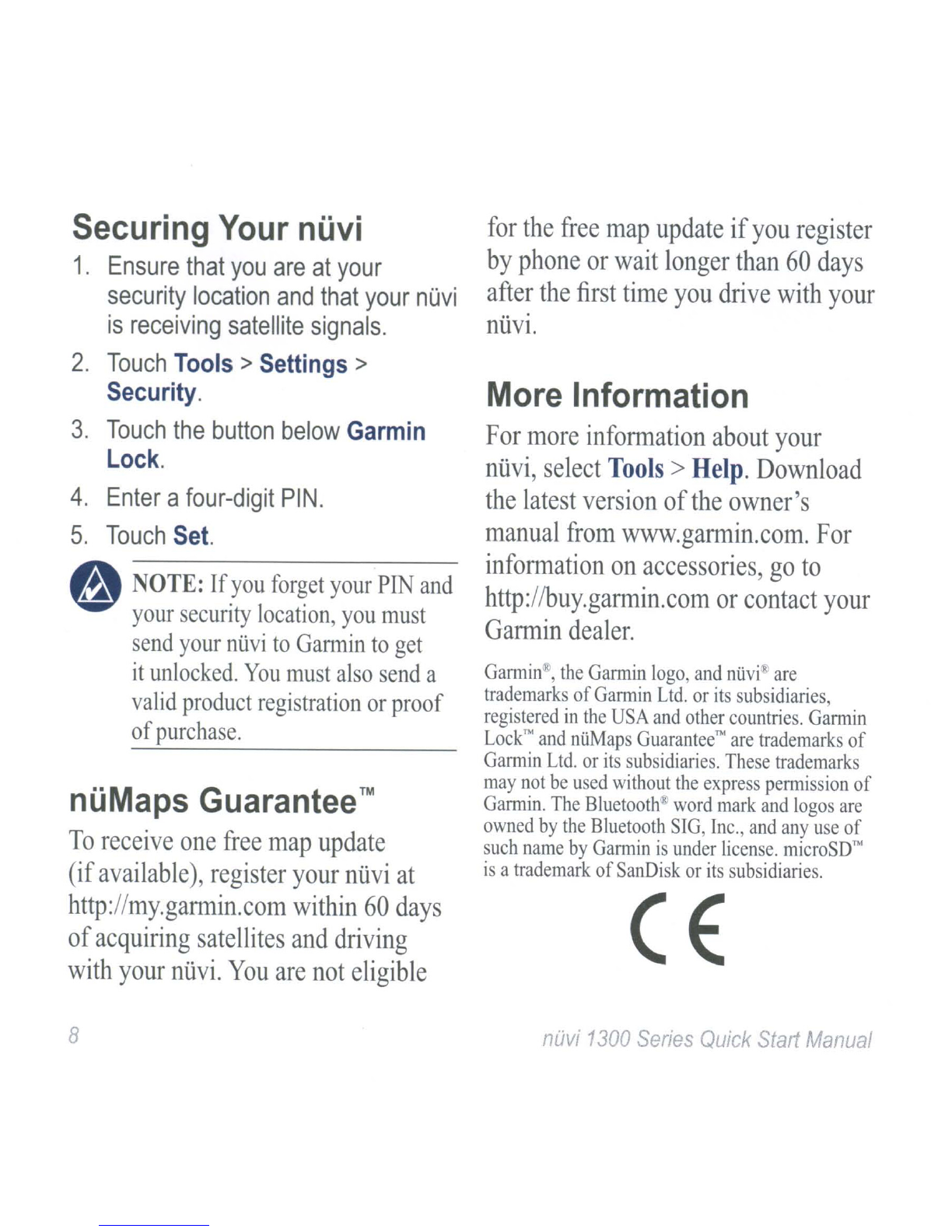

Securing Your nuvi
1. Ensure that you are at your
security location and that your nuvi
is receiving satellite signals.
2. Touch Tools> Settings>
Security.
3. Touch the button below Garmin
Lock.
4. Enter a four-digit PIN.
5. Touch Set.
• NOTE: If you forget your PIN and
your security location, you must
send your niivi to Garmin to get
it unlocked. You must also send a
valid product registration or proof
of purchase.
nuMaps Guarantee ™
To receive one free map update
(if available), register your niivi at
http://my.gam1in.com within 60 days
of acquiring satellites and driving
with your niivi. You are not eligible
8
for the free map update if you register
by phone or wait longer than 60 days
after the first time you drive with your
niivi.
More Information
For more information about your
niivi, select Tools> Help. Download
the latest version of the owner's
manual from www.garmin.com. For
information on accessories, go to
http://buy.garmin.com or contact your
Garmin dealer.
Gannin
x•
the Gannin logo, and niivi' are
trademarks of Gannin Ltd. or its subsidiaries,
registered in the USA and other countries. Gannin
Lock'" and niiMaps Guarantee'" are trademarks of
Gannin Ltd. or its subsidiaries. These trademarks
may not be used without the express pennission of
Gannin. The Bluetooth® word mark and logos are
owned by the Bluetooth SIG, Inc., and any use of
such name by Gannin is under license. microSD™
is a trademark of San Disk or its subsidiaries.
CE
nOv! 1300 Series Quick Start Manual

Worrying about getting lost on your vacation to Europe?
Not sure how to find your meeting in Australia? With
optional Garmin maps, nuvi will guide you around the
world. Plug-and-play microSD'" and SD'" cards loaded
with detailed maps make it easy to add street mapping
of your destination. Just plug in the microSD or SD card
for the region you want, and you're ready to roll.
GARMIN ,
With Garmin's 60-day nuMaps Guarantee you may be
eligible for a free map upgrade. Within 60 days of first
use, register your device online, If newer maps are available,
you'll get a free upgrade! Full details and terms available
at www.garmin.com/numaps.
www.garmin.com
Visit Garmin's website to download the latest software,
services and other must-have entertainment tools for nuvi,
Here you can learn about new accessories and download
customized vehicle icons, While you're there, don't forget
to register your nuvi and receive 10% off accessory items,
Maps on the go
• City Navigato~ Europe NT
• City Navigator Mexico NT
• City Navigator Australia NT
• More available at www.garmin.com
NAVfEQ Maps is a trademark of NAVfEQ, ©2008 NAVfEQ, All rights reserved,
SD and microSD are trademarks of SanDisk or its subsidiaries,
190-00895-08 Rev, A
www.garmin.com
A
GARMIN.
©2008 Garmin Ltd, or its subsidiaries,
Printed in Taiwan,

Suction cup mount
PIN. 010-11305-00
AC adapter cable
PIN: 010-10723-00
Perfect for travelers, this AC adapter cable set includes
adapters for the United States, United Kingdom and Europe.
This kit gives you the ability to charge nuvi when you are
away from home.
USB cable
PIN 010-10723-01
With a USB cable you can pair nuvi with your PC to further
customize your electronic travel partner. Download new
vehicle icons from www.garmingarage.com or put your
favorite JPEG pictures on nOvi for friends to view.
This accessory comes standard with nuvi, but you can always buy a
replacement or second vehicle mount. Attach nuvi to the windshield
of your car and start enjoying navigation at your fingertips.
The non-skid bottom and pliable base keep
this mount (and nuvi) on your dashboard
while you drive.
Portable mounts
PIN' 010-11280-00
Secure nuvi in your car with this
portable bean bag mount. No
installation required.
PIN' 010-10908-00
Carrying case
PIN' 010-11302-01 - 3.5 u and 4.3" screen
Travel in style while protecting nuvi with this sleek case.
After all, protecting your favorite navigator from damage
and scratches should be a priority. Offered in standard or
widescreen sizes.
Look beyond the basics
Looking for upgraded performance, convenience and
personal customization for nuvi
e?
Look no further.
You can order Garmin accessories from our online store
at www.garmin.com (U.S. residents) or visit your favorite
Garmin authorized dealer to find what you need to take
nuvi to the next level. Garmin offers a wide variety
of accessories and options. To see which are compatible
with your nuvi please visit our website, www.garmin.com.

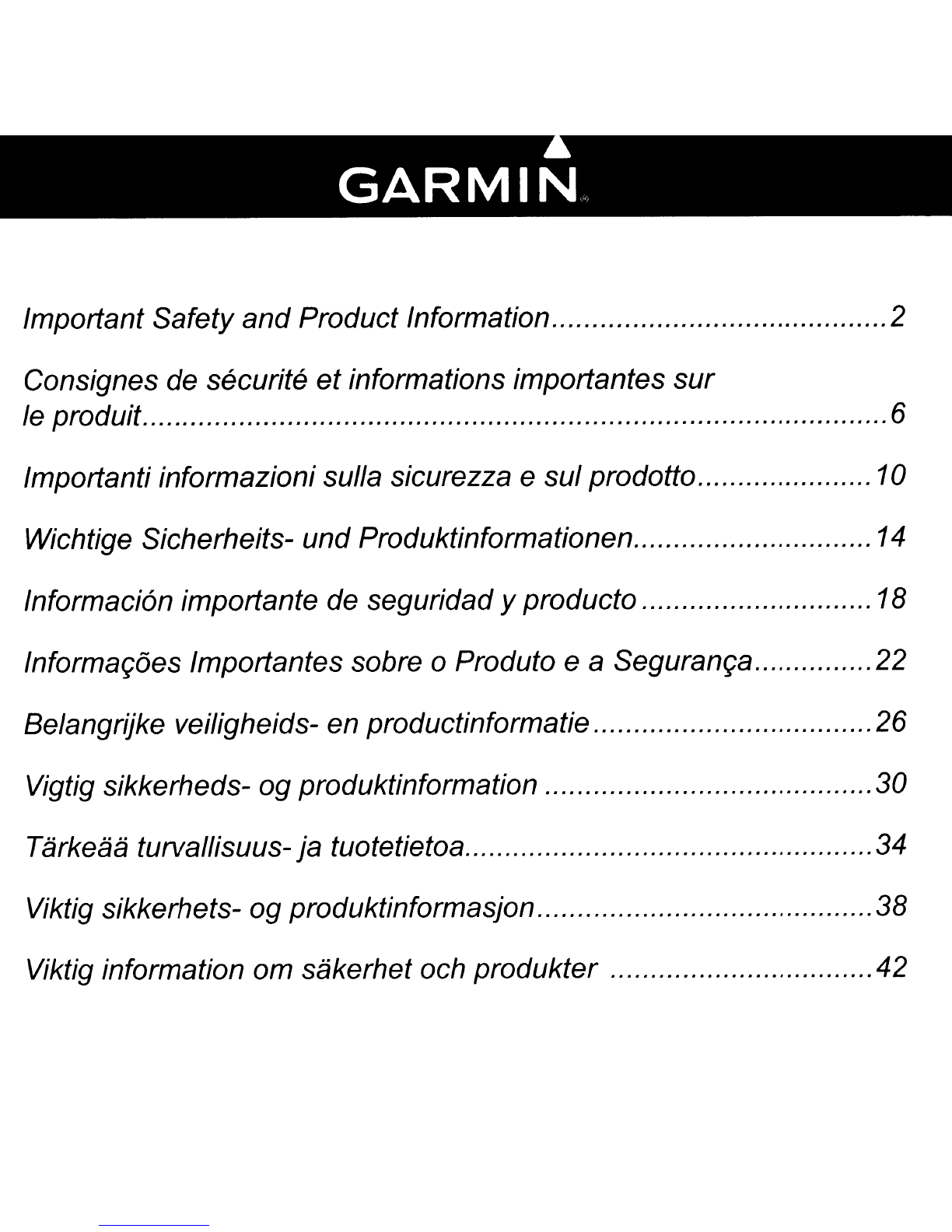

GARMIN"
Imporlant Safety and Product Information 2
Consignes de securite
et informations imporlantes sur
Ie produit 6
Imporlanti informazioni sulla sicurezza esui
pro dotto 10
Wichtige Sicherheits- und Produktinformationen 14
Informacion imporlante de seguridad yproducto 18
Informat;oes Imporlantes sobre 0Produto e a Segurant;a 22
Belangrijke veiligheids- en productinformatie 26
Vigtig sikkerheds- og produktinformation 30
Tarkeaa turvallisuus-
ja tuotetietoa 34
Viktig sikkerhets- og produktinformasjon 38
Viktig information om sakerhet och produkter 42

Important Safety and Product Information
_WarningS
resolve any discrepancies or questions before
continuing navigation and defer to posted road
Signs.
• Always operate the vehicle in a safe manner.
Do not become distracted by the unit while
driving, and always be fully aware of all
driving conditions. Minimize the amount of
time spent viewing the unit's screen while driving
and use voice prompts when possible. Do not
input destinations, change settings, or access any
functions requiring prolonged use of the unit's
controls while driving. Pull over in a safe and legal
manner before attempting such operations.
• The unit is designed to provide route suggestions.
It is not designed to replace the need for driver
attentiveness regarding road closures or road
conditions, traffic congestion, weather conditions,
or other factors that may affect safety while
driving.
. Do not place
. unsecured on
the vehicle
dashboard.
Do not mount in front of an
airbag field of deployment.
• When navigating, carefully compare information
displayed on the unit to all available navigation
sources, including information from street signs,
visual sightings, and maps. For safety, always
Failure to avoid the following potentially
hazardous situations
could result in an accident or
collision resulting in death or serious injury.
• When installing the unit in a vehicle, place the
unit securely so it does not obstruct the driver's
view of the road or interfere with vehicle operating
controls, such as the steering wheel, foot pedals,
or transmission levers. Do not place in front of or
above any airbag. (See diagram.)
WARNING: This product, its packaging, and
its components contain chemicals known to the
State of California to cause cancer, birth defects,
or reproductive harm. This notice is provided in
accordance with California's Proposition 65. See
www.garmin.comlprop65 for more information.

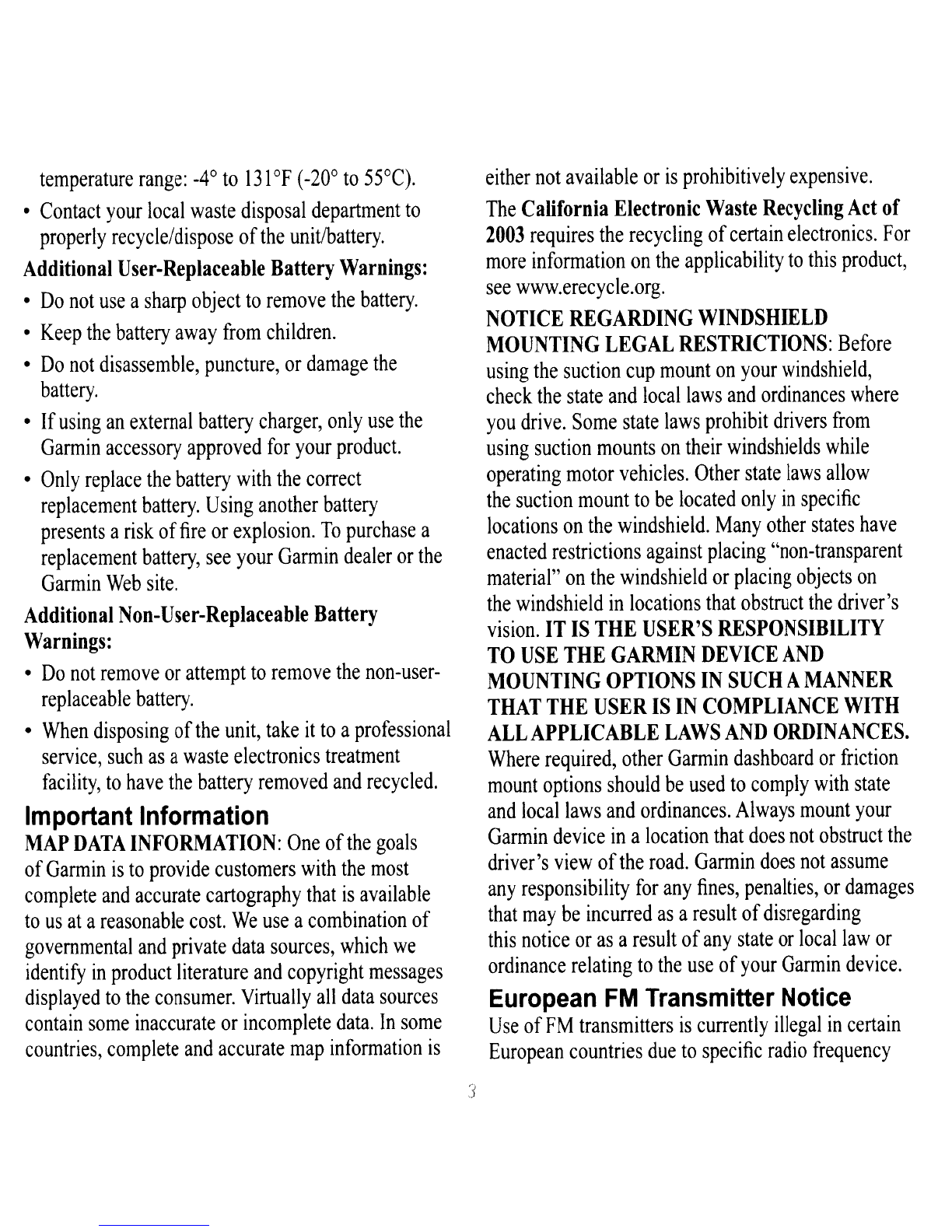

Battery Warnings
If these guidelines are not followed, the internal
lithium-ion battery may experience a shortened life
span or may present a risk of damage to the GPS unit,
fire, chemical bum, electrolyte leak, and/or injury.
• Do not leave the unit exposed to a heat source or in
a high temperature location, such as in the sun in
an unattended vehicle. To prevent damage, remove
the unit from the vehicle or store it out of direct
sunlight, such as in the glove box.
• Do not puncture or incinerate.
• When storing the unit for an extended time, store
within the following temperature range: 32° to
77°F (0° to 25°C).
• Do not operate the unit outside of the following

temperature range: _4° to 131°F (-20° to 55°C).
• Contact your local waste disposal department to
properly recycle/dispose of the unit/battery.
Additional User-Replaceable Battery Warnings:
• Do not use a sharp object to remove the battery.
• Keep the battery away from children.
• Do not disassemble, puncture, or damage the
battery.
•If using an external battery charger, only use the
Garmin accessory approved for your product.
• Only replace the battery with the correct
replacement battery. Using another battery
presents a risk of fire or explosion. To purchase a
replacement battery, see your Garmin dealer or the
Garmin Web site.
Additional Non-User-Replaceable Battery
Warnings:
• Do not remove or attempt to remove the non-user-
replaceable battery.
• When disposing of the unit, take it to a professional
service, such as a waste electronics treatment
facility, to have the battery removed and recycled.
Important Information
MAP DATA INFORMATION: One of the goals
of Garmin is to provide customers with the most
complete and accurate cartography that is available
to us at a reasonable cost. We use a combination of
governmental and private data sources, which we
identify in product literature and copyright messages
displayed to the consumer. Virtually all data sources
contain some inaccurate or incomplete data. In some
countries, complete and accurate map information is
.]
either not available or is prohibitively expensive.
The California Electronic Waste Recycling Act of
2003 requires the recycling of certain electronics. For
more information on the applicability to this product,
see www.erecycle.org.
NOTICE REGARDING WINDSHIELD
MOUNTING LEGAL RESTRICTIONS: Before
using the suction cup mount on your windshield,
check the state and local laws and ordinances where
you drive. Some state laws prohibit drivers from
using suction mounts on their windshields while
operating motor vehicles. Other state laws allow
the suction mount to be located only in specific
locations on the windshield. Many other states have
enacted restrictions against placing "non-transparent
material" on the windshield or placing objects on
the windshield in locations that obstruct the driver's
vision. IT IS THE USER'S RESPONSIBILITY
TO USE THE GARMIN DEVICE AND
MOUNTING OPTIONS IN SUCH A MANNER
THAT THE USER IS IN COMPLIANCE WITH
ALL APPLICABLE LAWS AND ORDINANCES.
Where required, other Garmin dashboard or friction
mount options should be used to comply with state
and local laws and ordinances. Always mount your
Garmin device in a location that does not obstruct the
driver's view of the road. Garmin does not assume
any responsibility for any fines, penalties, or damages
that may be incurred as a result of disregarding
this notice or as a result of any state or local law or
ordinance relating to the use of your Garmin device.

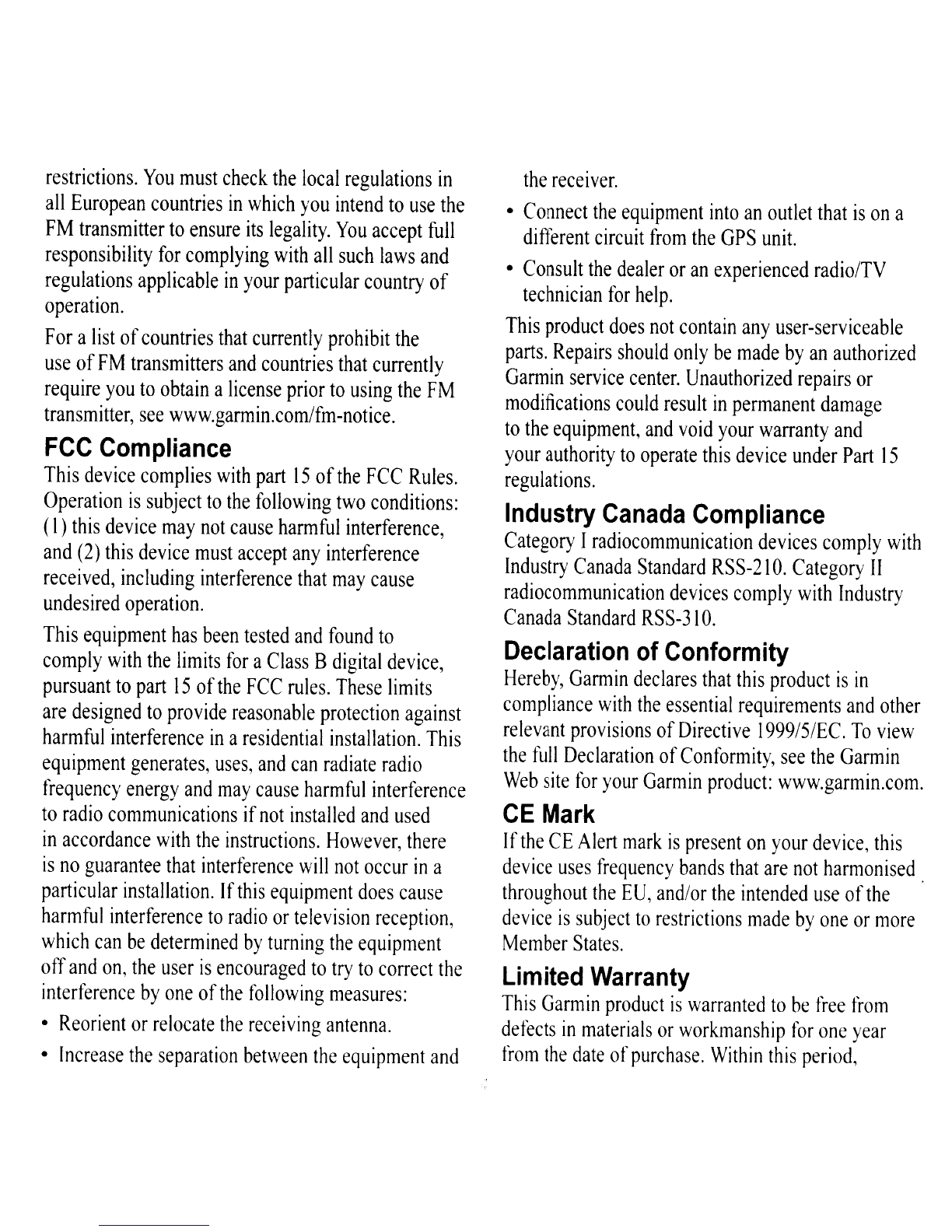

European FM Transmitter Notice
Use of FM transmitters is currently illegal in certain
European countries due to specific radio frequency

restrictions. You must check the local regulations in
all European countries in which you intend to use the
FM transmitter to ensure its legality. You accept full
responsibility for complying with all such laws and
regulations applicable in your particular country of
operation.
F or a list of countries that currently prohibit the
use of FM transmitters and countries that currently
require you to obtain a license prior to using the FM
transmitter, see www.garrnin.com/fm-notice.
FCC Compliance
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(I) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and may cause harmful interference
to radio communications if not installed and used
in accordance with the instructions. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
the receiver.
• Connect the equipment into an outlet that is on a
different circuit from the GPS unit.
• Consult the dealer or an experienced radio/TV
technician for help.
This product does not contain any user-serviceable
parts. Repairs should only be made by an authorized
Garrnin service center. Unauthorized repairs or
modifications could result in permanent damage
to the equipment, and void your warranty and
your authority to operate this device under Part 15
regulations.
Industry Canada Compliance
Category I radiocommunication devices comply with
Industry Canada Standard RSS-21 O. Category II
radiocommunication devices comply with Industry
Canada Standard RSS-31 O.
Declaration of Conformity
Hereby, Garrnin declares that this product is in
compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC. To view
the full Declaration of Conformity, see the Garmin
Web site for your Garmin product: www.garmin.com.
CE Mark
If the CE Alert mark is present on your device, this
device uses frequency bands that are not harmonised .
throughout the E U, and/or the intended use of the
device is subject to restrictions made by one or more
Member States.

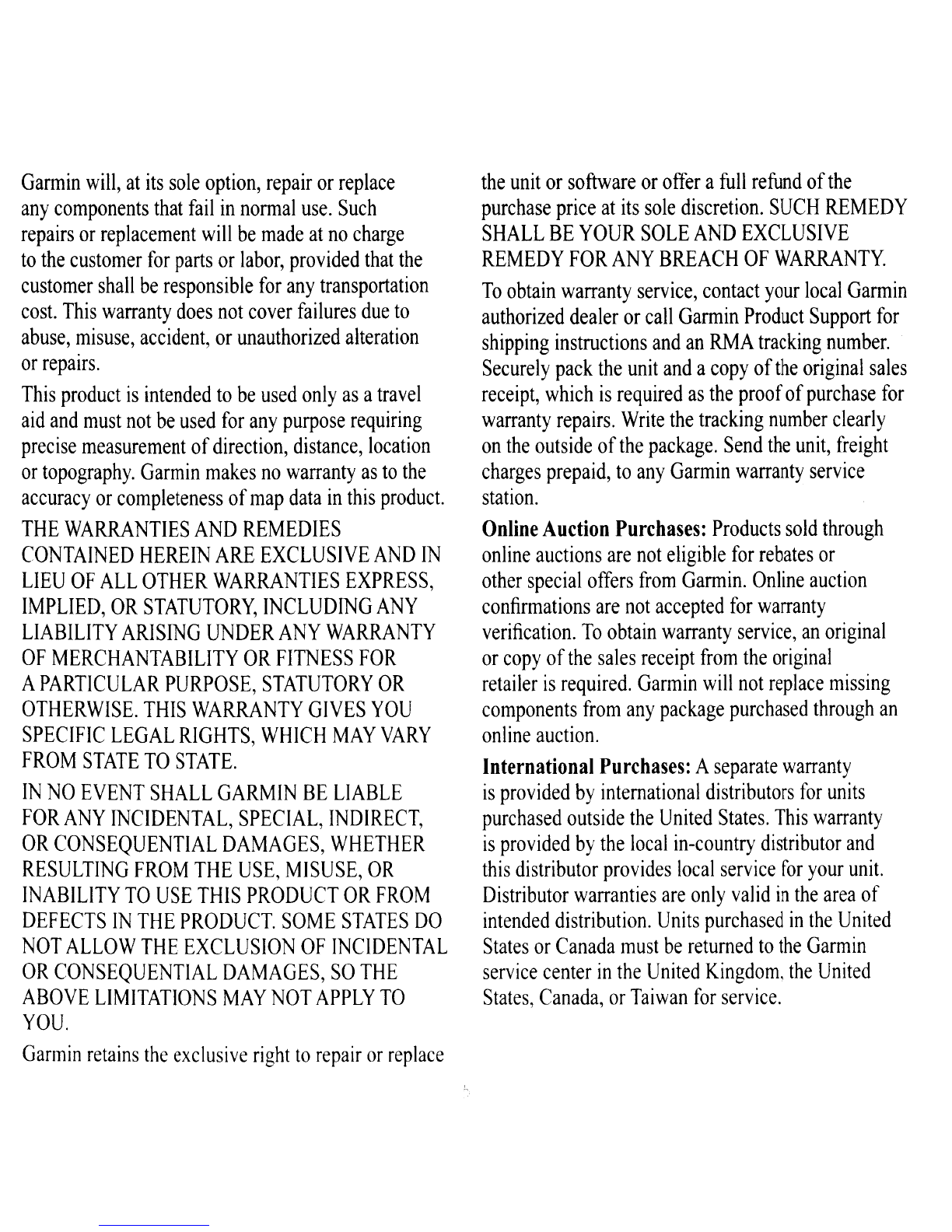

Limited Warranty
This Garmin product is warranted to be free from
defects in materials or workmanship for one year
from the date of purchase. Within this period,

Garmin will, at its sale option, repair or replace
any components that fail in normal use. Such
repairs or replacement will be made at no charge
to the customer for parts or labor, provided that the
customer shall be responsible for any transportation
cost. This warranty does not cover failures due to
abuse, misuse, accident, or unauthorized alteration
or repairs.
This product is intended to be used only as a travel
aid and must not be used for any purpose requiring
precise measurement of direction, distance, location
or topography. Garmin makes no warranty as to the
accuracy or completeness of map data in this product.
THE WARRANTIES AND REMEDIES
CONTAINED HEREIN ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES EXPRESS,
IMPLIED, OR STATUTORY, INCLUDING ANY
LIABILITY ARISING UNDER ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, STATUTORY OR
OTHERWISE. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS, WHICH MAY VARY
FROM STATE TO STATE.
IN NO EVENT SHALL GARMIN BE LIABLE
FOR ANY INCIDENTAL, SPECIAL, INDIRECT,
OR CONSEQUENTIAL DAMAGES, WHETHER
RESULTING FROM THE USE, MISUSE, OR
INABILITY TO USE THIS PRODUCT OR FROM
DEFECTS IN THE PRODUCT. SOME STATES DO
NOT ALLOW THE EXCLUSION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE
ABOVE LIMITATIONS MAY NOT APPLY TO
YOU.
Garmin retains the exclusive right to repair or replace
the unit or software or offer a full refund of the
purchase price at its sole discretion. SUCH REMEDY
SHALL BE YOUR SOLE AND EXCLUSIVE
REMEDY FOR ANY BREACH OF WARRANTY.
To obtain warranty service, contact your local Garmin
authorized dealer or call Garmin Product Support for
shipping instructions and an RMA tracking number.
Securely pack the unit and a copy of the original sales
receipt, which is required as the proof of purchase for
warranty repairs. Write the tracking number clearly
on the outside of the package. Send the unit, freight
charges prepaid, to any Garmin warranty service
station.
Online Auction Purchases: Products sold through
online auctions are not eligible for rebates or
other special offers from Garmin. Online auction
confirmations are not accepted for warranty
verification. To obtain warranty service, an original
or copy of the sales receipt from the original
retailer is required. Garmin will not replace missing
components from any package purchased through an
online auction.
International Purchases: A separate warranty
is provided by international distributors for units
purchased outside the United States. This warranty
is provided by the local in-country distributor and
this distributor provides local service for your unit.
Distributor warranties are only valid in the area of
intended distribution. Units purchased in the United
States or Canada must be returned to the Garmin
service center in the United Kingdom, the United
States, Canada, or Taiwan for service.

•
GARMIN®
© 2006-2009 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151
st
Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire,
S040 9RB UK
Garmin Corporation
No. 68, Jangshu 2
nd
Road, Shijr, Taipei County, Taiwan
www.garmln.com
March 2009
Part Number 190-00720-00 Rev. G
Printed in Taiwan
