Garmin Zumo 660 Instruction manual

GARMIN®
•
zOmo® 660
quick start manual

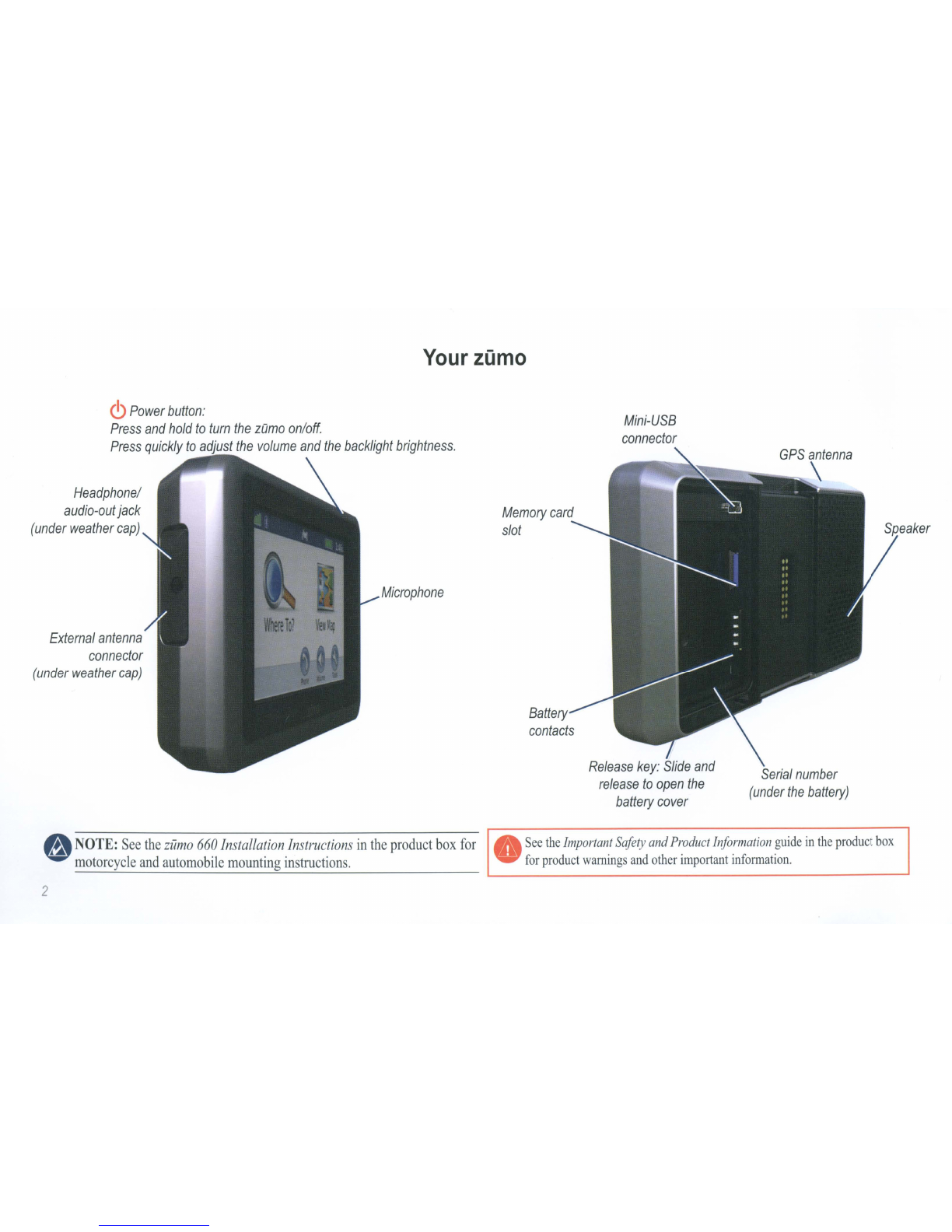

Your zOmo
<!) Power button:
Press and hold to turn the zOmo on/off.
Press quickly to adjust the volume and the backlight brightness.
Headphone/
audio-out jack
(under weather cap)
Microphone
External antenna
connector
(under weather cap)
Memory card
slot
Battery
contacts
Mini-USB
connector
Release key: Slide and
release to open the
battery cover
Serial number
(under the battery)
• NOTE: See the zumo 660 Installation Instructions in the product box for
motorcycle and automobile mounting instructions.
2

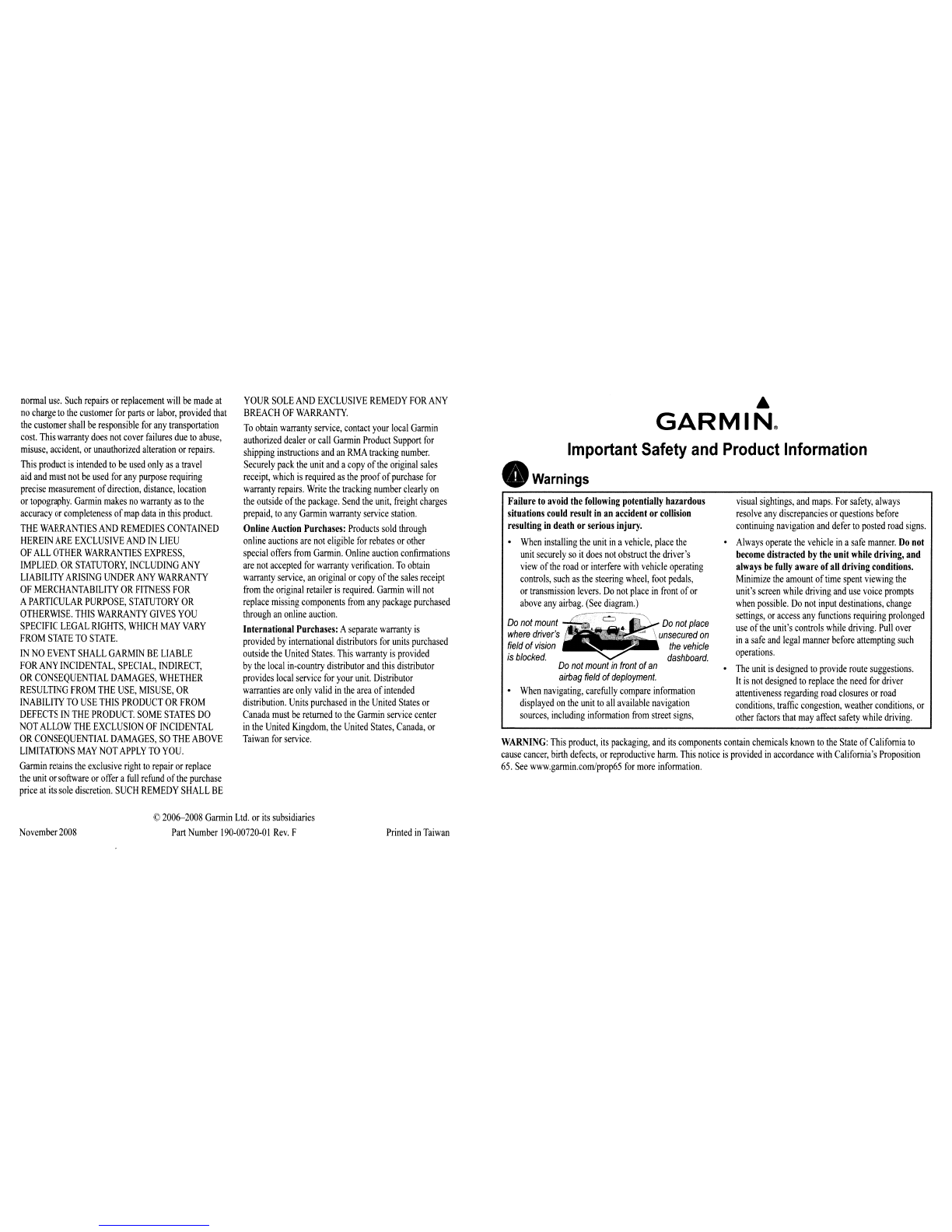

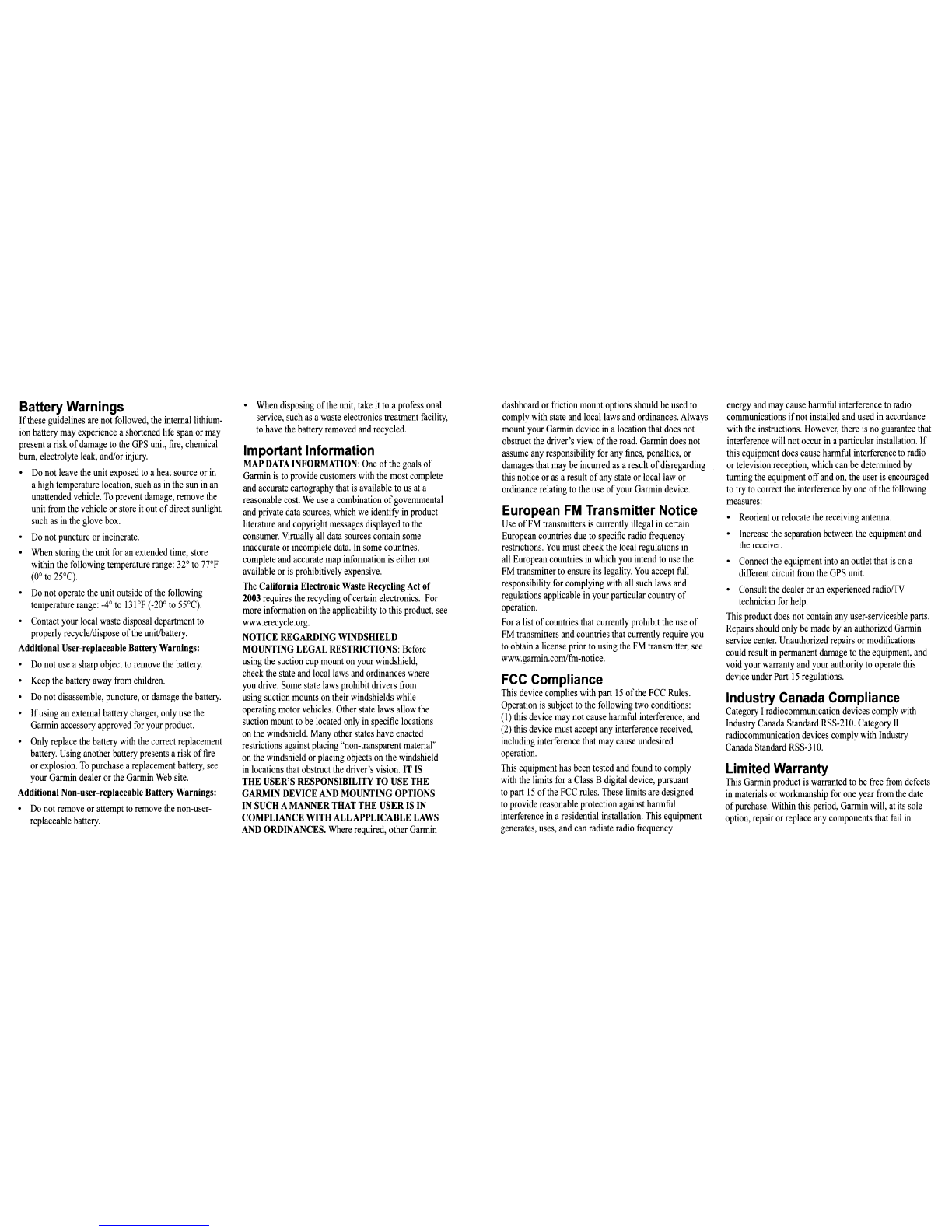

See the Important Safety and Product Information guide in the product box
for product warnings and other important information.

Installing the Battery
1. Locate the lithium-ion battery that came in
the product box.
2. Slide the release key until the battery
cover on the back of the zOmo pops up.
3. Locate the metal contacts on the end of
the lithium-ion battery.
4. Insert the battery so that the metal
contacts on the battery match with
the metal contacts inside the battery
compartment.
5. Replace battery cover.
WARNING: This product contains a lithium-ion
battery. To prevent damage, remove the unit from the
vehicle when exiting or store it out of direct sunlight.
Ways to Charge Your zumo
Battery
• Use the automotive power cable.
• Use the USB cable.
• Use an optional AC adapter cable.
• Use an optional battery charger
WARNING: Always keep the battery installed when
the zfuno is on.
Configuring Your zOmo
To turn on your zUmo, press the 6 Power
button. Follow the on-screen instructions.
Acquiring Satellites
1. Go outdoors to an open area, out of
garages, and away from tall buildings.
2. Stop your vehicle, and turn on the zOmo.
Acquiring satellite signals may take a few
minutes. The _ bars indicate GPS
satellite strength. When one bar is green, the
zUmo has acquired satellite signals. Now you
can select a destination and navigate to it.
.. 0
Where To?
0
GPS satellite strength.
8
Bluetooth® technology status.
@)
Touch to select motorcyle, scooter,
automobile, or pedestrian mode.
e Battery status.
@)
Current time. Touch to change settings.
0
Touch to find a destination.
fI
Touch to view the map.
0
Touch to make a call when connected to
a compatible mobile phone.
@)
Touch to adjust the volume.
@
Touch to use the tools such as settings,
Where Am I?, Help, and routes.
3

00021.3-
20~
5
,I
,~~
/\: S :.\
1255:
00:14
~E 130 \'J~
~, ',J
~Q
23-
1l:12~
.. "
,,-
,J.
Back Reset•..
Back Show Map .... ......
~ Left on US 169 NI
0.3.
My 1.oaItlon:
N39"06.178' DHospitals
_"35,049'
Bev: 1162ft
Nearest Add ... ss:
II Police
945 Batimore Ave
Stations
Kansas City, MO 64105
Nearest Intersection:
II Co Fuel
W 11th St (W) &Main
St
Back Save Location
8 Touch to view the Tum List page.
8 Touch to zoom in and out.
o Touch to view the Trip Computer page.
CD Touch to view the Where Am I? page.
I i-...IolIi:-a-;,..,..."'"j Ke epI eft on to I-
I-: 635
Following Your Route
Your route is marked with a magenta line.
As you travel, your ziimo guides you to your
destination with voice prompts, arrows on the
map, and directions at the top of the map.
If you depart from the route, the ziimo
recalculates the route and provides new
directions.
o Touch to view the Next Tum page or the
Lane Assist page (if available).
Finding Points of Interest
1. Touch Where To? >Points of Interest.
2. Select a category and a subcategory.
3. Select a destination, and touch Go!.
To enter letters contained in the name, touch
Where To? > Points of Interest> Spell
Name.
To search for a location in a different area,
touch Where To? > Near.
Adding aStop
1. With a route active, touch Menu> Where
To?
2. Search for the extra stop.
3. Touch Go!.
4. Touch Add as a Via Point to add this stop
before your destination.
• TIP: To add more than one stop, edit the
current route. Touch Where To? > Custom
Routes.
(5) Touch to return to the Menu page.
4

Navigating Off Road
When you choose a destination while the
off road feature is enabled, the zUmo plots a
straight line to the destination.
1. Touch Tools> Settings> Navigation.
2. Under Route Preference, touch Off
Road.
Customizable
data fields
Direction to
destination
Fuel gauge
Enabling Fuel Tracking
When connected to the motorcyle mount,
your zUmo can alert you when your fuel tank
is low.
In the Trip Computer page, touch Tools>
Settings> Fuel Gauge.
• Under Fuel Tracking, select On.
A Fuel Gauge appears under the
compass on the map page.
• Under Distance Per Tank, enter the
total distance your motorcyle can travel
on a tank of fuel.
• Under Low Fuel Warning, choose
when you would like to be notified that
your fuel tank is low.
Using Hands-free Calling
Using Bluetooth technology, your zUmo can
connect to your mobile phone to become a
hands-free device.
To pair and connect, your device and the
zUmo must be within 10 meters of each other
and turned on. The zUmo can be connected to
a phone and a headset at the same time.
To determine whether your device with
Bluetooth technology is compatible with the
zUmo, go to www.garmin.com/bluetooth.
5

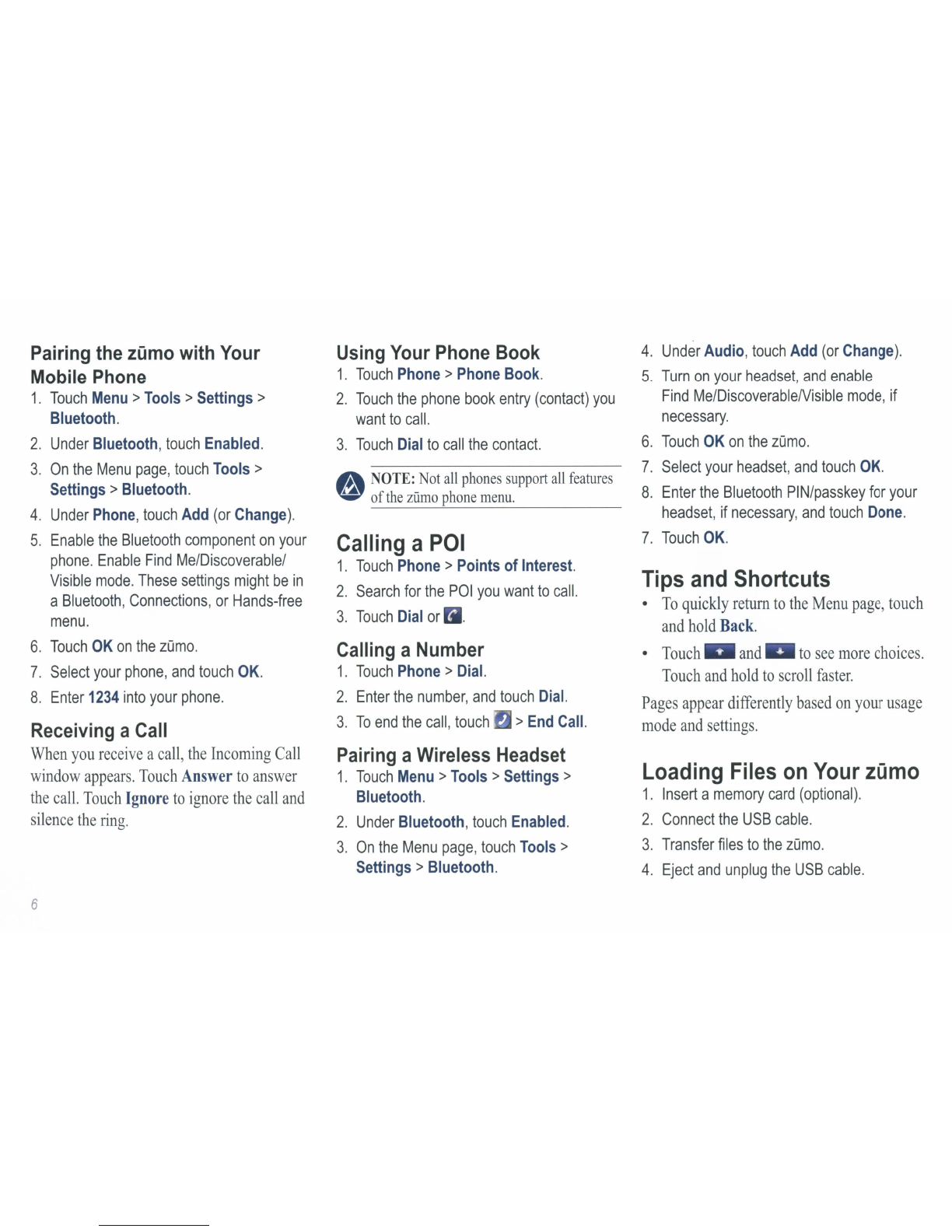

Pairing the zumo with Your
Mobile Phone
1. Touch Menu> Tools> Settings>
Bluetooth.
2. Under Bluetooth, touch Enabled.
3. On the Menu page, touch Tools>
Settings> Bluetooth.
4. Under Phone, touch Add (or Change).
5. Enable the Bluetooth component on your
phone. Enable Find MelDiscoverable/
Visible mode. These settings might be in
a Bluetooth, Connections, or Hands-free
menu.
6. Touch OK on the zOmo.
7. Select your phone, and touch OK.
8. Enter 1234 into your phone.
Receiving aCall
When you receive a call, the Incoming Call
window appears. Touch Answer to answer
the call. Touch Ignore to ignore the call and
silence the ring.
6
Using Your Phone Book
1. Touch Phone> Phone Book.
2. Touch the phone book entry (contact) you
want to call.
3. Touch Dial to call the contact.
•
NOTE: Not all phones support all features
~ of the ziimo phone menu.
Calling a POI
1. Touch Phone> Points of Interest.
2. Search for the POI you want to call.
3. Touch Dial or
Calling aNumber
1. Touch Phone> Dial.
2. Enter the number, and touch Dial.
3. To end the call, touch > End Call.
Pairing aWireless Headset
1. Touch Menu> Tools> Settings>
Bluetooth.
2. Under Bluetooth, touch Enabled.
3. On the Menu page, touch Tools>
Settings> Bluetooth.
4. Under Audio, touch Add (or Change).
5. Turn on your headset, and enable
Find MelDiscoverableNisible mode, if
necessary.
6. Touch OK on the zOmo.
7. Select your headset, and touch OK.
8. Enter the Bluetooth PIN/passkey for your
headset, if necessary, and touch Done.
7. Touch OK.
Tips and Shortcuts
• To quickly return to the Menu page, touch
and hold Back.
• Touch and to see more choices.
Touch and hold to scroll faster.
Pages appear differently based on your usage
mode and settings.
Loading Files on Your zumo
1. Insert a memory card (optional).
2. Connect the USB cable.
3. Transfer files to the zOmo.
4. Eject and unplug the USB cable.

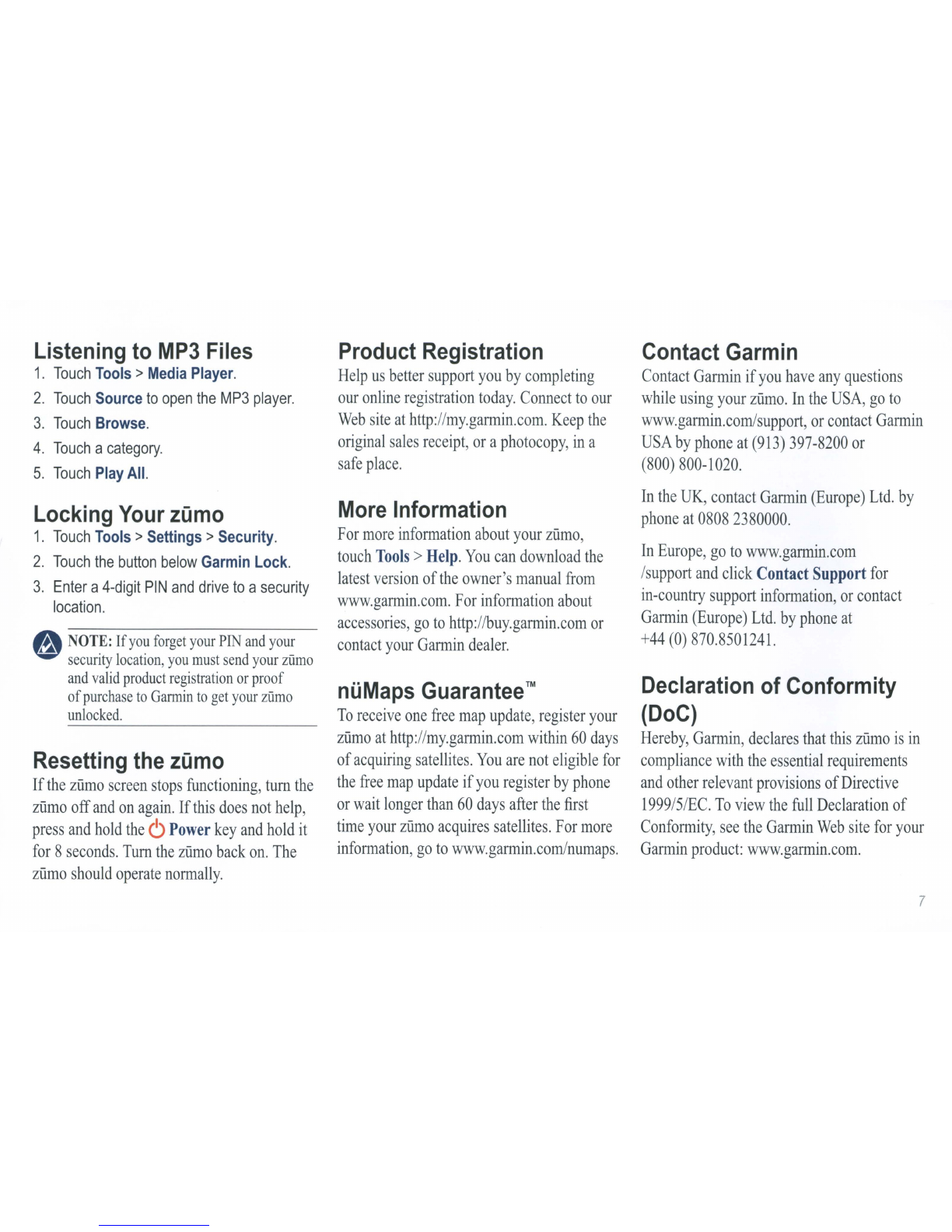

Listening to MP3 Files
1. Touch Tools> Media Player.
2. Touch Source to open the MP3 player.
3. Touch Browse.
4. Touch a category.
5. Touch Play All.
Locking Your zumo
1. Touch Tools> Settings> Security.
2. Touch the button below Garmin Lock.
3. Enter a 4-digit PIN and drive to a security
location.
• OTE: If you forget your PIN and your
security location, you must send your zUmo
and valid product registration or proof
of purchase to Garmin to get your ziimo
unlocked.
Resetting the zumo
If the zUmo screen stops functioning, tum the
zUmo off and on again. If this does not help,
press and hold the 6 Power key and hold it
for 8 seconds. Tum the zUmo back on. The
zUmo should operate normally.
Product Registration
Help us better support you by completing
our online registration today. Connect to our
Web site at http://my.garmin.com. Keep the
original sales receipt, or a photocopy, in a
safe place.
More Information
For more information about your zUmo,
touch Tools> Help. You can download the
latest version of the owner's manual from
www.garmin.com. For information about
accessories, go to http://buy.garmin.com or
contact your Garmin dealer.
nuMaps Guarantee ™
To receive one free map update, register your
zUmo at http://my.garmin.com within 60 days
of acquiring satellites. You are not eligible for
the free map update if you register by phone
or wait longer than 60 days after the first
time your zUmo acquires satellites. For more
information, go to www.garmin.com/numaps.
Contact Garmin
Contact Garmin if you have any questions
while using your zUllO. In the USA, go to
www.garmin.com/support. or contact Garmin
USA by phone at [phone] or
[phone].
In the UK, contact Garmin (Europe) Ltd. by
phone at 08082380000.
In Europe, go to www.garmin.com
/support and click Contact Support for
in-country support information, or contact
Garmin (Europe) Ltd. by phone at
+44 (0) 870.8501241.
Declaration of Conformity
(DoC)
Hereby, Garmin, declares that this zUmo is in
compliance with the essential requirements
and other relevant provisions of Directive
1999/5/EC. To view the full Declaration of
Conformity, see the Garmin Web site for your
Garmin product: www.garmin.com.
7

Gannin®, the Gannin logo, and mmo® are trademarks of Gannin Ltd. or its subsidiaries, registered in the USA and other countries. Gannin Lock
T"
and niiMaps Guarantee'" are trademarks of Gannin
Ltd. or its subsidiaries. These trademarks may not be used without the express pennission of Gannin.The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such
name by Gannin is under license. RDS-TMC Traffic Infonnation Services France © ViaMichelin 2006. Other trademarks and trade names are those oftheir respective owners.
For the latest free software updates (excluding map data) throughout the life of your
Garmin products, visit the Garmin Web site at www.garmin.com.
A
GARMIN®
CE
January 2009
© 2009 Garmin Ltd. or its subsidiaries
Garmin International, Inc.
1200 East 151
5t
Street, Olathe, Kansas 66062, USA
Garmin (Europe) Ltd.
Liberty House, Hounsdown Business Park, Southampton, Hampshire, S040 9RB UK
Garmin Corporation
No. 68, Jangshu 2
nd
Road, Shijr, Taipei County, Taiwan
www.garmin.com
Part Number 190-01026-01 Rev. A
Printed in Taiwan

zCimo 660 Installation Instructions
Mount Your zOmo on the Motorcyle
W RIG: IncoITectly \viring the power cable with bare wire lead can re ult in
damage to th vehicl or the battery and can cause bodiI" injury. Gannin trongly
recol1llnend ha ing an exp rienced in taller with the prop r kno\! "ledge of electrical
sy terns in tall the unit.
See the Important SafeZl' and Product b!!orma/;on guide in the product box for product warning
and other important infoffilation.
Mini-USB connector
(for traffic receiever)
Bare wires with
inline fuse for
power connection
Cradle
Step 1: Connect Power to the Mount
Select a suitable and secure location to tnount the zutno on your tTIotorcycle, based on
available power ources and safe cable routing.
Headphone/audio out jack (3.5 mm)
Microphone jack (2.5 mm)

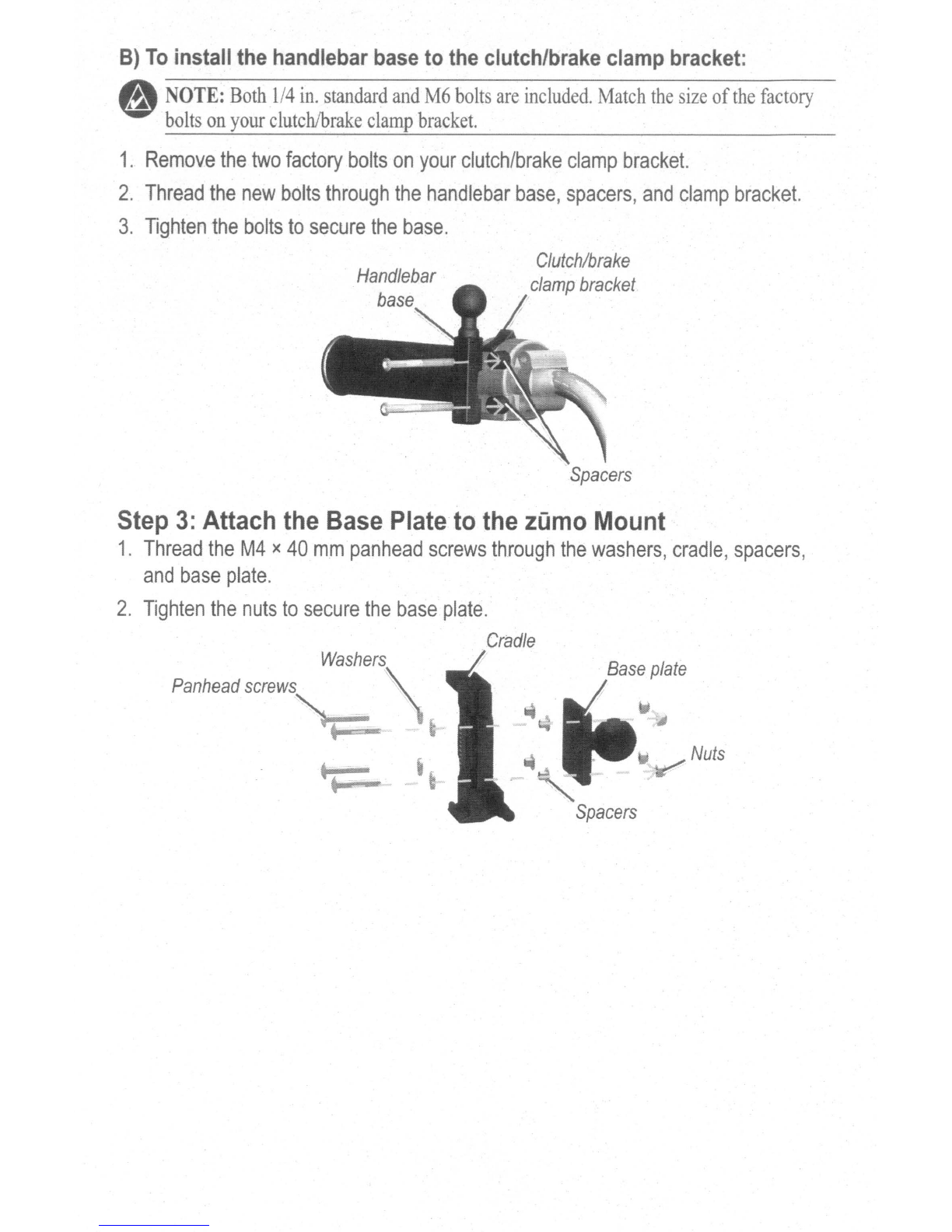

Step 2: Install the Handlebar Base
The ziimo includes parts for two handlebar installation solutions. Custom 11lounts can
require additional hardware (www.ratn-mount.cOlTI).
A) To install the U-bolt and handlebar base:
1. Place the U-bolt around the handlebar, and thread the ends through the handlebar
base.
2. Tighten the nuts to secure the base. Do not overtighten.
OTE: The reconunended torque is 50 Ibf-in. Do not exceed torque of 80 Ibf-in.
Handlebar
V-bolt

B) To install the handlebar base to the clutch/brake clamp bracket:
OTE: Both 1/4 in. standard and M6 bolt are includ d. Match the ize of the factory
bolt on your clutchlbrake clamp bracket.
1. Remove the two factory bolts on your clutch/brake clamp bracket.
2. Thread the new bolts through the handlebar base, spacers, and clamp bracket.
3. Tighten the bolts to secure the base.
Handlebar
base
Clutch/brake
clamp bracket
Spacers
Step 3: Attach the Base Plate to the zumo Mount
1. Thread the M4 x 40 mm pan head screws through the washers, cradle, spacers,
and base plate.
2. Tighten the nuts to secure the base plate.
Cradle
Washers
Panhead screws
Nuts
