Gas Clip Technologies Multi Gas Clip User manual

Battery Information
Low Battery Warning - With 20 minutes of run time left, the detector will
beep, ash and display “LOW BAT”. Notications will continue periodically until
the battery expires and the detector performs an automatic shutdown.
Charging - While charging, the battery icon will cycle and the detector will
display an approximate charge percentage. Full charge occurs in 4-6 hours.
For fastest charging, charge while detector is turned o.
Warning - DO NOT charge the detector in a combustible atmosphere.
Warning - DO NOT charge the detector in temperatures above 104°F
(40°C) or below 32°F (0°C).
Additional Questions?
For additional information on the Multi Gas Clip Pump gas detector
regarding programming, bump testing, calibrating, etc., please refer to the
Multi Gas Clip Pump User’s Manual. The manual, videos and other helpful
information are available for viewing or download at www.gascliptech.com.
Quick-Start Guide
MGC-PUMP-QSG v1.04
Multi Gas Clip
Pump
Portable gas detectors you can count on
Contact Information
Gas Clip Technologies, Inc.
305 W. FM 1382, Suite 540
Cedar Hill, TX 75104 USA
Phone: [phone]
Fax: [phone]
Toll Free: 1.877.525.0808
E-mail: [email protected]
Website: www.gascliptech.com
Portable gas detectors you can count on
A
S
S
E
M
B
L
E
D
I
N
U
S
A

When the gas ow is blocked, the detector will go into alarm and disable the
pump. Press the power/menu button to reactivate the pump.
Icon Description
1 Alarm Condition
2 Pump Status
3 Calibration/Test Mode
4 Battery Indicator
5 Gas Readings
6 Gas Identiers
6
5
1 32
4
READ FIRST BEFORE OPERATION
The Multi Gas Clip Pump is a personal safety device designed to detect the
presence of hydrogen sulde (HS), carbon monoxide (CO), oxygen (O) and
combustible gases (LEL). Before operation, ensure that you have been properly
trained on the use of the detector and the appropriate actions to take in the
event of an alarm condition.

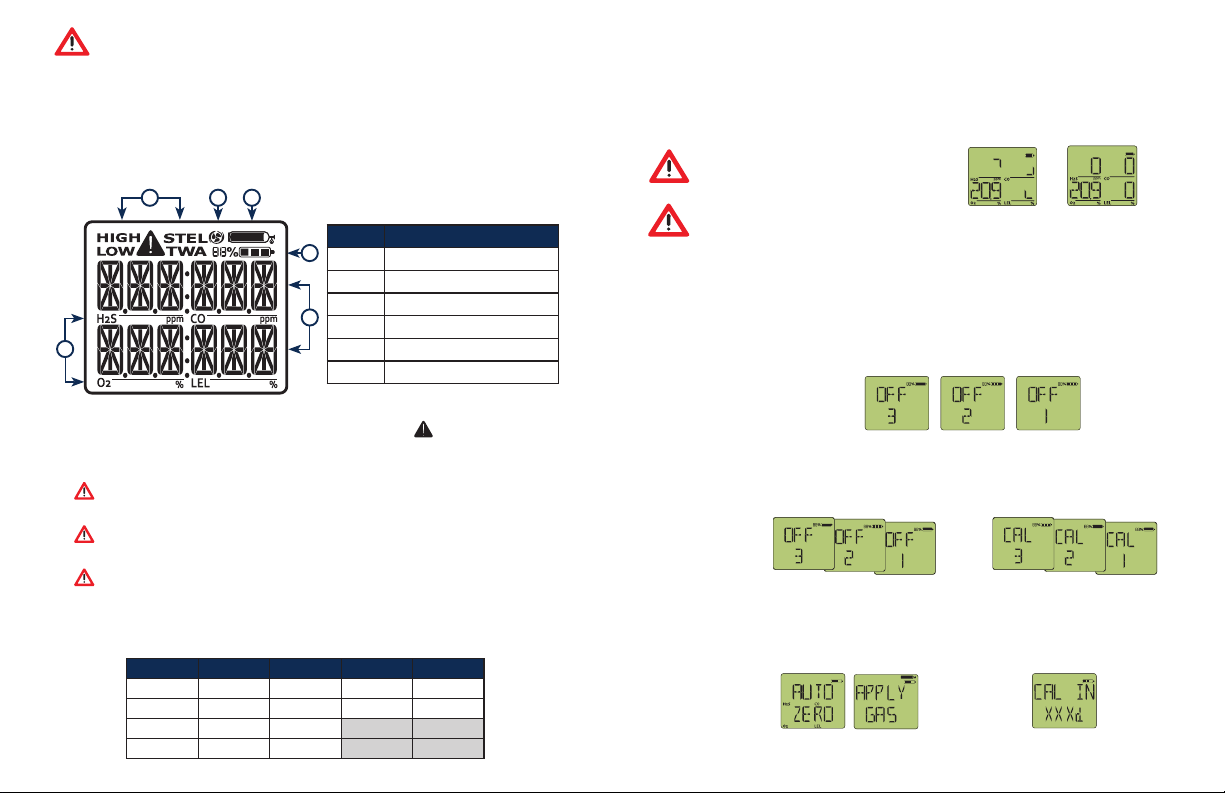

Display Components
When a Gas Reading (5) exceeds its alarm threshold the detector will go into
visual vibrating and audible alarm On the display the icon will appear
beside the Alarm Condition (1) and the associated Gas Identifier (6) will flash
off and on continuously
Warning - Users must familiarize themselves with the icons in both
alarm and non-alarm states.
Warning - If the display is missing icons, or cannot be clearly read,
discontinue use and contact Gas Clip Technologies.
Warning - The IR LEL sensor will not detect hydrogen (H) or acetylene
(CH) gases however, due to their cross-sensitive nature, the CO sensor
will go into alarm well below 10% LEL.
Factory Default Alarms
Sensor LOW HIGH TWA STEL
H2S10 ppm 15 ppm 10 ppm 15 ppm
CO 35 ppm 200 ppm 35 ppm 50 ppm
O219.5% 23.5%
LEL 10% 20%
Turning On the Detector
To activate the detector, press and briey hold down the power/menu button.
Activation tone will sound. Each Gas Identier will show a chasing“0” for the
Gas Reading while it is stabilizing and self-testing. Once all Gas Identiers
have completed the warm up and stabilization sequence, < 65 seconds, the
detector is ready to detect all applicable gases. Display will show:
Before each use, check that the gas inlet
and alarm port are clear of any debris or
obstructions.
Stabilizing Fully operational
Manually Calibrating the Detector
Continuously hold down the power/menu button through the“OFF”
countdown and the“CAL”countdown that follows. During these countdowns,
the detector will beep and ash 8 times with a pause between countdowns.
Display will show:
(pause)
Release the power/menu button when the display shows “AUTO ZERO”
followed by “APPLY GAS”. Connect a hose from a demand ow regulator on a
gas cylinder to the detector's gas inlet and apply gas. Calibration is complete
once the detector goes into alarm and the next calibration due date is
displayed. Turn gas o and remove hose from regulator. Display will show:
(connect hose)
Note: Calibration can also be done using the MGC Pump Clip Dock.
To conrm that there are no leaks in the
sampling system, perform a blocked ow
test 1.) daily and 2.) any time the sampling
system is changed.
Turning O the Detector
Press and hold down the power/menu button until the“OFF”countdown is
complete. During the countdown, the detector will beep and ash 4 times
then turn o. Display will show:
