Gasmate ADVENTURERDELUXE 2 User manual

1
Important: Retain these instructions for future use
Powerful 17MJ/h stainless steel burner for
true BBQ performance
Rotary ignition for easy lighting
Generous cooking area of 2200cm2
Satin enamel cast iron cooking surface
Integrated temperature gauge
Includes hose and regulator
LPG Caravan bayonet suitable (bayonet hose
not included)
Gas certified to Australian and
New Zealand Standards
03700 05/18
Gasmate® is a registered trademark of
Sitro Group Australia Pty Ltd www.gasmate.com.au
Aber Living, N.Z. www.gasmate.co.nz
ADVENTURERDELUXE 2
TWO BURNER PORTABLE BBQ
Model No. BQ1078

2 3
READ ME FIRST

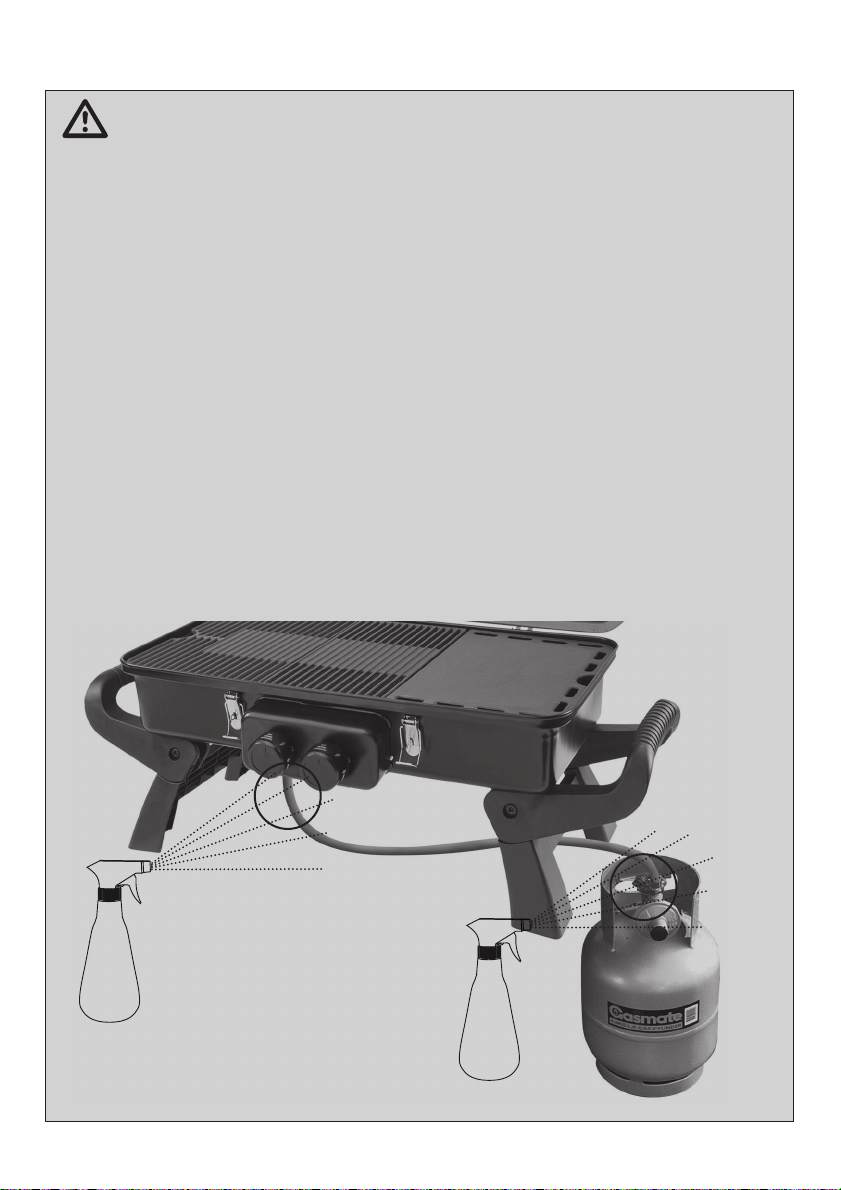

GAS LEAK TESTING
It is important that you leak test the BBQ before first use and every time the gas
cylinder is refilled and reconnected to the BBQ.
To Complete Leak Test
• Make sure all the control knobs are OFF.
• In a small container, mix up a solution of water and detergent/soap.
• Mix the solution well (about the same concentrate as washing up water).
• Turn the cylinder ON by rotating the knob to open position.
• Using a brush or spray bottle apply the soap solution to the gas line and each
join in the gas line including:
- the gas connection at the inlet of the BBQ
- all gas hose connections
- the gas connection at the gas cylinder
• If bubbles appear, there is a gas leak.
• If the leak is at the connection, re-tighten and re-seal.
• If the leak is anywhere else or you cannot resolve the leak by tightening the
connection DO NOT PROCEED.
• Replace gas hose and regulator.
• Replacement hose and regulators can be purchased from your local BBQ
retail specialist.

2 3
GENERAL INFORMATION
Gas Installation Codes
• Barbecues must be used in accordance with
the installation requirements of your gas
supply authority, or the Australian Standard
AS/NZS 5601.
• Barbecues for use with bottled gas are
labelled ‘Propane Gas’.
• Barbecues for use with natural gas are
labelled ‘natural gas’ and must be installed by
an authorised person. Check the gas type
sticker attached to the barbecue.
Clearances
Minimum Clearances from combustible materials
must be:
Rear - 300mm
Sides - 300mm
Above - 1000mm
Specifications
Barbecue specifications can be found on the
data label attached to the barbecue body.
Hose connection thread is 5/8”-18 UNF.
IMPORTANT
Read these instructions carefully prior
to use. Familiarise yourself with the
appliance before connecting it to it’s gas
container. Keep these instructions for
future reference.
IF YOU SMELL GAS
1. Shut off gas to the barbecue at its
source, if possible.
2. Extinguish any open flame.
3. Open hood.
4. If odour continues immediately call your
gas supplier or fire department.
Hose & Regulator Safety
The regulator and hose assembly supplied with
the barbecue are suitable for Propane Gas.
A gas regulator adjusted to have an outlet
pressure of 2.75kPa is supplied for connection to
the propane gas cylinder. The pressure regulator
and hose assembly supplied with the barbecue
must be used. Replacement pressure regulators
and hose assemblies must be those specified by
the barbecue manufacturer.
When connecting the hose and regulator
assembly to the gas cylinder, take care to avoid
unnecessary twisting of the flexible hose.
After the assembly has been secured, turn on
the gas and check for leaks by brushing a soap
and water solution over all connections.
If you are unable to correct the leak by tightening
the connections, turn off the gas and contact the
supplier immediately.
Always ensure the barbecue is kept away from
flammable materials and the gas cylinder clear of
any heat source.
When changing over from an empty gas cylinder
to a full one make sure this procedure is carried
out in a well ventilated location, preferably
outside, away from people and away from any
sources of ignition; such as naked flames, pilot
flames, electric heaters/equipment.
Gas Cylinder Use & Safety
This is a low pressure barbecue and must
only be used with the regulator supplied. Your
barbecue is designed for use with 4.5Kg or 9Kg
propane gas cylinders certified to AS 2469.
The gas cylinder should be filled by a reputable
gas supplier and visually inspected and re-
qualified at each filling.
Always keep cylinder in an upright position.
Always close the cylinder valve when the
barbecue is not in use.
Do not subject gas cylinder to excessive heat.
NEVER STORE YOUR GAS CYLINDER INDOORS.
If you store your barbecue indoors, ALWAYS
disconnect the gas cylinder first and store the
cylinder safely outside.
Cylinders must be stored outdoors in a well
ventilated area out of reach of children, and must
not be stored in a building, garage or any other
enclosed area.
Check the cylinder collar to ensure the test date
status is current (10 years from date stamp).

4 5
FOR YOUR SAFETY
Failure to comply with these instructions
could result in a fire or explosion which
could cause serious bodily injury, death or
property damage.
CAUTION: Accessible parts may be very
hot.
Keep young children away.
DO NOT modify this appliance.
DO NOT move this barbecue during use.
Turn off gas supply at the gas cylinder after
use.
Parts sealed by the manufacturer or their
agent must not be manipulated by the user.
This barbecue is only to be used and stored
outdoors.
• Never operate this barbecue without a
regulator.
• Do not test for gas leaks with an open
flame.
• If this information is not followed exactly
a fire causing death or serious injury
may occur. Do not store a spare gas
cylinder under or near this barbecue. This
barbecue is only to be used and stored
outdoors.
• If there is a leak on your appliance (smell
of gas) immediately attempt to turn off
the cylinder valve. Remove the appliance
to a well ventilated location away from
any ignition source. Only check for leaks
outdoors using soapy water. DO NOT try
to detect leaks using a flame.
• Check for leaks by brushing a soap and
water solution over all connections. If
you are unable to correct the leak by
tightening the connections, turn off
the gas and contact customer service
immediately.
• Only use the hose assembly as supplied
with this appliance for connection to the
cylinder - DO NOT USE ADAPTERS.
• Maximum hose length - 600mm.
• After use turn the gas cylinder valve off,
wait for the flame to go out, then turn the
appliance control valve off.
GENERAL INFORMATION
• Avoid twisting or kinking the flexible
hose.
• Do not store or use petrol or other
flammable liquids in the vicinity of this or
any other appliance.
• Do not store empty or full spare gas
cylinders under or near this or any other
appliance.
• Never test for gas leaks with a lit match
or open flame. Never light barbecue with
hood closed or before checking to ensure
the burner tubes are fully seated over gas
valve orifices.
• Never lean over cooking surface when
lighting.
• Never alter or modify the regulator or gas
supply assembly.
• This barbecue must not be used indoors.
• Only use in well ventilated areas.
• CARBON MONOXIDE HAZARD - USING
THIS APPLIANCE IN AN ENCLOSED
SPACE MAY CAUSE DEATH. DO NOT
USE IN CARAVANS, TENTS, MARINE
CRAFT, CARS, MOBILE HOMES OR
SIMILAR LOCATIONS.
• This appliance shall only be used in an
above ground open-air situation with
natural ventilation, without stagnant
areas, where gas leakage and products
of combustion are rapidly dispersed by
wind and natural convection.
• Ensure the barbecue is set up on a level
and stable surface.
• Do not move the barbecue while in use
or when hot. Remove the drip tray before
moving.
• DO NOT replace the grill with an extra
hotplate. The warranty will be voided
and it violates the gas approval, the grill
provides the ventilation needed for the
BBQ to operate safely. It is not designed
to be a solid hotplate device.

4 5
IF THERE IS A LEAK
• Turn the cylinder off.
• Ventilate the area to disperse gas.
• Check all connections.
• If leak persists, keep the cylinder upright.
Keep skin away from any gas or liquid
escaping from the cylinder.
• Keep the cylinder at least 20 metres
away from any sparks or ignition sources,
including electrical equipment, camera
flashes, engines and motors.
• Disperse gas by encouraging maximum
ventilation and spraying with a fine water
spray.
IF THERE IS A FIRE
• If the fire is at the barbecue, turn the gas
off at the cylinder. Smother the flames
with a wet cloth, fire blanket or extinguish
using a fire extinguisher.
• If the fire is at the cylinder, or you can
not get to the valve to turn the gas off,
contact the fire brigade immediately.
• Using a garden hose, direct the water to
the middle of the cylinder to keep it cool.
Try not to extinguish the flame. At least
if the gas is burning, it won’t be able to
build up pressure and explode.

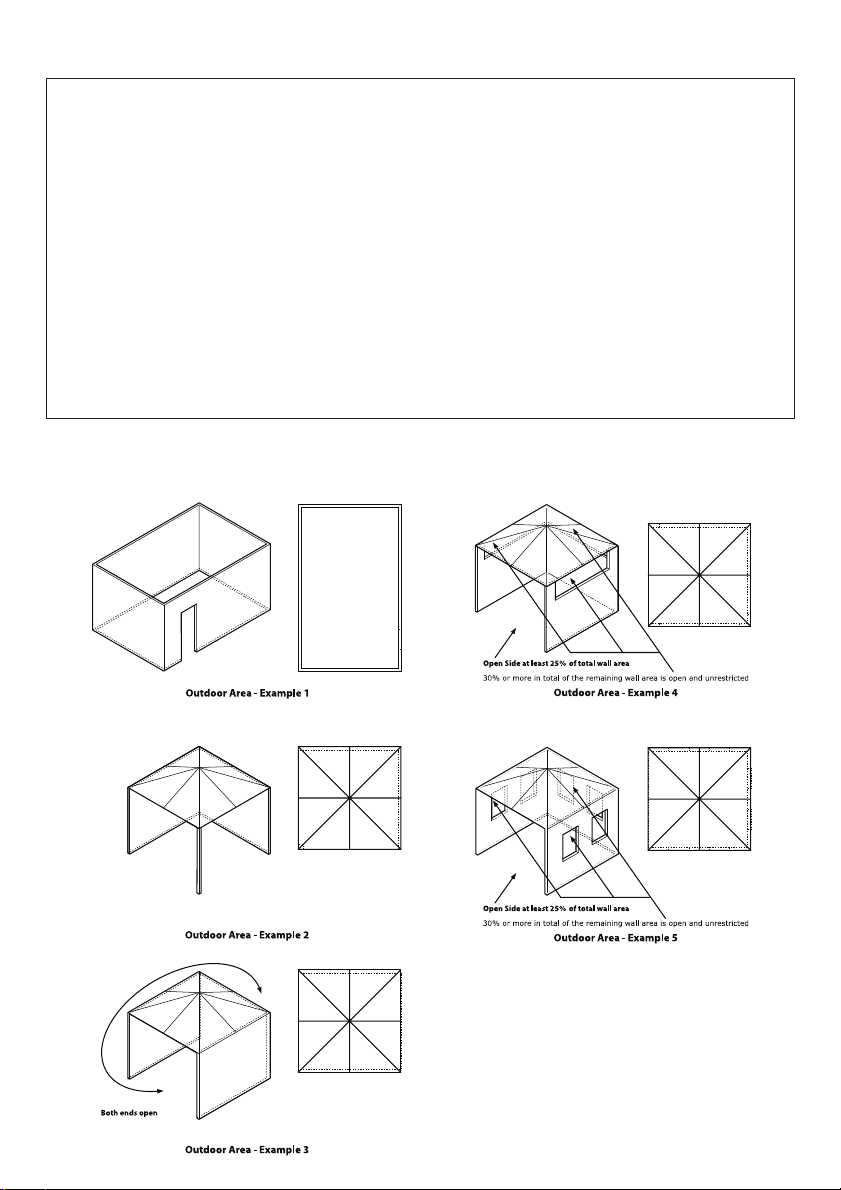

Location of your Barbecue
DO NOT use your barbecue in garages, porches,
sheds, breezeways, or other enclosed areas.
Your barbecue is to be used OUTDOORS. The
barbecue is not intended to be installed in or on
recreational vehicles and/or boats and should
not be placed under any surface that will burn.
Do not obstruct the flow of combustion and
ventilation air around the barbecue housing.
Protect Children
Keep children away from barbecue during
use and until barbecue has cooled after you
have finished. Do not allow children to operate
barbecue.
Always ensure that no sporting or physical
activities are carried out in close proximity to the
barbecue during use and while still hot.
Tools You Will Need
Adjustable spanner, Philips head screwdriver.
Check Barbecue for any Damage
Inspect barbecue parts as you proceed.
Contact your supplier for assistance regarding
replacement of any damaged or missing parts.
Do not assemble or operate a barbecue that
appears damaged. Barbecues for use with gas
cylinders are labelled ‘Propane Gas’.
This appliance is designed to use a P.O.L. gas
cylinder.
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT
OTHER TYPES OF GAS CONTAINERS.
Check labelling at the gas connection on your
barbecue.
Nominal Hourly Gas Consumption
Main Burner
Gas Type Propane
Inj. Size Ø 0.80 mm
Gas Cons. 8.5 MJ/h x 2
Gas Pressure 2.75 kPa

6 7

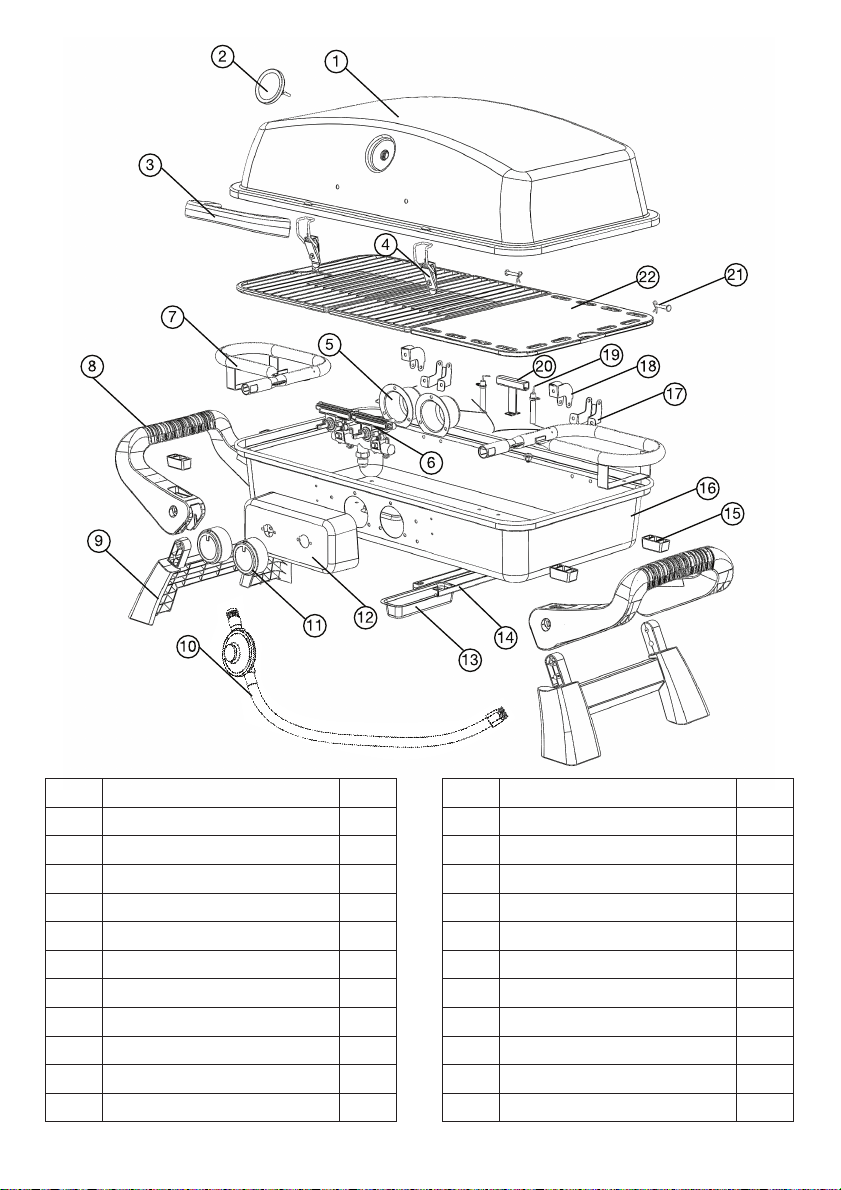

Part Description Qty
1 Hood 1
2 Thermometer 1
3 Hood Handle 1
4 Buckle 2
5 Valve Cover 2
6 Valve 2
7 Burner 2
8 Side Handle 2
9 Leg 2
10 Gas Hose 1
11 Control Knob 2
12 Ignition Electrode 2
13 Grease Cup 1
14 Grease Cup Support 2
15 Insulation Body 4
16 Body 1
17 Body Hinge 2
18 Top Hinge 2
19 Ignition Needle 2
20 Firebox 1
21 Hinge Pin 2
22 Cooking Plates 3
PARTS LIST

6 7
HARDWARE LIST
Hardware listed above is not scaled to exact size. A screwdriver is required on assembly and is included
for your convenience.
Lid pin
R pin
Flat washer
AA: 4 PC BB: 4 PCS CC: 4 PCS
DD: 4 PCS EE: 6 PCS FF: 2 PCS
GG: 6 PCS
JJ: 1 PCS
HH: 6 PCS
KK: 1 PCS LL: 1 PCS
II: 2 PCS
M6&M8 Wrench M5 WrenchScrew driver
M8 × 45 Bolt
M6 × 25 Bolt
M5 × 8 Bolt
M8 Nut
M6 Nut
M5 Nut

8 9

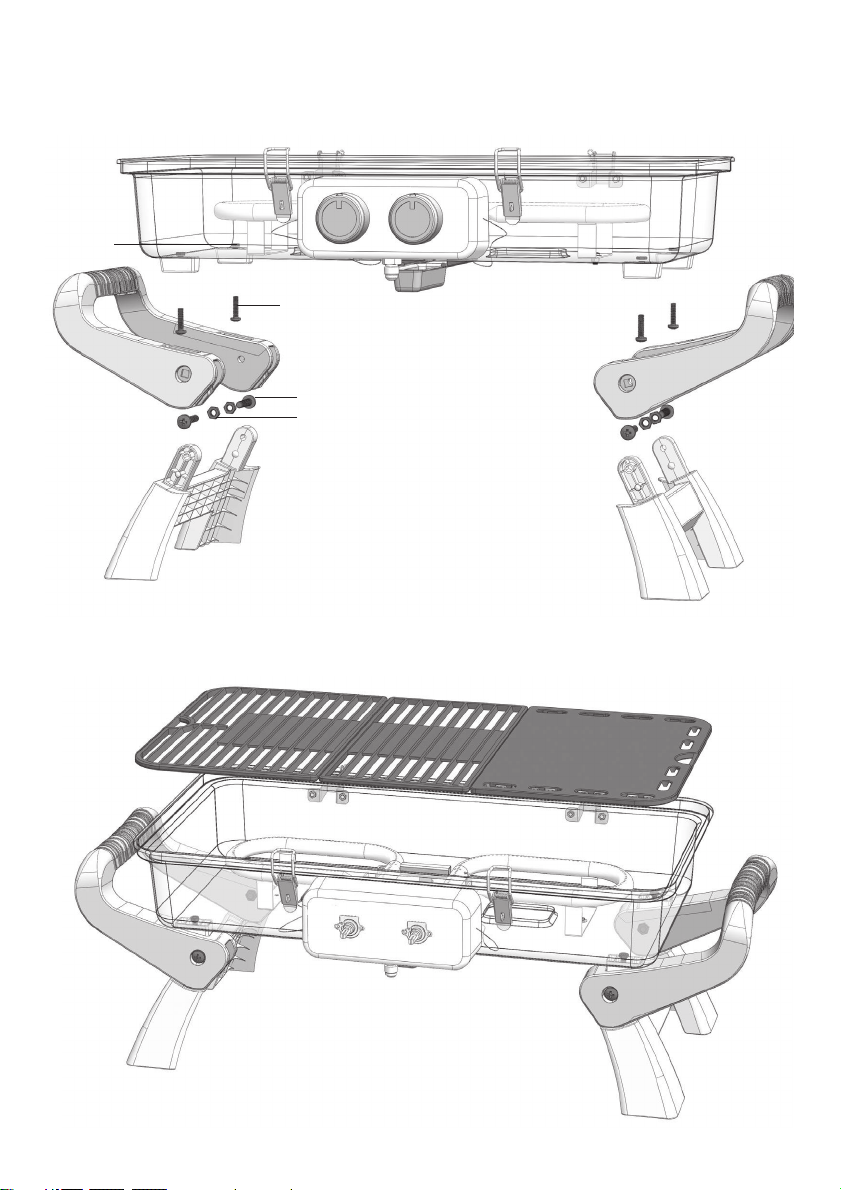

ASSEMBLY INSTRUCTIONS
STEP 2
Attach the body hinges with four M5 x 8mm screws and nuts as shown.
Remove any transit protection material. Estimated Assembly Time: 20 minutes.
STEP 1
Attach the hood hinges with two M5 x 8mm screws and nuts as shown.
GG
HH
GG
HH

8 9
STEP 3
Attach the handle to the body ensuring the insulation pads are inserted into the handles before securing
with four M6 x 25mm screws and nuts. Attach the legs to the handles using four M8 x 45mm screws,
washers and nuts as shown.
STEP 4
Locate the cooking plates as shown.
AA
DD
EE
BB

10 11
STEP 5
Slide the fat cup into position from the back.
STEP 6

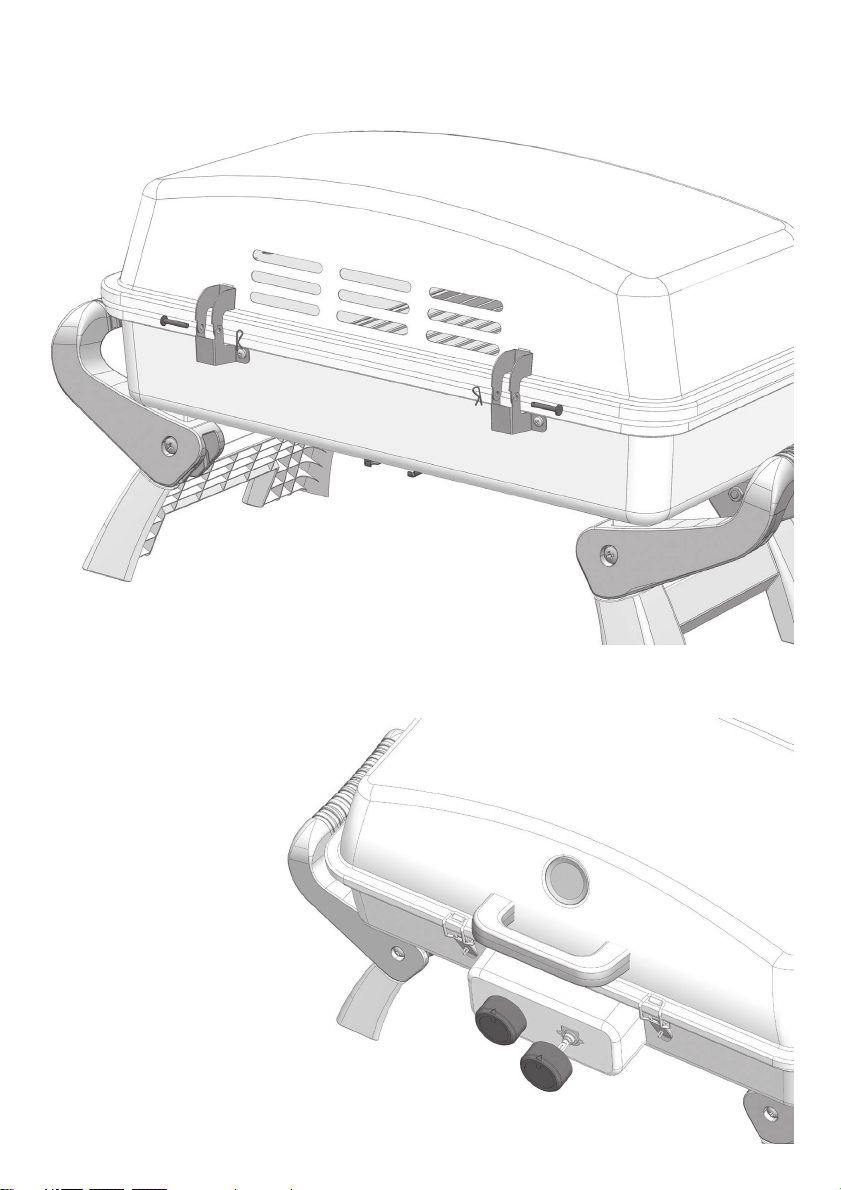

Attach the hood handle using two M6 nuts and washers as shown.

10 11
STEP 7
Place the hinge pin through the hinges and secure with the ‘R’ clip.
STEP 8
Align the ‘D’ shape and push on the control knob.

12 13
GENERAL INFORMATION
CONNECTING & DISCONNECTING
TO GAS SOURCE
Familiarise yourself with the general information
and safety guidelines located at the front of this
manual.
Check
1. Gas cylinder is filled. A sloshing sound will be
heard when shaken.
2. The burner control is in the ‘OFF’ position
Connecting
1. Ensure valve is in OFF position.
2. Check for any damage to the cylinder
connection.
3. Attach the regulator to the cylinder valve.
4. Use a soapy water solution to check the joint. If
bubbles appear the connection will need to be
re-tightened.
IMPORTANT
• IMPORTANT: Before connecting and
disconnecting barbecue to gas source,
make sure burner controls are in ‘OFF’
position.
• CAUTION: When the barbecue is
not in use, the gas cylinder must be
disconnected.
• Check that the seals between the
appliance and the gas cylinder are in place
and in good condition before connecting
the gas cylinder.
• Do not use this appliance if it has
damaged or worn seals.
• NOTE: If for some reason, ignitor fails
to produce a spark at the electrode,
barbecue can be lit by a long barbecue
match with hood open insert the match
into a hole on the underside of the
barbecue and turn gas control to high.
• Check performance of burner prior to
installing barbecue plates.
• Do not smoke when attempting to ignite
barbecue.
• Never use volcanic rock, heat beads or
other material.
• Always use protective gloves when
handling hot components.
LIGHTING PROCEDURE
Burner Operation & Ignition System Check
1. With cylinder valve in ‘OFF’ position check the
piezo igniter by pushing in and rotating the
control knob anti-clockwise. Check for sparking
to the burner.
2. If spark is not evident at the burner ignition point,
check that the ignition lead is firmly attached to
the control and sparker tip.
3. With sparking established open the cylinder
valve, push and turn the control knob to ‘HIGH’.
4. If the burner fails to light after several attempts turn
off gas and inspect for obstructions to gas flow.
If re–ignition is necessary while the gas barbecue is
still hot, you must wait for a minimum of 5 minutes
before commencing to re–ignite (this allows
accumulated gas fumes to clear).
Overall Barbecue Dimensions
Length Width Height
840mm 440mm 420mm

12 13
OPERATION
IMPORTANT
The hood must be in the open position for lighting.
Do not smoke at any time when attempting
to ignite the barbecue burners.
Do not leave the barbecue unattended when
alight.
BURNER OPERATION & IGNITION SYSTEM CHECK
Problem Possible Reason Solution
Burner will not ignite
Control knob is closed Turn knob to high when lighting
Piezo igniter is faulty Use a long barbecue match inserted
through the hole on under side of
barbecue
Food is not cooking
or is taking too long
Burner has gone out Check that the gas bottle is not empty
and re-ignite the burner
Cooking surface was not given
enough time to warm up before
the food was applied
Remove the food and give the burner time
to warm the cooking surface (5-10 mins)
There is too much food on the
cooking surface
Cook smaller portions
OPERATING PROCEDURE
Cooking
The control knob can be turned from ‘HIGH’ to
‘MED’ or ‘LOW’ depending on the heat required.
With the hood down the burner must only be used
on ‘LOW’.
Servicing
Servicing should be conducted every year or
sooner if required.
The appliance must only be serviced by an
authorised person.

CARE & MAINTENANCE
As with all appliances, proper care and
maintenance will keep them in top operating
condition and prolong their life. Your new gas
barbecue is no exception. By following these
cleaning procedures on a timely basis, your
barbecue will be kept clean and working properly
with minimum effort.
Spiders and small insects occasionally spin
webs or make nests in the burner tubes during
warehousing and transit.
These webs can lead to a gas flow obstruction
which could result in a fire in and around the
burner tubes. Cleaning with a soft brush
before use and at least every six months is
recommended.
This type of fire is known as ‘FLASH-BACK’ and
can cause serious damage to your barbecue and
create an unsafe operating condition for the user.
Although an obstructed burner tube is not the only
cause of ‘FLASH-BACK’ it is the most common
cause and frequent inspection and cleaning of the
burner tubes is necessary.
Flash-Back
If fire occurs in and around the burner,
immediately turn off gas at its source and turn the
burner control to ‘OFF’, wait until the barbecue
has cooled, then clean the burner tubes and
burner ports.
Cleaning the Cooking Surface
After cooking, turn burner control to ‘OFF’ and let
barbecue cool before attempting to clean the grill
plate or grate. Before first use and periodically,
it is suggested that you wash the grill plate and
grate in a mild soap and warm water solution.
Care of Cooking Surface
Use and care of the cooking surface is important.
Do not use pans on the cooking surface. Do not
overheat the cooking surface with the hood down
or no food on the cooking surface.
Cleaning the Drip Tray
To avoid fat or grease dripping from the barbecue
remove and empty the drip tray after each use.
Wait until the drip tray is cool to touch before
disposing of contents.
The drip tray should be washed periodically in a
mild detergent and warm water solution.
IMPORTANT
• Beware of spiders and wasps. Burner
tube should be inspected and cleaned
periodically.
• This appliance must only be serviced by
an authorised person.
• To avoid any flare-ups, it is recommended
that the drip tray be checked and emptied
regularly. Contents of the drip tray may
be very hot during cooking. If emptied
during extended cooking extreme caution
should be taken and direct contact by
hand should be avoided at all times. Allow
to cool completely before disposing of the
contents.

This appliance shall only be used in an above ground open-air situation with natural ventilation,
without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by
wind and natural convection.
Any enclosure in which the appliance is used shall comply with the following:
An enclosure with walls on all sides, but at least one permanent opening at ground level and no
overhead cover.
Within a partial enclosure that includes an overhead cover and no more than two walls.
Within a partial enclosure that includes an overhead cover and more than two walls,
the following will apply:
at least 25% of the total wall area is completely open, and
at least 30% of the remaining wall area is open and unrestricted.
In the case of balconies, at least 20% of the total wall area shall be and remain open
and unrestricted.
SAFE APPLIANCE LOCATIONS
DIAGRAMMATIC REPRESENTATIONS OF OUTDOOR AREAS
The following figures are diagrammatic representations of outdoor areas. Rectangular areas have been
used in these figures – the same principles apply to any other shaped area.

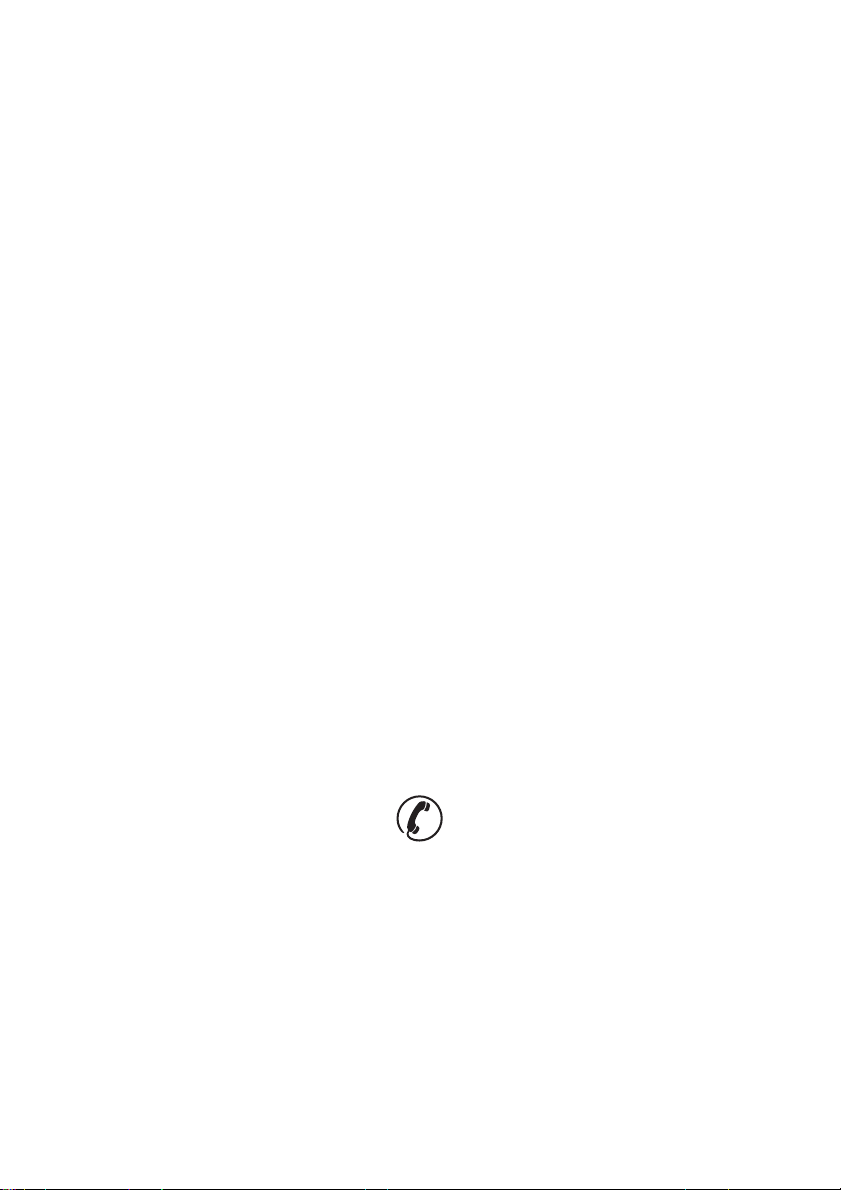

For any queries or assistance call
Customer Service
(Australia Only)
1300 174 876
Hours of operation:
Monday to Friday 8am - 5pm EST
Do not return to place of purchase.
Keep your purchase receipt, this will be required to
make any claims under the 12 month warranty.
