GATT AUDIO MONTY-8 User manual

Please read this manual carefully and proper take care of this manual
Portable PA System for MP3
MIC 1 BALANCED
INSTRUMENT/MIC 2
CD/TAPE IN
GAIN GAIN GAIN
0
0
00
00
+155
1+155
1+15
5
1
10
10
10 10
CH 1 C H 2CH 3
L R
TREBLE MASTER VOL
MIDDLE BASS
POWER
0
USB
SD
V+ V- EQ USB/SD
USB/SD DIGITAL PLAYER
USER’S MANUAL
Portable PA System for MP3
MONTY-8

(1) Read these instructions.
(2) Keep these instructions.
(4) Follow all instructions.
(5) Do not use this device near water.
(6) Clean only with a dry cloth.
(7) Do not block any ventilation openings. Install in accordance with the manufacturer s instructions.
(8) Do not install near any heat sources such as radiators, heat registers, stoves, or other app-
aratus (including amplifiers) that produce heat.
(9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the ob-
solete outlet.
(3) Heed all warnings.
1. IMPORTANT SAFETY INSTRUCTIONS
CAUTION: To reduce the risk of electric shock, do not remove
No user serviceable parts inside; refer servicing to qualified personnel.
the top cover (or the rear section).
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain and
moisture.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous
voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to
instructions in the accompanying literature. Please read the manual.
important operating and maintenance
2. DETAILED SAFETY INSTRUCTIONS:
(1)

(10) Protect the power cord from being walked on or pinched particularly at plugs, extension
cords, and the point at which they exit the unit.
(11) Only use attachments/accessories specified by the manufacturer.
(13) Unplug this device during lightning storms or when not used for long periods of time.
(14) Refer all servicing to qualified service personnel. Servicing is required when the unit has
been damaged in any way, such as power supply cord or plug is damaged, liquid has b-
een spilled or objects have fallen into the device, the unit has been exposed to rain or
moisture, does not operate normally, or has been dropped.
(12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the device. When a cart is used, use caution when moving the cart/ device
combination to avoid injury from stumbling over it.
(2)
FULLY CHARGE THE BATTERY BEFORE FIRST USE FOR MAXIMUM BATTERY LIFE
1. Make sure all items.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
3. MAKE SURE THAT YOU HAVE COMPLETELY CHARGED THE BATTERY.
4. Study this setup diagram.
5. Place product in an appropriate position for operation.
6. Make sure all input devices such as microphones, CD or SD players, USB players, MP3
players, and linked amplifiers/PAS are turned off and volume settings are set at “zero”
8. Connect the outputs to the power amplifier(s), tape decks, and / or audio sources.
9. Switch everything on in the following order.
* audio input sources (i.e. Microphones, instruments, CD players,USB or SD players,MP3
players)
* last, any amplifiers.
10. When turning off ,always reverse this operation by ,
* turning off amplifiers
* last, any input devices.
7. Connect all devices as shown above.
3 INTRODUCTION.

(3)

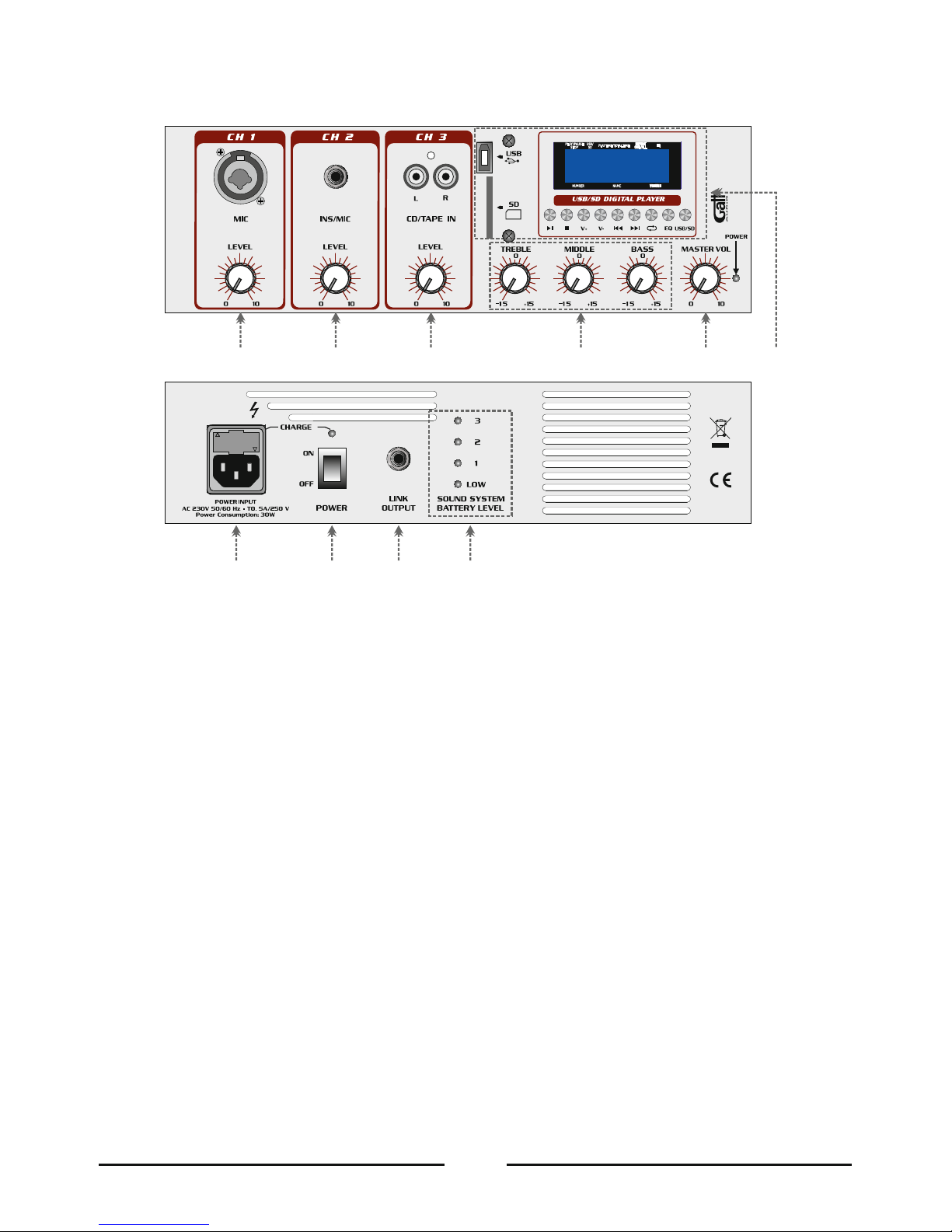

4. FEATURES
(1). Microphone 1 Balanced Input with Control (1/4” and XLR):
This jack can either take a 1/4” balanced or a XLR balanced cable. An XLR Cable is inc-
luded with the microphone.
(2). Instrument/Microphone 2 Input with Level Control (1/4”):
This mono input accepts a 1/4” input such as a microphone, guitar, or other musical inst-
rument.
(3). CD/Tape input with Level Control (Stereo RCA):
This knob controls the level of the CD and the RCA input. This stereo RCA input can be
used to connect a CD, MP3, or other audio source. To connect to a portable device with
a 1/8” headphone jack, you need a standard (1/8” to RCA) adapter which is NOT included.
(4). EQUALIZATION CONTROL(EQUALIZATION)
This is a 3-band equalizer that allows you to adjust the frequency response of the MAIN
bus signal.
(5). Master Volume Control:
This knob controls the master volume of the system.
(6). MP3 player
It has two input mode, USB and SD input. LCD display for the correspond input.
(7). Power Adapter (IEC)
Insert the included power cable here to charge the unit. Note that the system can run off
the power adapter while it simultaneously charges the battery. The charge indicator illum-
inates when the battery is charging.
(8). Power Switch:
Turns this apparatus ON/OFF.
Level
(1) (2) (3) (4) (5)
(7) (8) (9) (10)
(6)
PORTABLE
PA SYSTEM
MONTY-8

00
0
V+ V- EQ USB/SD
USB/SDD IGITALPLAYER
SD
USB
010+1551
CH 1 C H 2 CH 3
CD/TAPE IN
010
L R
INS/MIC
010 +1551 +1551
POWER
MIC
010
(4)
(9). Link Output:
This 1/4” jack can be connected to the system input of an amplifier or amplified loudspeaker
such as another system.
(10). Battery level indicator:
while the unit is powered ON, these four lights indicate the power left in the battery. Battery
life varies based on volume and usage.

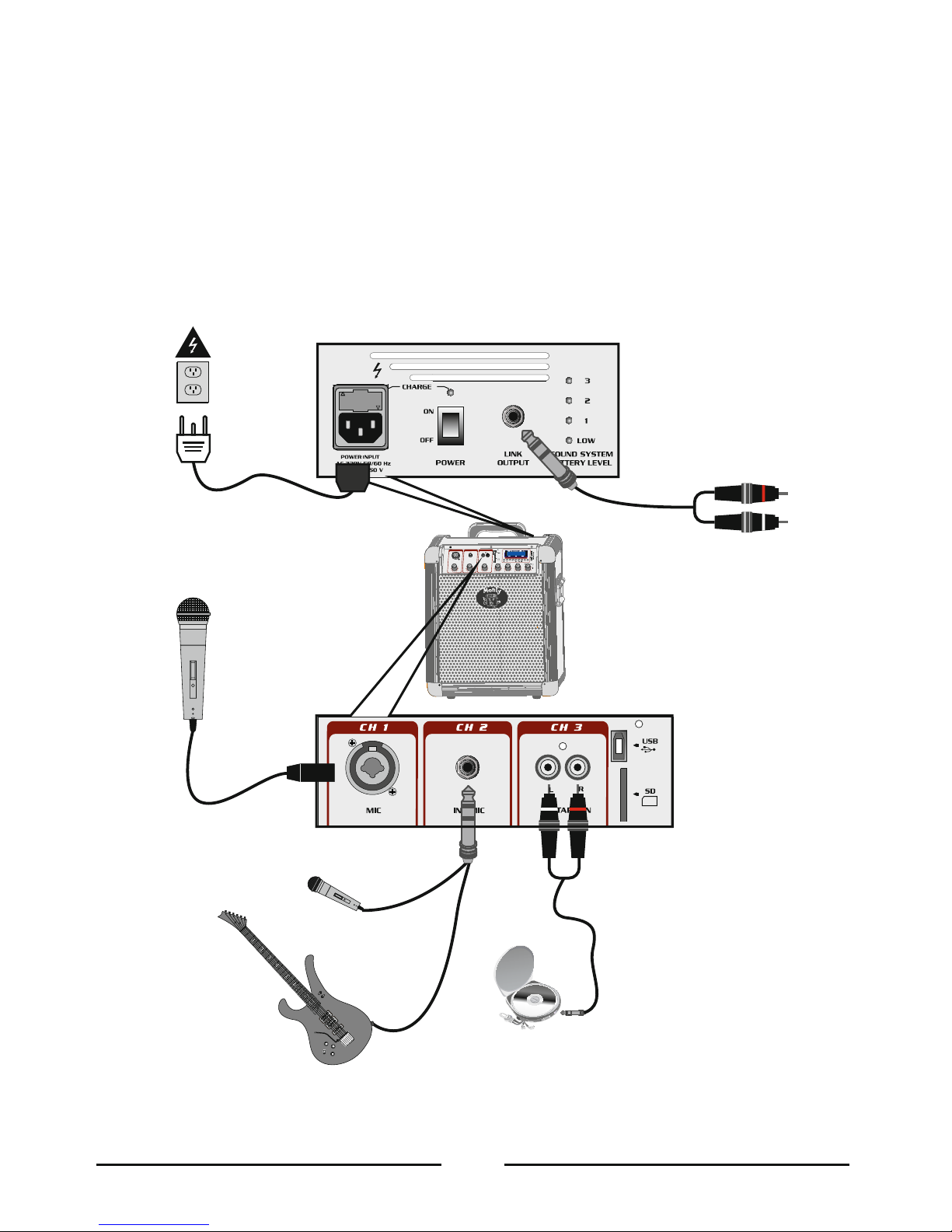

5. CONNECTION EXAMPLES
Important: with all large speakers, an initial “break-in” period is needed to perform at optimal
levels. To properly “break-in” your system, play an audio source at medium volume for a few
hours.
L R
135790
681
2
4
135790
68124
135790
68124
VOLUME
TONE
TONE
LR
L
R
To other AMP
Cable sold separately
OR

(5)
7. SPECIFICATIONS
Input Voltage: AC 110-120V/60Hz 220-240V/50Hz
Output Wattage: 8" (peak) 22W
10" (peak) 50W
Output Wattage: 8" (RMS) 15W, 1% THD
10" (RMS) 30W, 1% THD
Frequency Response: 70~50kHz +/-3dB
Bottom pole mount specifications: Standard Pole Mount found at professional audio
retailer.
Depth 97mm(3.819")
Diameter 37mm(1.457")
Battery life: Over 6 hours* at full volume of the system when fully charged.
dimensions
(W x D x H) 8" 386x307x456mm
15.197＂x 12.087＂x 17.953＂
10" 437x340x507mm
17.205＂x 13.386＂x 19.961＂
Weight: 8" 17.5 kg
10" 22.5
NOTE: Battery life may vary based on temperature, age and volume usage of product.
6. IMPORTANT NOTE
Use this troubleshooting guide if : The sound is distorted at high volumes.
Input is clipping: Try lowering the input gain or the volume control on your sound sou-
rce or music instrument.
Output is clipping: Lower the main volume level.
There is too much bass: Try adjusting the tone or EQ control on your sound source to
lower bass level. This will allow you to play the music louder
before clipping (distortion) occurs.
The link cable: is being plugged into the instrument or MIC input instead of the RCA line
input.
