Rockler 66992 User manual

Review full instructions prior to use for important safety information.
Always check Rockler.com to confirm that you are using the most recent
version of instructions for your product.
AM/FM Stereo Wireless Speaker Kit Instructions
Effective July 2022

2
GENERAL SAFETY WARNINGS
This product is designed only for specific applications as defined in the instructions and
should not be modified or used for any manner not described in these instructions. Use only
recommended accessories. Before using the AM/FM Stereo Wireless Speaker Kit: READ,
UNDERSTAND and FOLLOW ALL INSTRUCTIONS AND SAFETY WARNINGS. KEEP
THESE INSTRUCTIONS READILY AVAILABLE FOR FUTURE REFERENCE.
>Always confirm that you are using the most
recent version of the instructions and safety
warnings for your product (see the
instructions link on the product
page at Rockler.com).
>Before using another tool with this product,
always read, understand and follow the
instructions and safety warnings in the
owner’s manual for that tool. If you do not
have the owner’s manual, obtain one from
the tool’s manufacturer before using it with
this product.
>Before using any chemical with this
product, always read, understand and
follow all safety warnings and guidelines
in the manufacturer’s Safety Data
Sheet (SDS; formerly called “MSDS”),
especially regarding:
• How to safely use the chemical,
including potential hazards and
recommended first aid measures;
• Personal safety equipment required
to safely use the chemical (e.g. gloves,
eye protection, mask/respirator, etc.);
• Proper and safe handling, storage
and disposal of the chemical.
>Before using this product, review and verify
that all tools to be used with it have safety
equipment installed and are in proper
working order as defined by the tool’s
owner’s manual.
>Do not use this product until you have read
and are confident you understand:
• Product Specific Warnings (pp. 3 - 4);
• Assembly (p. 5);
• Connecting to Your Device (p. 6);
• Operating Controls (p. 6).
>The user assumes all risk and responsibility
for the proper and safe use of this product
and for ensuring product suitability for the
intended application.
>It is the sole responsibility of the purchaser
of this product to ensure that anyone
you allow to use this product reads and
complies with all instructions and safety
precautions outlined in this manual
prior to use.
>Follow all standard shop safety
practices, including:
• Keep children and bystanders away
from the tool operating area;
• Do NOT use power tools in explosive
environments, or in the presence of
flammable liquids, fumes or dust;
• TURN OFF AND UNPLUG all power
tools BEFORE making any adjustments
or changing accessories;
• Remain alert and use good judgment.
Do not use this product if you are in any
way impaired by medications, alcohol,
drugs or fatigue;
• Keep your work area well lit and clean;
• Dress appropriately. Secure loose
clothing, remove all jewelry and tie
up long hair before using this product;
• ALWAYS wear safety glasses, hearing
protection and respiratory protection
that complies with NIOSH/OSHA/ANSI
safety standards;
• Use dust collection tools and dust face
masks to reduce exposure to dust;
• Use safety equipment such as
featherboards, push sticks and push
blocks, etc., when appropriate;
• Maintain proper footing at all times
and do not overreach;
• Do NOT force woodworking tools.
>These warnings and instructions do
NOT represent the total of all information
available regarding tool safety, use and
technique. Always seek out opportunities
to learn more and improve your skills
and knowledge.
Drilling, sawing, sanding
or machining wood products can expose
you to wood dust, a substance known to
the State of California to cause cancer.
Avoid inhaling wood dust or use a dust
mask or other safeguards for personal
protection. For more information go to
www.P65Warnings.ca.gov/wood.
BP0722

3
Danger indicates a hazardous situation that, if not avoided, will result
in death or serious injury.
Warning indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
Caution indicates a hazardous situation that, if not avoided, may result
in minor or moderate injury or property damage.
Notice indicates important or helpful information and/or user tips.
SAFETY WARNING KEY
>Read, understand and follow all safety
warnings included in these instructions.
Keep these instructions in a place where
they will be readily accessible later.
>To reduce the risk of fire or electric
shock, do NOT expose this apparatus
to rain or moisture. As with any
electronic products, use care not to
spill liquids into any part of the product.
Exposure to liquids may create a failure
and/or fire hazard.
>Do NOT place open-flame sources,
such as lighted candles, on or near
the product.
>Do NOT use near any heat sources
such as radiators, heat registers, stoves,
prolonged direct sunlight or other
apparatus that produce heat.
>Do NOT subject batteries to mechanical
shock or bending.
>This device uses an internal
rechargeable lithium-ion battery. Never
disassemble the unit or attempt to
remove the battery as that could cause
leakage of an electrolytic substance.
>In the event of a battery leaking, do
not allow the liquid to come in contact
with the skin or eyes. If contact has been
made, wash the affected area with
copious amounts of water and seek
medical advice.
>Do NOT use any chargers or cords
other than that specifically provided
for use with the equipment.
>Do NOT leave a battery on prolonged
charge when not in use.
>After extended periods of storage, it may
be necessary to charge and discharge
the batteries several times to obtain
maximum performance.
>Batteries give their best performance
when they are operated at normal room
temperature: 68°F (20°C) ± 9°F (5°C).
>This product contains magnetic material.
Contact your physician if you have
questions on whether this might affect
the operation of your implantable
medical device.
PRODUCT SPECIFIC SAFETY WARNINGS
Product Specific Safety Warnings continued on page 4

4
PRODUCT SPECIFIC SAFETY WARNINGS CONTINUED
> Do NOT make unauthorized alterations
to the product; doing so may compromise
safety, regulatory compliance and
system performance.
>This product is NOT designed and has
NOT been tested for use in recreational
vehicles or on boats.
>This product is intended to be used only
with the power supply provided.
>When working with epoxy, make sure the
area is well-ventilated, wear nitrile gloves
and use an applicator. Avoid contact with
skin or clothing.
>Changes or modifications to this unit
not expressly approved by the party
responsible for compliance could void
the user’s authority to operate
the equipment.

5
Assembly
The AM/FM Stereo Wireless Speaker Kit
includes right and left speaker units with
connector wires and a control unit with two
antenna wires. Each speaker must be spaced
no farther than 12" away from the control unit
to allow wire connections to be made.
Each speaker unit requires a 2¾" diameter
hole in the enclosure, and the control unit
requires a 2½" x 17⁄8" diameter pill-shaped
opening. The opening can be made by using a
Forstner bit to drill two 17⁄8" holes spaced 13⁄4"
apart on center and then cutting or chiseling
away the remaining material in between.
1. Determine where you want the speakers
and the control unit to be and mark the
locations for the holes.

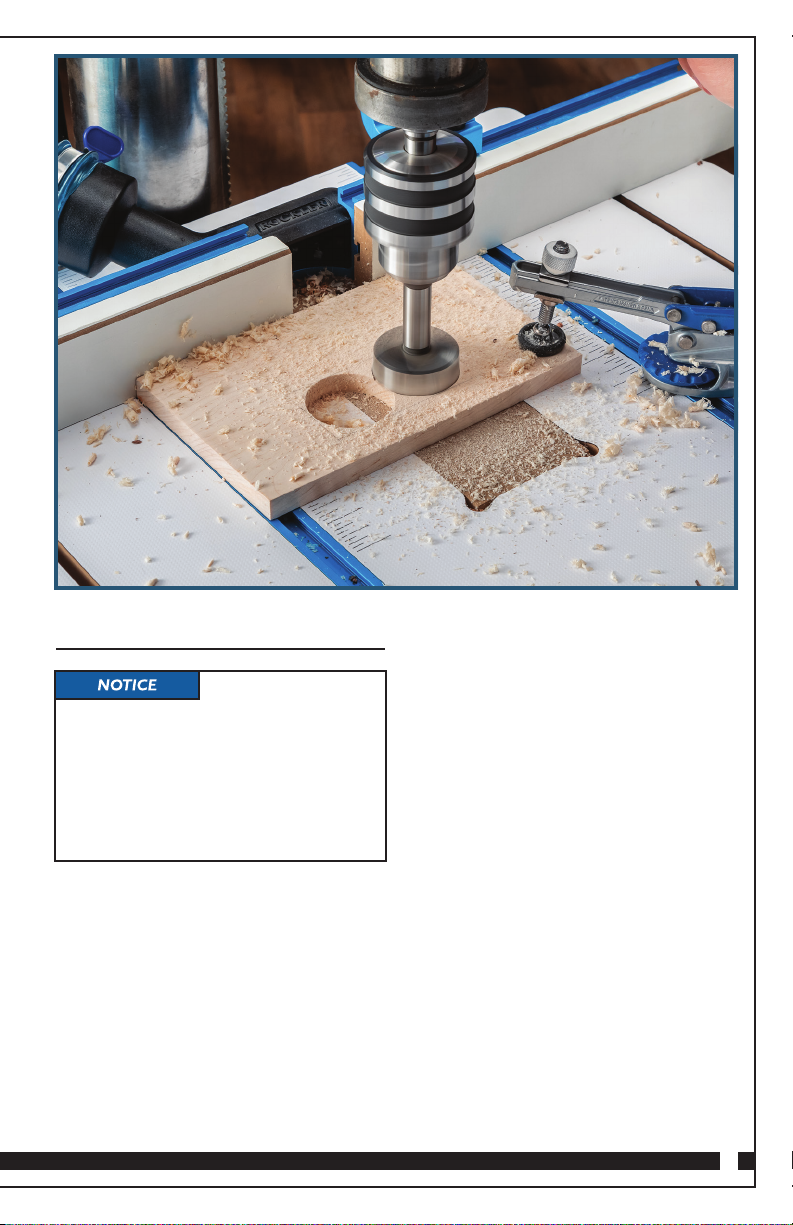

2. Using the Mounting Hole Template
Shop Drawing (p.11) cut the 21⁄2" x 17⁄8"
diameter pill-shaped opening for the
control unit. You can use a coping or
scroll saw to cut the full opening or use
a drill with a Forstner bit (55985, sold
separately) or hole saw to cut two 17⁄8"
diameter holes spaced 13⁄4" apart on
center and then cut or chisel away the
remaining material in between. Fig. 1.
3. Use a coping or scroll saw or a drill with
a Forstner bit (56683, sold separately)
or hole saw to cut two 23⁄4" diameter
holes for mounting the left and right
speaker units.
The wires for the AM
and FM antennas are delicate. Handle
them with care when mounting them
inside the speaker enclosure.
Recommended interior dimensions of
speaker enclosure: 3½" x 3½" x 8".
A hollow box-type structure
is recommended.
Fig. 1

6
4. Test fit the left and right speaker units into
their respective mounting holes. Then
press fit or, if desired, epoxy them in
place. Make sure you will have access
to the color-coded wires/connectors.
Be sure to wipe away any excess epoxy.
5. Connect the wires from the left speaker
unit to the control unit, pressing the white
connector at the end of the set of wires
into the white port on the back of the
control unit.
6. Connect the wires from the right speaker
unit and attached battery to the control
unit, pressing the blue connecter on the
other set of wires into the blue port on the
back of the control unit first and red
connector on the other set of wires into
the red port last. Fig. 2.
7. Carefully remove the backing on the
adhesive tape on the AM and FM antenna
wires connected to the control unit.
8. Fit one of the antenna wires as far as you
can away from the speakers inside one
end of the enclosure and press the
adhesive on the module(s) against the
underside of the top. Fig. 3 and 4.
9. Fit the other antenna wire as far as you
can away from the speakers inside the
other end of the enclosure and press the
adhesive on the module(s) against the
underside of the top. Fig. 3 and 4.
10. Push the wires inside the opening and
press fit or epoxy the control unit into
the mounting hole.
Fig. 2

7
Check Rockler.com for updates. If you have further
questions, please contact our Technical Support
Department at 1-800-260-9663 or
[e-mail]
The LED indicator
light will be red while the battery is
charging and go off when the battery
is fully charged.
1. Charge the speaker by plugging the
small end of the included USB cord into
the micro-USB port on the control unit
and the other end into a power source.
2. Once the battery is charged, disconnect
the USB cord. Make sure Bluetooth®
connectivity is enabled on your device.
3. Turn on the unit by pressing and holding
the ???? button on the control unit for
three seconds. The blue LED will blink.
4. When you open your device, “My BT
Speaker3” should appear onscreen.
Select it and wait for the connection
to be established. Once a connection
is established, the blue LED on the
control unit will light up, the display
will show “BLUE,” and you will
hear a tone.
Connecting to Your Device
Fig. 4 - Top view
Fig. 3 - Back view (Back panel removed for clarity
Speakers
Speakers
Top of
enclosure

8
Bluetooth®Controls - Default mode when the unit is turned on
Aux Controls
Volume – displays
level from 1 to 30
when turned, shows
level for 3 seconds,
then returns to
previous display
Volume – displays
level from 1 to 30
when turned, shows
level for 3 seconds,
then returns to
previous display
LED displays “BLUE”
LED displays “AUX”
Does NOT
function in
Bluetooth Mode
Go to next
audio file
Does NOT
function in
AUX Mode
Does NOT
function in
AUX Mode
Micro USB
charging port
Micro USB
charging port
Mode –
switches between
Bluetooth®, FM/AM
Mode –
switches between
Bluetooth®, FM/AM
Press and HOLD:
Off/on, syncs Bluetooth®
on startup
Press and RELEASE:
Play/pause
Press and HOLD:
Off/on, syncs Bluetooth®on startup
Press and RELEASE: Silences
sound from auxiliary source
Go to
previous
audio file
AUX input
port (3.5mm)
Does NOT
function
in AUX
Mode
Operating Controls
Other than the volume knob, the controls on the display function differently in different modes.
Here’s how the controls function in each mode:

9
AM/FM Controls
Press and HOLD:
Off/on, syncs Bluetooth®
on startup
Press and RELEASE:
Scans through stations
with strong signals and
makes them “presets”
Go to next station
set during initial
preset scan
LED displays station
Volume – displays
level from 1 to 30
when turned, shows
level for 3 seconds,
then returns to
previous display
Tuner for
FM: 87.5-108 MHz
AM: 522-1710 kHz
Go to previous
station set
during initial
preset scan
Micro USB
charging port
Mode –
switches between
Bluetooth®, FM/AM

10
IDENTIFICATION OF
ASSEMBLED PRODUCT
66992 AM/FM STEREO
WIRELESS SPEAKER KIT
FCC ID: 2AT7N-66992
APPLICABLE
COMPLIANCE STATEMENTS
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the
receiving antenna.
— Increase the separation between
the equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help
RESPONSIBLE
PARTY / MANUFACTURER
ROCKLER COMPANIES
ADDRESS 4365 WILLOW DRIVE, MEDINA,
MN 55340
TELEPHONE [phone]
WWW.ROCKLER.COM
BLUETOOTH®
Version 5.0
BLUETOOTH®
Profile A2DP, AVRCP
Transducer 50mm
Output Power 2*5W
Frequency
Response 150Hz-20khz
Signal-to-Noise
Ratio 80dB
Battery
Charge Time About 3 hours
Battery
Play Time
About 7 hours
at 70% volume
Battery
Capacity 800mAh
Weight 173g
BLUETOOTH®
Transmitter
Power
0dBm
BLUETOOTH®
Transmitter
Frequency
Range
2.402-2.480GHz
BLUETOOTH®
Transmitter
Modulation
GFSK/π/4DQPSK
Power Supply DC3.7v by battery
or DC 5V by adapter
Audio Input AUX
Charging Type Micro USB
AM/FM
Operational
Frequency
FM (Receiver):
87.5-108 MHz
AM(Receiver):
522-1710 kHz
Antenna Gain -0.58dBi
Antenna
installation PCB Antenna
Changes or
modifications to this unit not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

Shop Drawings Mounting Hole Template
Scale: 1" = 1"
11

Distributed by Rockler Companies, Inc.
4365 Willow Dr. Medina, MN 55340
The Bluetooth®word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc., and any use of such marks by
Rockler Companies is under license.
1-800-279-4441
www.rockler.com
66992
Rev 07/22
