Printed in the United States 31-31545 09-14 GE
ADVERTENCIA:
• Para reducir el riesgo de descarga eléctrica, incendio o
lesiones a personas, el instalador debe asegurarse de que
el lavaplatos esté completamente cerrado en el momento
de la instalación.
• PARA SEGURIDAD PERSONAL: Quite el fusible o abra el
interruptor de circuitos antes de comenzar la instalación.
No utilice un cable de extensión o un enchufe adaptador
con este artefacto.
• La conexión inadecuada del conductor de conexión a
tierra del equipamiento puede provocar un riesgo de
GHVFDUJDHOpFWULFD&RQVXOWHDXQHOHFWULFLVWDFDOL¿FDGRR
representante de servicio técnico si tiene dudas sobre la
correcta conexión a tierra del aparato.
• Si el cableado doméstico no cuenta con un cable de 2
hilos con conexión a tierra, un instalador debe realizar una
conexión a tierra. Cuando el cableado doméstico es de
aluminio, asegúrese de usar un compuesto antioxidante y
conectores de aluminio a cobre aprobados por UL.
PRECAUCIÓN: No quite la base de
madera hasta que esté listo para instalar el lavaplatos. Si se
quita la base, el lavaplatos se volcará cuando se abra la puerta.
GE Appliances
Installation Instructions
Built-In Dishwasher
If you have questions, call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com.
In Canada, please call 1.800.561.3344 or visit www.geappliances.ca
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
FOR YOUR SAFETY
Read and observe all WARNINGS and CAUTIONS shown
throughout these instructions. While performing installations
described in this booklet, gloves, safety glasses or goggles
should be worn.
IMPORTANT –Observe all governing codes and
ordinances.
• Note to Installer – Be sure to leave these instructions for the
consumer’s and local inspector’s use.
• Note to Consumer – Keep these instructions with your
Owner’s Manual for future reference.
• Skill Level – Installation of this dishwasher requires
basic mechanical, electrical and plumbing skills. Proper
installation is the responsibility of the installer. Product
failure due to improper installation is not covered under
the GE Appliance Warranty. See warranty information.
• Completion Time – 1 to 3 Hours. New installations require
more time than replacement installations.
IMPORTANT –The dishwasher MUST be installed to
allow for future removal from the enclosure if service is required.
Care should be exercised when the appliance is installed or removed,
to reduce the likelihood of damage to the power supply cord.
If you received a damaged dishwasher, you should immediately
contact your dealer or builder.
Optional Accessories – See the Owner’s Manual for available
custom panel kits.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING:
• 7RUHGXFHWKHULVNRIHOHFWULFVKRFN¿UHRULQMXU\WR
persons, the installer must ensure that the dishwasher is
completely enclosed at the time of installation.
• FOR PERSONAL SAFETY: Remove house fuse or open
circuit breaker before beginning installation. Do not use an
extension cord or adapter plug with this appliance.
• The improper connection of the equipment grounding
conductor can result in a risk of electric shock. Check with
DTXDOL¿HGHOHFWULFLDQRUVHUYLFHUHSUHVHQWDWLYHLI\RXDUH
in doubt that the appliance is properly grounded.
• If house wiring is not 2-wire with ground, a ground
must be provided by the installer. When house wiring
is aluminum, be sure to use UL-Listed anti-oxidant
compound and aluminum-to-copper connectors.
CAUTION: Do not remove wood base until
you are ready to install the dishwasher. The dishwasher will
tip over when the door is opened if base is removed.

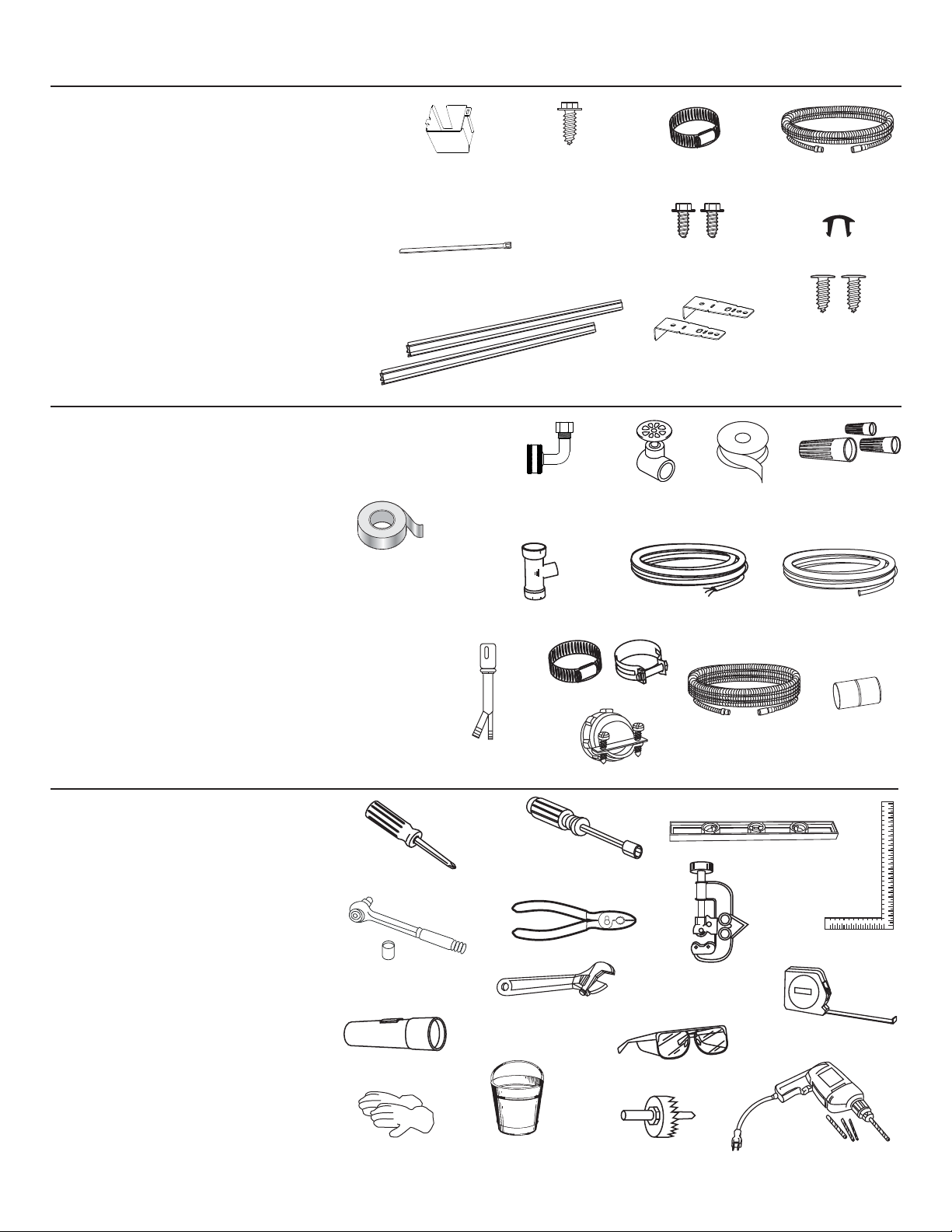

TOOLS YOU WILL NEED:
• Phillips-head screwdriver
• 1/4" and 5/16" nutdriver
• $GMXVWDEOHZUHQFK
• Level
• Carpenter's square
• Measuring tape
• Safety glasses
• Flashlight
• %XFNHWWRFDWFKZDWHUZKHQÀXVKLQJWKHOLQH
• 15/16" socket (optional for skid removal)
• Gloves
• Pliers
For New Installations Only:
• Tubing cutter
• Drill and appropriate bits
• Hole saw set
Hot Water Line
Hand
6KXW2ȹ
Valve
Side Trim Pieces
(on some models)
Hole Saw Set
Level
Thread
Seal Tape
(if applicable)
Air Gap Strain Relief
Drain Hose
Hose Clamp
#8 Hex-Head Mounting
Bracket Screws
1/4" and 5/16"
Nutdriver
15/16" Socket
Bucket
Tubing Cutter
Drill and Bits
Flashlight
Phillips-Head
Screwdriver Carpenter's
Square
6"
Adjustable
Wrench Safety Glasses
Pliers
Installation Preparation
2
Drain Hose Hanger
Measuring Tape
PARTS SUPPLIED
IN INSTALLATION PACKAGE:
•Junction box cover and #10 hex-head screw
•Hose clamp
•Drain hose (approximately 78" long)
•Drain hose hanger
•2 #8-18 hex head screws to secure brackets to washer
tub frame
•2 Plug buttons
•2 side trim pieces (some models)
•2 mounting brackets for wood countertops or side
cabinets
•2 #8-18 x 5/8" Phillips special head screws, to secure
dishwasher to underside of countertop or to side
cabinets
•Literature, samples and/or coupons
MATERIALS YOU WILL NEED:
•90° elbow (¾” hose internal thread on one end,
opposite end sized to fit water supply)
•Thread seal tape
•UL-listed wire nuts (3)
•Masking Tape
Materials Needed for
New Installations:
• Air gap for drain hose, if required
• Waste tee for house plumbing, if applicable
• Electrical cable or power cord
• Screw-type hose clamps
• Strain relief for electrical connection
• Hand shut-off valve (recommended)
• Hot water line–3/8" minimum, copper tubing
(including ferrule, compression nut) or
GE Part # WX28X326, flexible braided hose
• WD24X10065 drain hose (12' long), if needed
Junction
Box Cover
#10
Hex-Head
Junction
Box Screw
1/2" long
Optional
12' Drain Hose
Hose Clamps
Waste Tee Electrical Cable
(or Power Cord, if applicable)
Wire Nuts (3)
Mounting
Brackets
#8 Phillips
Special
Head Screws
5/8" long
Plug Buttons
90° Elbow Masking Tape
(if applicable)
Coupler for
optional drain
hose
Gloves

Method 1 – Air Gap with Waste Tee or Disposer
An air gap must be used when required by local codes and ordi-
nances. The air gap must be installed according to manufacturer’s
instructions.

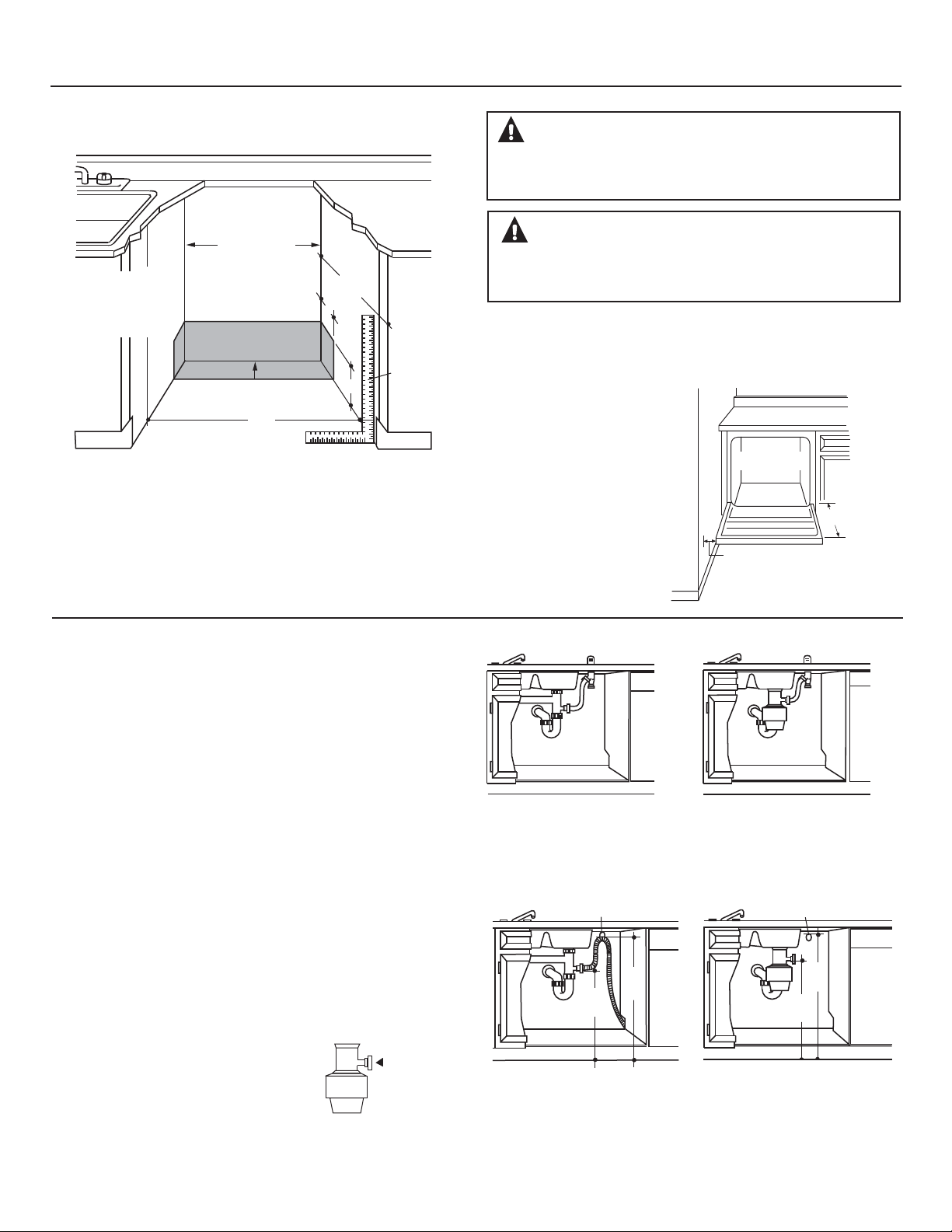

PREPARE DISHWASHER ENCLOSURE
• The rough cabinet opening must be at least 24" deep, 24"
wide and approximately 34-1/2" high from floor to underside
of the countertop.
DRAIN REQUIREMENTS
• Follow local codes and ordinances.
• Do not exceed 12' distance to drain.
NOTE: Air gap must be used, if waste tee or disposer
connection is less than 18" above floor to prevent siphoning.
DETERMINE DRAIN METHOD
The type of drain installation depends on the following
questions.
•Do local codes or ordinances require an air gap?
•Is waste tee less than 18" above floor?
If the answer to either question is YES, Method 1 MUST
be used.
• If the answers are NO, either method may be used.
CABINET PREPARATION
• Drill a 1-1/2" diameter hole in the cabinet wall within
the shaded areas shown in Figure A for the drain hose
connection. The hole should be smooth with no sharp edges.
IMPORTANT –When
connecting drain line to disposer,
check to be sure that drain plug has
been removed. DISHWASHER WILL
NOT DRAIN IF PLUG IS LEFT IN PLACE. Method 2 – “High Drain Loop” with Waste Tee or Disposer
Tip: Avoid unnecessary service call charges.
Always be sure disposer drain plug has been removed before
attaching dishwasher drain hose to the disposer.
Figure D
• The dishwasher must be installed so that drain hose is no
more than 12' in length for proper drainage.
• The dishwasher must be fully enclosed on the top, sides and
back, and must not support any part of the enclosure.
32"
Min.
18"
Min.
Drain Hose Hanger
Figure B
Clearance for Door
Opening 2" Minimum
Countertop
Dishwasher
25-1/2"
Figure C
Installation Preparation
3
Remove
Drain
Plug
32"
Min.
18"
Min.
Drain Hose Hanger
WARNING:
7RUHGXFHWKHULVNRIHOHFWULFVKRFN¿UHRULQMXU\WRSHUVRQVWKH
installer must ensure that the dishwasher is completely enclosed at
the time of installation.
ADVERTENCIA:
Para reducir el riesgo de descarga eléctrica, incendio o lesiones a
personas, el instalador debe asegurarse de que el lavaplatos esté
completamente cerrado en el momento de la instalación.

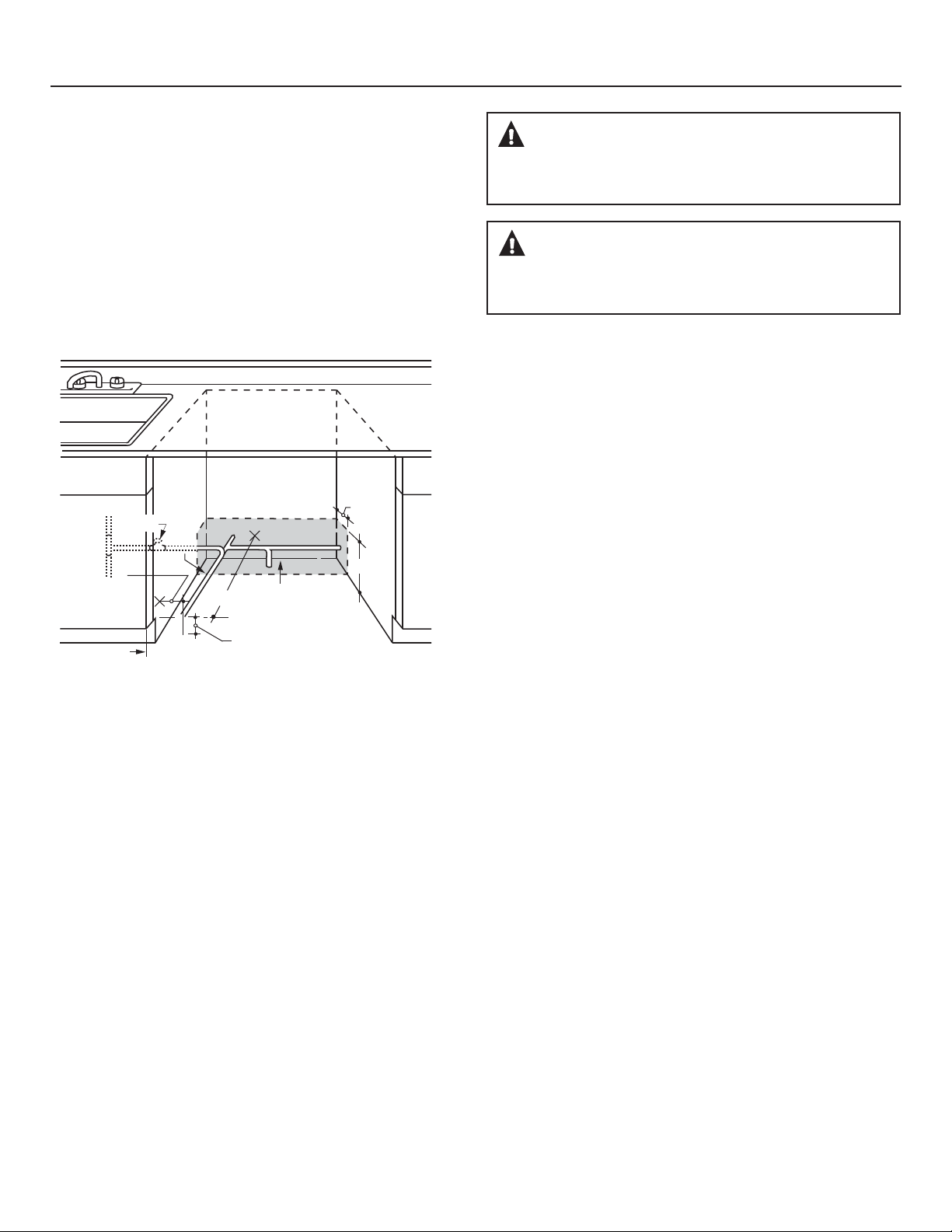

24"
Min.
This Wall Area
must be Free
of Pipes or
wires
Plumbing and Electric Service
Must Enter Inside This Area
4"
24"
Min.
6"
Cabinets
Square
and
Plumb
+
34-1/2" 1/4"
Underside of
Countertop
to Floor
Figure A
33-1/2” to 34-3/4”
Underside of
Countertop
to Floor
CLEARANCES:
• When installed into a corner,
allow 2" min. clearance
between dishwasher and
DGMDFHQWFDELQHWZDOORURWKHU
appliances. Allow 28-3/8" min.
clearance from the front
of the dishwasher for door
opening. Figure B.

For models equipped with power cord: Do not modify the plug
provided with the appliance; if it will not fit the outlet, have a
proper outlet installed by a qualified technician.
Cabinet Preparation & Wire Routing
• The wiring may enter the opening from either side, rear or the
floor within the shaded area illustrated above in Figure E and
defined in Figure A.
• Cut a 1-1/2" maximum diameter hole to admit the electrical
cable. Edges of hole should be smooth and rounded.
Permanent wiring connections may pass through the same
hole as the drain hose and hot water line, if convenient. If
cabinet wall is metal, the hole edge must be covered with a
bushing.
NOTE: Power cords with plug must pass through a separate
hole.
Electrical Connection to Dishwasher
Electrical connection is on the right front of dishwasher.
• For permanent connections the cable must be routed as
shown in Figure E. Cable must extend a minimum of 24" from
the rear wall.
• For power cord connections, install a 3-prong grounding
type receptacle in the sink cabinet rear wall, 6" min. or 18"
maximum from the opening, 6" to 18" above the floor.
• Use only WX09X70910 or WX09X70911 Dishwasher Power
Cord Kit.
PREPARE ELECTRICAL WIRING
Electrical Requirements
• This appliance must be supplied with 120V, 60 Hz., and
connected to an individual properly grounded branch circuit,
protected by a 15- or 20-ampere circuit breaker or time-delay
fuse.
• Wiring must be 2 wire with ground and rated for 75°C (176°F).
• If the electrical supply does not meet the above requirements,
call a licensed electrician before proceeding.
Grounding Instructions–Permanent Connection
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and be
connected to the equipment-grounding terminal or lead on
the appliance.
Grounding Instructions–Power Cord Models
This appliance must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
White
18"
6"
24"
from Wall
3"
from
Cabinet
Alternate Receptacle
Location in Adjacent
Cabinet
Ground
Black
1-1/2" Dia. Hole (Max.)
18"
6"
Receptacle
Location
Area
Figure E
Installation Preparation
4
WARNING:
FOR PERSONAL SAFETY: Remove house fuse or open circuit breaker
before beginning installation. Do not use an extension cord or
adapter plug with this appliance.
ADVERTENCIA:
PARA SEGURIDAD PERSONAL: Quite el fusible o abra el interruptor
de circuitos antes de comenzar la instalación. No utilice un cable
de extensión o un enchufe adaptador con este artefacto.
WARNING:
The improper connection of the equipment grounding conductor
FDQUHVXOWLQDULVNRIHOHFWULFVKRFN&KHFNZLWKDTXDOL¿HG
electrician or service representative if you are in doubt that
the appliance is properly grounded.
ADVERTENCIA:
La conexión inadecuada del conductor de conexión a tierra del
equipamiento puede provocar un riesgo de descarga eléctrica.
&RQVXOWHDXQHOHFWULFLVWDFDOL¿FDGRRUHSUHVHQWDQWHGHVHUYLFLR
técnico si tiene dudas sobre la correcta conexión a tierra del aparato.

PREPARE HOT WATER LINE
NOTE: GE recommends copper tubing for the water line, but if
\RXFKRRVHWRXVHÀH[LEOHKRVHXVH*(·VWX28X326ÀH[LEOH
braided hose.
• The water supply line (3/8” copper tubing or flexible braided
hose) may enter from either side, rear or floor within the
shaded area shown in Figure F.
• The water supply line may pass through the same hole as the
electrical cable and drain hose. Or, cut an additional 1-1/2"
diameter hole to accommodate the water line. If power cord
with plug is used, water line must not pass through power
cord hole.
Figure F
Water Line Connection
• If using a flexible braided supply hose, label the hose with the
installation date to use as reference. Flexible braided hoses,
elbows and gaskets should be replaced in 5 years.
• Turn off the water supply.
• Install a hand shut-off valve in an accessible location, such
as under the sink. (Optional, but strongly recommended and
may be required by local codes.)
• Water connection is on the left side of the dishwasher. Install
the hot water inlet line, using no less than 3/8" copper tubing
or a flexible braided hose. Route the line as shown in Figure F
and extend forward at least 19" from rear wall.
$GMXVWZDWHUKHDWHUIRU)WR)WHPSHUDWXUH
• Flush water line to clean out debris.
• The hot water supply line pressure must be 20-120 PSI.
Turn page to begin dishwasher installation.
6"
4"
Cabinet Face
Shut-off
Valve
2" From Floor
19" From Wall
2"
From
Cabinet
1-1/2" Dia.
Hole
Hot
Installation Preparation
5
CAUTION:
Do not remove wood base until you are ready to install the
dishwasher. The dishwasher will tip over when the door is
opened if base is removed.
PRECAUCIÓN:
No quite la base de madera hasta que esté listo para instalar el
lavaplatos. Si se quita la base, el lavaplatos se volcará cuando
se abra la puerta.
