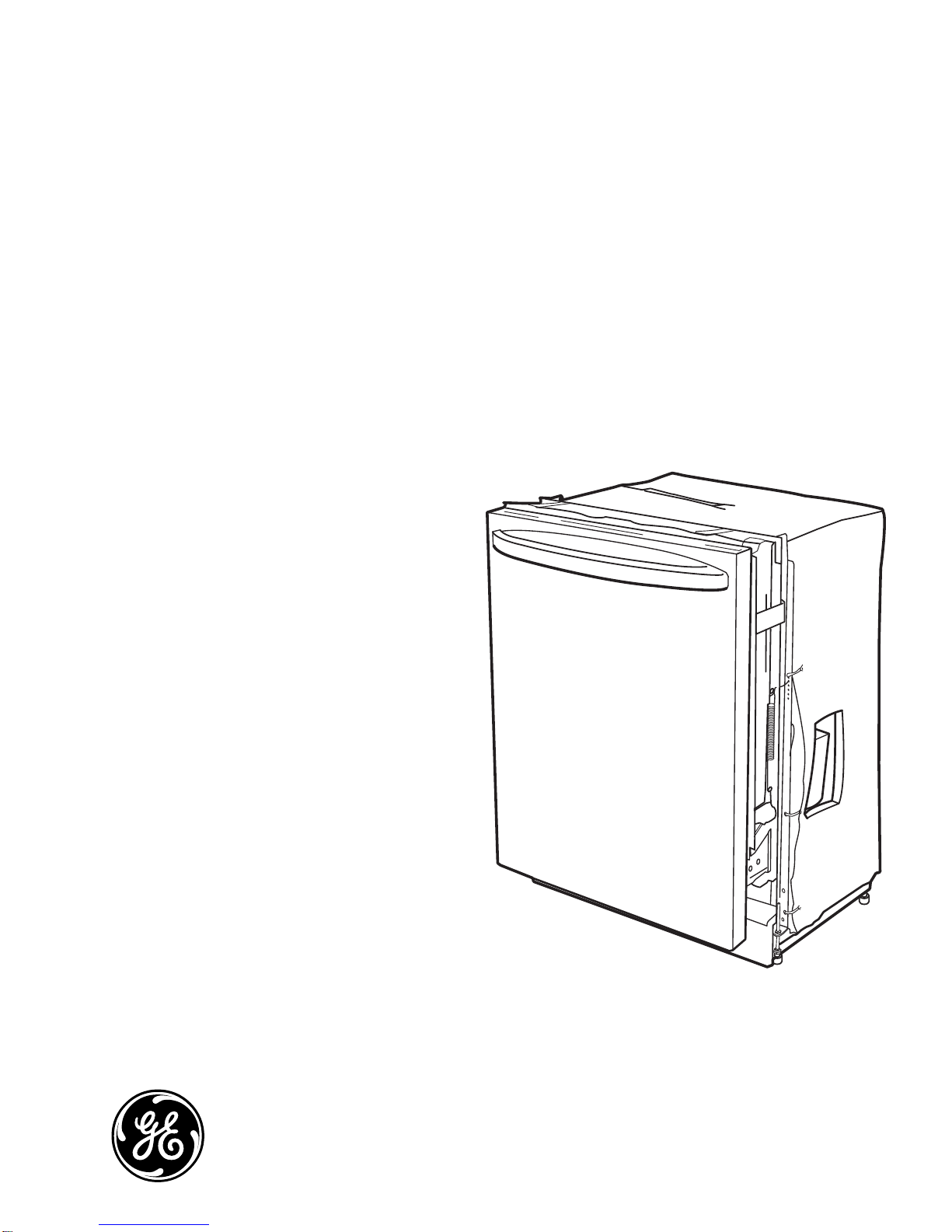

GE Built-In Dishwasher
with Top Controls
GLDT690T
GLDT696T
Technical Service Guide
July 2011
GE Appliances

– 2 –
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
GE Appliances
Copyright © 2011
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
Bottom Door Seal..............................................................................................................................................................20

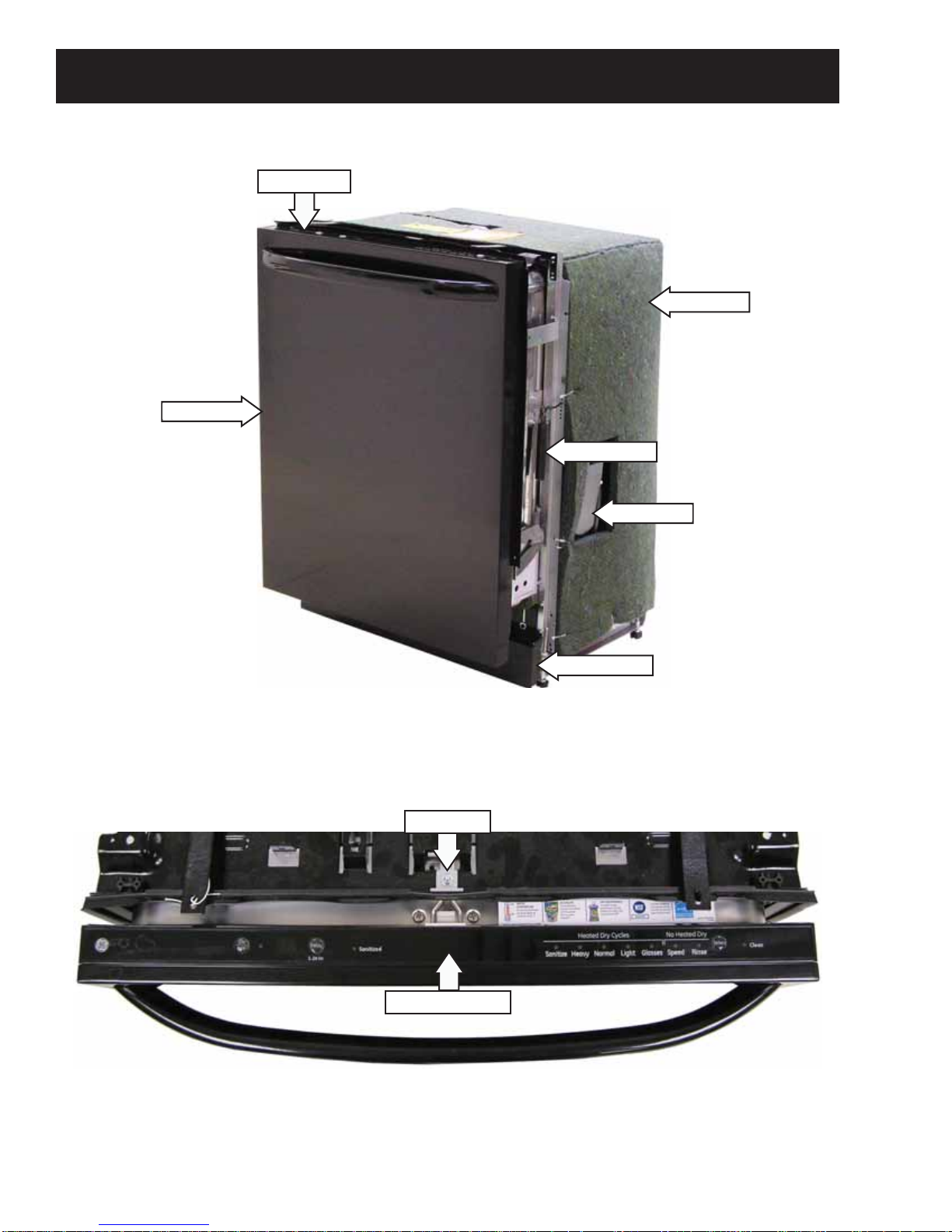

Component Locator Views...........................................................................................................................................12
Control Assembly..............................................................................................................................................................17
Control Board Connector Locator View.................................................................................................................15
Control Features................................................................................................................................................................ 7
Control Panel.......................................................................................................................................................................16

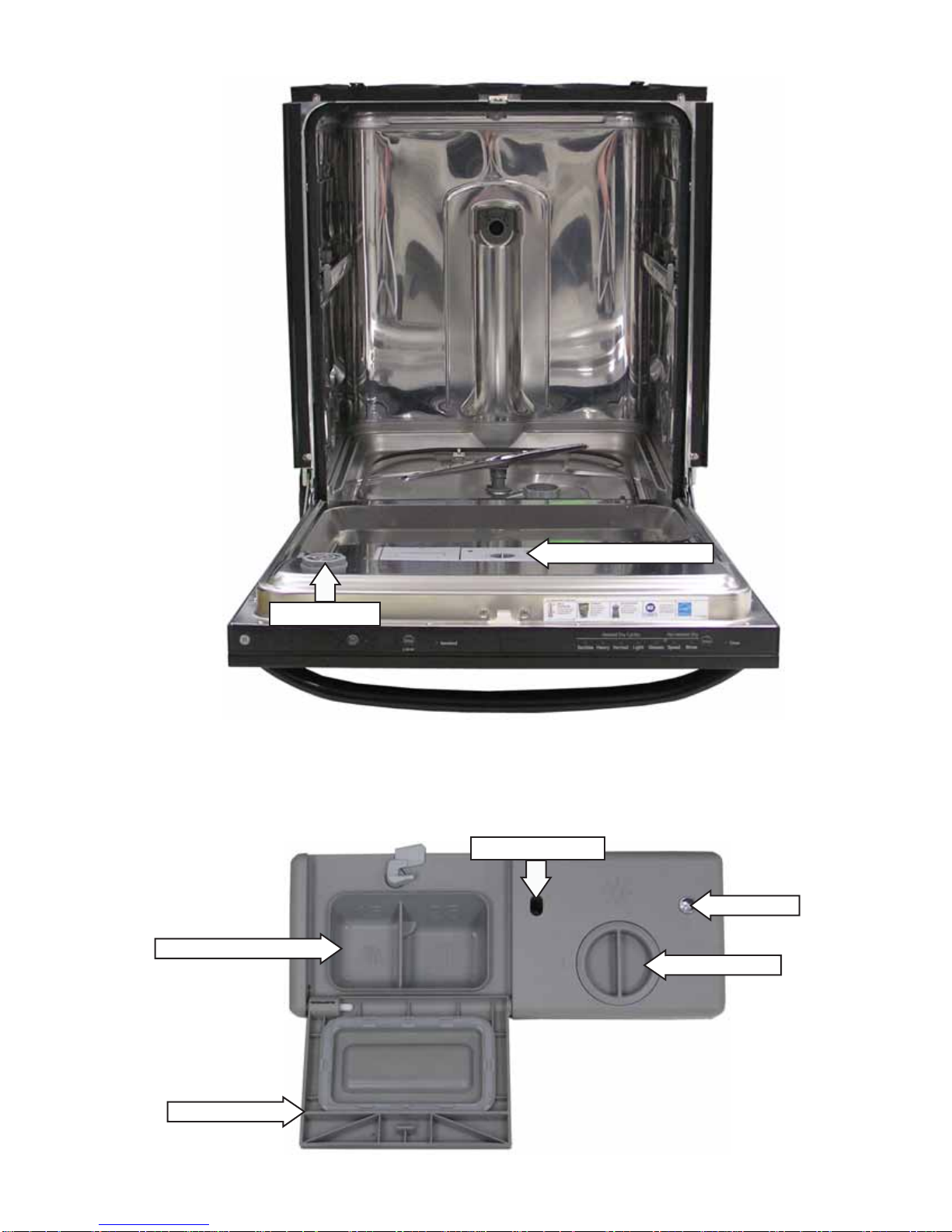

Detergent/Rinse Module................................................................................................................................................19
Dishwasher Components..............................................................................................................................................16
Door Switch Assembly...................................................................................................................................................18
Drain Pump Assembly....................................................................................................................................................26
Factory Diagnostic Mode..............................................................................................................................................31
Fill Funnel..............................................................................................................................................................................23
Heating Element................................................................................................................................................................21
Inner Door Panel...............................................................................................................................................................20
Introduction......................................................................................................................................................................... 6
Motor Pump Assembly...................................................................................................................................................27
Nomenclature.................................................................................................................................................................... 5
Outer Door Panel..............................................................................................................................................................16
Overview of Cycles.......................................................................................................................................................... 9
Pressure Switch.................................................................................................................................................................25
Schematics and Wiring Diagrams............................................................................................................................33
Service Test Mode.............................................................................................................................................................32
Specifications.....................................................................................................................................................................32
Static Dry System.............................................................................................................................................................16
Sump Assembly.................................................................................................................................................................29
Thermistor............................................................................................................................................................................28

– 4 –
Troubleshooting ...............................................................................................................................................................31
Tub Gasket and Trim.......................................................................................................................................................21
Warranty..............................................................................................................................................................................34
Water Inlet Valve...............................................................................................................................................................24

– 5 –
Platform
4-6 = GE tall tub
G L D T 6 9 0 T B B
Product Type
GLD = GE long door Exterior Color
BB = Black
CC = Bisque
SS = Stainless Steel
WW = White
Model Year Designator
Model Number
The nomenclature plate is located on
the left side of the tub wall, inside the
door jamb.
The mini-manual is located in a
plastic bag taped on the back side of
the toe kick.
Nomenclature
Nomenclature
Door
0 = Color door
6 = Stainless door
Feature Pack
Top Control
Serial Number
The first two characters of the serial number
identify the month and year of manufacture.
Example: MV123456S = May, 2011
M- JUL
R - AUG
S - SEP
T - OCT
V - NOV
Z - DEC
A - JAN
B - FEB
F - MAR
G - APR
H - MAY
L - JUN
2011 - V
2010 - T
2009 - S
2008 - R
2007 - M
2006 - L
2005 - H
2004 - G
2003 - F
2002 - D
2001 - A
2000 - Z
The letter designating
the year repeats every
12 years.
Example:
V - 2011
V - 1999
V - 1987

– 6 –
GLDT690T/GLDT696T
GE Built-In Dishwasher with Hidden Controls
Features and Benefits
• Bright stainless steel interior
• Low-profile installation capable
• 5 wash levels - Scrub dishes clean
• 2-digit countdown display with 1-24 hour delay start
• 2 utility shelves in upper rack with StemSafe
• Nylon racks - Durable racks are designed to resist rust and
secure dishes.
• Audible end-of-cycle signal - The dishwasher makes a sound
to tell you when the load is complete and dishes are ready to
unload.
• Energy Star®qualified
• ADA-compliant - Dishwasher design allows for simple
operation and easy access.
• SanWash Cycle - Special cycle reduces 99.99% of harmful germs and bacteria.
• Model GLDT690TWW - White on white
• Model GLDT690TBB - Black on black
• Model GLDT690TSS - Stainless steel
Weights & Dimensions
Approximate Shipping Weight.........................................................................................................................................99 lb
Net Weight.................................................................................................................................................................................82 lb
Overall Height..........................................................................................................................................................................32 11/32 in.
Height w/Legs Extended.....................................................................................................................................................34 1/2in.
Overall Depth...........................................................................................................................................................................24-in.
Overall Width............................................................................................................................................................................24-in.
Introduction

– 7 –
Throughout this manual, features and appearance may vary from your model.
Control Features
About the dishwasher control panel.
Control Settings
2
3
16
ON/OFF
With door open, press ON/OFF button to turn the unit ON to begin operation and OFF at the end of a wash cycle.
The ON/OFF light is displayed when the dishwasher is ON.
Wash Cycle Selections
Press SELECT button to choose wash cycle. The light under the cycle name will display to indicate which cycle has been selected.
NOTE: All cycle times and water usage information contained in this section are approximate values. Actual results will depend
on several factors including, but not limited to, inlet water temperature and household water pressure.
1
2
SANITIZE 4.82 gal., 130 minutes
This cycle is meant to sanitize dishes and glasses with added heat. If you select sanitize cycle, at the end
of this cycle, the sanitized indicator will turn on .
HEAVY 6.74 gal., 125 min.
T
his cycle is meant for heavily soiled dishes or cookware with dried-on or baked-on soils. This
cycle may not remove burned-on foods. Everyday dishes are safe to be used in this cycle.
NORMAL 4.65 gal., 115 min.
T
his cycle is meant for loads of everyday dishes, glasses and cookware with medium soils that have not been pre-
rinsed.
LIGHT 4.82 gal., 78 min.
T his cycle is meant for loads of everyday dishes, glasses and cookware with light soils that have been pre-rinsed.
GLASSES 3.89 gal., 76 min.
T
his cycle is meant for lightly soiled glassware. This cycle has less heating during the wash and rinse to protect
your glassware. This cycle also has a lower temperature heated dry.
SPEED 5.75 gal., 78 min.
T
his cycle is meant for loads of everyday dishes, glasses and cookware with medium soils that have not been pre-
rinsed. This cycle features reduced wash times to allow for faster cycle completion. This cycle also has a reduced
time heated dry.
RINSE 1.92 gal., 26 min.
F
or rinsing partial loads that will be washed later. Do not use detergent with this cycle. This cycle does not include
heated dry.
4
6
(Continued next page)

– 8 –
Delay Start Option
This option allows you to delay the start of a wash cycle for up to 24 hours.
With the door open, turn the dishwasher ON by pressing the ON/OFF button; then press the DELAY button to choose
the number of hours you want to delay the start of the wash cycle. The hours will show in the display window.
N OTE: To cancel the DELAY HOURS option before the start of the cycle, repeatedly press the DELAY HOURS button
until the display is blank or reads “00.”
2 Digit Display
This display is used for DELAY START and cycle time countdown.
When a cycle is selected, this display is populated with the total number of minutes in the cycle (up to 99 minutes).
For cycle times above 99 minutes the display will read “99”.
Starting a Cycle
After selecting the wash cycle (Step 2) and DELAY START (Step 3), if desired, close the door of the
dishwasher to start the cycle or begin the DELAY START countdown. When the door is closed, there will be a 5
second delay followed by a 60 second pump out before the water fill begins.
Status Indicators
SANITIZED If the SANITIZE cycle is selected, the sanitized indicator light will be turned on at the end
of the cycle. If the NSF requirements for sanitization are not reached, the light will not
turn on.
CLEAN
The green light will display and a beep will sound to alert you that the wash cycle is complete.
If the door is NOT opened, the beep will sound 4 times.
6
5
3
4
GEAppliances.com

– 9 –
Overview of Cycles
• After pressing the ON/OFF button, all LEDs will light, the digital display will show 88, and the buzzer will
beep.
• The estimated cycle time will be displayed as a two-digit number. If the cycle time exceeds 99 minutes,
the seven segment display will show 2H. If the cycle time is less than or equal to 99 minutes, the actual
estimated cycle time is displayed.
• The control makes an End-of-Cycle Alert for 1 second every 2 minutes (with a maximum of 4 beeps) for
any mode (regardless of whether delay was selected or not) after the end of any cycle.
• Cancel/Change cycle: After a cycle has started, open the door and hold the Select button down for 3
seconds. After 3 seconds, the machine will beep and the display will select the next cycle to the right. If
left on any cycle with the door closed, the machine will drain and start that new cycle automatically.
• Delay start – Select 1 to 24 hours as the amount of time to delay the start of the cycle. This will be
displayed as 1H, 2H, etc. The delay start display never shows minutes.
• When the door is closed, the display will turn off after 3 minutes regardless of a time delay. Opening the
door will turn the display back on. During the cycle run, the selected cycle LED will flash on/off.
• This model does not contain a Demo mode.
Sanitize wash cycle definition:
The Sanitized LED will only be turned on at the end of the sanitize wash cycle if the following two conditions
are met during the cycle:
1. An internal calculation the board makes based on several heat factors.
2. The water temperature in the final rinse is greater than or equal to 150°F.
The maximum time for the final rinse in the sanitize wash cycle is 60 minutes. If both of the above conditions
are met prior to the 60 minute limit, the final rinse will end immediately and both the Sanitized light and
Clean LED will turn on. If either condition is not met at the end of the 60 minute limit, the final rinse will end
and the Sanitized light will not turn on.
(Continued next page)
SSD (Seven
Segment
Display)

– 10 – (Continued next page)
No Stage Function Time Sanitize HEAV NORMAL LIGHT GLASSES SPEED RINSE Remark
total wash time 137 136 120 89 87 84 26
1Drain1'
ƽƽ ƽ ƽ ƽ ƽƽ
2 Fill 36" ƽƽ ƽ ƽ ƽƽ
3 Fill 34" ƽ
4Wash3'
ƽƽ
5Wash3' ƽƽ ƽ ƽ
6Wash1'
ƽƽ ƽ ƽ
7Wash1'
ƽƽƽƽ
8Wash1'ƽƽ ƽ
9Wash5' ƽ
10 Wash + Drain 15" ƽƽ ƽ ƽ ƽ ƽ
11 Drain 1' ƽƽ ƽ ƽ ƽ ƽ
12 Pause 2" ƽƽ ƽ ƽ ƽ
13 Fill 32" ƽƽ ƽ ƽ
14 Fill 30" ƽ
15 Wash + Heater 3' ƽƽ ƽ ƽ
16 Wash 4' ƽƽ
17 Wash + Heater 1' ƽ
18 Wash + Heater 2' ƽ
19 Wash 1' ƽƽƽ
20 Wash + Drain 15" ƽƽ ƽ
21 Drain 1' ƽƽ ƽ
22 Pause 2" ƽƽ
23 Fill 32" ƽƽ
24 Wash + Heater 3' ƽƽ ƽ
25 Wash 5' ƽƽ
26 Wash + Heater 1' ƽƽ
27 Wash + Drain 15" ƽƽ ƽ ƽ
28 Drain 1' ƽƽ ƽ ƽ
29 Pause 2" ƽƽ ƽ ƽ ƽ ƽ
30 Fill + Dispenser 36" ƽƽ ƽ ƽ ƽ
31 Fill + Dispenser 34" ƽ
32 Wash + Dispenser 26" ƽ
33 Wash + Dispenser 24" ƽƽ ƽ ƽ ƽ
34 Wash + Heater 8' ƽƽ ƽ ƽ ƽ
35 Wash + Heater 14' ƽƽ
36 Wash + Heater 6' ƽƽ
37 Wash + Heater 4' ƽƽ
38 Wash + Heater 5'
39 Wash + Heater 12' ƽ
40 Wash + Heater T50 ƽƽ ƽ
41 Wash + Heater T60 ƽƽ
42 Wash + Heater T50 ƽ
43 Wash 2' ƽƽ ƽ ƽ ƽ ƽ
44 Wash 12' ƽ
45 Wash + Drain 15" ƽƽ ƽ ƽ ƽ ƽ
46 Drain 1' ƽƽ ƽ ƽ ƽ ƽ
47 Pause 2" ƽƽ
48 Fill 34" ƽ
49 Wash + Heater 5' ƽ
50 Wash + Drain 15" ƽ
51 Drain 1' ƽ
52 Pause 2" ƽƽ ƽ ƽ ƽ
53 Fill 30" ƽƽ ƽ ƽ ƽ ƽ
(maxtime:
10min)
Pre-
wash
Main
Wash
Cycles Chart
