GE Monogram ZBD9900R00II Owner's manual

USE&CARE
Built-In Dishwashers
monogrom.com

Consumer Informotion
Dishwasher
Introduction Your new Monogram dishwasher makes an eloquent statement of style, convenience
and kitchen planning flexibility. Whether you chose it for its purity of design, practical
features or attention to detail-or for all of these reasons-you'll find that your
Monogram dishwasher's superior blend of form and function will delight you for years
to come.
The information on the following pages will help you operate and maintain your
dishwasher properly.
If you have any other questions, visit our Website at: monogram.com
Contents Appliance Registration ...................... 27
Care and Cleaning ....................... 15-17
Consumer Services........................ 3, 24
Dishwasher Parts ............................ 8
Fault Codes ................................. 20
Controls/Features ......................... 9-12
Baskets/Racks............................. 9
Control Panel............................. !0
Control Panel Operation ............... !0, !!
Detergents ............................... 1/4
Lighting Features......................... 12
Loading .................................. 13
Rinse Agent .............................. 12
Water Temperature ...................... 12
Model and Serial Number Location ............ 3
Problem Solver........................... 21-23
Registration Card ........................ 26, 27
Safety Instructions ......................... 4-7
Settings.................................. 18, !9
Technical Information ........................ 8
Warranty ................................... 25

Consumer Information
Dishwasher
Before
using
your
dishwasher
Readthis manual carefully. It is intended to help
you operate and maintain your new dishwasher
properly.
Keep it handy for answers to your questions.
If you don't understand something or need more
help, there is a list of toll-free consumer service
numbers included on the Consumer Services
page in the back section of this manual.
OR
Visit our Website at: monogram.cam
Write
down the
model &
serial
numbers
You can locate your model and serial numbers
on the tub wall just inside the door. Before sending in the card, please write these
numbers here:
Model Number
Serial Number
Usethese numbers in any correspondence or
service calls concerning your dishwasher.
If you received
adamaged
dishwasher
Immediately contact the dealer (or builder) that
sold you the dishwasher.
Save time
&money Before you request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
If you
need service To obtain service, see the Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are steps to
follow for further help.
For customers in the USA:
FIRST,contact the people who serviced your
appliance. Explain why you ore not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, contact us on
our website, write oil the details-including your
phone number-or write to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY40225
For customers in Canada:
FIRST,contact the people who serviced your
appliance. Explain why you ore not pleased.
In most cases, this will solve the problem.
NEXT,if you ore still not pleased, write oil the
details-including your phone number-to:
Manager, Consumer Relations
Mabe Canada Inc,
1 Factory Lane, Suite 3!0
Moncton, N.B.E1C9M3

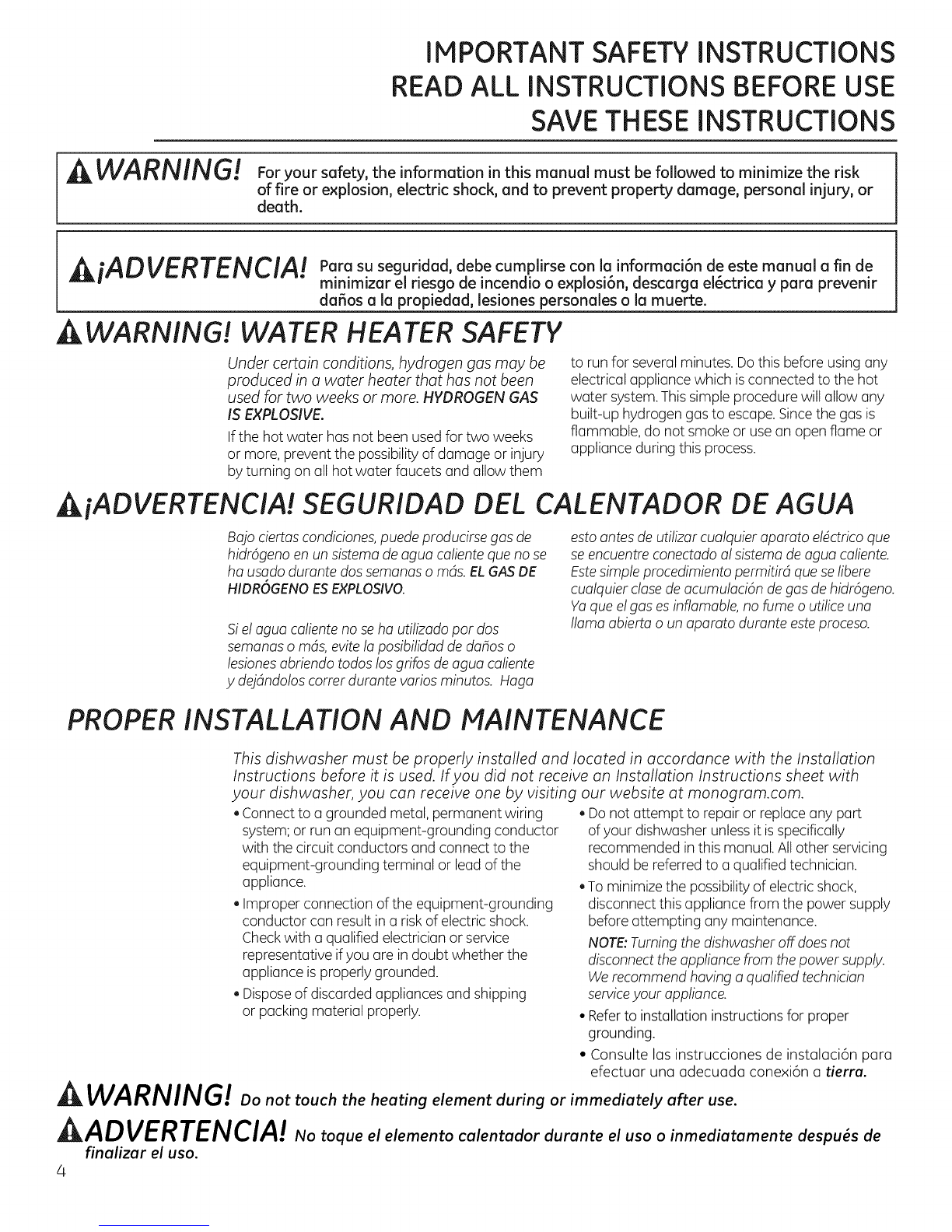

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
--_,WARN!NG!For your safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, and to prevent property damage, personal injury, or
death.
IkiA DVERTENCIA! Para su seguridad, debe cumplirse con la informaci6n de este manual a fin de
minimizar el desgo de incendio o explosi6n, descarga el_ctrica y para prevenir
dafos a la propiedad, lesiones personales o la muerte.
_kWARNING! WATER HEATER SAFETY
Undercertainconditions,hydrogen gasmay be
produced in a water heaterthat has not been
used for two weeks or more. HYDROGEN GAS
IS EXPLOSIVE.
If the hot water has not been used for two weeks
or more, prevent the possibility of damage or injury
by turning on all hot water faucets and allow them
to run for several minutes. Dothis before using any
electrical appliance which isconnected to the hot
water system.This simple procedure will allow any
built-up hydrogen gas to escape.Sincethe gas is
flammable, do not smoke or use an open flame or
appliance during this process.
IkiADVERTENCIA! SEGURIDAD DEL CALENTADOR DE AGUA
Bajo ciertascondiciones,puede producirse gasde
hidr6geno en un sistema de agua caliente que no se
ha usadodurante dossemanas o mds.ELGASDE
HIDROGENOESEXPLOSIVO.
Siel agua caliente no seha utilizado par dos
semanaso mds,evitelaposibilidad dedahos o
lesionesabriendo todos losgrifos de agua caliente
y dejdndoloscarter durante varios minutos. Haga
esto antes de utilizar cualquieraparato eldctricoque
se encuentreconectado al sistema de agua caliente.
Estesimple procedimiento permitird que selibere
cualquier clasede acumulaci6n de gas de hidr6geno.
Yaque elgas esinflamable,no fume o utiliceuna
llama abierta o un aparato durante esteproceso.
PROPER INSTALLATION AND MAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet with
your dishwasher, you can receive one by visiting our website at monogram.com.
. Connectto a grounded metal, permanent wiring
system;or run an equipment-grounding conductor
with the circuit conductors and connect to the
equipment-grounding terminal or lead of the
appliance.
• Improper connection of the equipment-grounding
conductor can result in a riskof electric shock.
Checkwith a qualified electricianor service
representative ifyou are in doubt whether the
appliance isproperly grounded.
• Disposeof discarded appliances and shipping
or packing material properly.
• Donot attempt to repair or replace any part
ofyour dishwasher unless it isspecifically
recommended in this manual. All other servicing
should be referred to a qualified technician.
•To minimizethe possibilityof electric shock,
disconnect this appliance from the power supply
before attempting any maintenance.
NOTE;Turningthe dishwasher off doesnot
disconnectthe appliancefrom the power supply.
Werecommend having a qualified technician
serviceyour appliance.
• Referto installation instructions for proper
grounding.
• Consulte las instrucciones de instalaci6n para
efectuar una adecuada conexi6n a tierre.
^_WARNING! Do not touch the heating element during or immediately after use.
IkADVERTENCIA! Notoqueel elemento calentador durante el uso o inmediatamente despu_s de
finalizar el uso.
4

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
CAUTION: To prevent minor inJury or property damage
.,Using a detergent that is
not specifically designed
for dishwashers will cause
the dishwasher
to fill with suds.
If your dishwasher isconnected to a wall
switch, ensure that the switch is on
prior to use.
On dishwashers with electronic
controls, ifyou choose to turn the wall
switch off between wash cycles,allow
5-10 secondsafter turning the switch
on beforetouching START/RESETto
allow the control to initialize.
, Non-Dishware Items:Do not wash items such
as electronic air cleaner filters,furnace filters
and paint brushes in your dishwasher. Damage
to dishwasher and discoloration or staining of
dishwasher may result.
, Closesupervision isnecessary if this appliance
isused byor near children.
, Load light, plastic items so they will not
become dislodged and drop to the bottom of
the dishwasher.
J
APRECAUCION: ,. ,.RoP, o. o
, Utilizar un detergente
no diseflado
especfficamente para
lavaplatos provocarc_que
el aparato se Ilenede
espuma.
, Si su lavaplatos se encuentra conectado a
un interruptor de pared, verifique
que el interruptor se encuentre
encendido antes del uso.
On dishwashers with electrontc
controls, ifyou choose to turn the wall
switch off between wash cycles,allow
5-10 seconds after turning the switch
on beforetouching START/RESETtoallow
the control to initialize.
,Elementos no aptos para lavaplatos: No lave
elementos como filtros de limpiadores de aire
electr6nicos, filtros de hornos ypinceles de
pintura en su lavaplatos. Pueden producirse
daflos en el lavaplatos ydecoloraci6n o
manchas en el aparato.
,Se requiere una supervisi6n estricta sieste aparato
es utilizado por niflos o en sucercan[a.
,Cargue elementos livianos yplc_sticosde modo
que no se desplacen ycaigan al fondo del
lavaplatos, ya que pueden entrar en contacto
con el elemento calentador ydaflarse.
Enlavavajillascon controles electr6nicos,si usted
elijeapagar el interruptor de pared entre ciclos
de lavado,deje pasar 5-10 segundos despu6sde
encender el interruptor antes de presionar START/
RESETpara permitir que elcontrol seinicie.

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
AWARNING! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE DISHWASHER
Junked or abandoned dishwashers are dungerous...even if
they will sit for "just u few days." If you are getting rid of your
old dishwasher, please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old Dishwasher:
.Take off the door of the washing compartment or remove
the door latch keeper (as shown).
\\Doorlatch
keeper
IkiADVERTENCIA! RIESGO DE ENCIERRO PARA NlfilOS
ELIMINACION CORRECTA DEL LAVAPLATOS
Un lavaplatos desechado o abandonado resulta peligroso...
a6n si quedarc_en un lugar por %61ounos d[as". Siva a
desechar su viejo lavaplatos, siga las siguientes instrucciones
para prevenir accidentes
Antes de desechar su viejo lavaplatos:
. Quite la puerta del compartimento de lavado o saque la traba
de la puerta (como puede verse).
'_0
Trabade la
puerta

IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
SAVE THESE INSTRUCTIONS
WARNING! When using your dishwasher,
. Usethis appliance only for its intended purpose
as described in this Owner's Manual.
. Use only powder, tabs, liquid detergents or rinseagents
recommended for usein a dishwasher and keep them out of the
reach of children.Cascade®, Cascade®CompleteAutomatic
Dishwashing Detergents,and CascadeCrystal ¢lear_ rinse
agent have been approved for use in all GEdishwashers.
. Locate sharp items sothat they are not likelyto damage the
door seal.
, Load sharp kniveswith the handles up to reduce the riskof cut-
type injuries.
. Do not wash plastic items unless marked dishwasher safe
or the equivalent. Forplastic items not so marked, checkthe
manufacturer's recommendations.
,Do not operate your dishwasher unlessall enclosure panels are
properly in place.
, Do not tamper with controls.
follow basic precautions, including the following:
, Donot abuse,sit on or stand on the door or dish rack of the
dishwasher.
Donot allow children to play around dishwasher when opening
or closing door due to the possibilityof small fingers being
pinched in the door.
, Donot discard a dishwasher without first removing the door or
the door latch keeperof the washing compartment.
Donot store or usecombustible materials, gasolineor other
flammable vapors and liquidsin the vicinity of this or any other
appliance.
Donot allow children to playwith, on or insidethis appliance or
any discarded appliance.
iAD VERTENCIA!Cuando use su lavaplatos, siga precauciones b6sicas de seguridad,
incluyendo las siguientes:
, Use esteaparato s61ocon elobjetivo para el que rue creado,
como sedescribe en este ilanual del Propietario.
, Utilices61odetergentes en polvo, Ifquidoo tabletas o agentes de
enjuague recomendados para uso en lavaplatos y mant6ngalos
alejados del alcance de los niBos. Losdetergentes para
lavaplatos autom6ticos Cascade@y Cascade@Complete,y el
agente de enjuague CascadeCrystalClear@han sidoaprobados
para el uso en todos loslavaplatos GE.
Ubique loselementos filososde modo que no dahen el sellado
de la puerta.
Carguecuchillos filososcon losmangos hacia arriba para reducir
el riesgo de un corte.
. No laveelementos pl6sticos a menos que est6n marcados
como aptos para lavaplatos o equivalente. Enel caso de
elementos pl6sticos que no est6n marcados asi,verifique las
recomendaciones del fabricante.
, No maltrate, ni sesiente o separe sobre la puerta o bandejas de
losplatos del lavaplatos,
, No permita que losniBosjueguen alrededor del lavaplatos
cuando abra o cierre la puerta debido a la posibilidadde pellizcar
susdeditos con la puerta
, No deseche el lavaplatos sin antes quitar la puerta del
compartimento de lavado o la traba de la puerta.
Noalmacene o use materiales combustibles, gasolina u otros
vapores o liquidosinflamables cerca de este o cualquier otro
aparato.
. No permita que losniBosjueguen sobre, con o dentro de este o
cualquier otro aparato descartado.
, No haga funcionar el lavaplatos a menos que todos lospaneles
del recinto seencuentren en su lugar
, No altere o modifique loscontroles.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Dishwasher Parts
Dishwasher
Parts of the
Dishwasher 1. Upper basket
2. Spray arms
3. Lump
4. Cutlery basket
5. Lower basket
6. Dishwasher detergent compartment
7. Main power switch
8. Rinse Aid Compartment
9. Filter
10. Rating plate
11. Knife Trey
7 8 910
Technical
Information
Height
Width
Depth
Weight
Water pressure
Connection
Max output
33-7/8"- 36"
23s/8"
22 7/8" (without door)
i01Ibs
4.2 - 140 psi
0.03 - 1.0 MPa
0.3-10 Bar
Single phase, 120 V,60 Hz, 15 A
1200 W

Baskets
Dishwasher
Upper
Basket 1.Wine gloss shelf
2. Upper spray arm
3. Runner for adjusting basket height
4. Catch
5. Knife Stop
2
3
Raising/lowering the upper basket
,, Pull out the upper basket.
,, Pull out the cutches (4) on either side
of the upper basket and lift or raise the
upper basket at the some time.
,, Release the catches once the basket is
in the desired position.
4
Lower
Basket
Cutlery
Basket

Control P(]nel
Dishwasher
Control
Panel Ill mmmm m
Select a cycle by pressing the CYCLEbutton until the required option is selected.
The dishwasher detects how soiled the dishes are and adjusts water
consumption and temperature accordingly.
The HEAVY WASH program should be used for heavily soiled dishes, e.g.
saucepans, pots and gratin dishes. If there is still space in the machine after
loading such items, you can add plates etc.
Used for washing normally soiled dishes such as plates, serving dishes, cups and
glasses, etc.
If the dishes are not heavily soiled, you can select the Light Wash cycle. This
cycle is intended for glass and china which has just been used and therefore
does not need a more powerful cycle.
Select SPEED WASH if the dishes are very lightly soiled. This program is used for
very lightly soiled glass and china, e.g. coffee cups.
For rinsing partial loads that will be washed later. Do not use detergent with this
cycle.
When selected, the cycle will run with a heating element on longer and may
increase cycle time to improve both wash and ;dry performance.
AUTO WASH
HEAVY WASH
NORMAL
WASH
LIGHT WASH
SPEED WASH
RINSE ONLY
m jTEMPBOOST
El DELAY START
If you want the machine to start later, press the DELAY START option button. The
clock symbol on the button lights up. Then press the START/RESET button and
the machine will start the program 5 hours later. To cancel DELAY START, hold
down the START/RESET button for three seconds.
When selected, the temperature of the last rinse cycle is increased to improve
dry performance. This may increase cycle time.
j Displayed when the Rinse Adgent dispenser needs to be refilled.
10

m
m
START/RESET
Control Panel/Operation
Dishwasher
After selecting the cycle and desired enhGncements, press the START/RESETp(]d
one time to reGdy the dishwGsher to begin the cycle. Close the door to stGrt the
cycle or begin the DELAYHOURS countdown. When the cycle stGrts, the wGter
fill begins Gnd GpproximGtely 60 seconds IGter the wGsh Gction begins.
The dishwGsher will GIwGys displGy your IGst selection Gnd enhGncements.
If you don t wGnt to chGnge the settings, simply press the START/RESETpGd
one time to reGdy the disl_wGsher Gndclose the door to begin the cycle.
If you wish to chGnge the program Gfter stGrting the m(]chince, press Gnd hold
the START/PAUSE button for 3 seconds. Select G new progrGm Gnd press START/
RESET.MGke sure there is detergent in the dispenser.
Once the dishwGsher hGsfinished, it only drGws stGndby current. Should
POWER you wish to disconnect power, just switch off Gt the mG_npower switch. (The
overflow function in the dishwGsher remGins Gctive.).
11

Using the Dishwasher
Dishwasher
Lighting
Features Interior Lights The interior Halogen lights provide better visibility
for loading and unloading. They turn on when
the door isopened and turn off when the door is
latched.
Do not attempt to replace the bulbs. If light bulb
replacement is necessary, please contact the
GEAnswer Center for service by calling
1.800.626.2000.
Water
Temperature
This dishwasher can be plumbed to either a hot or
cold water line.
Hot water line connection: For effective cleaning
and to prevent dish damage, the entering water
supply should be at least 120°F (49°C)and not
more than 140°F(60°C).Youcan check the water
temperature with a candy or meat thermometer.
Turn on the hot water faucet nearest the
dishwasher, place the thermometer in a glass and
let the water run continuously into the glass until
the temperature ceases to rise.
Cold water line connection: The dishwasher's
water heater will bring the water temperature to
the appropriate levelfor cleaning.
NOTE:Host cycle times will increase when
plumbed to a cold water line.
Use a
Rinse
Agent
A rinse agent improves dry performance,
reduces spots and prevents new film buildup
on your dishes, glasses, flatware, cookware
and plastic. Cascade Crystal Clear® isthe
recommended rinse agent for Monogram
Dishwashers.
The rinse agent dispenser holds/4.7 oz. of rinse
agent. Under normal conditions, this will last
approximately one month. Try to keep it full,
but do not overfill.
To fill the rinse agent dispenser, make sure the
dishwasher door isfully open.
Rotate the dispenser cap counterclockwise and
lift it out. Add rinse agent until the indicator
window shows full.
Clean up any spilled rinse agent with a damp
cloth. Replace the dispenser cap.
The amount of rinse agent released into the final
wash can be adjusted. The factory setting is at
the midpoint. If there are rings of calcium (hard
water) spots on dishes, try a higher setting. If
there isfoaming, use alower setting.
To adjust the setting, remove the dispenser
cap; then turn the adjuster counterclockwise to
increase the amount of rinse agent or clockwise
to decrease the amount of rinse agent dispensed.
1. Compartment for main wash dishwash-
er detergent
2. Compartment for pre-wash detergent
3. Rinse aid cover
/4.Detergent compartment cover
12
1
\
4
3 (Rinseagent adjuster
is located under the cap)

Using the Dishwasher
Dishwasher
Loadthe
machine You do not need to rinse the dishes under
running water. Scrape off large food
particles before loading the machine.
Place glasses, cups, bowls, side plates and
saucers in the upper basket, wine glasses
should be placed on the wine glass shelf,
and knives in the knife stand if present.
NOTE:
Ensure that all soiled surfaces face
inwards or downwards!
Do not put cutlery made of different
materials, e.g. silver and stainless steel, in the
same compartment (risk of stains).
Check that the spray arms are able to move
freely.
Place dinner plates, side plates, serving
dishes, saucepans and cutlery (in the
cutlery basket)in the lower basket.
Stand the cutlery with handles downward
and as spread out as possible. Ensure that
spoons are not resting inside each other.
13

Using the Dishwasher
Dishwasher
Detergent Detergent should be dispensed in
dosage accordance with the water's hardness
level.
Follow the dosage instructions on the
detergent package.
Pour the dishwasher detergent into the
dishwasher detergent compartment.
There is one compartment for pre-wash
and one for main wash, see Dispenser.
Phone the dishwasher detergent
manufacturer if you have any questions
regarding the detergent.
Dishwasher tablets
Halve the tablet if it is difficult to close
the dispenser cover.
3in1/Combined detergent
NOTE:
Read through the directions for these
products carefully. If anything is unclear,
contact the dishwasher detergent
manufacturer.
DO NOT USE HAND DISH DETERGENT
m
m
NOTE: Using a detergent that is not specifically
designed for dishwashers will cause the dish-
washer to fill with suds. During operation, these
suds will spill out of the dishwasher vents, covering
the kitchen floor and making the floor wet. Hand
and Clothes washing detergent cannot be used as
the build-up of foam may damage or impede the
machine's performance.
Because so many detergent containers look alike,
store the dishwasher detergent in a separate
space from all other cleaners. Show anyone who
may use the dishwasher the correct detergent and
where it is stored.
m
ACAUTION
Protect your children!
- Dishwasher detergent is corrosive!
m
ACAUTiON
Proteja a sus niSos!
- El detergente para lavavajillas es corrosivo!
Recommended detergent amounts based on water hardness
Water hardness
Soft
(0-3 grains per gallon)
Medium
(a-8 grains per gallon)
hard
(9+ grains*)
Detergent amounts
Prewash i teaspoon
Main wash i to 1-1/2 tablespoons
Prewash i teaspoon
Main wash i to 2 tablespoons
Prewash i teaspoon
Main wash 2 to 3 tablespoons
* 12 grains and higher is extremely hard water.
14

Cleaning
Dishwasher
The dishwasher's inner container is made of
stainless steel and is kept clean through normal use.
However, if you hove calciferous (hard) water, lime
deposits con form in the dishwasher. In this case,
run a normal wash program with two tablespoons
of citric acid in the dishwasher detergent
comportment. Spray arm
\5. Remove and clean the fine filter.
/4.Replace in reverse order. Ensure that the
edges are properly sealed when replacing
the fine filter.
Fine filter
strainer
Coarse filter
The coarse filter traps larger food particles, which
cannot get past the drain pump.
Empty the coarse filter as necessary.
1. Lift the coarse filter by the handle.
2. Empty the coarse filter. Don't forget to replace it!
5. Lock the filter in place by turning the handle
clockwise to the stop position: the handle should
point out from the dishwasher.
Fine filter
Debris that collects on the fine filter is auto
matically rinsed away during each wash.
However, the fine filter and its pipe section
should be cleaned once or twice a year.
1.Turn the handle once counter-clockwise.
2. Lift the pipe section straight up by the
handle. Free the course filter to clean the
pipe section.
Note: The dishwasher must not be used without the
filter in place!
An improperly fitted coarse filter may affect the dish-
washing result!
15

Cleoning
Dishwasher
Drain pump
The pump can be accessed from inside the
machine.
AWARNING!
Disconnect the power from the machine
Desconecte la energfa el6ctrica de la mSquina.
1. Remove the coarse filter and pipe
section.
2. Remove the small fitted aiece at the left of
If the machine still does not start and a
buzzing sound is heard, the overflow guard
has been activated.
,, Shut off the water.
,, Pull the plug out from the wall socket.
,, Call the service division.
Note: Do not forget to reinstoll the fitted piece.
the bottom drain (see the _mage below).
].You can release and turn the pump blade
by inserting your finger into the hole and
release anything blocking it.
a. Reinstall the fitted piece and filters.
5. Plug the plug into the wall socket.
The spray arms
Holes and bearings can sometimes become
blocked.
1. Pull the lower washer arm straight up to
release it.
2. Remove any deposits using a needle or
similar.
The washer arms also have holes under
neath.
3. Reassemble washer arm befor using the dish-
washer.
26

Cleoning
Dishwasher
To rele(]se the upper spr(]y (arm,the upper b(]sket
must be removed.
1. Pull out the b(]sket.
2. Remove the upper spr(]y (]rm by unscrewing it
counter-clockwise from the b(]sket (]nd cle(]n it.
3. Screw the spr(]y (]rm b(]ck into pl(]ce.
Spray arm
Door
When cle(]ning the edge Ground the door, use only (]
slightly d(]mp cloth, possibly with (] little detergent.
Do not use (] spr(]y bottle or simil(]r (]round the door
c(]tch. This is to ensure th(]t w(]ter does not pen-
etmte into the door c(]tch (]nd come into cont(]ct
with the electric(]l components.
ACAUTiON
Do not use e sprey bottle or similer eround the door
cetch.
No utilice une botelle pulveriz(]dore o un elemento
similer elrededor de le trebe de le puerte.
17

Settings
Dishwasher
Reprogramming
Some of the machine's functions can be reprogrammed. You can change the dishwasher's programming
by using the keypad. The selection will be retained until the next time you reset this function.
Even if the machine is turned off at the main switch or loses power for any other reason, all selections reg-
istered before the interruption of power will be retained.
Child-safe button lock
You can prevent a child starting the machine by accident or changing the settings by programming the
machine with a button lock, which requires the Temperature and Drying buttons to be pressed simultane-
ously to start up the machine. The button lock will automatically be reactivated after three minutes.
1.Switch off the dishwasher with the main switch.
2. Hold in the TEHP BOOSTand HEAT DRY buttons while pressing the main switch. The
Temperature, Drying and start symbols will flash. Release the Temperature and Drying
buttons.
3. Press the CYCLE button - when the Auto wash symbol is lit,
the button lock has been activated.
4. Then press the START/RESET button to store the setting.
or Reset:
1. Switch offthe dishwasher with the main switc.
2. Hold in the TENP BOOST and HEAT DRY buttons at the same time as pressing the main
switch
3. Press the CYCLE- when the Auto wash symbol goes out,
the button lock has been deactivated
/4.Then press the START/RESET button to confirm the setting.
18

Settings
Dishwasher
Setting a signal
If you want the machine to signal when the wash is complete, you can program it to do this.
The machine is set without a signal by default.
1. Switch off the dishwasher at the main switch.
2. Hold in the DELAY start button at the same time as you press the
main switch. The button flashes. Release the button.
3. Press the CYCLE button - when the Auto wash symbol lights, the
signal is activated.
4. Press the START/RESET button and the setting will be stored until next time
you want to make a change.
or Reset
1. Switch off the dishwasher with the main switch.
E 2. Hold in the DELAY start button at the same time us you press the
main switch. The button flashes. Release the button.
O 3.Press the CYCLE button - when the Auto wash symbol goes out, the
signal is deactivated.
4. Press the START/RESETbutton and the setting will be stored until next time
you want to make u change.
19

Fault Codes
Dishwasher
Display Flashes Type of fault Action
HEAVY
NORMAL
LIGHT
SPEED
RINSE
LIGHT
SPEED
AUTO
HEAVY
AUTO
NORMAL
Too much water in the dishwasher
Fault with water inlet
Valve leak
Blocked drain
Clogged filter
Phone service
Check that the water tap is open
Shut off the water tap and contact service
See 'Possible causes' in chapter Trouble shooting
Clean the filters, see chapter on cleaning
To remove the fault indications from the display, turn off the main switch and then turn it back on again.
20
