Dash® Port
Docking Station
Service Manual
2000966-037 Revision B

T-2 Dash Port Docking Station Revision B
2000966-037 10 December 2002
127(Due to continuing product innovation, specifications in this
manual are subject to change without notice.
Listed below are GE Medical Systems Information Technologies’
trademarks used in this document. All other trademarks contained
herein are the property of their respective owners.
DASH, SAM, and UNITY NETWORK are trademarks of GE Medical
Systems Information Technologies registered in the United States Patent
and Trademark Office.
© GE Medical Systems Information Technologies, 2001 and 2002. All
rights reserved.

Revision B Dash Port Docking Station i
2000966-037
Contents
1Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Manual Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Manual Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .1-3
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Responsibility of the Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Equipment Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Service Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .1-6
Equipment Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
2Equipment Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
The Docking Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 2-3
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Dash Monitor Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

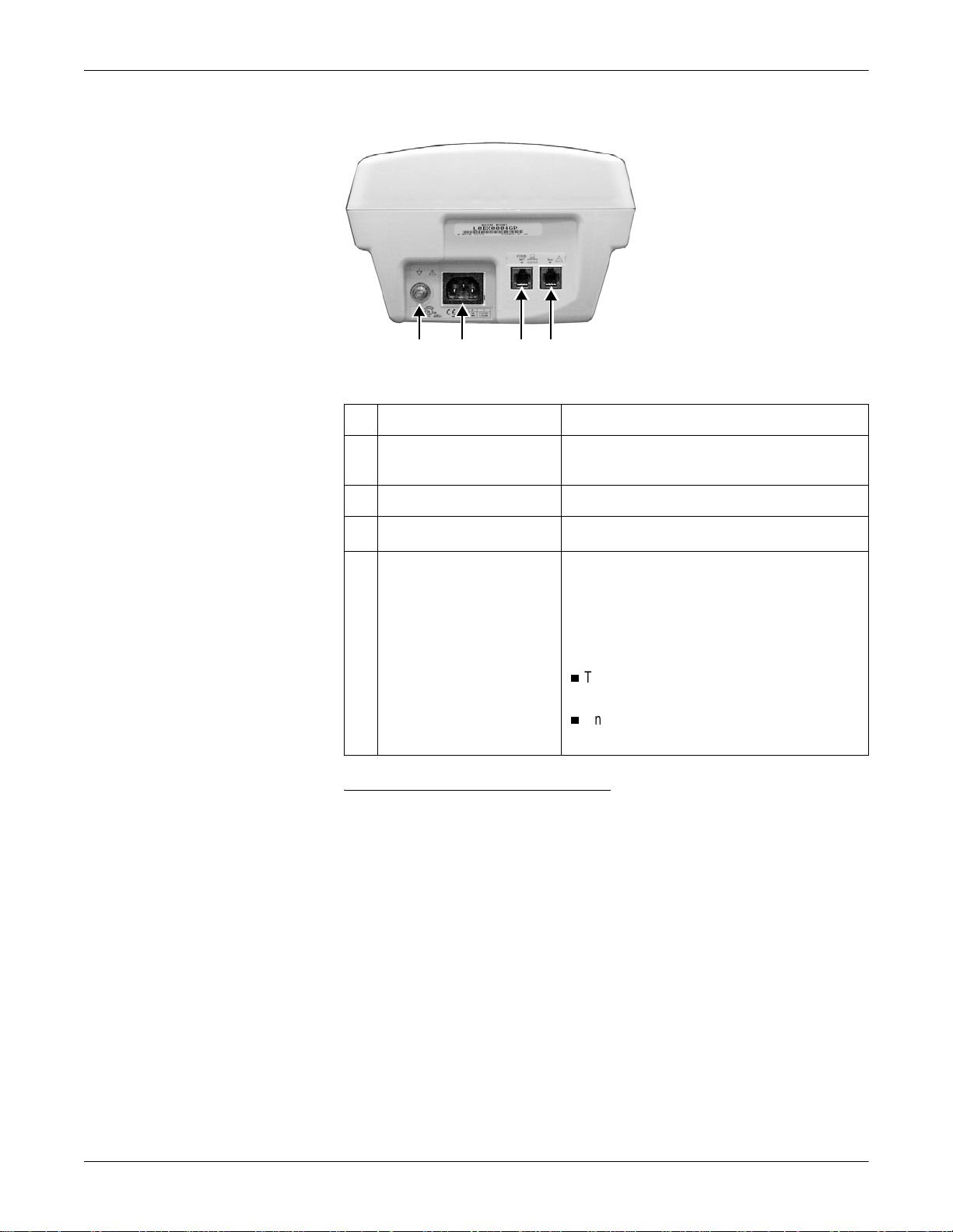

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 2-5
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 2-6
3Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Manufacturer Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .3-3
Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Cleaning Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .3-5
Exterior Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Electrical Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6

ii Dash Port Docking Station Revision B
2000966-037
Wall Receptacle Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Ground (Earth) Integrity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Ground (Earth) Wire Leakage Current Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
Enclosure Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .3-12
Patient (Source) Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .3-13
Patient (Sink) Leakage Current Test (Mains Voltage on the Applied Part) . . .. .3-15
Test Completion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .3-16
Checkout Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-17
Verify Correct Docking Station Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-17
Docking Station Power-up Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-18
Network Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .3-19
4Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Visual Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Power Cable and Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
5Field Replaceable Units . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Disassembly Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Before Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Hardware Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
After Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-3
Docking Station Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Separating the Top and Bottom Housings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-4
Replacing the Connector Assembly or the Bottom Housing . . . . . . . . . . . . . . . . .5-5
Joining the Top and Bottom Housings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-6
6Drawing and Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1
Exploded ViewPN 2004740-001, Revision D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Parts ListPN 2004740-001, Rev. B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Revision B Dash Port Docking Station 1-1
2000966-037
1Introduction

1-2 Dash Port Docking Station Revision B
2000966-037
For your notes

Revision B Dash Port Docking Station 1-3
2000966-037
Introduction: Manual Information
Manual Information
Revision History
Each page of this manual has the document part number and revision
letter at the bottom of the page. The revision letter identifies the
document’s update level. The revision history of this document is
summarized below.
Manual Purpose
This manual supplies technical information for service representatives
and technical personnel so they can maintain the equipment to the
assembly level. Use it as a guide for maintenance and electrical repairs
considered field repairable. Where necessary the manual identifies
additional sources of relevant information and technical assistance.
See the operation instructions for the instructions necessary to operate
the equipment safely in accordance with its function and intended use.
Intended Audience
This manual is intended for service representatives and technical
personnel who maintain, troubleshoot, or repair this equipment.
Table 1. Revision History
Revision Date Comment
A 13 February 2001 Initial release of this manual.
B 10 December 2002 Add AUX port communication.

1-4 Dash Port Docking Station Revision B
2000966-037
Introduction: Safety Information
Safety Information
Responsibility of the Manufacturer
GE is responsible for the effects of safety, reliability, and performance
only if:
 Assembly operations, extensions, readjustments, modifications, or
repairs are carried out by persons authorized by GE.
 The electrical installation of the relevant room complies with the
requirements of the appropriate regulations.
 The equipment is used in accordance with the instructions for use.
General
This device is not intended for home use.
Contact GE for information before connecting any devices to the
equipment that are not recommended in this manual.
Parts and accessories used must meet the requirements of the applicable
IEC 601 series safety standards, and/or the system configuration must
meet the requirements of the IEC 60601-1-1 medical electrical systems
standard.
Periodically, and whenever the integrity of the device is in doubt, test all
functions.
The use of ACCESSORY equipment not complying with the equivalent
safety requirements of this equipment may lead to a reduced level of
safety of the resulting system. Consideration relating to the choice shall
include:
 use of the accessory in the PATIENT VICINITY; and
 evidence that the safety certification of the ACCESSORY has been
performed in accordance to the appropriate IEC 60601-1 and/or IEC
60601-1-1 harmonized national standard.
If the installation of the equipment, in the USA, will use 240V rather
than 120V, the source must be a center-tapped, 240V, single-phase
circuit.

Revision B Dash Port Docking Station 1-5
2000966-037
Introduction: Safety Information
Warnings, Cautions,
and Notes The terms danger, warning, and caution are used throughout this
manual to point out hazards and to designate a degree or level of
seriousness. Familiarize yourself with their definitions and significance.
Hazard is defined as a source of potential injury to a person.
Equipment Symbols
Term Definition
DANGER Indicates an imminent hazard which, if not avoided, will
result in death or serious injury.
WARNING Indicates a potential hazard or unsafe practice which, if
not avoided, could result in death or serious injury.
CAUTION Indicates a potential hazard or unsafe practice which, if
not avoided, could result in minor personal injury or
product/property damage.
NOTE Provides application tips or other useful information to
assure that you get the most from your equipment.
ATTENTION: Consult accompanying documents.
equipotential
lock
unlock
Ethernet
Medical Equipment
With respect to electric shock, fire and mechanical
hazards only in accordance with UL 2601-1, and CAN/
CSA C22.2 NO. 601.1.
4P41

1-6 Dash Port Docking Station Revision B
2000966-037
Introduction: Service Information
Service Information
Service Requirements
Follow the service requirements listed below.
 Refer equipment servicing to GE authorized service personnel only.
 Any unauthorized attempt to repair equipment under warranty voids
that warranty.
 It is the user’s responsibility to report the need for service to GE or to
one of their authorized agents.
 Failure on the part of the responsible individual, hospital, or
institution using this equipment to implement a satisfactory
maintenance schedule may cause undue equipment failure and
possible health hazards.
 Regular maintenance, irrespective of usage, is essential to ensure
that the equipment will always be functional when required.
Equipment Identification
Every GE device has a unique serial number for identification. A sample
of the information found on a serial number label is shown below.
D 0 XX 0005 G XX
Month
Manufactured
A = January
B = February
C = March
D = April
E = May
F = June
G = July
H = August
J = September
K = October
L = November
M = December
Year
Manufactured
0 = 2000
1 = 2001
2 = 2002
(and so on)
Product Code
Two-character
product
descriptor
Product
Sequence
Number
Manufacturing
number (of total
units
manufactured)
Device Characteristics
One or two letters that
further describe the unit,
for example:
P = prototype not
conforming to marketing
specification
R = refurbished equipment
S = special product
documented under Specials
part numbers
U = upgraded unit
Division
F = Cardiology
G = Monitoring
N = Freiburg
Hellige

Revision B Dash Port Docking Station 2-1
2000966-037
2Equipment Overview

2-2 Dash Port Docking Station Revision B
2000966-037
For your notes

Revision B Dash Port Docking Station 2-3
2000966-037
Equipment Overview: The Docking Station
The Docking Station
Intended Use
The docking station is a quick mount/dismount base for a Dash patient
monitor. It gives the monitor easy connect/disconnect access to AC
power, the Unity Network®(Ethernet), and to auxiliary devices.
Dash Monitor Compatibility
127(
The docking station can be used with ALL Dash monitors. However,
some Dash monitors DO NOT support the docking station’s Ethernet
or auxiliary communication links.
Front View
Monitor AC Power Ethernet Auxiliary
Dash 2000 (version 1 and 2
software) Yes No No
Dash 2000 (version 3 or later
software) Yes Yes Yes
Dash 3000 (version 1 software) Yes Yes No
Dash 3000/4000 (version 2
software) Yes Yes No
Dash3000/4000(version3orlater
software) Yes Yes Yes
Name Description
A security lever Slide left to lock the monitor onto the docking station,
then slide right to unlock the monitor.
B AC mains power indicator Illuminates green when AC power is applied to the
docking station.
A
B
004A

2-4 Dash Port Docking Station Revision B
2000966-037
Equipment Overview: The Docking Station
Back View
1Ethernet communications are prioritized in the following order.
1. Top priority is the docking station interface.
2. Next priority is the hardwired Ethernet connection at the back of
the monitor.
3. Lowest priority is the optional Wireless LAN on the monitor.
A B C D
005A
Name Description
A equipotential lug Connect non-grounded peripheral devices to
ensure equipotential.
B AC power connector Insert AC power cable.
CETHERNET connector Connect to the Unity Network.1
DAUX connector Connect to a compatible auxiliary device that is
supported by the Dash monitor.
In addition, you can use the AUX connector on the
monitor and on the docking station to connect the
following devices.
 Two RAC 2A module housings to support an
ICG module interface with a SAM®module.
 One RAC 2A module housing and a remote
control.

Revision B Dash Port Docking Station 2-5
2000966-037
Equipment Overview: Installation
Installation
:$51,1*6
CABLES — Route all cables away from patient's throat
to avoid possible strangulation and to prevent interfering
with the monitor’s attachment to the docking station.
SITE REQUIREMENTS — For safety reasons, all
connectors for patient cables and sensor leads are
designed to prevent inadvertent disconnection, should
someone pull on them. Do not route cables in a way that
they may present a stumbling hazard. For devices
installed above the patient, adequate precautions must
be taken to prevent them from dropping on the patient.
&$87,216
PERSONAL INJURY HAZARD — To reduce the
potential for orthopedic injury, mount the docking station
at a height which prevents overextension of the user’s
arms when connecting and disconnecting the monitor.
POWER REQUIREMENTS — Before connecting the
device to the power line, check that the voltage and
frequency ratings of the power line are the same as those
indicated on the unit's label. If this is not the case, do not
connect the system to the power line until you adjust the
unit to match the power source.
In U.S.A., if the installation of this equipment will use
240V rather than 120V, the source must be a center-
tapped, 240V, single-phase circuit.
127(
The docking station has a standard GCX mounting plate for quick
mount/dismount access to GCX mounting devices.
Complete the following to install the docking station.
1. Ensure the wall receptacle is wired correctly.
2. Slide the docking station onto the mounting device’s GCX plate.
Verify it is secure.
3. Connect the AC power cable to the docking station and to an
appropriate AC power source.
4. Insert the Unity MC-Network connector into the ETHERNET port
of the docking station.
5. Complete the “Electrical Safety Tests” on page 3-6 and the “Checkout
Procedures” on page 3-17.

2-6 Dash Port Docking Station Revision B
2000966-037
Equipment Overview: Technical Specifications
Technical Specifications
Item Specification
Power Requirements
without monitor
with monitor at 115V setting
with monitor at 230V setting
88-270 VAC RMS, 47-63 HZ
Maximum input current is125 mA RMS
88-135 VAC RMS, 47-63 HZ
176-270 VAC RMS, 47-63 HZ
Power Consumption (fully loaded) 75 W
Operating Conditions
operating temperature
relative humidity, non-condensing
altitude
0 to 50°C (32 to 122°F)
5 to 95% at 40°C (104°F)
-610 to 4,570 m (-2000 to 15, 000 ft.)
Cooling Method convection
Storage Conditionsmaximum
minimum 70°C (158° F) at 95% relative humidity -40°C (104° F) at 85% relative humidity
Physical Specifications height
width
depth
weight
maximum load
13.9 cm (5.5 in)
27 cm (10.5 in)
20 cm (8.0 in)
1.95 kg (4.3 lb.)
6.8 kg (15 lb.)
Certification UL 2601-1 classified
UL classified for CAN/CSA C22.2 No. 601.1
IEC 60601-1 and EN 60601-1 certified
CE Marking for 93/42/EEC concerning medical
devices

Revision B Dash Port Docking Station 3-1
2000966-037
3Maintenance

3-2 Dash Port Docking Station Revision B
2000966-037
For your notes

Revision B Dash Port Docking Station 3-3
2000966-037
Maintenance: Maintenance Schedule
Maintenance Schedule
Manufacturer Recommendations
:$51,1*
Failure on the part of all responsible individuals,
hospitals or institutions, employing the use of this device,
to implement the recommended maintenance schedule
may cause equipment failure and possible health
hazards. The manufacturer does not, in any manner,
assume the responsibility for performing the
recommended maintenance schedule, unless an
Equipment Maintenance Agreement exists. The sole
responsibility rests with the individuals, hospitals, or
institutions utilizing the device.
To ensure the docking station is always functional when required,
qualified service personnel should perform the following regular
maintenance.
 Visual Inspection: Perform a visual inspection upon receipt of the
equipment, every 12 months thereafter, and prior to servicing the
unit.
 Cleaning: Clean the unit upon receipt of the equipment, every 12
months thereafter, and each time the unit is serviced.
 Electrical Safety Tests: Perform safety tests upon receipt of the
equipment, every 12 months thereafter, and each time the unit is
serviced.
 Checkout Procedures: Perform the checkout upon receipt of the
equipment, every 12 months thereafter, and each time the unit is
serviced.

3-4 Dash Port Docking Station Revision B
2000966-037
Maintenance: Visual Inspection
Visual Inspection
The docking station and it’s components should be carefully inspected
prior to installation, once every 12 months thereafter, and each time the
equipment is serviced.
 Carefully inspect the equipment for physical damage. Do not use the
docking station if damage is determined. Refer damaged equipment
to qualified service personnel.
 Inspect all external connections for loose connectors or frayed cables.
Have any damaged connectors or cables replaced by qualified service
personnel.
 Safety labels and inscription on the device are clearly legible.
