BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - S_,vethese
insuucfions for local inspector's use.
• IMPORTANT - Observe_,ll
governing codes and ordinances.
•Note to Installer -Besure to leave these
insUucfions with the Gonsumer.
• Note to Consumer - Keep these
instructions for fllu_ie reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the X_rarranty.
/
/
/
/
For a Spanish version of this manual, visit our Website at GEAppliances.com.
Para consultar una version en espaKol de este manual de instrucciones, visite nuestro sitio
de internet GEAppliances.com.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Installation Instructions
CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Hood Exhaust ...................................................... 4, 5
Damage - Shipment/Installation .............................. 6
Parts Included .......................................................... 6
Tools You Will Need ................................................ 7
Mounting Space ...................................................... 7
Step-by-step installation guide
Placement of Mounting Plate ............................ 8-10
Removing the Mounting Plate ...................... 8
Finding the Wall Studs .................................. 8
Determining Wall Plate Location .................. 9
Aligning the Wall Plate ................................ 10
Installation Types .............................................. 11-22
_ Outside Top ............................
Exhaust 12-14
Attach Mounting Plate to Wall ............ 12
Preparation of Top Cabinet ................ 13
Checking for Proper Damper
Operation ............................................ 13
Mount the Microwave Oven ................ 13
Adjust the Exhaust Adaptor ................ 14
Connecting Ductwork .......................... 14

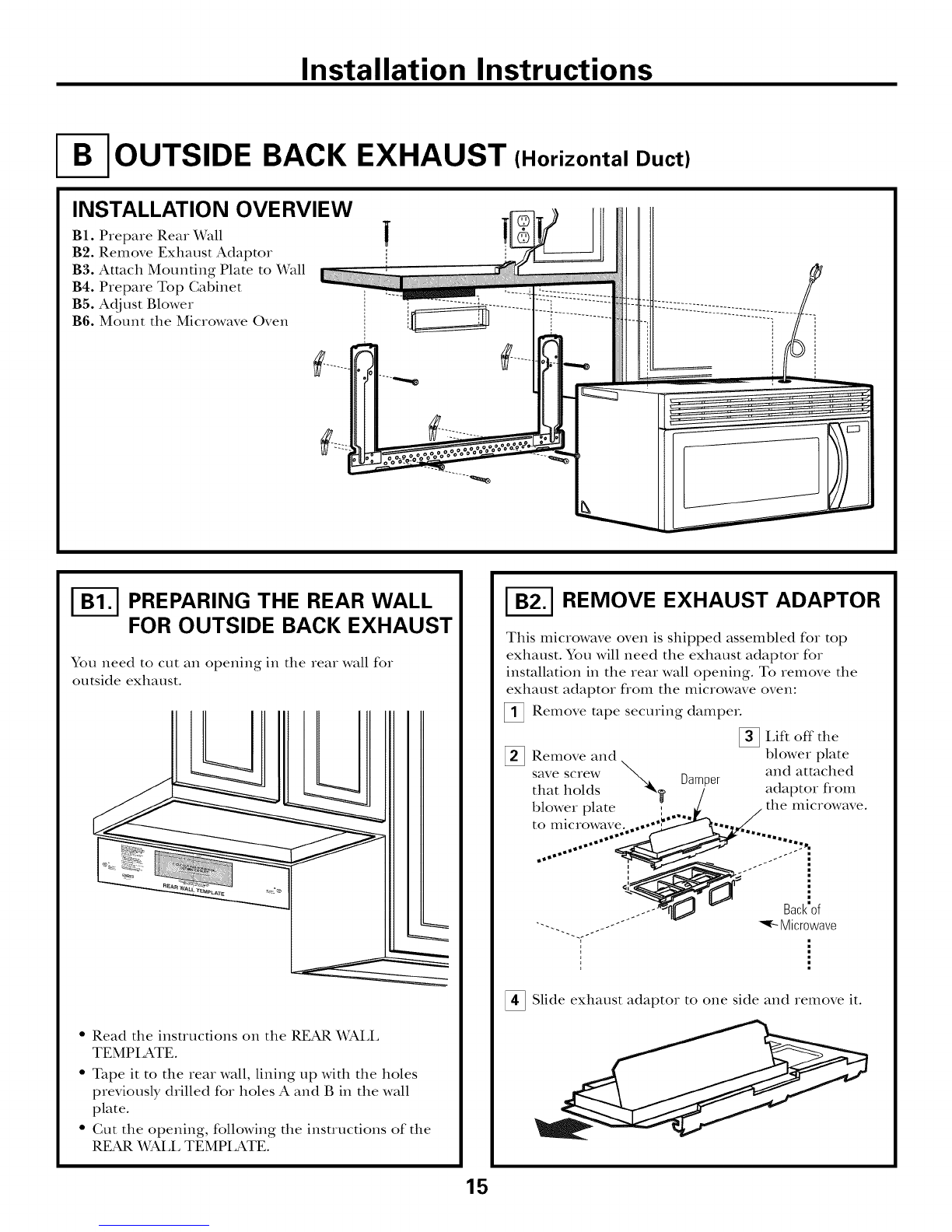

_2 Outside Back Exhaust 15-18
Preparing Rear Wall for
Outside Back Exhaust .......................... 15
Remove Exhaust Adaptor ...................... 15
Attach Mounting Plate to Wall ............ 16
Preparation of Top Cabinet ................ 16
Adapting Microwave Blower
for Outside Back Exhaust ................ 16, 17
Mount the Microwave Oven ................ 18
[] Recirculating ........................................ 19-22
Attach Mounting Plate to Wall ............ 19
Preparation of Top Cabinet ................ 19
Check Microwave Assembly ................ 20
Adapting Microwave Blower
for Recirculation .......................... 20, 21
Mount the Microwave Oven .......... 21, 22
Installing the Charcoal Filter. ............. 22
Before You Use Your Microwave .......................... 23
2

Installation Instructions
iMPORTANT SAFETY iNSTRUCTiONS
This product requires a three-prong grounded outlet°
The installer must perK_rm a ground continuity check
on the power outlet box befbre beginning the
installation to insure that the out|et box is properly
grounded. If not properly grounded, or if the out|et
box does not meet electrical requirements noted
(under EI,ECTRICAI, REQUIREMENTS), a qualified
electrician should be employed to correct any
deficiencies.
CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beginning
installation to avoid severe
or fatal shock injury.
w
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load, in
addition to the added weight of this 63-85 pound
product, plus additional oven loads of up to 50 pounds
or a total weight of 113-135 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
a peninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT - PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this appliance is equipped with a
three-prong (grounding)
plug which mates with a
standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appfiance.
Ensure proper
ground exists
before use
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electridan.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product radng is 120 volts AC, 60 Hertz, 15 amps and
1.58 ldlowatts. This product must be connected to a
supply circuit of the proper voltage and flequency:
Wire size lllust conf_)IIIl to the requirements of the
National Electrical Code or the prevailing local
code for this Mlowatt rating. The power supply
cord and plug should be brought to a separate
15- to 20- ampere branch circuit single grounded
outlet. The outlet box should be located in the
cabinet above the microwave oven. The outlet box
and supply circuit should be installed by a qualified
electrician and confbrm to the National Electrical
Code or the prevailing local code.
3

Installation Instructions
HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
RoofCap
12Ft.StraightDuct
(6"Round)
Rectangular-to-Round
TransitionAdaptod
24Ft. x (1)
12Ft. x (1)
5 Ft. x (1) =
24Ft.
12Ft.
5 Ft.
Equivalentlengthsof ductpiecesarebasedonactualtests and
reflectrequirementsfor goodventingperformancewith anyventhood. Total Length = 41 Ft.
* IMPORTANT: If a rectangular-to-round uansition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the fin snips, in order to allow flee movement of the dampeL
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
DUCT PIECES EQUIVALENT LENGTH* x NUMBER USED
Wall Cap
3 Ft.StraightDuct
31A"x 10"Rectangular)
40Ft.
3 Ft.
(1)
(1)
EQUIVALENT
LENGTH
40Ft.
3 Ft.
(_ 90° Elbow 10Ft. x (2) = 20Ft.
Equivalentlengthsof ductpiecesarebasedonactualtestsand
reflectrequirementsforgoodventingperformancewith anyvent hood. Total Length = 63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
4

Installation Instructions

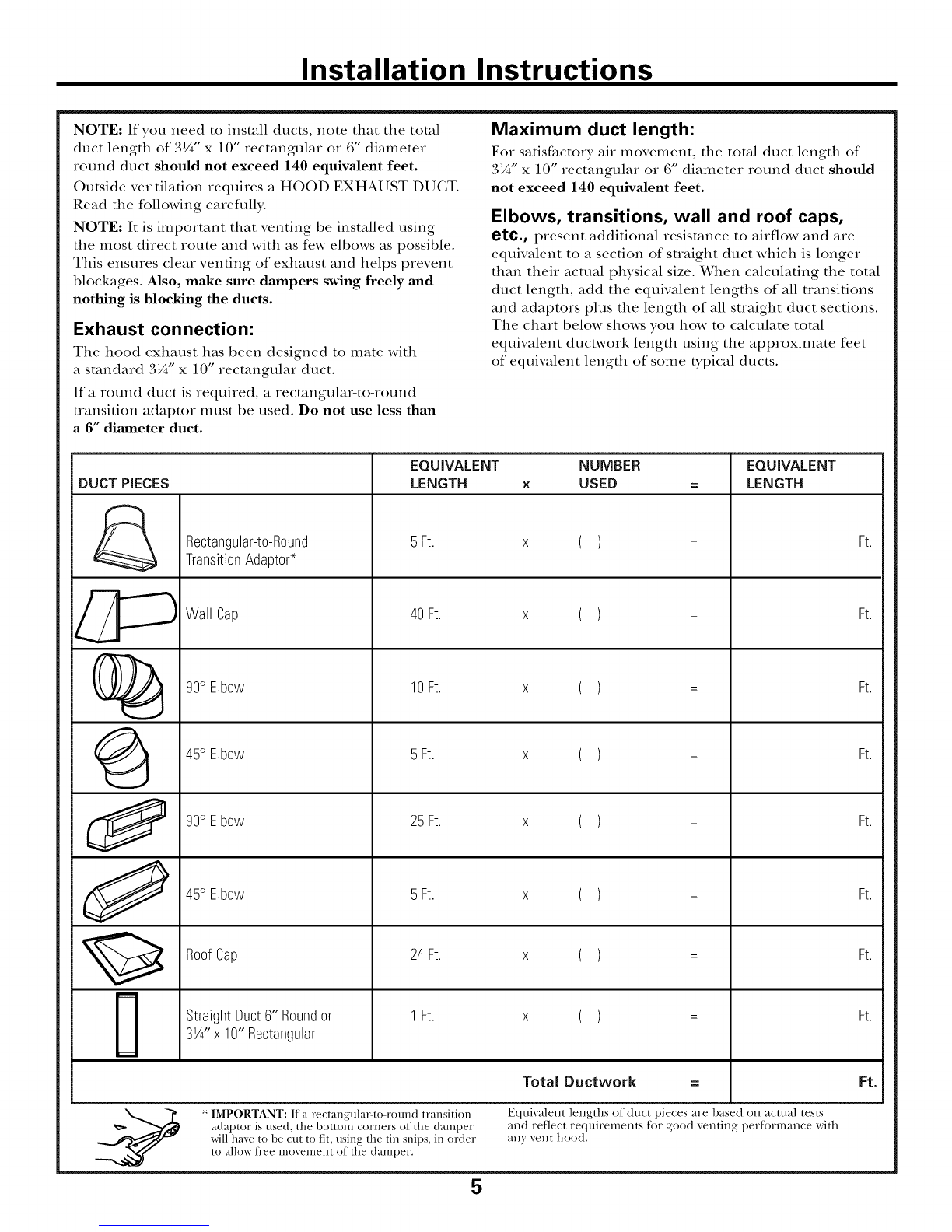

NOTE: If you need to install ducts, note that the total
duct length of 3¼"x 10" rectangular or 6" diameter
round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following careflflly.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Mso, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3¼" x 10" rectangular duct.
If a round duct is required, a rectangular-to-round
uansition adaptor must be used. Do not use less than
a 6" diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
3¼"x 10" rectangular or 6" diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of suaight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all uansifions
and adaptors plus the length of all suaight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet
of equivalent length of some typical ducts.
DUCT PIECES
%
G
O
O
Rectangular-to-Round
TransitionAdapto¢
Wall Cap
%0 Elbow
45° Elbow
%0 Elbow
45° Elbow
RoofCap
StraightDuct6" Roundor
31/4"x 10"Rectangular
EQUIVALENT
LENGTH
5Ft.
40 Ft.
10 Ft.
5Ft.
25 Ft.
5Ft.
24Ft.
1Ft.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow ti'ee movement of the damper.
NUMBER
x USED
x ( )
x ( )
x ( )
x ( )
x ( )
x ( )
x ( )
x ( )
Total Ductw0rk
EQUIVALENT
=LENGTH
=
=
=
=
=
=
=
=
==
Equivalent lengths of duct pieces are based on actual tests
and reflect requirenaents tot good venting pertormance with
any vent hood.
5
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.
Ft.

Installation Instructions
DAMAGE - SHIPMENT/
iNSTALLATiON
,If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
" If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer
" If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement bet_,veen customer
and installer
PARTS INCLUDED
HARDWARE PACKET
PART
WoodScrews
(¼" x2")
ToggleBolts(and
wing nuts)(3A6"x3")
Self-AligningMachine
Screws(¼"-28x 3¼")
NylonGrommet
(formetalcabinets)
QUANTITY
2
You will find the installation hardware contained in
a packet with the unit. Gheck to make sure you have
all these parts.
NOTE: Some exua parts are included.
ADDITIONAL PARTS
PART
TOP CABINETTEMPLATE
REAR
WALL
TEMPLATE
INSTRUCTIONS
TopCabinet
Template
RearWall
Template
Installation
Instructions
Separately
Packed
Grease
Filters
QUANTITY
1
6

Installation Instructions
TOOLS YOU WILL NEED
# 1and#2 Phillipsscrewdriver
Tinsnips(forcutting
damper,if required)
Gloves
Pencil
Scissors
(tocuttemplate,if necessary)
Saw(saber,holeor keyhole)
Ruleror tapemeasureand
t edge
Electricdrill with s_s',Y2"and%"
drill bits 8
Studfinder er Hammer (optional)
Carpentersquare
(optional)
Fillerblocksor scrap
woodpieces,if needed
for top cabinetspacing
(usedonrecessedbottom
cabinetinstallationsonly)
Safety goggles Level Duct and masking tape
MOUNTING SPACE
66" or More
fromthe Floor
tothe Topof
the Microwave
\
BottomEdgeof
CabinetNeedsto
be30" or More
from the Cooking
Surface
Backsplash
NOTES:
• The space between the cabinets must be
•0 wide and free of obstructions.
• If the space between the cabinets is greater
than 30", a Fillet Panel Kit may be used to fill
in the gap between the microwave oven and
the cabinets. Your Owner's Manual contains
the kit number for your model.
• This microwave oven is for installation over
ranges tap to 36" wide.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
7

Installation Instructions
[ PLACEMENT OF THE MOUNTING PLATE
REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
_ Remove the installation instructions, filters, glass
tray and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
[] Fold back all 4 carton flaps fully against carton
sides. Then careflflly roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
[]Pull the carton tap and off the oven.
[] Remove and properly discard plastic bags.
Mounting
Plate
[]Remove the 2 screws fiom the mounting plate.
This plate will be used as the rear wall template
and for mounting. You may discard these screws.
I-_ FINDING THE WALL STUDS
Wall
= Studs
_!_ Find the studs, using one of the following
methods:
A. Stud finder - a magnetic device which
locates nails.
OR
B. Use a hammer to mp lighdy across the
mounting surfi_ce to find a solid sound.
This will indicate a sam loca6on.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark half\,vay between
the edges. The center of any adjacent sums should
be 16" or 24" flom this mark.
_Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
8

Installation Instructions
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet Plate position - beneath framed recessed cabinet bottom
o°
",,%
%.
MountingPlateTabs
the CabinetBottom
At least 30", up to 36"
MountingPlateTabs
Touchingthe Back
Frame
I1 30" toCooktop
Plate position -beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelowCabinet
Bottomthe Same
Distanceas the Front
OverhangDepth
i II
i II 30" to Cooktop
÷
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a flont overhang only, with no
back or side flame, install the mounting plate down
the same distance as the flont overhang depth. This
will
[]
%
%
keep the microwave level.
Measure the inside depth of the flont overhang.
Draw a horizontal line on file back wall an equal
distance below the cabinet bottom as the inside
depth of the flont overhang.
For this type of installation with flont overhang only,
align the mounting robs with tiffs horizontal line, not
touching the c_fl)inet bottom as described in Step D.
9

Installation Instructions
ALIGNING THE WALL PLATE
HoleC Centerline
Notches
DrawaVertical
LineonWall
'.<-_ from Centerof
TopCabinet
HoleB
0000000
000000000
!
AreaE HoleD
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
[]Draw a vertical line on file wall at the center of the
30" wide space.
[]Use the mounting plate as the template for the rear
waU. Place the mounting plate on tim waU, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and centerline
on the bottom of the mounting plate to the centerline
on the wall.
[] While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D
(see illusuation above/acatal plato marked with
arrows). Four holes must be used for mounting.
[]
NOTE: Holes C and D are inside area E. If neither
C nor D is in a sutd, find a sutd somewhere in area E
and draw a fifth circle to line lap with the stud. It is
important m use at least one wood screw mounted
firmly in a stud m support the weight of the microwave.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a X_/'
hole for wood screws. For holes that don't line up with
a sutd, drill a %" hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
10

Installation Instructions
INSTALLATION TYPES
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
(Choose A, B or C)
NOTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
type of ventilation required for your installation and
proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT) OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
/Adaptorin Placefor
OutsideTopExhaust
RECIRCULATING
(NON-VENTED DUCTLESS)
A Gharcoal Filter Accessory
Kit is required for the non-
vented exhaust. (See your
Owner's Manual for the kit
ntltllbeI:)
11

Installation Instructions
OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Piepa_e Top Cabinet
A3. Check Dampe_ Opeiation
A4. Mount Mic_owave Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwo_k
|
I
I
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
===m
Attach the plate to the wall using toggle bolts.
At least one wood sciew illust be used to attach
the plate to a wall stud.
[]Remove the toggle wings flom the bolts.
[] Inse_t the bolts into the moundng plate
th_ough the holes designated to go into d_)_,vall
and _eatmch the toggle wings to :_" onto each bolt.
To use toggle bolts:
SpacingforToggles
MoreThanWall
+l_,.[_,_Th ickness
ToggleWings
Mounting
Plate_.
BoltEnd
_ Place the mounting plate against the wall and
inse_t the toggle wings into the holes in the wall
to mount the plate.
NOTE: Befo_e tightening toggle bolts and wood
sc_ew, make sme the robs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is p_ope_ly
cente_ed under the cabinet.
CAUTION: Be ca_eflll to avoid pinching fingeis
between the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away fiom the wall
to help tighten the bolts.
12

Installation Instructions
1-_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for tile top support screws, a
hole large enough for tile power cord to fit ttlrough,
and a cutout large enough for tile exllaust adaptoL
• Read the instructions on the TOP CABINET
TEMPI ,ATE.
• Tape it underneattl tile top cabinet.
• Drill tile holes, following tile instructions on tile
TOP CABINET TEMPI,ATE.
CAUTION: Wear safety goggles when drilling holes
in tile cabinet bottom.
I-_ CHECK FOR PROPER
DAMPER OPERATION
BlowerPlate
ExhaustAdaptor
(absentonmodelsshipped
for recirculationexhaust)
Damper
Backof
Microwave
• Place tile microwave in its upright position, with the
top of tim unit facing up.
• This microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculadon
exhaust (adaptor absent).
• Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
• You will need to make adjusmlents to assure proper
alignment with your house exhaust duct after the
microwave is installed.
I-_ MOUNT THE MICROWAVE
OVEN
FOR EASIER INSTAI,I,ATION AND PERSONAI,
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use tim nylon
grommet around tim power cord hole to prevent
cutting of tim cord.
NOTE: We recommend using filler blocks if the
cabinet flont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, case damage may occur from
overtightening screws.
NOTE: When mounting
tile microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling cord.
_I,ifl tilt it
microwave,
forward, and hook
slots at back bottom
edge onto four lower
robs of mounting
_ Rotate flont of oven
up against cabinet
bottom.
_Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
13

Installation Instructions
I-_ MOUNT THE MICROWAVE
OVEN (cont.)
CabinetFront
CabinetBottomShelf
FillerBlock
-i--Equivalent
to Depth
ofCabinet
Recess
Self-AligningScrew
MicrowaveOvenTop
[]Attach the microwave oven to the top cabinet°
[] Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two flfll [tlIns on
each screw.
I
[]Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
1400and1600Series 1800Series
_;__4
_ Install grease filters. See the Owner's Manual
packed with the microwave.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Backof
BlowerPlate Damper Microwave
Side-to-Side Adjustment,
Slidethe ExhaustAdaptor
asNeeded
I-_ CONNECTING DUCTWORK
HouseDuct
_1_ Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
14

Installation Instructions
OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Remove Exhaust Adaptor
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
BS. Adjust Blower
B6. Mount the Microwave Oven
|
I-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for
outside exhaust.
• Read the insuucfions on the REAR X_SkLL
TEMPIATE.
• Tape it to the rear wall, lining tap with the holes
previously drilled for holes A and B in the wall
plate.
• Gut the opening, following the instructions of the
REAR X_SkLLTEMPLATE.
I-_ REMOVE EXHAUST ADAPTOR
This microwave oven is shipped assembled for top
exhaust. You will need the exhaust adaptor for
installation in the rear wall opening. To remove the
exhaust adaptor from the microwave oven:
Remove rope securing dampm.
Lift off the
Remove and blower plate
save screw _ _ and attached
•" uamper
that holds "_, /adaptor fiom
blower plate ;..._/, /the microwave.
to microwave; ..... _,,_,.,,
......... i...."..
°" i
_ Backof
..... -..... Microwave
_ Slide exhaust adaptor to one side and remove it.
15

Installation Instructions
| ATTACH THE MOUNTING
IL,==========,_ PLATE TO THE WALL
!
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
[] Remove the toggle wings flom the bolts.
[]Insert the bolts into the mounting plate through
the holes designated to go into drywall and reatmch
the toggle wings to :5" onto each bolt.
To use toggle bolts:
Mounting
Plate
,,I,
SpacingforTogglesMore
-.-I+---i+,,--ThanWallThickness
I
iToggle Wings
<-Wall "_
BoltEnd
[]Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the robs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careflfl to avoid pinching fingers
between the back of the mounting plate and the wall.
[]Tighten all bolts. Pull the plate away from the wall
to help dghten the bolts.
qUSE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Read the insuuctions on the TOP (;ABINET
TEMPI ,ATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPIATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
I-_ ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
_ Remove and that holds blower motor
save sciew
to microwave. BlowerMotor
"_/f!.-- BlowerMotor
- "_'- Screw
[] Gareflflly the blower unit. The wirespull otlt
will extend far enough to allow you to adjust the
blower unit.
EndB
EndA
16

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
[] Rotate blower unit counterclockwise 180 °.
BeforeRotation After Rotation
Microwave Microwave
_l_ Gently the wires flom the
ielilove giooves.
Reroute the wires through grooves on other side
of the blower unit.
BeforeRerouting After Rerouting
WiresRoutedThroughRightSide WiresRoutedThroughLeft Side
[]Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
illicrowave.
BeforeRolling
Backof
Microwave
After Rolling
_ Backof
Microwave
[]Place the blower unit back into the opening.
EndA
End
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
[] Secure the blower unit to the microwave with
the screw from Step l.
1
I
BlowerPlate
Backof
Microwave
BlowerMotor
Screw
[]Replace the blower in theplate position
same
as before with the screw.
[]Attach the exhaust the of theadaptor to rear
oven by sliding it into the guides at the top
center of the back of the oven.
Adaptor
Backof
Microwave
_r_. Guide
_ LockingTabs
Guide
Push in securely until it is in the lower locking
robs. Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
17

Installation Instructions
I-_ MOUNT THE MICROWAVE
OVEN
;TJ J
FOR EASIER INSTAI,I,ATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use tim nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using fillet blocks if the
cabinet flont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are
not used, ease damage may occur from
overtightening screws.
NOTE: When mounting
the Illicrowave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift
oven by pulling cord.
[]Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
J
[]Rotate fiont of oven
up against cabinet
bottom.
_Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
6ghtened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, espedally
when mounting flush to bottom of cabinet.
CabinetFront
CabinetBottomShelf
FillerBlock
T quivalent
to Depth
ofCabinet
Recess
Self-AligningScrew
MicrowaveOvenTop
_ Attach the microwave oven to the top cabinet.
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two fltll turns on
each screw.
_ Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.'
1400and1600Series 1800Series
_ Install grease filters. See the Owner's Manual
packed with the microwave.
18

Installation Instructions
RECIRCULATING
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Microwave Assembly
C4. Adjust Blower
C5. Mount the Microwave Oven
C6. Install Charcoal Filter
(Non-Vented Ductless}
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
, I
\
Attach the plate to the wall using toggle bolts.
At least one wood screw illust be used to attach
the plate to a wall stud.
[]Remove the toggle wings flom the bolts.
[]Insert the bolts into the mounting plate through
the boles designated to go into dr)_vall and
reatmch the toggle wings to :_A"onto each bolt.
To use toggle bolts:
SpacingforToggles
MoreThanWall
-_l_.i_---Thickness
ToggleWings
Mounting
Plate
BoltEnd
_ Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to I_lount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the robs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
cente_ed under the cabinet.
CAUTION: Be careflll to avoid pinching fingers
bet\,veen the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away flom the wall
to help tighten the bolts.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to ohill holes foi the top suppoit sciews and
a hole large enough for the power cord to fit through.
• Read the instructions on the TOP GABINET
TEMPI_ATE.
• Tape it tmdemeath the top cabinet.
• Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safeb, goggles when drilling holes
in the cabinet bottom.
19

Installation Instructions
CHECK MICROWAVE ASSEMBLY
Exhaust Adaptor (absent
on models shipped for
recirculation exhaust)
Backof
,,
• Place the microwave in its upright position, with the
top of the unit facing up.
• The microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
• If the microwave was shipped for recirculafion
exhaust, skip to (;5. If shipped for top exhaust,
proceed with (;4.
ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
[] Remove ._ Denper [] I,ifl off the
and save ,blower plate
screw that and attached
holds blower" adaptor from
plate to the microwave.
microwave. [
Backof
_-- Microwave "
_ Slide exhaust adaptor to one side and remove it.
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible furore use.
_ Remove and the that holds the blower
save screw
motor to the microwave.
_ BlowerPlate
_11_ Backof
€_ _- Microwave
11_ "----. _. BlowerMotor
""q_-- Screw 20
_ Careflflly pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
_Roll the blower unit 90 ° so that fan blade openings
are facing toward the flont of the microwave.
R011
NOTE: Make sure wires remain routed in the
grooves of the motor flame.
