Installation Over the Range
Instructions Microwave Oven
Read these instructions completely and carefully.
•IMPORTANT – Save these
instructions for local inspector’s use.
•IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
BEFORE YOU BEGIN
• Note to Consumer –Keep these
instructions for future reference.
• Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
31-7000092 Rev. 3 05-23 GEA
English/Spanish

231-7000092 Rev. 3
IMPORTANT SAFETY INSTRUCTIONS
A qualified electrician must perform a ground
continuity check on the wall receptacle before
beginning the installation to ensure that the
outlet box is properly grounded. If not properly
grounded, or if the wall receptacle does not meet
electrical requirements noted (under ELECTRICAL
REQUIREMENTS), a qualified electrician should be
employed to correct any deficiencies.
Risk of Electric Shock.
Can cause injury
or death: Remove
house fuse or open
circuit breaker before
beginning installation
to avoid severe or fatal
shock injury.
Risk of Electric Shock.
Can cause injury or
death: THIS APPLIANCE
MUST BE PROPERLY
GROUNDED to avoid
severe or fatal shock.
The power cord of this appliance is equipped
with a three-prong (grounding) plug which mates
with a standard three-prong (grounding) wall
receptacle to minimize the possibility of electric
shock hazard from this appliance.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed
by a qualified electrician.
Ensure
proper
ground
exists before
use
FOR YOUR SAFETY:
For personal safety, the
mounting surface must be
capable of supporting the cabinet load, in addition to
the added weight of this 63–85 pound product, plus
additional oven loads of up to 50 pounds or a total
weight of 113–135 pounds.
For personal safety, this product
cannot be installed in cabinet
arrangements such as an island or a peninsula. It
must be mounted to BOTH a top cabinet AND a wall.
To avoid the risk of personal
injury (back injury or other injuries
due to excessive weight of the microwave oven) or
property damage, you will need two people to install
this microwave oven.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These
words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 14.5 amps
and 1.7 kilowatts. This product must be connected to
a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of
the National Electrical Code or the prevailing local
code for this kilowatt rating. The power supply cord
and plug should be brought to a separate 15- to
20-ampere branch circuit single grounded outlet. The
outlet box should be located in the cabinet above
the microwave oven. The outlet box and supply
circuit should be installed by a qualified electrician
and conform to the National Electrical Code or the
prevailing local code.
CAUTION
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
Can cause injury or death: DO
NOT, under any circumstances,
cut, deform or remove any of the prongs from the
power cord. Do not use with an extension cord.
Failure to comply may cause fire.
WARNING
WARNING
WARNING
Installation Instructions

31-7000092 Rev. 3 3
Installation Instructions
HOOD EXHAUST
The following chart describes an example of one possible
ductwork installation.
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back
into the room, proceed to page 11.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall
should be prepared at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
   Ǝ5RXQG
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 41 Ft.
EQUIVALENT NUMBER
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31»4Ǝ[Ǝ5HFWDQJXODU
90° Elbow 10 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 63 Ft.

431-7000092 Rev. 3
EQUIVALENT NUMBER
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor*
Wall Cap 40 Ft. x ( ) = Ft.
90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
   6WUDLJKW'XFWƎ5RXQGRU )W  [      )W
3
1»4Ǝ[Ǝ5HFWDQJXODU
Total Ductwork = Ft.
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood.
*IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the
damper will have to be cut to fit, using the tin
snips, in order to allow free movement of the
damper
.
NOTE: If you need to install ducts, note that the total
duct length of 31»4Ǝ[ƎUHFWDQJXODURUƎGLDPHWHUURXQG
duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 31»4Ǝ[ƎUHFWDQJXODUGXFW
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6Ǝdiameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
31»4Ǝ[ƎUHFWDQJXODURUƎGLDPHWHUURXQGGXFWshould
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent lengths of all transitions
and adaptors plus the length of all straight duct sections.
The chart below shows you how to calculate total
equivalent ductwork length using the approximate feet of
equivalent length of some typical ducts.
Installation Instructions

31-7000092 Rev. 3 5
PARTS INCLUDED
You will find the installation hardware contained
in a packet with the unit. Check to make sure you
have all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
ADDITIONAL PARTS
DAMAGE – SHIPMENT INSTALLATION
•If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair or
replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
•If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer and
installer.
Part Quantity
Wood screws (1/4” x 2”) 2
Toggle bolts (and wind
nuts) (3/16” x 3”)
2
Self-aligning machine
screws (1/4” - 28 x 3
1/4”)
2
Nylon Grommet (for
metal cabinets)
1
Tapping screws (for
attaching the damper
duct connector)
2-3
One power cord clamp
and One dark-colored
mounting screw (to hold
the power cord)
1
Part Quantity
Top Cabinet
Template
1
Rear Wall
Template
1
Installation
Instructions
1
Separately
Packed Grease
Filter
2
Cover plate (for
Room Venting
installation)
1
Installation Instructions

631-7000092 Rev. 3
TOOLS YOU WILL NEED
#1 and #2
Phillips
screwdriver
Pencil
Ruler or tape measure and
straight edge
Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3»16Ǝ7»16Ǝ
1»2ƎDQG5»8ƎGULOOELWV
Hammer (optional)
Stud
finder
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed
bottom cabinet
installations only)
Gloves Saw (saber, hole or keyhole)
Level
Duct and masking
tape
Scissors (to cut
template, if necessary)
Safety goggles
MOUNTING SPACE •7KHVSDFHEHWZHHQWKHFDELQHWVPXVWEHƎZLGH
and free of obstructions.
•This oven is for installation over ranges up to
ƎZLGH
•If the space between the cabinets is greater than 30”,
a Filler Panel Kit may be used to fill in the gap between
the microwave oven and the cabinets. Your Owner’s
Manual contains the kit number for your model.
•If you are going to vent your oven to the outside, see
Hood Exhaust Section for exhaust duct preparation.
• When installing the oven beneath smooth, flat
cabinets, be careful to follow the instructions on the
top cabinet template for power cord clearance.
• * 13” max: for standard installation, 15” cabinet
depth requires additional steps using an additional
installation kit JX15BUMPWW/BB.
• For models with top venting holes: Do not allow
cabinetry or other objects to block the airflow of the vent.
• This microwave is suitable for installation over electric or
gas cooking appliances with a combined BTU of 63,000
BTU or less.
• Café branded gas cooking appliances should only be
installed in combination with a Café branded over-the-
range microwave.
• Monogram branded gas cooking appliances should only
be installed in combination with a Monogram branded
over-the-range microwave.
• Monogram branded gas cooking appliances with a
combined BTU greater than 66,000 BTU should not be
paired with an over-the-range microwave.
Backsplash
ƎRUPRUH
from the floor
to the top of
the oven
Ǝ
2Ǝ
Ǝ
min.
16-1»2Ǝ
Bottom edge of
cabinet needs
WREHƎRU
more from the
cooking surface
ƎPD[
Installation Instructions

31-7000092 Rev. 3 7
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs
VKRXOGEHƎRUƎIURPWKLVPDUN
Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
1
Remove the installation instructions, filters, glass
tray, mounting plate, and the small hardware bag.
Do not remove the foam protecting the front of the
oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the foam.
REMOVING THE MICROWAVE
OVEN FROM THE CARTON
FINDING THE WALL STUDS
B.
A.
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Pull the carton up and off the oven.
Carton
Foam
2
3
Set the oven upright. Remove and properly discard
plastic bags and foam packing.
Remove the 2 screws from the mounting plate.
This plate can be used as the rear wall template
and will be used for mounting. You may discard
these screws.
4
1
5
Mounting
Plate
Screws
Installation Instructions

831-7000092 Rev. 3
DETERMINING MOUNTING PLATE LOCATION UNDER YOUR CABINET
C
Plate Position – beneath flat bottom
cabinet Plate Position – beneath framed recessed cabinet bottom
3
2
Draw a vertical line on the wall at the center of the
30” space.
Tape the Rear Wall Template onto the wall
matching the centerline and touching the bottom
cabinet frame.
30” to Cooktop
Plate Position – beneath recessed
bottom cabinet with front overhang.
30” to Cooktop
Draw a line on the
back wall equal to
the depth of the front
overhang
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level.
THE MICROWAVE MUST BE LEVEL
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down the
same distance as the front overhang depth. This will
keep the microwave level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang only,
align the Rear Wall Template with this horizontal
line, not touching the cabinet bottom as described
in Step D.
Draw a vertical line on the wall at the center of the
30” wide space. Tape the Rear Wall Template onto
the wall matching the centerline and touching the
bottom of the cabinet
1
Installation Instructions

31-7000092 Rev. 3 9
MARKING THE MOUNTING HOLES
OPTION 1: USE PAPER REAR WALL TEMPLATE
WARNING Risk of electric shock. Can cause
injury or death. Take care to not drill into electrical
wiring inside walls or cabinets.
This Rear Wall Template serves to locate the mounting
holes for the bottom mounting plate and to locate the
horizontal exhaust outlet.
1. Use a level to check that the template is positioned
accurately.
2. Locate and mark at least one stud on the left or right
side of the centerline.
NOTE: It is important to use at least one wood screw
mounted firmly in a stud to support the weight of the
microwave.
3. Mark the hole location on the wall using the template
at holes A and B. Mark at least one hole location
in area C that lines up with the location of a stud. A
minimum of three holes must be used for mounting.
4. Drill holes in the marked locations. Where there is a
stud, drill a 3/16” hole for wood screws. For holes that
do not line up with a stud, drill 5/8” holes for toggle
bolts.
NOTE: DO NOT INSTALL THE MOUNTING PLATE AT
THIS TIME
5. Remove the template from the rear wall.
D
CAUTION Wear gloves to avoid cutting fingers
on sharp edges.
CUT HOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
12"
4"
NOTE: IT IS VERY IMPORTANT TO
READ AND FOLLOW THE DIRECTIONS
IN THE INSTALLATION INSTRUCTIONS
BEFORE PROCEEDING WITH THIS
REAR WALL TEMPLATE.
This Rear Wall Template serves to position the bottom
mounting plate and to locate the horizontal exhaust
outlet.
1. Use a level to check that the template is positioned
accurately.
2. Locate and mark at least one stud on the left or
right side of the centerline.
NOTE:It is important to use at least one wood
screw mounted firmly in a stud to support the weight
of the microwave. Mark two additional, evenly spaced
locations for the supplied toggle bolts.
3. Drill holes in the marked locations. Where there is
a stud, drill a 3/16" hole for wood screws. For holes
that do not line up with a stud, drill 5/8" holes for
toggle bolts.
NOTE::DO NOT INSTALL THE MOUNTING PLATE
AT THIS TIME.
4. Remove the template from the rear wall.
5. Review the Installation Instruction book for your
installation situation.
Darle vuelta a la hoja para consultar la
versión en Español.
CAUTION - IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDED DIMENSION, GREASE-LADEN AIR WILL
DISCHARGE INTO HOUSE STRUCTURE
30” MINIMUM WIDTH REQUIRED

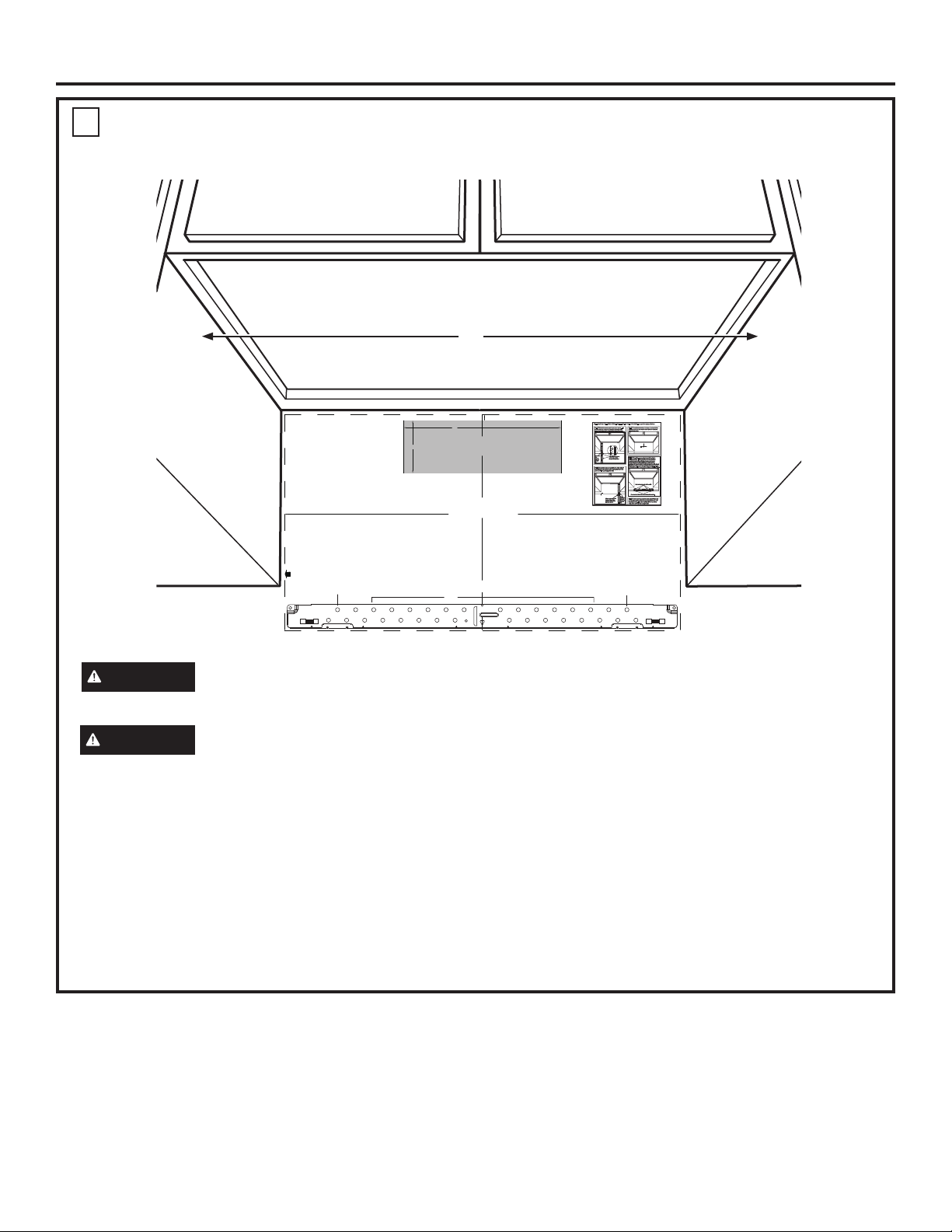

REAR WALL TEMPLATE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST
Locate and mark holes to align with holes in the
mounting plate.
IMPORTANT:
LOCATE AT LEAST ONE STUD ON EITHER SIDE OF
THE CENTERLINE.
MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACED TOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Locate and mark holes to align with holes in the
mounting plate.
IMPORTANT:
LOCATE AT LEAST ONE STUD ON EITHER SIDE OF
THE CENTERLINE.
MARK THE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACED TOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trim the rear wall template along the dotted line.
3/8" TO EDGE
C
NOTES:
- 13” Max Cabinet Depth
- 15” deep cabinets require additional steps using
an additional installation kit: JX15BUMP
OPTION 1 OPTION 2
STEP1: Installer uses bracket tomake 2 marks. First
markis made by using the stampled slot in bracket.
Secondmark is made on the ouside edge of bracket.
STEP3: Installer uses a level todraw a horizontal line
thatconnects the two marks made with the stamped
slotin the bracket.
STEP2: Installer moves bracket tothe other side of
thecabinets and makes 2 moremarks. Marks are the
sameas STEP 1, just opposite side.
STEP4: Installer uses marks to install bracketin
correctposition. The bracketis to be installed per
standardrequirements(at least one wood screw
mountedin a stud, two additional evenlyspaced
locationsfor toggle bolts). Mark hole location A,B,C and
Dby placing the mounting bracketon the wall as shown
inthe picture. Hole C and or D must be in a WALLSTUD.
STEP5: Set mounting bracket aside and drill holes at
allmarked locations.If there is a stud, drill a 3/16” hole
forwood screws.For holes that do not line up with a
stud,drill a 5/8” hole for a toggle bolt.
Makeamark here, along
insidebottomof the
stampedslotprovided.
Makeamark
here,
evenwith
bottomof
stamped
slot
Makeamark here, along
insidebottomof the
stampedslotprovided
(sameasStep 1).
Makea
markhere,
evenwith
bottomof
stamped
slot
Horizontalline
A C D B
Placebracketwithin the lines created in previoussteps.
Markholelocations for A, B, C, and D.
NOTE:Refer to step C “DETERMINING MOUNTING PLATE LOCATION UNDER YOUR CABINET on page 10 for aligning instructions.
C
AB
30”
Installation Instructions

10 31-7000092 Rev. 3
D
STEP 2: Installer uses bracket to make 2 marks. First
mark is made by using the stamped slot in bracket. Second
mark is made on the outside edge of bracket.
STEP 1: Draw a vertical line on the wall at the center of
the 30” space. STEP 4: Installer uses a level to draw a horizontal line that connects the two marks made with the stamped slot in
the bracket.
STEP 5: Installer places the mounting bracket on the wall
as shown in the picture. Draw circles on the wall at holes A
and B. Draw at least one circle in area C. At least one circle
MUST line up with a wall stud.
STEP 6: Set mounting bracket aside and drill holes at
all marked locations. If there is a stud, drill a 3/16” hole for
wood screws. For holes that do not line up with a stud, drill a
5/8” hole for a toggle bolt.
Make a mark here, along inside
bottom of the stamped slot
provided.
Make a mark
here on the
outside edge
of the bracket
Horizontal line
NOTE: Refer to step C “DETERMINING MOUNTING PLATE LOCATION UNDER YOUR CABINET on page 8 for aligning instructions.
MARKING THE MOUNTING HOLES
OPTION 2: USE METAL BRACKET AS TEMPLATE
STEP 3: Installer moves bracket to the other side of the
cabinets and makes 2 more marks. Marks are the same as
STEP 2, just opposite side.
Make a mark here, along
inside bottom of the
stamped slot provided
(same as Step 1).
Make a mark
here on the
outside edge of
the bracket
A
C
B
Place bracket within the lines created in previous steps.
Mark hole locations for
A, B, and area C.
Installation Instructions

31-7000092 Rev. 3 11
INSTALLATION TYPES (Choose A, B or C)
This microwave oven is designed for adaptation to
the following three types of ventilation:
A.Recirculating (Non-Vented Ductless)
B.Outside Top Exhaust (Vertical Duct)
C.Outside Back Exhaust (Horizontal Duct)
NOTE: Select the type of ventilation required for your
installation and proceed to that section.
BOUTSIDE TOP EXHAUST
(VERTICAL DUCT)
See page 16
Adaptor in Place
for Outside Top
Exhaust
2
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
See page 20
C
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12
A Charcoal Filter Accessory Kit is required for the
non-vented exhaust. (See your Owner’s Manual for the
kit number.)
A
Installation Instructions

12 31-7000092 Rev. 3
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
A2
RECIRCULATING (Non-Vented Ductless)
CUTHOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
12"
4"
NOTE:IT IS VERY IMPORTANT TO
READAND FOLLOW THE DIRECTIONS
INTHE INSTALLATION INSTRUCTIONS
BEFOREPROCEEDING WITH THIS
REARWALL TEMPLATE.
ThisRear Wall Template serves to position the bottom
mountingplate and to locate the horizontal exhaust
outlet.
1.Use a level to check that the template is positioned
accurately.
2.Locate and mark at least one stud on the left or
right side of the centerline.
NOTE: Itis important to use at least one wood
screwmounted firmly in a stud to support the weight
ofthe microwave. Mark two additional, evenly spaced
locationsfor the supplied toggle bolts.
3.Drill holes in the marked locations. Where there is
a stud, drill a 3/16" hole for wood screws. For holes
that do not line up with a stud, drill 5/8" holes for
toggle bolts.
NOTE:: DONOT INSTALL THE MOUNTING PLATE
ATTHIS TIME.
4.Remove the template from the rear wall.
5.Review the Installation Instruction book for your
installation situation.
Darlevuelta a la hoja para consultar la
versión en Español.
CAUTION- IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDEDDIMENSION, GREASE-LADEN AIR WILL
DISCHARGEINTO HOUSE STRUCTURE
30” MINIMUM WIDTH REQUIRED
REAR WALL TEMPLATE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST
Locateand mark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEAT LEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trimthe rear wall template along the dotted line.
3/8"TO EDGE
C
A
C
D
B
NOTES:
-13” Max Cabinet Depth
-15” deep cabinets require additional steps using
anadditional installation kit: JX36BUMP
OPTION 1
OPTION 2
STEP1: Installerusesbrackettomake2 marks. First
markismadebyusing the stampled slot in bracket.
Secondmarkismadeon the ouside edge of bracket.
STEP2: Installermovesbrackettotheother side of
thecabinetsandmakes2 moremarks. Marks are the
sameasSTEP1,just opposite side.
STEP4:
Makeamarkhere,along
insidebottomofthe
stampedslotprovided.
Makeamark
here,
evenwith
bottomof
stamped
slot
Makeamarkhere,along
insidebottomofthe
stampedslotprovided
(sameasStep1).
Makea
markhere,
evenwith
bottomof
stamped
slot
Horizontalline
A
C
D
B
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Check Blower Orientation
A4. Adapting Microwave Blower For Recirculation
A5. Mount the Oven
A6. Installing The Charcoal Filter
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION
Wear safety goggles when drilling
holes in the cabinet bottom.
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
A
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall to
mount the plate.
CAUTION Be careful to avoid pinching
fingers between the back of the mounting plate
and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
ATTACH THE MOUNTING
PLATE TO THE WALL
A1
A
C
D
B
Attach the plate to the wall using toggle bolts and
wood screws. At least one wood screw must be
used to attach the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3»4ƎRQWRHDFKEROW
1
4
To use toggle bolts:
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
2
IMPORTANT: Do NOT
remove the cardboard spacers
between the heat shield and
door
Installation Instructions

31-7000092 Rev. 3 13
AFTER: Fan Blade
Openings Facing
Forward
3
2
4
ADAPTING BLOWER
FOR RECIRCULATION
A4.
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll
Slide the blower plate from under its retaining
flange and lift it off. Remove the cover plate
installed on the back. Remove and save screws
that hold blower unit to the oven.
Remove and save screws that hold blower plate
to the oven.
BEFORE: Fan Blade
Openings Facing Up
1
Blower Plate
Back of
Oven
Cover Plate
Blower Plate Screws
CHECK BLOWER MOTOR
ORIENTATION
The blower fan blade opening should be facing the
front of the microwave. You will have to remove the
top cover plate to check the fan blade orientation.
If the fan opening is already facing the front of the
microwave, skip to step A5. Otherwise, continue to
Step A4 to adjust the fan motor orientation.
A3.
Blower
Plate
Retaining
Flange
Blower Motor
Screws
Cover Plate
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Installation Instructions

14 31-7000092 Rev. 3
Installation Instructions
1
6
5
ADAPTING BLOWER FOR
RECIRCULATION (continued)
A4.
Replace blower motor screws removed in Step 2.
Slide cover plate into position on the back of the
unit. Replace blower plate and screws removed in
Step 1. Attach second cover plate on blower plate
(including one screw). 2Rotate front of oven
up against cabinet
bottom.
MOUNT THE OVEN
A5.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used,
case damage may occur from over
tightening screws.
NOTE: When mounting
the oven, thread power
cord through hole in
bottom of top cabinet.
Keep it tight throughout
Steps 1–3. Do not pinch
cord or lift oven by pulling
cord.
Lift oven, tilt it
forward and hook
slots at back bottom
edge onto two lower
tabs of mounting plate.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent to
Depth of Cabinet
Recess
Self-Aligning Screw
Blower Plate
Back of
Oven
Blower
Plate
Screws
Blower Motor Screws
Cover Plate
Cover Plate
Place the blower unit back into the opening.
CAUTION Do not pull or stretch the
blower unit wiring. Make sure the wires are
not pinched.

31-7000092 Rev. 3 15
Installation Instructions
3
WHEN REPLACING THE
CHARCOAL FILTER
A6.
MOUNT THE OVEN
(continued)
A5.
Slide the old filter down and out to remove it.
Remove plastic and other outer wrapping from
the new filter and install the new filter. When
properly installed, the wire mesh of the filter
should be visible from the front.
Replace the grille and the 2 screws.
Close the door.
If the model is not vented to the outside, the air will
be recirculated through a disposable charcoal filter
that helps remove smoke and odors.
The charcoal filter should be replaced when it is
noticeably dirty or discolored (usually after 6 to
12 months, depending on hood usage). See your
Owner’s Manual for the filter kit number.
To replace the charcoal filter:
Open the microwave door.
Remove 2 screws from the top of the grille. (You
may need to open the cabinet doors to remove the
screws.
Slide the grille to the left and forward to remove.
5
4
Tighten the two screws to the top of the oven
completely. (While tightening screws, hold
the oven in place against the wall and the top
cabinet.)
Attach the oven to the top cabinet by inserting
2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be
sure to keep power cord tight. Be careful not
to pinch the cord, especially when mounting
flush to bottom of cabinet.
Install grease filters. See the Owner’s Manual
packed with the oven.
5
Insert filter mesh-side up
Charcoal
Filter
6
4
7
3
2
1

16 31-7000092 Rev. 3
OUTSIDE TOP EXHAUST (Vertical Duct)
Insert the toggle wings into the holes in the wall
and place the mounting plate against the wall.
CAUTION Be careful to avoid pinching
fingers between the back of the mounting plate
and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
B
4
ATTACH THE MOUNTING
PLATE TO THE WALL
B1
Attach the plate to the wall using toggle bolts and
wood screws. At least one wood screw must be
used to attach the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3»4ƎRQWRHDFKEROW
1
CUTHOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
12"
4"
NOTE:IT IS VERY IMPORTANT TO
READAND FOLLOW THE DIRECTIONS
INTHE INSTALLATION INSTRUCTIONS
BEFOREPROCEEDING WITH THIS
REARWALL TEMPLATE.
ThisRear Wall Template serves to position the bottom
mountingplate and to locate the horizontal exhaust
outlet.
1.Use a level to check that the template is positioned
accurately.
2.Locate and mark at least one stud on the left or
right side of the centerline.
NOTE: Itis important to use at least one wood
screwmounted firmly in a stud to support the weight
ofthe microwave. Mark two additional, evenly spaced
locationsfor the supplied toggle bolts.
3.Drill holes in the marked locations. Where there is
a stud, drill a 3/16" hole for wood screws. For holes
that do not line up with a stud, drill 5/8" holes for
toggle bolts.
NOTE:: DONOT INSTALL THE MOUNTING PLATE
ATTHIS TIME.
4.Remove the template from the rear wall.
5.Review the Installation Instruction book for your
installation situation.
Darle vuelta a la hoja para consultar la
versión en Español.
CAUTION- IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDEDDIMENSION, GREASE-LADEN AIR WILL
DISCHARGEINTO HOUSE STRUCTURE
30” MINIMUM WIDTH REQUIRED
REAR WALL TEMPLATE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST
Locateand mark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEAT LEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trimthe rear wall template along the dotted line.
3/8"TO EDGE
C
A
C
D
B
NOTES:
- 13” Max Cabinet Depth
- 15” deep cabinets require additional steps using
anadditional installation kit: JX36BUMP
OPTION 1
OPTION 2
STEP1: Installerusesbracketto make 2 marks. First
markismadeby using the stampled slot in bracket.
Secondmarkismade on the ouside edge of bracket.
STEP2: Installermovesbracketto the other side of
thecabinetsandmakes 2 more marks. Marks are the
sameasSTEP1, just opposite side.
STEP4:
Makeamarkhere,along
insidebottomofthe
stampedslotprovided.
Makeamark
here,
evenwith
bottomof
stamped
slot
Makeamarkhere,along
insidebottomofthe
stampedslotprovided
(sameasStep1).
Makea
markhere,
evenwith
bottomof
stamped
slot
Horizontalline
A
C
D
B
INSTALLATION OVERVIEW
B1. Attach Mounting Plate to Wall
B2. Prepare Top Cabinet
B3. Check Motor Orientation
B4. Adapting For Outside Ventilation
B5. Assemble and Install Adaptor
B6. Mount the Microwave
B7. Adjust The Exhaust Adaptor
B8. Connecting Ductwork
To use toggle bolts:
2
Wall
Mounting
Plate
Mounting Plate
Spacing for Toggles More
Than Wall Thickness
Bolt End
Toggle
Bolt
Toggle Wings
Installation Instructions
IMPORTANT: Do NOT remove the
cardboard spacers between the
heat shield and door
A
C
D
B

31-7000092 Rev. 3 17
Installation Instructions
ADAPTING BLOWER FOR
OUTSIDE VENTILATION
CHECK BLOWER MOTOR
ORIENTATION
The blower fan blade opening should be facing the top
of the microwave. If the fan opening is already facing
the top of the microwave, skip to Step B5. Otherwise,
continue to Step B4 to adjust the motor orientation.
B3.
3
2
4
B4.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the top of the microwave.
Roll
Slide the blower plate from under its retaining
flange and lift it off. Remove the cover plate
installed on the back. Remove and save screws
that hold blower unit to the oven
Remove the cover installed on the blower plate
(including one screw). Remove and save screws
holding blower plate to the oven.
BEFORE: Fan Blade
Openings Facing
Front
1
Blower
Plate
Cover Plate
Blower Motor Screws
Retaining
Flange
AFTER: Fan
Blade Openings
Facing Up
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
B2
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION Wear safety goggles when
drilling holes in the cabinet bottom.
A
C
D
B
Blower Plate
Back of
Oven
Blower
Plate
Screws
Blower Motor Screw
Cover Plate
Cover Plate

18 31-7000092 Rev. 3
ASSEMBLE AND
INSTALL ADAPTOR
MOUNT THE OVEN
B6.
B5.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
Place the oven in its upright position, with the top of
the unit facing up.
NOTE: Make sure the blower fan blades are
visible and are pointing up.
Insert the tabs on each side of the damper into the
holes at the inside rear of the adaptor.
1
2
Damper
Back of
Oven
Cover Plate
Exhaust
Adaptor
Blower Plate
NOTE: On some models, the exhaust adaptor and
damper assembly may already be assembled to the
oven.
Place the blower unit back into the opening.
CAUTION Do not pull or stretch the
blower unit wiring. Make sure the wires are
not pinched.
6
5
Replace blower motor screws removed in Step 2.
Slide cover plate into position on the back of the
unit. Replace blower plate and screws removed in
Step 1.
ADAPTING BLOWER FOR
OUTSIDE VENTILATION
(continued)
B4. Attach the exhaust adaptor to the blower plate
with the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the oven is installed.
3
Blower Plate
Back of
Oven
Blower Plate Screws
Blower Motor Screws
Cover Plate
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots
at back bottom edge onto four lower tabs of
mounting plate.
Rotate front of microwave oven up against
cabinet bottom.
1
2
Power Cord
Installation Instructions

31-7000092 Rev. 3 19
Attach the oven to the top cabinet by inserting
2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Be careful not to
pinch the cord, especially when mounting flush
to bottom of cabinet.
3
5
4
Tighten the two screws to the top of the oven
completely. (While tightening screws, hold
the oven in place against the wall and the top
cabinet.)
Install grease filters. See the Owner’s Manual
packed with the oven.
ADJUST THE EXHAUST
ADAPTOR
B7.
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
B8.
House Duct
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent
to Depth
of Cabinet
Recess
Self-Aligning Screw
MOUNT THE OVEN (continued)
B6.
Back of
Oven
Damper
Cover Plate
Installation Instructions

20 31-7000092 Rev. 3
OUTSIDE BACK EXHAUST (Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
C1
INSTALLATION OVERVIEW
C1. Prepare Rear Wall
C2. Attach Mounting Plate to Wall
C3. Prepare Top Cabinet
C4. Adjust Blower
C5. Mount The Oven
C
ATTACH THE MOUNTING
PLATE TO THE WALL
C2
Attach the plate to the wall using toggle bolts and wood
screw. At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3»4ƎRQWRHDFKEROW
1
2
You need to cut an opening in the rear wall for
outside exhaust.
•Read the instructions on the REAR WALL
TEMPLATE.
•Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the
mounting plate.
•Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
A
C
D
B
To use toggle bolts:
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
Bolt
End
Insert the toggle wings into the holes in the wall
to mount the plate and place the mounting plate
against the wall.
CAUTION Be careful to avoid pinching
fingers between the back of the
mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
CUTHOLE THROUGH REAR WALL FOR EXHAUST ADAPTOR
12"
4"
NOTE:IT IS VERY IMPORTANT TO
READAND FOLLOW THE DIRECTIONS
INTHE INSTALLATION INSTRUCTIONS
BEFOREPROCEEDING WITH THIS
REARWALL TEMPLATE.
ThisRear Wall Template serves to position the bottom
mountingplate and to locate the horizontal exhaust
outlet.
1.Use a level to check that the template is positioned
accurately.
2.Locate and mark at least one stud on the left or
rightside of the centerline.
NOTE: Itis important to use at least one wood
screwmounted firmly in a stud to support the weight
ofthe microwave. Mark two additional, evenly spaced
locationsfor the supplied toggle bolts.
3.Drill holes in the marked locations. Where there is
astud, drill a 3/16" hole for wood screws. For holes
thatdo not line up with a stud, drill 5/8" holes for
togglebolts.
NOTE:: DONOT INSTALL THE MOUNTING PLATE
ATTHIS TIME.
4.Remove the template from the rear wall.
5.Review the Installation Instruction book for your
installationsituation.
Darlevuelta a la hoja para consultar la
versión en Español.
CAUTION- IF EXHAUST ADAPTOR IS POSITIONED OUTSIDE
RECOMMENDEDDIMENSION, GREASE-LADEN AIR WILL
DISCHARGEINTO HOUSE STRUCTURE
30” MINIMUM WIDTH REQUIRED
REAR WALL TEMPLATE
F. CUT OUT FOR HORIZONTAL
OUTSIDE EXHAUST
Locateand mark holes to align with holes in the
mountingplate.
IMPORTANT:
LOCATEAT LEAST ONE STUD ON EITHER SIDE OF
THECENTERLINE.
MARKTHE LOCATION FOR 2 ADDITIONAL, EVENLY
SPACEDTOGGLE BOLTS IN THE MOUNTING PLATE
AREA.
Trimthe rear wall template along the dotted line.
3/8"TO EDGE
C
A
C
D
B
NOTES:
-13” Max Cabinet Depth
-15” deep cabinets require additional steps using
anadditional installation kit: JX36BUMP
OPTION 1
OPTION 2
STEP1: Installerusesbrackettomake2 marks. First
markismadebyusing the stampled slot in bracket.
Secondmarkismadeon the ouside edge of bracket.
STEP2: Installermovesbrackettotheother side of
thecabinetsandmakes2 more marks. Marks arethe
sameasSTEP1,just opposite side.
STEP4:
Makeamarkhere,along
insidebottomofthe
stampedslotprovided.
Makeamark
here,
evenwith
bottomof
stamped
slot
Makeamarkhere,along
insidebottomofthe
stampedslotprovided
(sameasStep1).
Makea
markhere,
evenwith
bottomof
stamped
slot
Horizontalline
A
C
D
B
A
C
D
B
Installation Instructions
