Safety Information
2
CONTENTS
Design Information
Models Available......................................................................2
Product Dimensions and Clearances............................4
Tools Required..........................................................................4
Parts Supplied...........................................................................4
Installation Preparation
Electrical Requirements .......................................................5
Preparing the Opening .........................................................6
Remove Packaging.................................................................7
Installation Instructions
Step 1, Slide the Oven into the Cutout..........................8
Step 2, Install Bottom Trim .................................................8
Step 3, Install Side Trim........................................................9
Step 4, Install Mounting Screws.......................................9
Step 5, Finalize Installation.................................................9
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT³ Save these instructions
for local inspector’s use.
IMPORTANT³ Observe all governing codes
and ordinances.
Note to Installer³ Be sure to leave these
instructions with the Consumer.
Note to Consumer³ Keep these instructions
with your Owner’s Manual for future reference.
Skill Level³ Installation of this appliance
requires basic mechanical and electrical skills.
Completion Time³ 1 Hour.
Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty. See
Owner’s Manual for warranty information.
NOTE: This oven is only approved to be installed
under the specific models as labeled on this unit.
IMPORTANT³ Use this oven only
for its intended purpose. Never use the oven
for warming or heating a room. Prolonged use
of the oven without proper ventilation can
be hazardous.
CAUTION:
For personal safety, remove house fuse or oven
circuit breaker before beginning installation
to avoid severe or fatal shock injury.
CAUTION:
For personal safety, the mounting surface
must be capable of supporting the cabinet load,
in addition to the added weight of the 80-pound
oven and 30-pound drawer, plus additional oven
loads of up to 50 pounds or a total weight of up
to 160 pounds.
CAUTION:
For personal safety this product cannot be
installed in cabinet arrangements such as an
island, a peninsula or below a countertop.
MODELS AVAILABLE
Monogram Models:
ZSC1001 SS–Stainless Steel

Información de seguridad
ANTES DE COMENZAR
Lea estas instrucciones por completo y con
detenimiento.
IMPORTANTE³ Guarde estas instrucciones
para el uso de inspectores locales.
IMPORTANTE³ Cumpla con todos los
códigos y ordenanzas vigentes.
Nota al instalador³ Asegúrese de dejar estas
instrucciones con el Consumidor.
Nota al consumidor³ Mantenga estas
instrucciones con el Manual del Propietario para
referencia futura.
Nivel de capacidad³ La instalación de este
aparato requiere capacidades mecánicas y eléctricas
básicas.
Tiempo de finalización³ 1 hora.
El instalador tiene la responsabilidad de efectuar una
instalación adecuada. La Garantía no cubre las fallas
del producto debido a una instalación incorrecta. Ver
el Manual del Propietario para información sobre la
garantía.
NOTA: Este horno sólo puede instalarse debajo
de los modelos específicos como se indica en la etiqueta
de esta unidad.
IMPORTANTE³ Utilice este horno sólo con
el objetivo para el que fue creado. Nunca use el
horno para entibiar o calentar una habitación. El uso
prolongado del horno sin una ventilación adecuada
puede resultar peligroso.
PRECAUCIÓN:
Para seguridad personal, quite el fusible o el interruptor
de circuitos de la vivienda antes de comenzar la
instalación a fin de evitar una lesión grave o fatal.
PRECAUCIÓN:
Para seguridad personal, la superficie de montaje debe
poder soportar la carga del gabinete, además de las 80
libras del horno y las 30 libras del cajón, más las cargas
adicionales del horno de hasta 50 libras o un peso total
de hasta 160 libras.
PRECAUCIÓN:
Pour votre sécurité personnelle, ce produit ne peut être
installé dans des arrangements d’armoires dont un îlot,
une péninsule ou le dessous d’un comptoir.
3

Design Information
4

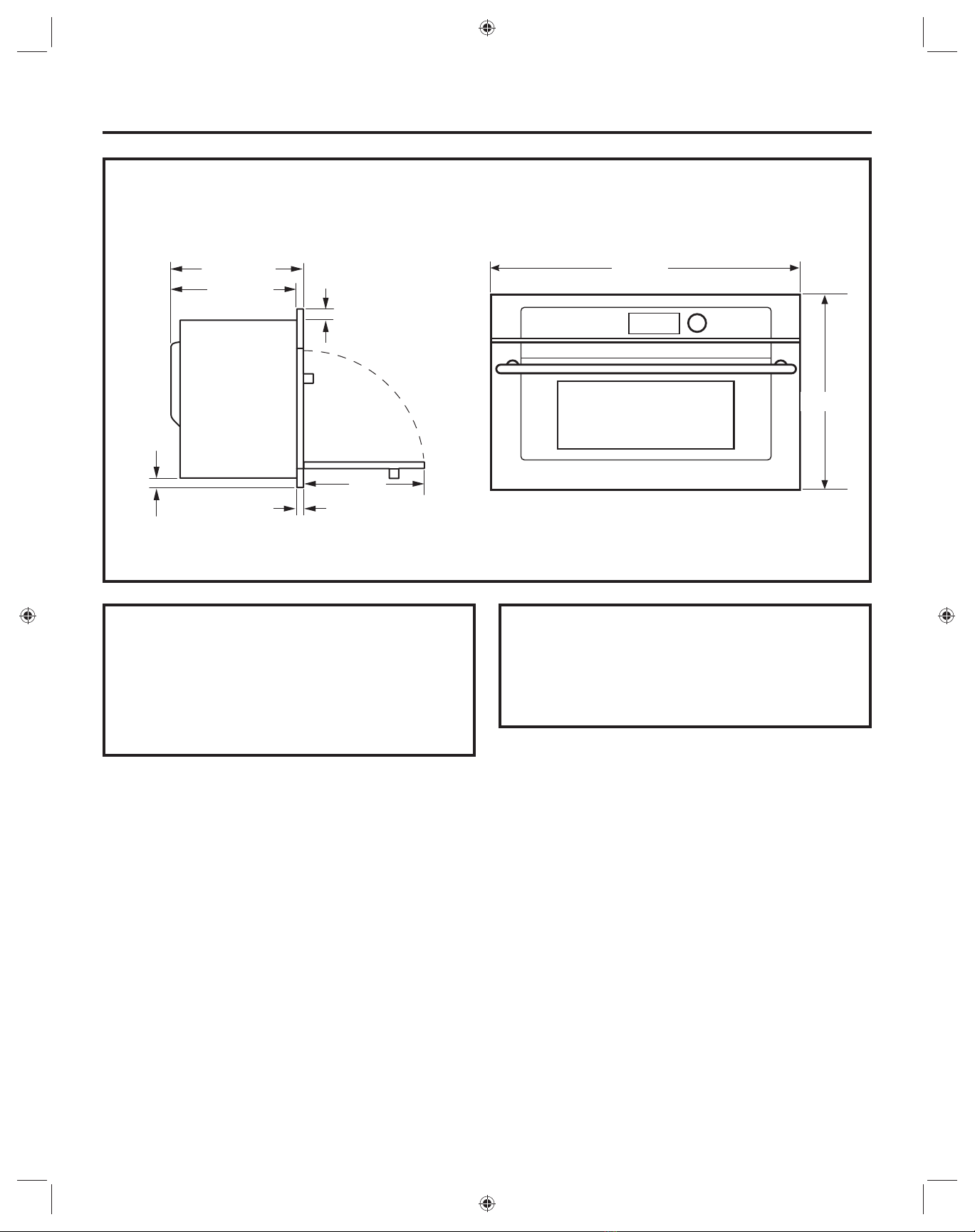

PRODUCT DIMENSIONS AND CLEARANCES
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
#2 Phillips screwdriver
Hand-held drill
High speed drill bit, 3/32sdiameter
3/8sslot-head screwdriver
PARTS SUPPLIED
 6 screws (3 required, 3 extra)
 5 color-matched screws (4 required, 1 extra)
 2 side trim pieces
Bottom trim
22-9/16”
13”
1-1/8”
21-1/2”
1-1/16”
13/16”
29-3/4” With Optional Side Trim
18-5/8”
26-3/4”

Installation Preparation
5
ELECTRICAL REQUIREMENTS
Single Advantium 120 Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage
and frequency.
:LUHVL]HPXVWFRQIRUPWRWKHUHTXLUHPHQWVRIWKH
National Electrical Code or the prevailing local code
for this kilowatt rating.
7KHSRZHUVXSSO\FRUGDQGSOXJVKRXOGEHEURXJKW
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be
located within reach of the 48” power cord.
ELECTRICAL LOCATION GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
WARNING: Improper use of the grounding
plug can result in a risk of electric shock.
¡ADVERTENCIA!: El uso inadecuado del
enchufe de conexión a tierra puede provocar un
riesgo de descarga eléctrica.
Important: (Please read carefully).
The power cord of this appliance is equipped with
a three-prong (grounding) plug that mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock. Consult a
qualified electrician or serviceman if the grounding
instructions are not completely understood, or if
doubt exists as to whether the appliance is properly
grounded.
:KHUHDVWDQGDUGWZRSURQJZDOOUHFHSWDFOHLV
encountered, it is the personal responsibility and
obligation of the consumer to have it replaced with a
properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
DO NOT USE AN EXTENSION CORD. If the power
supply cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.

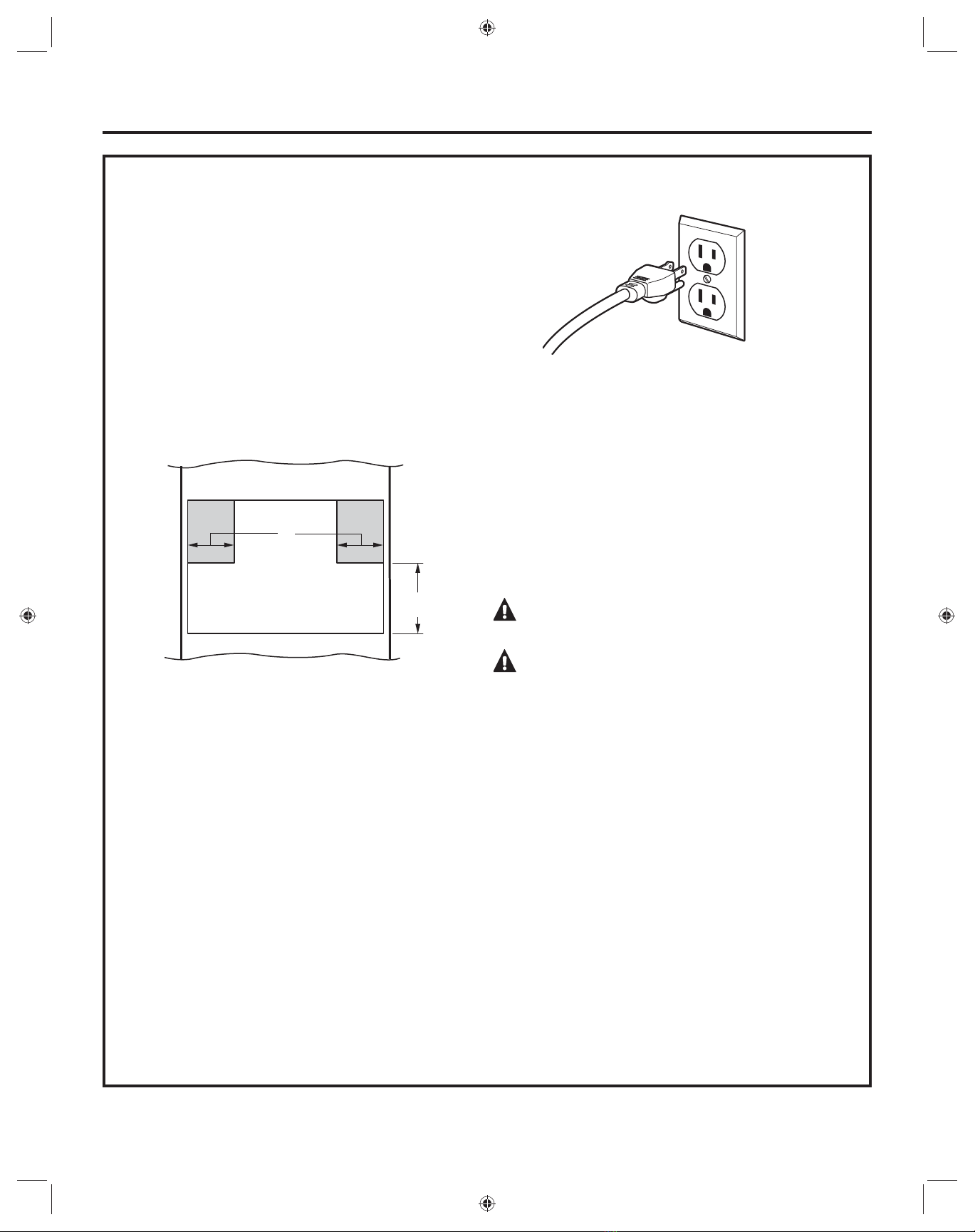

Install a recessed electrical outlet in the back wall
of the opening within 6sof either side and at least
9sabove the cutout floor.
Locate outlet box in the shaded area
6”
9”

Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over a GE/Monogram
Warming Drawer:
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.

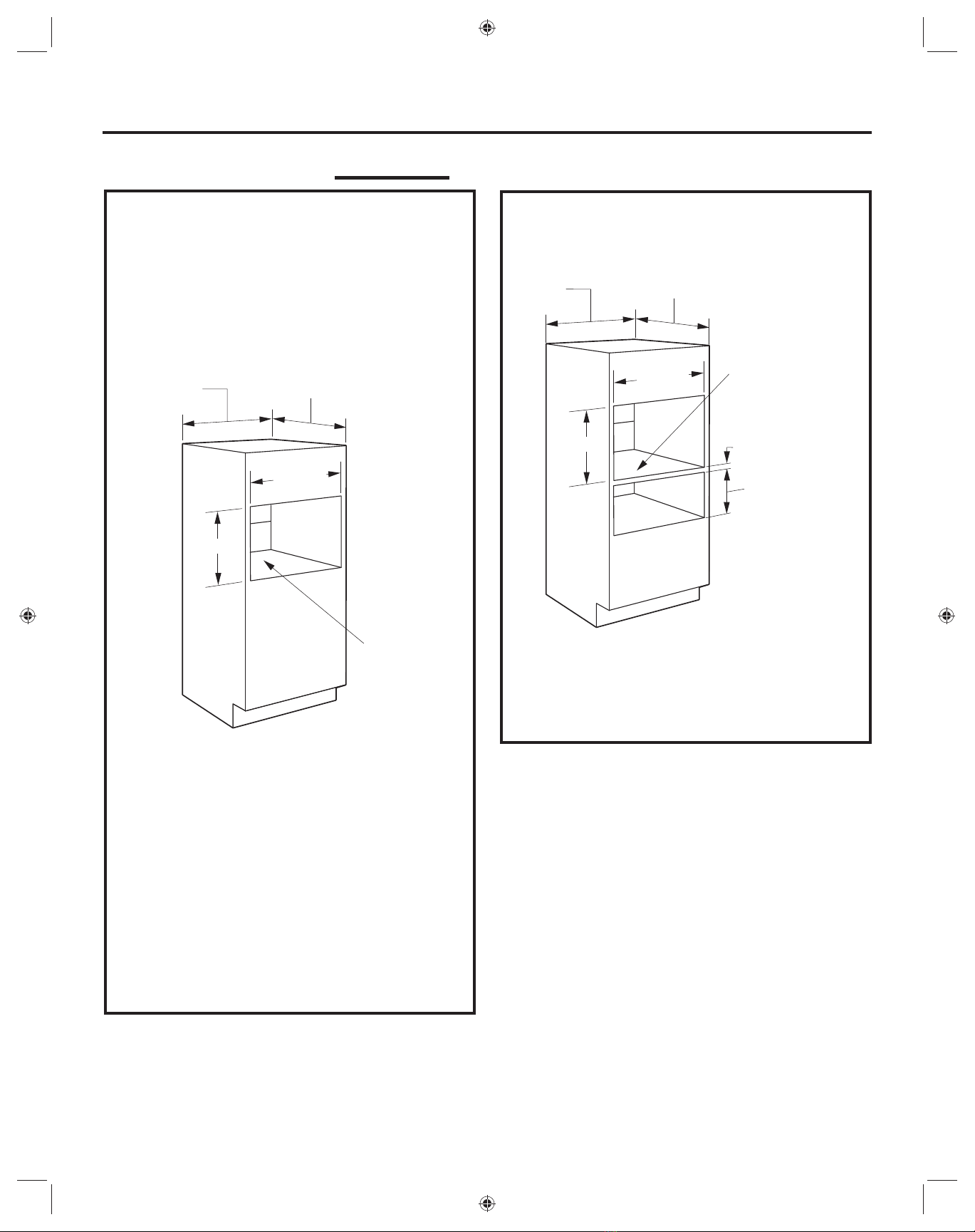

27” or 30” 23-1/2”
25-1/8”
17-1/2”
9-1/4”
36-3/4”
Min.
2” Min.
Install 2 x
4 or 2 x 2
Runners
or Solid
Bottom.
Must
Support 100
lbs.
Construct
Solid Bottom
Min. 3/8”
Plywood
Supported
by 2 x 4 or
1 x 2 Runners
all Four Sides
6

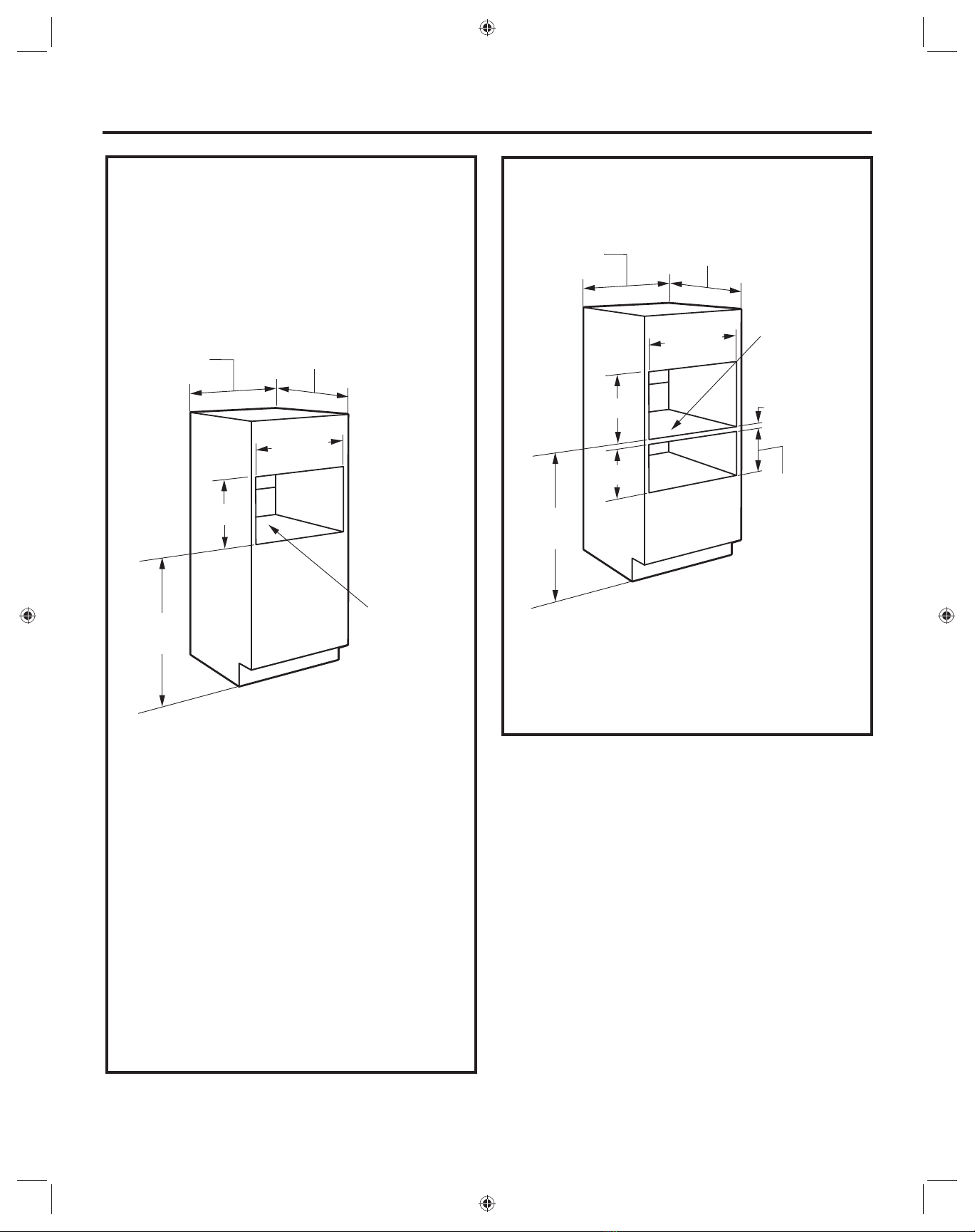

PREPARE THE OPENING
The Advantium 120 can be installed in combination
with other GE/Monogram appliances. Always follow
each product’s Installation Instructions to complete
the installation.
Single Advantium 120 Installation:
Order a 27” or 30” wide single oven cabinet or cut
the opening in a wall to the dimensions shown.
$OZD\VPDLQWDLQµPLQLPXPKHLJKWIURP
the floor to the cutout in any single or combined
installation.
$OORZµFDVHWULPRYHUODSDWWKHWRSDQG
7/8” overlap on the bottom and each side of the
opening.
2YHQRYHUODSVZLOOFRQFHDOFXWHGJHVRQDOOVLGHV
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2” between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium 120 and the other
appliance overlaps.
Construct a solid oven floor of 3/8” min. thick
plywood supported by 2 x 4 runners on all sides.
7KHVXSSRUWPXVWEHOHYHODQGULJLGO\PRXQWHG
flush with the bottom edge of the cutout.
27” or 30” 23-1/2”
25-1/8”
17-1/2”
Construct
Base
Min. 3/8”
Plywood
Supported
by 2 x 4
or 1 x 2
Runners all
Four Sides
36-3/4”
Min.

7
Installation Preparation
PREPARE THE OPENING (CONT.)

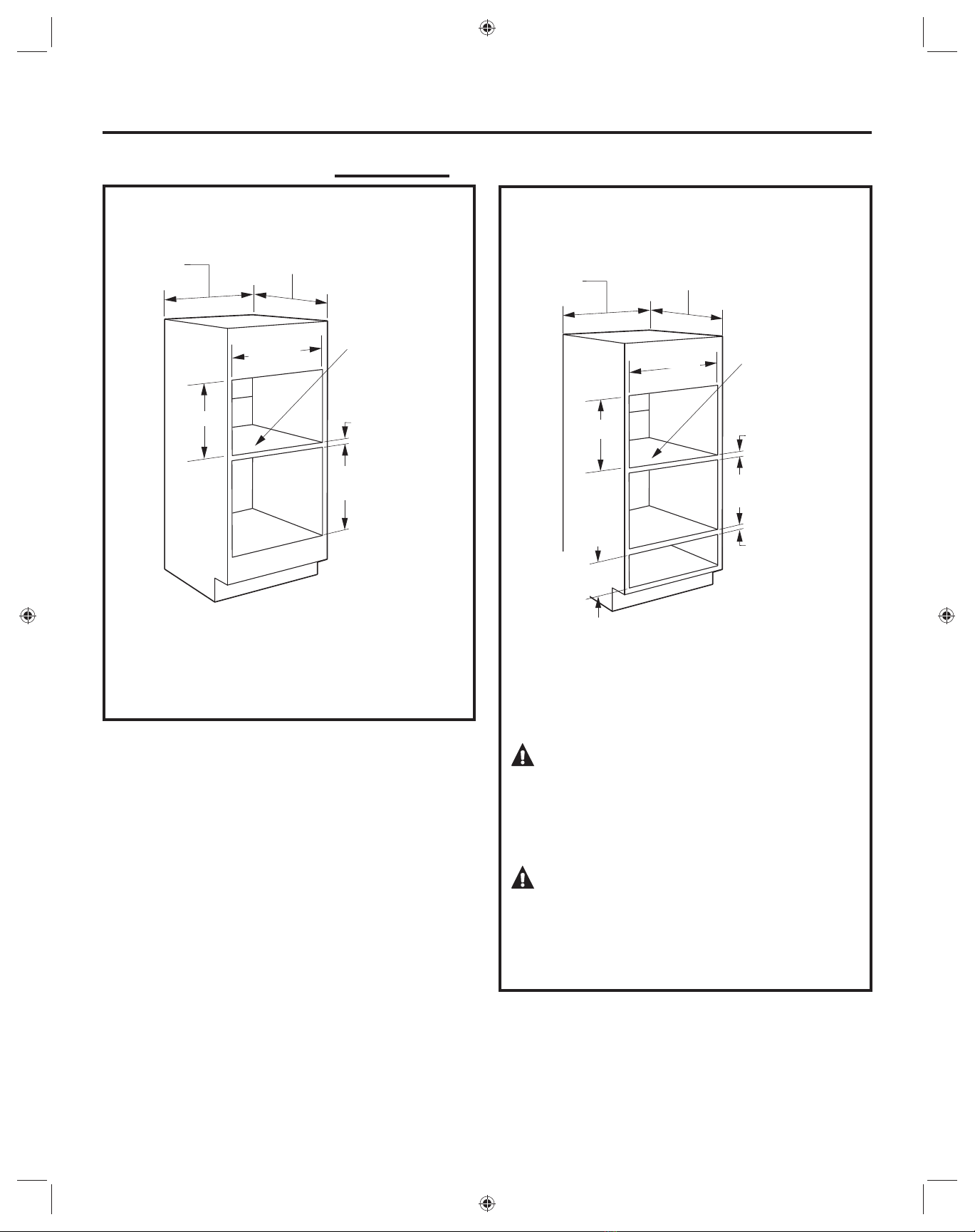

Installation over a GE/Monogram Oven and
Warming Drawer:
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location does
not obstruct the required interior depth and height.
See Warming Drawer installation instructions for
details.
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load, in
addition to the added weight of this approximate 75
pound product, plus, additional oven loads of up to
50 pounds or a total weight of 125 pounds.
MISE EN GARDE : Pour votre sécurité personnelle,
la surface de montage doit être capable de
supporter le poids du cabinet, en plus du poids
supplémentaire du produit, soit 34 kg, en plus du
poids supplémentaire du four pouvant aller jusqu’à
22,7 kg, ou un poids total de 56,7 kg.
REMOVE THE PACKAGING
/LIWWKHRYHQRXWRIWKHFDUWRQ
5HPRYHDOOSDFNLQJPDWHULDODQGWDSH
2SHQWKHGRRUDQGUHPRYHSDUWVER[
/RFDWHSDUWVSDFNDJHFRQWDLQLQJPRXQWLQJVFUHZV
Construct
Solid Bottom
Min. 3/8”
Plywood
Supported by
2 x 4 or 1 x 2
Runners all
Four Sides
27” or 30” 23-1/2”
25-1/8”
17-1/2”
2” Min.
Per Oven
Requirement
45-1/4”
9-1/4”
2” Min.
PREPARE THE OPENING (CONT.)
Installation over a GE/Monogram Oven:
* If you are replacing a GE/Monogram electric
double oven with the combined installation of
an Advantium 120 and a single oven, use the
dimensions shown. The middle rail separating the
two openings may need to be larger than the 2”
minimum shown.
27” or 30” 23-1/2”
25-1/8”
17-1/2” 2” Min.
45-1/4”
Min.
Construct Solid
Bottom Min.
3/8” Plywood
Supported by
2 x 4 or 1 x 2
Runners all
Four Sides
Per Oven
Requirement

8

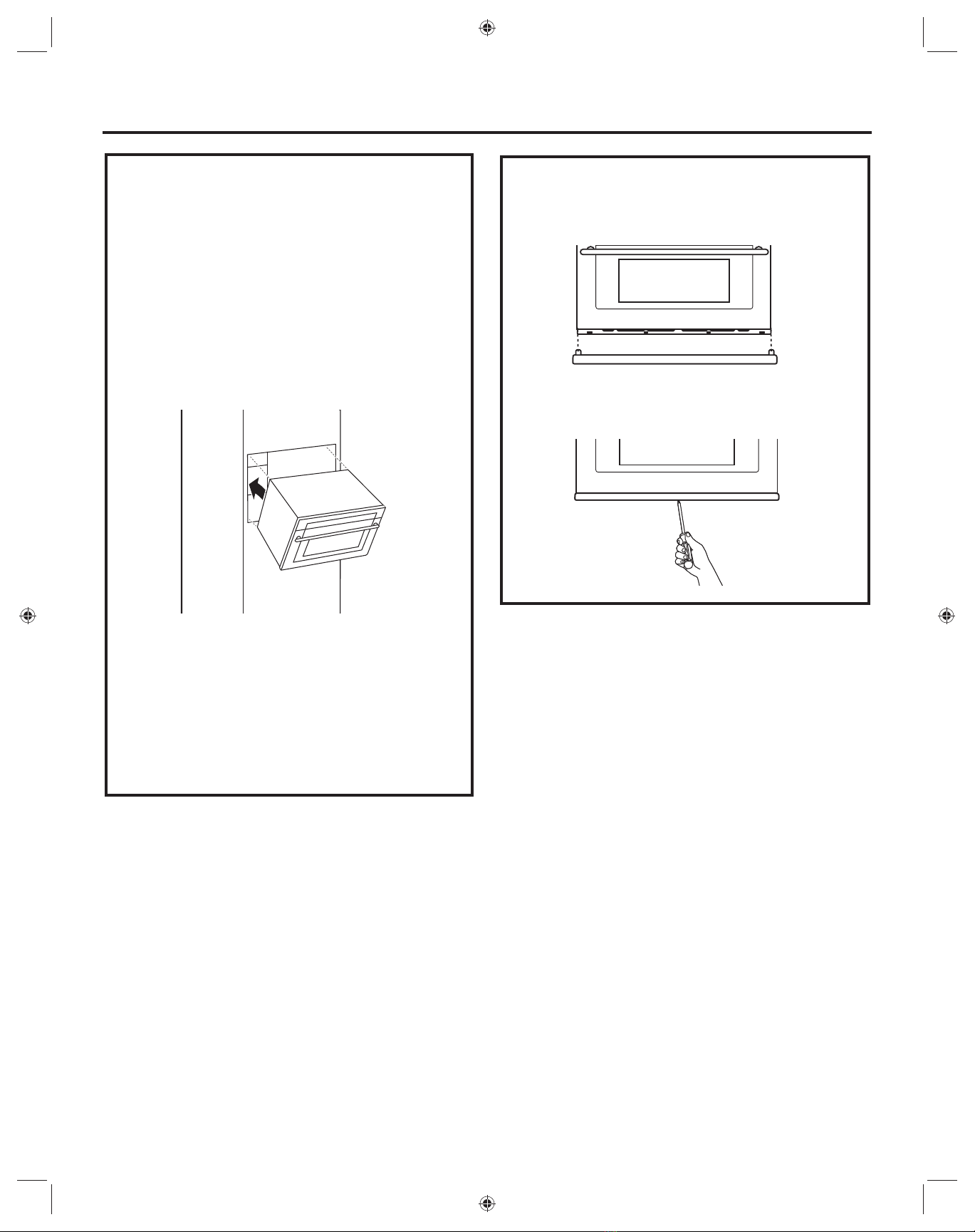

Installation
$OLJQERWWRPWULPWDEVWRVORWVLQWKHERWWRPRIWKH
oven.
6HFXUHWKHERWWRPWULPWRWKHERWWRPRIWKHRYHQ
using 3 brass screws provided.
SLIDE THE OVEN INTO
THE CUTOUT
CAUTION: Two people are required to lift the oven
into the opening. Grasp the bottom at the front and
rear. DO NOT USE THE HANDLE TO LIFT THE OVEN.
DAMAGE WILL OCCUR!
MISE EN GARDE : Deux personnes sont
nécessaires pour soulever le four et l’insérer
dans l’ouverture. Saisissez-le par le dessous, à
l’avant et à l’arrière. N’UTILISEZ PAS LA POIGNÉE
POUR SOULEVER LE FOUR. DES DOMMAGES SE
PRODUIRONT !
/LIWDQGKROGWKHRYHQDWWKHIURQWRIWKHRSHQLQJ
Hold the oven at a 45º angle and plug in the power
cord.
&DUHIXOO\VOLGHWKHRYHQLQWRWKHFDELQHWSDUWZD\
Leave the oven a few inches forward of the cabinet
frame.
&KHFNWREHVXUHWKHSRZHUFRUGLVQRWWUDSSHG
under the oven or along the sides of the oven.
STEP 1 INSTALL BOTTOM TRIM
STEP 2

9
Installation
INSTALL SIDE TRIM
FOR 30” CABINET INSTALLATION ONLY. SKIP
THIS STEP IF YOU HAVE 27” WIDE CABINETRY.
2SHQWKHRYHQGRRU
+DQJWKHVLGHWULPSLHFHVRQWKHWDEVEHKLQGWKH
oven flange.The screw holes in the side trim should
align with the holes in the oven flange.
&KHFNWREHVXUHWKHRYHQLVSXVKHGEDFNLQWRWKH
opening and against the cabinet frame.
STEP 3 INSTALL MOUNTING
SCREWS
'ULOOSLORWKROHVWKURXJKWKHVLGHIODQJHVRQHDFK
side.
'ULYHWKHFRORUPDWFKHGVFUHZVLQWRWKHVLGHIODQJH
(and side trim, if applied).
STEP 4
FINALIZE INSTALLATION
7XUQSRZHURQDWWKHVRXUFH7KHLQWHULRUOLJKW
should come on when the door is opened.
5HIHUWRWKH2ZQHU·V0DQXDOIRURSHUDWLQJ
instructions.
STEP 5

10
Installation Preparation
Preparation WITHOUT an Accessory Storage Drawer
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram
Warming Drawer:
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
30s23-1/2s
25-1/4s
17-1/2s2sMin.
(3sRecommended)
Per Warming
Drawer
Requirement
Construct
Solid Bottom
Min. 3/8s
Plywood
Supported
by 2 x 4 or 2 x
2 Runners all
Four Sides
PREPARE THE OPENING
The Advantium 120V can be installed in
combination with other GE/Monogram appliances.
Always follow each product’s Installation
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30swide single oven cabinet or cut the
opening in a wall to the dimensions shown.
$OORZscase trim overlap on the sides,
1-1/16soverlap on the top and 7/8soverlap
on the bottom of the opening for all models.
2YHQRYHUODSVZLOOFRQFHDOFXWHGJHVRQDOOVLGHV
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2sbetween the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120V and the
other appliance overlaps.
Construct a solid oven floor of 3/8smin. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
7KHVXSSRUWPXVWEHOHYHODQGULJLGO\PRXQWHG
flush with the bottom edge of the cutout.
30s23-1/2s
25-1/4s
17-1/2s
Construct
Base
Min. 3/8s
Plywood
Supported
by 2 x 4 or
2 x 2 Runners
all Four Sides

Installation Preparation
11
Preparation WITHOUT an Accessory Storage Drawer
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
CAUTION: For personal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or a
total weight of 130 pounds.
PRECAUCIÓN: Para seguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, además del peso
aproximado de 80 libras del horno, más las
cargas adicionales del horno de hasta 50 libras
o un peso total de hasta 130 libras.
Construct Solid
Bottom Min.
3/8sPlywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
30s23-1/2s
25-1/4s
17-1/2s
2sMin.
(3sRecommended)
Per Oven
Requirement
2sMin.
(3sRecommended)
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram oven:
,I\RXDUHUHSODFLQJD*(0RQRJUDPHOHFWULF
double oven with the combined installation of
an Advantium 120V and a single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than the
2sminimum shown.
30s23-1/2s
25-1/4s
17-1/2s2sMin.
(3sRecommended)
Construct Solid
Bottom Min.
3/8sPlywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
Per Oven
Requirement
Per Warming
Drawer
Requirement

Printed in Korea
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
NOTE: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
GE Appliances & Lighting
Appliances
General Electric Company
Louisville, KY 40225
GEAppliances.com
