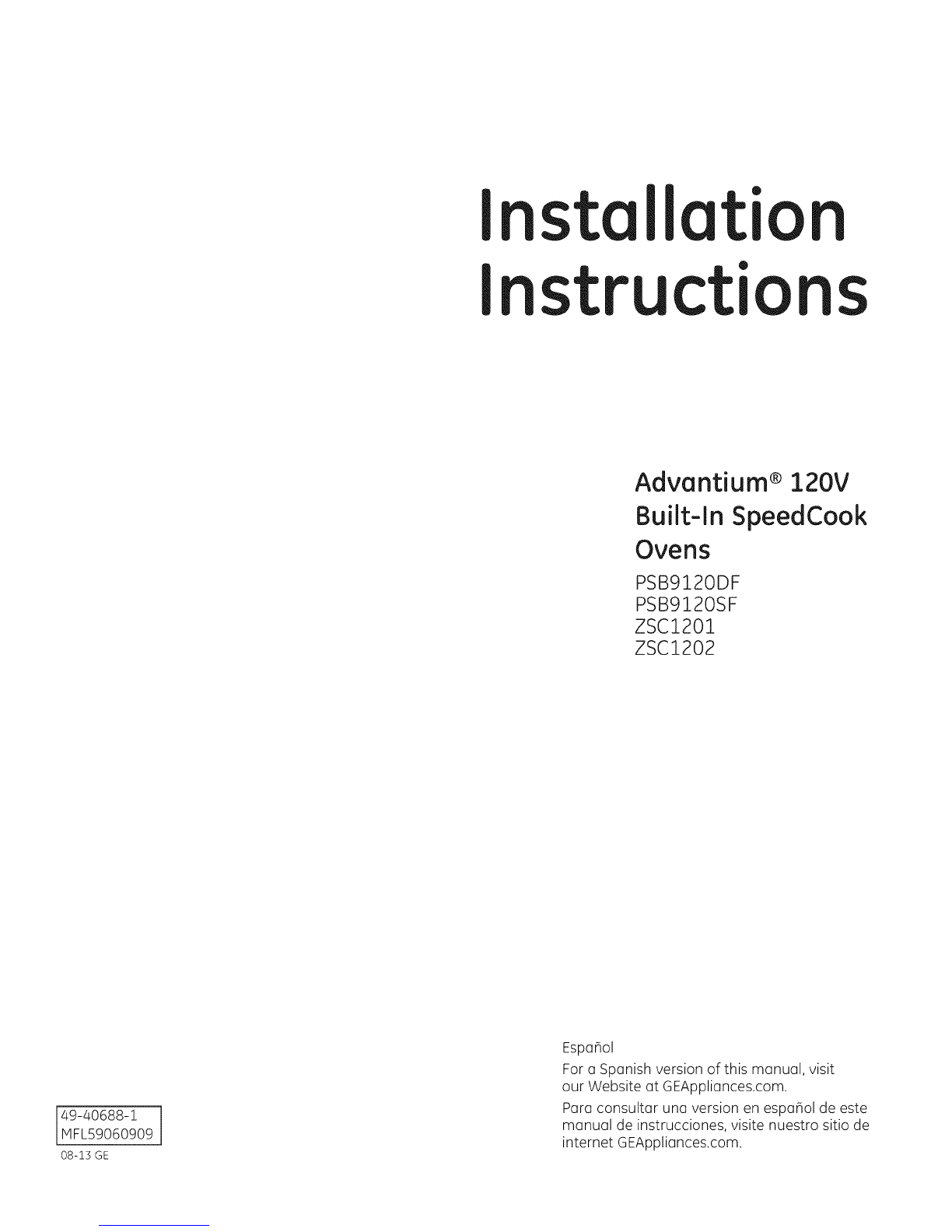

GE Advantium PSB9120DF User manual

Installation
Istructi n
Advantium ®120V
Built-In SpeedCook
Ovens
PSB9120DF
PSB9120SF
ZSC1201
ZSC1202
49-40688-1
HFL59060909 i
08-13 GE
Espaflol
For a Spanish version of this manual, visit
our Website at GEAppliances.com.
Para consultar una version en espa_ol de este
manual de instrucciones, visite nuestro sitio de
internet GEAppliances.com.

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT- Savetheseinstructions
for local inspector's use.
IMPORTANT-Observeallgoverningcodes
and ordinances.
• Note to Installer - Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these instructions
with your Owner's Manual for future reference.
• Skill Level- Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time - 1 Hour.
o Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty. See
Owner's Manual for warranty information.
NOTE: This oven is only approved to be installed
under the specific models as labeled on this unit.
IMPORTANT- Use thisoven only
foritsintendedpurpose.Never use the oven
forworming or heatinga room. Prolongeduse
ofthe oven withoutproperventilationcon
be hazardous.
CAUTION:
For personal safety, remove house fuse or oven
circuit breaker before beginning installation
to ovoid severe or fatal shock injury.
ACAUTION:
For personal safety, the mounting surface
must be capable of supporting the cabinet load,
in addition to the added weight of the 80-pound
oven and 30-pound drawer, plus additional oven
loads of up to 50 pounds or o total weight of up
to 160 pounds.
CAUTION:
If installing the Advantium 120V Oven below 36",
you must use the plastic bottom trim due to burn
risk to children. The plastic trim acts as insulation
and will help prevent burns to children from hot
surfaces.
ACAUTION:
If installing the Advantium 120V Oven below 36",
do not remove the plastic door trim due to burn
risk to children. The plastic trim acts as insulation
and will help prevent burns to children from hot
surfaces.
CONTENTS
Design Information
Models Available ......................................................................2
Product Dimensions and Clearances ............................4
Tools and Parts Required ....................................................4
Parts Supplied ...........................................................................4
Advance Planning ...................................................................4
Installation Preparation
Electrical Requirements .......................................................5
Preparing the Opening (installation without
an accessory storage drawer) .................................6-9
Preparing the Opening (installation with
an accessory storage drawer) ............................10-13
Installation Under a 36" Cooktop .................................13

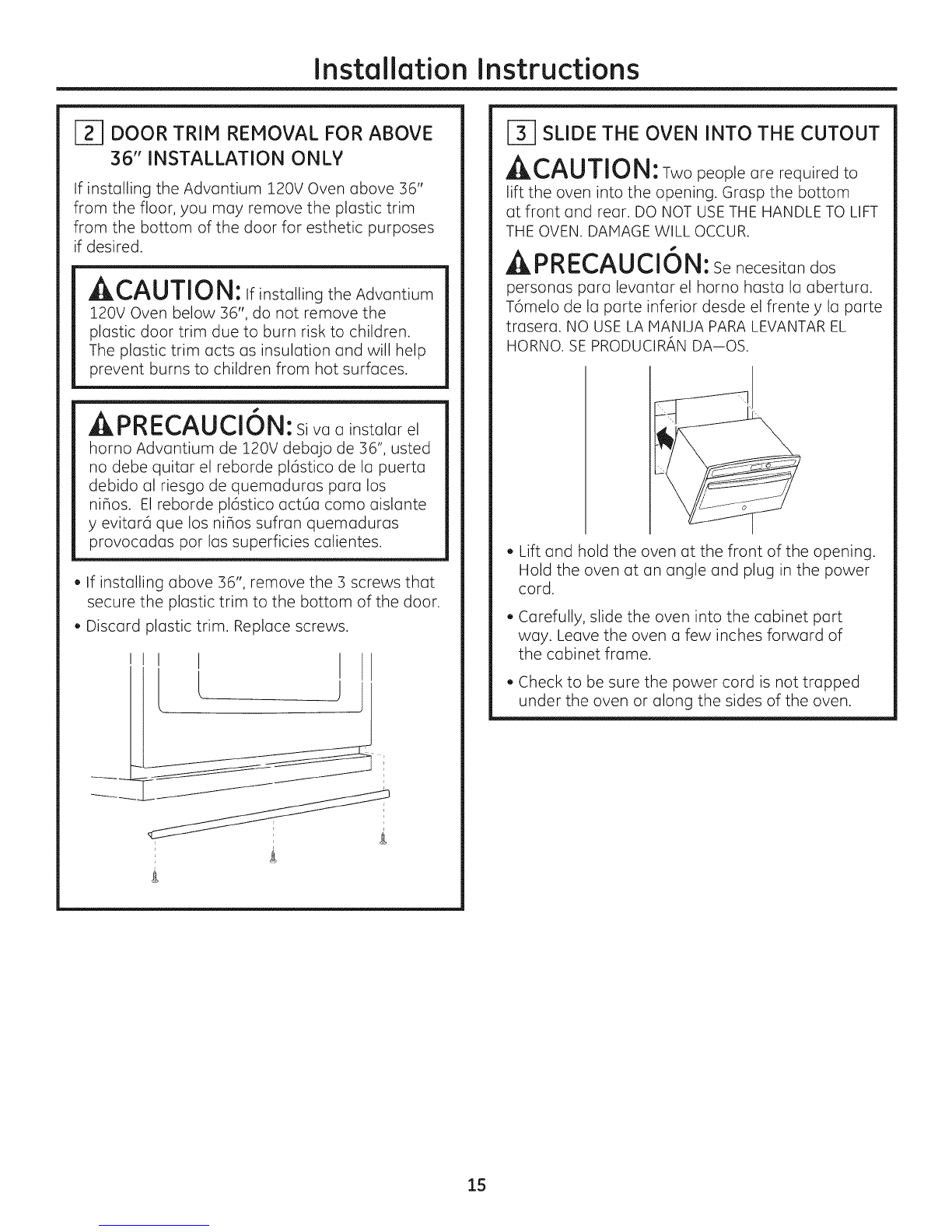

Installation Instructions
Step 1, Remove Packaging and Parts ........................14
Step 2, Door Trim Removal for
Above 56" Installation .......................................15
Step 3, Slide the Oven into the Cutout .......................15
Step 4, Install Bottom Trim ..............................................16
Step 5, Install Bottom Trim with
Accessor Drawer ...................................................16
Step 6, Install Mounting Screws ....................................16
Step 7, Finalize Installation ..............................................16
MODELS AVAILABLE
Profile Models:
PSB9120DFWW-White*
PSB9I20DFBB-BIock
PSB9120SFSS-Stuinless Steel
Monogram Models:
ZSC1201SS-Stoinless Steel
ZSC1202SS-Stoinless Steel**
*No color-matched drawer available for this model,
**This unit cannot be installed with an accessory
storage drawer,

Informaci6n de seguridad
ANTES DE COHENZAR
Lea estas instrucdones par completo y con
detenimiento.
IH PORTANTE - Guardeestasinstrucciones
para el usa de inspectores locales.
IMPORTANTE -Cumplacontodoslos
c6digos yordenanzas vigentes.
• Nota al instalador- AsegGrese de dejar estas
instrucciones con el Consumidor.
,, Nota al consumidor- Mantenga estas
instrucciones con el Manual del Propietario para
referencia futura.
• Nivel de capacidad - La instalaci6n de este
aparato requiere capacidades mecanicas yel6ctricas
b5sicas.
• Tiempo de finalizaci6n - 1 hora.
Elinstalador tiene la responsabilidad de efectuar una
instalaci6n adecuada, La Garant[a no cubre las fallas
del producto debido a una instalaci6n incorrecta. Vet
el Manual del Propietario para informaci6n sabre la
garant[a.
NOT#,:Estehomo s61opuede instalarsedebajo
de losmodelos especFicoscoma seindica en la etiqueta
de esta unidad.
IMPORTANTE -Utiliceestehornos61ocon
elobjetivoparaelque ruecreado.Nunca useel
homo paraentibiaro calentaruna habitaci6n.Elusa
prolongadodelhornosinuna ventilaci6nadecuada
puede resultarpeligroso.
APRECAUCI6N:
Para seguridad personal, quite el fusible o el interruptor
de circuitos de la vivienda antes de comenzar la
instalaci6n a fin de evitar una lesi6n grave o fatal.
APRECAUCI6N:
Para seguridad personal, la superficie de montaje debe
poder soportar la carga del gabinete, ademc_sde las 80
libras del homo y las 30 libras del caj6n, mc_slas cargas
adicionales del homo de hasta 50 libras o un peso total
de hasta 160 libras.
APRECAUCI6N:
Siva a instalar el horno Advantium de !20V debajo
de 36%usted debe utilizar el reborde inferior pl6stico
debido al riesgo de quemaduras para los ni_os.
El reborde pl6stico act6a coma aislante y evitard
que los nihos sufran quemaduras provocadas
par las superficies calientes.
APRECAUCI6N:
Si va a instalar el horno Advantium de !20V debajo
de 36%usted no debe quitar el reborde plastico de
la puerta debido al riesgo de quemaduras para los
ni_os. Elreborde pl6stico actL_acoma aislante y evitard
que los niBos sufran quemaduras provocadas par las
superficies calientes. 3

Design Information
PRODUCT DIMENSIONS AND CLEARANCES
i-3/5"
irt
f
_21-1/2"
J
\
i-i/io"
\
NOTE: Appearance will vary by model.
_, 29-3/4" _-
ooooooB 0Boo}oo oo
TOOLS AND PARTS REOUIRED
(NOT SUPPLIED}
• #2 Phillips screwdriver
• Hand-held drill
High speed drill bit, 3/32" diameter
• 3/8" slot-head screwdriver
Level
• Saw
2 x 4 or 2 x 2 lumber for installing runners or 3/8"
plywood for floor (if required)
Wood screws or other hardware for installing
runner or shelf to support oven (if required)
Safety glasses or goggles
PARTS SUPPLIED
6 screws (3 required, 3 extra)
5 color-matched screws (4 required, 1 extra)
Bottom trim (2)
ADVANCE PLANNING
These ovens may be installed directly into a 30" wide
oven cabinet.
Cutout dimensions are NOTthe same for installation
with or without an accessory storage drawer.
Make sure to use the correct cutout when preparing
the opening.
NOTE:ZSC1202 models CANNOT be installed with
an accessory storage drawer. See Installation
Preparation Without an Accessory Storage Drawer
for this model.
Allow for clearance to adjacent corners, walls,
drawers, etc.
The oven must be securely installed in a cabinet
that is firmly attached to the house structure.
Weight on the oven door could cause the oven to tip
and result in injury. Never allow anyone to climb, sit,
stand or hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
4

Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium 120 Installation:
This product requires a i20-volt, 60 Hz, 1S-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage
and frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating.
The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be
located within reach of the 48" power cord.
ELECTRICAL LOCATION
6n
t
9"
Locate outlet box in the shaded area
Install a recessed electrical outlet in the back wall
of the opening within 6" of either side and at least
9" above the cutout floor.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for electric current. This appliance is equipped with
a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
_ILWARNING: Improper use of the grounding
plug can result in a risk of electric shock.
_iADVERTENCIAh El usa inadecuado del
enchufe de conexi6n a tierra puede provocar un
riesgo de descarga el_ctrica.
Important: (Please read carefully}.
The power cord of this appliance is equipped with
a three-prong (grounding) plug that mates with a
standard three-prong grounding wall receptacle to
minimize the possibility of electric shock. Consult a
qualified electrician or serviceman if the grounding
instructions are not completely understood, or if
doubt exists as to whether the appliance is properly
grounded.
• Where a standard two-prong wall receptacle is
encountered, it is the personal responsibility and
obligation of the consumer to have it replaced with a
properly grounded three-prong wall receptacle.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
DO NOT USEAN EXTENSION CORD. If the power
supply cord is too short, have a qualified electrician or
serviceman install an outlet near the appliance.
5

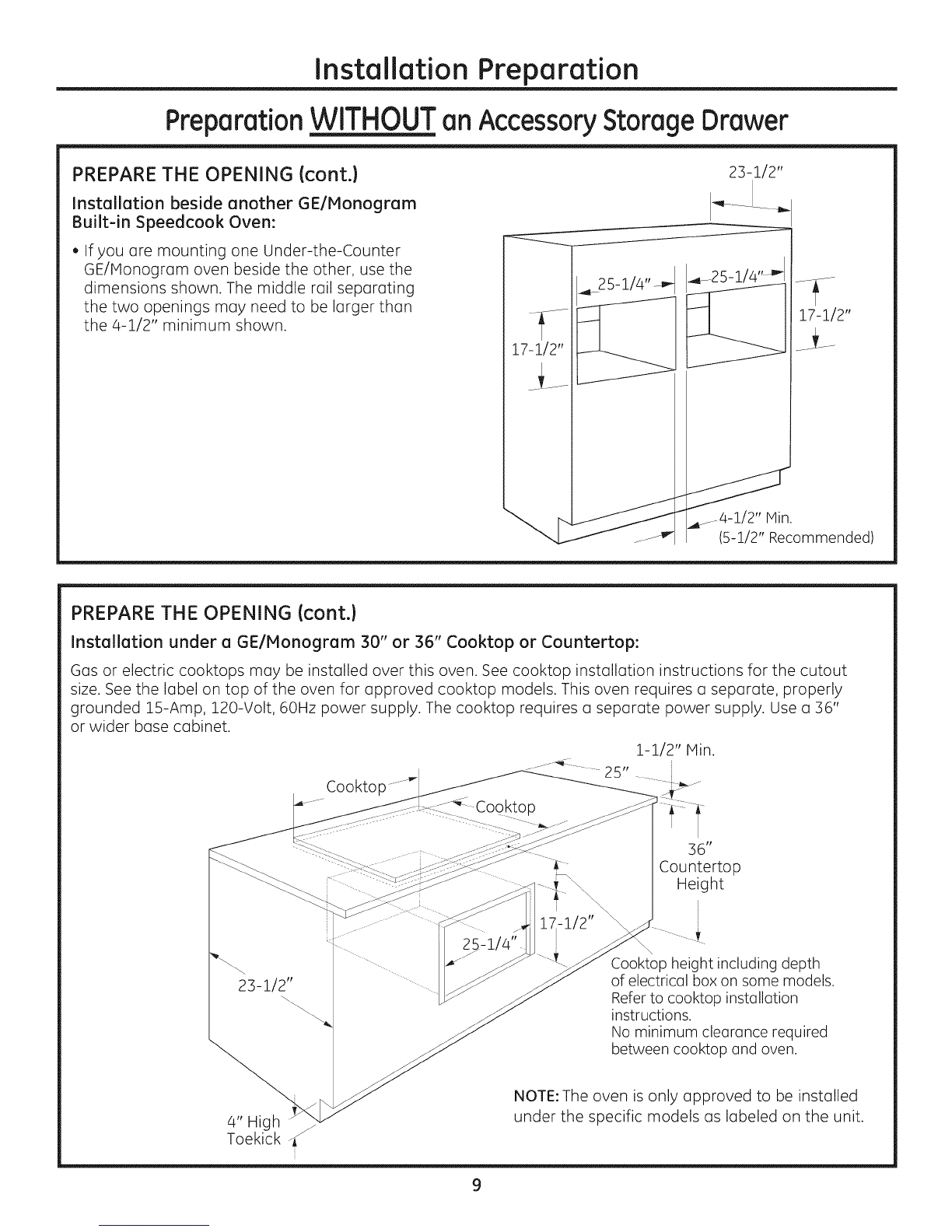

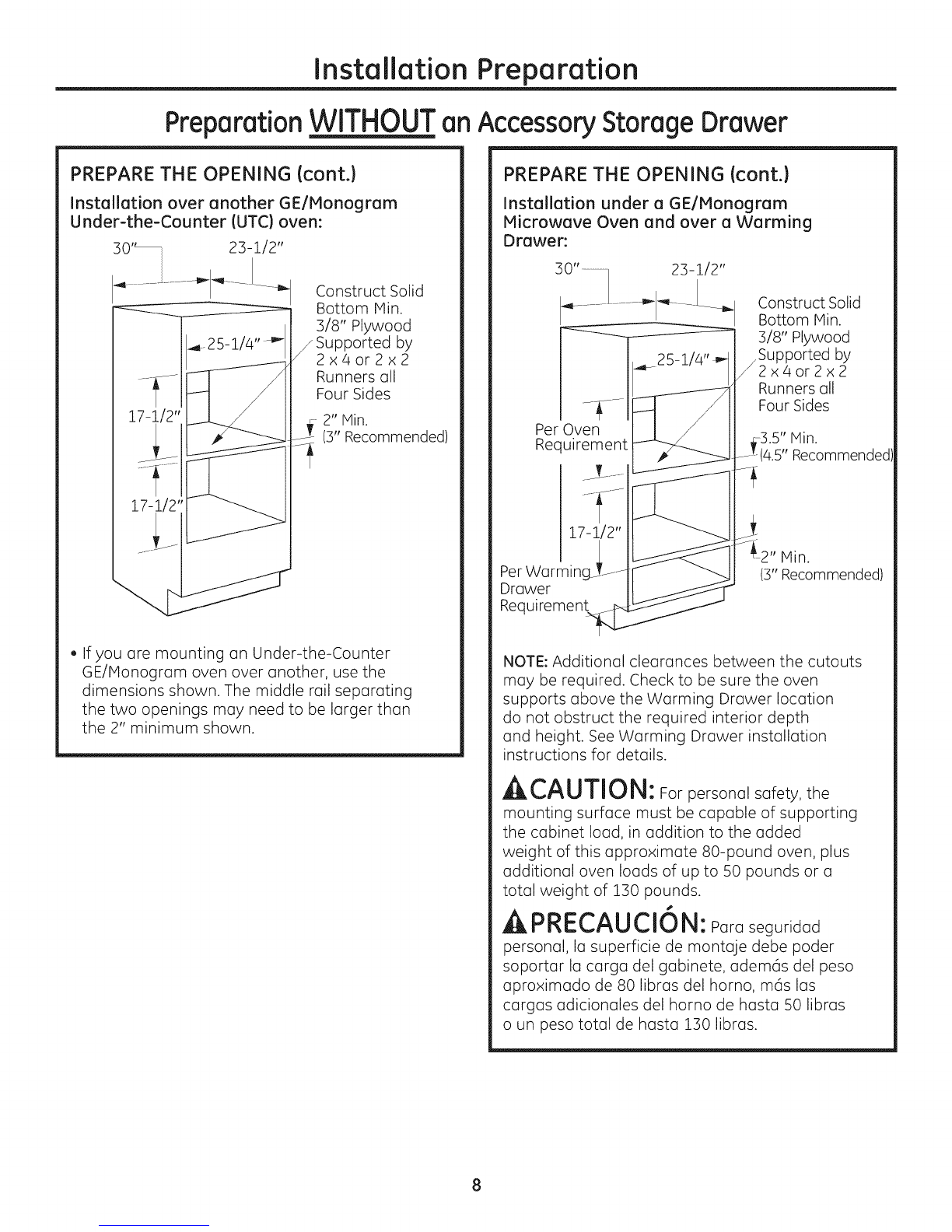

Installation Preparation
PreparationWITHOUTanAccessoryStorageDrawer
PREPARE THE OPENING
The Advantium 120V can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30" wide single oven cabinet or cut the
opening in a wall to the dimensions shown.
Construct
Bose
Min. 3/8"
_Plywood
Supported
by2x4or
2 x 2 Runners
oil Four Sides
• Allow 2-1/8" case trim overlap on the sides,
1-1/16" overlap on the top and 7/8" overlap
on the bottom of the opening for all models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2" between the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120V and the
other appliance overlaps.
Construct a solid oven floor of 3/8" min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
PREPARE THE OPENING {cont.)
Installation over a GE/Honogram
Warming Drawer:
23-1/2"
25_i/4"_"-
17-1/2"
Construct
Solid Bottom
Min. 3/8"
Plywood
Supported
by2x4or2x
2 Runners oil
Four Sides
-2" Min.
(3" Recommended)
Worming
Drawer
Requirement
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer locution do not obstruct
the required interior depth and height. See Worming
Drawer installation instructions for details.

Installation Preparation
PreparationWITHOUTanAccessoryStorageDrawer
PREPARE THE OPENING (cont.)
Installationover a GE/Monogram oven:
2]-i/2"
17-i/2"
Construct Solid
Bottom Nin.
3/8" Plywood
_Supported by
2x4or2x2
Runners all
Four Sides
2" Min.
Recommended)
Per Oven
Requirement
,, If you are replacing u GE/Honogrum electric
double oven with the combined installation of
an Advantium 120V and a single oven, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than the
2" minimum shown.
PREPARE THE OPENING (cont.)
Installation over a GE/Honogram Oven and
Warming Drawer:
23-1/2"
Per
Drawer
Requirement
Construct Solid
Bottom Hin.
3/8" Plywood
Supported by
_2x4or2x2
Runners all
Four Sides
....2" Min.
(3" Recommended)
Per Oven
Requirement
Min.
(3" Recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
ACAUTION: Forpersonalsafety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to S0 pounds or a
total weight of 130 pounds.
APRECAUCION: Paraseguridad
personal, la superficie de montaje debe poder
soportar la carga del gabinete, adem6s del peso
aproximado de 80 libras del homo, m6s las
cargas adicionales del homo de hasta SOlibras
o un peso total de hasta 130 libras.

Installation Preparation
Preparation WITHOUT an AccessoryStorageDrawer
PREPARE THE OPENING (cont.)
Installation over another GE/Monogram
Under-the-Counter IUTC) oven:
Construct Solid
Bottom Min.
]/8" Plywood
_ Supported by
2x4or2x2
Runners oil
Four Sides
2" Min.
(3" Recommended)
• If you are mounting on Under-the-Counter
GE/Honogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING (cont.)
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
Per Oven
Recuirement
Construct Solid
Bottom Min.
]/8" Plywood
Supported by
/2x4or2x2
Runners all
Four Sides
Min.
4.5" Recommended
2" Hin.
(3" Recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer locution
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
ACAUTION: Forpersonal safety, the
mounting surface must be capable of supporting
the cabinet load, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or o
total weight of 130 pounds.
APRECAUCION: Paraseguridod
personal, la superficie de montaje debe poder
soportor la cargo del gobinete, adem6s del peso
aproximado de 80 libras del homo, m6s los
cargos odicionoles del horno de hosto 50 libros
o un peso total de hosto 130 libros.

Installation Preparation
PreparationWITHOUTanAccessoryStorageDrawer
PREPARE THE OPENING (cont.)
Installation beside another GE/Plonogram
Built-in Speedcook Oven:
• If you ore mounting one Under-the-Counter
GE/Honogram oven beside the other, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 4-1/2" minimum shown.
17-1/2"
23-1/2"
17-1/2"
J4-i/2" Hin.
(5-i/2" Recommended)
PREPARE THE OPENING icont.)
Installation under a GE/Monogram 30" or 36" Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout
size. See the label on top of the oven for approved cooktop models. This oven requires a separate, properly
grounded 15-Amp, 120-Volt, 60Hz Dower supply. The cooktop requires a separate power supply. Use a 36"
or wider base cabinet.
23-1/2"
4" High
Toekick
Cookto
i- i/2" Hin.
i
J
17-1/2"
36"
Countertop
Height
Cooktop height including depth
of electrical box on some models.
Refer to cooktop installation
instructions.
No minimum cleorance required
between cooktop and oven.
NOTE: The oven is only approved to be installed
under the specific models as labeled on the unit.

Installation Preparation
PreparationWIT____HHan Accessory Storage Drawer
NOTE:MODELZSCI201 CAN ONLYBEINSTALLEDWITHAN ACCESSORYSTORAGEDRAWERIF INSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING (cont.}
The Advantium &20V can be installed in
combination with other GE/Monogram appliances.
Always follow each product's Installation
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30" wide single oven cabinet or cut
the opening in a wall to the dimensions shown.
21"
25-1/4"_
4k-- Hin.
\\\ \\\ Construct Bose
" Min. 3/8" Plywood
Supported by 2 x
4 or 2 x 2 Runners
all Four Sides
uired for
Monogram models
• Allow 2-1/8" case trim overlap on the sides,
1-1/16" overlap on the top and 7/8" overlap
on the bottom of the opening for all models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When installed over a single oven or a warming
drawer, allow at least 2" between the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120V and the
other appliance overlaps.
Construct a solid oven floor of 3/8" min. thick plywood
supported by 2 x 4 or 2 x 2 runners on all sides.
The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
PREPARE THE OPENING (cont.}
Installation over a GE/Monogram
Warming Drawer:
23-1/2"
Construct Solid
Bottom Min. 3/8"
/Plywood Supported
by2x4or2x2
Runners all Four
Sides
2" Min.
(3" Recommended)
Warming
Drawer
Requirement
*Required for
Monogram models
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
lO

Installation Preparation
PreparationWIT____HHan Accessory Storage Drawer
NOTE:MODELZSC1201CAN ONLYBEINSTALLEDWITHAN ACCESSORYSTORAGEDRAWERIF INSTALLEDABOVE36-3/4".
MODELZSC1202CANNOTBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram Oven:
21"
Hin. tt
Recommended
Construct Solid
Bottom Hin.
3/8" Plywood
_Supported by
2x4or2x2
Runners oll
Four Sides
2" Min.
(B" Recommended)
Per Oven
Requirement
*Required for
Monogrmm models
* For existing cutouts, o maximum width of 28-1/2"
is acceptable. If the opening is slightly wider,
secure mfurring strip on each side of the cutout
for securing the oven.
. If you ore replacing a GE/Honogram electric
double oven with the combined instollotion
of on Advontium 120V and o single oven, use
the dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING (cont.)
Installation over a GE/Monogram Oven and
Warming Drawer:
Construct Solid
Bottom Hin.
3/8" Plywood
_ Supported by
2x4or2x2
Runners all
Four Sides
2" Min.
(3" Recommended)
Per Oven
Requirement
Hin.
(3" Recommended)
:Drower Requirement
* For existing cutouts, o moximum width of 28-1/2"
is occeptoble. If the opening is slightly wider,
secure o furring strip on eoch side of the cutout
for securing the oven.
NOTE: Additionol cleoronces between the cutouts
moy be required. Check to be sure the oven
supports obove the Worming Drower Iocotion
do not obstruct the required interior depth
ond height. See Worming Drower instollotion
instructions for detoils.
ACAUTION: Forpersonol sofety, the
mounting surfoce must be capable of supporting
the cabinet loud, in addition to the added weight
of this approximate 80-pound oven and 30-pound
drawer, plus additional oven loads of up to 50
pounds or o total weight of 160 pounds.
APRECAUCION: Poroseguridod
personal, Io superficie de montuje debe poder
soportor Io cargo del gobinete, odem6s del peso
uproximudo de 80 librus del homoy los B0 libros
del cuj6n, m6s los cargos udicionules del homo
de basra 50 libros o un peso total de basra
160 libros.
11

Installation Preparation
PreparationWIT______H_Han Accessory Storage Drawer
NOTE:MODELZSC1201CAN ONLYBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWERIF INSTALLEDABOVE36-3/4%
MODELZSC1202CANNOTBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING Icont.}
Installation over another GEIMonogram
Under-the-Counter IUTC) oven:
23-1/2"
Construct Solid
Bottom Hin.
]/8" Plywood
_Supported by
2x4or2x2
Runners GII
Four Sides
2" Min.
(3" Recommended)
*PSB9120 model only
• If you are mounting an Under-the-Counter
GE/Honogram oven over another, use the
dimensions shown. The middle rail separating
the two openings may need to be larger than
the 2" minimum shown.
PREPARE THE OPENING Icont.}
Installation under a GE/Monogram
Microwave Oven and over a Warming
Drawer:
Per Oven
Re(
Per Warminc
Drawer
Requirement
Construct Solid
Bottom Hin. 3/8"
/Plywood Supported
by2x4or2x2
Runners all Four
Sides
3.5" Min.
(4.5"Recommended)
2" Min.
(3" Recommended)
*PSB9120 model only
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior depth
and height. See Warming Drawer installation
instructions for details.
^ CAUTION: Forpersonolsofety, the
mounting surface must be capable of supporting
the cabinet loud, in addition to the added
weight of this approximate 80-pound oven, plus
additional oven loads of up to 50 pounds or u
total weight of 130 pounds.
APRECAUCION: Poroseguridod
personal, Io superficie de montoje debe poder
soportor I° cargo del gabinete, adem(ls del peso
aproximado de 80 libros del homo, m_s los
cargas odicionales del homo de hast° 50 libros
o un peso totol de host° 130 libros.
12

Installation Preparation
PreparationWIT_____HHan Accessory Storage Drawer
NOTE:MODELZSC1201CAN ONLYBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWERIF INSTALLEDABOVE36-3/4%
MODELZSC1202CANNOTBEINSTALLEDWITH AN ACCESSORYSTORAGEDRAWER.SEEINSTALLATIONPREPARATIONWITHOUT
ANACCESSORYSTORAGEDRAWERFORTHISMODEL.
PREPARE THE OPENING Icont.}
Installation beside another GE/Monogram
Built-in Speedcook Oven:
• If you ore mounting one Under-the-Counter GE/
Honogrom oven beside the other, use
the dimensions shown. The middle rail separating
the two openings may need to be larger than
the 4-1/2" minimum shown. I .....
21"
23-1/2"
21"
PREPARE THE OPENING (cont.}
Installation under a GE Profile 30" or 36" Cooktop or Countertop:
Gas or electric cooktops moy be installed
over this oven. See cooktop instollution
instructions for the cutout size. See the
label on top of the oven for approved
cooktop models. This oven requires
a separate, properly
grounded 15-Amp,
120-Volt, 60Hz power
supply. The cooktop
requires o separate power
supply. Use o 36" or wider
bose cabinet.
IMPORTANT:
For PSB9120 model only.
The Honogrom oven
and drawer combination
cannot be installed below
o countertop.
23-1/2"
4" High z,
Toekick¢
Cookto
36"
Countertop
Height
\
p height including
depth of electricul box on
some models. Refer to cooktop
inst(]llotion instructions.
No minimum cleoronce
required between cooktop @nd
oven.
NOTE: The oven is only approved to be instolled
under the specific models as labeled on the unit.
13

Installation Instructions
REMOVE THE PACKAGING AND PARTS
• Remove oil packing material and tope.
Locate ports package containing mounting screws.
• Remove the oven from the carton. Do not lift unit
by handle or conduit. Two people are required to lift
this oven.
• Open the door and remove any packaging in oven.
Owner's
Manual Installetion Instructions
Owner's Manual Installation
Instructions
Cook Book Cooking
Guide
Cook Book Cooking Guide
Rack
ACAUTION: installing theAdvantium
120V Oven below 36% you must use the plastic
bottom trim due to burn risk to children. The
plastic trim acts as insulation and will help prevent
burns to children from hot surfaces.
s
APRECAUCION: Sivaa instalar el
homo Advantium de 120V debajo de B6", usted
debe utilizar el reborde inferior pl6stico debido al
riesgo de quemaduras para los ni_os. El reborde
pl6stico act0a coma aislante y evitar6 que los
ni_os sufran quemaduras provocadas par los
superficies calientes.
1 J
Bottom Trim - Plastic
Glass Tray Turntable Ring
MetalTrays (2)
Bottom Trim - Metal
6 Brass Screws
(3 required, 3 extra) 5 Color-Matched Screws
(4 required, ! extra)
IMPORTANT: If installing the Advantium 120V Oven
with an accessory storage drawer, read the storage
drawer assembly instructions to assemble the
products together before proceeding to Step 2.
14

Installation Instructions
[_] DOOR TRIM REMOVAL FOR ABOVE
36" INSTALLATION ONLY
If installing the Advantium 120V Oven above 36"
from the floor, you may remove the plastic trim
from the bottom of the door for esthetic purposes
if desi red.
ACAUTION: installing theAdvantium
120V Oven below 36", do not remove the
plastic door trim due to burn risk to children.
The plastic trim acts as insulation and will help
prevent burns to children from hot surfaces.
_LI_I_I=LJ"_LJ _..I UI_ : Si va a instolar el
horno Advantium de 120V debajo de 36", usted
no debe quitar el reborde pldstico de la puerta
debido al riesgo de quemaduras para los
ni_os. El reborde pldstico actOa coma aislante
y evitar(l que los ni_os sufran quemaduras
provocadas par las superficies calientes.
,, If installing above 36", remove the 3 screws that
secure the plastic trim to the bottom of the door.
• Discard plastic trim. Replace screws.
I
[
i-_ SLIDE THE OVEN INTO THE CUTOUT
,ACAUTION: Twopeoplearerequiredto
lift the oven into the opening. Grasp the bottom
at front and rear. DO NOT USETHE HANDLE TO LIFT
THE OVEN. DAMAGE WILL OCCUR.
A PRECAUCION:Se necesitan dos
personas para levantar el homo basra la abertura.
T6melo de la porte inferior desde el frente y la porte
trasera. NO USE LA IVlANUA PARA LEVANTAR EL
HORNO. SE PRODUCIRAN DA--OS.
,, Lift and hold the oven at the front of the opening.
Hold the oven at an angle and plug in the power
cord.
,,,Carefully, slide the oven into the cabinet part
way. Leave the oven a few inches forward of
the cabinet frame.
Check to be sure the power cord is not trapped
under the oven or along the sides of the oven.
15

Installation Instructions
INSTALL BOTTOM TRIM
ACAUTION: Ifinstalling theAdvantium
120V Oven below 36", you must use the plastic
bottom trim due to burn risk to children. The plastic
trim acts as insulation and will help prevent burns
to children from hot surfaces.
J
PRE:CAU ClaN: siveeinstolorelhomo
Adventium de !20V debejo de 36", usted debe utilizer
el reborde inferior pl6stico debido el riesgo de
quemodures pore los nihos. Elreborde pl6stico
ect0e come eislente y eviter6 qua los nihos sufren
quemedures provocedes per los superficies celientes.
NOTE: If installing the Advantium 120V Oven
with an accessory storage drawer, the bottom trim
is not required. Proceed to Step 5.
• Installation Below 36", align trim tabs on the plastic
trim to slots in the bottom of the oven.
Plastic
:m m _ m, t Trim
• Installation Above 36", align trim tabs on the plastic
or metal trim to slots in the bottom of the oven.
T _ T T Plastic
[ :- _" " - I Trim OR
: Metal
[--_ "_--] Trim
Secure the bottom trim to the bottom of the oven
using 3 screws provided.
! J
[_] INSTALL BOTTOM TRIM WITH
ACCESSORY DRAWER
If installing with an accessory drawer, see
installation instructions on page 17 or instructions
that come with the accessory drawer.
[_] INSTALL MOUNTING SCREWS
[ oooo8c oooo ]
OC] []C] C] C]E]
Slide the oven the remaining way into the opening
so that the side flanges and control panel are
against the cabinet frame. Make sure that the oven
is centered in the opening.
Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
Drill pilot holes through the side flanges.
Drive the color-matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
If installing oven with an accessory storage
drawer:
Open the drawer.
Drill pilot holes through the side flanges.
Drive color-matched screws into the side flanges.
It is recommended that the screws be hand
tightened.
NOTE: If installing the Profile Advantium 120V Oven
with an accessory storage drawer, you must use
the Under-the-Counter (UTC)mounting bracket for
the drawer.
If installing the Monogram Advantium integrated
model ZSC1201 above 36", the UTCmounting bracket
for the accessory storage drawer must be used.
| FINALIZE INSTALLATION
• Turn power on atthe source.The interiorlight
should come on when the door isopened.
• RefertoOwner's Manual foroperatinginstructions.
16

GE Consumer
As e
Advantium ®
& Industrial
bly In
Built-In
Appliances
tr ct®
AccessoryStorage
JX2200,JX2201,ZX2201
Drawer
BEFORE YOU BEGIN
Readthese instructions completely and carefully.
Readthe Installation Instructions for the Advantium
120V or 240V oven completely and carefully for cutout
dimensions and step-by-step instructions.
IMPORTANT- Savetheseinstructionsfor
local inspector's use.
IMPORTANT- Observeallgoverningcodes
and ordinances.
• NOTE TO INSTALLER: Be sure to leave these
instructions with the Consumer.
• NOTE TO CONSUMER: Keep these instructions with
your Advantium 120V or 240V Oven Owner's Manual
for future reference.
• SKILL LEVEL: Installation of this appliance requires
basic mechanical skills.
•COMPLETION TIME: One hour with the installation
of an Advantium 120V or 240V oven.
• Proper installation isthe responsibility of the installer.
Product failure due to improper installation is not
covered under the Warranty. See the Advantium
120V or 240V Oven Owner's Hanual for warranty
information.
MODELS AVAILABLE
Profile Models:
JX2200BB-Black
JX2201SS-Stainless Steel
Monogram Models:
ZX2201SS-Stainless Steel (for installation above 36" only)
NOTE: Advantium 240V model ZSC2202SS and
Advantium 120V model ZSC1202 CANNOT be
installed with an accessory storage drawer. See
Installation Preparation Without an Accessory Storage
Drawer in the Installation Instructions for these models.
PRODUCT DIMENSIONS AND CLEARANCES
_ J_t 5"
Allow 15" clearance
when fully open
NOTE: Appearance will vary by model.
TOOLS REOUIRED
, #2 Phillips screwdriver
PARTS SUPPLIED
. 2 SideSupports
. Screws(8)
. Screws(color-matched)(5)
Under-the-Counter Mounting Bracket(1)
17

ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN
| REMOVE PACKAGING AND PARTS
• Remove the drewer from the certon.
• Remove ell pecking materiel end tope.
• Open the drewer end remove eny ports inside.
• Locete ports.
Assemblg
Instructions
Side Supports (2)
Assembly Instructions Under-the-Counter
(UTC)Mounting Bracket
Screws Color-Matched
(6required, Screws
2 extra) (4 required,
i extra)
[_ UNDER-THE-COUNTER (UTC}
MOUNTING BRACKET INSTALLATION
NOTE: For UTC models PSB9120 end ZSC1201 only.
Open the occessory drower so you hove
occess to the top brocket.
Remove the three screws securing the top
brocket.
r_ Install the new UTC mounting brocket using
the screws removed previously.
r_ Close the drawer and proceed with the
installation.
[]
B]
ASSEMBLING THE OVEN TO DRAWER
Place storage drawer on a surface with
the front of drawer hanging over the edge
of the surface. Not placing the front edge
of drawer over the edge of the surface may
result in damage to the drewer since the front
edge of drower bongs below the bottom
of drower.
Place the oven on top of the storage drawer.
Hake sure that the back and sides of the oven
align with the back and sides of drawer.
NOTE: The bottom of the oven side flanges will
sit directly in front of the top of the storoge
drower side flonges.
18

ASSEMBLY TO ADVANTIUM BUILT-IN SPEEDCOOK OVEN
ASSEMBLING THE OVEN TO DRAWER
Icont.)
r_ Remove the front two bottom screws on each
side of the oven and the top center screw on
each side of the storage drawer.
D
El
H
H
H
H
H
H
H
Place the side supports into the tabs on the
drawer and secure using the screws supplied
and the screws removed in Step C.
Side
Support
120v onlyf
B] The oven and storage drawer assembly is now
ready to be installed. Return to the Advantium
120V or 240V Built-In SpeedCook Oven
Installation Instructions to complete
the installation.
19

Printed in Korea
NOTE: While performing instollotions described in this book,
sofety glosses or goggles should be worn.
NOTE: Product improvement is o continuing endeovor ot
GeneroJ Electric. Therefore, moteriols, oppeoronce ond
specificotions ore subject to chonge without notice.
GE Appliances & Lighting
Appliances
General Electric Company
Louisville, KY40225
GEAppliances.com
