GE cafe User manual

31-2000355 Rev.1
04-19 GEA
INSTALLATION
INSTRUCTIONS
Advantium®
Built-In Wall Oven
CSB912
Español
For a Spanish version of this manual, visit
our Website at cafeappliances.com.
Para consultar una version en español de
este manual de instrucciones, visite nuestro
sitio de internet cafeappliances.com.
MFL59060929_00

231-2000355 Rev. 1
Safety Information
CONTENTS
Design Information
Models Available ...............................................2
Product Dimensions and Clearances ................3
Tools and Parts Required .................................3
Installation Preparation
Electrical Requirements ....................................4
Grounding Instructions ......................................4
Preparing the Opening (Standard) ....................5
Preparing the Opening (Flush Mount) ...............9
Installation Instructions

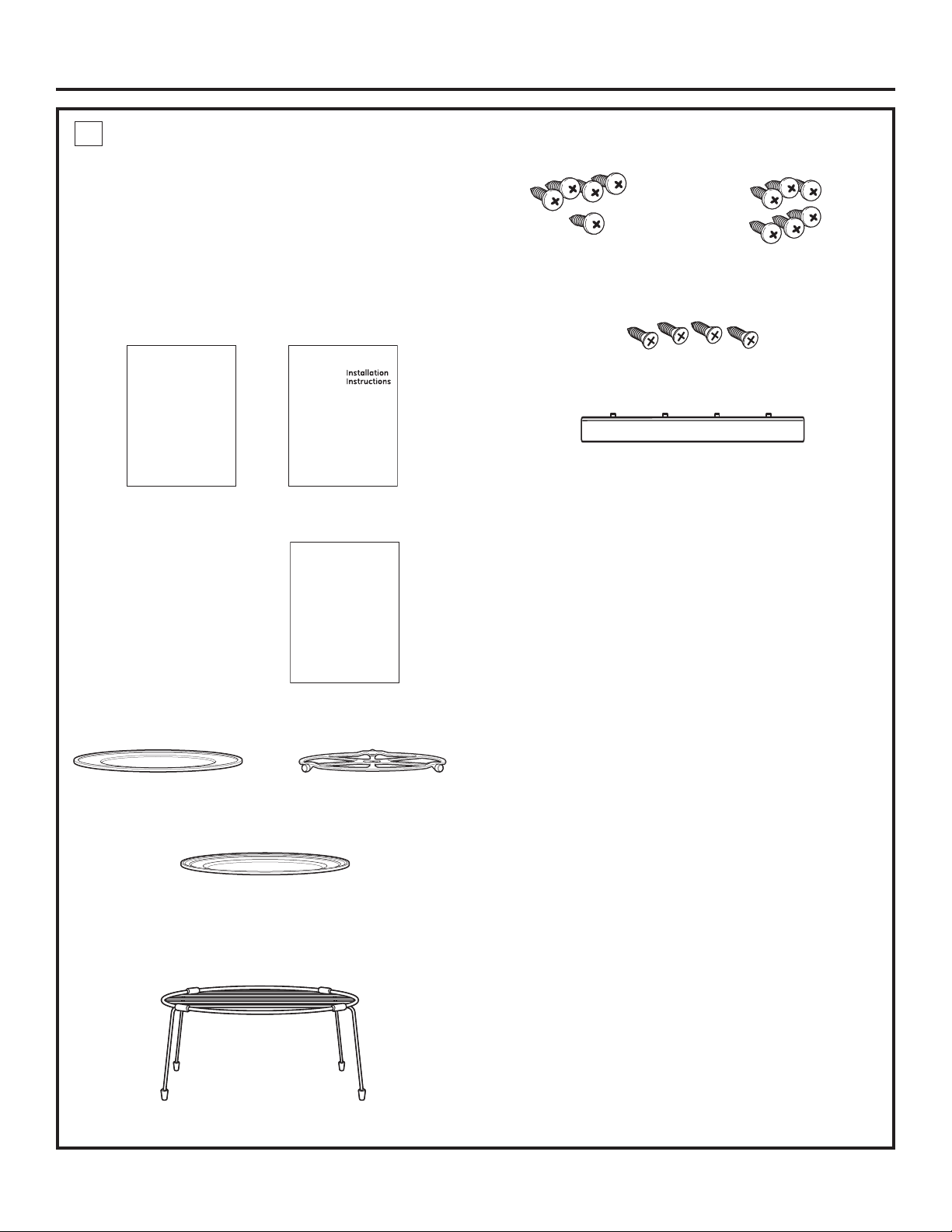

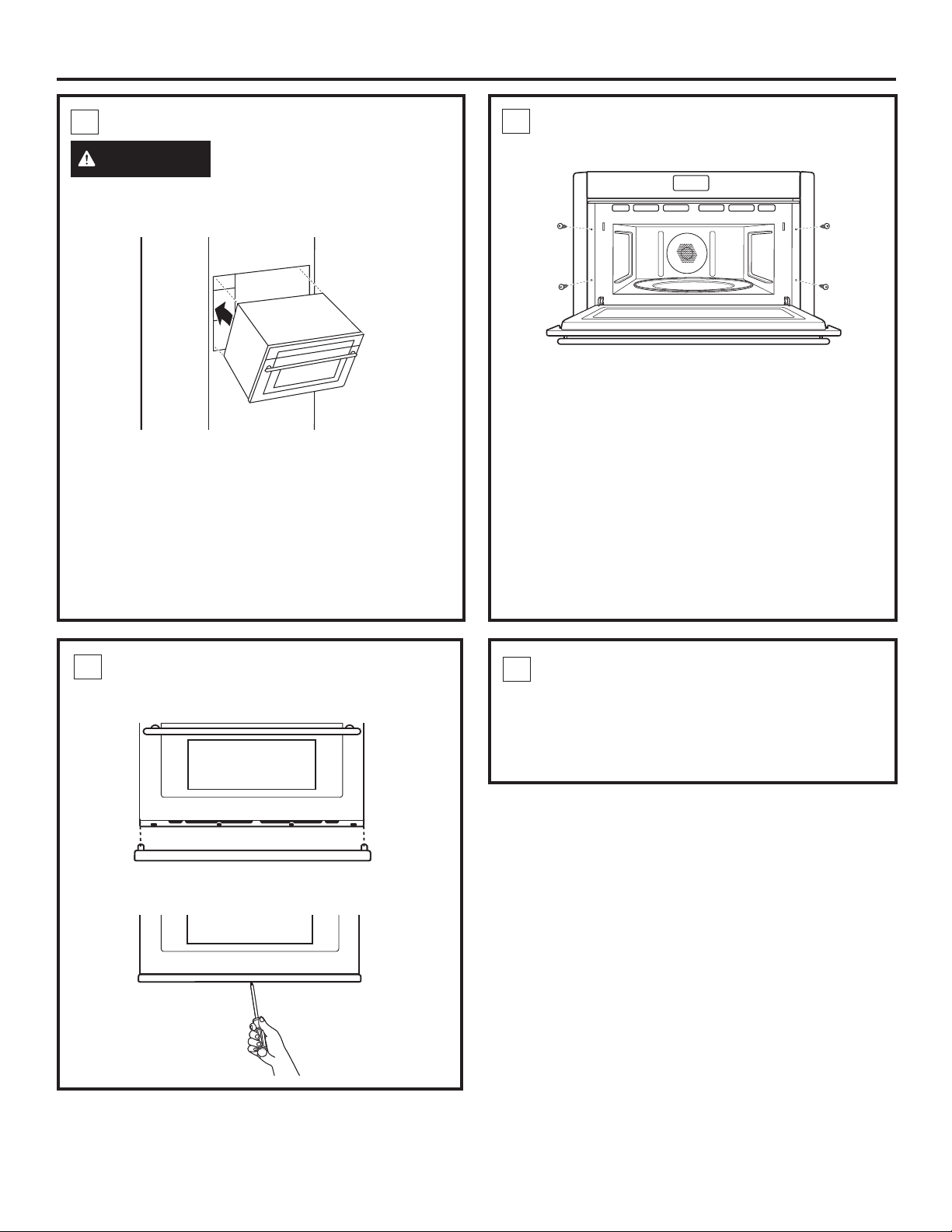

Step 1, Remove Packaging and Parts ............11
Step 2, Slide Oven Into Cutout ....................... 12
Step 3, Install Bottom Trim ..............................12
Step 4, Install Mounting Screws ......................12
Step 5, Finalize Installation .............................12
MODELS AVAILABLE
Café Pro Models:
CSB912P2NS1 – Stainless Steel
Café Min Models:
CSB912M2NS5 – Stainless Steel
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT — Save these instructions
for local inspector’s use.
IMPORTANT — Observe all governing codes
and ordinances.
• Note to Installer — Be sure to leave these
instructions with the Consumer.
• Note to Consumer — Keep these instructions
with your Owner’s Manual for future reference.
• Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
• Completion Time — 1 Hour.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
IMPORTANT — Use this oven only for its
intended purpose. Never use the oven for
warming or heating a room. Prolonged use
of the oven without proper ventilation can be
hazardous.
For personal safety, remove
house fuse or oven circuit
breaker before beginning installation to avoid
severe or fatal shock injury.
For personal safety, the
mounting surface must
be capable of supporting the cabinet load, in
addition to the added weight of the oven and
drawer, plus additional oven loads.
CAUTION
CAUTION

31-2000355 Rev.1 3
Design Information

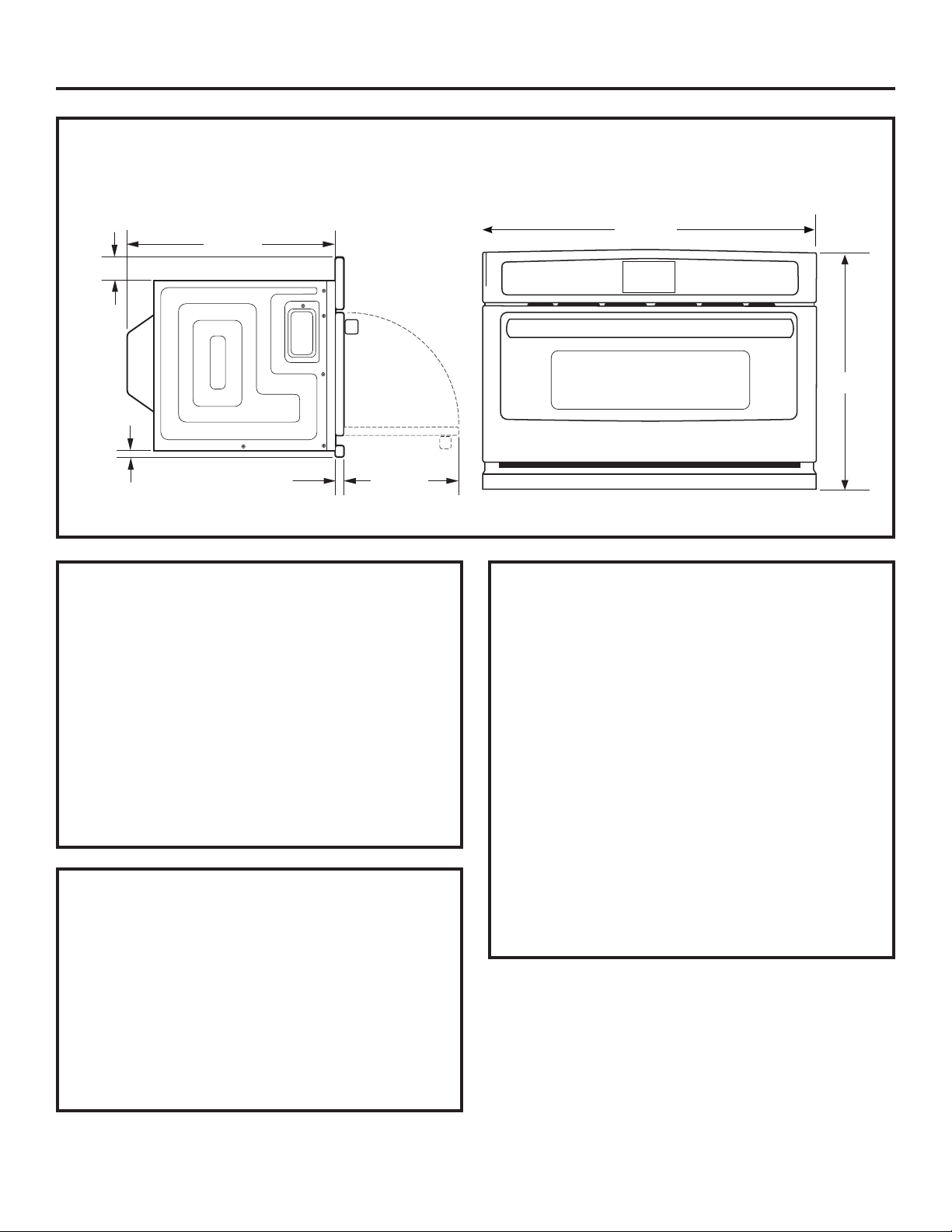

PRODUCT DIMENSIONS AND CLEARANCES
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32Ǝ diameter
• 3/8Ǝ slot-head screwdriver
• Level
• Saw
• 3/8” slot-head screwdriver
• Wood screws or other hardware for installing •
runner or shelf to support oven (if required)
• Safety glasses or goggles
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to
be inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN
CARPENTRY IS REQUIRED. Non-standard
cabinetry may be required.
Flush installation of the oven will lead to the
exposure of the cabinet face frame edges.
Side cleats may be visible and should be a
finished surface.
20-1/8”
26-3/4”
ADVANCE PLANNING
•7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when
preparing the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
The oven must be securely installed in a cabinet
that is firmly attached to the house structure.
Weight on the oven door could cause the oven
to tip and result in injury. Never allow anyone to
climb, sit, stand or hang on the oven door.
If installing the drawer accessory, the drawer
must be assembled to the oven prior to
installation into the cabinet. See the Accessory
Storage Drawer Assembly Instructions.
21-1/2Ǝ
1Ǝ
13 1/4Ǝ
2-1/4Ǝ
1-1/4Ǝ

431-2000355 Rev. 1
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium Built-In Oven Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage and
frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code for
this kilowatt rating.
• The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be located
within reach of the 48” power cord.

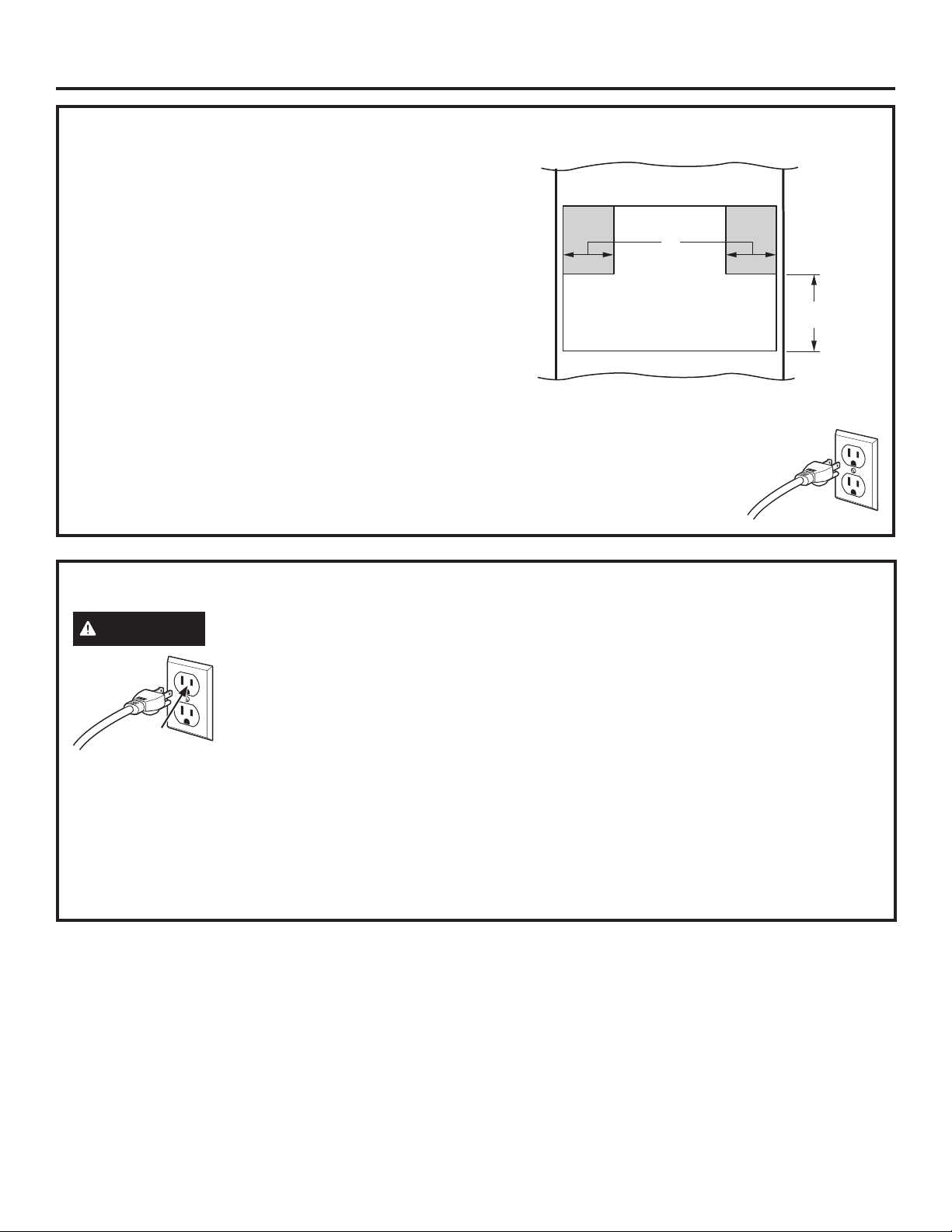

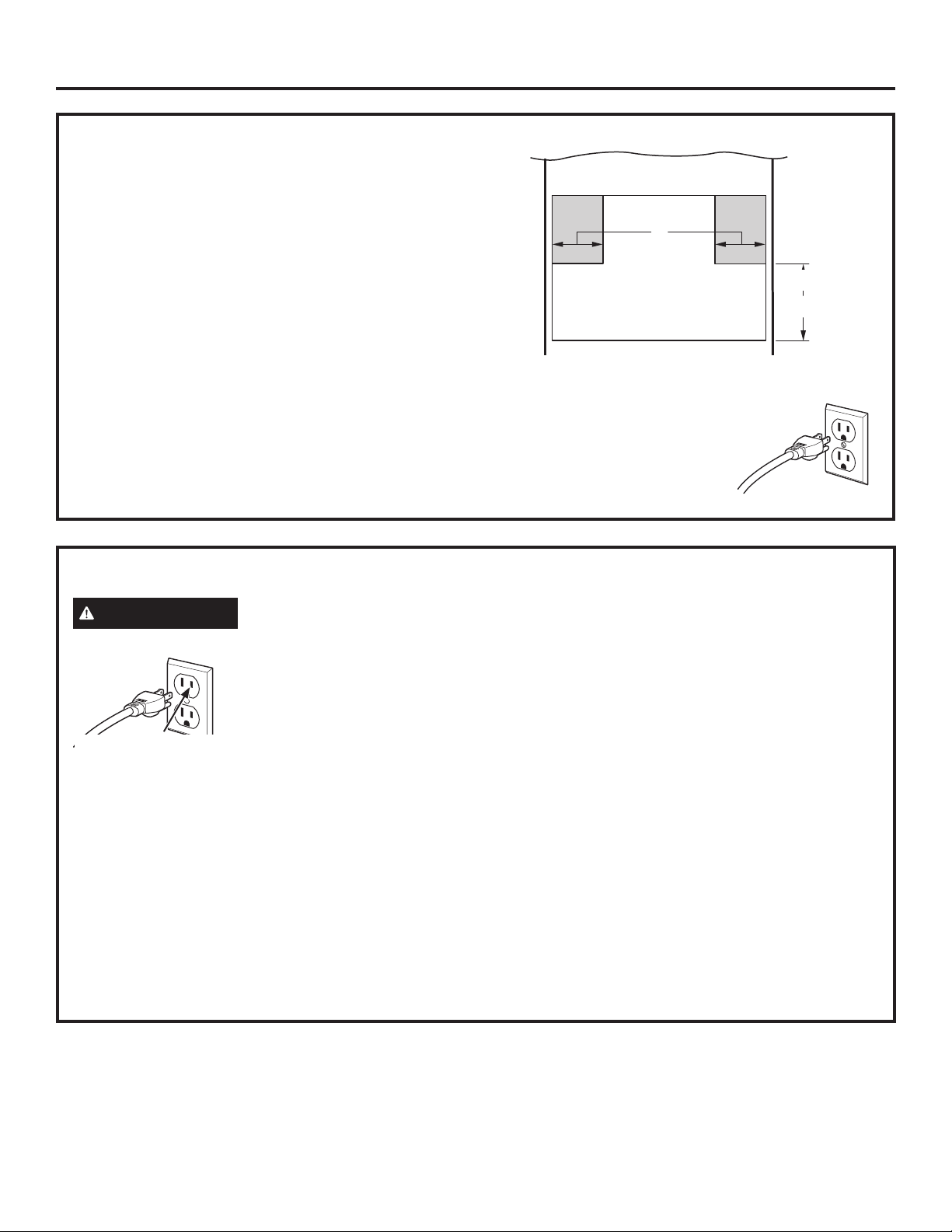

ELECTRICAL LOCATION
Locate outlet box in the shaded area
6”
9”
Install a recessed electrical outlet
in the back wall of the opening
within 6Ǝ of either side and at least
9Ǝ above the cutout floor.
GROUNDING INSTRUCTIONS
WARNING Improper use of the grounding plug can result in a risk of electric shock.
This appliance must be grounded.
In the event of an electrical short
circuit, grounding reduces the risk
of electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
power cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
If the outlet is a standarf 2-prong wall outlet, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
Do not under any circumstacnes cut or remove the third
(ground) prong from the power cord.
Do not use an extension cord. If the power cord is too
short, have a qualified electrician or service technician
install an outlet near the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights, blowing of
fuse or tripping of circuit breaker.
Ensure Proper ground
exists before use.

31-2000355 Rev.1 5
Standard Installation Preparation
PREPARE THE OPENING (CONT.)

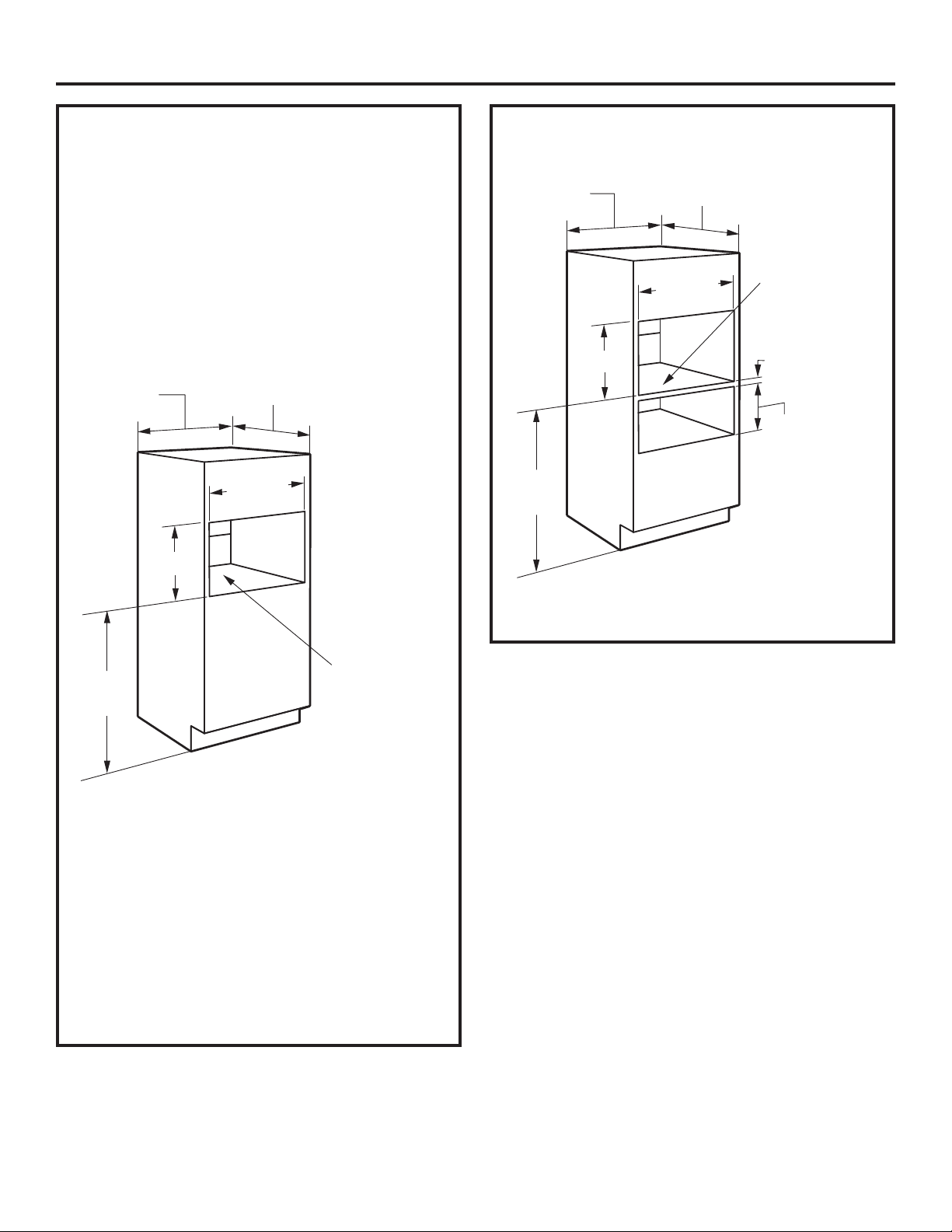

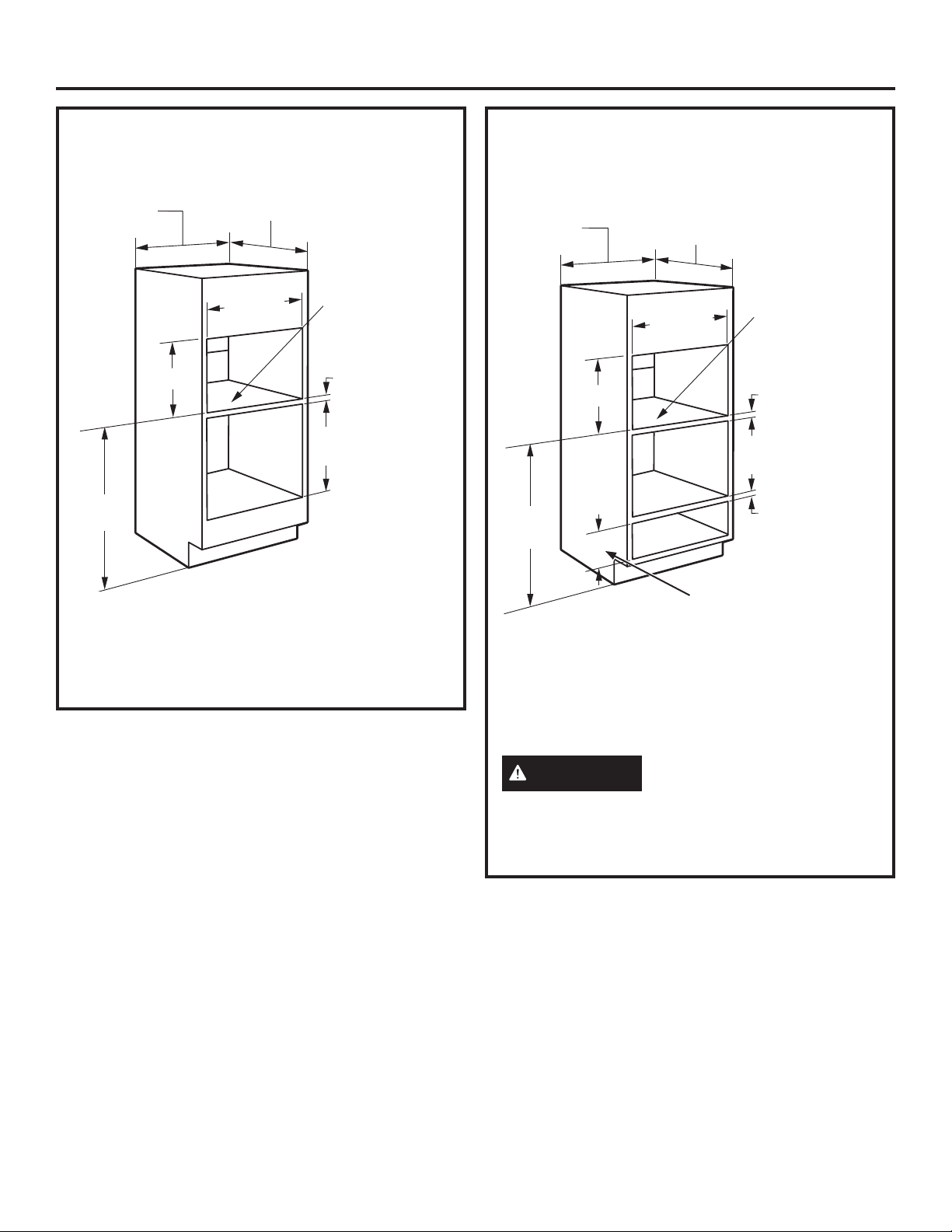

Installation over a Warming Drawer:
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
in combination with other Built-In appliances.
Always follow each product’s Installation
Instructions to complete the installation.
Single Advantium Built-In Oven
Installation:
Order a 27” or 30” wide single oven cabinet
or cut the opening in a wall to the dimensions
shown.
• Allow 2-1/4” case trim overlap at the top and
1” overlap on the bottom and each side of the
opening.
• Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a
warming drawer, allow at least 2” between
the two openings. This separation will provide
clearance for bottom overlap of the Advantium
120 and the other appliance overlaps.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
27” or 30” 23-1/2”
25-1/4”
17-1/2”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must
be able to
support
weight of
oven and
contents.
36-3/4”
Min.
27” or 30” 23-1/2”
25-1/4”
17-1/2”
36-3/4”
Min.
2Ǝ Min.
(3Ǝ Recommended)
Per Warming
Drawer
Requirement
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
NOTE: Additional
clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location does not
obstruct the required interior depth and height. See
Warming Drawer installation instructions for details.

631-2000355 Rev. 1
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven:
27 or 30” 23-1/2”
25-1/4”
17-1/2” 2” Min.
(3” Recommended)
45-1/4”
Min.
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
Per Oven
Requirement
• If you are replacing an electric double oven with the
combined installation of an Advantium Built-In Oven
and a single oven, use the dimensions shown. The
middle rail separating the two openings may need to
be larger than the 2” minimum shown.
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven and Warming
Drawer:
Construct
Solid Bottom
Min. 3/8”
Plywood
Supported
by
2x4 or 2x2
Runners all
Four Sides
27 or 30” 23-1/2”
25-1/4”
17-1/2”
2” Min.
Per Oven
Requirement
45-1/4”
Min.
Per warming drawer requirement
2” Min.
(3” recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.

31-2000355 Rev.1 7
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over another Advantium Built-In
Oven:
27 or 30Ǝ23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ2 1/2Ǝ Min.
(3 1/2Ǝ Recommended)
17-1/2Ǝ
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
• If you are mounting a Built-In Advantoum Oven over
another, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 2Ǝ minimum shown.
PREPARE THE OPENING (CONT.)
Installation under a Microwave Oven and over
a Warming Drawer:
27 or 30Ǝ23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
2Ǝ Min.
(3Ǝ Recommended)
Per Microwave
Oven Requirement 3.5Ǝ Min.
(4.5Ǝ Recommended)
Per Warming
Drawer
Requirement
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.

831-2000355 Rev. 1
Standard Installation Preparation
PREPARE THE OPENING (CONT.)

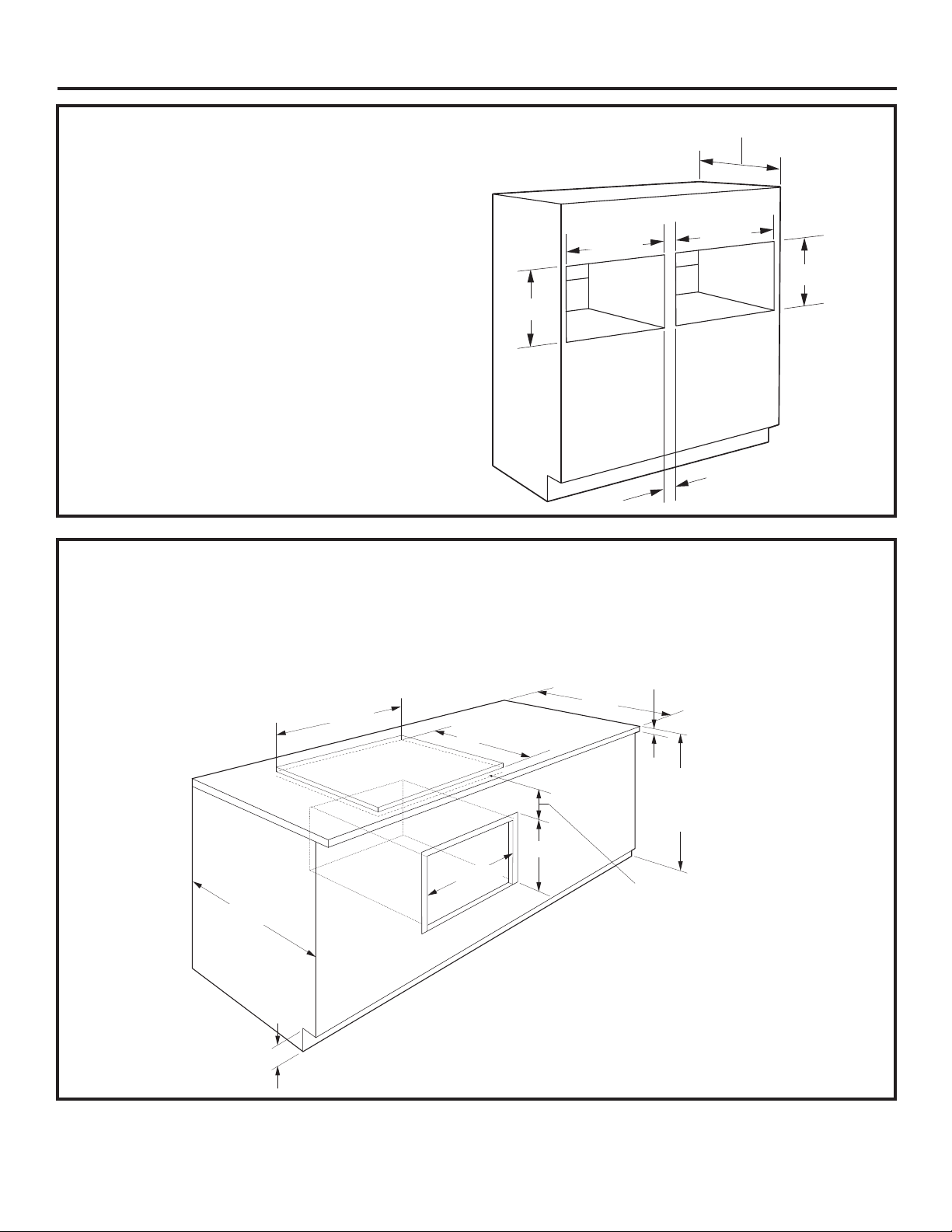

Installation beside another Advantium Built-In
Oven:
• If you are mounting an Advantium Built-In Oven beside
another, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 4-1/2Ǝ minimum shown.
25-1/4Ǝ
17-1/2Ǝ
23-1/2Ǝ
17-1/2Ǝ
4-1/2Ǝ Min.
(5-1/2Ǝ Recommended)
25-1/4Ǝ
PREPARE THE OPENING (CONT.)
Installation under an Advantium 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded
15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36Ǝ or wider base
cabinet.
Cooktop
Cooktop
25Ǝ
1-1/2Ǝ Min.
4Ǝ High
Toekick
23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
36Ǝ
Countertop
Height
Cooktop height including depth
of electrical box on some
models. Refer to cooktop
installation instructions.
No minimum clearance required
between cooktop and oven.

31-2000355 Rev.1 9

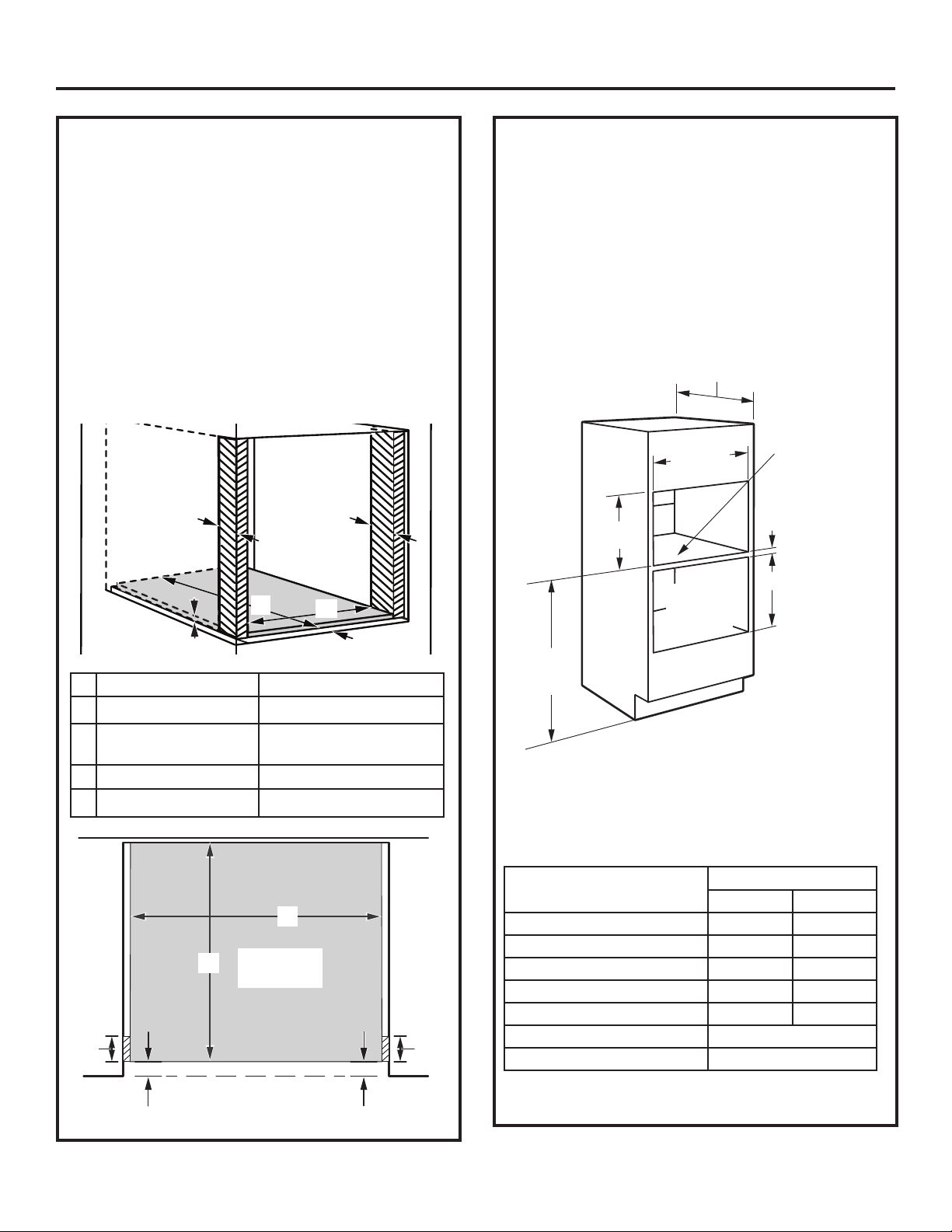

Flush Mount Installation Preparation
PREPARE THE INTERIOR
Cut and install side cleats:
• Cut side wood cleats to height of cabinet
opening and approx. 2-1/2” in depth. Install,
on each side, 1-3/8” from the front face of the
cabinet.
Cut and install bottom cleat:
• Cut bottom wood cleat to a height of 1-1/8”, a
depth of the cabinet minus 1-3/8” and a width
of 25-1/4” to fit between side cleats. Install
onto the cabinet floor between the side cleats,
push it all the way back against cabinet wall
and make sure its front face aligns with the front
faces of the side cleats (1-3/8” gap from the
front cabinet face).
A Side cleats depth 2-1/2” min.
B Bottom cleat height 1-1/8”
C Bottom cleat depth Cabinet depth minus
1-3/8”
D Bottom cleat width 25-1/4”
E All three cleats 1 1/4”
E
C
B
D
A A
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
in combination with other GE Appliances/
Monogram appliances. Always follow each
product’s Installation Instructions to complete the
installation.
Single Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions
shown.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
TOP
VIEW
Front Face of Cabinet
EE
A A
C
D
**20 5/8”
Construct
solid bottom
- Min. 3/8”
plywood
supported on
all four sides.
Must be able to
support weight
of oven and
contents.
36-3/4”
Min.
F *
23-1/2” min.
2” Min.
*See table
below for
desired reveals
on sides.
Per
appliance
specs.
Oven or
warming
drawer
Approved Flush Installation Dimension F
1/8” Reveal 1/4” Reveal
Single Advantium 27” 27-1/4”
Over Warming Drawer 27” 27-1/4”
Over Oven 27” 27-1/4”
Over Oven and Warming Drawer 27” 27-1/4”
Over Built-in Oven 27” 27-1/4”
Double Advantium (side by side) See page 10
Under Cooktop or Countertop See page 10
** Top and bottom reveals are set to 1/8”.

10 31-2000355 Rev. 1
Flush Mount Installation Preparation
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
beside another Advantium Built-In Oven in a
side-by-side combination.

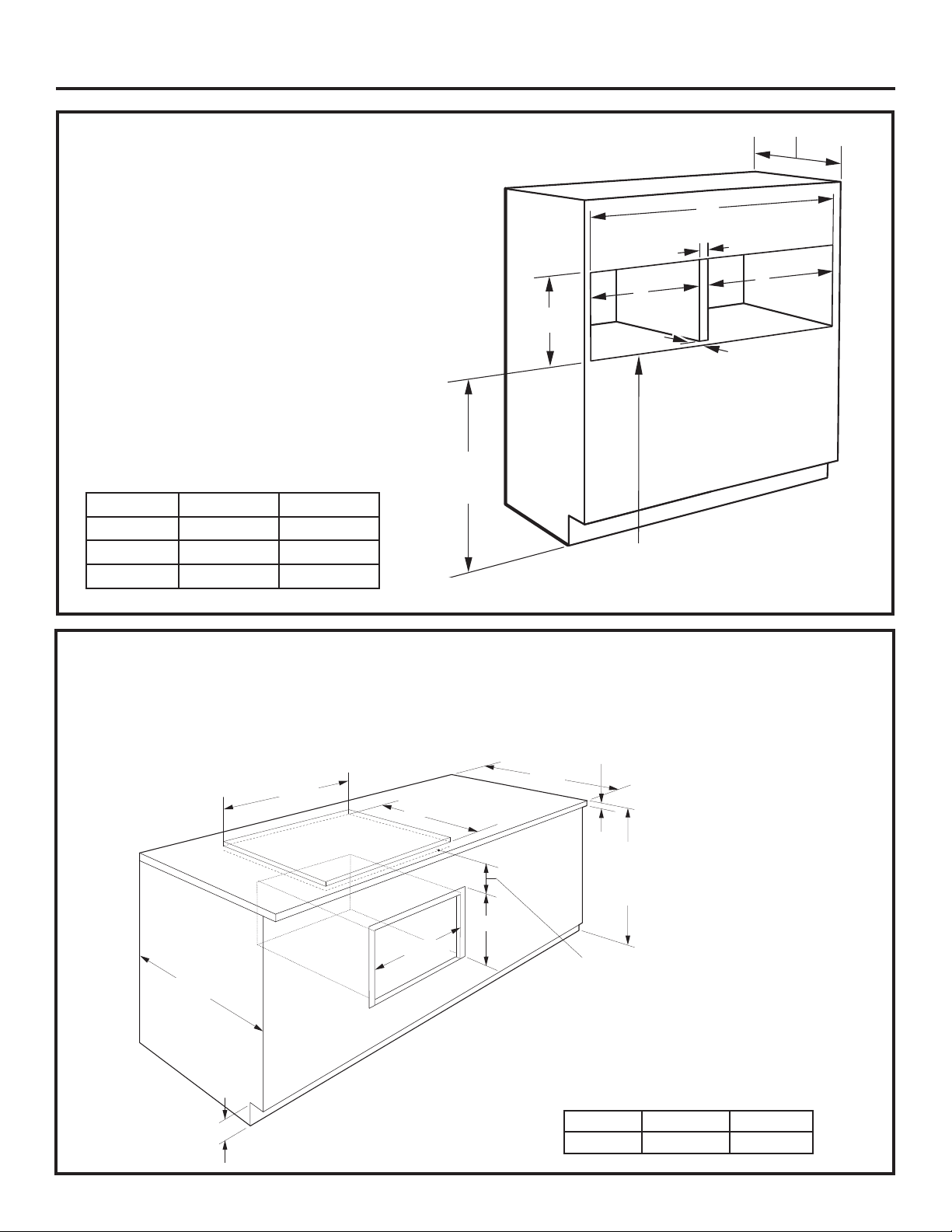

Double Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions
shown.
• Center divider acts as cleat for side of each
respective unit. Only one additional side cleat
needed per oven cutout.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
23-1/2” min.
20-5/8”
Construct solid bottom - Min. 3/8”
plywood supported on all four
sides. Must be able to support
weight of oven and contents.
I*I*
H*
G*
1 1/4”
*See table for desired reveals on sides and
between unit.
Dimension 1/8” Reveal 1/4” Reveal
G 53-7/8” 54-1/4”
H 1-5/8” 1-3/4”
I 26-1/8” 26-1/4”
36-3/4”
PREPARE THE OPENING
Installation under an Advantium 30Ǝ or 36Ǝ Cooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop,
properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 36Ǝ or wider base cabinet.
Cooktop
Cooktop
25Ǝ
1-1/2Ǝ Min.
4Ǝ High
Toekick
23-1/2Ǝ
J*
20-5/8”
36Ǝ
Countertop
Height
Cooktop height including
depth of electrical box
on some models. Refer
to cooktop installation
instructions.
No minimum clearance
required between cooktop
and oven.
*1/8” reveals on
sides and top
Dimension 1/8” Reveal 1/4” Reveal
J 27” 27-1/4”
*See table for desired reveals on sides.
