BEFORE YOU BEGIN
Read these instructions completelg and carefullg.
•IMPORTANT -Sovethese
instructionsforlocolinspector'suse.
•IMPORTANT-Observeoll
governingcodesond ordinonces.
• Note to Installer- Be sureto leovethese
instructionswiththeConsumer.
o
o
Note to Consumer - Keepthese instructions
for future reference.
Skill level - Instollotion of this opplionce requires bosic
mechonicol ond electricol skills.
Proper instollotion is the responsibility of the instoller.
Product foilure due to improper instollotion is not
covered under the Worrontg.
/
/
I 49-40584 I
06-08 JR
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Installation Instructions
CONTENTS
General information
Important Safety Instructions ...................................... 3
Electrical Requirements .................................................. 3
Hood Exhaust ................................................................ 4, 5
Damage-Shipment/Installation .................................. 6
Parts Included .................................................................. 6
Tools You Will Need .......................................................... 7
Mounting Space ................................................................ 7
Step-bg-step installation guide
Placement of Mounting Plate .................................. 8-10
Removing the Mounting Plate ............................ 8
Finding the Wall Studs .......................................... 8
Determining Wall Plate Location ........................ 9
Aligning the Wall Plate ...................................... 10
Installation Tgpes .................................................... 11-22
_ Outside Top Exhaust .................................... 12-14
Attach Mounting Plate to Wall ................ 12
Preparation of Top Cabinet ...................... 13
Assemble and Install Adapter .................. 13
Mount the Oven .................................. 13, 14
Adjust the Exhaust Adapter ...................... 14
Connecting Ductwork ................................ 14
]_ Outside Back Exhaust .................................. 15-18
Preparing Rear Wall for
Outside Back Exhaust ................................ 15
Attach Exhaust Adapter to
Oven Rear Panel ........................................ 15
Attach Mounting Plate to Wall ................ 16
Preparation of Top Cabinet ...................... 16
Adapting Blower for Outside
Back Exhaust .................................................. 17
Mount the Oven .......................................... 18
[_ Recirculating ................................................ 19-22
Attach Mounting Plate to Wall ................ 19
Preparation of Top Cabinet ...................... 19
Adapting Blower for
Recirculation ........................................ 20, 21
Mount the Oven .................................. 21, 22
Installing the Charcoal Filter .................... 22
Before You Use Your Oven .......................................... 23
2

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded outlet.
The installer must perform a ground continuitg check
on the power outlet box before beginning the
installQtion to insure thQt the outlet box is properlg
grounded. If not properlg grounded, or if the outlet
box does not meet electricQI requirements noted
(under ELECTRICALREQUIREMENTS),a qualified
electriciQn should be emploged to correct ang deficiencies.
CAUTION:
For personal safety, remove
house fuse or open circuit
breaker before beginning
installation to avoid severe
or fatal shock injury.
CAUTION: Forpersonal safetg, the mounting
surface must be capable of supporting the cabinet load,
in addition to the added weight of this 63-85 pound
product, plus additional oven loads of upto 50 pounds
or a total weight of 113-135 pounds.
CAUTION: For personal safetg, this product
cannot be installed in cabinet arrangements such asan island
or a peninsula. It must be mounted to BOTHa top cabinet
AND a wall.
NOTE: For easier installation and personal safetg,
it is recommended that two people install this product.
IMPORTANT--PLEASE READ CAREFULLY.
FOR PERSONAL SAFETY,THIS APPLIANCE MUST
BE PROPERLYGROUNDED TO AVOID SEVERE
OR FATALSHOCK.
Insureproper
groundexists
beforeuse
The power cord of this
appliance is equipped with
a three-prong (grounding)
plug which mates with
a standard three-prong
(grounding) wall receptacle
to minimize the possibilitg
of electric shock hazard
from this appliance.
You shouldhave the wall receptacle and circuit checked
bg a qualified electrician to make sure the receptacle is
properlg grounded.
Where a standard two-prong wall receptacle is
encountered, it isverg important to have it replaced
with a properlg grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR
REMOVE ANY OF THE PRONGS FROM THE POWER CORD.
DO NOT USEWITH AN EXTENSION CORD.
ELECTRICAL
REOUIREMENTS
Product rating is120 voltsACE,60 Hertz,14 amps
and 1.60kilowatts.This product must be connected
to a supplg circuit of the proper voltage and frequencg.
Wire sizemust conform to the requirements ofthe National
ElectricalCodeor the prevailing localcode for this kilowatt
rating.The power supplg cord and plug should be brought
to a separate 15 to 20 ampere branch circuit single
grounded outlet.The outlet box should be located in the
cabinet above the oven.Theoutlet box and supplg circuit
should be installed bg a qualified electrician and conform
to the National ElectricalCodeor the prevailing local code.
3

Installation Instructions

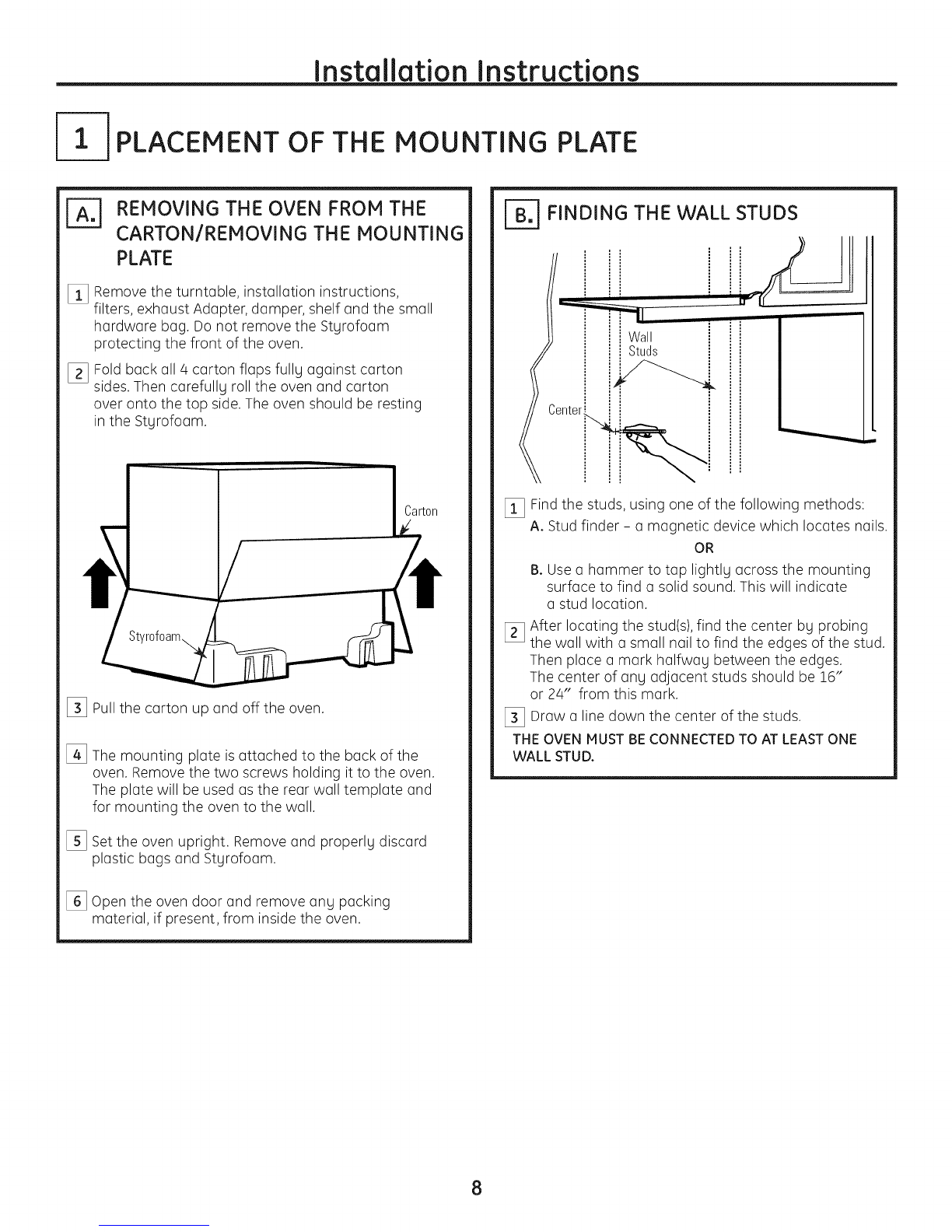

PLACEMENT OF THE MOUNTING PLATE
REMOVING THE OVEN FROM THE
CARTON/REMOVING THE MOUNTING
PLATE
%
[]
Remove the turntable, installation instructions,
filters, exhaust Adapter, damper, shelf and the small
hardware bag. Do not remove the Styrofoam
protecting the front of the oven.
Fold back all 4 carton flaps fully against carton
sides.Then carefully roll the oven and carton
over onto the top side. The oven should be resting
in the Styrofoam.
Carton
[_ Pullthe carton up and off the oven.
%The mounting plate is attached to the back of the
oven. Remove the two screws holding it to the oven.
The plate will be used as the rear wall template and
for mounting the oven to the wall.
[_ Setthe oven upright. Remove and properly discard
plastic bags and Styrofoam.
[_ Open the oven door and remove any packing
material, if present, from inside the oven.
F_ FINDING THE WALL STUDS
I i Wall
Studs
i
C_nt_rj_i
[] Findthe studs, using one of the following methods:
A. Stud finder - a magnetic device which locates nails.
OR
B. Usea hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
[_ After locating the stud(s),find the center by probing
the wall with a small nail to find the edges of the stud.
Then place a mark halfway between the edges.
The center of any adjacent studs should be !6"
or 24" from this mark.
[_ Draw a line down the center of the studs.
THE OVEN MUSTBECONNECTEDTO ATLEASTONE
WALL STUD.
8

Installation instructions
| DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet Plate position - beneath framed recessed
cabinet bottom
MountingPlateTabs
theCabinet
Bottom
At least 30", upto 36"
MountingPlateTabs
TouchingtheBack
'-. Frame
s"...
30" to Cool<top
Plate position - beneath recessed bottom
cabinet with front overhang
MountingPlatewith
TabsBelowCabinet
Bottomthe Same
Distanceasthe Front
OverhangDepth
\30" to Cool<top
Your cobinets mog hove decorotive trim thot interferes
with the oven instollotion. Remove the decorotive trim
to instoll the oven properly ond to moke it level.
THE OVEN MUSTBE LEVEL.
Use o level to moke sure the cobinet bottom is level.
If the cobinets hove o front overhong onlg, with no
bock or side frome, instoll the mounting plote down
the some distonce os the front overhong depth.
This will keep the oven level.
[] Heosure the inside depth of the front overhong.
[_ Drow o horizontol line on the bock woll on equol
distonce below the cobinet bottom osthe inside
depth of the front overhong.
[_ Forthis type of instollotion with front overhong only,
olign the mounting tobs with this horizontol line,not
touching the cobinet bottom os described in Step D.
9

Installation instructions
ALIGNING THE WALL PLATE
ix
\, \A _
Hole
\\\ \\?-
Hole C_
CAUTION:Wear gloves to
avoid cutting fingers on
sharp edges.
I
ri_-: . i[i r:
fP i _:l
I i .ii[
,,j . uraw a veRIcal ii
'! LineonWall
I_ fromCenterof '_.
i I TopCabinet ii'
i i i
. I [
IIi
L......................... •..................... t_=_i
[ 7 ]i
o o o
#, 4
AreaE I
i
/
--_ HoleB
/
HoleD
NOTE:Appearance and
shape of the mounting
plate mag varg from gour
model.
[] Draw avertical line on the wall at the center of the 30"
wide space.
[_3 Usethe mounting plate as the template for the rear
wall. Placethe mounting plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and center line
on the mounting plate to the center line on the wall.
[_3 While holding the mounting plate with one hand,
draw circles on the wall at holes A, B,Cand D(see
illustration above/actual plate marked with arrows).
Four holes must be used for mounting.
NOTE:Holes Cand Dare insidearea E.If neither Cnor D
is in a stud, find a stud somewhere in area Eand draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the oven.
Set the mounting plate aside.
[_ Drillholes on the circles. If there is a stud, drill a s/16"hole
for wood screws. Forholes that don't line up with a stud,
drill a%" hole for toggle bolts.
NOTE:DONOTMOUNTTHEPLATEATTHISTIME.
10

Installation Instructions
INSTALLATION TYPES {Choose A, B or C)
This oven is designed for adQptation to the following three
types of ventilation:
A. Outside Top Exheust (Vertical Duct}
B. Outside Beck Exheust (Horizontel Duct}
C. Redrculeting (Non-Vented Ductless}
NOTE:This oven is shipped assembled for Outside Top
ExhQust(except for non-vented models). Select the tgpe
of ventilQtion required for gour installQtion and proceed
to thQt section.
OUTSIDE TOP EXHAUST
{VERTICAL DUCT) OUTSIDE BACK EXHAUST
{HORIZONTAL DUCT)
RECIRCULATING
{NON-VENTED DUCTLESS)
On models shipped for
non-vented exhQust, a
disposQble chQrcoQIfilter is
included with the oven Qnd
needs to be installed to help
remove smoke and odors.
On models shipped for outside
top exhQust, a ChQrcoQIFilter
Accessorg Kit is required for the
non-vented exhQust. (Seegour
Owner's ManuQIfor the kit
number.)
11

Installation Instructions
OUTSIDE TOP EXHAUST {Vertical Duct)
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adapter
A4. Mount Oven
AS.Adjust Exhaust Adapter
A6. Connect Ductwork
ATTACH THE MOUNTING PLATE
TO TH E WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
[] Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate
through the holes designated to go into drywall
and reattach the toggle wings to s/4"onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
-.-I_--_i_---Thicl<ness
Wings
Mounting
Plate
BoltEnd
[_ Place the mounting plate against the wall
and insert the toggle wings into the holes
in the wall to mount the plate.
NOTE:Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION: Be careful to avoid pinching fingers between
the back of the mounting plate and the wall.
[_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
12

Installation Instructions
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adapter.
• Readthe instructions on the top cabinet template.
• Tape it underneath the top cabinet.
• Drillthe holes, following the instructions
on the top cabinet template.
CAUTION: Wear safetg goggles when drilling holes
in the cabinet bottom.
ASSEMBLE AND INSTALL
ADAPTER
Damper
i
Exhaust
Adapter
BlowerPlate
Backof
Oven
NOTE:On some models, the exhaust adapter and damper
assemblg mag alreadg be assembled to the oven.
[] Placethe oven in its upright position, with the top
of the unit facing up.
NOTE:Hake sure the blower fan blades are visible
and are pointing up.
[_ Insert the tabs on each side of the damper
into the holes at the inside rear of the adapter.
[_ Attach the exhaust adapter to the blower plate
with the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure
proper alignment with gour house exhaust duct
after the oven is installed.
| MOUNT THE OVEN
FOREASIERINSTALLATIONAND PERSONALSAFETY,WE
RECOHHENDTHATTWO PEOPLEINSTALLTHIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE:If gout cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE:We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used,
case damage mag occur from over
tightening screws.
NOTE:When mounting
the oven, thread power cord
through hole in bottom
of top cabinet. Keep it tight
throughout Steps 1-3.
Do not pinch cord or lift
oven bg pulling cord. [] Lift oven, tilt it
forward and hook
slots at back bottom
edge onto two lower
tabs of mounting
plate.
\
Rotate front of oven
up against cabinet
bottom.
13

Installation Instructions

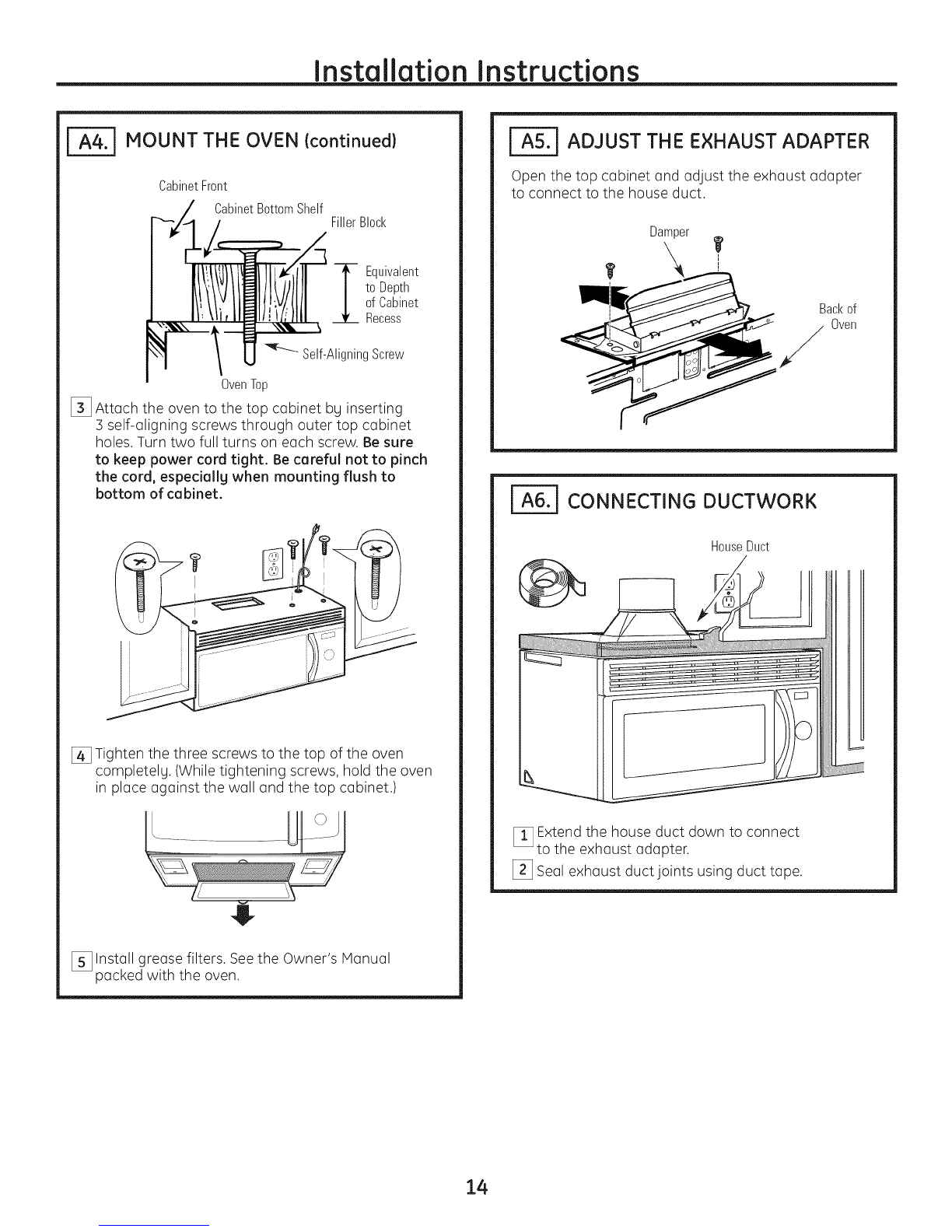

MOUNT THE OVEN {continued}
CabinetFront
CabinetBottomShelfFillerBlock
--_ Equivalent
to Depth
ofCabinet
Recess
Self-AligningScrew
OvenTop
[] Attach the oven to the top cabinet by inserting
] self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Becereful not to pinch
the cord, especially when mounting flush to
bottom of cebinet.
[] Tighten the three screws to the top of the oven
completelu. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
E........................
j.
[_ Install grease filters. Seethe Owner's Manual
packed with the oven.
__ ADJUST THE EXHAUST ADAPTER
Open the top cabinet and adjust the exhaust adapter
to connect to the house duct.
r"
Damper
CONNECTING DUCTWORK
HouseDuct
[]Extend the house duct down to connect
to the exhaust adapter.
[_ Seal exhaust duct joints using duct tape.
14

Installation Instructions
[- OUTSIDE BACK EXHAUST {Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Exhaust Adapter
to Wall Plate
B3. Attach Mounting Plate
to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Oven
I-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
[] Readthe instructions on the REARWALLTEMPLATE.
[_ Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
[_ Cut the opening, following the instructions of the REAR
WALLTEMPLATE.
ATTACH THE EXHAUST ADAPTER
TO THE OVEN REAR PANEL
[]Unscrew and remove the exhaust adapter assemblg
from the top of the oven.
TExhaust
Adapter
[_ Attach.....the exhaust adapter to the oven rear panel
by shdmg it into the guides at the top center
of the back of the oven.
Exhaust Adapter _ _ __ Damper
Jlo_ Tabs
Push in securelg until it is in the lower locking tabs.
Take care to assure the damper hinge is installed so
that it is at the top and that the damper swings freely.
15

Installation Instructions
ATTACH THE MOUNTING PLATE
TO TH E WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[] Remove the toggle wings from the bolts.
[_] Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to s/4"onto each bolt.
To use toggle bolts:
SpacingforTogglesMore
-,-I_-_!_,--ThanWallThickness
M .. IToggleWings
ountmg IIl'...li 1Toggle II I'.:1
P'ate_qll:.::ll.t_B_ II I:::K
m; I-,_-Wall nn u',l I
BoltEnd
[_ Placethe mounting plate against the woll and insert
the toggle wings into the holes in the wall
to mount the plate.
NOTE:Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properlg centered under
the cabinet.
CAUTION: Be careful to ovoid pinching fingers between
the back of the mounting plate and the wall.
[_ Tighten all bolts. Pull the plate owog from the wall
to help tighten the bolts.
IB4.1 USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws
and o hole large enough for the power cord to fit through.
• Readthe instructions on the TOPCABINETTEMPLATE.
• Tope it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINETTEMPLATE.
CAUTION: Wear sofetg goggles when drilling holes
in the cabinet bottom.
16

Installation Instructions
| ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
[] Remove the two screws that hold the blower plate
and remove the screw holding the blower motor to
the oven. Slide blower plate from under its retaining
flange.
Retaining ? "
Flange"__0"_ BlowerPlate
[_ Carefully pull out the blower unit. The wires
will extend far enough to allow Uouto adjust
the blower unit.
Bad<
of Oven
[_ Rotate blower unit counterclockwise 180°.
BeforeRotation
Backof
Oven
AfterRotation
Backof
Oven
[_ Rollthe blower unit 90° so that fan blade
openings are facing out the back of the oven.
BeforeRollin(
--__ After RollingA
Oven Backof
Oven
[] Place the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower unit
wiring. Hake sure the wires are not pinched.
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of oven.
[_ Replace the blower plate in the same position
as before and replace the screws for the blower
plate and blower motor.
BlowerPlateScrews
_----_---_ _ BlowerPlate
_ BackofOven
,,_--__'_-_ BlowerMotor Screw
17

Installation Instructions
| MOUNT THE OVEN
_f J
FOREASIERINSTALLATIONAND PERSONALSAFETY,WE
RECOMMENDTHATTWO PEOPLEINSTALLTHIS OVEN.
IMPORTANT: DO not grip or use handle
during installation.
NOTE:If your cabinet is metal, use the nglon grommet
around the power cord hole to prevent cutting
of the cord.
NOTE:We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
INPORTANT: If filler blocks are not used,
case damage mall occur from over
tightening screws.
NOTE:When mounting
the oven, thread power
cord through hole in
bottom of top cabinet.
Keep it tight throughout
Steps 1-]. Do not pinch
cord or lift oven bu
pulling cord. _'-._,_
[_ Rotate front of oven up
against cabinet bottom.
[] Lift oven, tilt it
forward and hook
slots at back bottom
edge onto two lower
tabs of mounting plate.
CabinetFront
CabinetBottomShelf FillerBlock
-_Equivalent
to Depth
ofCabinet
Recess
"_-- Self-AligningScrew
OvenTop
[_ Attach the oven to the top cabinet by inserting
] self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Becareful not to pinch
the cord, especially when mounting flush
to bottom of cabinet.
[] Tighten the three screws to the top
of the oven completelu. (While tightening
screws, hold the oven in place against the wall
and the top cabinet.)
$
[_ Install grease filters. Seethe Owner's Manual
packed with the oven.
18

Installation Instructions
RECIRCULATING (Non-Vented Ductless}
L
t
r
E
ATTACH THE MOUNTING PLATE
TO TH E WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[] Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into druwall and
reattach the toggle wings to s/4"onto each bolt.
To use toggle bolts:
Spacingfor Toggles
MoreThanWall
-_l_-_i_----Thicl<ness
Mounting
Plate
O
BoltEnd
[_ Place the mounting plate against the wall
and insert the toggle wings into the holes in the wall
to mount the plate.
NOTE:Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION: Be careful to avoid pinching fingers between
the back of the mounting plate and the wall.
[_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
IC2.1 USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
• Readthe instructions on the TOPCABINETTEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP
CABINETtemplate.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
19

Installation Instructions
ADAPTING BLOWER
FOR RECIRCULATION
NOTE:The exhaust Adapter with damper is not
needed for recirculating models. You mag want
to save them for possible future use.
[] Remove and save screws that hold blower plate
and blower unit to the oven.
BlowerPlateScrews
_-----------_ ,_ BlowerPlate
, i
___ BackofOven
---- BlowerMotorScrew
[_ Slide the blower plate from under its retaining
flange and lift it off.
Retaining
_r_ BlowerPlate
[_ Carefullg pull out the blower unit. The wires
will extend far enough to allow gou to adjust
the blower unit.
r
[_ Rollthe blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll 4_
2O
