GE Profile PVM1790 User manual

I
Istall ti structi Above the
Cooktop Oven
PVM1790 CVM1750
CVM1790
=
BEFORE YOU BEGIN
Read these instructions completely and carefully.
.IMPORTANT -Savethese
instructionsforlocalinspector'suse.
.IMPORTANT -Observeall
governingcodesand ordinances.
. Note to Installer - Be sure to leave these
instructions with the Consumer.
Note to Consumer - Keepthese instructions
for future reference.
Skill level - Installation of this appliance requires basic
mechanical and electrical skills.
. Proper installation is the responsibility of the installer.
. Product failure due to improper installation is not
covered under the Warranty.
©
LA SECCION EN ESPANOL
EMPIEZA EN LA PAGINA 25. READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
49-40724 o6-14GE IIIIIIIIIIII
MFL06244904

Installation Instructions

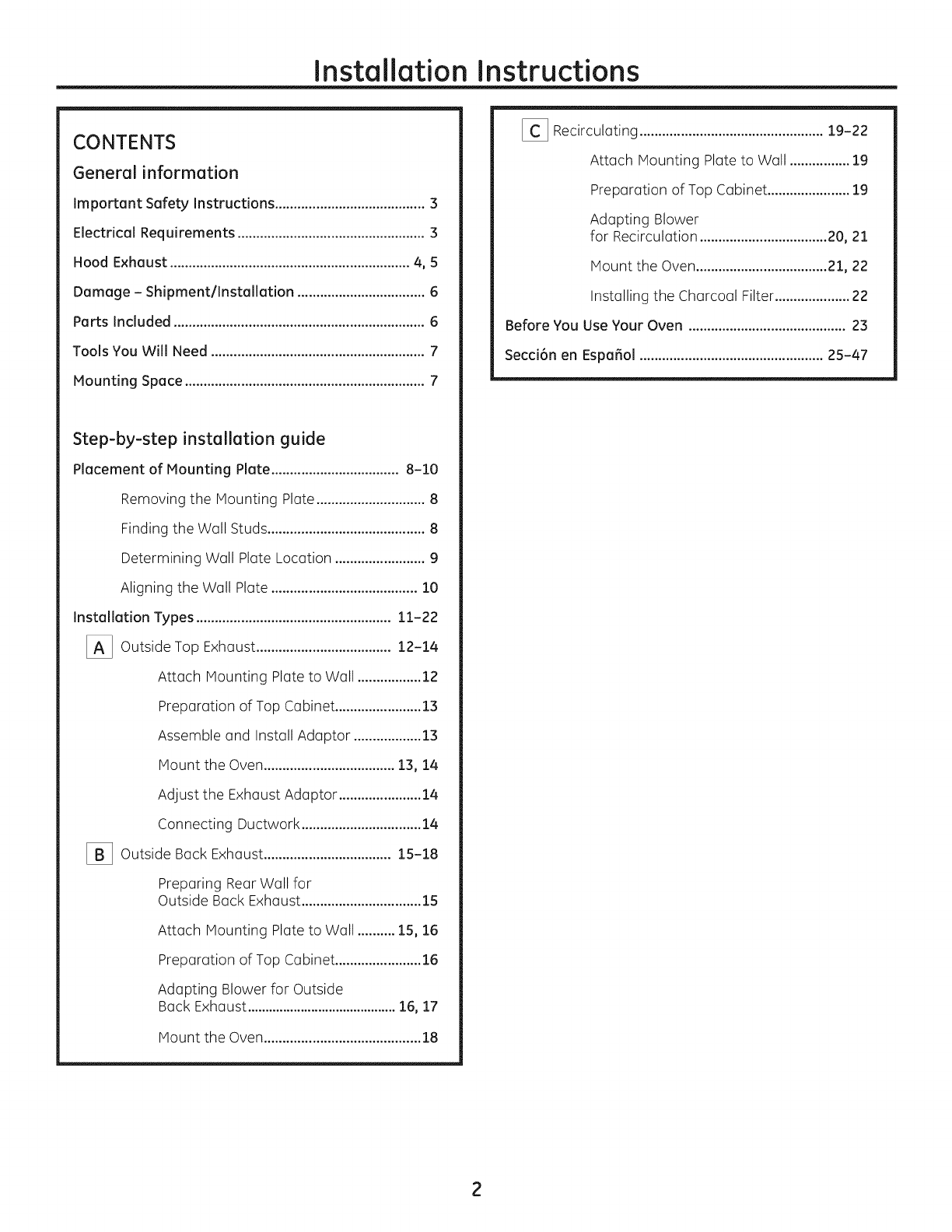

CONTENTS
General information
Important Safety Instructions ........................................ 3
Electrical Requirements .................................................. 3
Hood Exhaust ................................................................ 4, 5
Damage - Shipment/installation .................................. 6
Parts Included ................................................................... 6
Tools You Will Need ......................................................... 7
Mounting Space ................................................................ 7
Step-by-step installation guide
Placement of Mounting Plate .................................. 8-10
Removing the Mounting Plate ............................. 8
Finding the Wall Studs .......................................... 8
Determining Wall Plate Location ........................ 9
Aligning the Wall Plate ....................................... 10
Installation Types .................................................... 11-22
[_ Outside Top ....................................
Exhaust 12-14
Attach Mounting Plate to Wall ................. 12
Preparation of Top Cabinet ....................... 13
Assemble and Install Adaptor .................. 13
Mount the Oven ................................... 13, 18
Adjust the Exhaust Adaptor ...................... 18
Connecting Ductwork ................................ 14
[_ Outside .................................. 15-18
Back Exhaust
Preparing Rear Wall for
Outside Back Exhaust ................................ 15
Attach Mounting Plate to Wall .......... 15, 16
Preparation of Top Cabinet ....................... 16
Adapting Blower for Outside
Back Exhaust .......................................... 16, 17
Mount the Oven .......................................... 18
[_ Recirculating ................................................. 19-22
Attach Mounting Plate to Wall ................ 19
Preparation of Top Cabinet ...................... 19
Adapting Blower
for Recirculation .................................. 20, 21
Mount the Oven ................................... 21, 22
Installing the Charcoal Filter .................... 22
Before You Use Your Oven .......................................... 23
Secci6n en Espa_ol ................................................. 25-47

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
A qualified electrician must perform a ground continuity
check on the wall receptacle before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the wall
receptacle does not meet electrical requirements noted
(under ELECTRICALREQUIREMENTS),a qualified electrician
should be employed to correct any deficiencies.
AWARNING:
Riskof Electric Shock.
Can cause injury or death:
Remove house fuse or
open circuit breaker before
beginning installation to avoid
severe or fatal shock injury.
_VV/'_|_ l |_: Riskof Electric Shock.
Can cause injury or death: THISAPPLIANCEMUSTBE
PROPERLYGROUNDEDto avoid severe or fatal shock.
120 V Models
groond% s
beforeuse
The power cord of this
appliance isequipped with
a three-prong (grounding}
plug which mates with
a standard three-prong
(grounding} wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed by a
qualified electrician.
AWARN ING:RiskofElectricShock.
Can cause injury or death: DO NOT,under any
circumstances, cut, deform or remove any of the prongs
from the power cord. Do not usewith an extension cord.
Failure to comply may cause fire.
A,--^! a-rl,_l
Jll_/'_lJ|| _J|_l: For personal safety, the
mounting surface must be capable of supporting the
cabinet loud, in addition to the added weight of this
63-85 pound product, plus additional oven loads of up
to 50 pounds or a total weight of 113-135 pounds.
ACAUTION: Forpersonalsafety,thisproduct
cannot be installed in cabinet arrangements such as an
island or a peninsula. It must be mounted to BOTHa top
cabinet AND a wall.
IkCAUTION: Toavoidtheriskofpersonal
injury (back injury or other injuries due to excessive
weight of the microwave oven} or property damage, you
will need two people to install this microwave oven.
ELECTRICAL REQUIREMENTS
120 V Models
This product requires a three-prong grounded outlet.
Product rating is !20 volts AC, 60 Hertz, 15 amps,
and !.70 kilowatts. This product must be connected
to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven and away
from any potential microwave oven ducting.The outlet
box and supply circuit should be installed by a qualified
electrician and conform to the National Electrical Code or
the prevailing local code.
3

Installation Instructions
HOOD EXHAUST
NOTE:Read these next two pages only if you plan to vent your exhaust to the outside.
If you plan to redrculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
Thefollowing chart describes an example of one possible
ductwork installation.
DUCT PIECES
DRoof Cap
!2 Ft.Straight Duct
(6" Round)
Rectangular-to-Round
Transition Adaptor*
EQUIVALENT NUMBER EQUIVALENT
LENGTH x USED =LENGTH
24 Ft. x (!)
12 Ft. x (!)
5 Ft. x (!)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length
24 Ft.
12 Ft.
5 Ft.
41 Ft.
*IMPORTANT:If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will
have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* × USED -- LENGTH
_ Wall Cap 40 Ft. x (!) = 40 Ft.
3 Ft.Straight Duct 3 Ft. x (!) = 3 Ft.
3¼" x i0" Rectangular)
_ 90° Elbow i0 Ft. x (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 63 Ft.
NOTE:For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
4

Installation Instructions

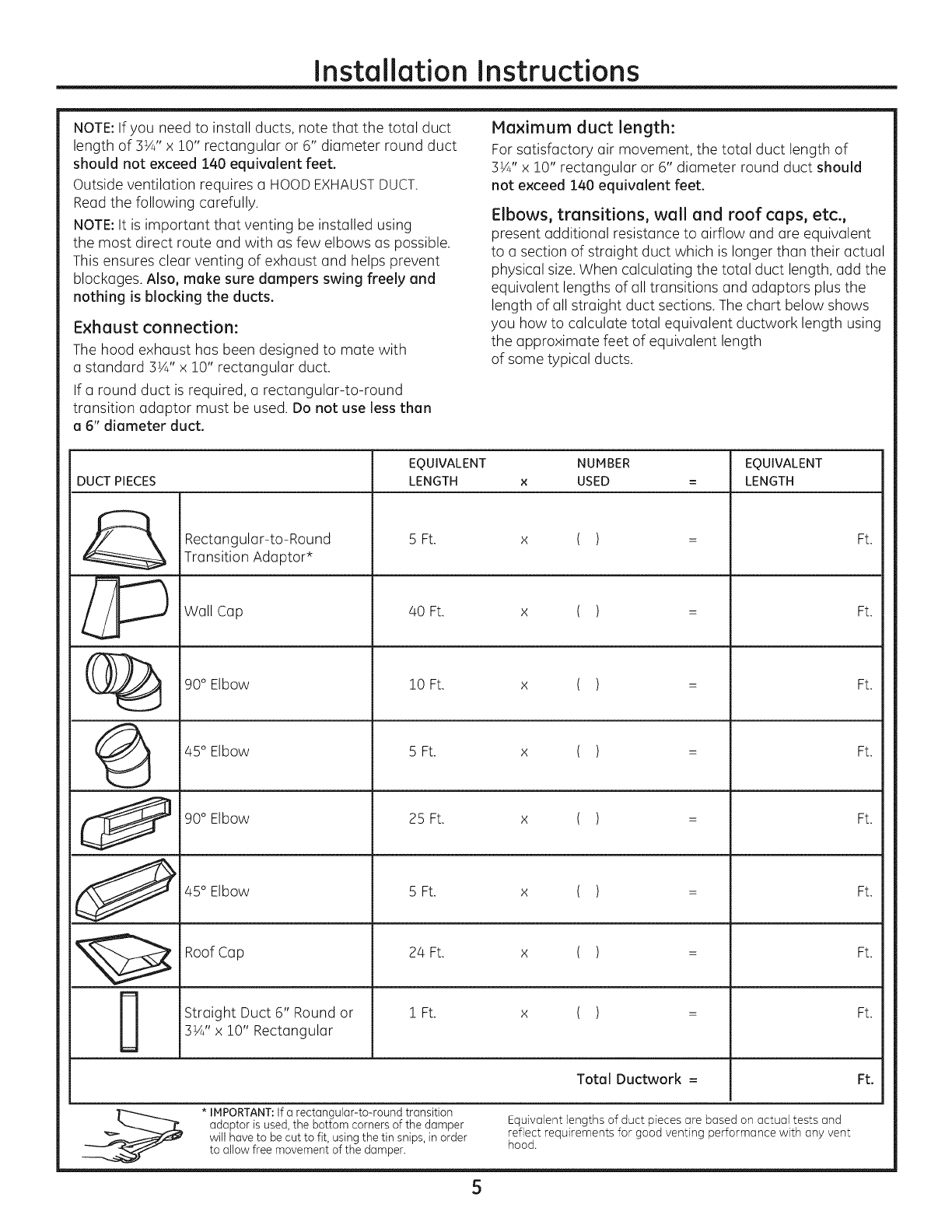

NOTE:If you need to install ducts, note that the total duct
length of 3¼" x 10" rectangular or 6" diameter round duct
should not exceed 140 equivalent feet.
Outside ventilation requires a HOODEXHAUSTDUCT.
Reed the following carefully.
NOTE:It is important that venting be installed using
the most direct route end with as few elbows as possible.
This ensures clear venting of exhaust end helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3½" x 10" rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6" diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
3¼" x 10" rectangular or 6" diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their actual
physical size.When calculating the total duct length, add the
equivalent lengths of all transitions and adaptors plus the
length of all straight duct sections. The chart below shows
you how to calculate total equivalent ductwork length using
the approximate feet of equivalent length
of some typical ducts.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. ( ) Ft.
x
Transition Adaptor*
//_ Wall Cap 40 Ft. x ( ) : Ft.
(__ 90° Elbow 10 Ft. x ( ) = Ft.
45° Elbow 5 Ft. x ( ) = Ft.
90° Elbow 25 Ft. x ( ) = Ft.
_ 45 Elbow 5Ft. x ( ) = Ft.
Roof Cap 24 Ft. x ( ) = Ft.
Straight Duct 6" Round or 1 Ft. x ( ) = Ft.
3¼" x i0"Rectangular
Total Ductwork = Ft.
* IMPORTANT:If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper Equivalent lengths of duct pieces are based on actual tests and
will have to be cut to fit, using the tin snips, inorder reflect requirements for good venting performance with any vent
to allow free movement of the damper, hood.
5

Installation Instructions
DAMAGE- SHIPMENT/
INSTALLATION
, If the unit is damaged in shipment, return
the unit to the store in which it was bought for
repair or replacement.
, If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
, If the unit is damaged by the installer (if other than
the customer), repair or replacement must
be made by arrangement between customer
and installer.
PARTS INCLUDED
HARDWARE PACKET
PART
J
Wood Screws
(¼" x 2")
Toggle Bolts (and
wing nuts)(¼" x 3")
Self-aligning Machine
Screw (¼"-28 x 2%')
Nylon Grommet
(for metal cabinets)
Metal Screws
(½" x ½")
QUANTITY
2
1 black
2 bronze
You will find the installation hardware contained
in a packet with the unit. Check to make sure you
have all these parts.
NOTE:Some extra parts are included.
PARTS INCLUDED
ADDITIONAL PARTS
PART
TOPCABINETTEMPLATE
INSTAU_ATION
INSTRUCTIONS
Top Cabinet
Template
m
QUANTITY
1
RearWall
Template
Installation
Instructions
Separately
Packed
Grease
Filters
Exhaust
Adaptor
Damper
1
m
1
6

Installation Instructions
TOOLS YOU WILL NEED
# i and #2 Phillipsscrewdriver Pencil
Tinsnips(forcutting
damper,if required)
Gloves
Safetygoggles
Scissors
(to cut template,
if necessary)
Saw(saber,holeor keyhole)
Ruleror tape measure
raightedge
Electric drill with Y/', V/',
W' and s/8"drill bits
0
Studfinder or 1
Hammer(optional)
Level
Carpentersquare
(optional)
¢5b
Fillerblocksor scrapwood
pieces,if needed
fortop cabinetspacing
(usedon recessedbottom
cabinet installationsonly)
Ductand maskingtape
MOUNTING SPACE
lS" max.
66" or more
from the floor
to the top of
the oven
e
Bottomedgeof
cabinet needsto
be30" or more
fromthe cooking
surface
Backsplash
NOTES:
, The space between the cabinets must be 30" wide
and free of obstructions.
If the space between the cabinets is greater than
30", a Filler Panel Kit may be used to fill in the gap
between the oven and the cabinets. Your Owner's
Manual contains the kit number for your model.
This oven is for installation over ranges up to
36" wide.
, If you are going to vent your oven to the outside,
see Hood Exhaust Section for exhaust duct
preparation.
, When installing the oven beneath smooth, flat
cabinets, be careful to follow the instructions
on the top cabinet template for power cord
clearance.
. Maximum cabinet depth above and beside the unit
is 13".
, Formodels with top venting holes: Do not allow
cabinetry or other objects to block the airflow of the
vent.
, The product should not be installed over any
cooktop or range with a combined BTUgreater
than 60000 BTU.

Instollotion Instructions
-IPLACEMENT OF THE MOUNTING PLATE
REMOVING THE OVEN FROM
THE CARTON/REMOVING
THE MOUNTING PLATE
%
[]
Remove the box containing the installation
instructions, filters, exhaust adaptor, damper
and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton sides.
Then carefully roll the oven and carton over onto
the top side. The oven should be resting in the
Styrofoam.
%
%
%
%
Pullthe carton up and off the oven.
The mounting plate is attached to the back of the
oven. Remove the two screws holding it to the oven.
The plate will be used as the rear wall template and
for mounting the oven to the wall.
Setthe oven upright. Remove and properly discard
plastic bags and Styrofoam.
Open the oven door and remove the styrofoam
pack from inside the oven. Remove the tape
covering the turntable hub.
[_ FINDING THE WALL STUDS
Cente_
Wall
Studs
[_ Findthe studs, using one of the following methods:
A. Stud finder - a magnetic device which locates nails.
OR
B. Use a hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
[_ After locating the stud(s),find the center by probing
the wall with a small nail to find the edges of the stud.
Then place a mark halfway between the edges.
The center of any adjacent studs should be 16" or 24"
from this mark.
[_ Draw a line down the center of the studs.
IMPORTANT: The microwave oven must be connected to
at least one wall stud.
8

Installation Instructions
[_ DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet Plate position - beneath framed recessed
cabinet bottom
ol
MountingPlateTobs
Touchingthe CGbinet
Bottom
"%
\
At leost 30", up to 36"
Mounting Plate Tabs
Touching the Bock
Frome
Plate position - beneath recessed bottom
cabinet with front overhang
Mounting Plote
with TabsBelow
CabinetBottom
the SameDistonce
osthe Front
OverhGngDepth
:
..
Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
THE OVENMUST BELEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no back
or side frame, install the mounting plate down the same
distance as the front overhang depth. This will keep
the oven level.
[_ Measure the inside depth of the front overhang.
[_ Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
[_ Forthis type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
30" to Cooktop
I
9

Installation Instructions

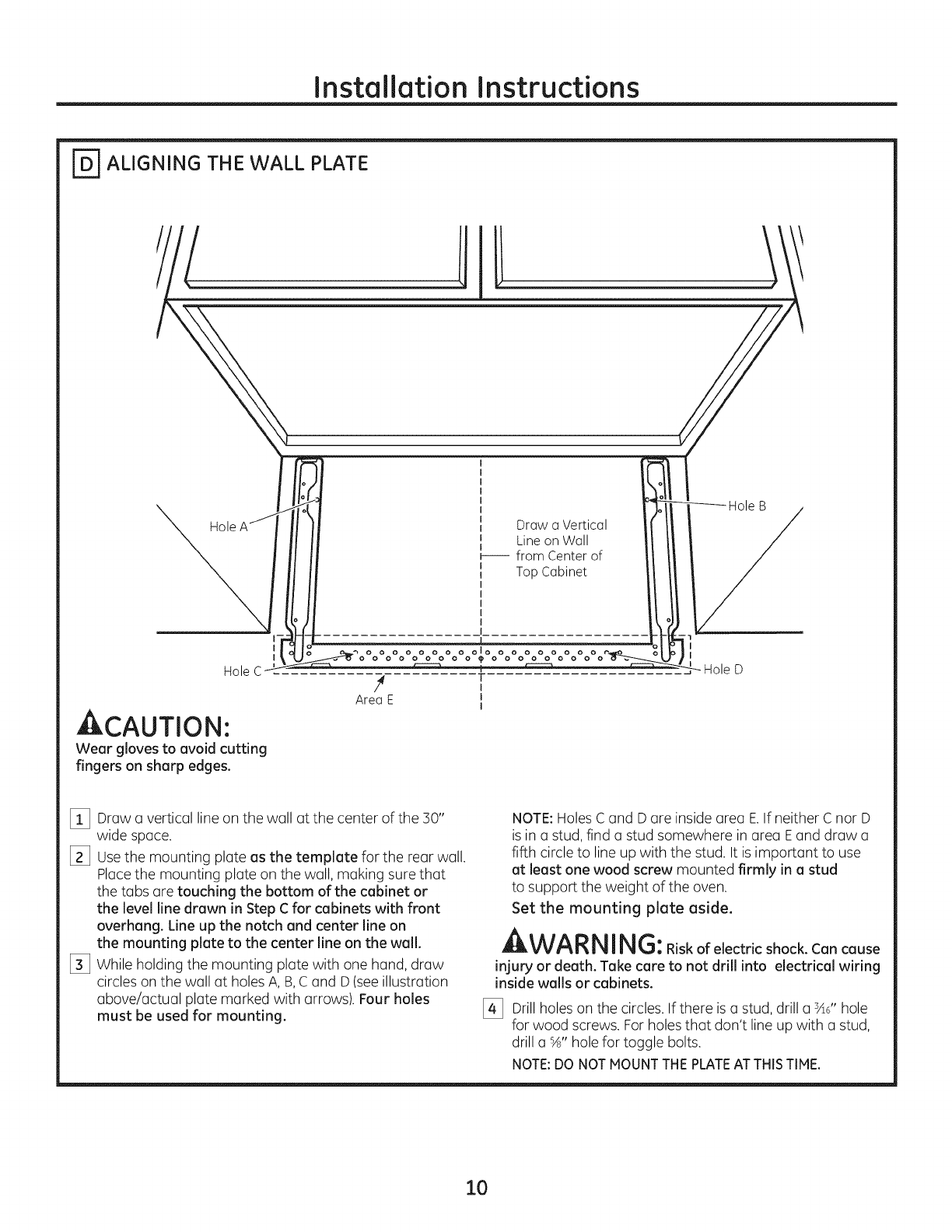

_ ALIGNING THE WALL PLATE
Hole Draw a Vertical
Line on Wall
_--- from Center of
Top Cabinet
Hole C
ACAUTION'.
Wear glovestoavoidcutting
fingerson sharpedges.
I
Iolo
4T
I
AreaE J
I
[] Draw a vertical line on the wall at the center of the 30"
wide space.
[_ Usethe mounting plate as the template for the rear wall.
Placethe mounting plate on the wall, making sure that
thetabsaretouchingthebottomofthecabinetor
thelevellinedrawn inStepC forcabinetswithfront
overhang.Lineup thenotchand centerlineon
themountingplatetothecenterlineon thewall.
[_ While holding the mounting plate with one hand, draw
circles on the wall at holesA, B,Cand D(seeillustration
above/actual plate marked with arrows). Four holes
must be used for mounting.
NOTE:Holes Cand D are inside area E.If neither C nor D
isin a stud, find a stud somewhere in area Eand draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the oven.
Set the mounting plate aside.
WAR NING:Riskofelectricshock.Cancause
injury or death. Take care to not drill into electrical wiring
inside walls or cabinets.
[_ Drill holeson the circles. If there is a stud, drill a sad'hole
for wood screws. Forholes that don't line up with a stud,
drill a %" hole for toggle bolts.
NOTE:DONOTMOUNTTHEPLATEATTHISTIME.
10

Installation Instructions

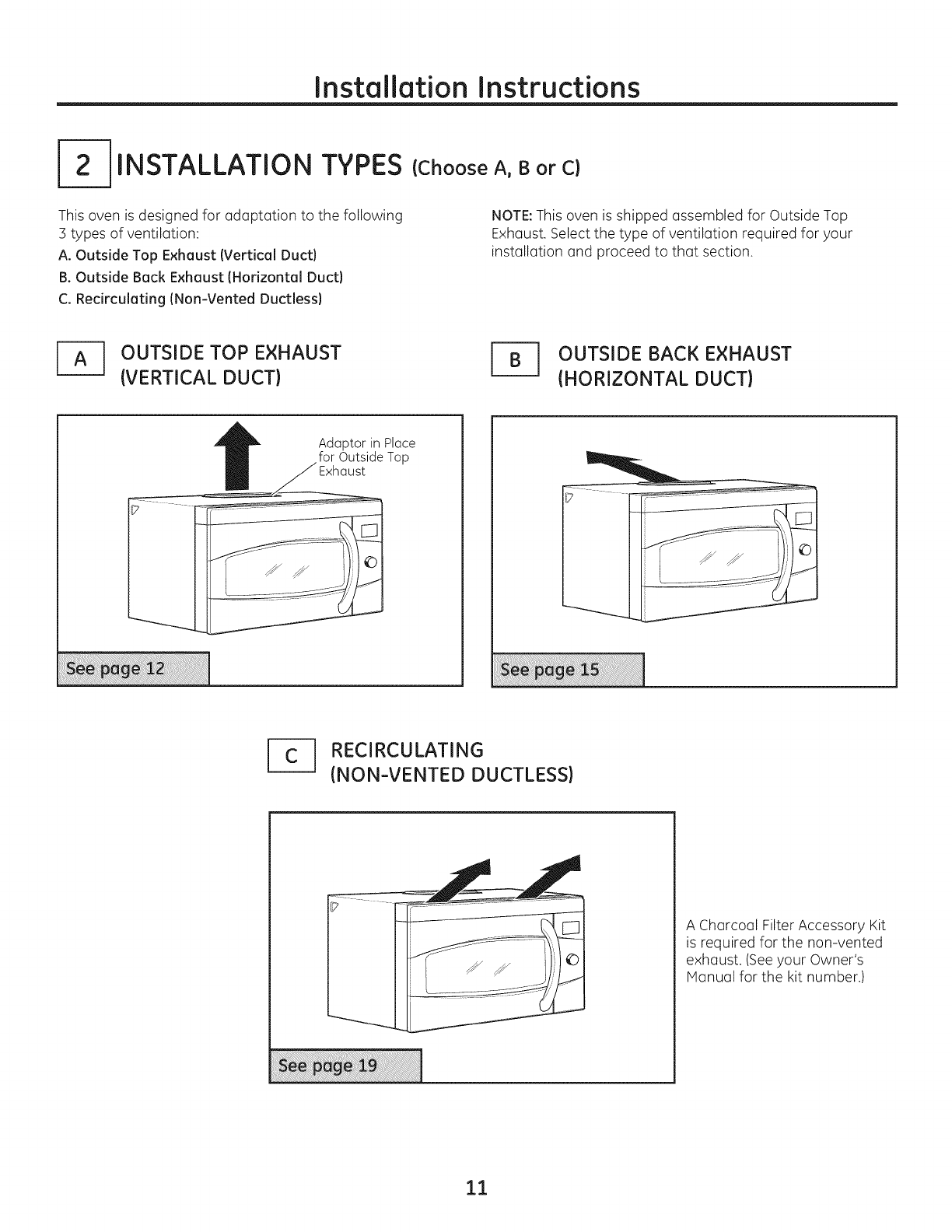

INSTALLATION TYPES
This oven is designed for adaptation to the following
3 types of ventilation:
A. Outside Top Exhaust (Vertical Duct}
B. Outside Back Exhaust (Horizontal Duct}
C. Recirculating (Non-Vented Ductless}
(Choose A, B or C)
NOTE:This oven is shipped assembled for Outside Top
Exhaust. Select the type of ventilation required for your
installation and proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT) r_ UTSIDE BACK EXHAUST (HORIZONTAL DUCT)
Adaptor in Place
for Outside Top
1_ RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory Kit
is required for the non-vented
exhaust. (Seeyour Owner's
Manual for the kit number.)
11

Installation Instructions
_OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
AI. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adaptor _ _FAq_)> II Ill
A4.MountOven tl nU_IV I1I_II
A5. Adjust Exhaust Adaptor ? i_--_q-- Jl Ill
A6. ConnectDuctwork --I "lf
" I L"
_TI ATTACH THE MOUNTING PLATE
TO THE WALL
A _B!i
=_
¢_ D
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud. Recommended locations on the mounting
plate are indicated by A, B,C and D.
[_ Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to ¾" onto each bolt.
12
To use toggle bolts:
Mounting
Spacingfor
Toggles More Than
-__Hq_--- WallThickness
' I
!ToggleWings
Bolt End
[_ Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE:Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
At,^, ,-,-,r,,_,
J;i,l_,l"_Ull11J|_l: Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
[_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.

Installation Instructions
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
. Read the instructions on the TOP CABINET TEMPLATE.
. Tape it underneath the top cabinet.
. Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
A,-,^a l-ri,-,_a
LIL_I'_U|IIJ|_i: Wear safety goggles when
drilling holes in the cabinet bottom.

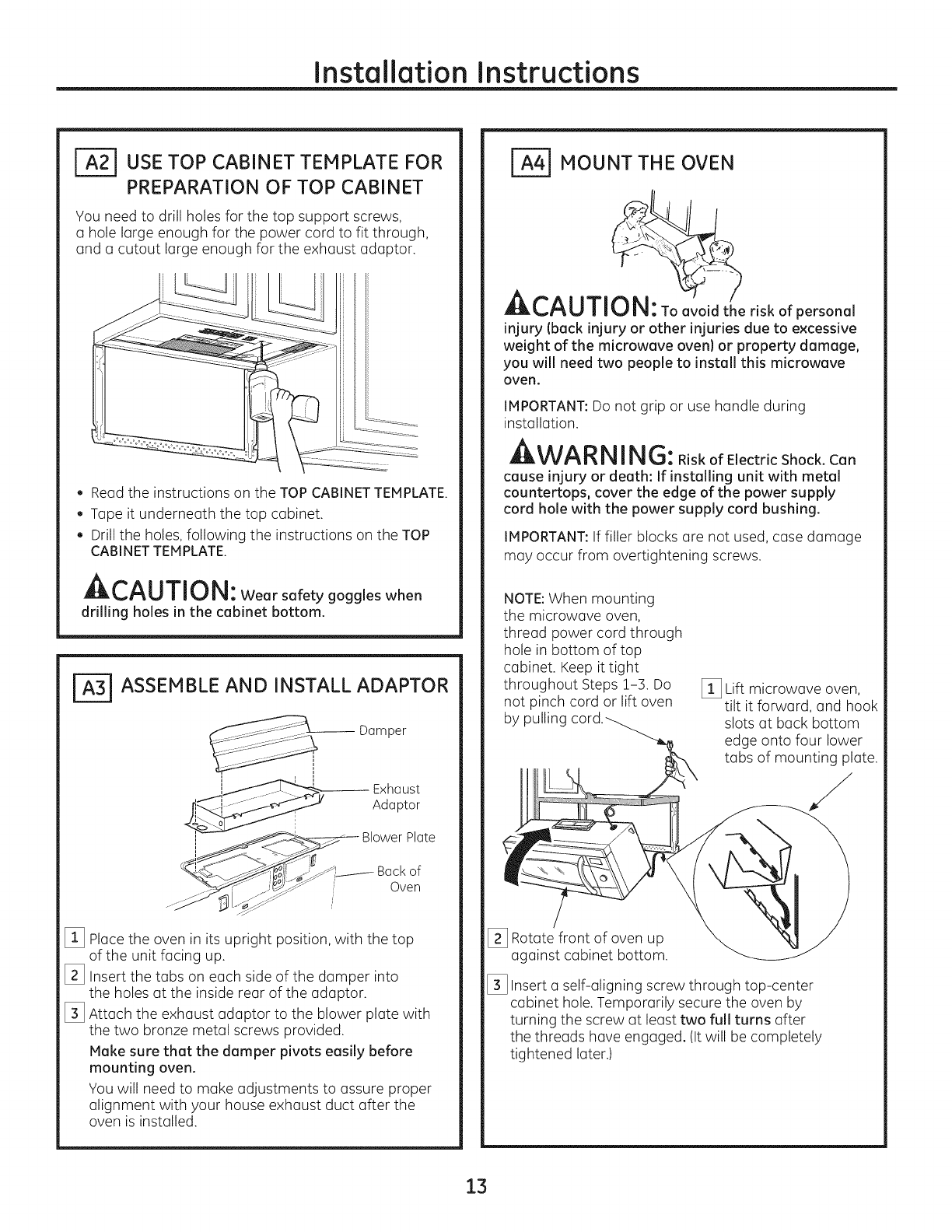

r_ ASSEMBLE AND INSTALL ADAPTOR
Damper
i
,t----i ...... Exhaust
Adaptor
i ___BI°wer Plate
l__ _--_iF ' Backof
Oven
[_ Placethe oven in its upright position, with the top
of the unit facing up.
[_ Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
[_ Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.
_ MOUNT THE OVEN
CAUTI'ON:Toavo riskofpersonal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT:Do not grip or use handle during
installation.
WARNING:RiskofElectricShock.Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT:If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE:When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
[_ Rotate front of oven up
against cabinet bottom.
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
13

Installation Instructions
_ MOUNT THE OVEN (continued)
[_ Attach the oven to the top cabinet.
[_ Insert 3 self-aligning screws
(¼"-28 x 2 S/s")through outer
top cabinet holes. Turn two full
turns on each screw.
Cabinet Front
Cabinet Bottom Shelf FillerBlock
._E ° _, This distance
quivalent |can NOT
o depth | exceed 2" to
f cabinet | ensure proper
_installation
-- Self-Aligning Screw
Oven Top
[] Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
,/
..............................................................................................111 i _],
[_ Install grease filters. Seethe Owner's Manual
packed with the oven.
_=5] ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Damper
i ,_
_q - Backof
i_J _ _ L.3_/_ ,Oven
_6] CONNECTING DUCTWORK
House Duct
[_ Extend the house duct down to connect to
the exhaust adaptor.
[_ Seal exhaust duct joints using duct tape.
14

Installation Instructions
a-- OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2.Attach Mounting Plateto Wall
B3. Prepare Top Cabinet
B4.Adjust Blower
B5. Mount the Oven
I
I
I
_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
, Readthe instructions on the REARWALL TEMPLATE.
, Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
, Cut the opening, following the instructions of the
REARWALL TEMPLATE.
ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[_ Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to sA"onto each bolt.
15

Installation Instructions
To use toggle bolts:
Spacing for Toggles More
-_l-_-_----Than Wall Thickness
Mounting Toggle Wings
Platemj__"
Bolt End
[_ Placethe mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE:Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTI0 N:Be carefultoavoidpinching
fingersbetweenthe backofthemounting
plateand thewall.
[_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
r-_ USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
, Read the instructions on the TOP CABINET
TEMPLATE.
, Tape it underneath the top cabinet.
, Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wearsafety goggles when
drilling holes in the cabinet bottom.

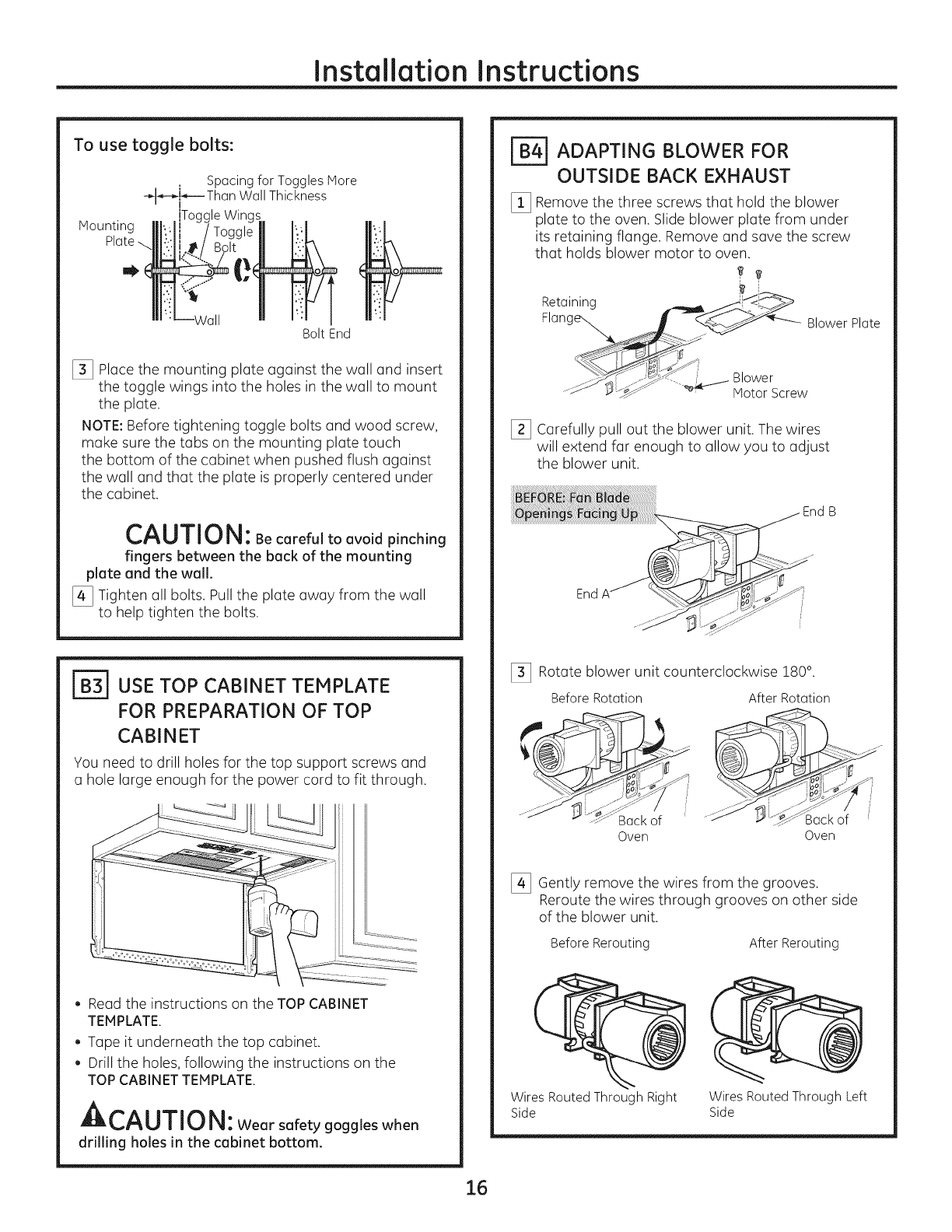

__ ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
[_ Remove the three screws that hold the blower
plate to the oven. Slide blower plate from under
its retaining flange. Remove and save the screw
that holds blower motor to oven.
t_
Retaining _ _i!_<_
Flange._. __-_-- BlowerPlate
__ Blower
.-"-_ -_i-_ MotorScrew
[_ Carefully pull out the blower unit. Thewires
will extend far enough to allow you to adjust
the blower unit.
End
[_ Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Back of
Oven Oven
3ack of
[_ Gently remove the wires from the grooves,
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right
Side Wires RoutedThroughLeft
Side
16

Installation Instructions
I_ Rollthe blower unit 90° so that fan blade openings
are facing out the back of the oven.
BeforeRolling
Backof
Oven
After Rolling
Back of
Oven
%Locate the two "knockout" plates, on the rear oven
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
two holes side-by-side (that secure the knockouts to
the oven). Cut all four webs on both rear knockouts;
this will allow the ventilation fan airflow to exhaust
out the rear of the oven.
A,--^l I-rl,- m
Jlbt'_U|| _-.Jl_l : Be sure to trim the sharp
edges from the openings after removing the
knockout plates.
Oven Rear Panel
Snipall/4webs
on eachknockout
paneland remove
"_.___ themetalknockouts
_;-- _._" for rearairflow.
[_ Place the blower unit back into the opening.
A
End
WA RNING:Riskofelectricshock
can cause injury or death. Do not pull or stretch
the blower unit wiring, make sure the wires are
not pinched..
NOTE:The blower unit exhaust openings should
match exhaust openings on rear of microwave oven.
%Replace the blower plate in the same position
as before with the screws.
_ BlowerPlateScrews
BlowerPlate
_J _c!O__ BackofOven
[_ Insert the tabs on each side of the damper
into the holes at the inside rear of the adaptor.
--- Exhaust
Adaptor
[_ Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
Exhaust Aria
Slide exhaust
adaptor into
guides on
oven rear.
Damper
(hingesideup)
Screws
Back of Oven
Locking
Tabs Guides
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed
so that it is at the top and that the damper swings
freely.
[_ Secure the exhaust adaptor to the oven with
the two bronze metal screws provided.
17

Installation Instructions
[_ MOUNT THE OVEN
ACAUTION: To°voidtheriskofpersonal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT:Do not grip or use handle during
installation.
WARN ING:RiskofElectricShock.Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT:If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE:When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling
[_ Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
[_ Rotate front of oven up
against cabinet bottom.
[_ Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later.)
Cabinet Front
Cabinet Bottom Shelf
Filler Block
-_rtoEequivale nt
o depth
f cabinet
cess
This distance
can NOT
exceed 2" to
ensure proper
installation
-- Self-Aligning Screw
Oven Top
[_ Attach the oven to the top cabinet.
[_ Insert 3self-aligning screws
(½"-28 x 2 %') through outer
top cabinet holes. Turn two full
turns on each screw.
[] Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
ii j
....................................................._ .......................
[_ Install grease filters. Seethe Owner's Hanual
packed with the oven.
18

Installation Instructions

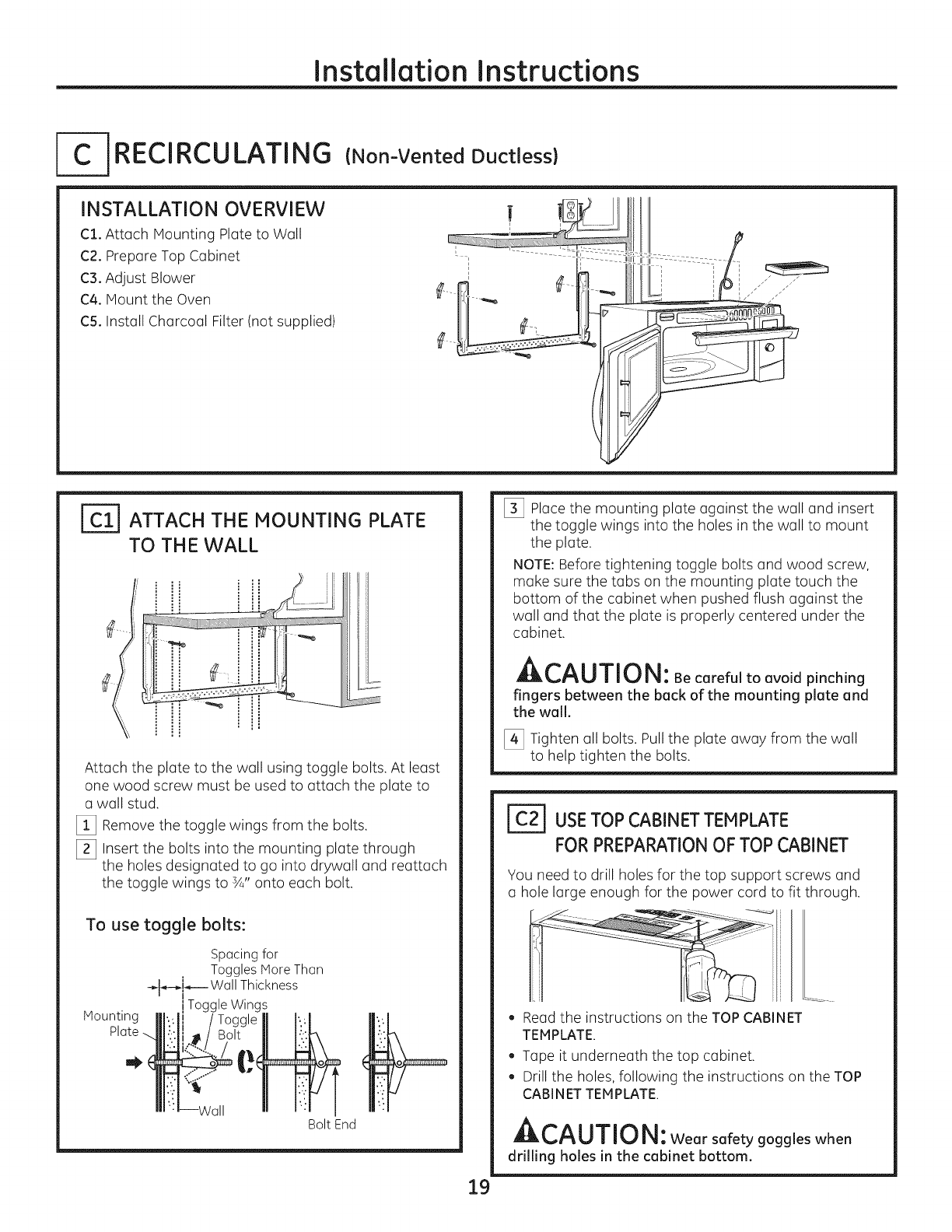

-- RECIRCULATING (Non-Vented Ductless}
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adjust Blower
Ca,.Mount the Oven
CE Install Charcoal Filter (not suppliedt
I
II
ATTACH THE MOUNTING PLATE
TO TH E WALL
, ,>i i !i i
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[] Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to ¾" onto each bolt.
To use toggle bolts:
Mounting
Spacingfor
TogglesMoreThan
-_1-_-__----WallThickness
iToggleWings
BoltEnd
[_ Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE:Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet when pushed flush against the
wall and that the plate is properly centered under the
cabinet.
A,--^l ,-rl_l,i
LII, I_,I"_I,,IIIILJ I_I : Be careful to avoid pinching
fingers between the beck of the mounting plete end
the well.
[_ Tighten all bolts, Pull the plate away from the wall
to help tighten the bolts.
_--_ USETOPCABINETTEHPLATE
FORPREPARATIONOF TOPCABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
19
, Read the instructions on the TOP CABINET
TEMPLATE.
, Tape it underneath the top cabinet.
, Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
A,-,^, ,-r,,-_ _,
mrm'_,l=_U||11J |_ : Weer sefety goggles when
drilling holes in the cebinet bottom.

Installation Instructions

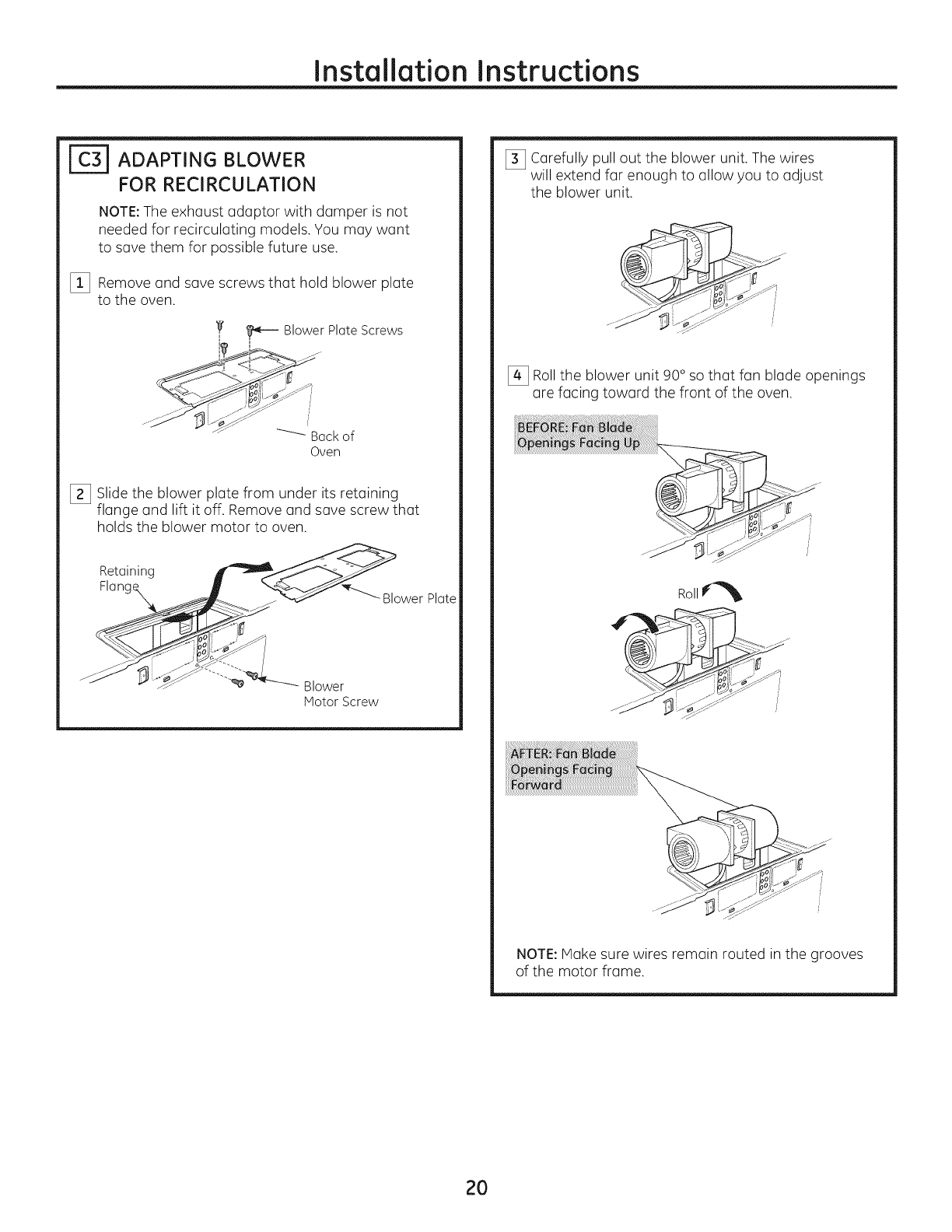

ADAPTING BLOWER
FOR RECIRCULATION
NOTE:The exhaust adaptor with damper is not
needed for recirculating models. You may want
to save them for possible future use.
[_ Remove and save screws that hold blower plate
to the oven.
_,V _ BlowerPlateScrews
------ Backof
Oven
[_ Slide the blower plate from under its retaining
flange and lift it off. Remove and save screw that
holds the blower motor to oven.
Retaining _q_l_,_
Hang ___ Blower Plate
__ Blower
Motor Screw
[_ Carefully pull out the blower unit. Thewires
will extend far enough to allow you to adjust
the blower unit.
[_ Rollthe blower unit 90° so that fan blade openings
are facing toward the front of the oven.
Roll
/Jl /J"
/
NOTE:Make sure wires remain routed in the grooves
of the motor frame.
2O
