GE Profile Advantium PSA1200 User manual

Installation
Above
the
Instructions
Cooktop
Oven
PSA1200,
PSA
1201,
PSA2200, PSA2201,
ZSA1201, ZSA1202, ZSA2201 & CSA1201
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully. Note to Consumer - Keep these instructions
l M PO RTANT for future reference.
‘nstructions for local i ~ nove these ¢ Skill level - Installation of this appliance requires basic
INSUUCHONS TOF TOCA! INSPECtor’s USE. mechanical and electrical skills.
° IM PO RTANT — Observe all ¢ Proper installation is the responsibility of the installer.
governing codes and ordinances.
Product failure due to improper installation is not
« Note to Installer — Be sure to leave these covered under the Warranty.
i—
7]
instructions with the Consumer.
LA SECCIUN EN ESPAOOL EMPIEZA READ CAREFULLY.
EN LA P-GINA 25. KEEP THESE INSTRUCTIONS.

Installation Instructions
CONTENTS
General information
Important Safety INStructionsS............cecececeeceeseeeteeeees 3
Electrical Requirement .............ccccceceecececececececeeesceeeeees 3
Hood Exhaust 4,5
Damage - Shipment/Installation ............. es eeeseeseeeeee 6
Parts Included ....0.....eeesesesssossesesesneecscossesestenseesesesecentees 6

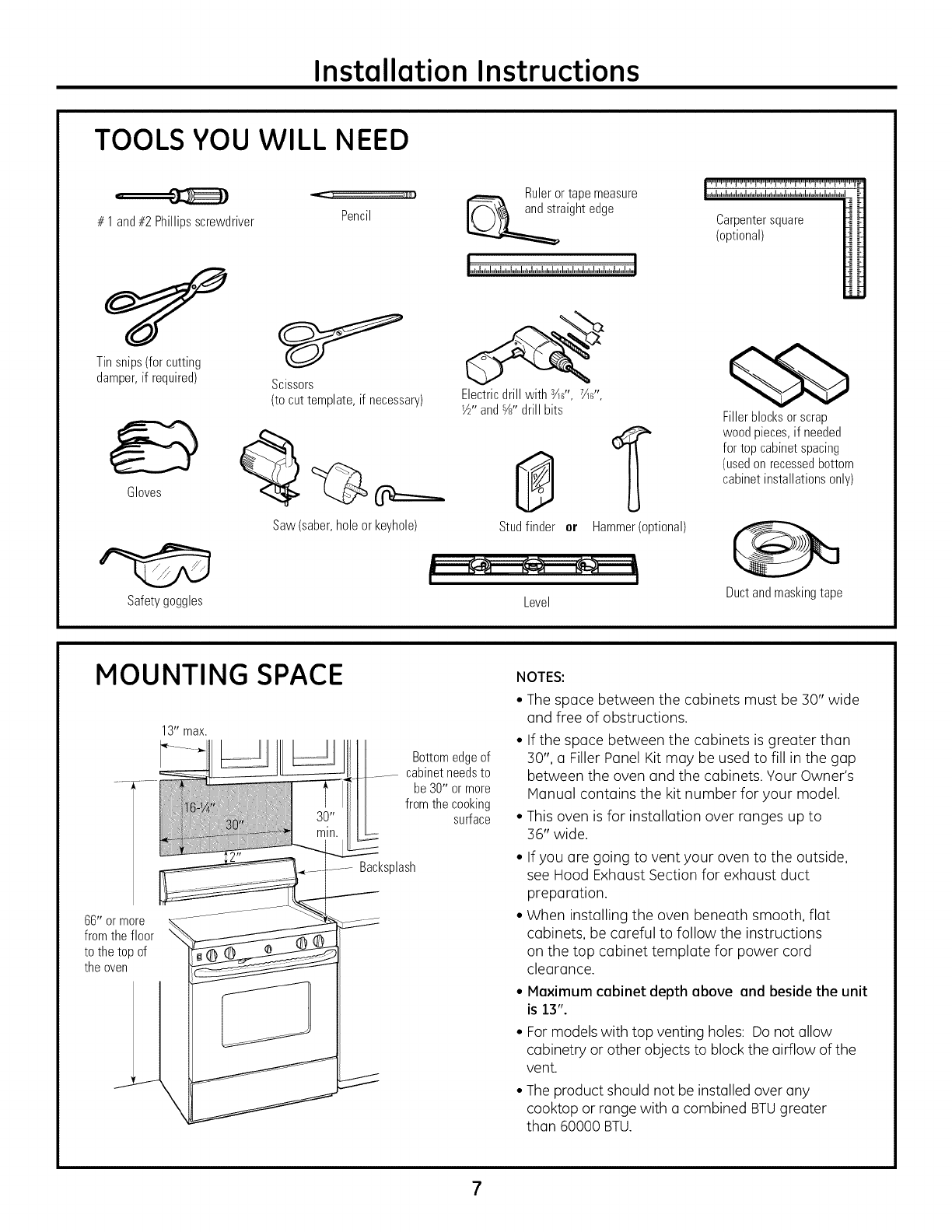

Tools You Will Need .... 7
MOUNTING SPOCO qu... eeeceseceececeseeesceeeecececeesersceseeteseeers 7
Step-by-step installation guide
Placement of Mounting Plate... csssseeeeeeees 8-10
Removing the Mounting Plate... esessssseseerees 8
Finding the Wall Studs... ecsececececececececeserceeeeeees 8
Determining Wall Plate LOCATION... eeeeceeeeeees 9
Aligning the Wall Plate ......ccssssesesesesesesererereees 10

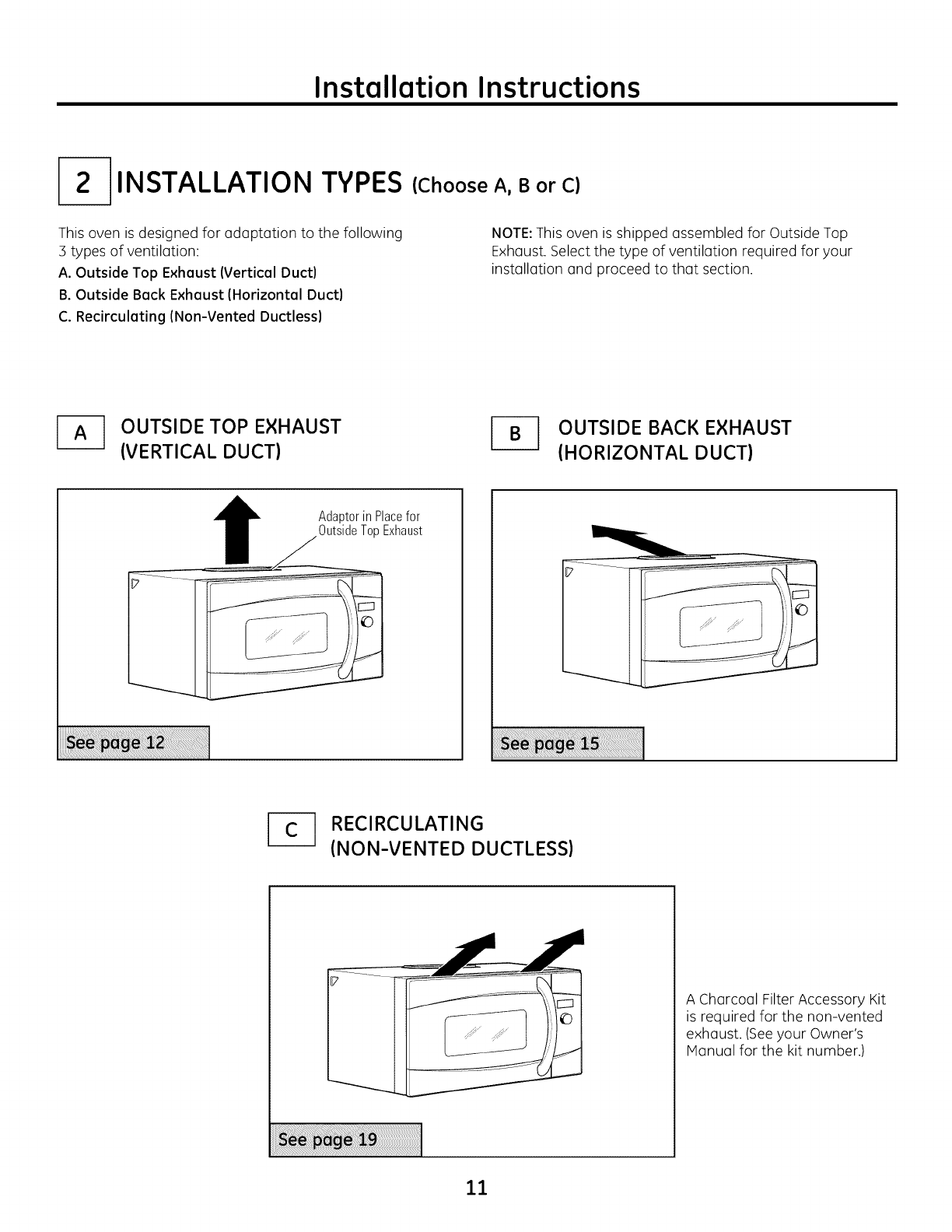

Installation Types 11-22
Outside Top ExhGust.....cccccscccecsececeseneseeeees 12-14
Attach Mounting Plate to Wall eee 12
Preparation of Top Cabinet... cesses 13
Assemble and Install Adaptor «0... eee 13
MOUNE the OVEN. cccsssseseseseeseeseeseeees 13,14
Adjust the Exhaust AGOptor......cccsesseeees 14
CONNECTING DUCTWOFK.....ececececececeeeseeeteeeees 14
Outside Back ExXhCUSt.......eessessssssseseeeseeeees 15-18
Preparing Rear Wall for
Outside Back ExXNCUSt......esesesssesseesseseenees 15
Attach Mounting Plate to Wall .......... 15, 16
Preparation of TOp Cabinet... cece 16
Adapting Blower for Outside
BOCK EXNGUSt..eecssssscsssssssscsssssssessesssseees 16, 17
MOUNT the OVEN. cessssscsesesssesessseseesseeseeees 18
RECIPCUIOTING ....ececescecececececececececeeceeseseeeeeeeeres 19-22
Attach Mounting Plate to Wall... eee 19
Preparation of Top Cabinet... seca 19
Adapting Blower
FOr RECIFCUICTION ..ecessssscessessesseseesseees 20, 21
MOUNE the OVEN. ceeessessscsesssessesseseeees 21, 22
Installing the Charcoal Filter... cesses 22
Before You Use Your OV@N ou. eeesesesssesesseeseseseeerseeees 23
SecciUn en ESPAOOI ....ccssssssessssssessssssesssssesesssseeesseee 25-47

Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS
A qualified electrician must perform a ground continuity
check on the wall receptacle before beginning the
installation to ensure that the outlet box is properly
grounded. If not properly grounded, or if the wall
receptacle does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified electrician
should be employed to correct any deficiencies.
AWARNING:
Risk of Electric Shock.
Can cause injury or death:
Remove house fuse or
open circuit breaker before
beginning installation to avoid
severe or fatal shock injury.
AWARN ING: risk of Electric shock.
Can cause injury or death: THIS APPLIANCE MUST BE
PROPERLY GROUNDED to avoid severe or fatal shock.
120 V Models
Ensure proper
ground exists
before use
240 V Models
NEMA 14—30R
Wall Receptacle
Ensure proper
ground exists
before use.
The power cord of this
appliance is equipped with
a three-prong (grounding)
plug which mates with
a standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
The wall outlet receptacle
recommended for this
application is NEMA #14-
30R and accepts the four-
prong grounded plug of
this appliance.
Where a standard two-prong wall receptacle is
encountered, it must be replaced with a properly
grounded three-prong wall receptacle, installed by a
qualified electrician.
AWARN ING: risk of Electric Shock.
Can cause injury or death: DO NOT, under any
circumstances, cut, deform or remove any of the prongs
fromm the power cord. Do not use with an extension cord.
Failure to comply may cause fire.
ACA UTION: For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of this
63-85 pound product, plus additional oven loads of up
to 50 pounds or a total weight of 113-135 pounds.
ACAUTION: For personal safety, this product
cannot be installed in cabinet arrangements such as an
island or a peninsula. It must be mounted to BOTH a top
cabinet AND a wall.
ACAUTION: To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage, you
will need two people to install this microwave oven.
ELECTRICAL REQUIREMENTS
120 V Models
This procuct requires a three-prong grounded outlet.
Product rating is 120 volts AC, 60 Hertz, 15 amps,
and 1.70 kilowatts. This product must be connected
to a supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the oven and away
from any potential microwave oven cucting.The outlet
box and supply circuit should be installed by a qualified
electrician and conform to the National Electrical Code or
the prevailing local code.
240 V Models
This product requires a four-prong grounded outlet.
Product rating is 120/208 or 120/240 volts, 60 Hertz,
30 amps and 6.5 kilowatts. This product must be
connected to an individual properly grounded branch
circuit, protected by circuit breakers or time-delay fuses.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code for
this kilowatt rating. The outlet box should be located in
the cabinet above the oven and away from any potential
microwave oven ducting. The outlet box and supply circuit
should be installed by a qualified electrician and conform
to the National Electrical Code or the prevailing local code.

Installation Instructions
HOOD EXHAUS
T
NOTE: Read these next two pages only if you plan to vent your exhaust to the outside.
If you plan to recirculate the air back into the room, proceed to page 6.
ductwork installation.

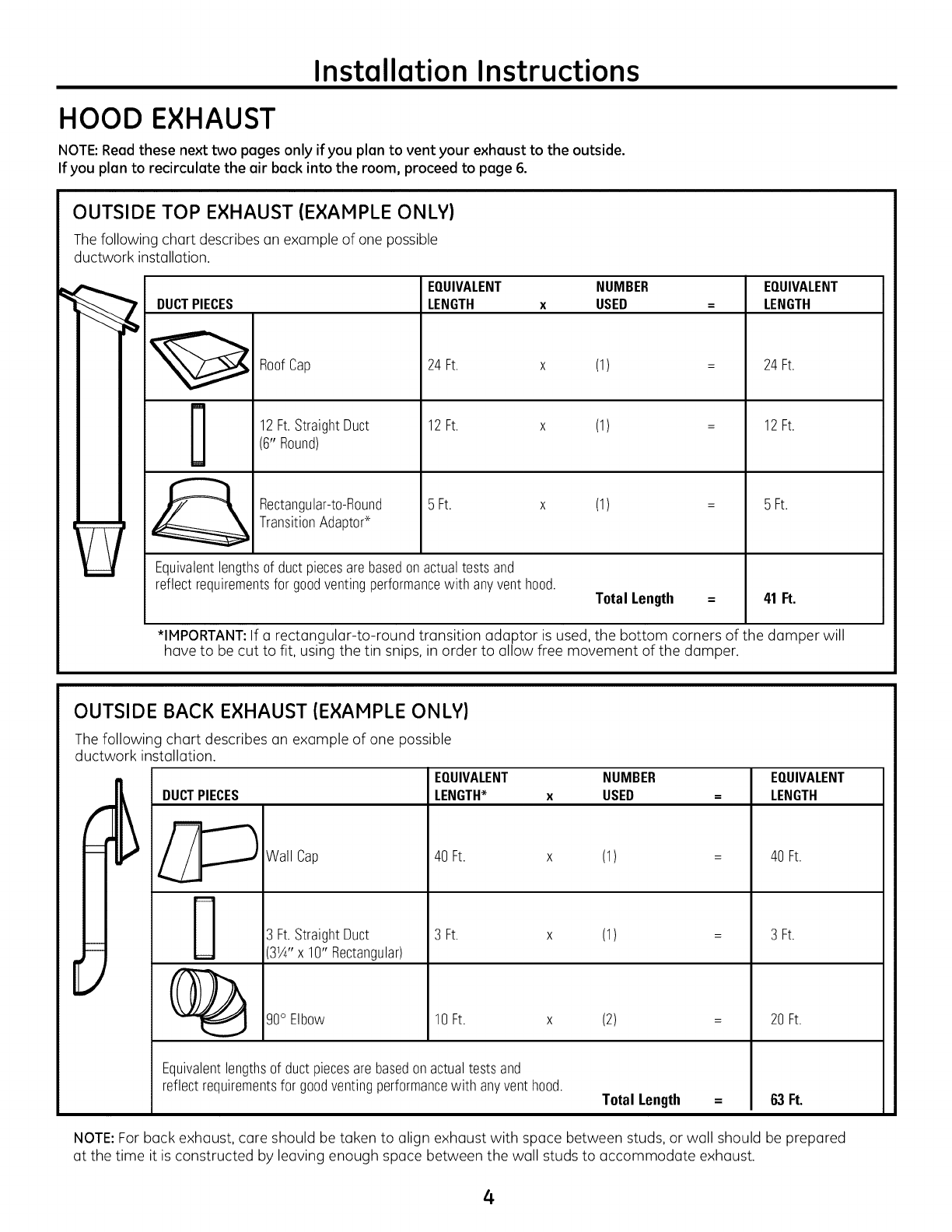

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
hae
DUCT
PIECES
EQUIVALENT NUMBER EQUIVALENT
LENGTH x USED = LENGTH
Roof Cap 24 Ft. X (1) = 24 Ft.
12 Ft. Straight Duct 12 Ft. X (1) = 12 Ft.
(6” Round)
Rectangular-to-Round 5 Ft. X (1) = 5 Ft.
Transition Adaptor*
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for goad venting performance with any vent hood.
Total Length = 41 Ft.
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will
have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
ductwork installation.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
T_) Wall Cap AQ Ft. X (1) = AO Ft.
| 3 Ft. Straight Duct 3 Ft. X (1) = 3 Ft.
(3'4" x 10” Rectangular)
OD 90° Elbow 10 Ft. X (2) = 20 Ft.
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for goad venting performance with any vent hood.
Total Length = 63 Ft.
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
4

Installation Instructions

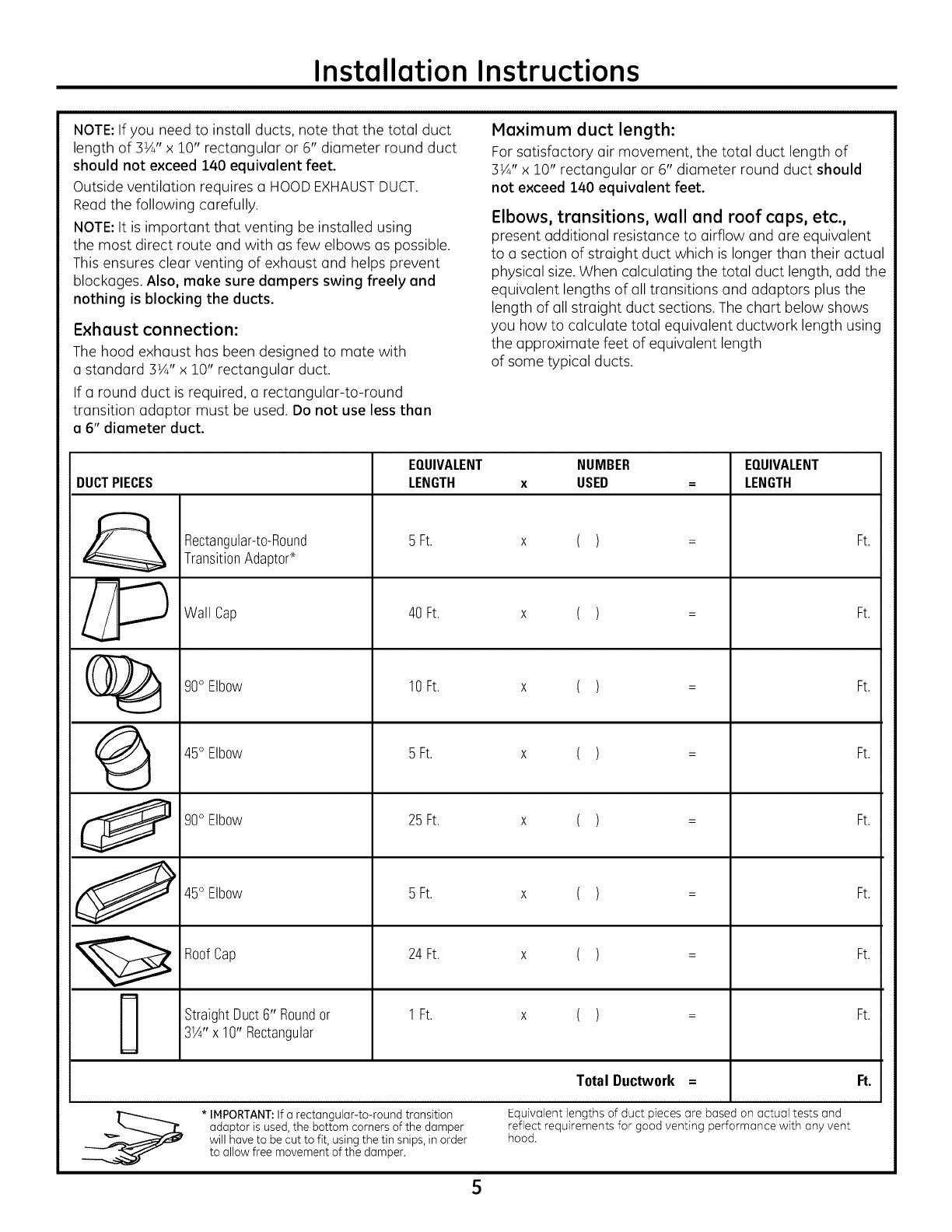

NOTE: If you need to install ducts, note that the total duct
length of 3%” x 10” rectangular or 6” diameter round duct
should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3%" x 10” rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6” diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
3%" x 10” rectangular or 6” diameter round cuct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps, etc.,
present additional resistance to airflow and are equivalent
to a section of straight duct which is longer than their actual
physical size. When calculating the total duct length, add the
equivalent lengths of all transitions and adaptors plus the
length of all straight duct sections. The chart below shows
you how to calculate total equivalent ductwork length using
the approximate feet of equivalent length
of some typical ducts.
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. X ( )} = Ft
Transition Adaptor™
[ID Wall Cap AQ Ft. X ( )} = Ft
OD 90° Elbow 10 Ft. X ( ) = Ft
Q 45° Elbow 5 Ft. Xx ( ) = Ft
cE 90° Elbow 25 Ft. xX (| = Ft
FA
45°
Elbow
5
Ft
x
( )
=
Ft
vs Roof Cap 24 Ft. x ( ) - Ft
Straight Duct 6” Round or 1 Ft. X ( )} = Ft
314" x 10” Rectangular
Total Ductwork = Ft.
* IMPORTANT: If a rectangular-to-round transition Equivalent lengths of duct pieces are based on actual tests and
— adaptor is used, the bottom corners of the damper reflect requirements for good venting performance with any vent
hood.

Installation Instructions
DAMAGE - SHIPMENT/
INSTALLATION
¢ If the unit is damaged in shipment, return
the unit to the store in which it was bought for
repair or replacement.
¢ If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
¢ If the unit is damaged by the installer (if other than
the customer], repair or replacement must
be made by arrangement between customer
and installer.

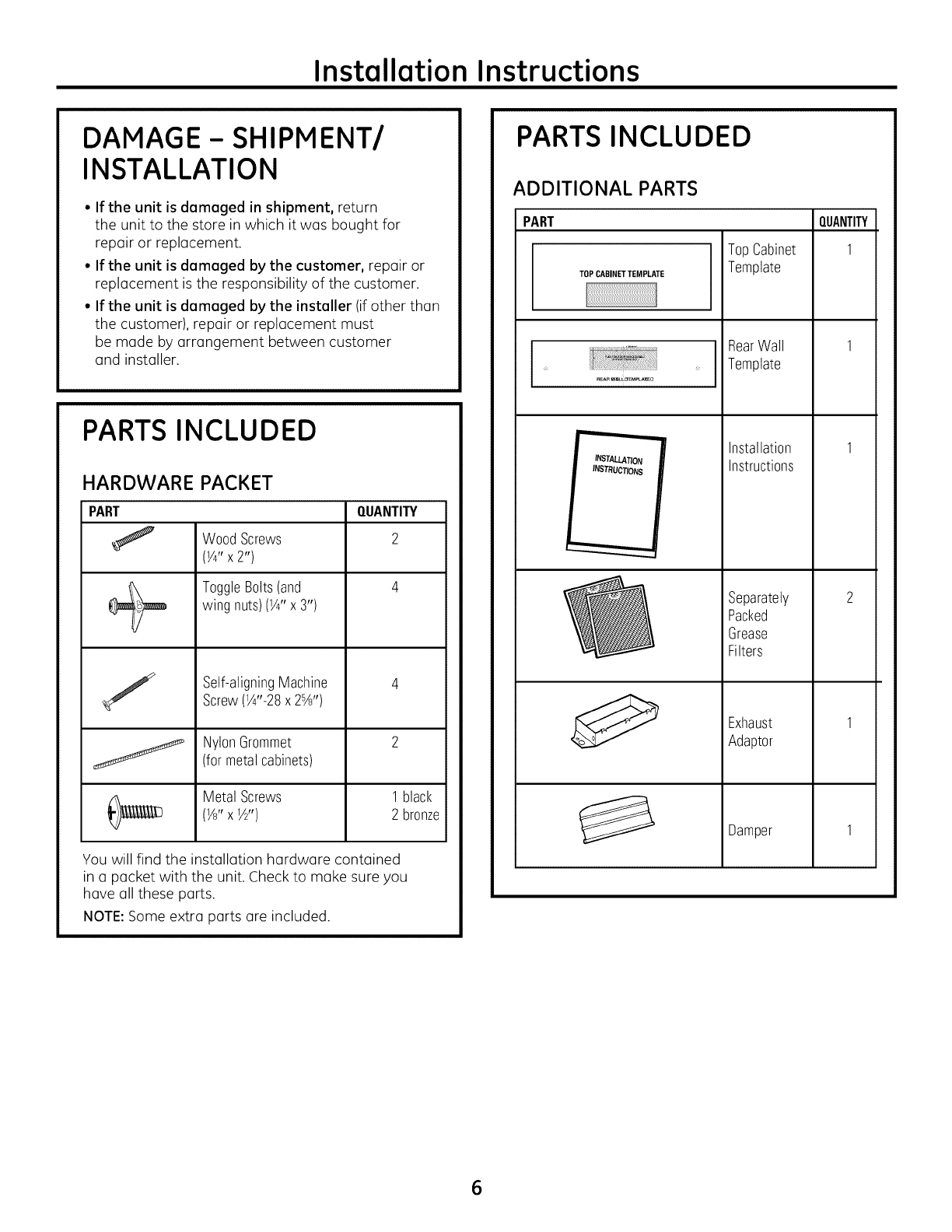

PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
Wood Screws 2
(Ya"" x 2")
Toggle Baits (and 4
wing nuts) (4 x 3”)
Self-aligning Machine 4
Screw (14-28 x 254")
Nylon Grommet 2
(for metal cabinets)
Metal Screws 1 black
("x
2")
2
bronze
You will find the installation hardware contained
in a packet with the unit. Check to make sure you
have all these parts.
NOTE: Some extra parts are included.
PARTS INCLUDED
ADDITIONAL PARTS
PART QUANTITY
TOP CABINET TEMPLATE
Tap Cabinet
Template
i
Rear Wall
Template
INSTALLATION
INSTRUCTIONS
Installation
Instructions
Separately
Packed
Grease
Filters
Exhaust
Adaptor
Damper

Installation Instructions
TOOLS YOU WILL NEED
TE)
| and #2 Phillips screwdriver
Pencil
Tin snips (for cutting
damper, if required} Scissors
(to cut template, if necessary)
Gas
Saw (saber, hole or keyhole}
Gloves
Ruler or tape measure
OF and straight edge
1
————
Stud finder or
Carpenter square
(optional)
Electric drill with %48”, “As”,
4" and %" drill bits
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
{used on recessed bottom
cabinet installations only)
a i
Hammer (optional)
Safety goggles
_————— a |
Level Duct and masking tape
MOUNTING SPACE
13” max.
~—
Bottom edge of
_—— cabinet needs to
be 30” or more
from the cooking
surface
I Ll
——~ Backsplash
66” or more
from the floor
to the top of
the oven
NOTES:
¢ The space between the cabinets must be 30” wide
and free of obstructions.
e If the space between the cabinets is greater than
30”, a Filler Panel Kit ray be used to fill in the gap
between the oven and the cabinets. Your Owner’s
Manual contains the kit number for your model.
¢ This oven is for installation over ranges up to
36" wide.
¢ If you are going to vent your oven to the outside,
see Hood Exhaust Section for exhaust duct
preparation.
¢ When installing the oven beneath smooth, flat
cabinets, be careful to follow the instructions
on the top cabinet template for power cord
clearance.
¢ Maximum cabinet depth above and beside the unit
is 13”.
* For models with top venting holes: Do not allow
cabinetry or other objects to block the airflow of the
vent.
¢ The product should not be installed over any
cooktop or range with a combined BTU greater
than 60000 BTU.

Installation Instructions
1 |PLACEMENT OF THE MOUNTING PLATE
REMOVING THE OVEN FROM FINDING THE WALL STUDS
THE CARTON/REMOVING
THE MOUNTING PLATE
Remove the box containing the installation
instructions, filters, exhaust adaptor, damper
and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven. wer
Fold back all 4 carton flaps fully against carton sides.
Then carefully roll the oven and carton over onto
the top side. The oven should be resting in the Center
Styrofoam.
+ i |
po —
Carton Find the studs, using one of the following methods:
A. Stud finder - a magnetic device which locates nails.
OR
B. Use a hammer to tap lightly across the mounting
surface to find a solid sound. This will indicate
a stud location.
[2 | After locating the stucd(s}, find the center by probing
Styrofoam the wall with a small nail to find the edges of the stud.
| Then place a mark halfway between the edges.
The center of any adjacent studs should be 16” or 24”
from this mark.
Pull the carton up and off the oven. 3 Draw a line down the center of the studs.
The mounting plate is attached to the back of the IMPORTANT: The microwave oven must be connected to
oven. Remove the two screws holding it to the oven. at least one wall stud.
The plate will be used as the rear wall template and
for mounting the oven to the wall.
Set the oven upright. Remove and properly discard
plastic bags and Styrofoam.
6| Open the oven door and remove the styrofoam
pack from inside the oven. Remove the tape
covering the turntable hub.

Installation Instructions
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom
cabinet
Mounting Plate Tabs
At least 30”, up to 36”
Plate position - beneath recessed bottom
cabinet with front overhang
Mounting Plate with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
-—— Overhang Depth
Touching the Cabinet Bottom
Plate position - beneath framed recessed
cabinet bottom
Mounting Plate Tabs
Touching the Back
Frame
Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
THE OVEN MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no back
or side frame, install the mounting plate down the same
distance as the front overhang depth. This will keep
the oven level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottorn as described in Step D.

Installation Instructions

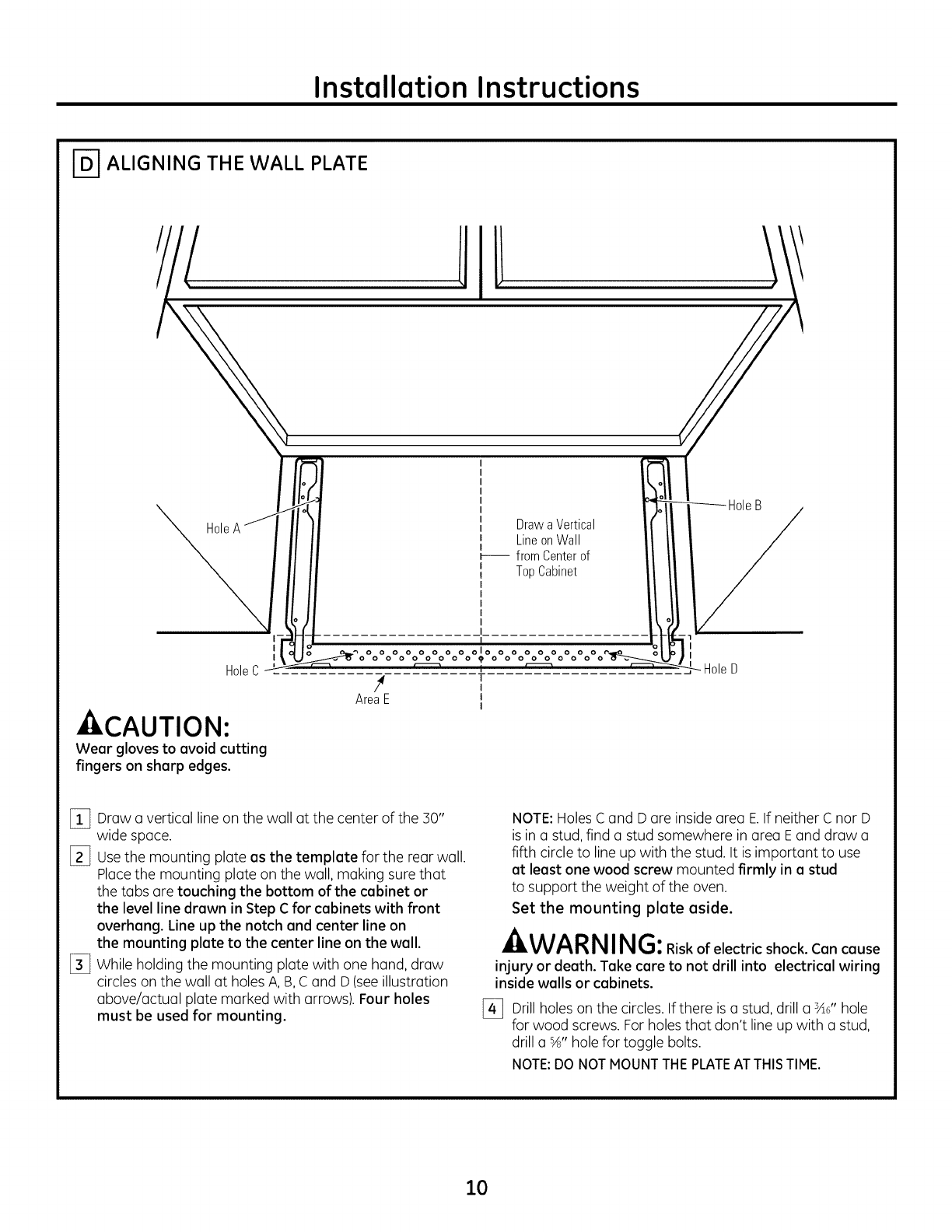

[D] ALIGNING THE WALL PLATE
Ill
\ \
e\o
6
Hole A
Hole B
Draw a Vertical
Line on Wall
r-— from Center of
Top Cabinet
© oo 0 00:0 0
ACAUTION:
Wear gloves to avoid cutting
fingers on sharp edges.
Draw a vertical line on the wall at the center of the 30”
wide space.
Use the mounting plate as the template for the rear wall.
Place the mounting plate on the wall, making sure that
the tabs are touching the bottom of the cabinet or
the level line drawn in Step C for cabinets with front
overhang. Line up the notch and center line on
the mounting plate to the center line on the wall.
While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D (see illustration
above/actual plate marked with arrows}. Four holes
must be used for mounting.
° a a
YS
070907
0°09
090907
0°
90°00
0800
0
oo
ES
nk
——ah
olo 6 0 0 0 0 08 OO
NOTE: Holes C and D are inside area E. If neither C nor D
is in a stud, find a stud somewhere in area E and draw a
fifth circle to line up with the stud. It is important to use
at least one wood screw mounted firmly in a stud
to support the weight of the oven.
Set the mounting plate aside.
AWARN | N G: Risk of electric shock. Can cause
injury or death. Take care to not drill into electrical wiring
inside walls or cabinets.
Drill holes on the circles. If there is a stuc, drill a As” hole
for wood screws. For holes that don’t line up with a stud,
drill a 4" hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.
10

Installation Instructions
2 [INSTALLATION TYPES (choose A, 8 or C)
This oven is designed for adaptation to the following NOTE: This oven is shipped assembled for Outside Top
3 types of ventilation: Exhaust. Select the type of ventilation required for your
A. Outside Top Exhaust (Vertical Duct] installation and proceed to that section.
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
A | OUTSIDE TOP EXHAUST gB | OUTSIDE BACK EXHAUST
(VERTICAL DUCT) (HORIZONTAL DUCT)
Adaptor in Place for
Outside Top Exhaust
See page 12 See page 15
c | RECIRCULATING
(NON-VENTED DUCTLESS)
A Charcoal Filter Accessory Kit
is required for the non-vented
exhaust. (See your Owner’s
Manual for the kit number}
See page 19
11

Installation Instructions

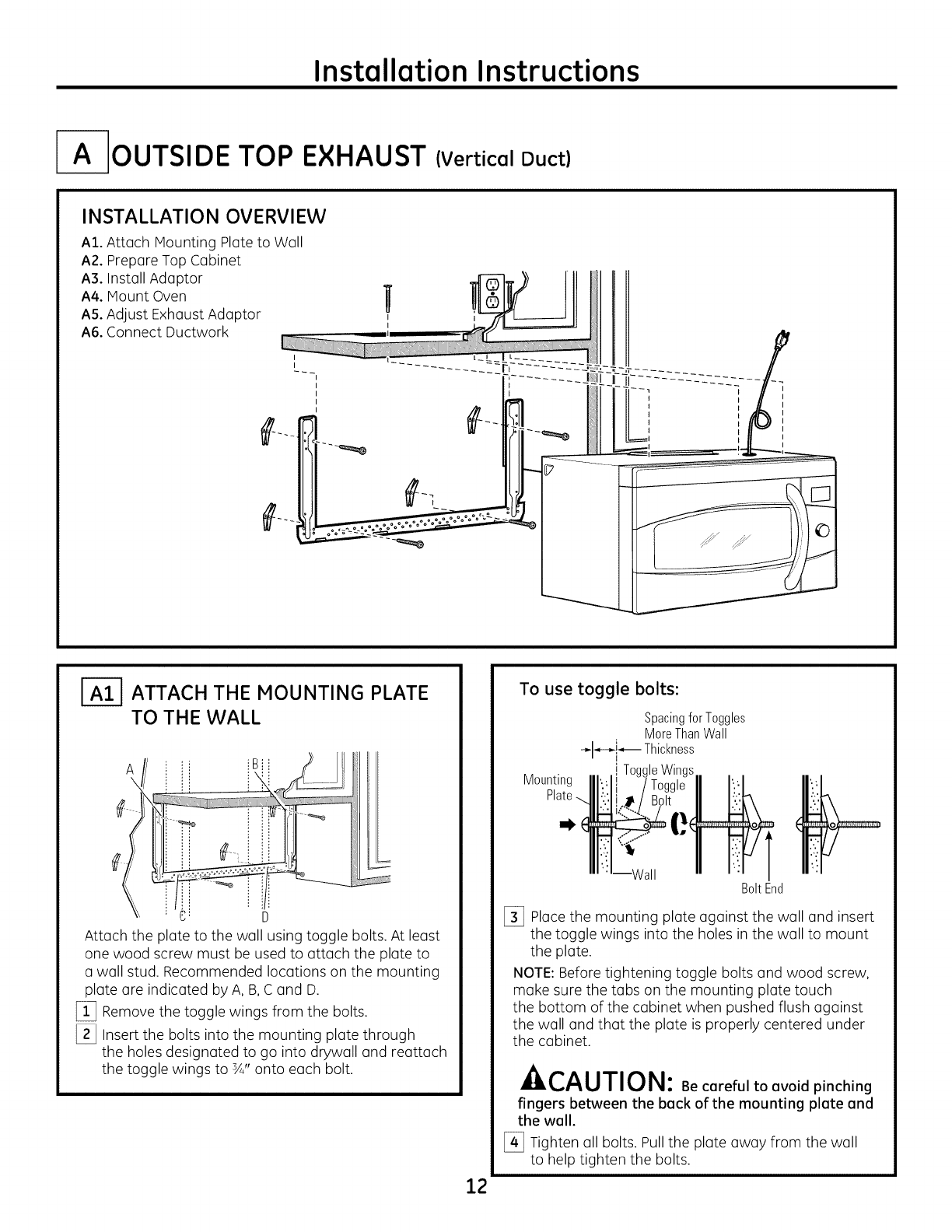

A |OUTSIDE TOP EXHAUST (vertical Duct)
INSTALLATION OVERVIEW
Al. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Install Adaptor
A4. Mount Oven
AS. Adjust Exhaust Adaptor
A6. Connect Ductwork
ATTACH THE MOUNTING PLATE
TO THE WALL
Al
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud. Recommended locations on the mounting
plate are indicated by A, B, C and D.
Remove the toggle wings from the bolts.
(2) Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to %” onto each bolt.
12

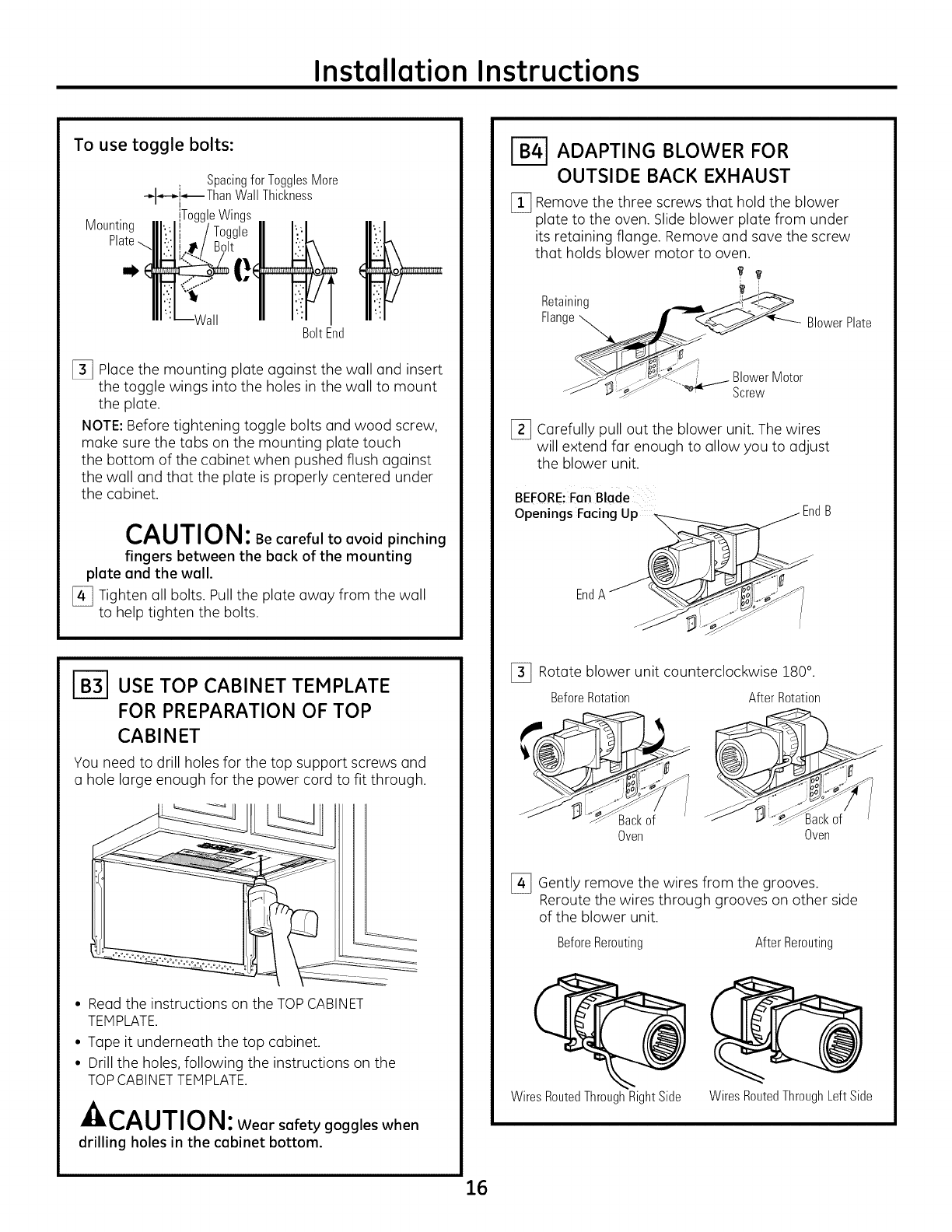

To use toggle bolts:
Spacing for Toggles
; More Than Wall
+/+ Thickness
Mounting
Plate
Bolt End
'3| Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
ACAUTION: Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.

Installation Instructions

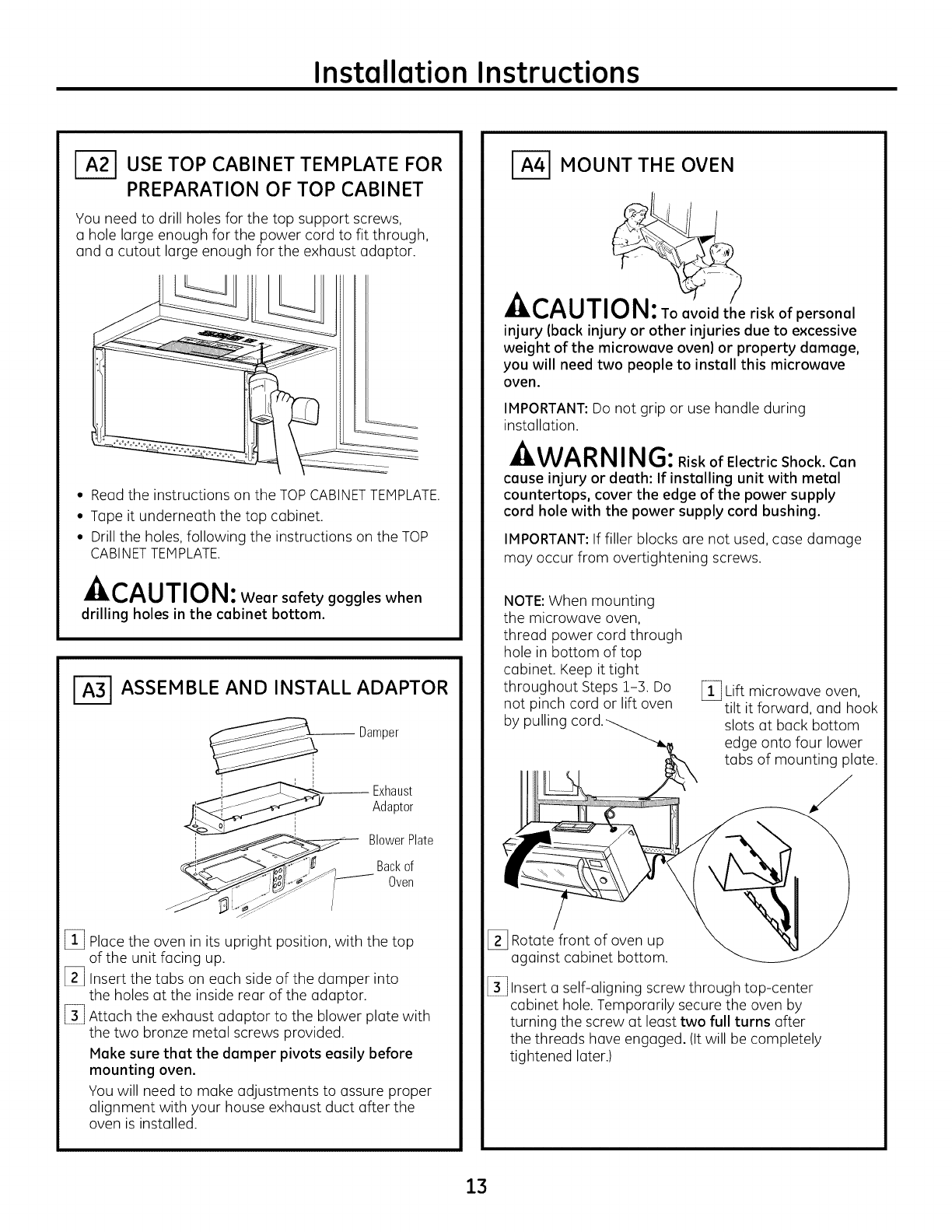

A2| USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
You need to drill holes for the top support screws,
a hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
¢ Read the instructions on the TOP CABINET TEMPLATE.
¢ Tape it underneath the top cabinet.
¢ Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
ACAUTI ON: Wear safety goggles when
drilling holes in the cabinet bottom.
ASSEMBLE AND INSTALL ADAPTOR
A3
Damper
Exhaust
Adaptor
Blower Plate
Back of
Oven
Place the oven in its upright position, with the top
of the unit facing up.
Insert the tabs on each side of the damper into
the holes at the inside rear of the adaptor.
Attach the exhaust adaptor to the blower plate with
the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
oven is installed.

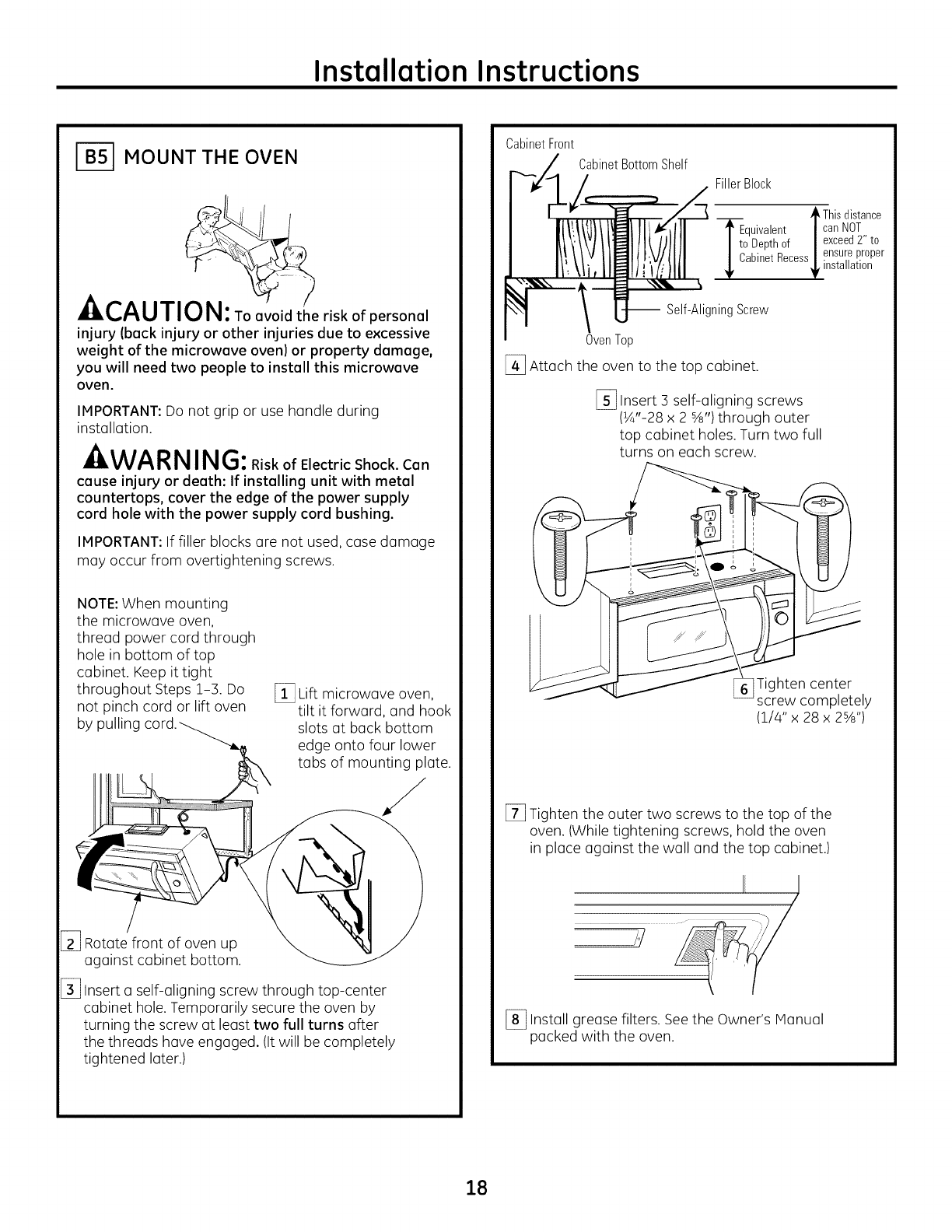

A4| MOUNT THE OVEN
ACAUTION: To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use hancle during
installation.
AWARN I NG: risk of Electric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE: When mounting
the microwave oven,
thread power cord through
hole in bottam of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
Rotate front of oven up
against cabinet bottom.
Insert a self-aligning screw through top-center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engaged. (It will be completely
tightened later}
13

Installation Instructions
A4| MOUNT THE OVEN (continued)
Attach the oven to the top cabinet.
Insert 3 self-aligning screws
(%4"-28 x 2 56") through outer
top cabinet holes. Turn two full
turns on each screw.
screw completely.
(1/4”" - 28 x 2%”)
Filler Block
|
KE
A
This
distance
Equivalent can NOT
to
Depth
of
exceed
2”
to
ensure proper
y installation
Cabinet Recess
Self-Aligning Screw
Oven Top
|6 | Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet.)
Install grease filters. See the Owner's Manual
packed with the oven.
A5| ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Damper
Back of
Oven
A6| CONNECTING DUCTWORK
House Duct
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.

Installation Instructions

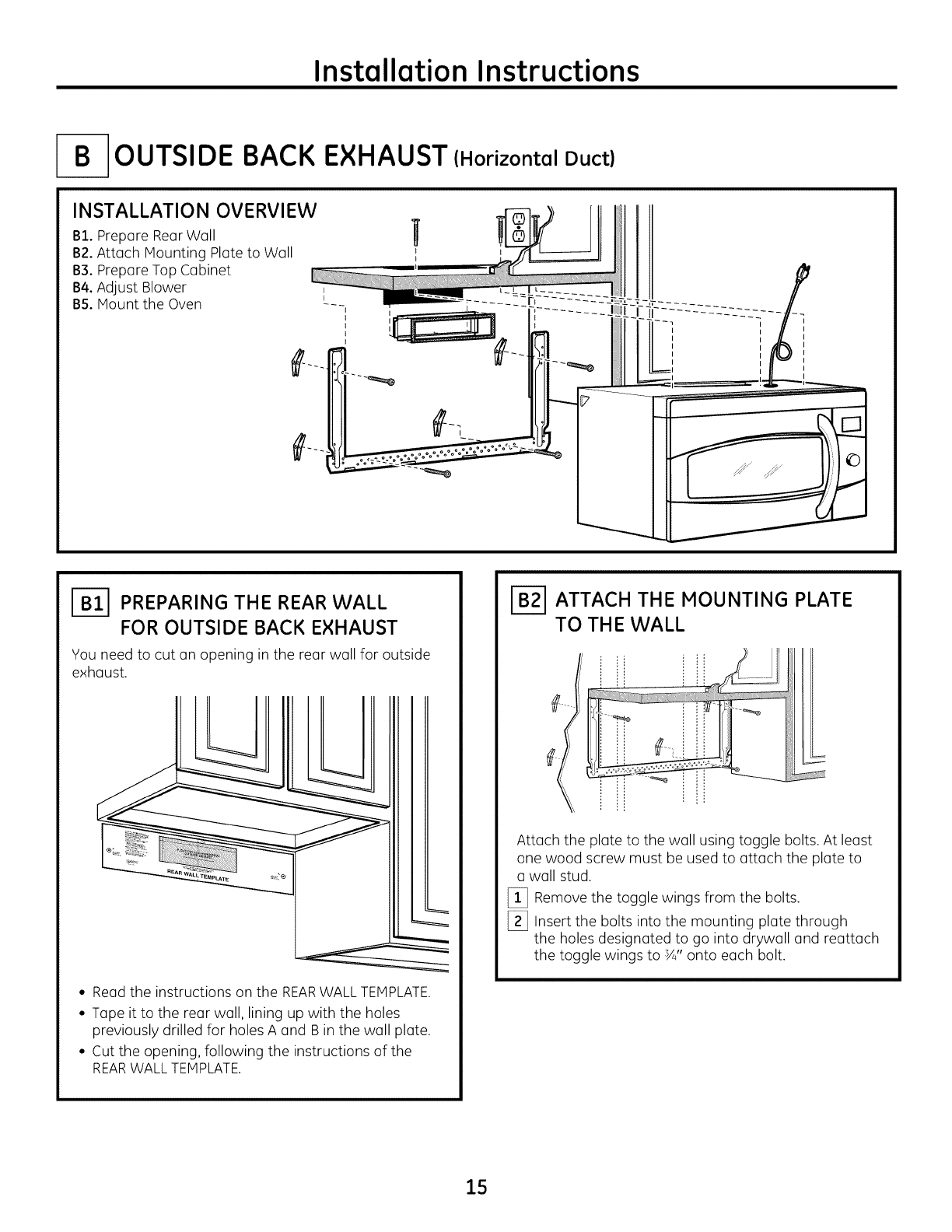

B |OUTSIDE BACK EXHAUST (Horizontal Duct)
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
B5. Mount the Oven
B1) PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
e Read the instructions on the REAR WALL TEMPLATE.
¢ Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
* Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
15
B2}| ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
2) Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to %" onto each bolt.

Installation Instructions
To use toggle bolts:
; Spacing for Toggles More
+|++}+— Than Wall Thickness
Toggle Wings
i
Mounting wf Toggle
cH
ef
i
Bolt End
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch
the bottom of the cabinet when pushed flush against
the wall and that the plate is properly centered under
the cabinet.
CAUTION: Be careful to avoid pinching
fingers between the back of the mounting
plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
B3|} USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
e Read the instructions on the TOP CABINET
TEMPLATE.
¢ Tape it underneath the top cabinet.
¢ Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
ACAUTIO N: Wear safety goggles when
drilling holes in the cabinet bottom.
16
B4| ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
Remove the three screws that hold the blower
plate to the oven. Slide blower plate from under
its retaining flange. Remove and save the screw
that holds blower motor to oven.
Retaining
Flange
Ser Boe . | Blower Motor
3 oo oe Screw
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
BEFORE: Fan Blade
Openings Facing Up End B
End A
Rotate blower unit counterclockwise 180°.
After Rotation Before Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right Side Wires Routed Through Left Side

Installation Instructions
Roll the blower unit 90° so that fan blade openings
are facing out the back of the oven.
Before Rolling After Rolling
Back of
Oven

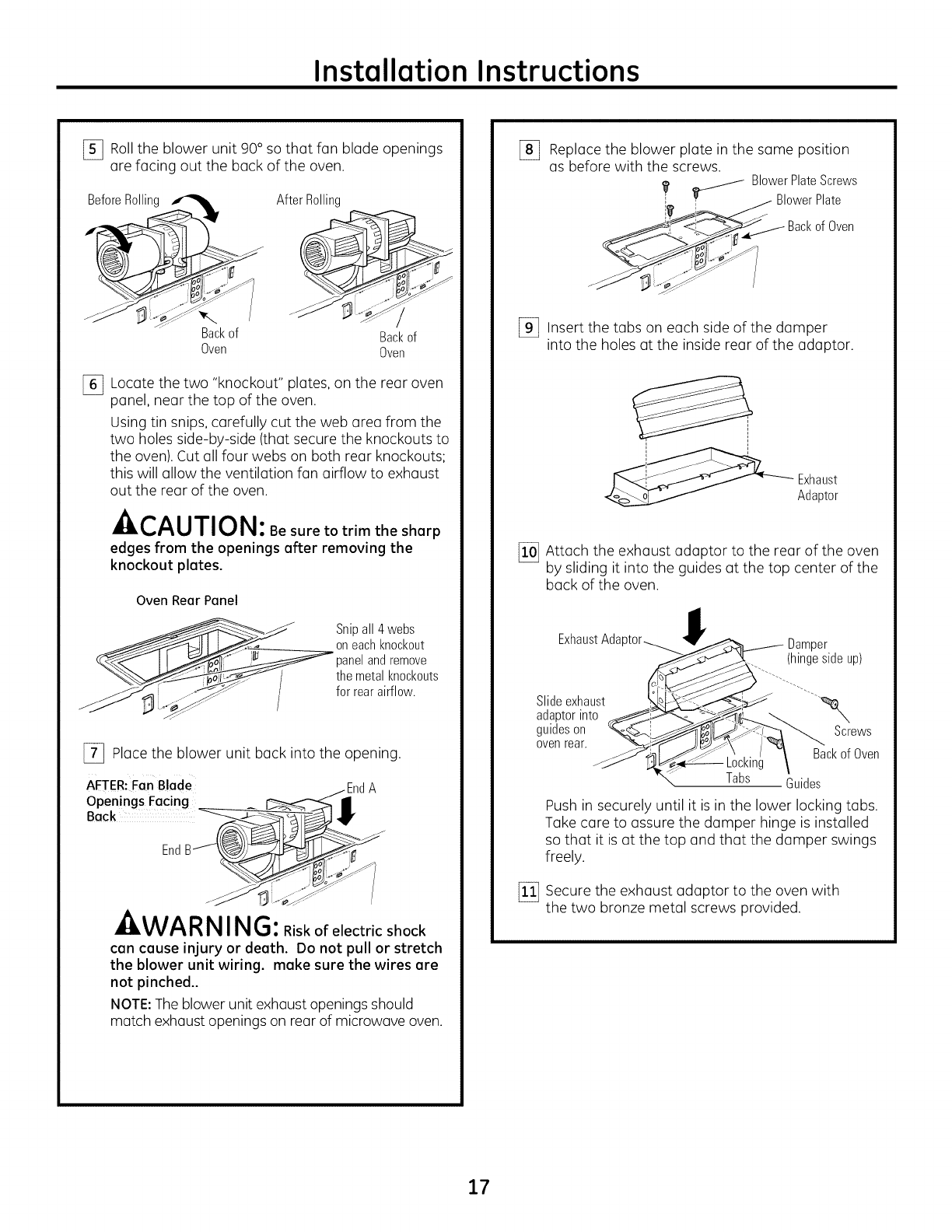

| 6 | Locate the two “knockout” plates, on the rear oven
panel, near the top of the oven.
Using tin snips, carefully cut the web area from the
two holes side-by-side (that secure the Knockouts to
the oven}. Cut all four webs on both rear knockouts;
this will allow the ventilation fan airflow to exhaust
out the rear of the oven.
ACAUTION: Be sure to trim the sharp
edges from the openings after removing the
knockout plates.
Oven Rear Panel
Snip all 4 webs
on each knockout
panel and remove
the metal knockouts
for rear airflow.
Place the blower unit back into the opening.
AFTER: Fan Blade
Openings Facing
Back
AWARN ING: tisk of electric shock
can cause injury or death. Do not pull or stretch
the blower unit wiring. make sure the wires are
not pinched..
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of microwave oven.
17
Replace the blower plate in the same position
as before with the screws.
g — Blower Plate Screws
Blower Plate
“we = aS
lat aE
Ly ga Back of Oven
/9| Insert the tabs on each side of the damper
into the holes at the inside rear of the adaptor.
Exhaust
Adaptor
10) Attach the exhaust adaptor to the rear of the oven
by sliding it into the guides at the top center of the
back of the oven.
Exhaust Adaptor Damper
fo (hinge side up}
S27 <N Screws
Back of Oven
Slide exhaust
adaptor into
guides on
oven rear.
Guides
Push in securely until it is in the lower locking tabs.
Take care to assure the damper hinge is installed
so that it is at the top and that the damper swings
freely.
11, Secure the exhaust adaptor to the oven with
the two bronze metal screws provided.

Installation Instructions
BS
MOUNT THE OVEN
ACAUTION: To avoid the risk of personal
injury (back injury or other injuries due to excessive
weight of the microwave oven) or property damage,
you will need two people to install this microwave
oven.
IMPORTANT: Do not grip or use hancle during
installation.
AWARN IN Gs risk of Electric Shock. Can
cause injury or death: If installing unit with metal
countertops, cover the edge of the power supply
cord hole with the power supply cord bushing.
IMPORTANT: If filler blocks are not used, case damage
may occur from overtightening screws.
NOTE: When mounting
the microwave oven,
thread power cord through
hole in bottom of top
cabinet. Keep it tight
throughout Steps 1-3. Do
not pinch cord or lift oven
by pulling cord.
Lift microwave oven,
tilt it forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting plate.
Rotate front of oven up
against cabinet bottom.
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after
the threads have engagec. (It will be completely
tightened later.)
18
Cabinet Front
Cabinet Bottom Shelf
Filler Block
iE
A
This
distance
Equivalent can NOT
to Depth of exceed 2” to
Cabinet Recess | SMsure proper
y installation
Self-Aligning Screw
Oven Top
Attach the oven to the top cabinet.
Insert 3 self-aligning screws
(%4"-28 x 2%") through outer
top cabinet holes. Turn two full
turns on each screw.
6 | lighten center
screw completely
(1/4” x 28 x 2%")
Tighten the outer two screws to the top of the
oven. (While tightening screws, hold the oven
in place against the wall and the top cabinet.)
[8 | Install grease filters. See the Owner's Manual
packed with the oven.

Installation Instructions
C
RECIRCULATING (Non-vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Adjust Blower
C4. Mount the Oven
C5. Install Charcoal Filter (not supplied)
Ci
ATTACH THE MOUNTING PLATE
TO THE WALL
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to %" onto each bolt.
To use toggle bolts:
Spacing for Toggles
More Than Wall
+|++/<— Thickness
I
. i Toggle Wings
Mounting
wf!
Toggle
Plate = ,/ Bolt
af
Bolt End
Place the mounting plate against the wall and insert
the toggle wings into the holes in the wall to mount
the plate.
NOTE: Before tightening toggle bolts and wood screw,
make sure the tabs on the mounting plate touch the
bottom of the cabinet when pushed flush against the
wall and that the plate is properly centered under the
cabinet.
ACAUTION: Be careful to avoid pinching
fingers between the back of the mounting plate and
the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
19
C2
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP CABINET
You need to crill holes for the top support screws and
a hole large enough for the power cord to fit through.
Ss
e Read the instructions on the TOP CABINET
TEMPLATE.
* Tape it underneath the top cabinet.
¢ Drill the holes, following the instructions on the TOP
CABINET TEMPLATE.
ACAUTI O N: Wear safety goggles when
drilling holes in the cabinet bottom.

Installation Instructions
C3} ADAPTING BLOWER
FOR RECIRCULATION
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want
to save them for possible future use.
Remove and save screws that hold blower plate
to the oven.
Vv $<— Blower Plate Screws
“~~ Back of Oven
Slide the blower plate from under its retaining
flange and lift it off. Remove and save screw that
holds the blower motor to oven.
Retaining
oo Blower Motor
Screw
20
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust
the blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the oven.
BEFORE: Fan Blade
Openings Facing Up
AFTER: Fan Blade
Openings Facing
Forward
NOTE: Make sure wires remain routed in the grooves
of the motor frame.
