GE Appliances JGB870 Operating instructions

GEAppliances.com
om
For a Spanish version
of this manual
visit our Website at
GEAppliances.com.
Para consultar una
version en espa_ol
de este manual de
instrucciones, visite
nuestro sitio de internet
GEAppliances.com.
In Canada contact us at:
www. GEAppliances.ca
Safety Instructions ..... 2-s
Operating Instructions
Aluminum Foil................. 11
Clock and Timer ............... 14
Oven ....................... 9-28

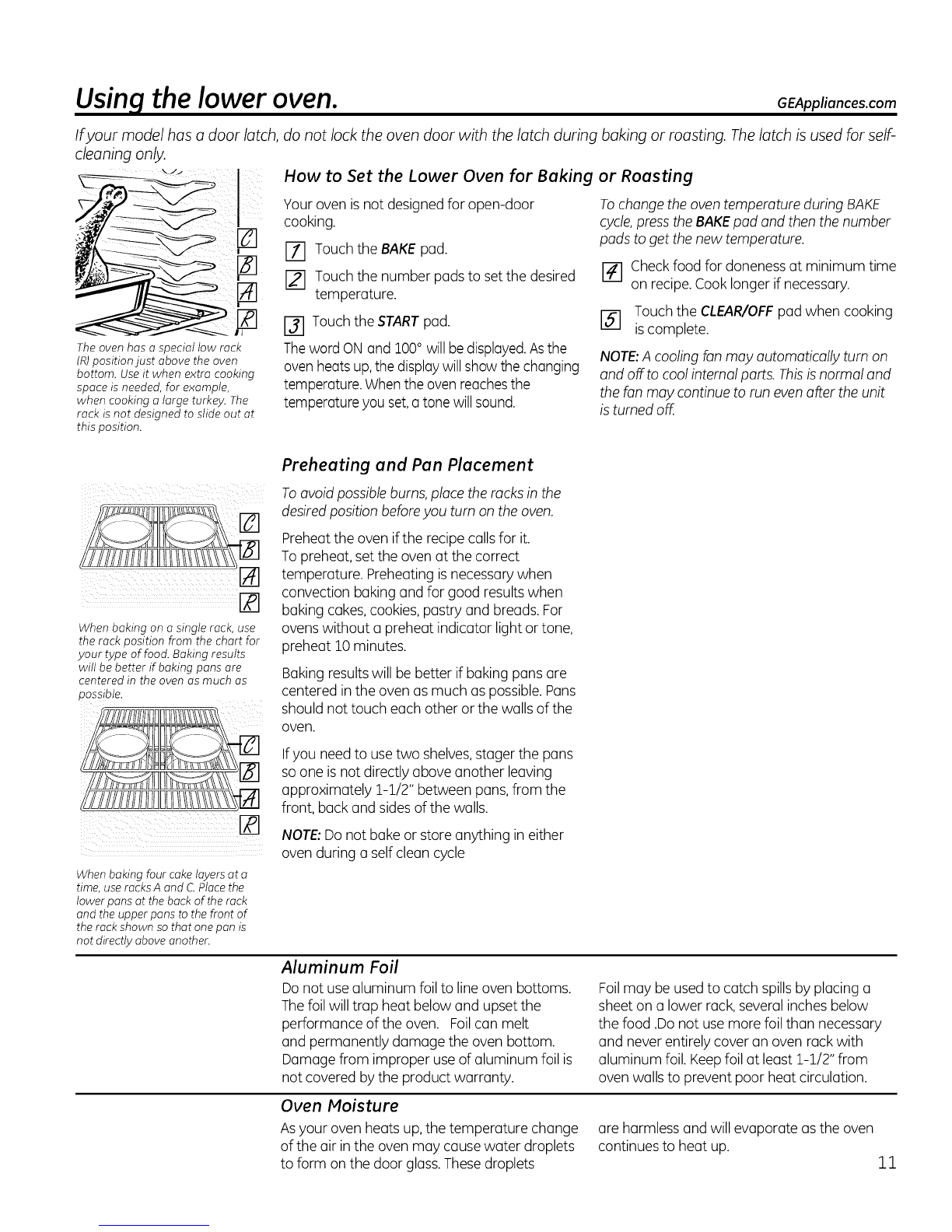

Baking and Roasting ......... 11

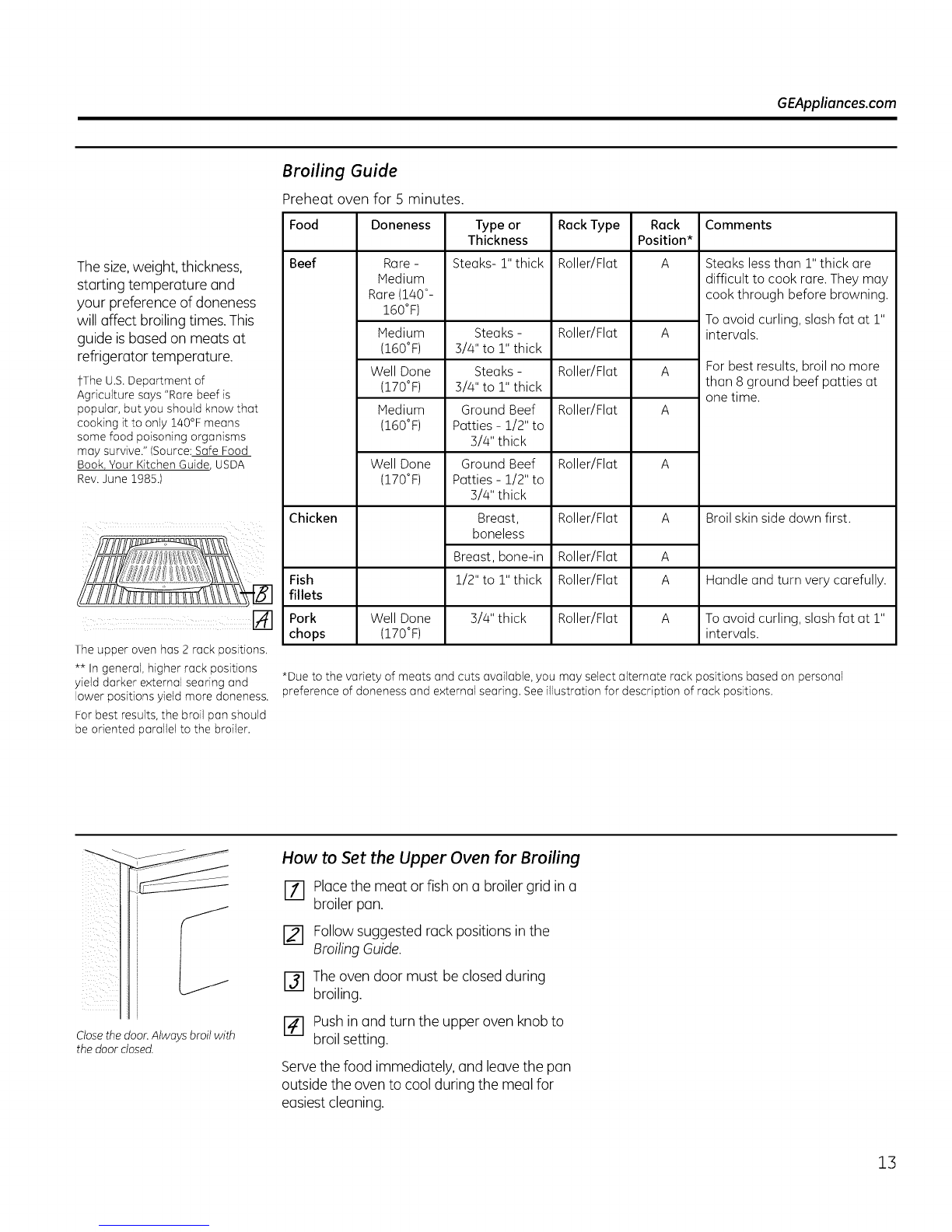

Broiling, Broiling Guide ....... 1:3
Control Lockout.............. 22

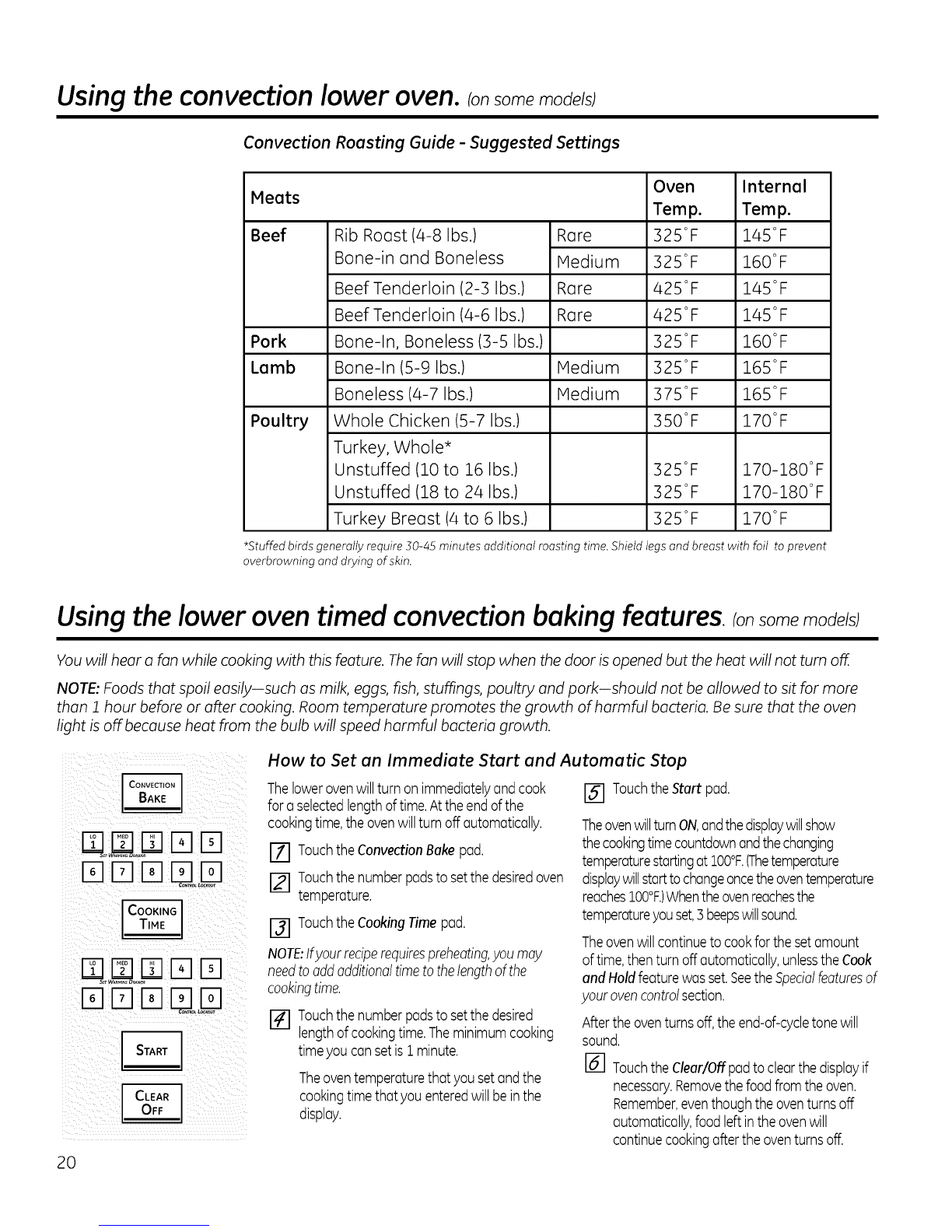

Convection ............... 17-21
Lights ....................... 10
Oven Control ................. 9
Power Outage ............ 10, 14
Preheating .................. 11

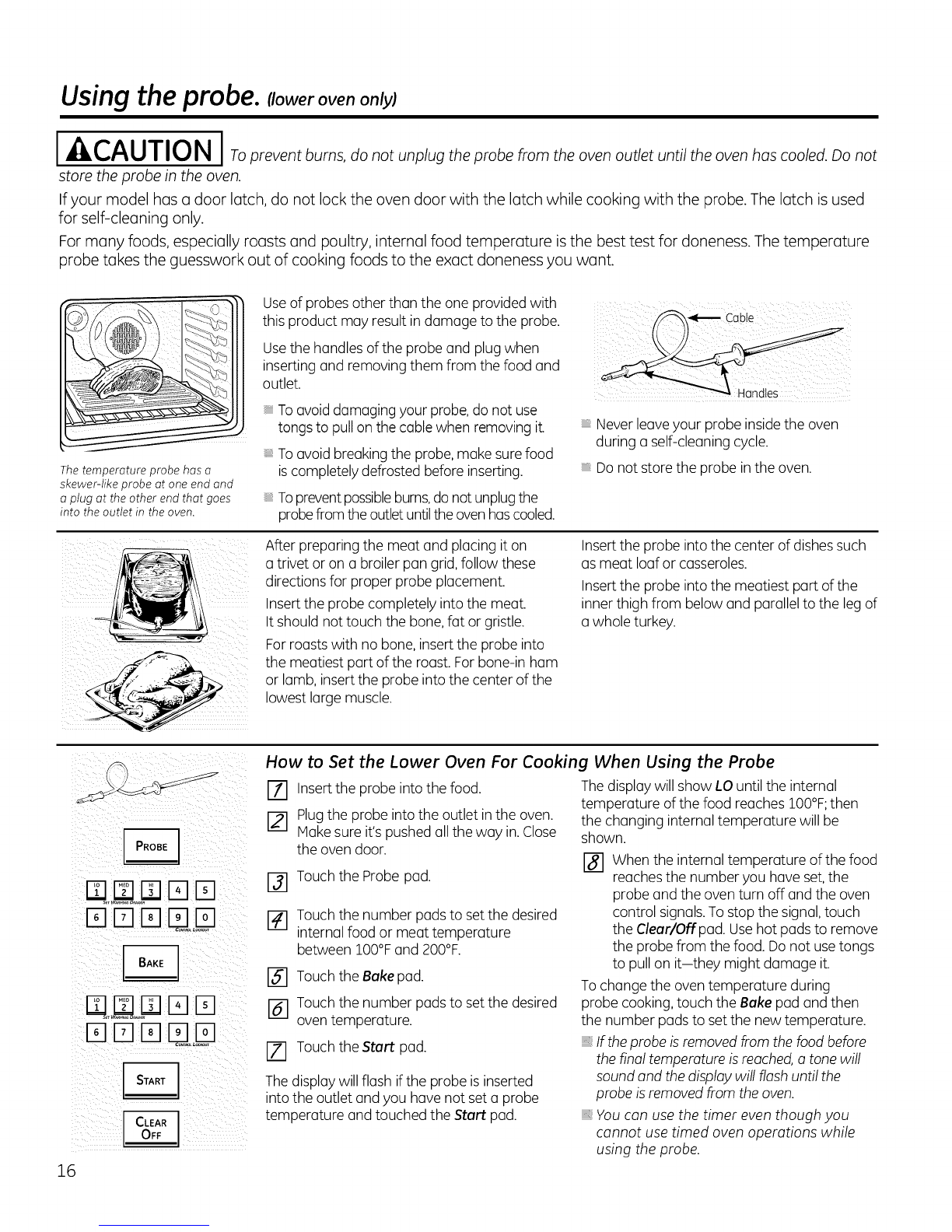

Probe.................... 16, 19,
Racks .................... 25,35
Sabbath Feature ............. 24
Self-Cleaning ............. 27, 28
Special Features .......... 22, 23
Thermostat Adjustment ...... 26

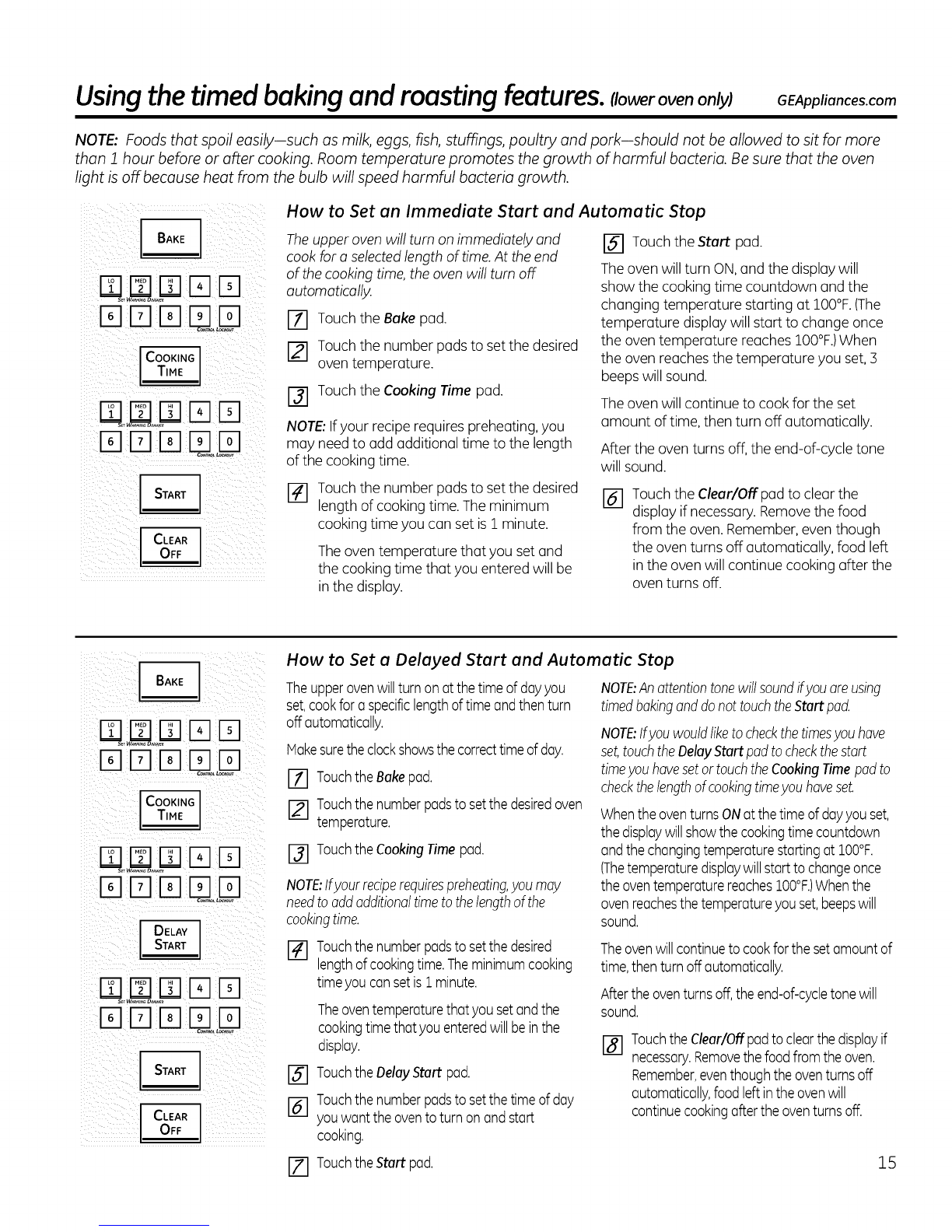

Timed Baking
and Roasting ................ 15
Timed Convection Baking .20, 21
Vent......................... 10
Surface Cooking ............. 6-8
Griddle ....................... 8
Care and Cleaning
Burner Assembly .............. 30
Burner Grates .............. 31, 32
Control Panel and Knobs ...... 33
Cooktop ...................... 33
Door ....................... 34, 36
Griddle........................ :31
Oven Bottom .................. 34
Oven Light Replacement ...... 37
Oven Vents ................... 33
Racks......................... 35
Self-Cleaning ............... 27, 28
Stainless Steel Surfaces ....... 36
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label under
the manifold above the upper oven
door.
Installation
Instructions ........... s8-48
Air Adjustment ............. 47, 48
Anti-Tip Device................ 48
Assemble Surface Burners ..... 46
Checking Burner
Ignition ....................... 47
Connecting the Range
to Gas .................... 42-44
Dimensions and Clearances ... 40
Electrical Connections ......... 45
Leveling the Range............ 48
LP ............................ 41
Troubleshooting
Tips ..................... 49-52
Accessories ............... s3
Consumer Support
Consumer Support... Back Cover
Warranty for Customers
in Canada .................... 55
Warranty for Customers
in the U.S.A................... 54
49-85181-2
JGB870
PGB995
CGS990
10 -11 GE

IMPORTANT SAFETY INFORIV/AT/ON.
READ ALL INSTRUCTIONS BEFORE USING.
IA WARNING I,'the information in this manual is not followed exactly, a fire or explosion may
result, causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IFYOU SHELL GAS
_:, Do not try to light any appliance.
_:, Do not touch any electrical switch; do not use any phone in your building.
_:, Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
_:_ If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING I
All ranges can tip.
BURNS or other SERIOUSINJURIEScan result.
INSTALLand CHECKthe anti-tip bracket following the instructions supplied with the bracket.
To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip
bracket. See installation instructions shipped with the bracket for complete details before attempting
to install.
To check if the bracket is installed and engaged properly, look underneath the range to see that the
rear leveling leg is engaged in the bracket. On some models, the storage drawer or kick panel can be
removed for easy inspection. If visual inspection is not possible, slide the range forward, confirm the
anti-tip bracket is securely attached to the floor or wall, and slide the range back so the rear leveling leg is under the
anti-tip bracket.
If the range is pulled from the wall for any reason, always repeat this procedure to verify the range is properly secured
by the anti-tip bracket.
Never completely remove the leveling legs or the range will not be secured to the anti-tip device properly.
If you did not receive an anti-tip bracket with your purchase, call 1.800.626.8774 to receive one at no cost (in Canada,
call 1.800.561.3344). For installation instructions of the bracket, visit GEAppliances.com (in Canada, GEAppliances.ca).
I WARNING IIMPORTANTSAFETYNOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to
warn customers of potential exposure to such substances.
Thefiberglass insulation in self-clean ovens givesoff a very small amount of carbon monoxide during the cleaning cycle.
Exposurecan be minimized byventing with an open window or usinga ventilation fan or hood.
SAVE THESEINSTRUCTIONS

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
IAWARNING IGENERALSAFETYINSTRUCTIONS
GEAppliances.com
WARNINGI
NEVER use this appliance as a space heater to heat
or warm the room. Doing so may result in carbon
monoxide poisoning and overheating of the oven.
Use this appliance for its intended purpose as described
in this owner's manual.
iii}}i
iii}i}}li_
Hove yourrangeinstalledand properlygrounded by
a qualifiedinstallerinaccordancewiththe provided
installationinstructions.Any adjustmentand service
shouldbe performedonlyby a qualifiedgas range
installersorservicetechnicians.Do notattempttorepair
orreplaceany partofyour rangeunlessitisspecifically
recommended inthismanual.
::: Your range is shipped from the factory set for use
with natural gas. It con be converted for use with LP
gas. If required, thse adjustments must be made by a
qualified technician in accordance with the installatoin
instructions and local codes. The agency performing this
work assumes responsibility for the conversion.
i Havethe installer showyou the location of the range
gasshut-off valveand how to turn it off if necessary.
iii}}i
Plug your range into a 120-volt grounded outlet only. Do
not remove the round grounding prong from the plug.
If in doubt about the grounding of the home electrical
system, it is your responsibility and obligation to have on
ungrounded outlet replaced with a properly grounded,
three prong outlet in accordance with the National
Electrical Code. Do not use on extension cord with this
appliance.
Before performing any service, unplug the range
or disconnect the power supply at the household
distribution panel by removing the fuse or switching off
the circuit breaker.
Besure all packing materials are removed from the
range before operating to prevent ignitionof these
materials.
_::Avoid scratching or impacting glass doors, cooktops or
control panels. Doing so may lead to glass breakage. Do
not cook on a product with broken glass. Shock, fire or
cuts may occur.
iii}}i
Donot leavechildren aloneor unattended in an
area where an appliance isin use.Theyshould never
beallowed to climb,sit or stand on any part of the
appliance.
Do not store items of interest to children above o range
or on the backguard of a range-children climbing on
the range to reach items could be seriously injured.
Do not allow anyone to climb, stand or hang on the
oven door, drawer or cooktop. They could damage the
range or tip it over causing severe injury or death.
Never block the vents (air openings) of the range. They
provide the air inlets and outlets that are necessary for
the range to operate properly with correct combustion.
Air openings are located at the rear of the cooktop,
at the top and bottom of the oven door, and at the
bottomof the range under the warming drawer, lower
oven drawer or kick panel.
Use only dry pot holders-moist or damp pot holders on
hot surfaces may result in burns from steam. Do not let
pot holders touch surface burners, burner grate, or oven
heating element. Do not use a towel or other bulky cloth
in place of pot holders.
Be careful not to touch hot surfaces of the range.
Potentially hot surfaces include burners, grates, cooktop,
backguard, oven and door interior and crevices around
the oven door.
Do not heat unopened food containers. Pressure could
build up and the container could burst, causing an
injury.
Cook meat and poultry thoroughly-meat to at least an
internal temperature of 160°F and poultry to at least
an internal temperature of 180°F. Cooking to these
temperatures usually protects against foodborne illness.
SAVE THESE INSTRUCTIONS s

IMPORTANT SAFETY INFORIV/AT/ON.
READ ALL INSTRUCTIONS BEFORE USING.

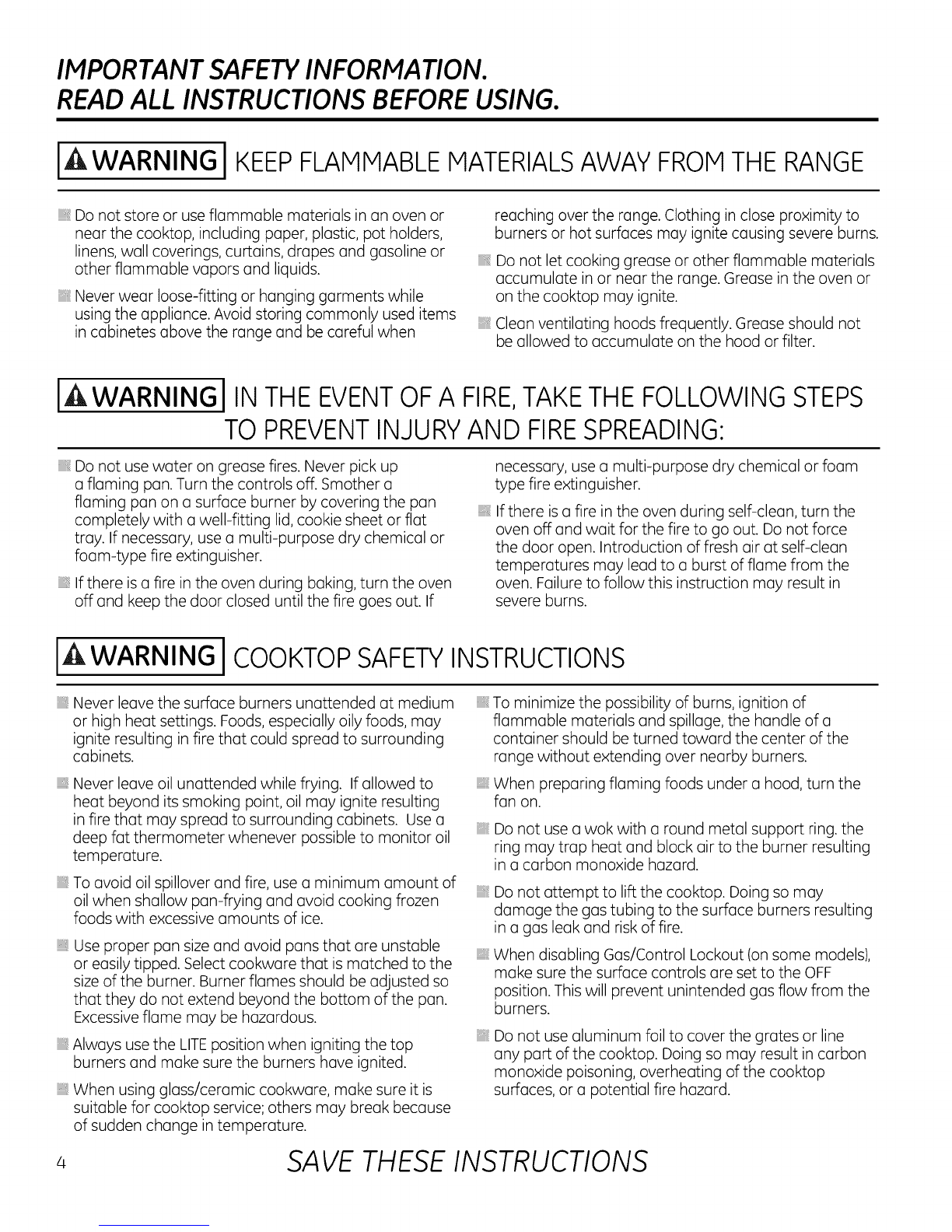

IA WARNING JKEEPFLAMMABLEMATERIALSAWAYFROMTHERANGE
Do not store or use flammable materials in an oven or
near the cooktop, including paper, plastic, pot holders,
linens, wall coverings, curtains, drapes and gasoline or
other flammable vapors and liquids.
Never wear loose-fitting or hanging garments while
using the appliance. Avoid storing commonly used items
in cabinetes above the range and be careful when
iiiil}i
iiiiiiili_
reaching over the range. Clothing in close proximity to
burners or hot surfaces may ignite causing severe burns.
Do not let cooking grease or other flammable materials
accumulate in or near the range. Grease in the oven or
on the cooktop may ignite.
Clean ventilating hoods frequently. Grease should not
be allowed to accumulate on the hood or filter.
IA WARNING I INTHEEVENTOFA FIRE,TAKETHEFOLLOWINGSTEPS
TO PREVENTINJURYAND FIRESPREADING:
Do not use water on grease fires. Never pick up
a flaming pan. Turn the controls off. Smother a
flaming pan on a surface burner by covering the pan
completely with a well-fitting lid, cookie sheet or flat
tray. If necessary, use a multi-purpose dry chemical or
foam-type fire extinguisher.
If there is afire in the oven during baking, turn the oven
off and keep the door closed until the fire goes out. If
iiiil}i
necessary, use a multi-purpose dry chemical or foam
type fire extinguisher.
If there is afire in the oven during self-clean, turn the
oven off and wait for the fire to go out. Do not force
the door open. Introduction of fresh air at self-clean
temperatures may lead to a burst of flame from the
oven. Failure to follow this instruction may result in
severe burns.
[A WARNING1COOKTOP SAFETYINSTRUCTIONS
Never leave the surface burners unattended at medium
or high heat settings. Foods, especially oily foods, may
ignite resulting in fire that could spread to surrounding
cabinets.
_::Never leave oil unattended while frying. If allowed to
heat beyond its smoking point, oil may ignite resulting
in fire that may spread to surrounding cabinets. Use a
deep fat thermometer whenever possible to monitor oil
temperature.
To avoid oil spillover and fire, use a minimum amount of
oil when shallow pan-frying and avoid cooking frozen
foods with excessive amounts of ice.
_:: Use proper pan size and avoid pans that are unstable
or easily tipped. Select cookware that is matched to the
size of the burner. Burner flames should be adjusted so
that they do not extend beyond the bottom of the pan.
Excessive flame may be hazardous.
Always use the LITE position when igniting the top
burners and make sure the burners have ignited.
When usingglass/ceramic cookware, makesure it is
suitable for cooktop service;others may breakbecause
of sudden change intemperature.
To minimize the possibility of burns, ignition of
flammable materials and spillage, the handle of a
container should be turned toward the center of the
range without extending over nearby burners.
When preparing flaming foods under a hood, turn the
fan on.

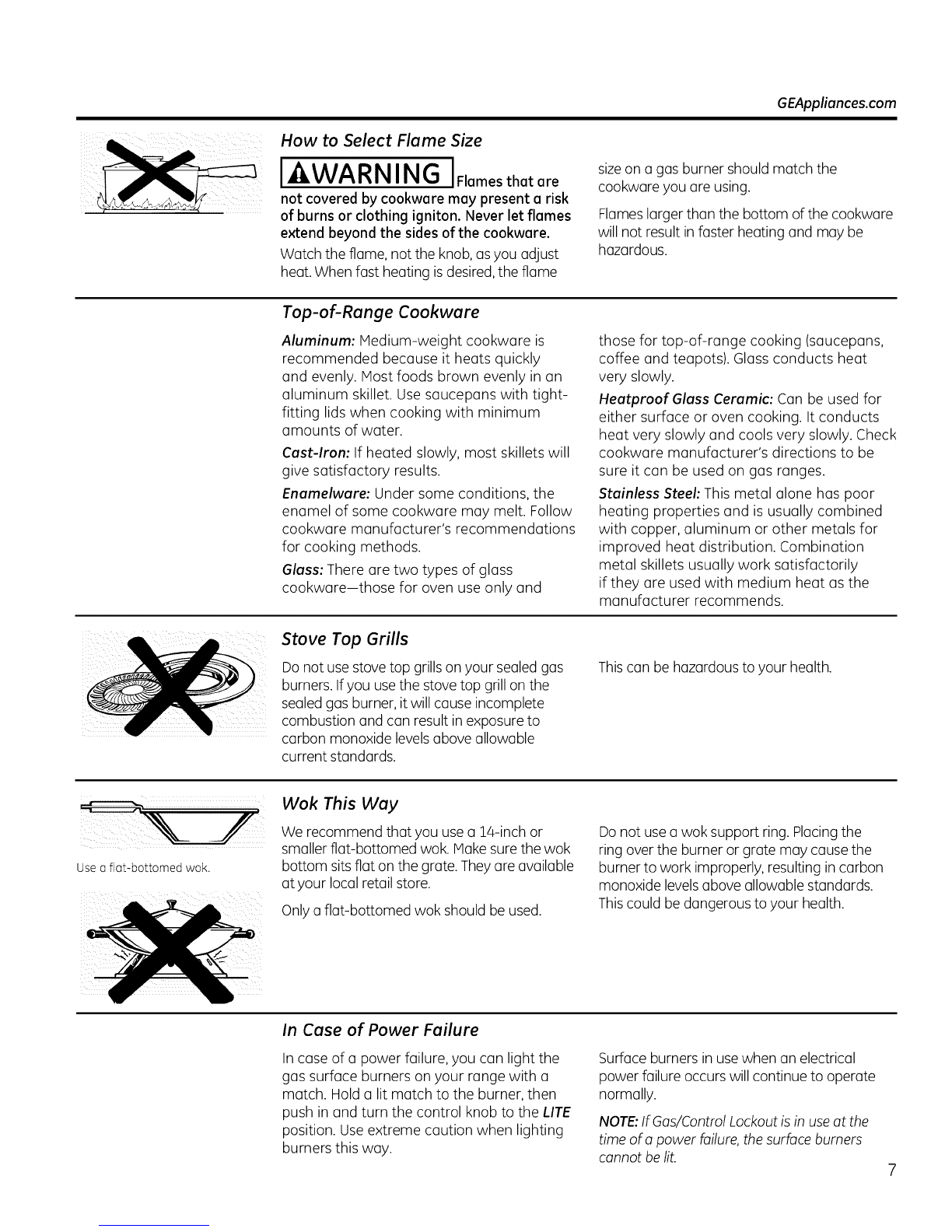

Do not use a wok with a round metal support ring. the
ring may trap heat and block air to the burner resulting
in a carbon monoxide hazard.
iiiiiil
iiiiiiili_
Do not attempt to lift the cooktop. Doing so may
damage the gas tubing to the surface burners resulting
in a gas leak and risk of fire.
When disabling Gas/Control Lockout (on some models),
make sure the surface controls are set to the OFF
position. This will prevent unintended gas flow from the
burners.
iiiil}i
Do not use aluminum foil to cover the grates or line
any part of the cooktop. Doing so may result in carbon
monoxide poisoning, overheating of the cooktop
surfaces, or a potential fire hazard.
4 SAVE THESE INSTRUCTIONS

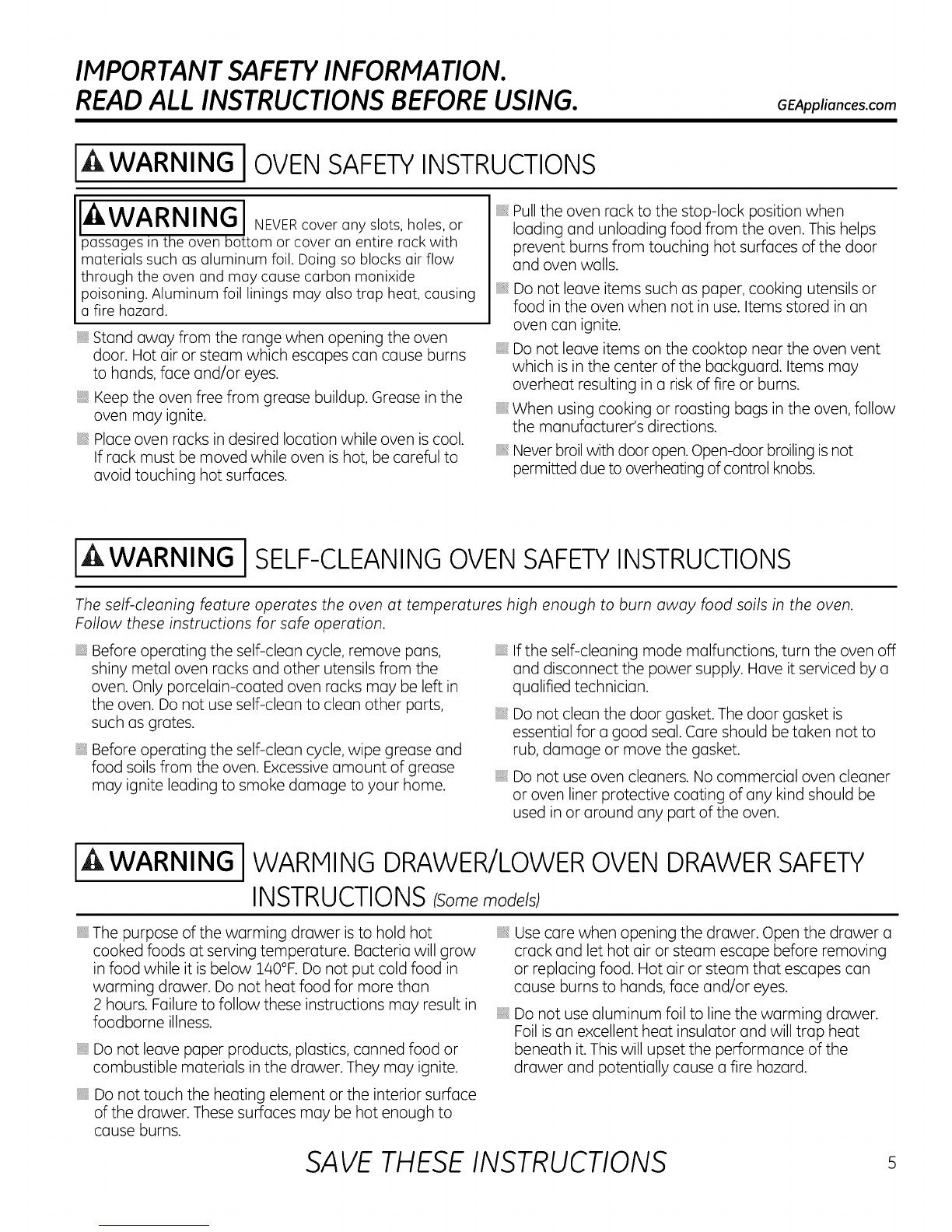

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING. GEAppliances.com
IAWARNING lOVEN SAFETYINSTRUCTIONS
IAI.1.WA,,N IN,_ior:_lNEVER coverany slots,holes,or
passages _nthe oven bottom or cover an entire rack with
materials such as aluminum foil. Doing so blocks air flow
through the oven and may cause carbon monixide
poisoning. Aluminum foil linings may also trap heat, causing
a fire hazard.
iiiiiil
iiiiiiili_
Standaway from the range when opening the oven
door. Hot air or steam which escapes can cause burns
to hands,face and/or eyes.
Keepthe oven freefrom grease buildup. Greaseinthe
oven may ignite.
Placeoven racksin desired location while oven iscool.
If rack must bemoved while oven ishot, becareful to
avoidtouching hot surfaces.
Pull the oven rack to the stop-lock position when
loading and unloading food from the oven. This helps
prevent burns from touching hot surfaces of the door
and oven walls.
Do not leave items such as paper, cooking utensils or
food in the oven when not in use. Items stored in an
oven can ignite.
Do not leave items on the cooktop near the oven vent
which is in the center of the backguard. Items may
overheat resulting in a risk of fire or burns.
When using cooking or roasting bags in the oven, follow
the manufacturer's directions.
Never broil with door open. Open-door broiling is not
permitted due to overheating of control knobs.
IA WARNING ISELF-CLEANINGOVENSAFETYINSTRUCTIONS
The self-cleaning feature operates the oven at temperatures high enough to burn away food soils in the oven.
Follow these instructions for safe operation.
Before operating the self-clean cycle, remove pans,
shiny metal oven racks and other utensils from the
oven. Only porcelain-coated oven racks may be left in
the oven. Do not use self-clean to clean other parts,
such as grates.
Beforeoperating the self-clean cycle,wipe grease and
food soilsfrom the oven.Excessiveamount of grease
may ignite leadingto smoke damage to your home. iiiiiil
If the self-cleaning mode malfunctions, turn the oven off
and disconnect the power supply. Have it serviced by a
qualified technician.
Do not clean the door gasket. The door gasket is
essential for a good seal. Care should be taken not to
rub, damage or move the gasket.
Do not useoven cleaners.No commercial oven cleaner
or oven linerprotective coating of any kind should be
used in or around any part of the oven.
WARNINGIWARMINGDRAWER/LOWER OVEN DRAWER SAFETY
INSTRUCTIONS (Somemodels)
The purpose of the warming drawer is to hold hot
cooked foods atserving temperature. Bacteria will grow
in food while it is below 140°F. Do not put cold food in
warming drawer. Do not heat food for more than
2 hours. Failure to follow these instructions may result in
foodborne illness.
Do not leave paper products, plastics, canned food or
combustible materials in the drawer. They may ignite.
Do not touch the heating element or the interior surface
of the drawer. These surfaces may be hot enough to
cause burns.
Usecare when opening the drawer. Openthe drawer a
crack and let hot airor steam escape before removing
or replacing food. Hot air orsteam that escapescan
cause burnsto hands, faceand/or eyes.
Do not use aluminum foil to line the warming drawer.
Foil is an excellent heat insulator and will trap heat
beneath it.This will upset the performance of the
drawer and potentially cause a fire hazard.
SAVE THESE INSTRUCTIONS s

Using the gas surface burners.
Throughout this manual, features and appearance may vary from your model.
Before Lighting a Gas Burner
Make sureall burners are in place.
Make sureall grates on the range are
properly placed before using any burner.
Ifyour range hasthe Gas/Control Lockout
feature, make sure it isdisabled before
attempting to light the surface burners.
After Lighting a Gas Burner
Donot operatethe burner for on extended
period of time without cookwore onthe
grate.Thefinish onthe grate may chip
without cookwore to absorb the heat.
Besure the burners and grates ore cool
beforeyou placeyour hand, o pot holder,
cleaning cloths orothermaterials on them.
Push the control knob in and turn
it to the LITEposition.
How to Light a Gas Surface Burner
I-_WARN ING IBurner flamesthat
are not covered bycookware may present a risk
of fire or clothing ignition. Thegriddle burner
should only be usedwith the griddle in place.
Failureto do somay result in serious injury.
Make sure oil the surface burners ore placed in
their respective positions.
PushthecontrolknobinandturnittotheLifEposition.
Youwill hear o little clicking noise-the sound
of the electric spark igniting the burner.
Turnthe knob to adjust the flame size.Ifthe
knob stays at LITE,it will continue to click.
When one burner isturned to LITE,all the
burners spark. Donot attempt to disassemble
or clean around any burner while another
burner ison.An electric shockmay result,which
could cause you to knock over hot cookware.
Medium Small
i 1
I
.+p+,+•
Large Center (oval) Extra Large
ion some
Extra models,
Large )
on
some
models Tn-nng
burner ran
some modetss
Bridge burner
-(on some
/\,
\ jj, models)
Sealed Gas Burners
Your gas range cooktop has sealed gas
burners. They offer convenience, cleonobility
and flexibility to be used in a wide range of
cooking applications.
The smallest burner in the right rear position
isthe simmer burner. On some models, the
right front position triple flame burner will be
the simmer burner. This burner can be turned
down to SIM for a very low simmer setting.
It provides precise cooking performance for
delicate foods such us sauces or foods that
require low heat for u long cooking time.
The medium (left rear) and the large (left
front) burners are the primary burners
for most cooking. These general-purpose
burners can be turned down from HI to LO to
suit u wide range of cooking needs.
Theextra large burner (right front, triple flame
burner, or left front burner on some models)are
the maximum output burners. Likethe other
four burners, itcan be turned down from HI to
SIMfor u wide range of cooking applications.
These burners are designed to quickly bring
large amounts of liquid to u boil. They have
a special POWER BOILTM setting designed to
be used with cookware lO inches or larger in
diameter for the extra large and ll inches or
larger for the triple flame burner.
For extra large burners only
iiiiiiiiiiiiiiiiiiiiiiiiiiiii_i!i!i!iiiiii
For tri-ring burners only
Thecenter oval burner (onsome models)is for
large pots/puns or for usewith the griddle.

GEAppliances.com
How to Select Flame Size
I WARNING IFlamesthat are
not coveredby cookwaremay present a risk
of burnsor clothingigniton. Never letflames
extend beyondthe sides of the cookware.
Watch the flame, not the knob, asyou adjust
heat. When fast heating is desired,the flame
sizeon a gas burner should match the
cookware you are using.
Flameslarger than the bottom ofthe cookware
will not result in faster heating and may be
hazardous.
Top-of-Range Cookware
Aluminum: Medium-weight cookware is
recommended because it heats quickly
and evenly. Most foods brown evenly in an
aluminum skillet. Use saucepans with tight-
fitting lids when cooking with minimum
amounts of water.
Cast-Iron: If heated slowly, most skillets will
give satisfactory results.
Enamelware: Under some conditions, the
enamel of some cookware may melt. Follow
cookware manufacturer's recommendations
for cooking methods.
Glass: There are two types of glass
cookware-those for oven use only and
those for top-of-range cooking (saucepans,
coffee and teapots). Glass conducts heat
very slowly.
HeatproofGlass Ceramic: Can be used for
either surface or oven cooking. It conducts
heat very slowly and cools very slowly. Check
cookware manufacturer's directions to be
sure it can be used on gas ranges.
Stainless Steel: This metal alone has poor
heating properties and is usually combined
with copper, aluminum or other metals for
improved heat distribution. Combination
metal skillets usually work satisfactorily
if they are used with medium heat as the
manufacturer recommends.
Stove Top Grills
Do not usestove top grillson your sealedgas
burners. Ifyou usethe stovetop grill on the
sealedgas burner, it will cause incomplete
combustion and can result in exposure to
carbon monoxide levelsabove allowable
current standards.
Thiscan be hazardous to your health.
Useaflat-bottomed wok.
Wok This Way
We recommend that you usea 14-inch or
smaller flat-bottomed wok. Make surethe wok
bottom sits flat on the grate. Theyare available
at your local retailstore.
Onlya flat-bottomed wok should be used.
Donot usea wok support ring. Placingthe
ring over the burner or grate may causethe
burner to work improperly, resulting in carbon
monoxide levelsabove allowable standards.
Thiscould be dangerous to your health.
In Case of Power Failure
In case of a power failure, you can light the
gas surface burners on your range with a
match. Hold a lit match to the burner, then
push in and turn the control knob to the LITE
position. Use extreme caution when lighting
burners this way.
Surface burners in usewhen an electrical
power failure occurs will continue to operate
normally.
NOTE:If Gas/Control Lockout is in use at the
time of a power failure, the surface burners
cannot be lit.

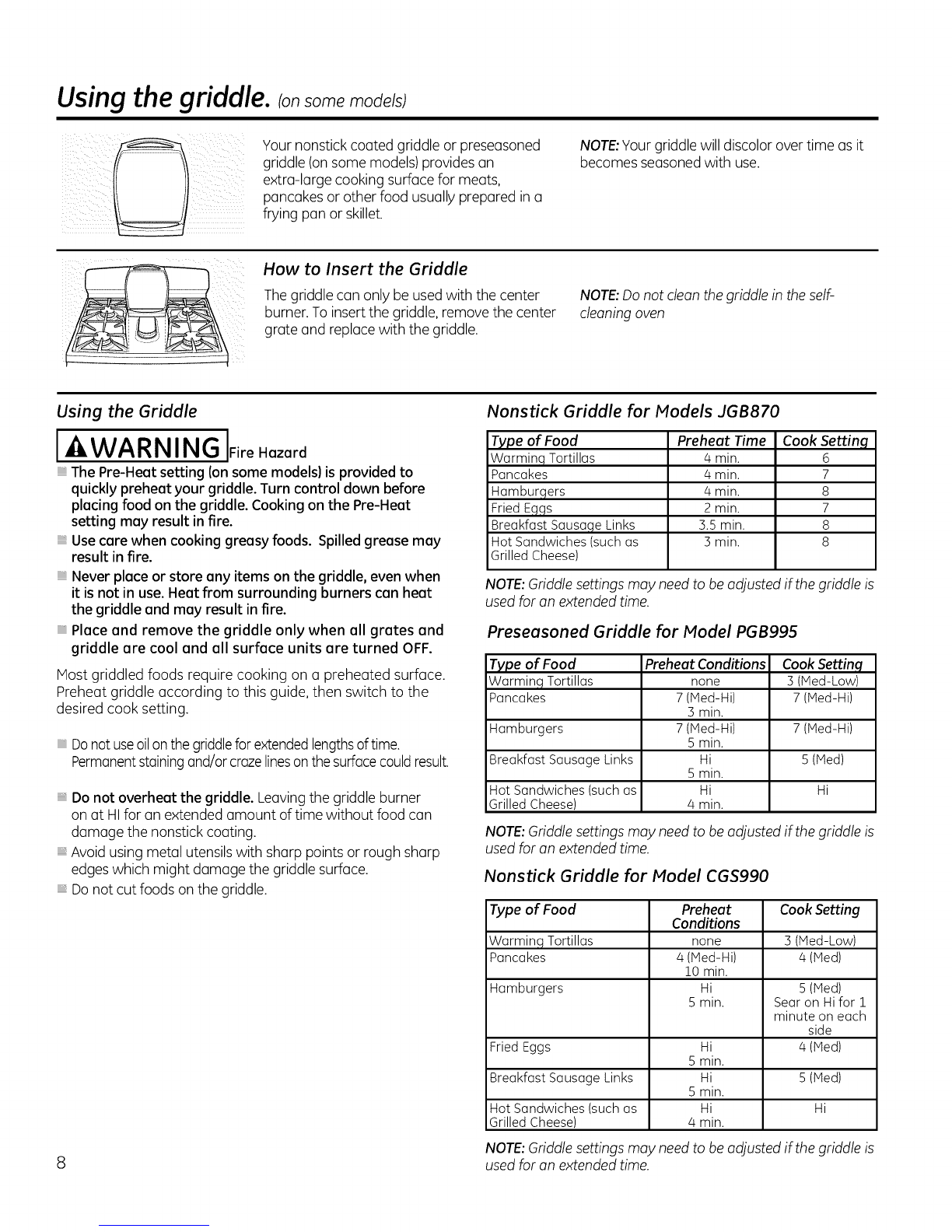

Using the griddle, ion
Your nonstick coated griddle or preseasoned
griddle (on some models) provides an
extra-large cooking surface for meats,
pancakes or other food usually prepared in a
frying pan or skillet.
NOTE:Your griddle will discolor over time as it
becomes seasoned with use.
How to Insert the Griddle
Thegriddle can only be usedwith the center
burner.To insertthe griddle, remove the center
grate and replace with the griddle.
NOTE:Donot clean thegriddle in theself-
cleaning oven
Using the Griddle
I -ii WARN ING IFireHazard
The Pre-Heat setting Ion some models) is provided to
quickly preheat your griddle. Turn controldown before
placing food on the griddle. Cooking on the Pre-Heat
setting may result in fire.
Usecare when cooking greasy foods. Spilled grease may
result in fire.
Never place or store any items on the griddle, even when
it is not in use. Heat from surrounding burners can heat
the griddle and may result in fire.
Place and remove the griddle only when all grates and
griddle are cool and all surface units are turned OFF.
Most griddled foods require cooking on a preheated surface.
Preheat griddle according to this guide, then switch to the
desired cook setting.
Donot useoilonthe griddlefor extendedlengthsoftime.
Permanentstainingand/orcrazelineson thesurfacecouldresult.
Do not overheat the griddle. Leavingthe griddle burner
on at HIfor an extended amount of time without food can
damage the nonstick coating.
Avoid using metal utensilswith sharp points or rough sharp
edgeswhich might damage the griddle surface.
Donot cut foods on the griddle.
Nonstick Griddle for Models JGB870
Type of Food Preheat Time Cook Setting
Warminq Tortillas 4 min. 6
Pancakes 4 min. 7
Hamburgers 4 min. 8
Fried Eggs 2 min. 7
Breakfast Sausage Links 3.5 min. 8
Hot Sandwiches (such as 3 min. 8
Grilled Cheese)
NOTE:Griddle settings may need to be adjusted ifthe griddle is
used for on extended time.
Preseusoned Griddle for Model PGB995
Type of Food Preheat Conditions Cook Settinq
Warming Tortillas none 3(IVied-Low)
Pancakes 7 (IVied-Hi) 7 (IVied-Hi)
3 min.
Hamburgers 7 (IVied-Hi) 7 (IVied-Hi)
5 min.
Breakfast Sausage Links Hi 5 (iVied)
5 min.
Hot Sandwiches (such as Hi Hi
Grilled Cheese) 4 min.
NOTE:Griddle settings may need to be adjusted ifthe griddle is
used for an extended time.
Nonstick Griddle for Model CGS990
Type of Food Preheat Cook Setting
Conditions
Warming Tortillas none 3 (IVied-Low)
Pancakes 4 (iVied-Hi) 4 (iVied)
10 min.
Hamburgers Hi 5 (iVied)
5 min. Sear on Hifor 1
minute on each
side
Fried Eggs Hi 4 (iVied)
5 min.
Breakfast Sausage Links Hi 5 (iVied)
5 min.
Hot Sandwiches (such as Hi Hi
Grilled Cheese) 4 min.
NOTE:Griddle settings may need to be adjusted ifthe griddle is
8used for an extended time.

Using the lower oven.
(Throughout this manual, features and appearance may vary from your model.)
LOWER OVI
0
Features, appearance and pad locations may vary. 0
)NTROLS
o
Oven Control, Clock, Timer and Features
Oake Pad 0
Touchto selectthebakefunction.
Convection Bake Pad (on some models)
Touchto selectbakingwith the convectionfunction.
OConvection Roast Pad (on some models)
Touchto selectroastingwith theconvection
function.
Otart Pad
Hustbe touchedto start anycookingor cleaning
function.
OWoFmPod
touch to keepcookedfoodswarm. SeetheHow to
SettheOvenfor Wormingsection.
pisplay
Showsthe time of day,oventemperature,whether
the ovenisinthe bake,broilor self-cleaningmode,
the timessetforthe timer or automatic oven
operations,and ifthe range islocked.
If "F-" and a number or letter flash in the display
and theoven control signals,this indicatesa function
error code.TouchtheClear/Offpod.Allowtheovento
coolforonehour.Puttheovenbackintooperation,ffthe
functionerrorcoderepeats,disconnectthepowerto the
ovenandcoilforservice.
Ifyour oven was set for a timed oven operation and a
power outage occurred, the dock and allprogrammed
functions must be reset.
Thetime of day will flash inthe display whenthere has
beena power outage.
OelfClean Pad
Touchto selectself-cleaningfunction. Seethe
Usingtheself-cleaningoven section.
OOvenLight On/OffPad
Touchto turn theoven lighton or off.
Delay Start Pad
Usealongwith CookingTime or SelfCleanpads
to setthe ovento startand stop automaticallyat a
time you set.
OCooking Time Pad
Touchand thentouchthenumberpadsto setthe
amount of timeyou want your foodto cook.The
ovenwill shut off whenthe cookingtime hasrun
out.
O Clear/Off Pad
Touchto cancelALLovenoperationsexceptthe
clock,timer and Gas/ControlLockoutor Control
Lockout(dependingon model).
OCIockPad
Touchbeforesettingthe clock.
Oumber Pads
Useto set anyfunction requiringnumbers,such
asthetime of dayon the clock,thetimer,the oven
temperature,the internalfoodtemperature,the
starttime and lengthofoperationfor timed baking
and self-cleaning.
OKitchen Timer On/OffPad
Touchto selectthe timerfeature.
oProbe Pod
Touchwhen usingtheprobeto cook food.
Oas/Control Lockout Pad (onsome models)
Touchand holdthe GasControl Lockoutpad
for 3 secondsto lock/unlockthe surfaceburners,
ovenburnersand control panelsothey cannot be
activated.

Using the ovens.
To avoid possible burns, place the racks in the desired position before you turn the oven on.
The oven has 3 shelf positions.
It also has a special low shelf
position (R)for extra large items,
such as a large turkey.
Before you begin...
The rackshave stop-locks, sothat when placed
correctly on the rack supports (Athrough C),
they will stop before coming completely out,
and will not tilt.
When placing and removing cookware, pull the
rack out to the bump on the rack support.
I kCAUTlON Iwhenyouareusing
a rack in the lowest position (R),you will
need to use caution when pulling the rack
out. We recommend that you pull the rack
out several inches and then, using two pot
holders, pull the rack out by holding the
sides of it. Therack is low and you can be
burned ifyou put your hand in the middle of
the rack and pull all the way out. Be careful
not to burn your hand on the door when
using the rack in the lowest position (R).
To remove a rack, pull it toward you, tilt the
front end up and pull it out.
To replace, placethe end of the rack (stop-
locks)on the support, tilt up the front and push
the rack in.
NOTE:Therack isnot designedto slideout at
thespecial low rock (R)position.
Plastic items on the cooktop may
melt if left too close to the vent.
Vent appearance and location vary.
Upper Oven Vent
Your oven isvented through ducts at the rear
of the range. Donot block these ducts when
cooking inthe oven-it isimportant that the
flow of hot air from the oven and fresh air
to the oven burner be uninterrupted. Avoid
touching the vent openings or nearby surfaces
during oven or broiler operation-they may
become hot.
Handlesof pots and pans on the cooktop
may become hot if left too closeto the vent.
Donot leaveplastic or flammable items on
the cooktop-they may melt or ignite if left
too closeto the vent.
Donot leaveclosed containers on the
cooktop. Thepressure in closed containers
may increase,which may cause them
to burst.
Metal items will become very hot ifthey are
left on the cooktop, and could cause burns.
Power Outage
Theoven or broiler cannot be litduring a power
failure. Gaswill not flow unlessthe glow bar is
hot.
If the oven isin usewhen a power failure
occurs,the oven burner shuts off and cannot
be re-lit until power isrestored.Thisisbecause
the flow of gas isautomatically stopped
and will not resume when power is restored
until the glow bar has reached operating
temperature.
Upper Oven Light
Touch the OvenLight pad on the upper control
panel to turn the light on or off.
10

Usingthe lower oven. GEAppliances.com
Ifyour model has a door latch,
cleaning only.
The oven has a special low rack
{R)position just above the oven
bottom. Use it when extra cooking
space is needed, for example,
when cooking a large turkey. The
rack is not designed to slide out at
this position.
do not lock the oven door with the latch during baking or roasting. The latch is used for self-
How to Set the Lower Oven for Baking
Your oven isnot designedfor open-door
cooking.
[] Touch the BAKEpad.
[] Touch the number padsto set the desired
temperature.
r3] Touch the .STARTpad.
Theword ON and 100° willbe displayed.Asthe
oven heatsup,the displaywillshowthe changing
temperature.Whenthe ovenreachesthe
temperatureyou set,a tone willsound.
or Roasting
Tochangethe oven temperature during BAKE
cycle,press the BAKEpad and then the number
pads to get the new temperature.
r_ Checkfood for doneness at minimum time
on recipe.Cook longer if necessary.
Touch the CLEAR/OFFpad when cooking
r_ iscomplete.
NOTE: A cooling fan may automatically turn on
and off to cool internalparts. Thisisnormal and
the fan may continue to run evenafter the unit
isturned off.
When baking on a single rack, use
the rack position from the chart for
your type of food. Baking results
will be better if baking pans are
centered in the oven as much as
possible.
Preheating and Pan Placement
Toavoidpossible burns,place the racksin the
desiredposition beforeyou turn on the oven.
Preheatthe oven ifthe recipecalls for it.
To preheat, set the ovenat the correct
temperature. Preheatingisnecessary when
convection baking and for good resultswhen
baking cakes,cookies, pastry and breads. For
ovens without a preheat indicator light or tone,
preheat 10 minutes.
Baking resultswill be better if baking pans are
centered in the oven as much as possible.Pans
should not touch each other or the walls of the
oven.
When baking four cake layers at a
time, use racks A and C.Place the
Iower pans at the back of the rack
and the upper pans to the front of
the rack shown so that onepan is
not directly above another.
Ifyou need to usetwo shelves,stager the pans
soone isnot directly above another leaving
approximately 1-1/2" between pans, from the
front, back and sides of the walls.
NOTE:Donot bake or store anything in either
oven during a self clean cycle
Aluminum Foil
Donot usealuminum foil to lineoven bottoms.
Thefoil will trap heat below and upset the
performance of the oven. Foilcan melt
and permanently damage the oven bottom.
Damage from improper useof aluminum foil is
not covered bythe product warranty.
Oven Moisture
Asyour oven heats up,the temperature change
of the air in the oven may cause water droplets
to form on the door glass.Thesedroplets
Foilmay be usedto catch spills by placing a
sheet on a lower rack,several inches below
the food .Do not use more foilthan necessary
and never entirely cover an oven rack with
aluminum foil. Keepfoil at least 1-1/2" from
oven walls to prevent poor heat circulation.
are harmlessand will evaporate asthe oven
continues to heat up. 11

Using the upper oven.
Push in and turn the upper oven
knob to any desired setting.
To use the upper oven
[] Pushin and turn the upper oven knob to
any desired setting.
[] Allow the upper oven to preheat.
Theupper ovensignallightislocatedon the
upper left sideof the knoband glowswhen the
knobisin the ONposition.It remainsONuntil
the knobismovedto the OFFposition.
The"Heating"signal light islocated on the
upper right side of the knob and glows when
the heating elements are active. Preheat
iscomplete after the "Heating" signal has
turned off for the first time with each use.
Atone will NOTsound when the oven is
finished preheating.
NOTES."
Thelower ovencannot be usedduring a
self-cleancycleof the upper oven.
Donot put food,foil or cookware directlyon
the bottom of the upper oven.
If foods require a cover,useonly foil or lids
able to withstand bakingtemperatures. Do
not useplastic.
Forbest bakingresults,userack position B.If
your dishistoo tall, place on rack position A.
Forbestresults,bake cakesin lower oven.
3_2

GEAppliances.com
Thesize,weight, thickness,
starting temperature and
your preference of doneness
will affect broiling times. This
guide is basedon meats at
refrigerator temperature.
tThe U.S.Department of
Agriculture says "Bare beef is
popular, but you should know that
cooking it to only 140°F means
some food poisoning organisms
may survive." (Source: Safe Food
Book Your Kitchen Guide USDA
Bey.June 1985.)
The upper oven has 2 rack positions.
** In general, higher rack positions
yield darker external searing and
lower positions yield more doneness.
For best results, the broil pan should
be oriented parallel to the broiler.
Broiling Guide
Preheat oven for 5 minutes.
Food Doneness Type or Rack Type Rack Comments
Thickness Position*
Beef Steaks- 1" thick Roller/Flat A
Chicken
Rare -
Medium
Rare (140°-
160°F)
Medium
(160°F)
Well Done
(170°F)
Medium
(160°F)
Well Done
(170°F)
Steaks - Roller/Flat A
3/4" to 1" thick
Steaks - Roller/Flat A
3/4" to 1" thick
Ground Beef Roller/Flat A
Patties - 1/2" to
3/4" thick
Roller/Flat AGround Beef
Patties - 1/2" to
3/4" thick
Breast,
boneless
Steaks less than 1" thick are
difficult to cook rare. They may
cook through before browning.
Roller/Flat
Roller/Flat
Roller/Flat
Roller/Flat
A
A
A
A
Toavoid curling, slash fat at1"
intervals.
For best results, broil no more
than 8 ground beef patties at
onetime.
Broil skin side down first.
Breast, bone-in
Fish 1/2" to 1" thick Handle and turn very carefully.
fillets
Pork Well Done 3/4" thick Toavoid curling, slash fat at 1"
chops (170°F) intervals.
*Due to the variety of meats and cuts available, you may select alternate rack positions based on personal
preference of doneness and external searing. See illustration for description of rack positions.
!!
i i ,
Closethedoon Always broil with
the door closed.
How to Set the Upper Oven for Broiling
F71 Place the meat or fish on a broiler grid in a
broiler pan.
[] Followsuggested rock positions in the
Broiling Guide.
[] The oven door must be closed during
broiling.
r4] Pushin and turn the upper oven knob to
broil setting.
Servethe food immediately, and leave the pan
outside the ovento cool during the meal for
easiestcleaning.
13

Using the clock and timer.
Not all features are on all models.
Make sure the clock is set to the
correct time of day.
To Set the Clock
The clock must be set to the correct time of
day for the automatic oventiming functions
to work properly. Thetime of day cannot be
changed during a timed baking or self-cleaning
cycle.
171 Touchthe Clock pad.
[] Touchthe number pads.
Touch the number pads the same way you
read them. Forexample,to set 12::54,touch the
number pads 1,2,3 and 4 in that order.
If number pads are not touched within one
minute after you touch the Clock pad,the
display reverts to the original setting. Ifthis
happens, touch the Clock pad and reenter the
time of day.
[] Touchthe Start pad untilthe time of day
shows in the display.Thisenters the time
and starts the clock.
Tocheckthe time of day when the display
isshowing other information, simply touch the
Clock pad.Thetime of day shows until another
pad istouched.
KITCHEN
TIMER
ON/OFF
START
The timer is a minute timer only.
The Clear/Off pad does not affect
the timer.
To Set the Timer (For lower oven onlyJ
Thetimer does not control oven operations.
The maximum setting on the timer is9 hours
and 59 minutes.
Touchthe Kitchen Timer On/Off pad.
Touchthe number pads until the amount
of time you want shows in the display.The
maximum time that can be entered in
minutes is59.Times more than 59
minutes should be changed to hours and
minutes. Forexample, to enter 90 minutes
as 1 hour 30 minutes, touch 1,3 and 0 in
that order.
Ifyou make a mistake, pressthe Kitchen Timer
On/Off pad and begin again.
%Touchthe Start pad.After pressing the
Start pad, Set disappears;this tells you the
time iscounting down, although the
display does not change until one minute
has passed.
gqWhen the timer reaches :00, the control
will beep 3 times followed by one beep
every 6 secondsuntil the Kitchen Timer
On/Offpad istouched.
The6-second tone can be canceled by
following the steps in the Specialfeatures of
your oven control section under Tonesat the
Endof a Timed Cycle.
To Reset the Timer
Ifthe display isstill showing the time remaining,
you may change it by touching the Kitchen
Timer On/Off pad and then touching the
number pads until the time you want appears
in the display.
If the remaining time isnot in the display (clock,
delay start or cooking time are inthe display),
recallthe remaining time by touching the
Kitchen Timer On/Off pad and then touching
the number padsto enter the new time you
want.
To Cancel the Timer
Touch the Kitchen Timer On/Off pad twice.
14
Power Outage
If a flashing time isin the display,you have
experienced a power failure. Resetthe clock. Touch the Clock pad once to reset.Enterthe correct time of day bytouching the appropriate
number pads.Touch the Start pad.

Using the timed baking and roasting features. (lowerovenonlyJ GEAppliances.com
NOTE: Foods that spoil easily-such as milk, eggs, fish, stu_ngs, poultry and pork-should not be allowed to sit for more
than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven
light is off because heat from the bulb will speed harmful bacteria growth.
II
il } i
D I-qo,:D
COOKING
[E53
N NN Uo!N
How to Set an Immediate Start and Automatic Stop
The upper oven willturn on immediately and
cook for a selected length of time. At the end
of the cooking time, the oven willturn off
automatically.
[] Touch the Bake pad.
[] Touchthe number pads to set the desired
oven temperature.
_l Touch the Cooking Time pad.
NOTE:Ifyour recipe requirespreheating, you
may need to add additional time to the length
of the cooking time.
[] Touchthe number pads to set the desired
length of cooking time. Theminimum
cooking time you can set is1 minute.
Theoven temperature that you set and
the cooking time that you entered will be
in the display.
r51 Touch the Start pad.
Theoven willturn ON,and the display will
show the cooking time countdown and the
changing temperature starting at IO0°F.(The
temperature display will start to change once
the oven temperature reaches IO0°F.)When
the oven reaches the temperature you set,3
beepswill sound.
Theoven will continue to cook for the set
amount of time, then turn off automatically.
After the oventurns off,the end-of-cycle tone
will sound.
[] Touch the Clear/Offpad to clear the
display ifnecessary.Removethe food
from the oven. Remember,eventhough
the oven turns off automatically, food left
in the ovenwill continue cooking after the
oven turns off.
Fq
rq EU
ICOOmNGI
D D D Uo,,D
I DELAYI
DDDDo,D
How to Set a Delayed Start and Automatic Stop
Theupperovenwillturnon atthetimeofdayyou
set,cookfor aspecificlengthoftimeandthenturn
off automatically.
Hakesuretheclockshowsthecorrecttimeofday.
TouchtheBakepad.
Touchthenumberpadstosetthedesiredoven
temperature.
[] TouchtheCookingTimepad.
NOTE:lfyourreciperequirespreheating,youmay
needtoaddadditionaltimetothelengthofthe
cookingtime.
NOTE:Anattentiontonewillsoundifyouareusing
timedbakinganddonottouchtheStartpod.
NOTE:lfyou would liketo checkthe timesyou have
set, touch the DelayStart pad to check the start
timeyou have set or touch the Cooking Time pad to
checkthe lengthof cookingtimeyou have set.
WhentheoventurnsONatthetime ofdayyouset,
thedisplaywillshowthecookingtimecountdown
andthechangingtemperaturestartingat IO0°F.
(Thetemperaturedisplaywillstartto changeonce
theoventemperaturereachesIO0°F.)Whenthe
ovenreachesthetemperatureyouset,beepswill
sound.
@
@
Touchthenumberpadstosetthedesired
lengthofcookingtime.Theminimumcooking
timeyou cansetis1 minute.
Theoventemperaturethat yousetandthe
cookingtimethat youenteredwillbein the
display.
TouchtheDelayStart pad.
Touchthenumberpadstosetthetimeofday
youwanttheoventoturnon andstart
cooking.
Theovenwillcontinuetocookforthesetamountof
time,thenturnoffautomatically.
Aftertheoventurnsoff,theend-of-cycletonewill
sound.
[] TouchtheClear/Offpadto clearthedisplayif
necessary.Removethefoodfromtheoven.
Remember,eventhoughtheoventurnsoff
automatically,foodleftintheovenwill
continuecookingaftertheoventurnsoff.
[Z] TouchtheStart pad. 15

Usingthe probe. (loweroven only)
IACAUTION I
I I TOprevent burns, do not unplug the probe from the oven outlet until the oven has cooled. Oo not
store the probe in the oven.
If your model has a door latch, do not lock the oven door with the latch while cooking with the probe. The latch is used
for self-cleaning only.
For many foods, especially roasts and poultry, internal food temperature is the best test for doneness. The temperature
probe takes the guesswork out of cooking foods to the exact doneness you want.
,- o::
III
JJJ 2
The temperature probe has a
skewer-like probe at one end and
a plug at the other end that goes
into the outlet in the oven.
Useof probes other than the one provided with
this product may result in damage to the probe.
Usethe handles of the probe and plug when
inserting and removing them from the food and
outlet.
Toavoid damaging your probe,do not use
tongs to pull on the cable when removing it.
To(]void breaking the probe, make surefood
iscompletely defrosted before inserting.
Topreventpossibleburns,do not unplugthe
probefrom theoutlet untilthe ovenhascooled.
Handles
Never leaveyour probe insidethe oven
during Gself-cleaning cycle.
Do not store the probe in the oven.
After preparing the meat and placing it on
Gtrivet or on Gbroiler pan grid, follow these
directions for proper probe placement.
Insertthe probe completely into the meat.
It should not touch the bone,fat or gristle.
Forroastswith no bone,insert the probe into
the meatiest part of the roast. Forbone-in ham
or lamb, insertthe probe into the center of the
lowest large muscle.
Insertthe probe into the center of dishessuch
as meat loaf or casseroles.
Insertthe probe into the meatiest part ofthe
inner thigh from below and parallel to the leg of
Gwhole turkey.
7q
[3m
mD_D
16
How to Set the Lower Oven For Cooking When Using the Probe
[71 Insertthe probe intothe food.
Plugthe probe intothe outlet in the oven.
Make sureit's pushed all the way in.Close
the oven door.
[_] Touch the Probe pad.
r4] Touch the number padsto set the desired
internal food or meat temperature
between 100% and 200°F.
[_] Touch the Bakepad.
Touch the number padsto set the desired
oventemperature.
_Z] Touch the Start pad.
Thedisplay will flash ifthe probe isinserted
intothe outlet and you havenot set a probe
temperature and touched the Start pad.
Thedisplay will show LO until the internal
temperature of the food reaches IO0°F;then
the changing internal temperature will be
shown.
When the internal temperature of the food
reachesthe number you have set,the
probe and the oven turn off and the oven
control signals.Tostop the signal,touch
the Clear/Off pad.Usehot pads to remove
the probe from the food. Donot usetongs
to pull on it-they might damage it.
Tochange the oven temperature during
probe cooking,touch the Bake pad and then
the number padsto set the new temperature.
If theprobe isremoved from the food before
the final temperature isreached,a tone will
soundand the display will flash until the
probe isremoved from the oven.
You con use the timer even though you
cannot use timed oven operations while
using the probe.

Using the convection lower oven. tonsome models) GEAppliances.com
The convection oven fan shuts off when the oven door is opened. DO NOT leave the door open for long periods of time
while using convection cooking.
In c_convection oven, c_fan
circulates hot air over, under @nd
around the food. This circulating
hot @itis evenly distributed
throughout the oven cavity. As @
result, foods ore evenly cooked
@ndbrowned-often in less time
th@nwith regular heat.
Tohelp you understand the difference between
convection bake and roast and traditional bake
and roast, here are some general guidelines.
Convection Bake
Preheatthe oven. Seethe Usingthe oven-
Preheatingand PanPlacement section.
Idealfor foods cooked on multiple racks.
Goodfor large quantities of baked foods.
Good resultswith cookies, biscuits,brownies,
cupcakes,cream puffs, sweet rolls,angel
food cake and bread.
Theconvection fan circulates the heated
air evenlyover and around the food.
Convection Roast
Goodfor large tender cuts ofmeat,
uncovered.
Roastsor poultry should be cooked on rack
position (A).
When you are convection roasting,it is
important that you usea broiler pun and grid
for best convection roasting results.The pan is
usedto catch grease spillsand the grid isused
to prevent greasespatters.
Placethe rack in rack position (A).
Theconvection fan circulates the heated air
evenly over and around the food. Heat and
poultry are browned on all sidesas ifthey
were cooked on a rotisserie.Heated air will be
circulated over,under and around the food
being roasted.Theheated air seals injuices
quickly for a moist and tender product while,
at the same time, creating a rich golden brown
exterior.
CONVECTIONBAKE,
FqDD o D
START
CLEAR
OFF
Auto Recipe TM Conversion
You can useyour favorite recipes in the
convection oven.
When usingConvection Bake, the oven will
automatically convert the oven temperature
from regular baking to Convection Bake
temperatures.
F-_ using the number pads, enter the
temperature recommended in the recipe.
[] Touch the Start pad.
The display will show the actual
converted (reduced)temperature. For
example, if you enter a regular recipe
temperature of 350°F(177°C)and touch
the Start pad, the display will show CON
and the converted temperature of 325°F
(163°C).
NOTE:This feature only converts cooking
temperatures, not cooking times.
When convection roasting, the oven
temperature will not auto convert.
[_] Touch the Clear/Off pad when baking is
finished.
Usepan sizerecommended in the recipe.
Somepackage instructions for frozen
casseroles,main dishes or baked goods
have been developed using commercial
convection ovens.For best results in
this oven, preheat the oven and usethe
temperature, for regular baking, on the
package.
To deactivate the feature:
Touch the lower oven Warm and Bake
pad at the same time until the display
shows SF.
Touch the Convection Bake pad. The
display will show Con On.Touch the
Convection Bake pad again. Thedisplay
will show Con Off.
[] Touch the Start pad.
17

Using the convection lower oven. Ionsome models)
Cookware for Convection Cooking
Before usingyour convection oven,check
to see ifyour cookware leavesroom for air
circulation in the oven. If you are baking with
several pans, leavespace between them. Also,
be sure the pansdo not touch each other or the
walls ofthe oven.
Paper and Plastic
Heat-resistant paper and plastic containers that
are recommended for use in regular ovens can
be used in convection ovens.Plasticcookware
that isheat-resistant to temperatures of 400°F
can also be used,when oven is below 400°F.
Metal and Glass
Anytype of cookware will work in your
convection oven. However, metal pans heat the
fastest and are recommended for convection
baking.
Darkenedor matte-finished pans will bake
fasterthan shiny pans.
Glassor ceramicpans cook more slowly.
When baking cookies,you will get the best
results ifyou usea flat cookie sheet instead of a
pan with low sides.
Forrecipes likeoven-baked chicken,usea pan
with low sides.Hot air cannot circulate well
around food in a pan with high sides.
START
CLEAR
OFF
How to Set the Lower Oven for Convection Baking or Roasting
E_] Touch the Convection Bake or Convection
Roast pad.
[] Touch the number pads to set the desired
oven temperature.
[_] Touch the Start pad.
Tochange the oventemperature, touch the
Convection Bake or Convection Roast pad
and then the number padsto set the new
temperature.
When the oven starts to heat, the changing
temperature, starting at ZOO°F,will be displayed.
When the oven reachesthe temperature you
set,3 beepswill sound.
r-_ Touch the Clear/Off pad when finished.
NOTE:Youwill hear a fan while cooking with
convection.Thefan will stop when the door is
opened,but the heat will not turn off.
Thefan will not start until thepreheat
temperature is reached.
NOTE:When convection baking,the oven
temperature will be25F H4C)lower than theset
temperature. SeeAuto RecipeConversionin the
SpecialFeaturessectionfor more information.
When convectionroosting, oventemperature
will not auto convert.
18

GEAppliances.com
For best results when roosting
large turkeys and roosts, we
recommend using the probe
included in the convection oven.
CONVECTION J
ROAST
PROBE
START
CLEAR 1
OFF
How to Set the Lower Oven for Convection Roasting When Using the Probe
(on some models)
The display willflash PROBE and the oven
control willsignal ifthe probe is inserted into
the outlet, and you hove not set a probe
temperature and touched the Start pod.
[-il Placethe rock in the rock position (A).
Insertthe probe completely into the food.
[] Plugthe probe into the outlet in the oven.
Hake sure it ispushed all the way in.Close
the oven door.
[] Touch the Convection Roast pod.
[] Touch the number podsto set the desired
oven temperature.
[_] Touch the Probe pod.
I-_ Touch the number podsto set the desired
internal food temperature.
1-4'CAUTIONJToprevent burns, do
not unplug the probe from the oven outlet
until the oven has cooled. Do not store the
probe in the oven.
NOTE:
Ifthe probe isremoved from the food before
the final temperature is reached,a tone will
sound and the display will flash until the
probe is removed from the oven.
iii_Youwill hear a fan while cooking with this
feature. Thefan will stop when the door is
opened but the heat will not turn off.
iii_You can usethe timer eventhough you
cannot usetimed oven operations while
using the probe.
Tochange the oventemperature during the
Convection Roastcycle,touch the Convection
Roust pad and then touch the number pads to
set the new desiredtemperature.
[-_ Touch the Start pad.
When the oven starts to heat,the word LO will
be inthe display.
After the internal temperature of the food
reaches 100°F,the changing internal
temperature will be shown in the display.
%When the internal temperature of the
food reachesthe numberyou hove set,
the probe and the oven turn off and the
oven control signals.To stop the signal,
touch the Clear/Off pod.Use hot pods to
remove the probe from the food. Do not
usetongs to pull on it-they might
damage it.
19

Usingthe convection lower oven. somemode s
Convection Roasting Guide - Suggested Settings
Meats
Beef
Pork
Lamb
Rib Roost (4-8 Ibs.)
Bone-in and Boneless
Beef Tenderloin (2-3 Ibs.)
Beef Tenderloin (4-6 Ibs.)
Bone-In, Boneless (3-5 Ibs.)
Bone-In (5-9 Ibs.)
Boneless (4-7 Ibs.)
Rore
Medium
Rare 425
Rare 425
325
Medium 325
Medium 375
Oven
Temp.
325°F
325°F
oF
oF
oF
oF
oF
oF
Internal
Temp.
145°F
IGO°F
145°F
145°F
IGO°F
165°F
165°F
170°F
Poultry Whole Chicken (5-7 Ibs.) 350
Turkey, Whole*
Unstuffed (10 to 16 Ibs.) 325°F 170-180°F
Unstuffed (18 to 24 Ibs.) 325°F 170-180°F
Turkey Breast (4 to 6 Ibs.) 325°F 170°F
*Stuffed birds generally require 30-45 minutes additional roasting time. Shield legs and breast with foil to prevent
overbrowning and drying of skin.
Using the lower oven timed convection baking features, ionsommod /sI
You will hear a fan while cooking with this feature. Thefan will stop when the door is opened but the heat will not turn off.
NOTE: Foods that spoil easily-such as milk, eggs, fish, stu#ngs, poultry and pork-should not be allowed to sit for more
than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven
light is off because heat from the bulb will speed harmful bacteria growth.
20
CONVECTION
BAKE
COOKING
TIME
DDD
START
CLEAR
OFF
How to Set an Immediate Start and Automatic Stop
Thelowerovenwillturnonimmediatelyandcook
fora selectedlengthoftime.Attheendofthe
cookingtime,theovenwillturnoffautomatically.
FT] Touch the Convection Bake pad.
[] Touch the number pads to set the desired oven
temperature.
[] TouchtheCookingTimepad.
NOTE:lfyourreciperequirespreheating,youmay
needtooddadditionaltimetothelengthofthe
cookingtime.
[_] Touchthenumberpadstosetthedesired
lengthofcookingtime.Theminimumcooking
timeyoucansetis1 minute.
Theoventemperaturethat yousetandthe
cookingtimethat youenteredwillbein the
display.
[] TouchtheStart pad.
TheovenwillturnON,andthedisplaywillshow
thecookingtimecountdownandthechanging
temperaturestartingatIO0°F.(Thetemperature
displaywillstarttochangeoncetheoventemperature
reachesIO0°F.)Whentheovenreachesthe
temperatureyouset,3 beepswillsound.
Theovenwillcontinuetocookforthesetamount
oftime,thenturnoff automatically,unlesstheCook
andHoldfeaturewasset.SeetheSpecialfeaturesof
yourovencontrolsection.
Aftertheoventurnsoff,theend-of-cycletonewill
sound.
[] TouchtheClear/Offpadto clearthedisplayif
necessary.Removethefoodfromtheoven.
Remember,eventhoughtheoventurnsoff
automatically,foodleftintheovenwill
continuecookingaftertheoventurnsoff.
