GE JGBP28MEM User manual

Dimensions and Installation Information (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Revised 6/07 330595
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
46-1/8
26-1/4*
46-3/8
36-1/4±1/4

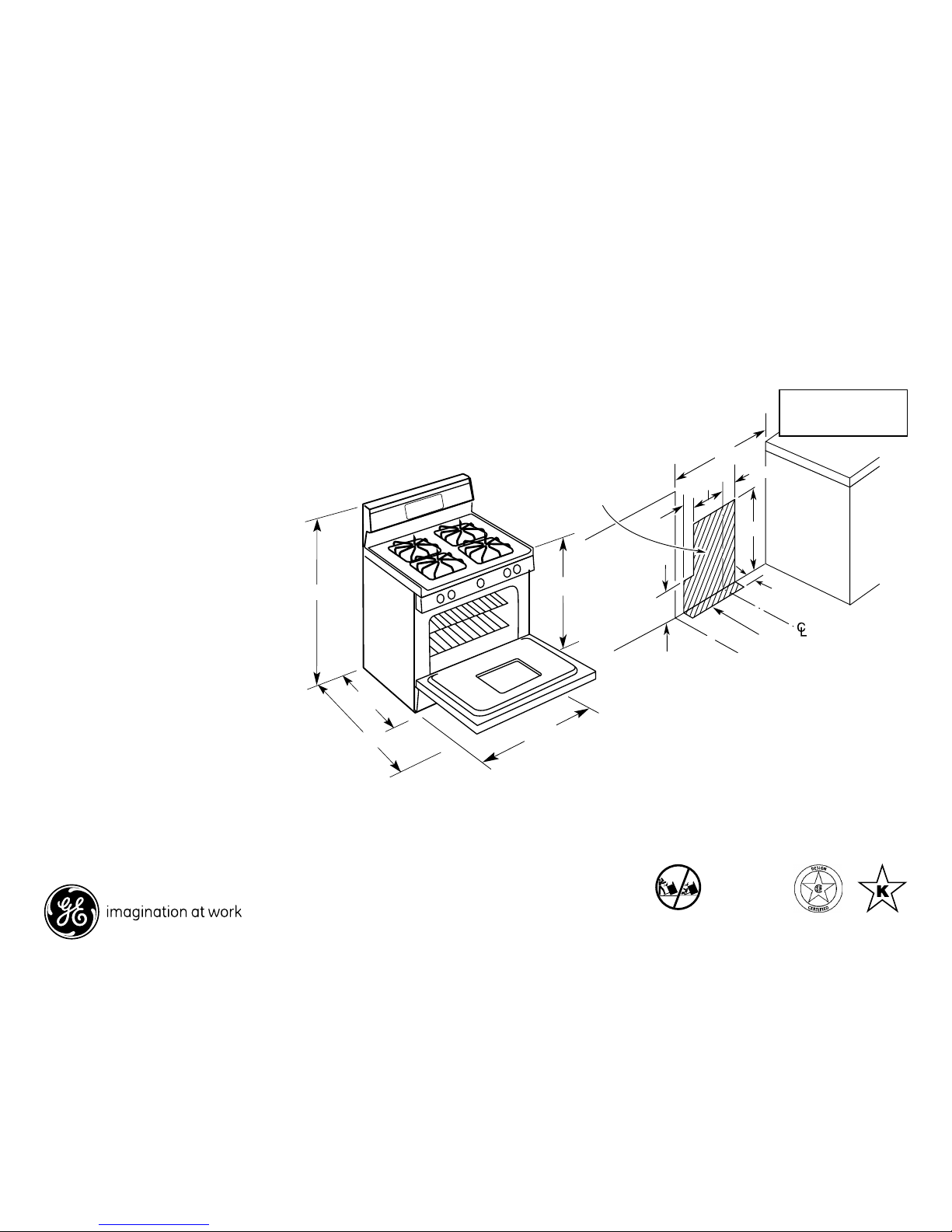

Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall
to front of closed
door handle is 29".
30
Optional Gas Range Accessory Drip Pans for
Sealed and Standard Burner Models
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002
Gas Self-Clean Range Anti-Tip Bracket
(Part No. 205C1714P001)
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
*Dimension from the wall to the front of the closed door
handle is 28-1/4". Depth to the front edge of cooktop 25-1/4".
24
30" FS Gas Ranges-CL
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
46-1/8
26-1/4*
46-3/8
36-1/4±1/4
Installation Information (Dimensions in inches)
Recommended common
area for gas outlet and
electrical outlet
*Dimension from wall
to front of closed
door handle is 29".
30
JGBP28MEM
GE® 30" Free-Standing Self-Clean Gas Range
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.

Features and Benefits
• Self-Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking more
items at once
• TrueTemp™System - Delivers even heat distribution and maximum oven control
• QuickSet III Oven Controls - Feature an easy to use design that lets you set precise
cooking temperatures
• All Purpose Burners - Deliver a wide range of heat output ideal for most cooking
requirements
• Sealed Cooktop Burners - Eliminate the space between the burners and the cooktop
to help contain spills and boil over liquids, ensuring easy cleanup
• Cast-Iron Grates; Square
• Frameless Glass Oven Door - Offers an easy-to-clean and stylish design that blends
seamlessly into existing cabinetry
• Big Hearth Window - Features an enhanced shape to add an elegant appearance
and make viewing trouble-free
• Two Oven Racks - Feature a durable construction to help accommodate any size
or type of cookware
• Model JGBP28MEMBS - CleanSteel™(shown)
JGBP28MEM
BROILSELF
CLEAN
OVEN
LIGHT
CLOCK
TIMECONTROLS
OVENCONTROLSTrueTemp
ON
TEMP
NORMAL
HILOOFF
KITCHEN
TIMER
ONOFF
BAKESTART
ON
CLEAR
OFF
Specification Revised 6/07 330595
JGBP28MEM
GE® 30" Free-Standing Self-Clean Gas Range
