GE JGBP36 Original instructions

GEAppliances.com
0
Safety Instructions ...... 2-7
Operating Instructions
Aluminum Foil ................ 15
Clock and Timer ........... 17, 18
Oven ...................... 12-25
Baking and Roasting ........ 15
Broiling, Broiling Guide ....... 16
Oven Control ............. 12, 13
Power Outage ........... 14, 18
Preheating ................... 15
Sabbath Feature ......... 21, 22
Self-Cleaning ............. 24, 25
Special Features ............. 20
Thermostat Adjustment ..... 23
Timed Baking
and Roasting ................ 19
Surface Cooking ............. 8, 9
Griddle ................... 10, 11
Care and Cleaning
Burner Assembly .......... 27-29
Burner Grates ................. 29
Control Panel and Knobs ..... 32
Cooktop Surface .............. 29
Door Removal ................. 30
Griddle ........................ 26
Kick Panel ..................... 31
Oven Bottom ................. 30
Oven Light Replacement ...... 33
Oven Vents ................... 32
Self-Cleaning .............. 24, 25
Racks ......................... 33
Stainless Steel Surfaces ....... 29
Storage Drawer ............... 31
Installation
Instructions ............ 34-45
Air Adjustment ................ 44
Anti-Tip Device ............ 37, 45
Checking Burner Ignition ...... 4:3
Connecting the Range
to Gas .................... :38-40
Dimensions and Clearances ..:36
Electrical Connections ..... 41, 42
Leveling the Range ........... 44
Location ...................... :37
LP ............................. 45
Troubleshooting
Tips ...................... 46-49
Accessories ................ 5o
Consumer Support
Consumer
Support .............. Back Cover
Ownership Registration
for Customers in
Canada onlg ........... 51, 52
Warrantg for Customers
in Canada ..................... 55
Warrantg for Customers
in the U.S.A................... 54
JGBP36
JGBP86
JGBP87
RGB735
RGB740
RGB745
RGB746
RGB790
In Canada contact us at:
www.GEAppliances.ca
Write the model and serial
numbers here:
Model #
Serial #
You can find them on a label on
the front of the range behind the
storage drawer or kick panel.
183D5580P243 49-85161 OI-09JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For _lour safet_l, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life,
2
®
WARNING: If the information
in this manual is not followed exectlg,
e fire or explosion meg result causing
propertg damage, personal injurg
or death.
-- Do not store or use gasoline or other
flammable vapors and liquids in the
vicinitg of this or ang other appliance.
-WHAT TO DO IF YOU
SMELL GAS
Do not trg to light ang appliance.
Do not touch ang electrical switch;
do not use ang phone in gour
building.
Im mediat el g ca II gour gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions.
If gou cannot reach gour gas supplier,
coil the fire deportment.
-- Installation and service must be
performed bg a qualified installer,
service agencg or the gas supplier.
ANTI-TIPDEVICE
• All ronges con tip.
• BURNSor other SERIOUS
INJURIEScon result.
• INSTALLond CHECKthe
ANTI-TIP brocket following
the instructions supplied
with the brocket.
Toreduce the risk of tipping the range, the range must be
secured by a properly installed anti-tip bracket. See installation
instructions shipped with the bracket for complete details
before attempting to install.
Tocheck ff the bracket is installed and engaged properly,
carefully tip the range forward. The bracket should stop the
range within 4 inches. If it does not, the bracket must be
reinstalled. If the range is pulled from the wall for any reason,
always repeat this procedure to verify the range is properly
secured by the anti-tip bracket.
Forfree-standing or slide-in ranges, never completely remove
the leveling legs or the range will not be secured to the anti-tip
device properly,
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 u) receive one at no
cost (in Canada, call 1.800.561.3344). For installation
instructions of the bracket, visit GEAppliances.com
(in Canada, GEAppliances.ca).

GEAppliances.com
WARNING!
IMPORTANT SAFETYNOTICE
The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to
publish a list of substances known to the state to cause birth defects or other reproductive harm, and
requires businesses to warn customers of potential exposure to such substances.
Gas appfiances can cause minor exposure to four of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or
LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize
incomplete combustion. Exposure to these substances can be minimized by venting with an open
window or using a ventilation fan or hood.
SAFETYPRECAUTIONS
Have the installer show you the location of the range gas shut-off valve and how to shut it off
if necessary.
} Have sour range installed and properlg
grounded bg a qualified installer, in
accordance with the Installation Instructions.
Ang adjustment and service should be
performed onlg bg qualified gas range
installers or service technicians.
Do not attempt to repair or replace any
part of your range unless it is specificallg
recommended in this manual. All other service
should be referred to a qualified technician.
_:,Plug sour range into a 120-volt grounded
outlet onlg. Do not remove the round
grounding prong from the plug. If in doubt
about the grounding of the home electrical
sgstem, it is sour personal responsibilitg and
obligation to have an ungrounded outlet
replaced with a properlg grounded,
three-prong outlet in accordance with
the National Electrical Code. Do not use
an extension cord with this appliance.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
4

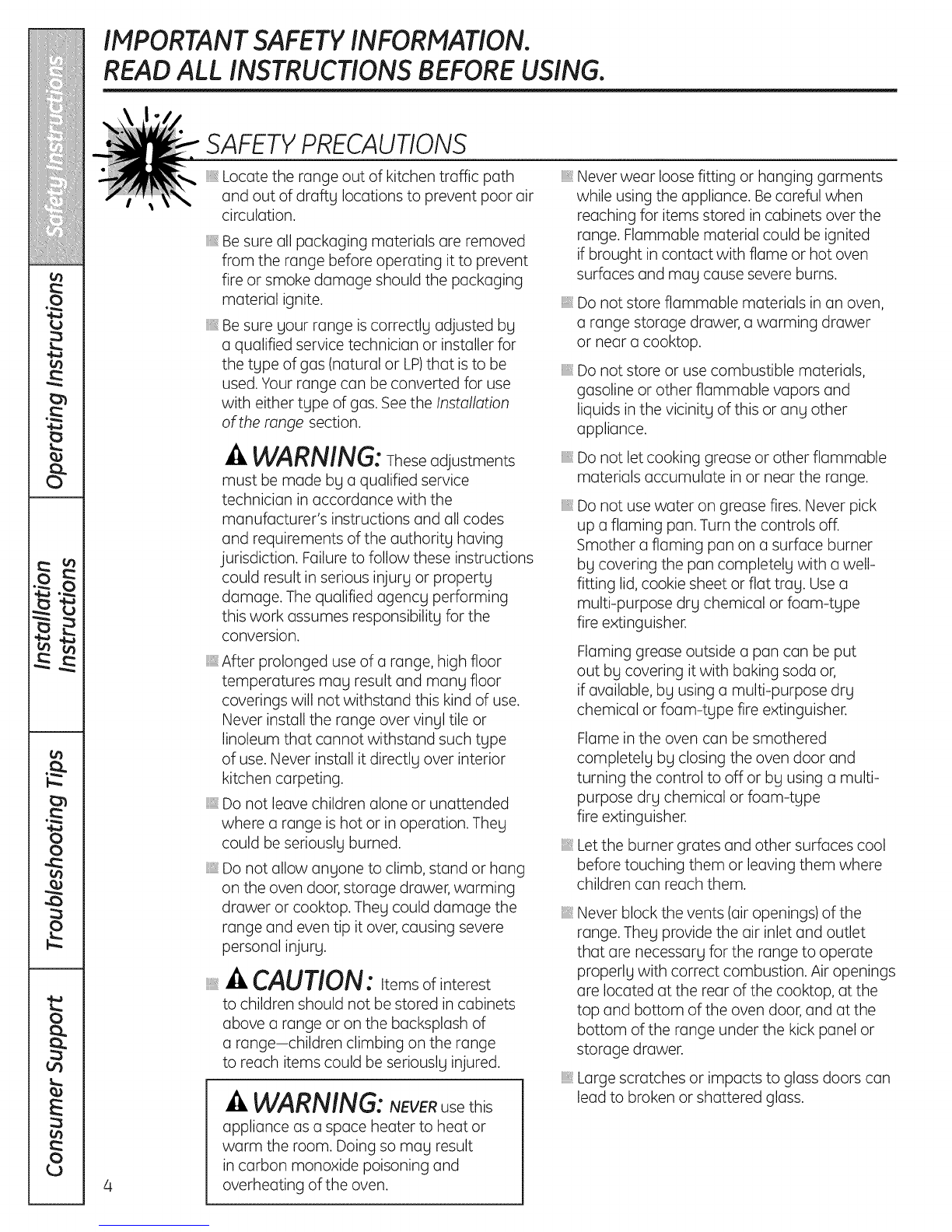

SAFETYPRECAUTIONS
Locate the range out of kitchen traffic path
and out of drafty locations to prevent poor air
circulation.
iiiiiil
iiiiiiili_
Be sure all packaging materials are removed
from the range before operating it to prevent
fire or smoke damage should the packaging
material ignite.
Be sure your range is correctly adjusted by
a qualified service technician or installer for
the type of gas (natural or LP)that is to be
used. Your range can be converted for use
with either type of gas. See the Installation
of the range section.
WARNING: Theseadjustments
must be made by a qualified service
technician in accordance with the
manufacturer's instructions and all codes
and requirements of the authority having
jurisdiction. Failure to follow these instructions
could result in serious injury or property
damage. The qualified agency performing
this work assumes responsibility for the
conversion.
_:,After prolonged use of a range, high floor
temperatures may result and many floor
coverings will not withstand this kind of use.
Never install the range over vinyl tile or
linoleum that cannot withstand such type
of use. Never install it directly over interior
kitchen carpeting.
_:,Do not leave children alone or unattended
where a range is hot or in operation. They
could be seriously burned.
_:,Do not allow anyone to climb, stand or hang
on the oven door, storage drawer, warming
drawer or cooktop. They could damage the
range and even tip it over, causing severe
personal injury.
_IL CAUTION: Items of interest
to children should not be stored in cabinets
above a range or on the backsplash of
a range-children climbing on the range
to reach items could be seriously injured.
WARNING: NEVERusethis
appliance as a space heater to heat or
warm the room. Doing so may result
in carbon monoxide poisoning and
overheating of the oven.
iiiiiil
iiiiiiili_
iiiiiiili_
Neverwear loosefitting or hanging garments
while usingthe appliance.Becarefulwhen
reachingfor items stored in cabinetsoverthe
range.Flammablematerial could beignited
if brought in contact with flame or hotoven
surfaces and may cause severeburns.
Do not store flammable materials in an oven,
a range storage drawer, a warming drawer
or near a cooktop.
Do not store or use combustible materials,
gasoline or other flammable vapors and
liquids in the vicinity of this or any other
appliance.
Do not let cooking grease or other flammable
materials accumulate in or near the range.
Do not use water on grease fires. Never pick
up a flaming pan. Turn the controls off.
Smother a flaming pan on a surface burner
by covering the pan completely with a well-
fitting lid, cookie sheet or flat tray. Use a
multi-purpose dry chemical or foam-type
fire extinguisher.
Flaming grease outside a pan can be put
out by covering it with baking soda or,
if available, by using a multi-purpose dry
chemical or foam-type fire extinguisher.
Flame in the oven can be smothered
completely by closing the oven door and
turning the control to off or by using a multi-
purpose dry chemical or foam-type
fire extinguisher.
Let the burner grates and other surfaces cool
before touching them or leaving them where
children can reach them.
Never block the vents (air openings) of the
range. They provide the air inlet and outlet
that are necessary for the range to operate
properly with correct combustion. Air openings
are located at the rear of the cooktop, at the
top and bottom of the oven door, and at the
bottom of the range under the kick panel or
storage drawer.
Large scratches or impacts to glass doors can
lead to broken or shattered glass.

GEAppliances.com
WARNING!
SURFACEBURNERS
Use proper pan size-avoid pans that are unstable or easfl_l tipped. Select cookware having flat
bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough
to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of
food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be
easily grasped and remain cool.
Always use the Lite position when igniting the
top burners and make sure the burners have
ignited.
Never leave the surface burners unattended at
high flame settings. Boilovers cause smoking
and greasy spillovers that may catch on fire.
Adjust the top burner flame size so it
does not extend beyond the edge of the
cookware. Excessive flame is hazardous.
Use only dry pot holders-moist or damp pot
holders on hot surfaces may result in burns
from steam. Do not let pot holders come near
open flames when lifting cookware. Do not
use a towel or other bulky cloth in place
of a pot holder.
When using glass cookware, make sure it
isdesigned for top-of-range cooking.
To minimize the possibility of burns, ignition
of flammable materials and spillage, turn
cookware handles toward the side or back of
the range without extending over adjacent
burners.
Carefully watch foods being fried at a high
flame setting.
Always heat fat slowly, and watch as it heats.
Do not leave any items on the cooktop. The
hot air from the vent may ignite flammable
items and will increase pressure in closed
containers, which may cause them to burst.
If a combination of oils or fats will be used in
frying, stir together before heating or as fats
melt slowly.
Use a deep fat thermometer whenever
possible to prevent overheating fat beyond
the smoking point.
Use the least possible amount of fat for
effective shallow or deep-fat frying. Filling the
pan too full of fat can cause spillovers when
food is added.
iiiiiil
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
Do not flame foods on the cooktop. If you do
flame foods under the hood, turn the fan on.
Do not use a wok on the cooking surface if the
wok has a round metal ring that is placed over
the burner grate to support the wok. This ring
acts as a heat trap, which may damage the
burner grate and burner head. Also, it may
cause the burner to work improperly. This may
cause a carbon monoxide level above that
allowed by current standards, resulting in a
health hazard.
Foods for frying should be as dry as possible.
Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and over
the sides of the pan.
Never try to move a pan of hot fat, especially
a deep fat fryer. Wait until the fat is cool.
Do not leave plastic items on the cooktop-
they may melt if left too close to the vent.
Keep all plastics away from the surface
burners.
To avoid the possibility of a burn, always be
certain that the controls for all burners are at
the Off position and all grates are cool before
attempting to remove them.
If range is located near a window, do not hang
long curtains that could blow over the surface
burners and create a fire hazard.
If you smell gas, turn off the gas to the range
and call a qualified service technician. Never
use an open flame to locate a leak.
Always turn the surface burner controls off
before removing cookware.
Do not lift the cooktop on sealed burner
models. Lifting the cooktop can lead to
damage and improper operation of the range.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
COOK MEATAND POULTRY THOROUGHLY...
Cook meat and poultry thoroughly-meat to at least an INTERNALtemperature of160°F and poultry
to at least an INTERNALtemperature of l80°F. Cooking to these temperatures usually protects against
foodbome illness.
OVEN
Stand away from
can cause burns to hands, face and eyes.
} Do notuse theoven fora storagearea. }
Itemsstoredintheoven can ignite.
Keep the oven free from grease buildup.
} Place the oven racks in the desired position
while the oven iscool. }
iiiil}i
iiiiiiili_
the range when opening the door of a hot oven. The hot air and steam that escape
Pulling out the rack to the stop-lock isa
convenience in lifting heavy foods. It isalso
a precaution against burns from touching hot
surfaces of the door or oven walls. The lowest
position is not designed to slide.
Do not heat unopened food containers.
Pressure could build up and the container
could burst, causing an injurg.
iiiil}i
WARNING: NEVERcover
ang slots, holes or passages in the oven
bottom or cover an entire rack with
materials such as aluminum foil. Doing
so blocks air flow through the oven and
mag cause carbon monoxide poisoning.
Aluminum foil linings mag also trap
heat, causing a fire hazard.
Do not use aluminum foil angwhere in the
oven except as described in this manual.
Misuse could result in a fire hazard or damage
to the range.
iiiil}i
iiiiiiili_
iiiiiiili_
iiiiiiili_
iiiiiiili_
When using cooking or roasting bags in the
oven, follow the manufacturer's directions.
Do not use gour oven to drg newspapers.
If overheated, theg can catch fire.
Use onlg glass cookware that is recommended
for use in gas ovens.
Alwags remove ang broiler pan from range
as soon as gou finish broiling. Grease left in
the pan can catch fire if oven is used without
removing the grease from the broiler pan.
When broiling, if meat istoo close to the flame,
the fat mag ignite. Trim excess fat to prevent
excessive flare-ups.
Hake sure ang broiler pan is in place correctlg
to reduce the possibilitg of grease fires.
If gou should have a grease fire in a broiler
pan, touch the Clear/Off pad, and keep
the oven door closed to contain fire until it
burns out.
For safetg and proper cooking performance,
alwags bake and broil with the oven door
closed.
6

GEAppliances.com
SELF-CLEANING OVEN
Be sure to wipe off excess spillage before
self-cleaning operation.
Before self-cleaning the oven, remove the
racks, anLI broiler pan, grid and other
cookware.
Do not clean the door gasket. The door gasket
isessential for a good seal. Care should be
taken not to rub, damage or
move the gasket.
Clean onlLI parts listed in this Owner's Manual.
If the self-cleaning mode malfunctions,
turn the oven off and disconnect the power
supplg. Have it serviced bg a qualified
technician.
*:, Do not use oven cleaners. No commercial
oven cleaner or oven liner of ang kind should
be used in or around anLIpart of the oven.
Residue from oven cleaners will damage the
inside of the oven when the self-clean cLIcle
is used.
READAND FOLLOW THISSAFETYINFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

Using the gas surface burners.
Throughout this manual, features and appearance may vary from your model.
Before Lighting aGas Burner
Make sureall burners are in place.
Makesure all grates on the range are
properlg placed before using ang burner.
After Lighting aGas Burner
Donot operate the burner for an extended
period of time without cookware on the
grate. Thefinish on the grate mag chip
without cookware to absorb the heat.
Besurethe burners and grates are cool
before gou place gour hand, a pot holder,
cleaning cloths or other materials on them.
Pushthecontrolknobin andturn
it tothe Lite position.
How to Light aGas Surface Burner
Make sureall the surface burners are placed
in their respectivepositions.
Pushthe control knob in and turn it to the Lite
position.
Youwill hear a little clicking noise-the sound
of the electric spark igniting the burner.
Turnthe knobto adjust the flame size.Ifthe
knob stags at Lite, it will continue to click.
When one burner isturned to Lite, allthe
burners spark. Donot attempt to disassemble
or clean around ang burner while another
burner ison.An electric shock mag result,
which could cause gou to knockover hot
cookware.
On somemoaeis
Medium Sma
®
Large Center(oval] Extra
_onsome Large
modetsj
On some moaets
Medium Small
L
Medium Large
Sealed Gas Burners
Yourgas rangecooktop, depending on model,
has eitherfour or five sealedgas burners.
Thegoffer convenience,cleanabilitg and
flexibilitgto be usedin a wide range of
cooking applications.
Thesmallestburner in the right rear positionis
the simmer burner.Thisburner can beturned
down to Lofor a verg low simmer setting. It
provides precisecooking performance for
delicate foods such as saucesor foods that
require low heat for a long cooking time.
Themedium (leftrear and,on some models,
left front) and the large(leftfront and, on some
models,right front) burnersare the primarg
burnersfor most cooking.Thesegeneral-
purpose burnerscan be turned down from
Hi to Lo to suit a wide range of cooking needs.
Theextra large burner (rightfront, on some
models)isthe maximum output burner.Like
the other four burners,itcan beturned down
from Hi to Lo for a wide range of cooking
applications;however,this burner isdesigned
to quicklg bring large amounts of liquid to
a boil.Ithas a special PowerBoil'" settinc
designedto be usedwith cookware
10 inches or larger in diameter.
or
Lo
Extiadarge burneron!y
Onsomemodels
The center ovalburner (on some models)is
for large pots/pans or for usewith the griddle.
8
How to Select Flame Size
Forsafehandling of cookware,neverlet the
flames extendup thesides ofthe cookware.
Watch the flame, not the knob, as gou reduce
heat. Whenfast heating isdesired,the flame
sizeon a gas burner should match the
cookware gou are using.
Flameslarger than the bottom of the
cookware will not result in faster heating
of the cookware and could be hazardous.

GEAppliances.com
Top-of-Range Cookware
Aluminum: Medium-weight cookware is
recommended because it heats quickly
and evenly.Host foods brown evenly in an
aluminum skillet. Usesaucepanswith tight-
fitting lidswhen cooking with minimum
amounts of water.
Custdron: If heated slowly, most skillets
will givesatisfactory results.
Enamelware: Undersome conditions,
the enamel of some cookware may melt.
Follow cookware manufacturer's
recommendations for cooking methods.
Glass: Thereare two types of glass
cookware-those for oven use only and those
for top-of-range cooking (saucepans,coffee
and teapots).Glassconducts heat very
slowly.
HeutproofGluss Ceramic: Can be usedfor
either surface or ovencooking. It conducts
heat very slowly and coolsvery slowly. Check
cookware manufacturer's directions to be
sure it can be usedon gas ranges.
Stainless Steel: This metal alone has poor
heating properties and isusually combined
with copper,aluminum or other metalsfor
improved heat distribution. Combination
metal skilletsusually work satisfactorily if
they are usedwith medium heat as the
manufacturer recommends.
Stove Top Grills (on models with sealed burners)
Do not usestove top grills on your sealedgas
burners. If you usethe stove top grill on the
sealedgas burner,it will cause incomplete
combustion and can result in exposure to
carbon monoxide levelsabove allowable
current standards.
Thiscanbe hazardous to gout health.
Useaflat-bottomedwok.
Wok, This Wag (on models with sealed burners)
Werecommend that you usea J4"or smaller
flat-bottomed wok. Makesure thewok bottom
sitsflat on the grate. Theyare availableat
your loca!retai!store.
Only a flat-bottomed wok should be used.
Donot usea flat-bottomed wok on a support
ring. Placingthe ring over the burner or grate
may cause the burner to work improperly,
resulting in carbon monoxide levelsabove
allowable standards. Thiscould be dangerous
to your health.
In Case of Power Failure
In caseof a power failure, you can light the
gas surface burners on your range with a
match. Hold a lit match to the burner,then
push in and turn the control knob to the Lite
position. Useextreme caution when lighting
burners this way.
Surface burners in usewhen an electrical
power failure occurs will continue to operate
normally.

Using the griddle, ionsomemodels)
Your non-stick coated griddle provides
an extra-large cooking surface for meats,
pancakesor other food usuallg prepared
in a frging pan or skillet.
NOTE:Yourgriddle wi!!discolorover time as it
becomesseasonedwith use.
How to Insert the Griddle
_I,CAUTION: place and remove
the griddle only when al! grates and
griddle are coo! and al! surface units are
turned OFF.
Thegriddle can onlg be usedwith the center
burner.Toinsert the griddle,remove the
center grate and replacewith the griddle.
10

GEAppliances.com
Using the Griddle
Most griddled foods require cooking on a
preheated surface. Preheatgriddle according
to the guide below,then switch to the desired
cook setting.
I Tgpe of Food
Warming
Tortillas
Pancakes
Preheat Cook
Conditions Settinq
none 3 (MED-LOW)
7 (MED-HI) 7 (MED-HI)
3 min.
Hamburgers 7 (MED-HI) 7 (MED-HI)
5 min.
Fried Eggs HI 4 (MED)
5 min.
Bacon none 5 (MED)
Breakfast HI 5 (MED)
SausageLinks 5 min.
HotSandwiches HI HI
(suchas 4 min.
GrilledCheese)
NOTE:Griddle settings mag need to be
adjusted if the griddle is used for an
extended time.
IMPORTANTNOTES:
Avoidcooking extremelggreasg foodsand
be carefu!of greasespil!-overwhile cooking.
_,Do not useoil on the griddle for extended
lengths of time.Permanent staining and!or
craze lineson the surfacecould result.
,, Neverplace or store ang itemson the
griddle,evenwhen it is not in use.The
griddle can become heatedwhen usingthe
surrounding burners.
,, Do not overheet the griddle. Leavingthe
griddle burner on at HIfor an extended
amount of time without food can damage
the non-stick coating.
_,Avoidusing meta!utensilswith sharp points
or rough sharp edgeswhich might damage
the griddle surface.
Do not cut foods on thegriddle.
11

Using the oven controls.
Throughout this manual, features and appearance may vary from your model.
, t
L
%0 °0jc- ,a
0
(0re,0
T:.cont:s
LTim k2 .... L)
On/Off
12
OvenControl,Clockand TimerFeaturesandSettings(onsomemodels)
oake/Temp Recall Pad O
Touch this pad to selectthe bakefunction.
Bake Light
Flasheswhilein editmode-you canchangethe
oventemperatureat this point. Glowswhen the
ovenisin bakemode.
OStart/On Pad
Mustbe touchedto startany cooking or cleaning
function.
Oisplag
Showsthe time of day, oven temperature,
whether the oven isin the bake, broil or selh
cleaning mode and the times setfor the timer
or automatic oven operations.Thedisplay will
show PREwhile preheating.When the oven
reaches the selectedtemperature, the oven
control will beep and the display will show the
oven temperature.
If "F- and a number or letter"flash inthe displagand
the ovencontro!signals,this indicatesa function error
code.
0
0
If sour ovenwas set for a timed ovenoperation and a
power outage occurred,the clock and a!!programmed _-_
functions must be reset.
Thetime of dog wi!!flash in the displagwhen there has
been a power outage. Resettheclock.
Onmodelswith an ovendoorlatch,ifthefunctionerror
codeappearsduringtheself-cleaningcgcle,checkthe
ovendoor latch.Thelatch handlemaghavebeenmoved,
evenifonlg s!ightlg,from thelatchedposition.Makesure
thelatch ismovedtothe rightasfar asit willgo.
Touch the Cleur/Off pud. Allow the ovento coo!
for one hour.Putthe ovenback into operation. If the
function error coderepeats,disconnectthe power
to the range and ca!!for service.
Kitchen Timer On/Off Pad
Touch this pad to selectthe timer feature. Then
pressthe + and - pads to adjust the timer.
Kitchen Timer Light
Flasheswhilein editmode-sou canchangethe
settime atthis point.Glowswhen the timer has
beenactivated.Flashesagainwhen thetime has
run out untilthe control isreset.
Clock Pad
To setthe clock, pressthis pad twice and then
pressthe + and - pads. Thetime of dag will
flash inthe displagwhen the oven isfirst
turned on.
Start Time Pad
Usealong with the Cooking Time or SelfCleon
pads to set the oven to start and stop
automaticallg at a time you set.
Start Time Light
Flasheswhilein editmode-sou canchangethe
start time at this point. Glowswhenthe function
hasbeenactivated.
Cooking Time Pad
Touch this pad and then touch the + or - pads
to set the amount oftime Souwant sour food
to cook.Theoven will shut off when the cooking
time has run out.
Cooking Time Light
Flasheswhilein editmode-sou canchangethe
settime atthis point.Glowswhen the function
hasbeenactivated.Flashesagainwhen thetime
hasrun out untilthe control isreset.

GEAppliances.com
Oven Control,Clockand TimerFeaturesand SettingsIonsomemode sI
0
0
0
Automatic Oven Light (on some models)
This lights anytime the oven has been
programmed using the Cooking Timeor Start
Timefunctions.
Oven Light On/Off Pad
Touch this pad to turn the oven lighton or off.
-Pad
Shorttaps to this pad will decrease the time or
temperature bg small amounts. Touch and hold
the pad to decrease the time or temperature by
larger amounts.
+Pad
Shorttaps to this pad will increasethe time or
temperature bg small amounts. Touch and hold
the pad to increase the time or temperature by
larger amounts.
Self Clean Pad
Touch this pad to selectthe self-cleaning
function. Seethe Usingtheself-cleaningoven
section.
Clean Light
Flasheswhilein editmode-you canchangethe
lengthof time for theself-cleancycleat this
point. Glowswhen the ovenisinthe self-clean
cgcle.Afterthe self-cleancyele,the lightwillturn
off.Whenthelight isoff,slidethelatch handleto
the left asfar asitwill go and openthe door.If
your range doesnot havea latch,the doorwill
unlockautomatically.
Olear/OffPad
Touch this pad to cancel ALL ovenoperations
except the clock and timer.
OBroil Hi/Lo Pad
Touch this pad to selectthe broil function.
Broil Light
Flasheswhilein editmode-you canswitch from
Hito Lo Broil at this point. Glowswhen theoven
isin broilmode.
Indicator Lights (on some pads)
Editmodelastsseveralsecondsafter the last
pad press.Start Timeand CookingTimewill
bethe onlg padslit ifeitherof theseoptions is
selected.(Example:Start Timeisselectedwith
Bake-the Start Timepad will remainlituntilthe
clockreachesthe programmed time, at which
point it willturn off and the Bukefremp Recall
pad lightwilllight up).
13
e_
0
¢n
:__iiiiiiiiiiiii_iiiiiiii
/_Biiiiiii!iiiiiiii_iii
!i/i!iiitii_;iii'i'_i]_iiiii
iiiiiiiiii]iii,i_i_iX@iiiii
ii¢!iiiiii!2ii_iii/ii
p
to
¢n
0
0
e_
v
¢n
r_
0
o_
to
o_
0

Using the oven.
To avoid possible bums, place the racks in the desired position before you turn the oven on.
Theovenhas 5rackpositions.
It also hasa speciallow rackposition(R)
for extra largeitems, suchas alarge
turl<ey.
Before you begin...
Theracks havestop-locks, sothat when
placed correctlg on the rack supports
(Athrough E),theg will stop before coming
completelg out, and will not tilt.
When placing and removing cookware
pull the rack outto the bump on the rack
support.
Toremove e reck, pull it toward gou,tilt the
front end up and pull itout.
Toreplece, placethe end of the rack (stop-
locks)on the support, tilt up the front and
push the rack in.
NOTE:Therock isnot designedto slideout at
the speciallow rock (R)position.
Plasticitemsonthecool<topmaymelt
if left tee closeto thevent.
Ventappearanceand locationvary.
Oven Vent
Youroven isvented through ducts at the rear
of the range. Donot block these ducts when
cooking in the oven-it is important that the
flow of hot air from the oven and fresh air
to the oven burner be uninterrupted. Avoid
touching the vent openings or nearbg
surfaces during oven or broiler operation-
theg mag become hot.
_,Handles ofpots and pans on the cooktop
may becomehot ifleft too closeto the vent.
Do not leaveplasticor flammable items on
the cooktop-they may melt or ignite if left
too closeto the vent.
Do not leave closed containers on the
cooktop. The pressure in dosed containers
mag increase,which mag causethem to
burst.
_,Meta!items wil! become verghot iftheg are
left on the cooktop,and could causeburns.
Power Outuge
^,,,,CAUTION:oonotmakeany
attempt to operate the electric ignition oven
during on electrica! power failure.
Theoven or broiler cannot be lit during a
power failure. Gas will not flow unlessthe
glow bar is hot.
Ifthe oven is in usewhen a power failure
occurs,the oven burner shutsoff and cannot
be re-lit until power is restored.Thisis
because the flow of gas isautomaticallg
stopped and will not resume when power
is restored until the glow bar has reached
operating temperature.
Oven Light
Touchthe OvenLight pad on the upper
control panel to turn the light on or off.
14

GEAppliances.com
Ifyour model has a door latch, do not lock the oven door with the latch during baking or roasting. The latch is used
for self-cleaning onlg.
Theovenhasa special low rack(R)
positionjust abovetheovenbottom.
Useit when extracookingspace
is needed,for example,whencooldng
a largeturkey.Therackis notdesigned
toslide out atthis position.
How to Set the Oven for Baking or Roasting
Yourovenisnot designedfor open-door
cooking.
[_ Touchthe Bake pad.
[_ Touch the + or - pads until the desired
temperature isdisplayed.
F3] Touch the Start/On pad.
Tgpe of Food Rack Position
Frozenpies (oncookiesheet) Bor C
Angelfoodcake, B
bundtorpoundcakes
Biscuits,muffins,brownies, C
cookies,cupcakes,lager
cakes,pies
Casseroles BorC
Roosting Ror A
Theovenwill start automatically. Thedisplay
will show PREwhile preheating. When the
oven reachesthe selectedtemperature, the
oven control will beep severaltimes and the
display will show the oven temperature.
Tochangethe oventemperature during Bake
cgcle,touch theBake pad and then the +or -
pads toget thenew temperature.
[] Checkfood for doneness at minimum
time on recipe.Cooklonger if necessary.
[_ Touch the Clear/Off pad when baking is
finished and then remove the food from
the oven.
Preheating and Pan Placement
Preheatthe oven ifthe recipe callsfor it.
Topreheat, setthe oven at the correct
temperature. Preheating isnecessary for
good resultswhen baking cakes,cookies,
pastry and breads.
Forovenswithout a preheatindicator light or
tone,preheat JOminutes.
Bakingresultswill be better if baking pans are
centered in the oven as much as possible.
Pansshould not touch each other or the walls
of the oven. If you need to use two racks,
stagger the pans soone isnot directly above
the other,and leave approximately 1"/2"
between pans,from the front, back and sides
of the wall.
Aluminum Foil
Do not use aluminum foi!on the bottom of
the oven.
Never entirely cover a rack with aluminum
foil.Thiswill disturb the heat circulation and
result in poor baking.
A smaller sheet of foil may be usedto catch a
spillover by placing iton a lower rack several
inches below the food.
Oven Moisture
Asyour oven heats up, the temperature
change of the air in the oven may cause
water droplets to form on the door glass.
Thesedroplets are harmlessand will
evaporate asthe oven continuesto heat up. 15

Using the oven.
Ifyour model has a door latch, do not lock the oven door with the latch during broiling. The latch is used for
self-cleaning only.
Closethedoor.Always broil with
the doorclosed.
How to Set the Oven for Broiling
NOTE: On models with an Oven Temp knob, turn it
to Broil.
[_] Placethe meat or fish on a broiler grid in
a broiler pan.
[_ Followsuggested rack positionsin the
Broiling Guide.
[_] Theoven door must be closed during
broiling.
I_ Touchthe Broil Hi/Lo pad once for
Hi Broil.
To change to Lo Broil, touch the
Broil Hi/Lo pad again.
rs] Touchthe Start/On pad.
r6] When broiling isfinished,touch the
Clout/Off pad.
Servethe food immediatelg, and leavethe
pan outside the oven to coolduring the meal
for easiestcleaning.
UseLo Broil to cook foods such as poultrg
or thick cuts of meat thoroughlg without
over-browning them.
Broiling Guide
Tilesize,weight,thickness,
starting temperature and your Food
preferenceofdonenesswillaffect Bacon
broilingtimes.Thisguideisbased
onmeatsatrefrigerator
temperature.
fThe U.S.Departmentof Agriculture Beef Steaks
says"Rarebeef is popular,butyou Raret
shouldknowthat cookingit to only Medium
140°Fmeanssomefood poisoning Well Done
organismsmaysurvive."(Source:Safe
FoodBookYourKitchenGuide USDA
Rev.June1985.)
Theovenhas 5rackpositions.
Ground Beef
Well Done
Raret
Medium
WellDone
Chicken
Lobster Tails
Fish Fillets
Ham Slices
(precooked)
Pork Chops
Well Done
Quantitg and/
or Thickness
1/2 lb.
(about 8 thin slices)
1 lb.(4 potties)
1/2"to 3/4"thick
1"thick
i to 1V, Ibs.
1V/' thick
2 to 2V_ Ibs.
1whole
2 to 2V2Ibs.
split lengthwise
4 bone-in breasts
2-4
6 to 8 oz. each
1/4"to 1/2"thick
1"thick
1/2"thick
2 (1/2"thick)
2 (1"thick)about t lb.
Rock*
Position
c
c
c
c
c
c
B
B
C
C
D
D
D
First Side
Time (min.}
lO
9
12
13
i0
12-15
25
30-35
25-30
13-16
8
6
i0
15
Second Side
Time (min.}
7-10
7
5-6
8-9
6-7
10-12
16-18
15-20
10-15
Do not
turn
over
8
6
8
8
Comments
Arrangein singlelager.
Space evenlg. Up to
8 patties take about
the same time.
Steaks less than 1"thick
cookthrough before
browning. Pan frging is
recommended.
Slash fat.
Brush each side with
melted butter Broil
skin-side-down first.
Cut through back of
shell. Spread open. Brush
withmelted butter before
broiling and offer half
of broiling time.
Handle and turn verg
carefullg. Brush with
lemon butter before
and during cooking, if
desired. Preheat broiler
to increase browning.
Slash fat,
*See illustration for descriptionof rackpositions.
16

Using the clock and timer. GEAppliances.com
Not all features are on all models.
To Set the Clock
iiii_iiiiiiii_i_il_ii_ _ _ ii_ _
i ¸tel ¸
i_i iiii_i:i _i__; i i:i_ii_iii_i__I
L_ on_J
Makesure theclockisset to the correct
time ofday.
Theclock must be set to the correct time of
dag for the automatic oventiming functions
to work properlg.Thetime of dag cannot be
changed during a delaged cooking or a
delaged self-cleaning cgcle.
[_ Touch the Clock pad twice.
[_ Touch the + or - pads.
If the + or - pads arenot touched within one
minute after gou touch the Clock pad, the
displag revertsto the original setting. Ifthis
happens, touch the Clock pad twice and
reenter the time of dag.
[_] Touchthe Start!On pad until the time of
dag shows in the displag.This entersthe
time and starts the clock.
Tocheckthe time of dag when the displagis
showing other information, simp!gtouch the
Clockpad. Thetime of dag shows unti!
another pad istouched.
To Turn Off the Clock Display
If gou have several clocksin gour kitchen,
gou mag wish to turn off the time of dag
clock displag on gour range.
[] Touch the Clock pad once to turn off the
time of dag displag.Although gou will
not be able to see it, the clock maintains
the correct time of dag.
[_ Touchthe Clockpad twice to recallthe
clock displag.
o
imer_
On /Off
L ooJ
Thetimer isa minutetimeronly.
TheClear/Offpad doesnotaffect the
timer.
To Set the Timer
Thetimer doesnot control oven operations.
Themaximum setting on the timer is 9 hours
and 59 minutes.
[_ Touch the Kitchen Timer On/Off pad.
[_ Touch the + or - pads until the amount
of time you want shows in the display.
The maximum time that can be entered
in minutes is59.Times more than
59 minutes should be changed to
hours and minutes.
If you make amistake,touch the Kitchen
Timer On!Off pad and begin again.
%Touchthe Start!On pad.Thetime will
start counting down, although the
display doesnot change until one
minute haspassed.
When the timer reaches :00, the control
will beep 3 times followed bg one beep
every 6 secondsuntil the Kitchen Timer
On!Off pad istouched.
17

Using the clock and timer, ionsomemode/sJ
Not all features are on all models.
To Reset the Timer
If the display isstill showing the time
remaining, you may change it by touching
the Kitchen Timer On/Off pad,then touch the
+ or - pads untilthe time you want appears
in the display.
Ifthe remaining time isnot in the display
(clock,start time or cooking time are in
the display),recallthe remaining time by
touching the Kitchen Timer On/Off pad and
then touching the + or - padsto enter the
new time you want.
To Cancel the Timer
Touch the Kitchen Timer On/Off pad twice.
®
imer_
on/o#
End of Cycle Tones (on some models)
Clearthe tones by pressingthe pad of the
function you are using.
.0
kTim
Power Outage
If a flashing time isin the display,you have
experienceda power failure. Resetthe dock. Toresetthe clock,touch the Clock pad. Enter the correct time of day by touching the +or -
pads.Touch the Sturt/On pad.
18

Using the timed baking and masting features, ionsomemode sIGEAppliances.com
IfFour model has a door latch, do not lock the oven door with the latch during timed cooking. The latch is used for
self-cleaning only.
NOTE: Foods that spoil easily-such as milk, eggs, fish, stuffings, poultry and pork-should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
How to Set an Immediate Start and Automatic Stop
The oven wi!!turn on immediately and cook
for aselected length of time. At the end of the
cooking time, the oven wi!!turn off
automatically.
[_ Touch the Bakepad.
[_ Touch the + or -pads to set the
oven temperature.
[_ Touch the Cooking Time pad.
NOTE:If your reciperequirespreheating,you
may need to add additional time to the length
of the cooking time.
[_l Touch the + or - pads to set the
baking time.
Thecooking time that gou enteredwill be
displayed.(If you select CookingTimefirst
and then adjust the BakeTemperature,the
oven temperature will be displayed instead).
[_ Touchthe Start/On pad.
The displagshows either the oven
temperature that gou set or the cooking time
countdown. (Thedisplay starts with PREif
showing the oven temperature.)
The ovenwill continue to cook for the
programmed amount of time, then turn
off automatically.
[_ Touchthe Clear/Offpad to clear the
displag if necessarg.
Removethe food from the oven.Remember,
eventhough the ovenshuts off automatica!lg,
foods continue cooking after controlsare off.
o
Temp Recall
o
L_Tim)
0
tort7
L Tim )
_Start__
Loom
i cleo '-/
L offj
How to Set aDelayed Start and Automatic Stop
Theoven wi!!turn on at the time of day you
set,cook for a specific lengthof time and then
turn off automatica!ly.
Make surethe clockshows the correct time
of dag.
[_ Touch the Bake pad.
[_ Touch the + or - pads to set the
oven temperature.
[_] Touch the Cooking Time pad.
[_ Touch the + or- pads to set the desired
length of cooking time.
[] Touch the Start Time pad.
[_ Touch the + or - pads to set the time of
dag gou want the oven to turn on and
start cooking.
[_ Touch the Start/On pad.
NOTE:If gou would liketo check the times gou
have set,touch theStart Time pad to check
the start time gou haveset or touch the
Cooking Time pad to checkthe lengthof
cooking time gou haveset.
When the oven turns on at the time of dag
gou have set,the displag will show PREuntil
it reaches the selectedtemperature, then it
will displagthe oventemperature.
Atthe end of cooking time,the ovenwill turn
off and the end of cgcle tone will sound.
[_ Touchthe Clear/Offpad to clear the
displag if necessarg.
Removethe food from the oven.Remember,
eventhough the ovenshuts off.automatically,
foods continue cooking after controlsare off.
NOTE:An attention tone wi!!sound ifyou are
using timed baking and do not touch the
Start/On pad.
19

Special features ofyour ovencontrol.
Your new touch pad control has additional features that you may choose to use. The following are the features and
how you may activate them.
The special feature modes can only be activated while the display is showing the time of day. They remain in the
control's memory until the steps are repeated.
When the display shows your choice, touch the Start/On pad. Thespecial features will remain in memory after
a power failure.
NOTE: The Sabbath feature and the Thermostat Adjustment feature are also Special Features, but they are addressed
separately in the following sections.
o ®
Temp Recall Hi ILO
Clock_
12-Hour Shut-Off
With this feature,shouldyou forget and leave
the ovenon,the contro!wi!!automatically turn
off the ovenafter !2 hoursduring baking
functions or after 3 hoursduring a broi!
function.
If you wish to turn OFF this feature, follow the
steps below.
17] Touch the Bake and Broil Hi/Lo pads at
the same time for 3 seconds until the
displau showsSF.
[]
%
Touchthe Clock pad.The display will
show On (12-hour shut-off).Touch the
Clock pad repeatedly until the display
shows Off(no shut-off).
Touchthe Start/On pad to activate the
no shut-off and leavethe control set in
this special features mode.
20
