GE Monogram ZGU484NGP5SS User manual

06-10 GE
Installation
Instructions
36” and 48”
Professional Rangetops
Tables de cuisson
professionnelles de 36” (91 cm)
et de 48” (122 cm)
Instructions d’installation
La section francaise commence a la page 15
Estufas profesionales
de 36” (91 cm) y 48” (122 cm)
Instrucciones de instalacién
La secci6n en espafiol empieza en la pagina 28

Safety Information
BEFORE YOU BEGIN
Read these instructions completely and carefully.
“1M PO RTANT — Save these instructions for
local inspector’s use.
“IMPORTANT — observe all governing
codes and ordinances.
« Note to Installer — Be sure to leave these
instructions with the Consumer.
« Note to Consumer — Keep these instructions
with your Owner's Manual for future reference.
¢ Completion Time — 1 to 3 hours.
e Proper installation is the responsibility of
the installer. Product failure due to improper
installation is not covered under the warranty. See
Owner's Manual for warranty information.
A WARNING
This appliance must be properly grounded. Follow
directions in "Electric Supply” of this manual. Failure to do so
may result in electric shock.
For Monogram local service in your area,
1.800.444.1845.
For Monogram Service in Canada, call
1.800.561.3344.
For Monogram Parts and Accessories, call
1.800.626.2002.
lf you received a damaged rangetop, you should
contact your dealer.
In the Commonwealth of Massachusetts:
e This product must be installed by a licensed
plumber or gas fitter.
e When using ball type gas shut off valves, they
shall be T-handle type.
¢ A flexible gas connector, when used, must not
exceed 3 feet.
Vent hood Combinations:
It is recommended that these rangetops be installed
in conjunction with a suitable overhead vent hood.
e Install a hood with at least 1200 CFM above a 48”
wide rangetop.
e Install a hood with at least 600 CFM above a 36”
rangetop.
Due to the high heat capacity of this unit, particular
attention should be paid to the hood and ductwork
installation to assure it meets local building codes.
A WARNING:
Clearances to horizontal surfaces above the range,
measured to the cooking surface are below. Failure to
comply may result in fire hazard.
e Installations without a hood require 48” minimum
to combustibles.
e A custom hood installation with exposed
horizontal combustibles surfaces must have
an Auto-On feature.
e For other installations with a hood, refer to hood
installation instructions for specific hood
clearances.
A CAUTION:
These rangetops are extremely heavy. Due to the
weight and size of the rangetop and to reduce the
risk of personal injury or damage to the product:
TWO PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION.
Installation must conform with local codes. In the
absence of local codes, the rangetop must comply
with the National Fuel Gas Code, ANSIZ223.1/
NEPA 54, latest edition and National Electrical Code
ANSI/NFPA 70 latest addition. In Canada, installation
must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1 or the current
Propane Installation Code, CAN/CGA-B149.2, and
with local codes where applicable. This rangetop has
been design-certified by CSA International according
to ANSI 221.1, latest edition and Canadian Gas
Association according to CAN/CGA-1.1 latest edition.
Leak testing of the appliance shall be conducted
according to the manufacturer's instructions.

Design Information
CONTENTS
Design Information
Models Available a)
Backsplash ACCESSOTICS .....csssssessssssessssssssssneseseecceennnnneees 3
Product Dimensions and Clearances
for 48” Wide MOdel soi. ccceccccecssescssseesssessssssesssusessssesssseesuee 4
Product Dimensions and Clearances
for 36” Wide MOdeIdS.i.ccccecccccecssescssseessseessssessssssssseesssseeesuee 5
INStANATION OPtiONS oeeeeeecceeeeecccsssseesesssscsssessscccssstessecssssnnussss 6
Installation Preparation
Tools and Materials REQUIFE ......eeccccsseeeeesssssseteesssessseees 7
Power SUpply LOCATIONS ooeeeeccseeeeecsscssseesssscsssteessccssssnnnsses 7
Remove Packaging 8
Installation Instructions
Step 1, Cut the Countertop Opening....... eee 9
Step 2, Install the RANGEtOP on... eeesssssscccceesetteeeteeeee 10
Step 3, Connect Rangetop to GOS wees 10
Step 4, Connect ElOCtriCa hn eecccecssesssssesssssscseceesnmeeneees 11
Step 5, CHECK BUPNETS coeeecccccssecssccssssseesssssssstttstesssnennnsseees 11
Finalize Installation 11
INStallation CHECKIISt cece tesssssseccccecnsnnnmeesceseeennsnnee 11
Install the Rangetop Backsplash Accessory... 12

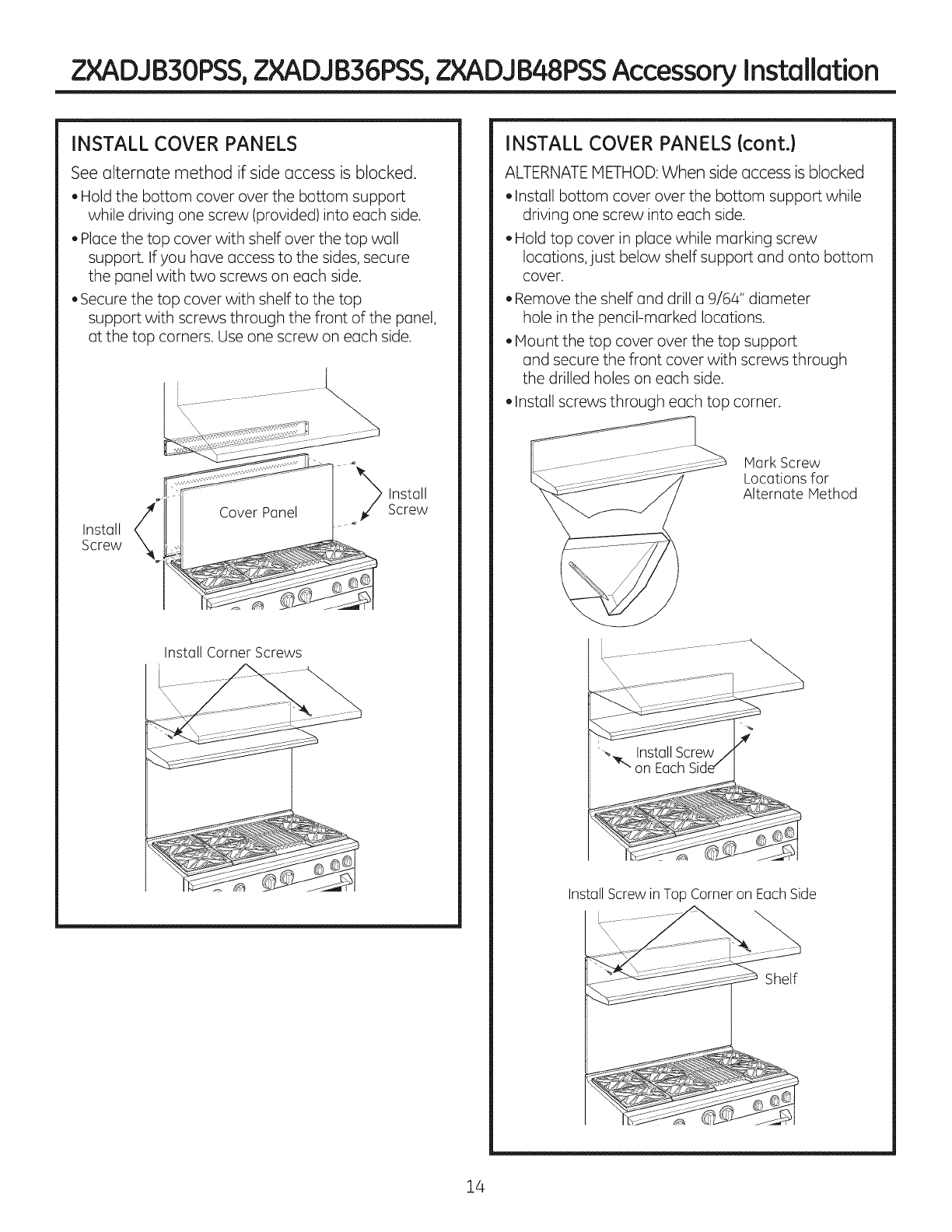

Install the Adjustable
Backsplash ACCESSOLY....cssseeccsscsssstssssscssstssssscsssssnes 13,14
MODELS AVAILABLE
Monogram rangetops are factory set for natural
gas. Order the model for your installation situation.
48” Natural Gas Models:
ZGU484NG - 4 gas burners, grill and griddle
ZGU486NR - 6 gas burners and grill
ZGU486ND - 6 gas burners and griddle
36” Natural Gas Models:
ZGU364ND - 4 gas burners and griddle
ZGU364NR - 4 gas burners and grill
ZGU366N - 6 gas burners
BACKSPLASH ACCESSORIES
All models require 12” minimum clearance
to a vertical combustible surface at the rear.
If clearance is less than 12”, the entire surface
of the back wall above the countertop and the
full width of the rangetop must be protected by a
backsplash. The backsplash must be constructed
of non-combustible material, such as metal, ceramic
tile, brick, marbie or other stone.
Two Backsplash Accessories Available:
e The 12” high stainless steel backsplash accessory
is available. Use this backsplash in combination
with a custom, non-combustible backsplash built
beyond the 12” height. The combined height
of the backsplash accessory and the custom
backsplash must reach the bottom of a hood,
or when there is no hood, to 48” above
the cooking surface.
e An adjustable 30” to 36” high backsplash with shelf
is also available. This backsplash fills in the space
between the top of the rangetop and the bottom
of the hood. The shelf is positioned so that
heat lamps from the bottom of a Monogram
professional hood are directed towards the shelf.
12” High Backsplash
30” to 36” Adjustable Height
Backsplash With Shelf
ZXADJB48PSS, for 48” wide
rangetops
ZXADJB36PSS, for 36” wide
rangetops
ZX12B48PSS, for 48” wide rangetops
Z2X12B36PSS, for 36” wide rangetops

Design Information
PRODUCT DIMENSIONS AND CLEARANCES FOR 48” MODELS
A WARNING:
Installations without a hood
require 48” minimum to combustibles
above the rangetop. A custom hood
installation with exposed horizontal
combustible surfaces must have
an Auto-On feature. Refer to hood
installation instructions for specific
hood clearances.
The surface of the entire back wall
above the countertop and below
the hood must be covered with
a non-combustible material such
as metal, ceramic tile, brick, marble
or other stone.
~ _ a7-te"to Universal Utility Locations
@ Front of
a.
:
,
>
Locate gas " 17" |
inlet on back
wall or on
floor 2” from
back wall.
48” Minimum
to Combustibles
12” Minimum to
Adjacent Wall
\
i 12” Minimum
: Each Side
se.
13” Max.
46-1/4" =~
22-3/4" Min.
* The opening between a 4” high backsplash must be 48”
to allow the rangetop to slide back against the wall.
12” Minimum to
Combustibles or 0” to
non-combustible
ADDITIONAL CLEARANCES: material above the
be
;
cooking
surface
Allow
12”
minimum
clearance
to
an
adjacent
wall on
|
each side.
48” Min. to
Combustibles
Working areas adjacent to the rangetop should have
18” minimum clearance between countertop and the
bottom of the wall cabinet.
Clearance

Design Information
PRODUCT DIMENSIONS AND CLEARANCES FOR 36” MODELS
Universal Utility Locations
27-1/2" to
35-7/8" Width | seo -Front of
eee <I - Bullnose Lf
a
ie
<r
Locate
gas
inlet on back
wall or on
floor 2” from
back wall.
>
he 17" aa
NA
48” Minimum \
to Combustibles
A WARNING:
Installations without a hood
require 48” minimum to combustibles
above the rangetop. A custom hood
installation with exposed horizontal
combustible surfaces must have
an Auto-On feature. Refer to hood
installation instructions for specific
hood clearances.
The surface of the entire back wall <=
above the countertop and below
the hood must be covered with
a non-combustible material such
as metal, ceramic tile, brick, marble
or other stone.
* The opening between a 4” high backsplash must be
to allow the rangetop to slide back against the wall.
ADDITIONAL CLEARANCES:
Allow 12” minimum clearance to an adjacent wall on
each side.
Working areas adjacent to the rangetop should have
18” minimum clearance between countertop and the
bottom of the wall cabinet.
"12" Minimum to
: 12” Minimum
material ~~ Each Side
36"
Adjacent Wall
t t t t t 1 1 1 1 1 1 1 1 1 1 1 5
{
12” Minimum to
Combustibles or 0” to
non-combustible
material above the
cooking surface
48” Min. to
Combustibles
Clearance

Design Information
INSTALLATION OPTIONS
To Front of Control Knobs -
| 27-1/2" >
To Front of Bullnose
1/2"
= [ \ i Ll Y Countertop
oF ~ eee t “Pio i “a 7 ~~ po Level = -
3" | rinsnee moe ese | jae_-13/30"
”
:
of
control
pane
”
Countertop ee ( A ° 6-1/2 egy 3/16"
ej a
Level ° Wi | 1-1/32"
' ’ [| Wo
Back edge . — a [Ql on To Pipe Stub
of chamfer 7-1/4 —e
“4 *23-1/2" >
ag ** 26" >
ast 26-3/4" >
To Front of Control Panel
t Include the overhang of the rear trim when countertop continues behind the product.
The overhang is decorative only. The weight of the rangetop is fully supported by the side trims.
* Minimum cabinet cutout depth from ** Maximum countertop cutout depth
the back of the rear trim to the back from the back of the rear trim
finished edge of the control panel - to the back edge of charnfer at the
typically, the minimum cabinet depth sides of the control panel - typically,
(front to back). Maximurn cabinet cutout the maximum countertop cutout depth
depth is 26” minus the countertop (front to back]. Minimum countertop
overhang. cutout depth is 25-1/4”,
Rangetop Rangetop
SE
1/2"
Above
Adjacent
——
1/2”
Above
Adjacent
()
Countertops
0
0
Countertops
Oye a
Control panel projects forwards from Front of deep cabinets can align with control
standard depth cabinets. panel beveled edge.

Installation Preparation
Drill and
Appropriate Bits
Measuring Tape Adjustable Wrench
(D
E=6
1/4” Driver or
Wrench
Carpenter's Square
—
Ie
Safety Glasses
©
=
LZ]
=
©
Phillips #2
Screwdriver
Hand Truck
Hold-Down
Strap
MATERIALS REQUIRED (not provided)
Shut-Off
Valve
Pipe Fittings
5-foot maximum length, 5/8” 0.D. CSA-approved
flexible metal gas supply
(3-foot maximum length in Massachusetts only)
NOTE: Purchase new flexible line; do not use
previously used flexible gas line.
POWER SUPPLY LOCATIONS
Gas Supply:
¢ The natural gas models are designed to operate at 5”
water column pressure. For proper operation, the
pressure of the natural gas supplied to the regulator
must be between 7” and 13” water column.
* Locate the pipe stub on the back wall or floor
(see “Product Dimensions and Clearances”). Use 5-foot
maximum length, 5/8” 0.D. flexible gas supply line
(3-foot in Massachusetts].
¢ Install a manual shut-off valve in the gas line
(not provided), in an easily accessible location. Make sure
the homeowner knows where and how to shut off the gas
supply to the rangetop.
Electric Supply:
These rangetops must be supplied with 120 volt, 60 Hz.,
and connected to a dedicated, properly grounded branch
circuit protected by a 15 amp circuit breaker or time
delay fuse.
The power cord of this appliance is equipped with a
three-prong (grounding} plug which mates with a standard
three-prong grounding wall receptacle to minimize the
possibility of shock hazard from this appliance.
If the electrical service provided does not meet the above
specifications, it is recommended that a licensed electrician
install an approved outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
DO NOT USE AN EXTENSION
CORD WITH THIS APPLIANCE.
* Locate the electric supply
within the area shown or
within reach of the rangetop’s four-foot power cord.
* To avoid tangling cord with items stored in the cabinet,
locate the receptacle on rear wall, inside the cabinet.
Receptacle Box Cover Plate [>
Three Prong Plug
Three Prong Receptacle

Installation Preparation
REMOVE PACKAGING
A CAUTION
Stand clear. The ends of the cut metal banding may
snap toward you.
¢Cut the ties holding the grill grate to the grill frame.
Griddle Flue Cover
Gs
Gs
&
&
¢Cut the metal banding.
eRemove packaging tape and foam.
Dispose of packaging materials properly.
eRemove grill/griddle covers, grill grate and burner
grates. Ties Ly
Grease Troughs @)
Noe
eLift out cast-iron griddle flue cover, grease
troughs and pads.
eLift off burner caps and remove foam pad,
then lift off burner heads and remove foam pad.
~~ Remove Foam Pads

Installation
STEP 1 CUT THE COUNTERTOP OPENING
ee a0
Allow Additional
Clearance Below J
the Rangetop Burner 4
Box for the Regulator = yy
and Gas Connections yy >
48” wide models are designed to fit in 48” or wider base cabinets
Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
* Allow 8” free space below the top surface of the countertop.
* Allow additional clearances below the burner box
to install the regulator and make house supply
connections. Use a 90° elbow to route the gas
connections and limit interference with drawers
or other cabinetry features.
* These rangetops are designed to hang from
the countertop by their side flanges.
* Smooth any rough edges on the countertop before
installing the rangetop.
- Formica countertop edges must be finished.
The countertop must be strong enough to support
the weight of the rangetop.
om pyailable
packsplas
Allow Additional
Clearance Below
the Rangetop Burner 418
Box for the Regulator
and Gas Connections
36” wide models are designed to fit in 36” or wider base cabinets
Cutout Opening with False Bottom
Dimensions
A (Dia.} B Cc D
1-1/2” | 7-1/2" | 11-1/8”
1-1/2” | 7-1/2" | 11-1/8”
36” Rangetop 7-3/8”
48” Rangetop 8-1/4”
«You can construct the cutout with a false bottom to
conceal the bottom of the rangetop.
~ Build the false bottom using a solid material: cut a
7-1/2" x 11-1/8" hole in the left rear corner for the gas
inlet and power cord clearances.

Installation
STEP 2 INSTALL RANGETOP
eSlide the rangetop into the opening. Make sure
the rangetop is evenly seated and supported.
eA hold-down strap with screws is provided to
secure the rangetop to the rear or side cabinet
walls.
eRemove the hold-down strap from the back
of the rangetop. Attach one end of the strap
to the back of the rangetop.
eSecure the other end of the strap as high as
possible to the cabinet back wall or adjacent
cabinet. Keep the strap as short as possible for
better security.
Hold-Down
/~ Strap
Location
and
Attachment
Back Wall
STEP 3 CONNECT RANGETOP TO GAS
A WARNING
Do not use a flame to check for gas leaks.
A manual shut-off valve must be installed where
it will be accessible.
Assure that gas is turned off at the shut-off
valve.
einstall the supplied pressure regulator onto the end
of the gas inlet.
eYou can install a 90° elbow (not provided) onto the
gas inlet and route the gas connections to avoid
interference with drawers or other cabinetry
features. However, it is not recommended because
it will result in a drop in gas pressure.
e Make sure the regulator is installed in the right
direction. See arrow on the underside of the
regulator.
NOTE: Instead of using solid piping to connect
to pressure regulator, an approved flexible metal
appliance connector may be used between the pipe
stub and the shut-off valve to the pressure regulator,
if local codes permit.
eTurn on gas and check for leaks:
-Use a liquid leak detector at all joints and
connections in the system.
Rangetop Burner Box
kd 1/2" NPT.
2S) Gas Inlet
.
© Regulator
Sy? (Supplied)
Solid Piping
or Flexible
Connector
Shut-Off
Valve
Pipe Stub From
House Gas Supply
IMPORTANT: Disconnect the rangetop and the
individual shut-off valve from the gas supply piping
system during any pressure testing of that system
at test pressures greater than 1/2 psig. Isolate
the rangetop from the gas supply piping system
by closing the individual manual shut-off valve
to the rangetop during any pressure testing
of the gas supply piping system at test pressures
equal to or less than 1/2 psig.
10

Installation
STEP 4 CONNECT ELECTRICAL
e Plug power cord into properly grounded
receptacle.
e Press the button on the left side of the control
panel. The lights above the knobs should
illuminate.
STEP 5 CHECK BURNERS
Check to be sure that burner heads and caps
are securely seated.
seeerrmt
Burner Cap Properly Seated
Burner Cap Not Properly Seated
eCheck for proper ignition:
- Push in one control knob and turn to LITE
position.
- The igniter will spark and the burner will light;
the igniter will cease sparking when the burner
is lit.
- First test may require some time, while air
is flushed out of the gas line.
- Turn knob to OFF.
- Repeat the procedure for each burner.
IMPORTANT: If the igniter electrodes continue
to spark after the burners are lit, check that
each burner component is assembled properly.
Refer to the Owner's Manual.
eBurner flames should be blue and stable with no
yellow tips, excessive noise or lifting of the flame
from the burner. If any of these conditions exist,
check that the burner ports are not blocked.
lf one of these conditions continues, call for
service.
11
FINALIZE INSTALLATION
Place the burner grates over the burners.
The grates should be seated and should not rock.
The griddle is secured with screws. It is designed
to be stationary and should not be removed.
The griddle has two leveling screws beneath
the rear flue cover that can be used to adjust
to the desired slope.
Griddle Flue Cover
Leveling
Sctews
Wn
—
Ne
—
a
een
Clamping
Screws
The two inner screws are clamping screws for
securing the griddle in place. Loosen these two
screws before leveling. Do not remove these two
Screws.
The two outer screws are leveling screws. Do not
remove these two screws. They can be turned to
level the griddle or to provide a forward slope to
help grease and oils to drain away from the food
being cooked.
After leveling the griddle, hand-tighten the
clamping screws; do not over-tighten.
INSTALLATION CHECKLIST
—@ Make sure all controls are left in the OFF
position.
lm Make sure the flow of combustion and
ventilation air to the rangetop is unobstructed.
@ The serial plate for your rangetop is located
on the bottom of the rangetop. In addition
to the model and serial numbers, it tells you
the ratings of the burners and the type of fuel
and pressure the rangetop was adjusted
for when it left the factory.
H@ Recheck Steps:
Double check to make sure everything
in this manual has been completed. Rechecking
steps will ensure safe use of the rangetop.

ZX12B30PSS, ZX12B36PSS, ZX12B48PSS Accessory Installation
OPTIONAL ACCESSORIES—12” HIGH BACKSPLASH
A WARNING:
To prevent ignition of combustible materials,
the entire back wall above the range must
be protected by a backsplash constructed
of non-combustible material.
This stainless steel backsplash accessory
must be installed in combination with a custom,
non-combustible backsplash built beyond
the 12” height of the backsplash.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
IMPORTANT: Save these instructions for local
inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these
instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions
with your Owner’s Manual for future reference.
This kit provides for the installation of a 12”
high backsplash for 30”, 36” or 48” Monogram
Professional Ranges and Rangetops.
TOOLS AND MATERIALS REQUIRED
eGloves to protect against sharp edges
eT-15 and #2 Phillips screwdrivers
e Drill with 3/32” and 9/64” bits
eSafety glasses
e Level
ePencil
This Kit Includes
eWall support panel
eCover panel
e Hardware package with
- 5 Stainless Steel Torx 15 #8 ‘
ee
Wall Support
Panel
Cover Panel
self-tapping Screws Hardware
- 5 Phillips #2 pan head wood Package
#10 screws
12
INSTALL 12” BACKSPLASH
A WARNING: this backsplash must
be securely fastened to the wall. Failure to do
so could result in damage or personal injury.
e|nstall and level the range or rangetop and the range
hood according to the installation instructions.
e Remove the backsplash packaging and
protective film.
¢ Use a level to pencil a horizontal line on the wall, 1/8”
above the range or rangetop. The 1/8” gap allows
the cover panel to overlap the wall support panel.
«Locate wall studs on each side. Where studs are not
available, plan to use wall anchors (not provided).
e Align the wall support panel on the marked
horizontal line and centered left to right.
e The wall support panel must be secured to the wall
at all 4 corners. Use wood screws (provided) or wall
anchors (not provided) to secure the support panel
to the wall.
e Place the cover panel over the wall support
panel and secure with Torx screws (provided).
Install 2 screws on each side.
Install 4
Wood Screws
<—— Wall Support
Panel
1/8" +
com
“re
Install
T-15
ne aw Screws
Wall
Support
Panel

ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation
ACCESSORIES—30” TO 36” ADJUSTABLE BACKSPLASH (not included)
A WARNING:
To prevent ignition of combustible materials,
the entire back wall above the range must
be protected by a backsplash constructed
BEFORE YOU BEGIN
of non-combustible material.
Read these instructions completely
and carefully.
IMPORTANT: Save these instructions for local
inspector's use.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Be sure to leave these
instructions with the Consumer.
NOTE TO CONSUMER: Keep these instructions
with your Owner’s Manual for future reference.
¢ This backsplash adjusts to fit the space between
the top of the range and the bottom of the hood,
from 30” Min. to 36” Max. height.
e Maximum shelf load-bearing weight is 40 Ibs.
TOOLS AND MATERIALS REQUIRED
¢ Gloves to protect against sharp edges
¢T-15 and #2 Phillips screwdrivers
e Drill with 3/32” and 9/64” bits
Safety glasses
e Level
e Pencil
This Kit Includes
¢ Top wall support
¢ Bottom wall support
¢ Top cover with shelf
® Bottom cover
Top Wall
Support
Bottom Cover
e Hardware package with Bottom Wall Support
- 9 Stainless Steel Torx 15 #8
self-tapping screws
- 9 Phillips #2 pan head wood #10 screws
- 3 Stainless Steel #2 truss head
#10 screws (for alternate
installation method}
Hardware
Package
13
INSTALL THE WALL SUPPORT PANELS
A WARNING: The wall support panels
Ppport p
must be securely fastened to the wall. Failure to
do so could result in damage or personal injury.
IMPORTANT: This backsplash is designed to cover the wall
between the bottom of the hood and the top of the range.
The vent hood should be installed over the rangetop or
range before installing this backsplash.
¢ Install and level the Range/Rangetop according
to the product installation instructions.
* Remove backsplash packaging and protective film.
¢ Locate wall studs on each side. Where studs are not
available, plan to use wall anchors (not provided).
« Use a level to pencil 2 horizontal lines on the wall,
one 1/8” below the vent hood and the other 1/8” above
the Range/Rangetop. This 1/8” space allows the cover
panels to overlap the wall supports.
* Secure the top wall support panel to the wall with 4 wood
screws, through the outerrnost studs.
« Use 4 wood screws to secure the bottom wall support
panel. The center slot should be positioned at the top.
The gap between the top and bottom support panels
will be covered by the top cover with shelf.
Secure the
top panel to
the wall with 4
wood screws
Wood
Secure the
bottorn panel
to the wall
with 4 wood
screws

ZXADJB30PSS, ZXADJB36PSS, ZXADJB48PSS Accessory Installation
INSTALL COVER PANELS
See alternate method if side access is blocked.
¢ Hold the bottom cover over the bottom support
while driving one screw (provided) into each side.
e Place the top cover with shelf over the top wall
support. If you have access to the sides, secure
the panel with two screws on each side.
e Secure the top cover with shelf to the top
support with screws through the front of the panel,
at the top corners. Use one screw on each side.
Install
Screw
Install
Screw
14
INSTALL COVER PANELS (cont.)
ALTERNATE METHOD: When side access is blocked
e|nstall bottom cover over the bottom support while
driving one screw into each side.
e Hold top cover in place while marking screw
locations, just below shelf support and onto bottom
cover.
e Remove the shelf and drill a 9/64” diameter
hole in the pencil-marked locations.
e Mount the top cover over the top support
and secure the front cover with screws through
the drilled holes on each side.
e Install screws through each top corner.
Mark Screw
Locations for
Alternate Method
Install Screw
~ on Each Side

Consignes de sécurité
AVANT DE COMMENCER
Lisez attentivement l'ensemble des consignes.
“IMPORTANT -— conservez ces consignes, elles peuvent
vous étre utiles pour toute inspection de votre installation.
“IM PO RTANT — Respectez toutes les normes ainsi
que les recommandations préconisées par les autorités
compétentes.
« Remarque 4 l’attention de l'installateur — Aprés
intervention, assurez-vous d'avoir remis ces instructions &
l'utilisateur.
« Remarque a l'attention de l'utilisateur — Conservez
ces instructions avec le manuel de l'utilisateur pour toute
consultation ultérieure.
¢ Temps d'installation — 14 3 heures.
« || incombe & linstallateur ce veiller & Ia bonne installation. Toute
céfaillance cu produit due 4 une installation non conforme ne
pourra étre couverte par la garantie. Pour tout complement
cinformation, reportez-vous au manuel de l'utilisateur.
A AVERTISSEMENT
Cet appareil doit étre correctement mis 4 Ia terre. Veuillez suivre
les directives données a lc section «Alimentation électrique»
cu présent manuel. Le non-respect de ces directives pourrait
occasionner un choc électrique.
Pour contacter le service de dépannage Monogram le plus proche
ce chez vous, veuillez télephoner au numéro suivant :
1.800.444.1845.
Pour contacter le service de dépannage Monogram cu Canada,
veuillez appeler le numéro suivant : 1.800.561.3344.
Pour contacter le centre d’accessoires et de pieces détachées
Monogram, veuillez téléphoner au numéro suivant :
1.800.626.2002.
Si vous recevez une table de cuisson défaillante, veuillez contacter
votre revendeur.
Dans le Commonwealth of Massachusetts (Communauté
du Massachusetts} :
¢ Ce produit doit étre installé par un plombier ou un technicien
ce gaz domestique agréé.
e Si vous utilisez des robinets de gaz, ceux-ci doivent étre ce type
1/4 de tour.
e Si vous utilisez un raccord a gaz flexible, celui-ci ne dois pas
mesurer plus de 3 pieds (100 cm).
15
Dispositions de hotte
d’extraction :
lest recommandé d’installer nos tables de cuisson sous une hotte
clextraction acaptée.
¢ Installez une hotte cisposant c’une capacité c’évacuation d’au
moins 1200 CFM a une distance de 48” (122 cm) de la table de
cuisson.
¢ Installez une hotte cisposant d'une capacité c’évacuation
cau moins 600 CFM qu dessus c’une table de cuisson de type
36” (91 cm].
Cet appareil produit une importante quantité de chaleur et
cle ce fait, vous devez porter une attention toute particuliére a
linstallction de la hotte ainsi qu’d celle de la conduite d’aération
cfin de vous assurer quelle répond aux normes de construction
e vigueur cans votre région.
A AVERTISSEMENT :
l faut prévoir les cégagements ci-clessous par rapport aux
surfaces horizontales qui se trouvent au-dessus ce la cuisiniére.
Le non-respect de cette consigne pourrait présenter un risque
dincendie.
¢ Pour les installations dépourvues de hotte, prévoyez un espace
minimum de 48” (122 cm) entre l'appareil et tout élément
inflammable situé au-dessus de celui-ci.
¢ || est possible diinstaller une hotte spécicle & proximité d’éléments
horizontaux inflammables dans la mesure ot celle-ci dispose
c'une fonction de mise en marche automatique.
¢ Pour obtenir les spécifications relatives aux espaces d'autres
installations pourvues d'une hotte, veuillez vous reporter aux
instructions fournies avec celle-ci.
A ATTENTION:
nos tables de cuisson sont extrémement lourdes. Afin d’éviter tout
risque de blessure ou cendommagement ce l'appareil et tenant
en compte le poids ainsi que la taille de la cuisiniére :
DEUX PERSONNES SONT NECESSAIRES POUR UNE INSTALLATION
ADEQUATE DE L'APPAREIL.
Linstallation doit respecter les normes établies dans votre région.
En absence de celles-ci, la table de cuisson doit étre installée
suivant la derniére édition du National Fuel Gas Code, ANSIZ223.1/
NFPA 54, et la derniére mise a jour du National Electrical Code
ANSI/NFPA 70. Au Canada, linstallation doit respecter Ia loi en
vigueur spécifiée par le Natural Gas Installation Code, CAN/CGA-
B149.1 ou le Propane installation Code, CAN/
CGA-B149.2 en vigueur, et ses lois qui entrent dans son domaine
capplication. Cette cuisiniére a été concue et certifiée par CSA
International et dans le respect de la derniére édition de la norme
ANSI 221.1, ainsi que le Canadian Gas Association (Association
canadienne du gaz) et dans le respect de la derniére écition
de la norme CAN/CGA-L.1.
Veuillez vous reporter aux consignes du fabricant pour verifier
la présence cle fuites.

Caractéristiques
TABLE DES MATIERES
Caractéristiques
Mod@les GISPONMIDIOS.....eeccccsseeecsscsssssstsesssssssesssscessntssssessssees 16
ACCESSOIPES CU COSSCLEL a eeeecseesseseteesssccccesnsssnneneeeeeeeeceenne 16
Dimensions du produit et espaces requis pour les
modeles d'une largeur de 48” (122 CM)... eee 17
Dimensions du produit et espaces requis pour les
modeles d'une largeur de 36” (91 CM) wees 18
OPtioNs AINSTANATION oo eeeeeeccseecsccssseeeessesssssttesssesnnnenseees 19
Préparation de l'installation
Outils et MAtLEri|l TEQUIS oes teeessessccccessttneentesee 20
Emplacement des alimentations .... ccc 20
Sortez l'appareil de son emballlage vu... 21
Consignes d’installation
Etape 1, Découpez l'ouverture sur le plan de travail......22
Etape 2, Installez la table de CUISSON wees 23
Etape 3, Raccorder la table de cuisson 4 l'alimentation
en gaz 23
Etape 4, Branchez @ la prise GleCtrique vecccceccseccne 24
Etape 5, Vérifiez les DrGIOUrS coececssscessesseestsnssinsste 24
TOrMineZ VIMStAN ATION woes sescccccceesnennneeeeeeeeeeceenee 24
Liste de vérification pour l'installation oe 24
Accessoires en option—dosseret
de 30 cm (12”) de NQUtOUE oo eeeeeeeeeeeecsccssccsceeeeeeneenneenneeee 25
Accessoires—dosseret ajustable 30”-36”
(MOM FOUL) .eseeeceessesssssssesssessssssseeesssstnssssssssseeettunasnien 26-27
MODELES DISPONIBLES
Les tables de cuisson Monogram sont congues en
usine pour le gaz naturel ou pour le gaz propane.
Commandez le modéle correspondant 4 votre
installation domestique.
Modéles a gaz 48” (122 cm):
ZGU484NG - 4 brdleurs a gaz, grill et plaque
chauffante
ZGU486NR - 6 brileurs a gaz et grill
ZGU48END - 6 brileurs a gaz et plaque chauffante
Modéles a gaz naturel 36” (91 cm):
ZGU364ND - 4 brileurs a gaz et plaque chauffante
ZGU364NR - 4 bruleurs a gaz et grill
ZGU366N - 6 brileurs a gaz
DOSSERET
Tous les modeéles requierent au minimum 12”
(30 cm) d’espace de séparation arriere avec toute
surface inflammable. Si cet espace est inférieur
a 12” (30 cm), la totalité de la surface du mur
se trouvant au-dessus du plan de travail et la
table de cuisson dans toute sa largeur doivent étre
protégées par un dosseret. Le dosseret doit étre
fabriqué a l'aide d’une matiére ignifuge comme
le métal, la tuile en céramique, la brique, le marbre
ou tout autre pierre.
Deux dosserets sont disponibles :
e Il existe un dosseret de 12” (30 cm) en acier
inoxydable. Utilisez ce dosseret couplé a un
dosseret spécial et ignifuge monté au-dessus du
premier. La hauteur des deux dosserets combinés
doit atteindre la partie inférieure de la hotte, ou en
‘absence de hotte, la hauteur totale 4 partir de la
surface de cuisson doit atteindre les 48” (122 crm).
e || exist un dosseret adjustable de 30” (76cm) - 36”
(91cm). Ce dosseret comble l’espace entre
le dessus de la cuisiniére et la partie inférieure
de la hotte. Letagere est congue pour que les
ampoules d’une hotte professionnelle Monogram
soient orientées vers elle.
Dosseret de 12” (30 crn) de hauteur
cm) réglable en hauteur
ZX12B48PSS, pour les cuisiniéres de 48” (122 cm)
ZX12B36PSS, pour les cuisiniéres de 36” (91 crn}
Dosseret avec étagére de 30” (76 cm) a 36" (91
ZXADIB48PSS, paur les cuisiniéres de 48” (122 cm)
ZXADJB36PSS, pour les cuisiniéres de 36” (91 crn}

Caractéristiques
DIMENSIONS DU PRODUIT ET ESPACES DE SEPARATION POUR LES
MODELES DE 48” (122 CM)
A AVE
Pour les installations dépourvues
de hotte, prévoyez au minimum un CN
espace de 48” (122 cm) entre l'appareil —) || “-—~., |
et toute matiére inflammable. Ilest 15” (33 cm)
possible a'installer une hotte spéciale
a proximité d
inflammables dans la mesure ou celle-
ci dispose d'une fonction de mise en
(67 cm) de
ee
ae]
>
profondeur
TO Placez l'arrivée
de gaz sur le
panneau arriére
ou sur la base,
a 2” (5 cm) du
panneau arriére.
8-7/16"
(19 cm) de
hauteur
27-1/2" Emplacements de raccord universels
>
17°
A 48” (122 ‘\
cm) de toute
matériau ‘
inflammable \
RTISEMENT : 0
Matériau
ignifuge
Max.
‘éléments horizontaux 18”
marche automatique. Pour obtenirles = | Ree 1
spécifications d'espace pour d'autres
installations pourvues d'une hotte, veuillez
vous reporter aux instructions fournies
avec celle-ci.
La totalité de
ainsi que la surface se trouvant au-dessus
de la table de cuisson coit étre faite d'une
matiére ignifuge comme
le métal, la tuile en céramique,
la brique, le marbre ou tout autre pierre.
la surface du mur arriére
* L'espace prévu pour le dosseret de 4 cm de hauteur doit
étre de 48” (122 cm) afin de pouvoir coulisser la table de
cuisson contre le mur.
ESPACES DE SEPARATION SUPPLEMENTAIRES :
Prévoyez au moins 12” (30,4 cm) d'espace de séparation
et de chaque cété d'un mur adjacent.
Les zones de travail adjacentes 4 la table de cuisson
doivent disposer de 18” (45.7 cm} d’espace de séparation
entre Ia table de cuisson et la partie inférieure du placard
mural.
Minimum 12” (30,4
cm} de chaque cété
A 12" (30,4 em) du rnur
adjacent
Matériau ignifuge
22-1/2"
(3.8 cm)
7/8"
a une distance minimum
de 12” (30,5 cm) des
matériaux inflammables
ou de 0” des matériaux
ignifuges au-dessus
de la surface de cuisson
Séparation min.
de 48” (122 cm)
de toute matiére
inflammable.
|_0” (0. cm) de
séparation
17

Caractéristiques
DIMENSIONS DU PRODUIT ET ESPACES DE SEPARATION POUR LES MODELES
DE 36” (91,4 CM)
47-7/8" (86.6 27-1/2"
cm) de largeur _-— _. (67 cml de
- ~*~ profondeur
8-7/16" (19 cm)
de hauteur
Emplacements de raccord universels
Placez l'arrivée de gaz
sur le panneau arriére ou
sur la base, a 2” (5 cm) du
panneau arriére.
MN
fear
A AVERTISEMENT :
Pour les installations dépourvues
de hotte, prévoyez au minimum un espace
de 48” (122 cm) entre l'appareil et toute
~~
matiére inflarmmable. tl est 13” (33 cm) a
possible d'installer une hotte spéciale mox,
a proximité d’éléments horizontaux 19” (46 Cm) min.
inflammables cans la mesure ot celle-
ci dispose d'une fonction de mise en
marche automatique. Pour obtenir les
spécifications d'espace pour d'autres
installations pourvues d'une hotte, veuillez
vous reporter aux instructions fournies
avec celle-ci.
La totalité de la surface du mur arriére
ainsi que la surface se trouvant au-dessus
de la table de cuisson coit étre faite d'une
matiére ignifuge comme le métal, Ia tuile
en céramique, la brique, le marbre ou tout
autre pierre.
A au moins 48” :
(122 cm) de ‘
toute matériau \
inflammable \
_iesocm)
|
36”
44cm) ~ (91
A qu moins 12”
(30,4 cm} du
* L'espace prévu pour le dosseret de 4 cm de hauteur doit
étre de 36” (91 cm) afin de pouvoir coulisser la table de
cuisson contre le mur.
Laissez au moins 12” (30,4 cm) d’espace de séparation et
de chaque cété d’un mur adjacent.
Les zones de travail adjacentes 4 la table de cuisson
doivent disposer de 18” (45.7 cm} d’espace de séparation
entre Ia table de cuisson et la partie inférieure du placard
mural.
A au moins 12”
(30,4 cm) du
mur adjacent
| ve" 2-1/2"
a une distance minimum de
12” (30,5 cr) des matériaux
inflammables ou de 0”
des matériaux ignifuges
au-dessus
de la surface de cuisson
Séparation min.
de 48” (122 cm)
de toute matiére
inflammable.
LO” (Ocm)d
séparation
18

Caractéristiques
opriaasic PNIERTO TALE ATEASAL
Niveau du 19.em
plan de travail (8-1/2")
8” (20,3 cm} H°uteur ils
Y 1
69 cm (28-13/16"}
Jusqu’a l'avant des boutons de commande
67,3 cm (27-%")
Jusqu’a l'avant du chanfrein arrondi
12,7 cm
(1/2")
Bord fini arriére du
panneau de commande
, Niveau du
it
'
plan
de
I
Hi
4
travail
e-'),23
mm
(3/32")
——
2m
(1-3/16"}
Lp
— 2,4 cm (1-1/32"}
Bord arriére
du chanfrein
panneau de commande, généralement,
A
* 67 cm (23-1/2")
** 66 cm (26"}
64,1 cm (26-3/4"}
Jusqu’a l'avant du panneau de commande
Hasta el centro
de la toma
de tuberia
t Valeurs comprenant ia partie suspendue de {a tablette arrére lorsque le plan de travail se prolonge derriére apparel.
Ajoutez le surplomb de la plaque cécorative lorsque le plan de travail se prolonge sous l'appareil. Le surplomb ne fait office
que de décoration. Le poids de {a table de cuisson est entierement supporté par les plaques latérales.
* Profondeur minimum de ouverture
dans le placard ce larriére de la plaque
de décoration au bord fini arriére du
la profondeur minimum du placard
(de Yavant vers l'arriére). La profondeur
maximum de l'ouverture du placard
est de 26” (66 cm).
Table de cuisson
a,
Les projets de panneau de commande
expédie des coffrets standard de
profondeur.
1/2” (2,5 em)
au-dessus des plans
de travail adjacents
** Profondeur maximum de |‘ouverture
dans le plan de travail de l'arriére de la
plaque de décoration arriére au bord
arriere du chanfrein sur les cotés du
panneau de commande, généralement,
la profondeur maximum cu plan
de travail (de favant vers larriérel.
Table de cuisson
1/2” (2,5 cm)
au-dessus des plans
de travail adjacents
L'avant des coffrets profonds peut aligner avec
le bord taillé de panneau de commande.
19

Préparation de I'installation
Perceuse et
forets adaptés
clé anglaise
(9
C=6
Tournevis ou clé G
molette 1/4” (0.63 cm)
Equerre de macon
—~
Cy
Lunettes protectrices
=
LZ]
=
©
Tournevis cruciforme
Niveau Diable
MATERIEL FOURNI
7
fet
Bande
de
Régulateur
fixation
MATERIEL NECESSAIRE (NON FOURNI)
@
A
Qe
Robinet de
fermeture
Couvre-
joints
Raccords de tuyau
Tuyau métallique flexible d’alimentation de gaz agréé
CSA de 1,58 cm de diamétre (5 pieds ou 1,5 m
(Longueur maximum de 90 cm (3 pieds) dans le
Massachusetts uniquement)
REMARQUE : procurez-vous un tuyau flexible neuf,
n'utilisez pas un tuyau ayant déja été utilisé.
EMPLACEMENT DES ALIMENTATIONS
Alimentation de gaz :
« Les modéles au gaz naturel ont été concus pour
fonctionner a une pression de 5” (12,7 cm) colonne d'eau.
Pour un fonctionnement optimal, la pression du gaz
naturel qui alimente le régulateur doit se situer entre 7”
(17,8 cml et 13” (33 cm) colonne d'eau.
¢ Localisez l’embase du tuyau sur le mur arriere ou le sol
(voir « Dimensions de l'appareil et espaces »). Utilisez le
conduit d’alimentation de gaz flexible (diamétre de 1,58 cm
et longueur de 1,5 m} (90 cm dans le Massachusetts)
¢ Installez un robinet de fermeture sur le conduit (non
fourni) ad un endroit facile d’accés. Assurez-vous que le
propriétaire de la maison sait ou et comment fermer le
robinet de gaz qui alimente la table de la cuisiniére.
Alimentation électrique :
Ces tables de cuisson doivent étre alimentées par du
courant 120 volts, 60 Hz et branchées 4 un circuit terminal
correctement mis 4 la terre et dédié, protégé par un
disjoncteur 15 A ou un fusible.
Le cordon d'alimentation de cet appareil est doté d’une
fiche a trois broches (masse) qui se branche dans une prise
murale standard de masse a trois broches afin de réduire le
risque de décharge électrique.
Si le réseau électrique ne correspond pas aux
spécifications susdites, il est recommandé de faire installer
une prise agréée par un électricien qualifie.
NE COUPEZ OU NE RETIREZ SOUS AUCUNE CIRCONSTANCE
LA TROISIEME BROCHE DE LA PRISE (MASSE) DU CORDON
D'ALIMENTATION.
N'UTILISEZ PAS DE RALLONGE AVEC CET APPAREIL.
* Localisez la prise d’alimentation dans la zone indiquée ou
a portée du cordon d’alimentation de 1,2 m de la cuisiniére.
¢ Pour éviter d’emméler le cordon dans les objets rangés
dans le placard,
localisez la prise du mur arriére dans le placard.
Plaque du boftier
de la prise
Fiche q trois broches
Prise 4 trois
proches
20
