Owner's
Manual
36" Built-In
All-Refrigerators and
All-Freezers
22402602P001
149-6o_621
07-08 JR
monogram.com

Consumer Information
36" All-Refrigerator and All-Freezer Units
Contents Consumer Services
Important PhoneNumbers ..................... 27
Model and Serial Numbers ....................... 3
Problem Solver ............................. 21,22
Product Registration ............................. 3
Safety Instructions ........................... /4-7
State of California
Water Treatment DeviceCertificate ............ 26
Warranty .............................. BackCover
Care and Cleaning
Cleaning-Outside and Inside .................. 13
Light Bulb Replacement ....................... 1/4
Vacation ....................................... 1/4
Operating Instructions
Anti-Tip Bracket Installation ................ 16-20
Automatic Icemaker ............................. 9
Sabbath Node Product ......................... 12
Shelves ..................................... 11,12
Storage Drawers ........................... 10,11
Temperature Controls ........................... 8
Water FilterAccessory ......................... 10
Wine Rack ..................................... 12
Preparation
Anti-Tip Bracket ................................ 15
Clearances ..................................... 15
Location ....................................... 15
Before
using
gout
refrigerator/
freezer
Readthis manual carefully. It is intended
to help you operate and maintain your new
refrigerator/freezer properly.
Keep it handy for answers to your questions.
If you don't understand something or
need more help, there isa list of toll-free
consumer service numbers included in
the back section of this manual.
OR
Visit our Website at: monogram.cam

Consumer Information
36" All-Refrigerator and All-Freezer Units
Write
down the
model &
serial
numbers
You'll see them on a label inside the
refrigerator/freezer under the storage drawers.
These numbers are also on the Consumer
Product Ownership Registration Card included
with this manual.
Beforesending in this card, please write these
numbers here:
Hodel Number
Serial Number
Usethese numbers in any correspondence or
service callsconcerning gour refrigerator/freezer.
If gou
received a
damaged
refrigerator/
freezer
The warranty does not cover damage caused
after deliverg. Immediately contact the dealer (or builder) that sold gou the refrigerator/freezer.
Save time
&moneg Before gou request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
gou can correct yourself.
If gou
need
service
To obtain service, seethe Consumer Services
page in the back of this manual.
We're proud of our service and want gou to be
pleased. If for some reason gou are not happg
with the service gou receive, here are steps to
follow for further help.
For customers in the USA:
FIRST,contact the people who serviced gour
appliance. Explain whg gou are not pleased.
In most cases, this will solve the problem.
NEXT,if gou are still not pleased, write all
the details-including gour phone number-to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KY/40225
For customers in Canada:
FIRST,contact the people who serviced gour
appliance. Explain whg gou are not pleased.
In most cases, this will solve the problem.
NEXT,if gou are still not pleased, write all
the details-including gour phone number to:
Manager, Consumer Relations
Mabe Canada Inc,
iFactorg Lane,Suite 310
Moncton, N.B.EIC 9P13

IMPORTANTSAFETYINSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARN JNG-when usingthis
appliance, always exercise basic safety
precautions, including the following:
Use this appliance only for its intended
purpose as described in this Owner's Manual.
This refrigerator/freezer must be properly
installed in accordance with the Installation
Instructions before it is used.
Do not allow children to climb, stand or hang
on the shelves in the refrigerator/freezer.
They could damage the refrigerator/freezer
and seriously injure themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may adhere to these extremely cold
surfaces.
•Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Your freezer has an automatic
icemaker--avoid contact with the moving
parts of the ejector mechanism, or with
the heating element located on the bottom
of the icemaker. Donot place fingers or hands
on the automatic icemaking mechanism while
the freezer is plugged in.
Unplug your refrigerator/freezer
before cleaning and making repairs.
NOTE:We strongly recommend that
any servicing be performed by a qualified
individual.
Before replacing aburned-out light bulb,
the refrigerator/freezer should be unplugged in
order to avoid contact with a livewire filament.
(Aburned-out light bulb may break when being
replaced.) NOTE:Turning control to OFFdoes
not remove power to the light circuit.
Do not refreeze frozen foods which have
thawed completely.
DANGER: RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerator/freezers are still dangerous...even
if they will sit for "just a few days." If you are
getting rid of your old refrigerator/freezer,
please follow the instructions below to help
prevent accidents.
Before You Throw Away Your Old
Refrigerator/Freezer or Freezer:
• Take off the doors.
• Leave the shelves in place so that children may
not easily climb inside.
REFRIGERANTS
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an old
refrigeration product, check with the company
handling the disposal about what to do.
a

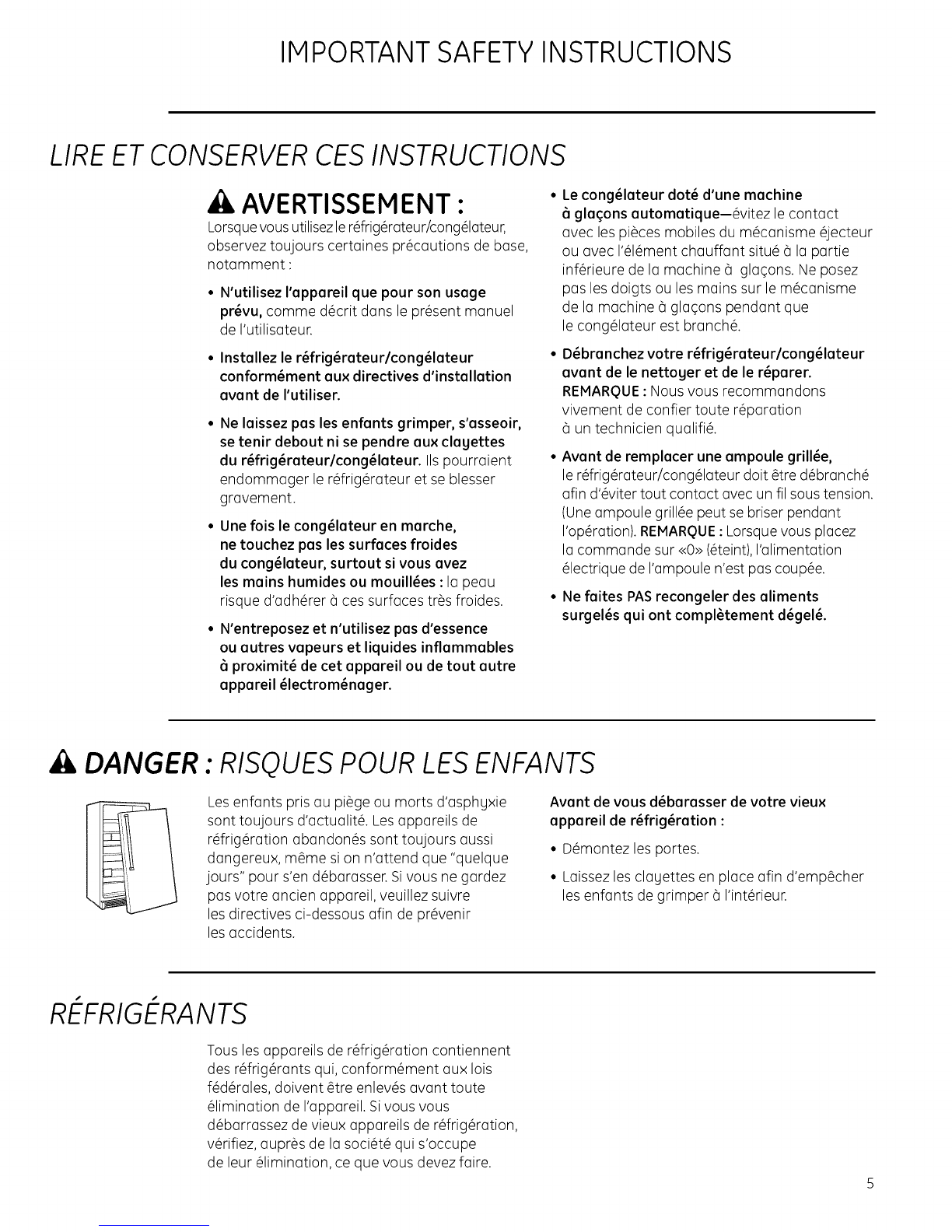

IMPORTANTSAFETYINSTRUCTIONS
LIREETCONSERVERCESINSTRUCTIONS
AVERTISSEMENT :
Lorsquevous utilisezle r_frig_roteur/cong_loteur,
observez toujours certoines pr@coutionsde bose,
notomment :
• N'utilisez I'appareil que pour son usage
pr@vu, comme d@crit dons le pr@sent monuel
de I'utilisoteur.
• Installez le r_frig_rateur/cong_lateur
conform_ment aux directives d'installation
avant de I'utiliser.
Ne laissez pas les enfants grimper, s'asseoir,
se tenir debout ni se pendre aux clagettes
du r_frig_rateur/cong_lateur. IIspourroient
endommoger le r_frig_roteur et se blesser
grovement.
Une fois le cong_lateur en marche,
ne touchez pas les surfaces froides
du cong_lateur, surtout si vous avez
les mains humides ou mouill_es :lo peou
risque d'odh_rer 6 ces surfoces tr_s froides.
N'entreposez et n'utilisez pas d'essence
ou autres vapeurs et liquides inflammables
6proximit_ de cet appareil ou de tout autre
appareil _lectrom_nager.
Le cong_lateur dot_ d'une machine
6glaqons automatique--6vitez le contoct
ovec lespi_ces mobiles du m_conisme _jecteur
ou ovec I'_l_ment chouffont situ_ 6 Io portie
inf_rieure de Io mochine 6 gloqons. Ne posez
pos lesdoigts ou les moins sur le m_conisme
de Io mochine 5 gloqons pendont que
le cong_loteur est bronch_.
D_branchez votre r_frig_rateur/cong_lateur
avant de le nettoger et de le r_parer.
REMARQUE: Nous vous recommondons
vivement de confier toute r_porotion
6 un technicien quolifi_.
Avant de remplacer une ampoule grill_e,
le r_frig_roteur/cong_loteur doit _tre d_branch_
ofin d'@iter tout contoct ovec un fil sous tension.
(Uneompoule grill_e peut se briser pendont
I'op_rotion). REMARQUE: Lorsquevous plocez
Io commonde sur <<0>>(_teint),I'olimentotion
_lectrique de I'ompoule n'est pos couple.
Ne faites PASrecongeler des aliments
surgel_s qui ont compl_tement d_gel_.
DANGER : RISQUESPOUR LESENFANTS
Les enfonts pris ou pi6ge ou morts d'osphyxie
sont toujours d'octuolit_. Lesopporeils de
r6frig6rotion obondon6s sont toujours oussi
dongereux, m6me si on n'ottend que "quelque
jours" pour s'en d6borosser. Si vous ne gordez
pos votre oncien opporeil, veuillez suivre
les directives ci-dessous ofin de pr6venir
les occidents.
Avant de vous d_barasser de votre vieux
appareil de r_frig_ration :
• D_montez les portes.
• Loissez les cloyettes en ploce ofin d'emp6cher
les enfonts de grimper 6 I'int_rieur.
REFRIGERANTS
Tous les opporeils de r6frig6rotion contiennent
des r6frig6ronts qui, conform6ment oux lois
f6d6roles, doivent 6tre enlev6s ovont toute
61iminotion de I'opporeil. Sivous vous
d6borrossez de vieux opporeils de r6frig6rotion,
v6rifiez, oupr6s de Io soci6t_ qui s'occupe
de leur 61iminotion, ce que vous devez foire.

IMPORTANTSAFETYINSTRUCTIONS
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances,
cut or remove the third (ground) prong
from the power cord. For personal safety,
this appliance must be properly grounded.
The power cord of this appliance isequipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a standard 2-prong wall outlet is
encountered, it is your personal responsibility
and obligation to have it replaced with a properly
grounded 3-prong wall outlet.
The refrigerator/freezer should always
be plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
DO NOT USE AN ADAPTER PLUGTO CONNECT
THE REFRIGERATOR/FREEZERTO A 2-PRONG
OUTLET.
DO NOT USE AN EXTENSION CORD WITH
THIS APPLIANCE.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause a fire hazard from overheated wires.
Never unplug your refrigerator/freezer by pulling
on the power cord. Always grip plug firmly and
pull straight out from the outlet.
Repairor replace immediately all power
cords that have become frayed or otherwise
damaged. Do not usea cord that shows cracks
or abrasion damage along its length or at
either end.
When moving the refrigerator/freezer away
from the wall, be careful not to roll over or
damage the power cord.
SAVETHESE
INSTRUCTIONS
6

IMPORTANTSAFETYINSTRUCTIONS
RACCORDEMENT ELECTRIQUE
Ne coupez ni retirez en aucun cas Io troisi_me
broche (mise 6Io terre} de Io fiche du cordon
d'olimentotion. Pour votre s_curit_, cet
opporeil doit _tre correctement mis 6Io terre.
Le cordon d'alimentation de cet appareil
est muni d'une fiche a 3broches (mise a laterre)
qui se branche dans une prise mural ordinaire
5alv6oles (mise a la terre) pour r6duire
au minimum les risques du chocs 61ectriques.
Faites examiner la prise de courant et le circuit
par un 61ectricienqualifi6 pour vous assurer
que la prise est correctement mise 8 la terre.
Si la prise murale est du tgpe standard
2 alv6oles, il vous incombe de la faire remplacer
par une prise 8 5 alv6oles correctement mise
la terre.
Le r@frig@rateur/cong@lateurdoit toujours @tre
branch@dans sa propre prisede courant, dont
la tension nominale est identique 8 celle indiqu6e
sur la plaque signal@tique.
N'UTILISEZ PAS UNE FICHE
D'ADAPTATION POUR RACCORDER
LE RI_FRIGI_RATEUR/CON GI_LATEUR
DANS UNE PRISE MURALE A 2 ALVI_OLES.
N'UTILISEZ PAS DE CORDONS PROLONGATEURS
AVEC CET APPAREIL.
Cette precaution est recommand@e pour garantir
un rendement optimum et @iter une surcharge
des circuits 61ectriquesde la r@sidence,
ce qui pourrait crier un risque d'incendie
par surschauffe des ills.
Ned@branchezjamais I'appareil en tirant
le cordon d'alimentation. Saisissezfermement
la fiche du cordon et tirez droit pour la retirer
de la prise.
R6parez ou remplacez imm6diatement tout
cordon effiloch6 ou endommag& N'utilisez pas
un cordon fendill6 ou pr6sentant des signes
d'usure.
Lorsque vous d6placez I'appareil du mur, faites
attention de ne pas la faire rouler sur le cordon
d'alimentation afin de ne pas I'endommager.
CONSERVEZ
CESDIRECTIVES

Temperature Controls
36" All-Refrigerator and All-Freezer Units
All-Freezer Controls
TEMPERAT @
°CO O°F @@ ® ®
HOLD 3SEC
PresetSettings:
Allow 24hoursto reachthesepresettemperatures.
All-Refrigerator Controls
TEMPERAT @
°CO O°F @ ®
PresetSettings:
Allow 24hoursto reachthesepresettemperatures.
Temperature
controls The temperature displag shows the actual
temperature of the freezer or fresh food unit.
The actual temperature will varg from the set
temperature based on factors such as door
opening, amount of food, defrost cgcling
and room temperature.
NOTE:Frequent door openings or door left open
for periods of time mag increase the internal
temperature of the freezer and fresh food
compartments temporarilg.
To turn off the cooling sgstem in either
the freezer or fresh food unit, press
the plus 1+)pad until the display shows OFF.
To turn the cooling sgstem on, press
the minus (-) pad. The preset temperature of 0°F
for the freezer or 37°F for the fresh food unit
will appear in the display.
To checkthe current temperature setting for
the fresh food or freezer unit, press the plus (+)
or minus (-) pad once. After 5 seconds, the
display will return to the actual temperature.
To change the temperature settings, press
the plus (+)or minus (-) pad for each increment
to the desired temperature set point. Allow
24 hours for the unit to reach the temperature
you have set.
Fresh Food
Freezer
Temperature Ranges
Low Hig h
34°F 45°F
1oc 7oc
-6°F +6°F
-21°C -14°C
NOTE: Setting the controls to OFF stops cooling,
but does not shut off electrical power to the unit.
Changing
displag
temperatures
from °F to °C
To change the temperature display
between Fahrenheit and Celsius, press
Tamp Display °C/°F.
Ooor
alarm To turn the Door Alarm feature on, press
DOOR ALARM once. The ACTIVE light will
come on. To turn it off, press it again.
When the DOOR ALARM
is active, the alarm will flash
and beep if you keep the door
open for more than 2 minutes, e

Automatic Icemaker (freezermodels)
36" All-Refrigerotor and All-Freezer Units
Automatic
icemaker
(freezer models)
A newlg-instelled refrigeretor meg teke
12-24 hours to begin making ice.
The icemaker will produce seven cubes per
cycle-approximately 15 cycles in a 24-hour
period, depending on freezer compartment
temperature, room temperature, number of
door openings and other use conditions.
If the refrigerator is operated before the water
connection ismade to the icemaker, set the
power switch to OFF.
When the refrigerator has been connected
to the water supply, set the power switch to ON.
Throw away the first full bucket of ice.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
Icemaker
Switch Feeler Arm
After the icemaker has been turned on again,
there will be a delay of about/45 minutes before
the icemaker resumes operations.
NOTE:In homes with lower-than-average
water pressure, you may hear the icemaker
water valve cycle on several times when
making one batch of ice.
NOTE:Icemaker works best between
/40and 120 PSIhome water pressure.
Accessing
the icemaker
and ice
storage bin
(freezer models)
The icemaker is located behind the first drawer
on the right of the freezer. The ice bin
is the second drawer.
On/Off switch
To remove the ice bin:
Open the access door to reach the icemaker. Set
the icemaker power switch to the OFFposition.
With the access door closed, support the storage
bin at the bottom while slightly lifting. Pull bin
straight out. See Drawer Removal section.
To replace the ice bin: Slide the bin back until
the tab on the bin locks into the slot on the shelf.
After replacing the ice bin, open the access door
to reach the icemaker. Setthe icemaker power
switch to the ON position.
Ice bin
Icemaker

Water Filter/Storage Drawers
36" All-Refrigerotor and All-Freezer Units
Water filter
cartridge
(freezer models)
The water filter cartridge islocated in the top
machine compartment of the freezer.
To Replace the Filter:
The filter cartridge isdesigned /fRESETX_
to filter 300 gallons of water
(lasting approximatelg 12 months). ®
There isa replacement indicator light HOLD3SEe
for the water filter cartridge on the temperature
control panel.This light willturn gellowto tell gou
that gou need to replacethe filter soon.Thefilter
cartridge should be replaced when the replacement
indicator light turns red or ifthe flow of water to the
dispenser or icemaker decreases.
Installing the Filter Cartridge:
1. Removethe old cartridge bg slowlg turning
itto the left. Asmall amount of water mag
drip down. Do not pull down on the cartridge.
2. Fillthe new cartridge with water from the tap to
allow for better flow immediatelg after installation.
3. Lineup the arrow on the cartridge with the center
of the holder.Do not push it up into the holder.
°Slowlgturn itto the right Cartridge
untilthe cartridge stops. Holder I IItwill rotate about
1/4turn. DONOT Filter t I
OVERTIGHTEN. Cortridge
Slowlg turn it to the right. ,dm_
Do not overtighten.
ToResetthe Filter Status Light:
Pressand hold the RESETpad for 3 seconds.
Filter BgpassPlug:
Youmust usethefilter bgpassplug:
a) ifyou havea household
reverseosmosiswater sgstem
and/or another form of home
water filtration sgstem
b) ifa replacement filter isnot
available.
_ Filter
Bgpass
Plug
Theicemakerand dispenserwill not operate without
the filter or filter bgpass plug installed.
Replacement filters:
Toorder additional filter cartridgesinthe United
States, visit our Website at monogram.com, or
call GEParts and Accessories, 800.626.2002.
IMPORTANTNOTE:Remove the water filter to
immediatelg stop ang water leak from the
Icemaker/Dispenser sgstem. The water filter
cartridge holder (bracket) acts as a cut-off valve
when the filter is removed and will prevent
further leaking.
Call 1.800,844,1845 to schedule a service call
to repair the leak.
Refrigerator--
Sealed snack
pans
The sealed snack pans retain high humiditg
for the convenient storage of lunch meats and
cheese, hors d'oeuvres, spreads and snacks.
To remove a snack pan, pull the pan out and
lift the front of the pan up until it snaps out
of the wire holder.
To remove the upper drawers when
the door cannot be opened fullg, the shelf above
the drawers must be removed. Push the shelf
back, then lift up. Tilt the cover and take it out.
To replace a snack pan, place the back
of the pan in the wire holder. Lower the front
of the pan, then push down until the front
of the pan snaps into the wire holder.
I
10
