Design Guide with
Installation
Instructions
36″Built-In Bottom-Freezer
Refrigerators
monogram.com

Safety Information
Skill Level —Installation of this refrigerator requires
basic mechanical, carpentry and plumbing skills
Proper installation is the responsibility of the installer
Product failure due to improper installation is not
covered under the GE Appliance Warranty See the
Owner’s Manual for warranty information
WAR I G:
• These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward Anti-Tip protection is required See page 11
for details
• Use this appliance only for its intended purpose
• Immediately repair or replace electric service cords
that become frayed or damaged
• Unplug the refrigerator before cleaning or making
repairs
• Repairs should be made by a qualified service
technician
AVERTISSEME T
• Ces réfrigérateurs sont lourds en haut et il faut
les arrimer pour éviter leur basculement Il faut avoir
un système de protection contre le renversement
Voir les détails page 11
• Il ne faut utiliser cet appareil que pour l’utilisation
appropriée
• Réparer ou remplacer immédiatement tout cordon
électrique effiloché ou endommagé
• Il faut débrancher le réfrigérateur avant le nettoyage
ou toute intervention
• Les réparations doivent être faites par un technicien
qualifié
For Monogram local service in your area, call
1.800.444.1845.
For Monogram service in Canada, call
1.800.561.3344
For Monogram Parts and Accessories, call
1.800.626.2002.
www. monogram.com
2
BEFORE YOU BEGI
Read these instructions completely and carefully.
• IMPORTA T —Save these instructions
for local inspector’s use Observe all governing codes
and ordinances
• ote to Installer —Be sure to leave these
instructions with the Consumer
• ote to Consumer —Keep these instructions
with your Owner’s Manual for future reference
WAR I G:
This appliance must be properly grounded See
“Grounding the Refrigerator,” page 9
AVERTISSEME T
Cet appareil doit être correctement mis à la terre
Consulter « Mise à la terre du réfrigérateur », page 9
If you received a damaged refrigerator, you should
immediately contact your dealer or builder
CAUTIO :
Due to the weight and size of this refrigerator, and to
reduce the risk of personal injury or damage to the
product—THREE PEOPLE ARE REQUIRED FOR PROPER
INSTALLATION
PRUDE CE
À cause du poids et de la taille de ce réfrigérator et pour
réduire le risque de blessure et de dommages, IL FAUT
TROIS PERSONNES POUR FAIRE L’INSTALLATION
CORRECTEMENT
CO TE TS
Planning Guide
The Installation Space 3
Dimensions and Clearances 3
130° Door Swing 4
90° Door Swing 5
Customization Basics 6
Panel Dimensions 7
Side Panels 8
ZUG2 Grille Panel Dimensions 8
Installation Instructions
Tools, Hardware, Materials 9
Grounding the Refrigerator 9

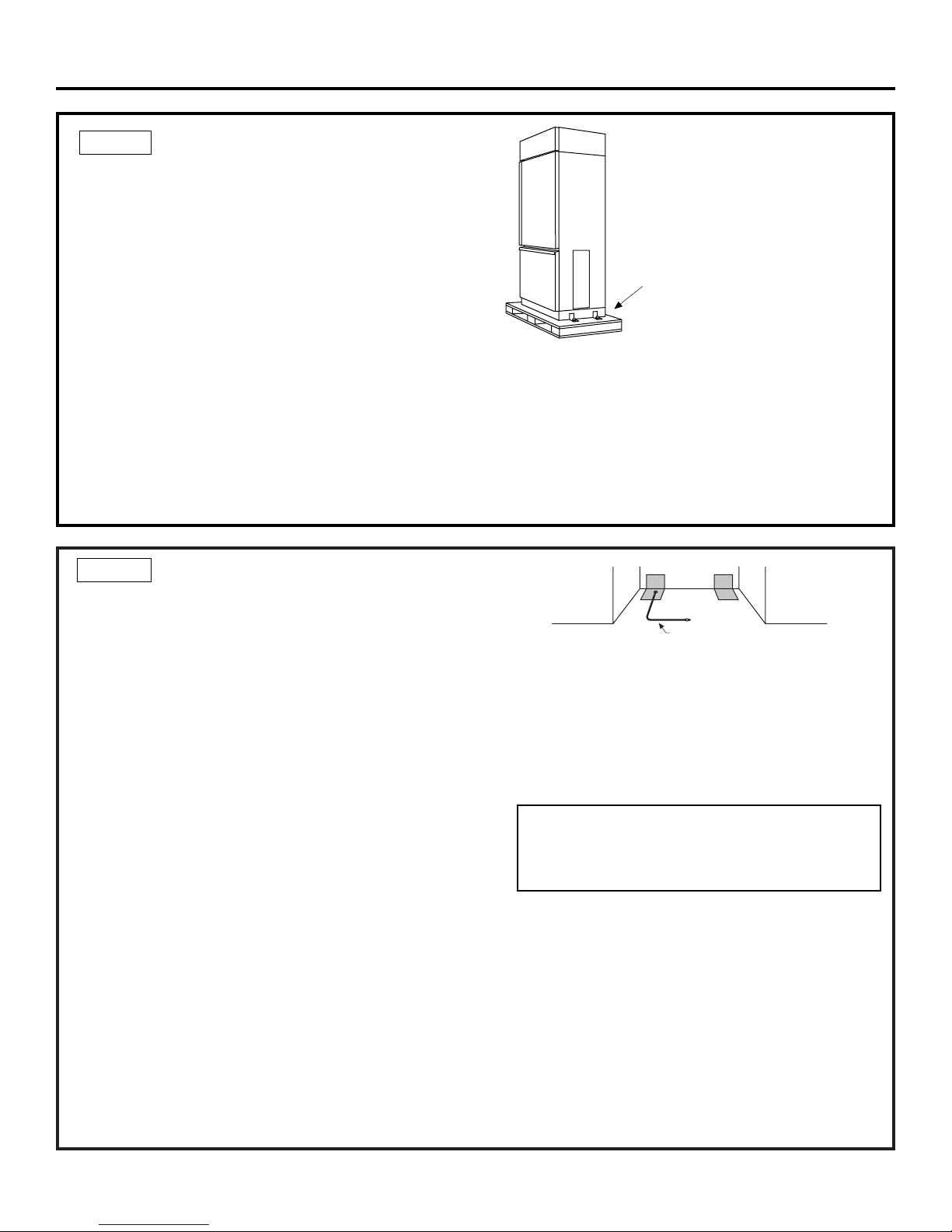

Step 1, Remove Packaging 10
Step 2, Install Water Line 10
Step 2A, RO Water Line 11
Step 3, Install Side Panels 11
Step 4, Install Anti-Tip Brackets 11
Step 5, Level Refrigerator 12
Step 6, Alternate Anti-Tip Procedure 12
Step 7, Secure Refrigerator to
Cabinetry 12

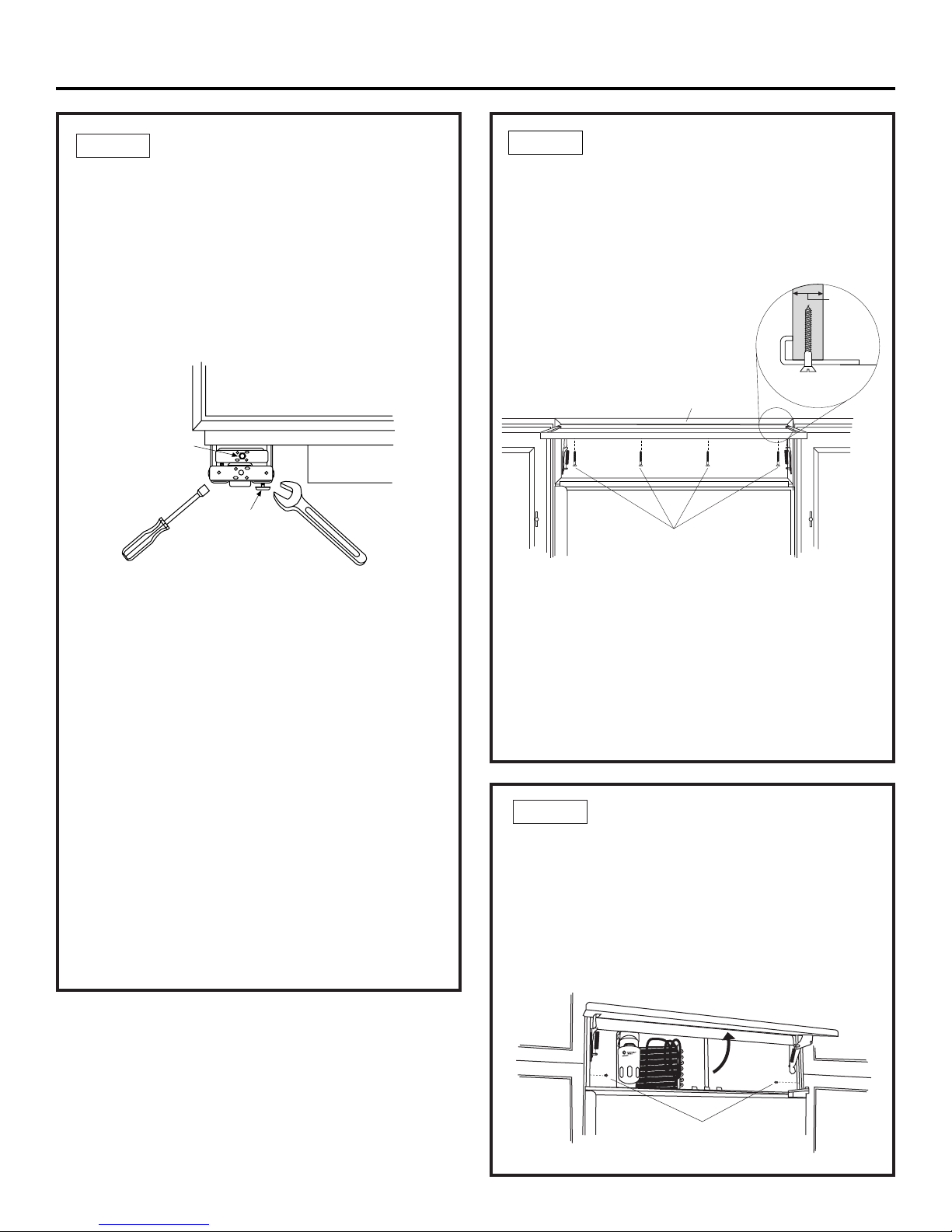

Step 8, Adjust Door Swing 13

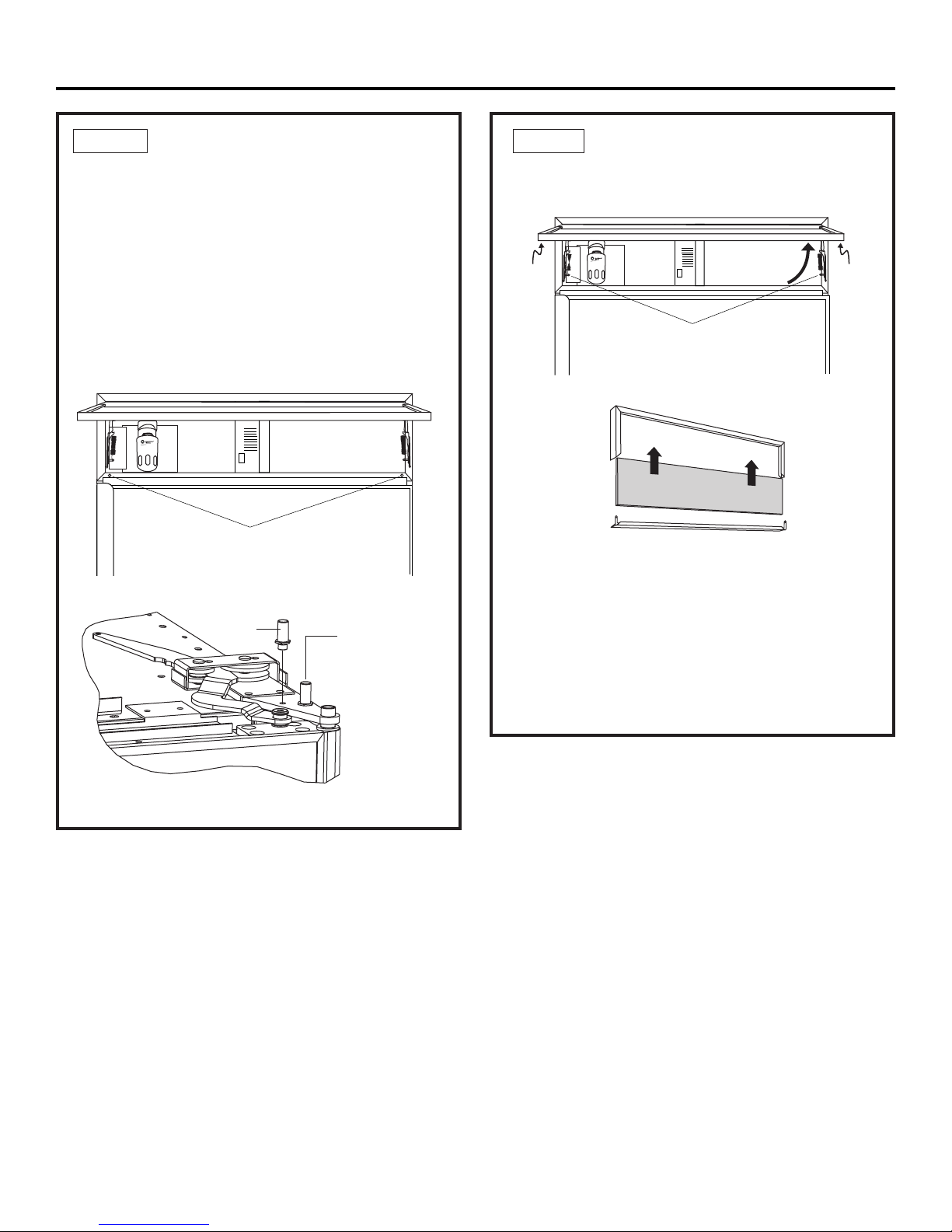

Step 9, Install Grille Panel 13
Step 10, Install Framed Panels 14

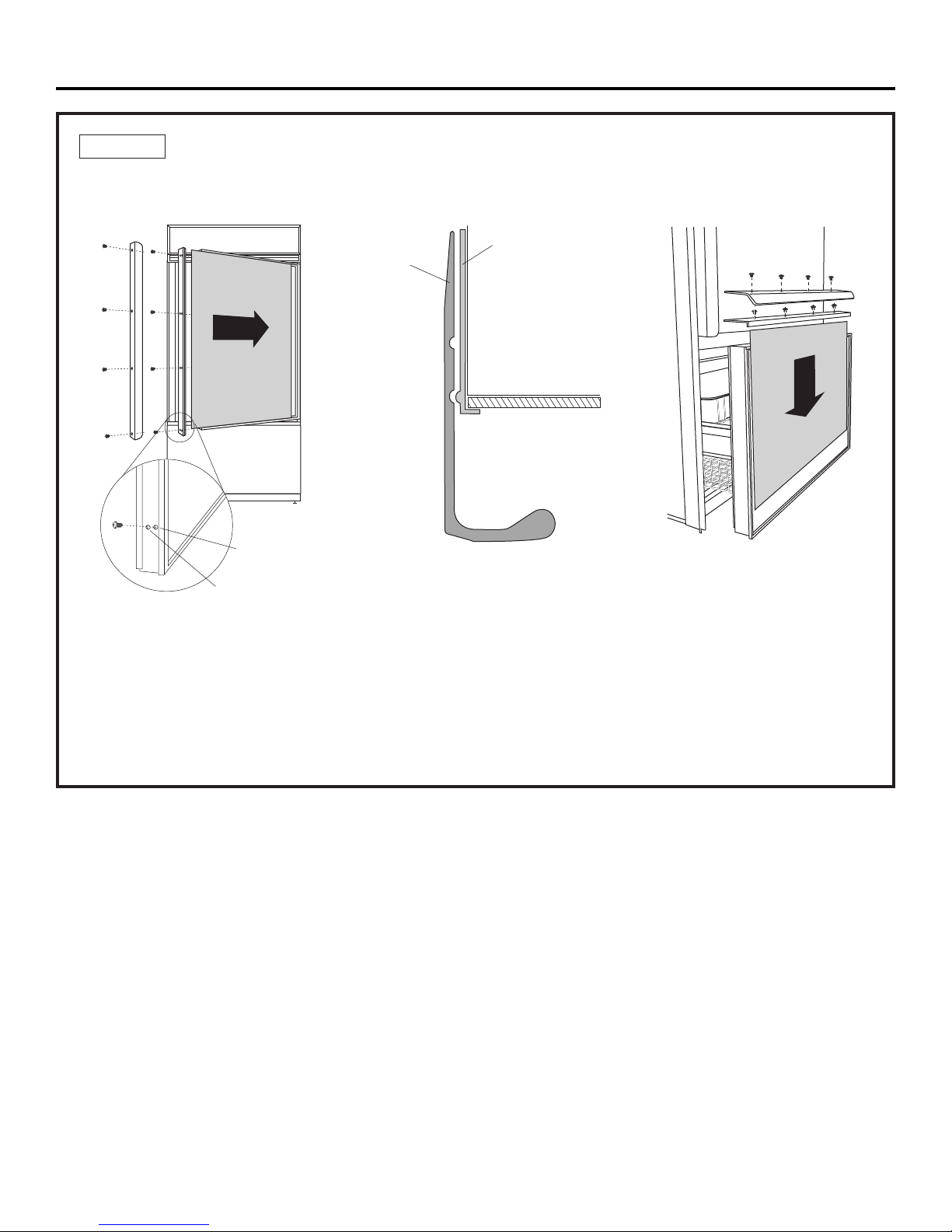

Step 10A, Install Overlay Panels 15

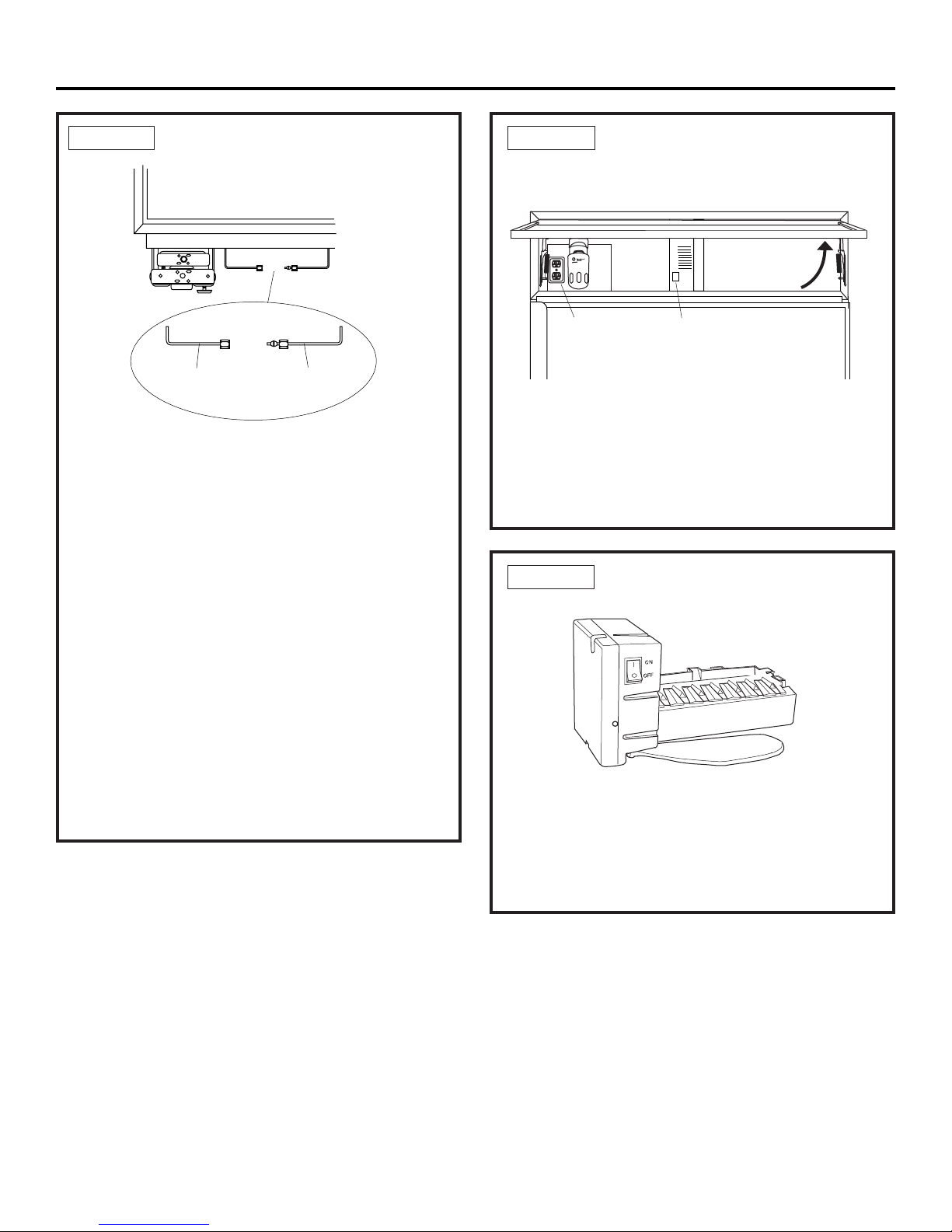

Step 11, Connect Water Supply 16
Step 12, Connect Power 16
Step 13, Start Icemaker 16

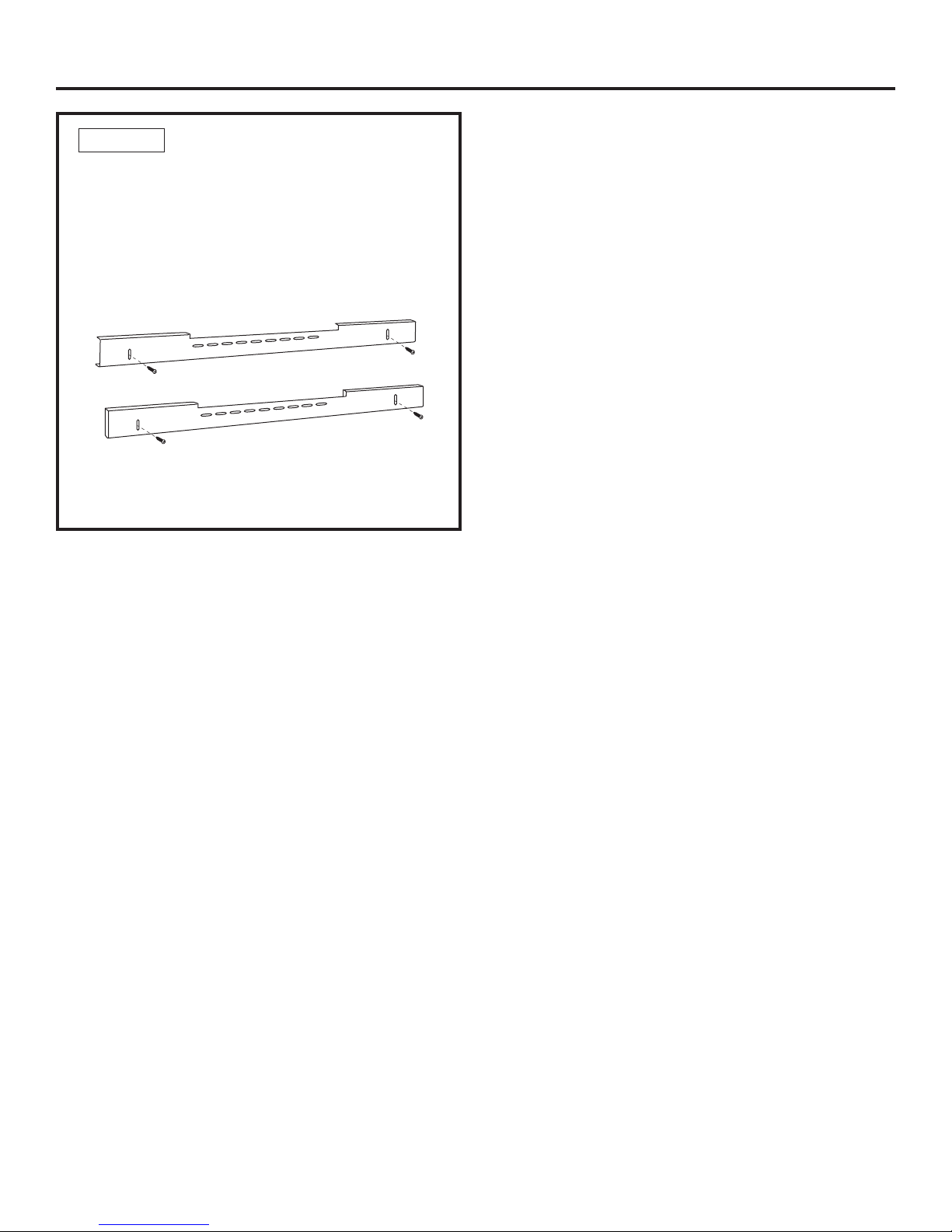

Step 14, Install Toekick 17

36" Frame to
Frame Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/8" Framed Models
25-3/4" Stainless Steel Models
Case Depth
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
28-11/16" Professional Style Models
THE I STALLATIO SPACE
Water And Electrical Locations
Electrical and water supply must be located as shown
The cutout depth must be 24″
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed
the 24″installation depth shown The top case trim
overlaps the bottom of the soffit
Additional Specifications
• A 115 volt 60Hz , 15 or 20 amp power supply is
required An individual properly grounded branch
circuit or circuit breaker is recommended Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall Electrical must be located
on rear wall as shown
ote: GFI (ground fault interrupter) is not
recommended
• Water line can enter the opening through the floor
or back wall Route GE SmartConnect™kit or 1/4″O D
copper tubing between the cold water line and the
water connection location The tubing should be
long enough to extend to the front of the refrigerator
Installation of an easily accessible shut-off valve in
the water line is required
DIME SIO S A D CLEARA CES
* Shipping height The
refrigerator can be
adjusted to fit into a
cutout that is 83-1/2″
min to 84-1/2″max
height Note that the top
case trim at the front is
1/2″higher and will
overlap upper cabinetry
or soffit Use leveling legs
and wheels for a
maximum 1″height
adjustment
Product Clearances
These refrigerators are equipped with a 2-position door
stop The factory set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted
3
6"
Wall View
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From
Floor to
Bottom
of Electrical Area
10"
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
5"
10"
10"
3-1/2" 3-1/2"
5"
3-1/2"
Water Supply
ZUG2, ZUGSS2 Unified Grille Panel Kit
• If you are installing two refrigerators, side by side,
the installation space must be 71-1/2″wide
ote: Additional cutout width may be required when side
panels are used Add side panel thickness to the finished
cutout to calculate rough-in width
• The water and electrical locations for each product
must be located as shown
• A separate 115V, 60Hz , 15 or 20 amp power supply is
recommended for each product
2-5/16"
75" From
Floor to Bottom
of Electrical Area
84-1/2" max
83-1/2" min
Finished
Opening
71-1/2" Finished Width
Electrical
24" Cutout Depth
Wall View
24-3/16"
6"
10"
6"
10"
5"
10" 10"
Water Supply
3-1/2" 3-1/2" 3-1/2" 3-1/2"
5"
3-1/2"
5"
10"
5"
3-1/2"
The finished
cutout width
must be
35-1/2″
Allow 25″minimum clearance for a full 130° door
swing Allow 15″for pan removal
For a 90° door swing, allow 4″min clearance to a wall,
for framed and stainless steel models Allow 5″min
clearance for professional style models If the 90° door
stop position is used, pan access is maintained, but pan
removal is restricted
See illustrations pages 4 and 5 to determine door swing
interaction with adjacent cabinets or countertops
Design Guide

1/4" 1/2" 3/4" 1" 1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
Stainless Steel
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim
Top View

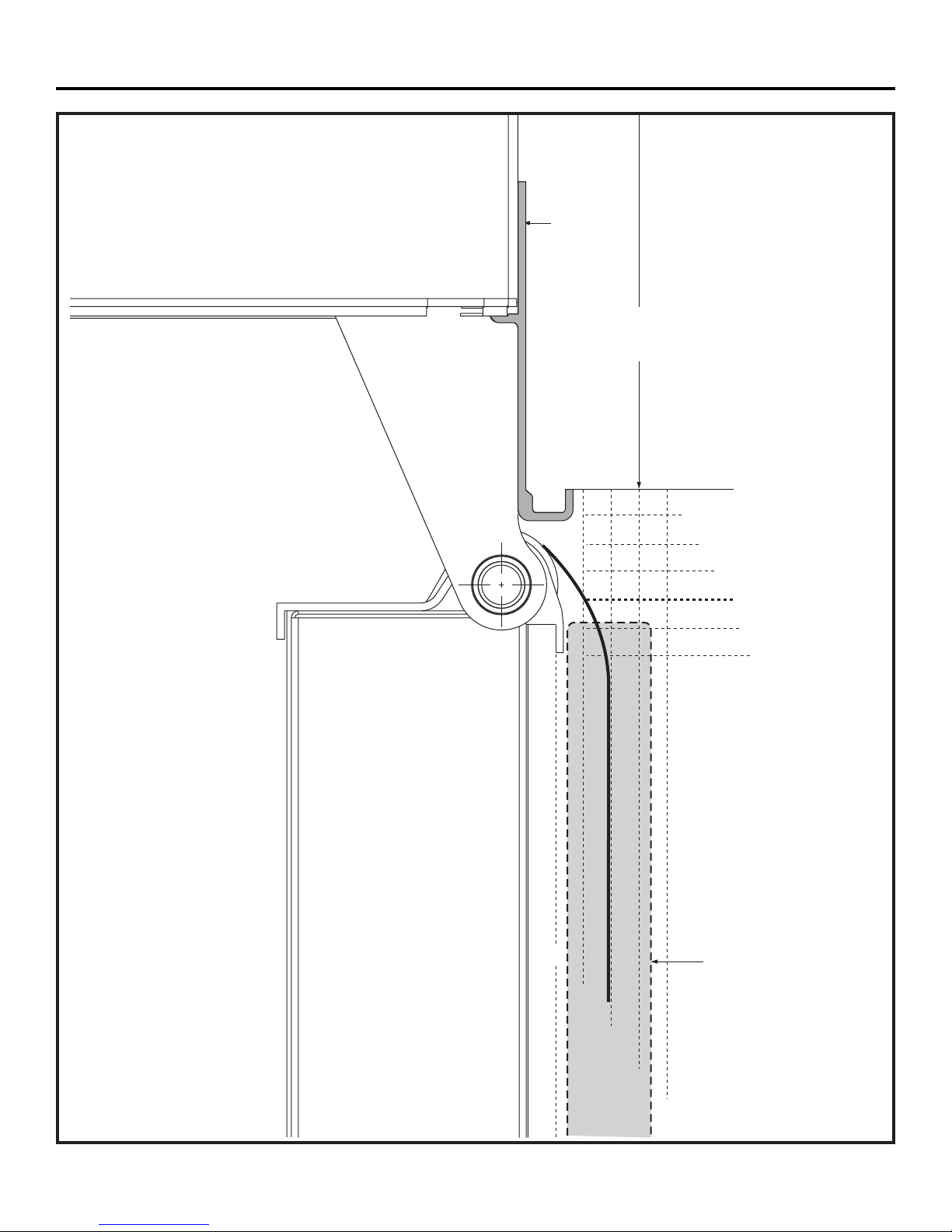

130° DOOR SWI G
(factory setting)
Scale 1:1
4
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides
Therefore, frameless cabinets may
require filler strips to prevent
interference with cabinet door swing
The opening must allow for filler strips
Design Guide

1/4"
1/2"
3/4"
1"
1-1/4"
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
23-7/8"
From Rear of
Refrigerator
3/4" Overlay
Panel
(Nominal Size)
Case Trim
Refrigerator
Door
Stainless Steel
5
Top View
90° DOOR SWI G
(optional setting)
Scale 1:1
Frameless Cabinets:
The case trim overlaps
cabinets at the top and
sides Therefore, frameless
cabinets may require
filler strips to prevent
interference with cabinet
door swing The opening
must allow for filler strips
Design Guide

CUSTOMIZATIO BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Overlay panels
You may also choose to install custom overlay panels
from your cabinet manufacturer This design provides
a seamless appearance which integrates smoothly
with surrounding cabinetry
Standard supplied handles shown in 3/4″overlay panel position
Professional Style Stainless Steel Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and professional style handles These models are shipped
ready for installation
Stainless Steel Wrapped Refrigerators
Stainless steel wrapped refrigerators with beveled edges
and tubular stainless steel handles that coordinate with
other Monogram appliances These models are shipped
ready for installation
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized with
decorative panels Field installed custom door and grille
panels are required
Framed panels
You may install 1/4″thick custom panels from your
cabinet manufacturer The decorative panel slides into the
factory installed trim Or, order black, white and stainless
steel accessory panels from your Monogram dealer
6
Standard supplied handles shown in 1/4″panel position
Door and Drawer Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels Custom
handles of your choice, supplied by your cabinet maker
can also be installed on overlay panels If desired, you
may order ZKHCSS2 Monogram stainless steel tubular
handle kit for 3/4″overlay panels
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed
Optional Accessory Kits
• ZKHCSS2: Monogram Tubular Stainless Steel handles
designed to fit 3/4″overlay panels This kit also includes
a handle side trim for custom handles
• ZUG2: For side-by-side installation of two trimmed
bottom-freezer refrigerators This kit provides for the
installation of a unified custom grille panel to span the
width of two units using a framed or overlay panel
• ZUGSS2: For side-by-side installation of two stainless
steel wrapped bottom-freezer refrigerators This kit
provides a unified stainless steel grille panel to span
the width of two units
• ZKHCT: Handle side trim for left-hand and right-hand
doors For use on 3/4″custom panels when using a
custom handle
Accessory Panels
White, black and stainless steel accessory panels are
available from your Monogram dealer Panels are cut
to size and ready to install
ZPBC360–Black, ZPWC360–White,
ZPSC360–Stainless Steel Panels
Standard
Door Handle
3/4" Overlay Panel
1/4" Thick Backer Panel
.10" Thick Spacer Panel
Standard Door Handle Framed Panel
Design Guide

1/4″FRAMED PA EL DIME SIO S
7
If you choose to install framed panels, they must be cut
to the dimensions shown The panels will slide into the
frame on the door, drawer and grille
If the custom panel is less than 1/4″thick and if it fits
loosely in the door frame, it can be backed up with a
piece of filler material or foam tape to improve the fit
3/4″OVERLAY PA EL DIME SIO S
For a more custom appearance, overlay panels may be
installed on trimmed models The overlay panel must be
secured to a 1/4″thick backer panel which slides into the
trim A spacer panel 0 10″thick must be placed between
the overlay and backer panel
Assemble the panels with glue and screws
• Center the spacer panel on the backer panel, left to
right and top to bottom Secure the panels with glue
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws Screws must
be countersunk into the backer panel
Overlay
Panel
1/4"
Backer
Panel
Door/Drawer
.10 Inch
Spacer
Spacer Panel
Backer Panel
Overlay Panel
Fresh Food
Panel
Freezer Drawer
Panel D
C
A
B
Grille Panel
Framed Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4″Framed Panel 33-7/8″8-7/8″46-1/16″21-7/8″
Overlay Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4″Backer Panel 33-7/8″8-7/8″46-1/16″21-7/8″
0 10″Spacer Panel 32-1/2″7-5/8″44-11/16″20-1/2″
3/4″Overlay Panel 34-1/8″9″46-5/16″22″
OTE: Left-to-right offset is not always equal to
top-to-bottom offset
1/4"
Panel
Door
5/16"
Trim
Reveal
IMPORTA T OTE: Maximum total
panel weight:
•Fresh food door panel – 58 lbs
•Freezer drawer panel – 28 lbs
•Grille Panel – 11 lbs
IMPORTA T OTE: Maximum
total weight for the assembled
panels:
•Fresh food door panel – 58 lbs
•Freezer drawer panel – 28 lbs
•Grille Panel – 11 lbs
Design Guide

*84"
2-9/16"
24"
*3" to 4"
3/16"
1-7/8"
Design Guide
8
SIDE PA ELS
Side panels must be used whenever the sides of the
refrigerator will be exposed The 1/4″side panels will
slip into the side case trim Secure the panels to the
refrigerator with stick-on hook and loop fastener strips
Order the side panels from the cabinet manufacturer
• Cut a notch in the top front corner as shown to allow
clearance for corner keys in the front side trim
ZUG2 GRILLE PA EL DIME SIO S
The ZUG2 unified grille panel kit provides for the
installation of a framed or overlay grille panel
* Depending on
installation height
Assemble the overlay panels in the same manner as
the door and drawer panels
Framed Panel Dimensions A (Width) B (Height)
1/4″Framed Panel 69-7/8″8-7/8″
Overlay Panel Dimensions A (Width) B (Height)
1/4″Backer Panel 69-7/8″8-7/8″
0 10″Spacer Panel 68-1/2″7-5/8″
3/4″Overlay Panel 70-1/8″9″
A
B
Grille Panel
Spacer Panel
Backer Panel
Overlay Panel

Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD
DO NOT USE AN ADAPTER PLUG TO CONNECT THE
REFRIGERATOR TO A 2-PRONG OUTLET
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE
9
MATERIALS REQUIRED
• 35″long 2x4 for Anti-Tip support
• 1/4″copper water line tubing or GE SmartConnect™
Refrigerator Tubing kits
• Water shut-off valve
• Custom panels for fresh food door, freezer drawer
and grille panel
• Screws to secure refrigerator to cabinetry
• Stick-on hook and loop fastener strips for
1/4″side panels
FLOORI G
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring This surface should
be strong enough to support a fully loaded refrigerator,
or approximately 1,200 lbs
OTE: Protect the finish of the flooring Cut a large
section of the cardboard carton and place under the
refrigerator where you are working
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• Appliance Hand Truck
• Tubing cutter
• 7/16″open-end wrench
• #2 Phillips screwdriver
• Drill and appropriate bits
• 5/16″, 7/16″socket
• Safety glasses
• 1-1/4″open end wrench
• Pliers
• 1/4″ratchet
HARDWARE SUPPLIED
• Water filter bypass plug
• Anti-Tip brackets
• 1/4″nut and ferrule
GROU DI G THE REFRIGERATOR
IMPORTA T—(Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard three-prong (grounding) wall receptacle
to minimize the possibility of electric shock hazard
from this appliance
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded
Installation Instructions

STEP 1 REMOVE PACKAGI G
CAUTIO : Refrigerator is much heavier at the
top than at the bottom—be careful when moving When
using a hand truck, handle from side only
PRUDE CE: Le réfrigérateur est beaucoup
plus lourd en haut qu’en bas Il faut être prudent lors
des déplacements Si un diable est utilisé, il faut soulever
le réfrigérateur sur le côté seulement
• Carefully cut banding at the top and bottom,
remove outer carton
• Slide out back corner posts (2)
• Slide carton off top of cabinet
OTE: IT IS NOT NECESSARY TO LAY CABINET DOWN IN
ORDER TO REMOVE SKID!
• The unit is secured to the skid with 4 slotted
tie-down straps Remove the four 5/16″bolts from the
base channels in the tie-downs
• Remove the four 7/16″
bolts securing the straps
to the skid
CAUTIO : DO NOT
ATTEMPT TO ROLL UNIT
OFF SKID
PRUDE CE: IL NE
FAUT PAS ESSAYER DE FAIRE
ROULER LE RÉFRIGÉRATEUR
POUR L’ENLEVER DE LAY
PALETTE
STEP 2 I STALL WATER LI E
• A cold water supply is required for automatic
icemaker operation The water pressure must be
between 40 and 120 p s i
• Route 1/4″OD copper or GE SmartConnect™plastic
tubing between house cold water line and the water
connection location
• Tubing should be long enough to extend to the front of
the refrigerator Allow enough tubing to accommodate
bend leading into the water line connection
OTE: The only GE-approved plastic tubing is supplied
in the GE SmartConnect™Refrigerator Tubing kits Do not
use any other plastic water supply line because the line
is under pressure at all times Other types of plastic may
crack or rupture with age and cause water damage to
your home
GE SmartConnect™Refrigerator Tubing Kits are available
in the following lengths:
2′( 6 m) WX08X10002
6′(1 8 m) WX08X10006
15′(4 6 m) WX08X10015
25′(7 6 m) WX08X10025
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the line
of water
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet
The shut-off valve should be located where it will be
easily accessible
10
Remove
Tie-Downs
Toekick
• Support blocks on the bottom of the refrigeration
case must be removed before the refrigerator is
taken off the skid or damage will occur Carefully,
tilt refrigerator and slide blocks out from beneath
• Remove toekick Set aside for final installation
• Lift the refrigerator off the skid with an appliance
dolly Handle from the sides
Floor
Waterline Tubing
Installation Instructions
• Turn on the main water supply and flush debris
Run about a quart of water through the tubing into
a bucket Shut off water supply at the shut-off valve
OTE: Saddle type shut-off valves are included in
many water supply kits, but are not recommended
for this application
OTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to Saddle valves are
illegal and use is not permitted in Massachusetts
Consult with your licensed plumber

Block Soffit
Side View
Height
From
Floor
to
Bottom
of Wood
Block
Brackets
Required
Brackets
Not Required
Beneath a
Soffit
11
STEP 2A WATER LI E I STALLATIO WITH
A REVERSE OSMOSIS SYSTEM
Skip this step when not using an RO System
If the water supply to the refrigerator is from a Reverse
Osmosis Water System, use the refrigerator’s filter bypass
plug Using the refrigerator’s water filtration cartridge with
the RO filter can result in hollow ice cubes
STEP 3 I STALL SIDE PA ELS
Skip this step when not using side panels
If you are using 1/4 ″ side panels, they should be inserted
into the case trim Fasten the panels to the refrigerator
with stick-on hook and loop fastener strips before setting
refrigerator in place
STEP 4 I STALL A TI-TIP BRACKETS
WAR I G:A TI-TIP PRECAUTIO S
The refrigerator is top-heavy and must be secured to prevent the
possibility of tipping forward
ATTE TIO : PRECAUTIO S CO TRE LES
BASCULEME TS
Le réfrigérateur est beaucoup plus lourd en haut et il faut le
maintenir en place pour éviter la possibilité de son basculement
vers l’avant
• Cut a 2 ″ x 4 ″ x 35 ″ block and secure the block to the
mounting brackets provided using #12 or #14 wood screws
• Secure the bracket with wood block to the back wall so that it is
84 ″ (or your installation height) from the finished floor Use #12
or #14 wood screws See illustration
• Screws must penetrate at least one inch into vertical wall studs
• Before pushing the refrigerator into the opening, plug the power
cord into the receptacle Open the grille panel and reach into
the opening at the back to grasp the power cord Pull the power
cord into the opening as you push the refrigerator back
• Gently push refrigerator into the opening with hands against
front corners
Important ote: When the refrigerator is installed under a soffit or if
there is not enough height for this method of security, brackets cannot
be used Proceed to step 5 to level the refrigerator and then to step 6
to secure refrigerator to cabinets The refrigerator must be secured to
prevent tipping
Filter Bypass Plug
Mounting
Bracket
2 x 4 Cut
35" Length
Installation
Height
From Floor
Screws Mounted into
Vertical Wall Studs
Installation Instructions

12
STEP 5 LEVEL REFRIGERATOR
All models have 4-point leveling The front is supported
by leveling legs, the rear is supported by adjustable
wheels Both are accessible from the front of the
refrigerator
• To level the back of the refrigerator, turn the 7/16″hex
nut located above the front wheels Turn clockwise to
raise or counterclockwise to lower the refrigerator
• For front leveling, use a 1-1/4″open-end wrench
• Adjust height of refrigerator to match installation
cutout opening 83-1/2 to 84-1/2″ The refrigerator
should be level and plumb with cabinetry
STEP 7 SECURE REFRIGERATOR
TO CABI ETRY
Whenever possible, perform this step for anti-tip
security, or when anti-tip brackets cannot be used
The refrigerator must be secured to prevent tipping
• Raise the grille panel to access case trim
• Drill hole in trim and drive screw through the trim into
adjacent cabinet
• Follow the same procedure on the opposite side
Leveling Leg
Hex Nut Adjusts
Rear Wheels
Drive Screws
Through Case Trim and Into
Adjacent Cabinets
CAUTIO :
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1″ If the
installation requires more than 84-1/2″height, the
installer should elevate the refrigerator on a sheet
of plywood or runners Cabinetry trim could also be
added across the top of the opening to shorten the
opening If you attempt to raise the refrigerator more
than 1″, you will damage the front leveling legs and
the rear leveling wheels.
PRUDE CE
Les roues de nivellement arrière et les pattes de
nivellement avant permettent un réglage maximal
de 25 mm (1 po) Si l’ouverture pour le réfrigérateur
a une hauteur supérieure à 2,15 m (84-1/2 po),
l’installateur doit élever le réfrigérateur sur une feuille
de contre-plaqué ou des glissières Il est également
possible d’ajouter des baguettes de finition des
placards sur le haut de l’ouverture afin de la réduire
Lever le réfrigérateur de plus de 25 mm (1 po)
endommage les pattes de nivellement avant
et les roues de nivellement arrière
Installation Instructions
STEP 6 ALTER ATE A TI-TIP
PROCEDURE
The refrigerator must be secured to prevent tipping
The anti-tip brackets cannot be used on metal wall
studs. Use this Alternate Procedure to secure the
refrigerator against tip-over whenever metal wall
studs are encountered and there is no soffit.
• Raise the grille panel to access case trim
• Use a 3/16″bit to drill four evenly spaced clearance
holes through the metal top case trim
• Use a 1/16″bit to drill to pilot holes through the metal
clearance holes and into the wood soffit The holes
should be centered in the soffit or a 3/4″min wood
brace The brace spanning the enclosure must be
securely fastened to cabinets on both sides
• Install four, 1-1/2″drywall screws into the pilot holes
Install Four
1-1/2" Drywall Screws
Through Trim and Into Soffit
or 3/4" Min. Wood Brace
Top Case Trim
Side View
Top Case Trim
3/4"
Min.

STEP 8 ADJUST DOOR SWI G
OTE: This refrigerator has a 2-position door stop
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening Skip this step if door opening is satisfactory
for your installation situation.
• Lift the grille panel to access the wire cover trim
• Remove screws on both sides of the wire cover trim
and lift off
• Use pliers to unscrew door stop and reinstall into the
90° position
STEP 9 I STALL GRILLE PA EL
• Raise the grille panel to stop position
13
• Reinstall the wire cover trim
Pin Location
as Shipped
130°Door Swing
Pin Location For
90°Door
Swing
Remove
Wire Cover
Trim Screws
Raise
Grille
Panel
Adjust Nut Below
Spring to Accommodate
Panel Weight
Loosen
Side
Trim
Screw
Loosen
Side
Trim
Screw
• Loose screws on side trim behind frame Remove
bottom trim
• Slide panel over the metal backer panel and into
the trim
• If necessary, tap with a wood block until panel slips
under the top trim piece
• Reassemble bottom trim Tighten screws
• Adjust the hinge spring to accommodate the panel
weight, if necessary
Installation Instructions

14
STEP 10 I STALL 1/4″FRAMED PA ELS
• There are two sets of holes in the handle side trim
Replace handle side trim by installing the original screws
in the FRONT screw holes
• Secure the handle to the door using the REAR
screw holes
• Follow the same procedures to install the drawer panel
Use Rear Holes
to Secure Handle
Use Front Holes
to Secure Trim
Right hand models shown. Use the same instructions
for left hand models.
IF YOU ARE I STALLI G OVERLAY PA ELS,
GO TO STEP 10A.
Install door and drawer panels:
• Open door to 90° Remove the 4 Phillips head screws
from the door handle
• Remove handle Retain all screws
• Remove 4 screws holding trim, lift off trim
Retain screws
• Slide framed panel into the door trim
Standard supplied handle shown
in 1/4″panel position
Refrigerator
Door
Door Trim
Handle
Trim
Installation Instructions

15
STEP 10A I STALL OVERLAY PA ELS
• There are two sets of holes in the handle side trim
Replace handle side trim by installing the original screws
in the REAR screw holes
• Secure the handle to the door using the FRONT
screw holes
• Follow the same procedures to install the drawer panel
Custom handles
If you are using custom handles, the handle must be
properly secured to the panel before sliding the panel
into the trim
• The cabinet manufacturer will supply the custom
handle and hardware
• Secure the door/drawer trim using both the FRONT
and REAR screw holes Discard supplied handle
Right hand models shown. Use the same instructions
for left hand models.
Install door and drawer panels:
• Open door to 90° Remove the 4 Phillips head screws
from the door handle
• Remove handle Retain all screws
• Remove 4 screws holding trim, lift off trim
Retain screws
• Slide overlay panel into the door trim
Supplied handle shown in the
overlay panel position
Refrigerator
Door
Door Trim
Handle
Trim
Move
Forward
For 3/4"
Panel
Use Rear Holes
to Secure Trim
Use Front Holes
to Secure Handle
Installation Instructions

16
STEP 11 CO ECT WATER SUPPLY
• Locate and bring tubing to the front of the cabinet
• Turn the water on to flush debris from line Run about
a quart of water through tubing into a bucket, then
shut off water
Copper Tubing:
• Slip a 1/4″nut and ferrule (provided) over both ends
of the copper tubing Insert tube into the union fitting
on the unit and tighten nut to union
• Turn on the water to check for leaks
GE SmartConnect™Tubing:
• Insert the molded end of the tubing into the
refrigerator connection Tighten the compression nut
until it is just hand tight
• Tighten one additional turn with a wrench
Overtightening can cause leaks!
• Turn on the water to check for leaks
ote: Make sure excess tubing length does not
interfere with drawer closing or toekick installation
STEP 12 CO ECT POWER
• Check to be sure the power cord is plugged into the
receptacle
• Check to make sure power to refrigerator is on
by opening refrigerator door to see if interior lights
are on
• The temperature controls are preset at 37°F
for the fresh food section and 0°F for the freezer
• Allow 24 hours to stabilize before making
adjustments
STEP 13 START ICEMAKER
• Flip the switch to I (ON) The icemaker will begin
operation automatically
• Be sure nothing interferes with the sweep of
the feeler arm
• Discard the first full bucket of ice cubes
• To turn the icemaker off, set the switch to O (OFF)
Refrigerator
Water Supply
House
Water Supply
Raise
Grille
Panel
Electrical
Outlet
Master Light
Switch
Installation Instructions

17
Installation Instructions
STEP 14 I STALL TOEKICK
• Locate the supplied toekick (shipped taped to
the side of the refrigerator) Install with 2 screws
provided, adjust to desired height and tighten screws
• A custom toekick can be installed to match or
complement the surrounding cabinetry Use the
supplied toekick as a template to cut out the notch
and vent holes
Important: The vented toekick must remain
unobstructed for proper air circulation and
refrigerator operation
Supplied Toekick
1/4" or Thicker Toekick

18
otes

19
otes

NOTE: While performing installations described in this book,
safety glasses or goggles should be orn.
For Monogram®local service in your area, call
1.800.444.1845.
NOTE: Product improvement is a continuing endeavor
at General Electric. Therefore, materials, appearance and
specifications are subject to change ithout notice.
Pub. No. 49-60468-1
Part No. 224D1145P001
08-07 JR
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
