ZFSB27DYSS—27 cu. ft. Stainless Steel Refrigerator

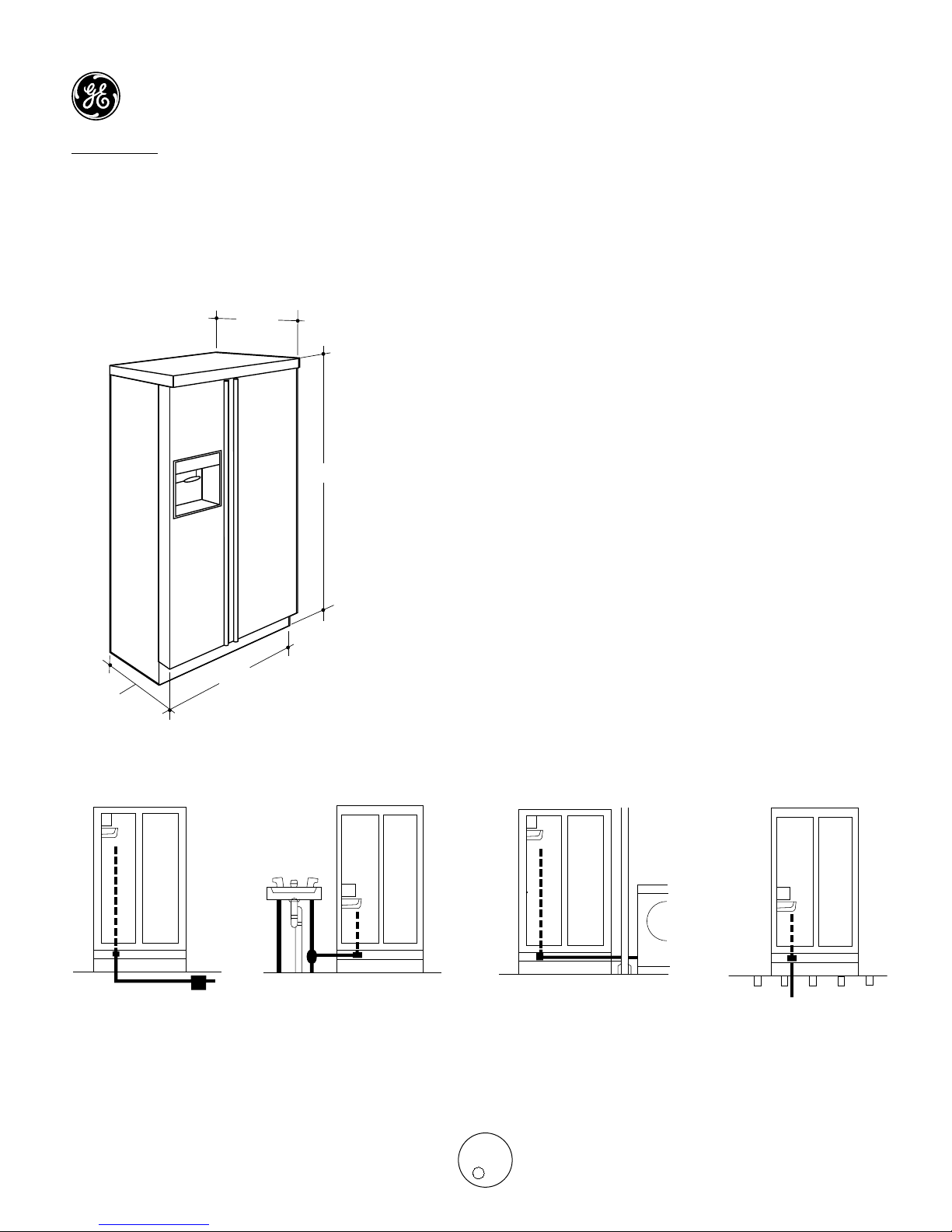

Dimensions and Specifications (in inches)
Water Connection Location
Clearances: This Monogram free-standing refrigerator requires
the following clearances for proper air circulation, plumbing and
electrical connections.
Sides . . . . . . .5/8"
Top . . . . . . . . . .1"
Back . . . . . . . . .1"
If the refrigerator is to be installed in a corner:
• A 1-1/2" clearance between the case trim and the adjacent wall
on both sides of the refrigerator will assure a 90° door opening
and access to all drawers.
• Allow 11-1/4" clearance on the freezer side for removal of ice bin.
• On the fresh food side, drawers can be removed by first disassembling
door bins. Or, allow 14" clearance to remove drawer without
disassembling the door bins.
Additional Specifications: The water line can be routed through the
floor or through an adjacent cabinet, as close to the back wall as possible.
A 115 volt, 60 Hz. 15 or 20 amp power supply is required. An individual
properly grounded branch circuit or circuit breaker is recommended, as
noted on the rating plate. The rating plate is located on the bottom of
the cabinet front of the fresh food compartment and is visible when the
door is opened.
Installation Information:
Before installing, consult installation instructions (Pub. No. 49-6894)
packed with product for current dimensional data.
36"
71"
35"
Including
Handles
32-1/2"
Case
Depth
Through floor to
basement cold
water pipe
Under sink to cold water pipe Through wall to utility room
cold water pipe In crawl space
under house

Rvised 7/97
Monogram.
™
ZFSB27DYSS—27 cu. ft. Stainless Steel Refrigerator







Features and Benefits
• Stainless Steel Model
•26.6 cu. ft. Capacity (Fresh Food
16.9 cu. ft., Freezer 9.72 cu. ft.)
• Exterior Dispenser with Cubes, Crushed
Ice and Chilled Water
• Adjustable Humidity Vegetable/Fruit
Pan, Adjustable Temperature Meat Pan
• Adjustable Humidity Snack Pan
• 3 Adjustable Spill-Proof Glass Shelves
(2 Slide-Out)
• Slide-Back Shelf
• 4 Adjustable Fresh Food Door Bins
• Dairy Compartment
• Wine Holder
• Utility Bin
• 3 Adjsutable Wire Freezer Shelves
• 1 Utility Basket
• 5 Adjustable Freezer Door Bins
• Tubular Stainless Steel Handles
• Model ZFSB27DYSS—Stainless Steel
