GE GFSF6PKBAWW Operating instructions

GEAppliance.com
0
N
0
0
.
E
Safety Instructions ........... 2,s
Operating Instructions
Automatic Icemaker ............... 12
Care and Cleaning ............. 13, 14
Temperature Control for Models ..... 4
Crispers and Pans ................. 10
Dispenser ........................... 6
Freezer ............................ 11
Fresh Food Storage Options ....... 8, 9
Replacing the Light Bulbs .......... 15
Water Filter ......................... 7
Installation Instructions
Installing the Refrigerator ...... 16-25
Installing the Water Line ........ 26-28
Preparing to Install
the Refrigerator ................. 16,17
Troubleshooting Tips ...... 29-ZZ
Normal Operating Sounds .......... 29
Consumer Support
Consumer Support ........ Back Cover
Performance Data Sheet ........... 41
Product Registration
for Canadian Customers ........ 37, 38
Notes ......................... 34- 36
State of California Water
Treatment Device Certificate ....... 42
Warranty for Canadian
Customers ......................... 40
Warranty for U.S.Customers ....... 39
GE Derivative Model 26
D@riv@du mod@le GE 26
R frig rateurs
La section frangaise commence _la page 43
Modelo Derivado 26 de GE
Refrigeradores
La secci6n en espaflol empieza en la pSgina 79
N--
Write the model and serial
numbers here:
Model #
Serial #
Find these numbers on a label
on the left side, near the middle
of the refrigerator compartment. 225D2649PO04 49-60660 07-11GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
a, WARNING!
Use this appliance only for its intended purpose as described in this Owner's Manual.
SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
} This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
} Donot allow children to climb, stand or hung
on the shelvesin the refrigerator.They could
damage the refrigerator and seriouslyinjure
themselves.
} Donot touch the cold surfaces in the freezer
compartment when hands are dump or wet.
Skinmay stick to these extremely cold surfaces.
} Donot store or usegasoline or other flammable
vapors and liquids inthe vicinity of this or any
other appliance.
Keepfingers out of the "pinch point" areas;
clearances between the doors and between
the doors and cabinet are necessarilysmall.
Becareful closing doorswhen children are
in the area.
: Inrefrigerators with automatic icemukers,
avoid contact with the moving parts ofthe
ejector mechanism, or with the heating element
that releasesthe cubes. Donot place fingers or
hands on the automatic icemaking mechanism
while the refrigerator isplugged in.
Unplugthe refrigerator beforecleaning and making
repairs.
NOTE:Westrongly recommendthat any servicing
beperformed bya qualified individual.
} Donot refreezefrozen foods which have thawed
completely.
DANGER! RISK OF CHILD ENTRAPMENT
PROPERDISPOSAL OF THEREFRIGERATOR
Childentrapment and suffocation are not problems
of the past.Junked or abandoned refrigerators are
still dangerous...evenif they will sitfor "just a few
days."Ifyou are getting rid of your old refrigerator,
pleasefollow the instructions below to help prevent
accidents.
Before You ThrowAway Your Old
Refrigerator or Freezer:
Take off the doors,
Leavethe shelvesin place sothat children may not
easilyclimb inside.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an old
refrigeration product, check with the company
handling the disposal about what to do.
USEOF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use
of an extension cord.
However,ifyou must usean extension cord, it isabsolutely necessarythat it be a UL-listed(inthe United States)
or a CSAcertified (inCanada),3-wire grounding type appliance extension cord having a grounding type plug
and outlet and that the electrical rating of the cord be 15 amperes (minimum)and 120volts.

GEAppliance.com
WARNING!
HOW TO CONNECTELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
Thepower cord of this appliance isequipped
with a 3-prong (grounding)plug which mates
with a standard 3-prong (grounding)wall outlet
to minimizethe possibilityof electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
isproperly grounded.
Where a standard 2-prong wall outlet isencountered,
it isyour personalresponsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet.
Therefrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate.
Thisprovides the best performance and alsoprevents
overloading housewiring circuits which could cause
a fire hazard from overheated wires.
Never unplug your refrigerator by pulling
on the power cord. Always grip plug firmly
and pull straight out from the outlet.
Repairor replaceimmediately all power cords that
have become frayed or otherwise damaged. Donot
usea cord that showscracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the wall,
be careful not to roll over or damage the power cord.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Aboutthecontrolwith temperaturesettings
(Hold 3 sec
for Turbo Freeze)
)Hold 3 sac
to Reset Filter}
TURBO FREEZE TURBO COOL I '_l'r"_' I
Li htOH/O_
(H_d 3 seconds)
(Hold 3 sec
for Turbo Cool)
RESET F}LTER CUBED CRUSHED WATER
(Hold 3 sec
to Lock Control}
NOTE:Therefrigerator isshipped with protective film covering the temperature controls. If this film was
not removed during installation, remove it now.
Thetemperature controlsare preset in the factory at38°F forthe refrigerator compartment and -2°F for
the freezercompartment. Allow 24 hoursfor the temperature to stabilizeto the preset recommendedsettings.
Thetemperature controlscan display both theSETtemperature as wellas theactual temperature in the
refrigerator and freezer.Theactual temperature may vary slightlyfrom the SETtemperature basedon usageand
operating environment.
ADJUST
REFRIGERATORJ
{Hold 3 sec
forTurboCooi)
ADJUST
FREEZER
{Hold 3 sec
for Turbo Freeze)
Changing the Temperature
To change the temperature, press and
release the ADJUST FREEZER or ADJUST
REFRIGERATOR pad. The display will
show the actual temperature. To change
the temperature, tap either the ADJUST
FREEZERor ADJUST REFRIGERATORpad
until the desired temperature is displayed.
Oncethe desiredtemperature has been
set, the temperature display will return
to the actual refrigerator and freezer
temperatures after !0 seconds.Several
adjustments may be required.
Eachtime you adjust controls,allow
24 hoursfor the refrigerator to reach
the temperature you have set.
4

About TurboCool TM and TurboFreeze. TM GEAppliance.com
ADJUST
I REFRIGERATOR
{Hold 3 sec
for Turbo Cool)
How it Works
TurboCool rapidly coolsthe refrigerator
compartment in order to more quickly
cool foods. UseTurboCool when adding
a large amount of food to the refrigerator
compartment, putting away foods after they
have been sitting out at room temperature
or when putting away warm leftovers.
It can alsobe usedifthe refrigerator has
been without power for an extended period.
Thecompressor and fresh food fan will run
immediately for up to 2½ hoursand then
return to the original setting value.
How to Use
Pressand hold the ADJUSTREFRIGERATOR
pad for 3 secondsuntil you hear the sound
and the _i_displays.
After TurboCool iscomplete, the refrigerator
compartment will return to the original
setting.
NOTES:
:The refrigerator temperature cannot be
changed during TurboCool.
:The freezertemperature is not affected
during TurboCool.
ADJUST
FREEZER
{Hold 3 sec
for Turbo Freeze)
How it Works
TurboFreezerapidly coolsthe freezer
compartment in order to more quickly
cool foods. UseTurboFreezewhen adding
a large amount of food to the freezer
compartment, putting away foods after
they have been sitting out at room
temperature or when putting away
warm leftovers.It can also be used
ifthe refrigerator has beenwithout
power for an extended period.
Thecompressor and freezer fan will
run immediately and keep running for
two-and-a-half hours.
How to Use
Pressand hold the ADJUSTFREEZERpad
for :3seconds untilyou hear the sound
and the _T_displays.
After TurboFreezeiscomplete, the freezer
compartment will return to the original
setting.
NOTES:
Thefreezer temperature cannot
be changed during TurboFreeze.
The refrigerator temperature is
not affected during TurboFreeze.
When opening the freezer door during
TurboFreeze,the fans will continue
to run ifthey havecycled on.

About the dispenser.
SpillShelf
ICE& ]
WATER
To Use the Dispenser
SelectCUBED_, CRUSHED_ or WATER
ICJby pressingthe ICE&WATERpad.
Pressthe giass gently against the top
of the dispenser cradle.
Thespill shelf isnot self-draining.To reduce
water spotting, the shelf should be cleaned
regularly.
If no water is dispensedwhen therefrigerator
isfirst installed,theremay beair in the water
linesystem.Pressthedispenserarm for at
leasttwo minutes to remove trapped air from
the water line and to fill the watersystem.
Toflush out impurities in the water line,throw
away the first six fullglassesof water.
,A CAUTION: Neverputfingers
or any other objectsinto the icecrusher
dischargeopening.
ICEOFF/
LOCK
(Hold 3sec
to Lock Control}
To Lock and Unlock the Dispenser
To lock, press and hold the ICE OFF/LOCK
pad for 3 seconds. Repeat this step to unlock
the dispenser.
Important Facts About Your Dispenser
Do not add icefrom trays or bags to the storage drawer.
It may not crush or dispensewell.
:Avoid overfilling glass with iceand useof narrow glasses.
Backed-up icecanjam the chute or cause the door
in the chute to freeze shut. Ifice isblocking the chute,
poke it through with a wooden spoon.
Beveragesand foods should not be quick-chilled in
the ice storage drawer. Cans,bottles or food packages
in the storage drawer may cause the icemaker or auger
tojam.
:To keepdispensed icefrom missingthe glass,put the glass
closeto, but nottouching, the dispenser opening.
Somecrushed icemay be dispensed even though you
selectedCUBEDICE.Thishappens occasionally when
a few cubes accidentally get directed to the crusher.
After crushed ice isdispensed,some water may drip from
the chute.
Sometimesa small moundof snow will form on the door
in the icechute.Thiscondition is normaland usuallyoccurs
whenyou have dispensedcrushed icerepeatedly.Thesnow
will eventuallyevaporate.
ALARM/
LIGHT
Light ON/OFF
(Hold 3seconds)
About Door Alarm
Thedoor alarm will sound ifany door
isopen for more than 3 minutes.The beeping
stops when you close the door.
About Dispenser Light
Pressand hold the ALARN/LIGHT pad for
3 secondsto turn on the dispenser light.
Toturn off, pressand hold the pad again
for 3 seconds.
ENERGY
SAVER About Energy Saver
Thisproduct isequipped with an Energy
Saverfeature.Therefrigerator isshipped
with the EnergySaverfeature on.
Overtime, moisture can form on the front
surface of the refrigerator cabinet and cause
rust. If moisture does appear on the front
surface of the refrigerator cabinet, turn off
the EnergySaverfeature by pressing
and releasingthe ENERGYSAVERpad
on the control panel.

About the water filter. GEAppliance.com
Cartridge
Holder
I
Water Filter Cartridge
Thewater filter cartridge islocated
in the back upper right corner of
the refrigerator compartment.
When to Replace the Filter
Thefilter cartridge should be replaced when
indicated on the control panel.
Thewater filter indicator light shows the
following: Green- Good
Orange - Changesoon
Red- Change immediately
Installing the Filter Cartridge
_1 Ifyou are replacing the cartridge, first
remove the old one by slowlyturning
it counterclockwise. A small amount
of water may drip down.
CAUTION: ,fairhasbeen
trapped in the system,the filter cartridge may
be ejectedasit isremoved.Usecaution when
removing.
0 Removethe protective foil from the end
of the cartridge.
0Liningup the arrow on the cartridge
and the cartridge holder,place the top
of the new cartridge up insidethe holder.
Donot push it up into the holder.Slowly
rotate the cartridge clockwise until it
stops.Asyou turn the cartridge, itwill
automatically raiseitself into position.
Cartridge will rotate about 1/4 turn.
Do not overtighten.
ORunwater from the dispenserfor
3 minutes (about 1Yzgallons)to clear
the system and prevent sputtering.
SeeToUsetheDispensersection.
NOTE:A newly installed water filter
cartridge may cause water to spurt
from the dispenser.
Filter Bypass Plug
Youmust usethe filter bypass plug when
a replacement filter cartridge isnot available.
Theicemakerwill not operate without
the filter or filter bypass plug.
Replacement Filters:
Toorderadditional filter cartridges
in the United States, visit our Website,
GEAppliance.com or call GEParts and
Accessories, 800.626.2002.
Filter ModelMWF
Customersin Canada should consult
the yellow pagesfor the nearest Mabe
ServiceCenter.

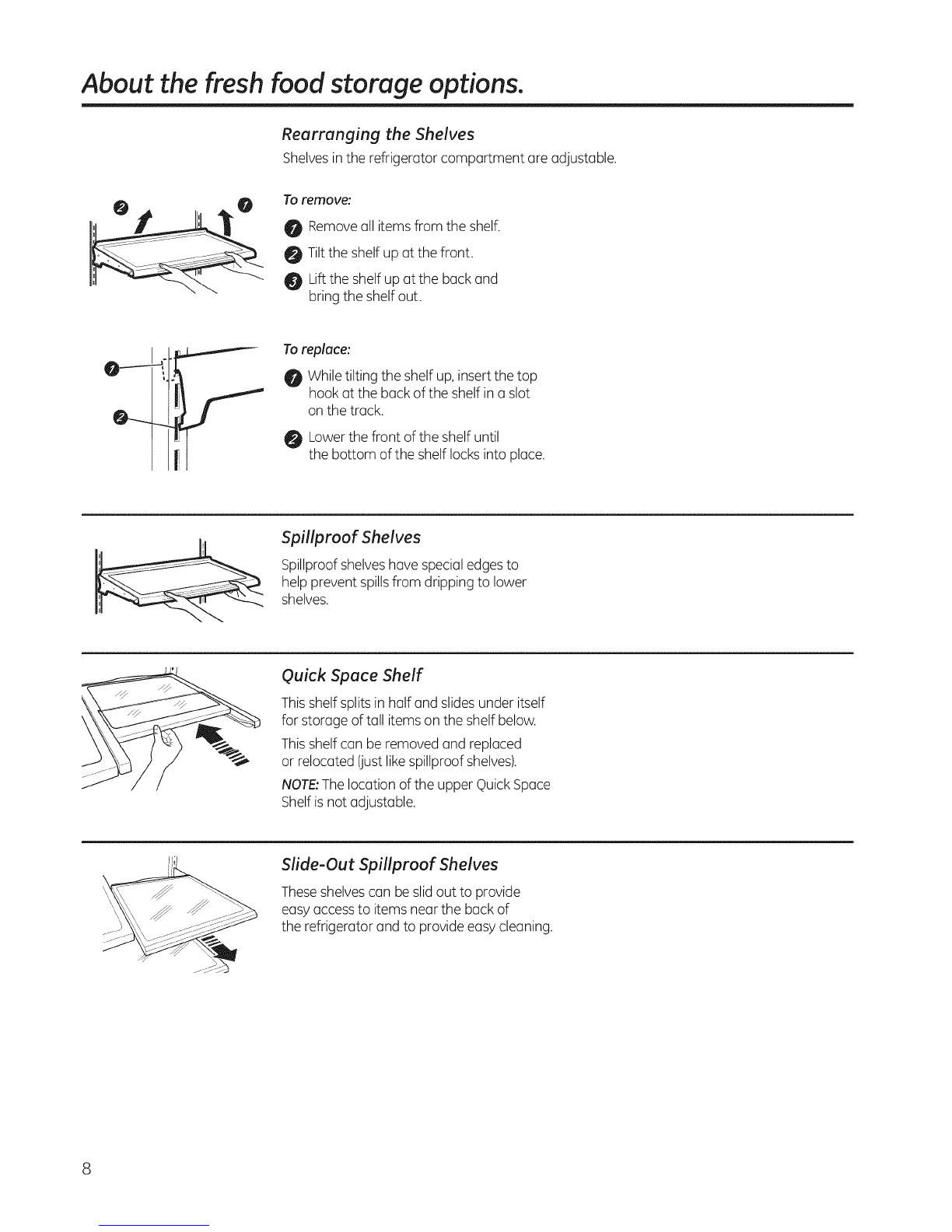

About the fresh food storage options.
Rearranging the Shelves
Shelvesinthe refrigerator compartment are adjustable.
0 0 To remove:
0 Removeall items from the shelf.
0 Tilt the shelf up at the front.
Liftthe shelf up at the back and
bring the shelf out.
1
To replace:
While tilting the shelf up, insert the top
hook at the back of the shelf in a slot
on the track.
Lowerthe front of the shelf until
the bottom of the shelf locks into place.
Spillproof Shelves
Spillproofshelveshave specialedges to
help prevent spillsfrom dripping to lower
shelves.
Quick Space Shelf
Thisshelf splitsin half and slidesunder itself
for storage of tall itemson the shelf below.
Thisshelf can be removed and replaced
or relocated (just likespillproof shelves).
NOTE:The location of the upper QuickSpace
Shelfisnot adjustable.
Slide-Out Spillproof Shelves
Theseshelvescan be slidout to provide
easy accessto items near the back of
the refrigerator and to provide easy cleaning.
8

GEAppliance.com
Non-Adjustable Dairy Bin
To remove: Liftthe dairy bin straight up,
then pull out. Toreplace: Engagethe bin in the molded door supports and push down. Thebin will
lock in place.
Adjustable Bins on the Door
Adjustable bins can easily be carried from
refrigerator to work area.
Toremove: Lift bin straight up,then pull out.
Toreplace or relocate: Slidein the binjust
above the molded door supports,and push
down. The bin will lock in place.
•Refreshment
CenterDoor
onsome
models)
Non-Adjustable Bins on the Door
Toremove: Lift the bin straight up,then
pull out.
Toreplace: Engagethe bin in the molded
supports on the door and pushdown.
It will lock in place.

About the crispers and pans.
Lower .... Higher
Fruit and Vegetable Crisper
Keep fruits and vegetables organized in
separate compartments for easy access.
Excess water that may accumulate
in the bottom of the drawers or under
the drawers should be wiped dry.
Produce
Drawer
Dell Drawer
m
Adjust
Setting
Adjustable Deli/Produce Drawer
TheAdjustable Deli/ProduceDrawer
isa full-width drawer with adjustable
temperature control. Thisdrawer can
be usedfor large miscellaneous items.
There isa temperature control which can
adjust the amount of cold air allowed into
the drawer.
Control
When Produce Drawer isselected,
the temperature of the drawer can be kept
around 38% (3°C).Thisfeature alsohelps
keepfood fresh for a long time.
When Deli Drawer isselected,
the temperature of the drawer can be kept
around 34% (I°C).Thisfeature alsohelps
keepmeat or fish fresh for a longer time.
NOTE:Fruitsand vegetables may be
damaged using the Deli Drawer setting.
Do not store lettuce or other leafy produce
in this drawer.
CAUTION: oonotstoregloss
bottlesin this drawer. If they are frozen,
they can breakand causepersonalinjury.
Thecontrolis locatedonthe rightsideofthe
drawer.
To remove:
0 Pullthe drawer out to the stop position.
0 Liftthe front of the drawer up and out.
How to Remove and Replace the Adjustable Dell/Produce Drawer
To replace:
Liftthe cover up.
Engage the pantry rollers into
the side rails.
0 Push the drawer inward (until it is
in place).
10
How to Remove and Replace Drawer Divider
To remove: To replace:
Pullthe drawer out to the stop position. _ Hook the back of the divider over the rear
Raise the front side of the divider wall of the drawer.
to unhook itfrom the rear wall of _ Push the divider down.
the drawer.

About the freezer. GEApplionce.com
I Iree.er"Basket °s e'
0 Drawer.
IllJlJlll@lllllJlJl
,j
Basket Removal
Toremove:
0 Remove Freezer Bin.(Seebelow.)
Pullbasket out to the stop position.
Tilt up the rearof the bin.
Lift it out to remove.
Basket Divider Removal
Toremove:
Pullbasket out to the stop position.
Tilt up the rearof the bin.
0 Lift it out to remove.
Toreplace:
Placethe basket into the rail assembly.
Toreplace:
Hookthe top corners of the divider over
the hole of the basket.
Drawer Removal
To remove:
Pullthe drawer out to the stop position.
Removeboth side knobswith a flat-head
screwdriver (asshown at left).
Tilt up the rearof the drawer and lift
drawer up and out.
Toreplace:
Pullboth railsout to the stop position.
Placethe drawer onto the rails and hook
the support into the slots located on
the sideof the drawer.
Replacethe sideknobs and push
the drawer back into place.
WARNING: Do not lose the side
knobs during disassemblysince they may
present a choking hazard to children.
Non-Adjustable Bin in the Freezer
Toremove: Pullthe brackets upward until
you hear a clicking sound and remove
the bin.
Toreplace: Hookthe endsof the bin into
both brackets and push down until the bin
locksinto place.

About the automatic icemaker.
A newly installed refrigerator may take 22 to 24 hours to begin making ice.
ICEOFF/
LOCK
(Hold3sec
to LockControl)
Automatic Icemaker
The icemakerwill produce seven cubes
per cycle-approximately 100-!30 cubes
in a 24-hour period,depending on freezer
compartment temperature, room
temperature, number of door openings
and other useconditions.
If the refrigerator isoperated before the
water connection ismade to the icemuker,
pressand releasethe ICEOFF/LOCKpad on
the control panel to disengage the icemaker.
When the refrigerator hasbeen connected
to the water supply,pressand release
the ICEOFF/LOCKpad on the control
panel to engage the icemaker.
A newly installed refrigerator may take
12 to 24 hours to begin making icecubes.
Youwill hear a buzzing sound each time
the icemaker fills with water.
Throw away the first few batches of iceto
allow the water line to clear.
Besure nothing interfereswith the sweep
of the feeler arm.
When the bin fills to the levelof the feeler
arm, the icemakerwill stop producing ice.
It is normal for severalcubes to bejoined
together.
If ice isnot used frequently, old icecubes will
become cloudy,taste stale and shrink.
NOTE:Inhomes with lower-than-average
water pressure,you may hear theicemaker
cyclemultiple times when making one batch
of ice.
NOTE:If the water supply isshut off,
pressand releasetheICEOFF/LOCKpad
on the control panel.
12

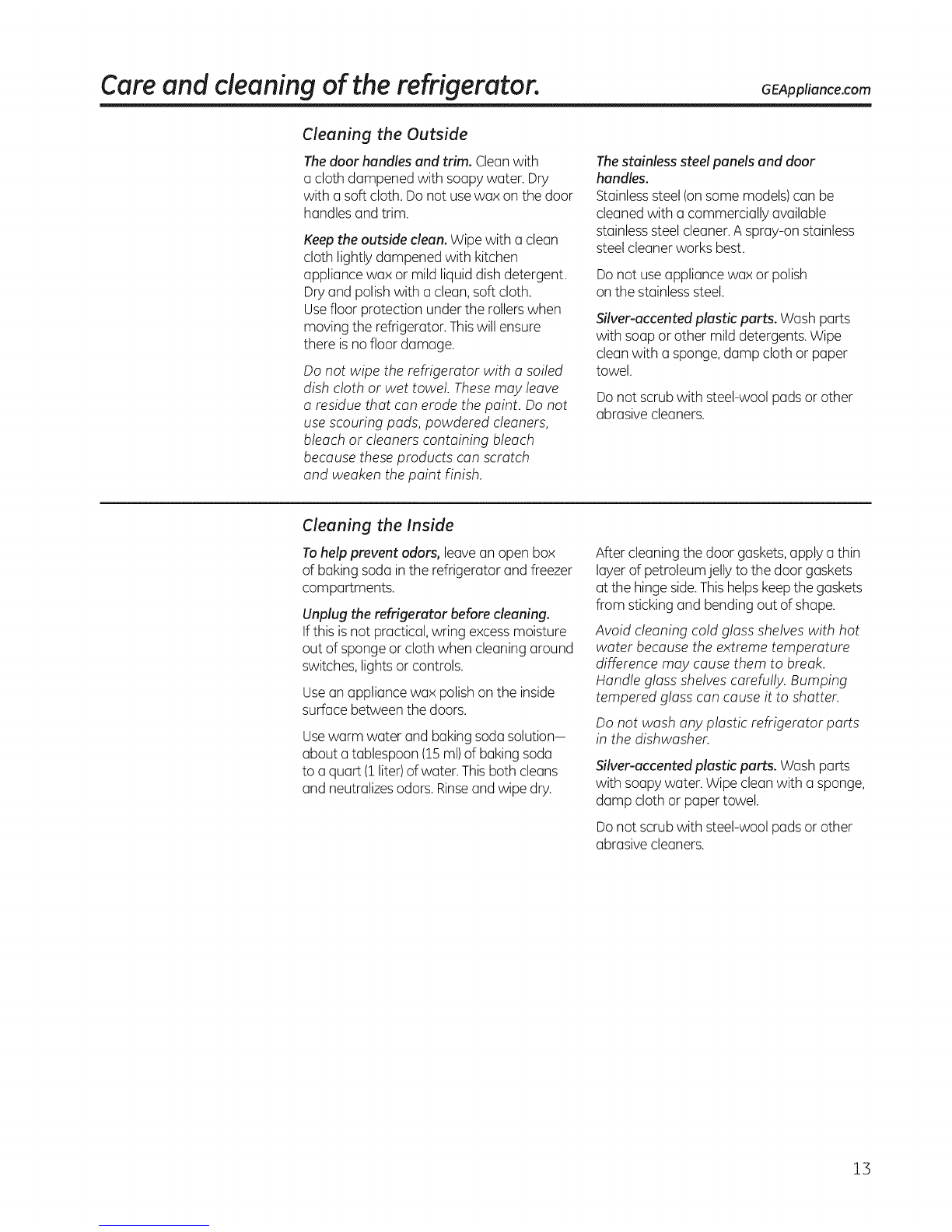

Care and cleaning of the refrigerator. 6EAppliance.com
Cleaning the Outside
Thedoor handles and trim. Cleanwith
a cloth dampened with soapy water. Dry
with a soft cloth. Donot usewax on the door
handlesand trim.
Keepthe outside clean. Wipe with a clean
cloth lightly dampened with kitchen
appliance wax or mild liquid dish detergent.
Dry and polishwith a clean, soft cloth.
Usefloor protection under the rollerswhen
moving the refrigerator. Thiswill ensure
there isno floor damage.
Do not wipe the refrigerator with a soiled
dish cloth or wet towel. These may leave
a residue that can erode the paint. Do not
usescouring pads, powdered cleaners,
bleach or cleaners containing bleach
because these products can scratch
and weaken the paint finish.
Thestainless steel panels and door
handles.
Stainlesssteel (onsome models)can be
cleaned with a commercially available
stainlesssteel cleaner. A spray-on stainless
steel cleaner works best.
Do not useappliance wax or polish
on the stainlesssteel.
Silver-accented plastic parts. Wash parts
with soap or other mild detergents. Wipe
clean with a sponge,damp cloth or paper
towel.
Donot scrub with steel-wool pads or other
abrasive cleaners.
Cleaning the Inside
Tohelp prevent odors, leavean open box
of baking soda in the refrigerator and freezer
compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excessmoisture
out of sponge or cloth when cleaning around
switches, lights or controls.
Usean appliance wax polish on the inside
surface between the doors,
Usewarm water and baking soda solution-
about a tablespoon (lS ml)of baking soda
to a quart (1liter)of water. Thisboth cleans
and neutralizesodors. Rinseand wipe dry.
After cleaning the door gaskets,apply a thin
layer of petroleum jelly to the door gaskets
at the hinge side.This helpskeepthe gaskets
from sticking and bending out of shape.
Avoid cleaning cold glass shelves with hot
water because the extreme temperature
difference may cause them to break.
Handle glass shelves carefully. Bumping
tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts
in the dishwasher.
Silver-accented plastic parts. Wash parts
with soapy water. Wipe cleanwith a sponge,
damp cloth or paper towel.
Do not scrub with steel-wool pads or other
abrasive cleaners.
13

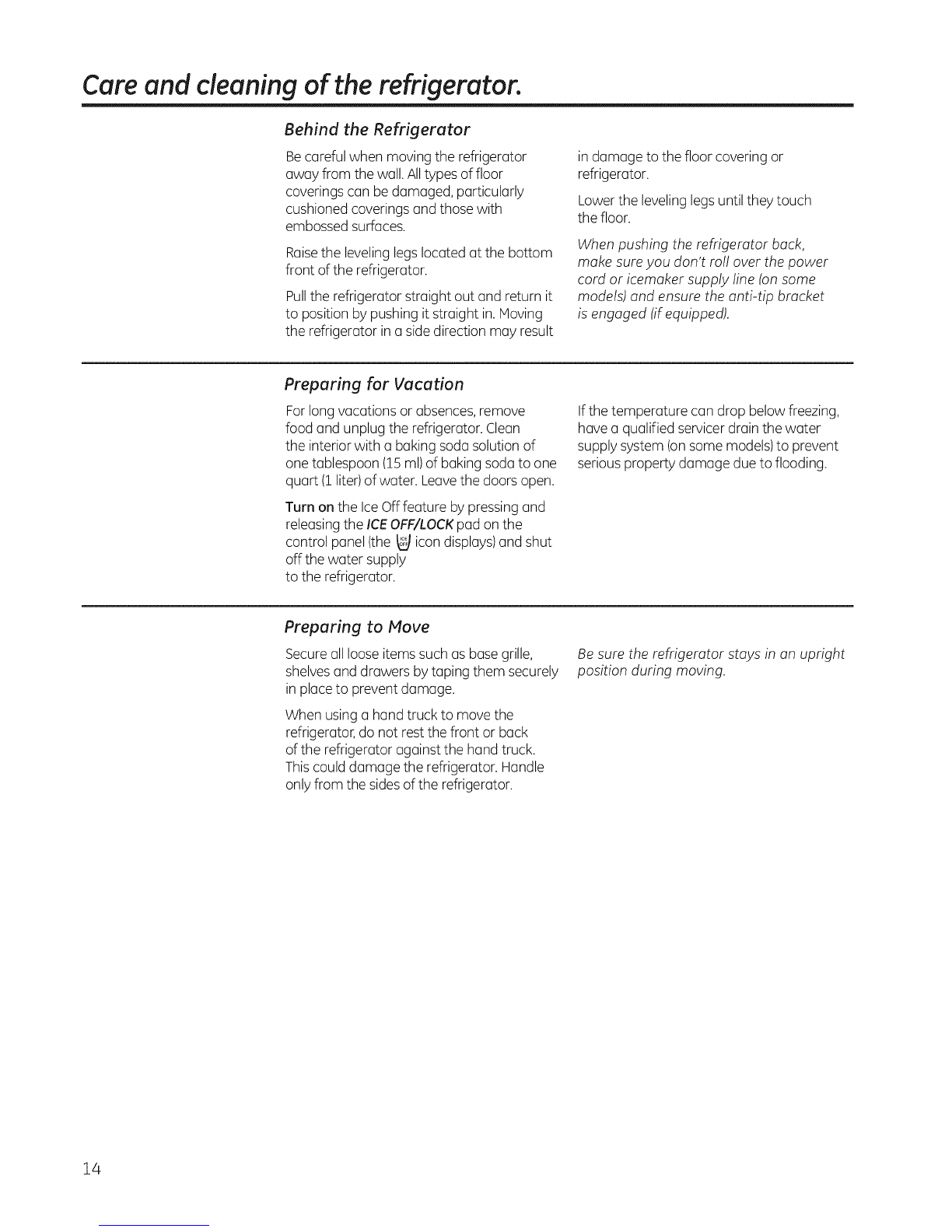

Care and cleaning of the refrigerator.
Behind the Refrigerator
Becareful when moving the refrigerator
away from the wall. Alltypes of floor
coveringscan be damaged, particularly
cushioned coverings and those with
embossedsurfaces.
Raisethe levelinglegslocated at the bottom
front of the refrigerator.
Pullthe refrigerator straight out and return it
to position by pushing it straight in.Moving
the refrigerator in a sidedirection may result
in damage to the floor covering or
refrigerator.
Lowerthe levelinglegs untilthey touch
the floor.
When pushing the refrigerator back,
make sureyou don't roll over the power
cord or icemaker supply line (onsome
models) and ensure the anti-tip bracket
is engaged (if equipped).
Preparing for Vacation
Forlong vacations or absences,remove
food and unplug the refrigerator. Clean
the interior with a baking soda solution of
one tablespoon (!5 ml)of baking sodato one
quart (! liter)of water. Leavethe doors open.
Turn on the IceOff feature bypressing and
releasingthe ICEOFF/LOCKpad on the
control panel (the _ icondisplays)and shut
off the water supply
to the refrigerator.
If the temperature can drop below freezing,
have a qualified servicerdrain the water
supply system (on some models)to prevent
serious property damage due to flooding.
Preparing to Move
Secureall looseitems such as basegrille,
shelvesand drawers by taping them securely
in place to prevent damage.
When using a hand truck to move the
refrigerator,do not rest the front or back
ofthe refrigerator against the hand truck.
This could damage the refrigerator. Handle
onlyfrom the sidesof the refrigerator.
Be sure the refrigerator stays in an upright
position during moving.
14

Replacing the light bulbs, GEAppliance.com
Refrigerator Lights
An authorized technician will needto replace
the LEDlight.
Freezer Light
A CAUTION: u_htbulbsmoy
be hot.
0 Unplugthe power cord from the outlet.
Pulldrawer out to the stop position.
Rotatethe shield down while pushing
it backwards to remove it.
Turn the bulb counterclockwise.
Replacewith an appliance bulb
of the same or lowerwattage.
Replacethe shield.
Plugthe refrigerator back in.
NOTE:Appliance bulbs may be ordered from
GEParts andAccessories,800.525.2002.
15

I
Istallati str Sefri erator
GE Derivative Model 26
Questions? Call 800.GE.CARES (800.432.2737} or Visit our Website at: GEAppliance.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•IMPORTANT- savetheseinstructionsforlocal
inspector's use.
• IMPORTANT -Observe all governing codesand
ordinances.
• Note to Installer -Besureto leavethese instructionswith
the Consumer.
• Note to Consumer - Keepthese instructionsfor future
reference.
• Skill level- Installationof this appliance requiresbasic
mechanical skills.
• Completion time -RefrigeratorInstallation 20 minutes
Water Line Installation 30 minutes
• Properinstallationisthe responsibilityof the installer.
• Productfailure due to improper installation isnot covered
under the Warranty.
PREPARATION
MOVING THE REFRIGERATOR INDOORS
If the refrigerator will not fit through a doorway,
the refrigerator door and freezer drawer can be removed.
•Toremove the refrigerator door,seethe Installing
the Refrigeratorsection.
• Toremovethe freezer drawer,seethe Removing
the FreezerDrawer section.
WATER SUPPLY TO THE ICEMAKER AND DISPENSER
If the refrigerator has an icemaker,itwill haveto be
connected to a cold water line.AGEwater supply kit
(containing tubing, shutoff valve,fittings and instructions)
isavailable at extra cost from your dealer,by visitingour
Websiteat GEAppliance.com (inCanadaat
www.geappliances.ca)
or from Partsand Accessories,800.626.2002(InCanada
1.888.261.3055).
TOOLS YOU MAY NEED
10 mm Socket Ratchet/Driver
AdjustableWrench
1/4" OuterDiameter
CompressionNut
andFerrule(sleeve) Phillips-HeadScrewdriver
3/32", 1/8" and4 mm
AllenWrenches
Flat-Head Screwdriver
1/8" Drill Bit and TapeMeasure
Electricor HandDrill
Pencil 1/4" NutDriver
Pliers Level
16

Installation Instructions
DIMENSIONS
_"..... 35¾
7O I
---- CaseDepthw/o
Doors29Y_
,mfloor
to hinge covertop
691s_6
AdditionalDimensions
Overall Height
to Top of Hinge
Cover at Max.Height
Height from Floor
to Lower Level
of Hinge Cover
70
69!_6
CaseDepth 29½
without Doors
Height to Top 68_
of Cabinet
Overall Exterior 353A
CaseWidth
Overall Exterior Depth 35sA
Bowed Doors/Drawers
with Handles
All measurementsaregivenwith levelinglegfully retracted.
17

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Donot installthe refrigeratorwhere the temperature will
go below60°F (16°C)because it will not run often enough
to maintain proper temperatures.
• Donot installthe refrigeratorwhere the temperature will
go above IO0°F(37°C)because it will not perform properly.
• Installit on a floor strong enough to supportit fully loaded.
CLEARANCES
Allowthe following clearancesfor easeof installation,proper
air circulation and plumbing and electrical connections.
Sides 1/8" (3 mm)
Top 1" (25mm)
Back 1" (25mm)
REMOVING THE REFRIGERATORDOORS
• IMPORTANTNOTE:This refrigerator is 35s/?' deep.
Doors and passageways leading to the installation
location must be at least 36" wide in order to leave
the doors and handles attached to the refrigerator
while transporting it into the installation location.
If passageways are lessthan 36", the refrigerator
doors and handles can easily be scratched and damaged.
The top cap and doors can be removed to allow the
refrigerator to be safely moved indoors. Start with Step 1.
• If it is not necessary to remove doors, skip to Step9. Leave
tape and all packaging on doors until the refrigerator is in
the final location.
• NOTE:Usea padded hand truck to move this refrigerator.
Placethe refrigerator on the hand truck with a side
against the truck. We strongly recommend that
TWO PEOPLEmove and complete this installation.
Note :Door and Handle Design varies based on
models,however Installation is same
ITl REMOVE THE FRESH FOOD
DOOR HANDLE
Stainless steel:
O REMOVING
THEDOOR
HANDLE:Loosen
the set screwswith
the 5/52" Allen
wrench
and remove
the handle.
A
Badge
Plastic handle:
@ REMOVING
THEDOOR
HANDLE:Slide
the handle up
and offof
the mounting
fasteners.
NOTE:Ifthe handle mounting fasteners needto be
tightened or removed,usea Phillips-headscrewdriver.
[] REMOVE THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
@ Loosenthe setscrews located onthe underside
of the handle with the 1/8" Allenwrench and remove
the handle.
NOTE:If the handle mounting fasteners need to be
tightened or removed,usea Phillips-headscrewdriver.
18

Installation Instructions
[] ATTACH THE FRESH FOOD
DOOR HANDLE
Stainless steel handle:
O Attach the handle
to the handle
mounting fasteners
and tighten the set
screwswith a 3/32"
Allenwrench.
Mounting
Fasteners
Plastic handle:
@ Attach the handleto the handle mounting fasteners
by aligning the slotswith the handle mounting
fasteners.
O Slideit down untilit isfirmly locked into position.
Slotsonback
of handle
[_ ATTACH THE FREEZER DOOR HANDLE
Stainless steel and plastic handles:
@ Attach the handle firmly to the mounting fasteners
and tighten the set screws on the bottom
of the handle with a 1/8" Allenwrench.
19

Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
[_]REMOVE THE REFRIGERATORDOORS
r_ open the refrigerator doors.
r_ Removethe two caps with a flat-head screwdriver.
r_ Removethe three screws on top with aPhillips-head
screwdriver.
r_ Disengagethe two electricalconnectors.
r_ Todisconnect the water coupling,pushin on the gray
color of the coupling and pull out the tubing.
[] Removethe two grounding cables with Phillips-head
a
screwdriver.
[] Removethree 10 mm hex-head bolts (rightand left).
CAUTION:Whenthe bolts are removed,
the door may fall and cause personal injuryand/or
damage to the door itself.
rsl REMOVE THE REFRIGERATOR
DOORS (cont.}
r_ Liftthe door straight up to remove.
[]] Removethe two hex-head bolts and two Phillips-head
screws from the center hinge.Setthe hinge,bolts and
screw aside.
_ //_ ._-_
[_] REPLACINGTHEREFRIGERATORDOORS
Installthe center hinge on each side.
Lowerthe refrigerator door onto the center hinge pin.
Ensurethat the plastic hinge pin thimble ison the center
hinge pin or insidedoor hinge pin hole located
inthe bottom of the door.
r_ Securelytape the door shut with masking tape
or have a second personsupport the door.
20
