GE Monogram ZIBS240 User manual

Owner’s
Manual
Bar Refrigerator
with Icemaker
ZIBI240
ZIBS240
monogram.com

2
Consumer Information
Bar Refrigerator with Icemaker
Introduction
Your new Monogram bar refrigerator with icemaker makes an eloquent statement of st le,
convenience and kitchen planning flexibilit . Whether ou chose it for its purit of design
or the assiduous attention to detail, ou will find that our Monogram bar refrigerator with
icemaker’s superior blend of form and function will delight ou for ears to come.
The information on the following pages will help ou operate and maintain our bar
refrigerator with icemaker properl .
If ou have an other questions, visit our Website at: monogram.com
Contents
Care and Cleaning . . . . . . . . . . . . . . . . . .11, 12
Consumer Services . . . . . . . . . . . . . . . . . . . .19

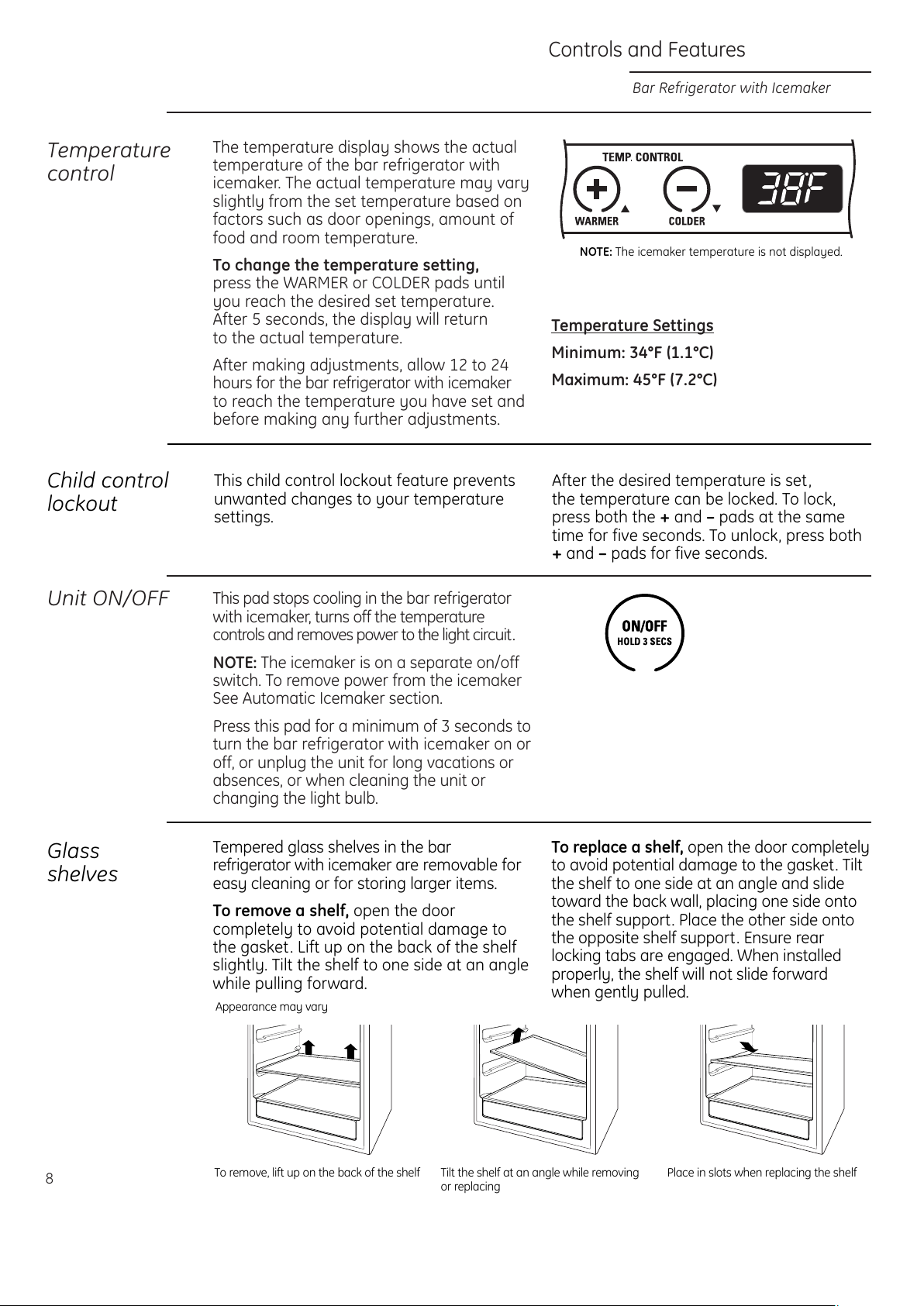

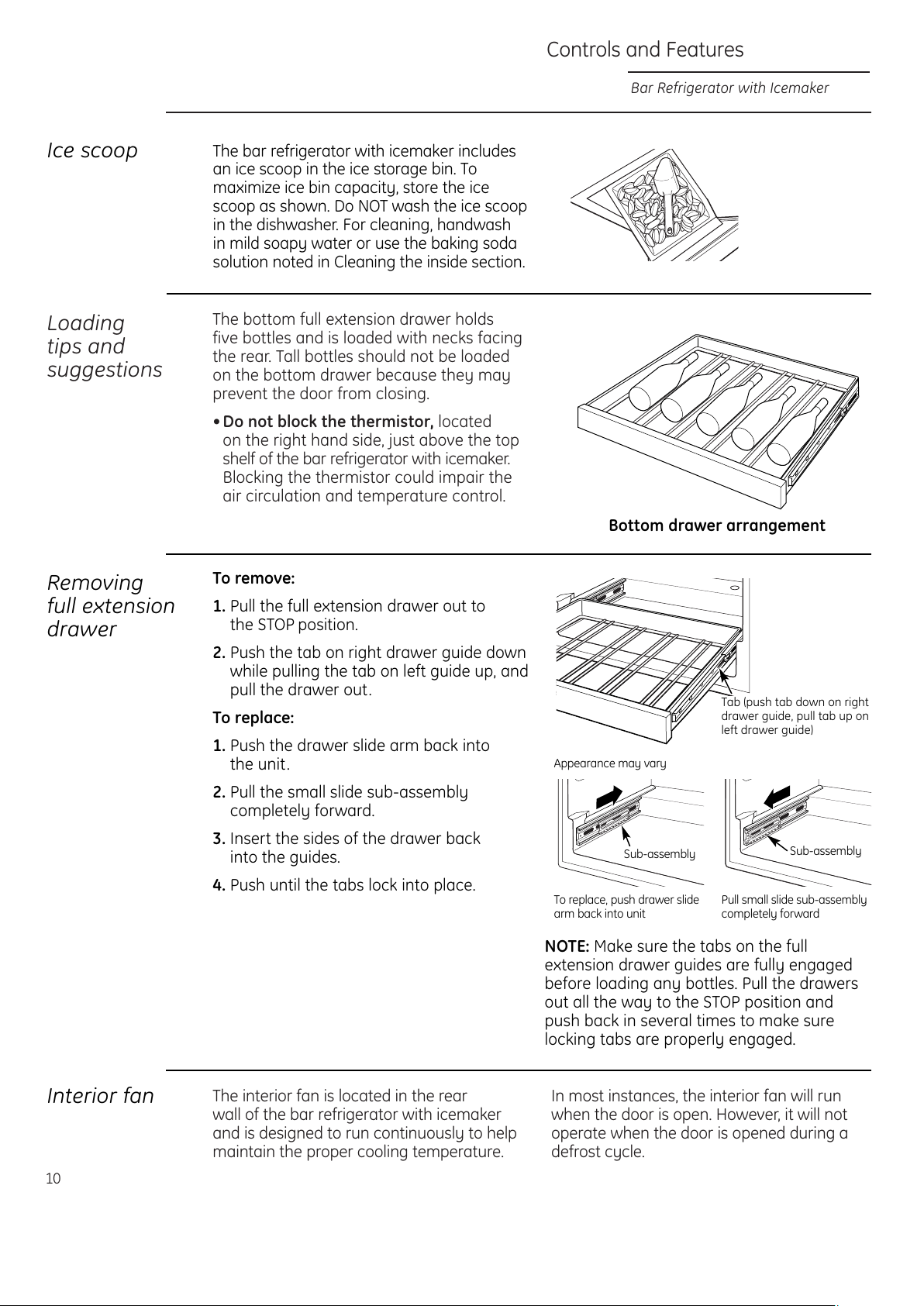

Controls and Features . . . . . . . . . . . . . . .8–10
Model and Serial Numbers . . . . . . . . . . . . . . .2

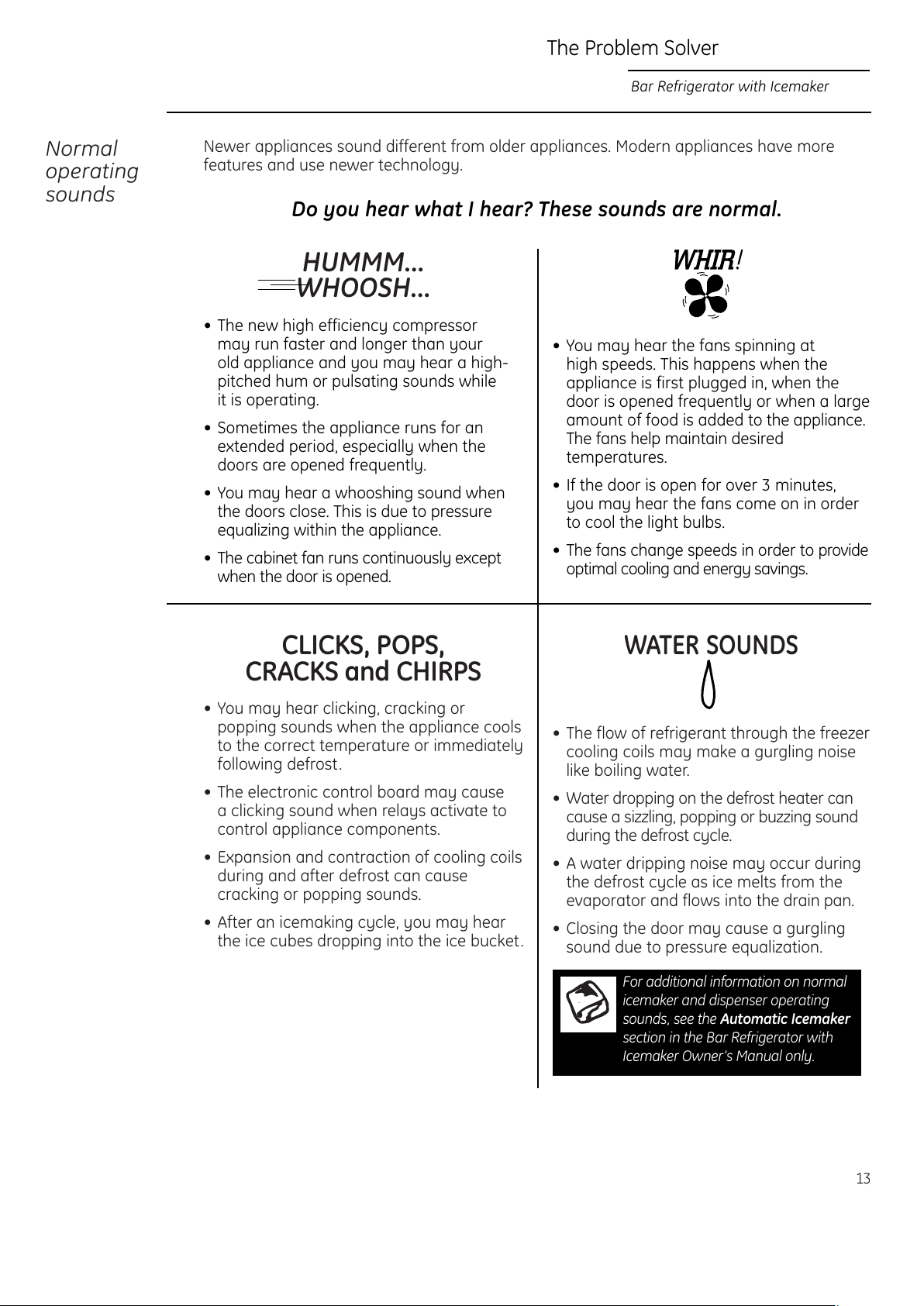

Problem Solver . . . . . . . . . . . . . . . . . . . . .13–15
Product Registration . . . . . . . . . . . . . . . . . . . .2
Repair Service . . . . . . . . . . . . . . . . . . . . . . .3, 19
Safet Instructions . . . . . . . . . . . . . . . . . . . .4–7
Warrant . . . . . . . . . . . . . . . . . . . . .Back Cover
Before
using your
bar
refrigerator
with
icemaker
Read this manual carefull . It is intended to
help ou operate and maintain our new
bar refrigerator with icemaker properl .
Keep it hand for answers to our
questions.
If ou don’t understand something or
need more help, there is a list of toll-free
consumer service numbers included in
the back section of this manual.
OR
Visit our Website at: monogram.com
Write
down the
model &
serial
numbers
You will find them on a label on the ceiling
inside the bar refrigerator with icemaker. Please write these numbers here:
Model Number
Serial Number
Use these numbers in an correspondence
or service calls concerning our bar
refrigerator with icemaker.

3
If you received
a damaged
appliance
The warrant does not cover damage
caused after deliver . Immediatel contact the dealer (or builder) that sold ou the bar refrigerator with
icemaker.
If you
need
service
To obtain service, see the Consumer
Services page in the back of this manual.
We are proud of our service and want ou
to be pleased. If for some reason ou are
not happ with the service ou receive,
here are steps to follow for further help.
For customers in the USA:
FIRST, contact the people who serviced our
appliance. Explain wh ou are not pleased.
In most cases, this will solve the problem.
NEXT, if ou are still not pleased, write
all the details—including our phone
number—to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
For customers in Canada:
FIRST, contact the people who serviced our
appliance. Explain wh ou are not pleased.
In most cases, this will solve the problem.
NEXT, if ou are still not pleased, write
all the details—including our phone
number to:
Manager, Consumer Relations
Mabe Canada Inc.
1 Factor Lane, Suite 310
Moncton, N.B. E1C 9M3
Consumer Information
Bar Refrigerator with Icemaker
After
installation
is completed
• Promptl inspect our new Monogram bar
refrigerator with icemaker. If it has been
damaged, contact the Installer or Dealer
immediatel .
• This bar refrigerator with icemaker must
be properl leveled to ensure correct door
alignment, door closure and ice production.
Contact the Installer if the unit is not level.
• The unit should be centered in
the opening. In a standard 24″opening,
the front face of the Stainless Steel door
will be flush with adjacent cabinetr . The
front face of the Custom Panel door should
be 13⁄4″forward of adjacent cabinetr .
Contact the installer if clearance is not
correct.
• Test the door swing. Carefull open and
close the door. The door should not rub
or catch on adjacent cabinetr . Notif
the installer if the door makes contact
with cabinetr .
Please Contact the Installer or Dealer if
you experience any of these problems.
Your custom panel (ZIBI240 model onl ) bar
refrigerator with icemaker is shipped with
two toekicks, a stainless steel and a black
toekick. For shipping purposes, one of the
toekicks will be secured to the back or on
the inside of the unit, and the second will
be installed on the unit. Keep the unused
toekick and other unused or removed
parts for possible future use.
Remove
packaging
Before using, be sure all packing materials
and tape have been removed.
To assure no damage is done to the finish
of the product, the safest wa to remove
the adhesive left from packaging tape on
new appliances is an application of
household liquid detergent. Appl with
a soft cloth and allow to soak. Wipe dr
and then appl an appliance polish to
thoroughl clean and protect the surface.
Save time
& money
Before ou request service, check the
Problem Solver in the back of this manual. It lists causes of minor operating problems that ou can correct ourself.

4
R FRIG RANTS
All refrigeration products contain
refrigerants, which under federal law must
be removed prior to product disposal.
If ou are getting rid of an old refrigeration
product, check with the compan handling
the disposal about what to do.
wARNING—When using this
appliance, alwa s exercise basic safet
precautions, including the following:
•Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
•This bar refrigerator with icemaker must
be properly installed in accordance with
the Installation Instructions before it is
used.
•Do not allow children to climb, stand
or hang on the shelves in the bar
refrigerator with icemaker. The
could damage the bar refrigerator with
icemaker and seriousl injure themselves.
•Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
•Keep fingers out of the “pinch point”
areas: clearances between the door
and between the door and cabinet are
necessaril small. Be careful closing
the door when children are in the area.
•Unplug your bar refrigerator with
icemaker before cleaning or making
repairs. NOTE: We strongl recommend
that an servicing be performed b a
qualified individual.
•Before replacing a burned-out light bulb,
the bar refrigerator with icemaker should
be turned OFF or unplugged in order to
avoid contact with a live wire filament.
(A burned-out light bulb ma break
when being replaced.)
•In bar refrigerators with automatic
icemakers, avoid contact with the moving
parts of the ejector mechanism, or with
the heating element located on the
bottom of the icemaker.
Do not place fingers or hands on the
automatic icemaking mechanism while
the unit is plugged in.
wDANGER: RISK OF CHILD NTRAPM NT
Child entrapment and suffocation
are not problems of the past. Junked or
abandoned refrigeration products are
still dangerous…even if the will sit for
“just a few da s.” If ou are getting rid of
our old appliance, please follow these
instructions to help prevent accidents.
Before You Throw Away Your Old
Refrigeration Product:
•Take off the doors.
•Leave the shelves in place so that children
ma not easil climb inside.
IMPORTANT SAFETY INSTRUCTIONS
R AD AND SAV TH S INSTRUCTIONS

wDANGER! RISQU S POUR L S NFANTS
Les enfants pris au piège ou morts
d’asph xie sont toujours d’actualité.
Les appareils de réfrigération abandonés
sont toujours aussi dangereux, même
si on n’attend que “quelque jours” pour
s’en débarasser. Si vous ne gardez pas
votre ancien appareil, veuillez suivre
les directives ci-dessous afin de prévenir
les accidents.
Avant de vous débarasser de votre vieux
appareil de réfrigération :
•Démontez les portes.
•Laissez les cla ettes en place afin
d’empêcher les enfants de grimper
à l’intérieur.
RÉFRIGÉRANTS
Tous les appareils de réfrigération
contiennent des refrigerants qui,
conformément aux lois fédérales,
doivent être enlevés avant toute
élimination de l’appareil.
Si vous vous débarrassez de vieux
appareils de réfrigération, vérifiez,
auprès de la société qui s’occupe de
leur élimination, ce que vous devez faire.
IMPORTANTES INSTRUCTIONS DE SÉCURITÉ
LIR T CONS RV R C S INSTRUCTIONS
5
wAVERTISSEMENT—
Lorsque vous utilisez l’appareil, observez
toujours certaines précautions de base,
notamment :
•N’utilisez l’appareil que pour son usage
prévu, comme décrit dans le présent
manuel.
•Installez le réfrigérateur de bar avec
machine à glaçons conformément
aux directives d’installation avant
de l’utiliser.
•Ne laissez pas les enfants grimper,
s’asseoir, se tenir debout ni se pendre
aux clayettes du réfrigérateur de bar
avec machine à glaçons. Ils pourraient
endommager le réfrigérateur de bar
avec machine à glaçons et se blesser
gravement.
•N’entreposez et n’utilisez pas d’essence
ou autres vapeurs et liquides inflammables
à proximité de cet appareil ou de tout
autre appareil électroménager.
•Éloignez les doigts des parties du
réfrigérateur où l’on peut facilement
se pincer : les espaces entre les portes
et entre les portes et les placards sont
toujours étroits. So ez prudent lorsque
vous fermez les portes de l’appareil en
présence des enfants.
•Débranchez votre réfrigérateur de
bar avec machine à glaçons avant de
le nettoyer et de le réparer. REMARQUE :
Nous vous recommandons vivement de
confier toute réparation à un technicien
qualifié.
•Avant de remplacer une ampoule grillée,
le réfrigérateur de bar avec machine à
glaçons doit être débranché afin d’éviter
tout contact avec un fil sous tension.
(Une ampoule grillée peut se briser
pendant l’opération).
•Dans les réfrigérateurs de bar qui ont
une machine à glaçons automatique,
évitez de toucher les pièces mobiles
du mécanisme d’éjection ou l’élément
chauffant situé en bas de la machine
à glaçons.
Ne mettez jamais vos doigts ou vos
mains sur le mécanisme de machine
à glaçons automatique quand votre
réfrigérateur est branché.

6
HOW TO CONN CT L CTRICITY
Do not, under any circumstances, cut
or remove the third (ground) prong from
the power cord. For personal safety, this
appliance must be properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibilit of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked
b a qualified electrician to make sure
the outlet is properl grounded.
Where a standard 2-prong wall outlet is
encountered, it is our personal responsibilit
and obligation to have it replaced with
a properl grounded 3-prong wall outlet.
Use of a GFI (Ground Fault Interrupter) is not
recommended for the bar refrigerator with
icemaker.
The appliance should alwa s be plugged into
its own individual electrical outlet which has
a voltage rating that matches the rating
plate. This provides the best performance
and also prevents overloading house wiring
circuits which could cause a fire hazard from
overheated wires.
DO NOT USE AN ADAPTER
PLUG TO CONNECT THE BAR
REFRIGERATOR ITH
ICEMAKER TO A 2-PRONG
OUTLET.
DO NOT USE AN EXTENSION
CORD ITH THIS APPLIANCE.
Never unplug an appliance b pulling on
the power cord. Alwa s grip the plug firml
and pull straight out from the outlet.
Repair or replace immediatel all power
cords that have become fra ed or otherwise
damaged. Do not use a cord that shows
cracks or abrasion damage along its length
or at either end.
When moving the appliance, be careful
not to roll over or damage the power cord.
IMPORTANT SAFETY INSTRUCTIONS
SAV TH S INSTRUCTIONS

7
RACCORD M NT ÉL CTRIQU
Ne coupez ni retirez en aucun cas
la troisième broche (mise à la terre)
de la fiche du cordon d’alimentation.
Pour votre sécurité, cet appareil doit
être correctement mis à la terre.
Le cordon d’alimentation de cet appareil
est muni d’une fiche à 3 broches (mise
à la terre) qui se branche dans une prise
mural ordinaire à 3 alvéoles (mise à la terre)
pour réduire au minimum les risques du
chocs électriques.
Faites examiner la prise de courant et
le circuit par un électricien qualifié pour
vous assurer que la prise est correctement
mise à la terre.
Si la prise murale est du t pe standard
à 2 alvéoles, il vous incombe de la faire
remplacer par une prise à 3 alvéoles
correctement mise à la terre.
L’appareil doit toujours être branché dans
sa propre prise de courant, dont la tension
nominale est identique à celle indiquée sur
la plaque signalétique.
L’utilisation d’un disjoncteur de fuite à la terre
est recommandée pour le réfrigérateur de
bar avec machine à glaçons.
Cette précaution est recommandée pour
garantir un rendement optimum et éviter
une surcharge des circuits électriques de
la résidence, ce qui pourrait créer un risque
d’incendie par surschauffe des fils.
N’UTILISEZ JAMAIS
UNE PRISE À ADAPTATEUR
POUR LE RÉFRIGÉRATEUR
DE BAR AVEC MACHINE
À GLAÇONS À UNE PRISE
BIPOLAIRE.
N’UTILISEZ JAMAIS DE
RALLONGE AVEC CET
APPAREIL.
Ne débranchez jamais l’appareil
en tirant le cordon d’alimentation. Saisissez
fermement la fiche du cordon et tirez droit
pour la retirer de la prise.
Réparez ou remplacez immédiatement tout
cordon effiloché ou endommagé. N’utilisez
pas un cordon fendillé ou présentant des
signes d’usure.
Lorsque vous déplacez l’appareil, faites
attention de ne pas la faire rouler sur
le cordon d’alimentation afin de ne pas
l’endommager.
IMPORTANTES INSTRUCTIONS DE SÉCURITÉ
CONS RV Z C S DIR CTIV S

Controls and Features
Bar Refrigerator with Icemaker
Unit ON/OFF
This pad stops cooling in the bar refrigerator
with icemaker, turns off the temperature
controls and removes power to the light circuit.
NOTE: The icemaker is on a separate on/off
switch. To remove power from the icemaker
See Automatic Icemaker section.
Press this pad for a minimum of 3 seconds to
turn the bar refrigerator with icemaker on or
off, or unplug the unit for long vacations or
absences, or when cleaning the unit or
changing the light bulb.
Temperature
control
The temperature displa shows the actual
temperature of the bar refrigerator with
icemaker. The actual temperature ma var
slightl from the set temperature based on
factors such as door openings, amount of
food and room temperature.
To change the temperature setting,
press the WARMER or COLDER pads until
ou reach the desired set temperature.
After 5 seconds, the displa will return
to the actual temperature.
After making adjustments, allow 12 to 24
hours for the bar refrigerator with icemaker
to reach the temperature ou have set and
before making an further adjustments.
Temperature Settings
Minimum: 34°F (1.1°C)
Maximum: 45°F (7.2°C)
8
Glass
shelves
Tempered glass shelves in the bar
refrigerator with icemaker are removable for
eas cleaning or for storing larger items.
To remove a shelf, open the door
completel to avoid potential damage to
the gasket. Lift up on the back of the shelf
slightl . Tilt the shelf to one side at an angle
while pulling forward.
To replace a shelf, open the door completel
to avoid potential damage to the gasket. Tilt
the shelf to one side at an angle and slide
toward the back wall, placing one side onto
the shelf support. Place the other side onto
the opposite shelf support. Ensure rear
locking tabs are engaged. When installed
properl , the shelf will not slide forward
when gentl pulled.
To remove, lift up on the back of the shelf Tilt the shelf at an angle while removing
or replacing
Place in slots when replacing the shelf
Appearance ma var
NOTE: The icemaker temperature is not displa ed.
Child control
lockout
This child control lockout feature prevents
unwanted changes to our temperature
settings.
After the desired temperature is set,
the temperature can be locked. To lock,
press both the +and –pads at the same
time for five seconds. To unlock, press both
+and –pads for five seconds.

9
Controls and Features
Bar Refrigerator with Icemaker
Automatic
icemaker
The icemaker will produce seven cubes
per c cle—approximatel 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of door
openings and other use conditions.
If the bar refrigerator with icemaker is
operated before the water connection is
made to the water valve, set the icemaker
power switch to O (off).
When the unit has been connected to
the water suppl , set the icemaker power
switch to I (on). The green light will come on.
The icemaker will fill with water when it
cools to 15°F (–10°C). A newl installed
bar refrigerator with icemaker ma take
12 to 24 hours to begin making ice cubes.
You will hear a buzzing sound each time
the icemaker fills with water.
Throw awa the first few batches of ice
to allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequentl , old ice cubes
will become cloud , taste stale and shrink.
If ice cubes get stuck in the icemaker,
the green power light will blink. To correct
this, set the icemaker power switch
to O (off) and remove the cubes.
Set the icemaker power switch
to I (on) to restart the icemaker.
After the icemaker has been turned
on again, there will be a dela of about
45 minutes before the icemaker resumes
operations.
NOTE: In homes with lower-than-average
water pressure, you may hear the
icemaker cycle multiple times when
making one batch of ice.
Icemaker
Feeler Arm
Power Switch
Green
Power Light
Ice storage
bin
To remove, pull the icemaker drawer full
open and remove the transportable ice
storage bin b lifting up and out.
NOTE: Ice can fall behind the ice storage bin.
Prior to replacing the bin, check for an fallen
ice.
If the ice storage bin is removed from
the refrigerator for an extended period of
time, we recommend setting the icemaker
power switch to O (off).
To replace, grasp the side of the right side
of the bin with the higher edge so that the
angled side is against the drawer front.
Lower the bin into place and close the
drawer.
CAUTION: Failure to install properl could
cause potential damage to the icemaker.
The ice storage bin is dishwasher safe,
top rack onl .

The interior fan is located in the rear
wall of the bar refrigerator with icemaker
and is designed to run continuousl to help
maintain the proper cooling temperature.
In most instances, the interior fan will run
when the door is open. However, it will not
operate when the door is opened during a
defrost c cle.
Controls and Features
Bar Refrigerator with Icemaker
10
Loading
tips and
suggestions
The bottom full extension drawer holds
five bottles and is loaded with necks facing
the rear. Tall bottles should not be loaded
on the bottom drawer because the ma
prevent the door from closing.
•Do not block the thermistor, located
on the right hand side, just above the top
shelf of the bar refrigerator with icemaker.
Blocking the thermistor could impair the
air circulation and temperature control.
Bottom drawer arrangement
Removing
full extension
drawer
To remove:
1. Pull the full extension drawer out to
the STOP position.
2. Push the tab on right drawer guide down
while pulling the tab on left guide up, and
pull the drawer out.
To replace:
1. Push the drawer slide arm back into
the unit.
2. Pull the small slide sub-assembl
completel forward.
3. Insert the sides of the drawer back
into the guides.
4. Push until the tabs lock into place.
Tab (push tab down on right
drawer guide, pull tab up on
left drawer guide)
NOTE: Make sure the tabs on the full
extension drawer guides are full engaged
before loading an bottles. Pull the drawers
out all the wa to the STOP position and
push back in several times to make sure
locking tabs are properl engaged.
To replace, push drawer slide
arm back into unit
Pull small slide sub-assembl
completel forward
Appearance ma var
Interior fan
Ice scoop
The bar refrigerator with icemaker includes
an ice scoop in the ice storage bin. To
maximize ice bin capacit , store the ice
scoop as shown. Do NOT wash the ice scoop
in the dishwasher. For cleaning, handwash
in mild soap water or use the baking soda
solution noted in Cleaning the inside section.
Sub-assembl Sub-assembl
