Consumer Information
Stainless Steel Re/}'ig'eralor
Introduction Your new Monogran/ refl'igerator makes an eloquent statement of style, convenience and kitchen
planning flexibility. Whether wm chose it for its purity of design, practical storage arrangements or
assiduous attention to detail--or fl_r all of these reasons--you'll find that your Monogram
refl'igerator's superior blend of torm and flmction will delight you for veals to come.
The infimnation on the tollowing pages will hel I) you operate and maintain your reti_igerator i)roperly.
If wm have any other questions, visit our Website at: www.monogram.com
Con n Consumer Services
hnportant Phone Numbers .............. 31
Model and Serial Numbers ............... 3
Perfln'mance Data Sheet ................ 28
Problem Solver . .................... 23-27
Product Registration .................... 3
Safety Instructions .................... 4-7
State of Califln'nia
X_'arrantv ..................... Back Cover
X_'ater Treatment Device Certificate ....... 29
Care and Cleaning
Cleaning--Outside and Inside ........... 20
I,ight Bulb Replacement ................ 22
Moving ............................... 91
Va ca tio n .............................. 21
Operating Instructions
Additional Features .................... 15
Automa tic Icema ker . ................ 17, 18
Crispers and Pans ...................... 16
CustomCool TM . ..................... 10, 11
Ice and X_'ateI" Dispenser . ............... 19
Pertormance Air Flow System ............. 8
Shelves and Bins .................... 13, 14
Temperature Controls ................... 8
TurboCool _'_ . .......................... 9
X_'ater Filter . .......................... 12
B@Y(?
using"
yOUr
@igo'ator
Read this manual carefllllv: It is intended to
hel I) you operate and maintain your new
reti'igera tot i)roperly:
Kee I) it handy fin" answers to your questions,
If wm don't understand something or need
more hell), there is a list of toll-ti'ee consumer
service i_ulnbers ii_cluded in the back section
of this ma n ual.
OR
Visit our Website at: www.monogrmn.com

Consumer Information
Stainless Steel R</}Sg'erator
Write
down the
model &
serial
nlg _7_lbers
You'll see then_ on a label inside the fl'esh fi_od
comi)arm_ent at the top on the right side.
Please write these nmnbers on the Consmner
Product Ownership Registration Card included
with the packing material.
Before sending in this card, please also write
these numbers here:
Model Nmnber
Serial Nmnber
Use these immbers in any corresi_oi_dence or
service calls coi_cerlfing your refl'igerator.
l/you
rexeived a
damaged
@igoator
lmn/ediatelv contact the dealer (or builder)
that sold you the refl'igerator.
Save time
& money
Befl)re w)u request setwice, check the Problem
Solver in the back of this inalmal. It lists causes of minor operating problems that VO/I C_lIl correct vourself.
l/you
need
service
To obtain selwice, see the Consmn er Selwices
page in the back of this manual.
We're proud of ore" service and want wm to be
pleased. If for some reason wm are not hai)py
with the service you receive, here are steps to
fl)llow fin" flu'ther help.
For customers in the USA:
FIRST, contact the people who serviced yore"
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details--inchlding your phone numbei_to:
Manager, Custolner Relations
GE Appliances
Appliance Park
I,ouisville, KY 40225
For customers in Canada:
FIRST, contact the people who selwiced wmr
appliance. Explain why you are not pleased.
In in ost cases, this will solve the problem.
NEXT, if you are still not pleased, write all the
details--inchlding your phone nulnber to:
Manager, (_Olasumer Relations
Mabe Canada Inc.
1 [_actoi'y i,ane, Suite 310
Moncton, N.B. El(: 9M3

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
alwtg,s ex(,rdse bask s@4y precaulions, im:{uding #w
fi*ll_rgving:"
•Use this appfimlce only for its intended purpose
as described in this Owner's Manual.
•This refrigerator must be properly installed in
accordance with the hlstallation Instructions
before it is used.
Do not allow children to climb, staxld or hmlg
on the shelves in the refrigerator. They could
daluage tile reflJgerator and seriously iI_jure
themselves.
Do not touch the cold surfaces in the freezer
compartment when hm_ds are dmup or wet.
Skin Inav adhere to these extremely cold
S/lI]_lces.
Do not store or use gasoline or other flammable
vapors and liquids in the vichlity of this or any
other applimace.
In refrigerators with automatic icema_kers,
awfid contnct with ino;'ing parts (ff tile ejector
mechanism, or with the heaOng element located
on the bottom ot the iceluakei: Do not place
fingei5 or hands on the autolnatic iceumking
mechanism while the refrigerator is plugged in.
•Keep fingers out of the "pinch point" areas:
clearances between tile dom_ and between
tile dooI_ and cabinet are necessarily small.
Be careflfl closing (looi_ when clfildrei_ are
in the area.
•Unplug your refrigerator before demfing and
making repairs. NOTE: We strongly recommend
that any servicing be perfimned by a qualified
individual.
•Before replacing abummd-out light bulb,
tile retiJgerator should be mq)lugged in order
to avoid contact with a live wire filament.
(A burlaed-out light bulb Inav break when
being replaced.)
NOTE: 7hr,fing" .ml*ol to ()lq_ doe,_not mnove p_rw_,r
lo tlw [{q'htch_(:uiL
• Do not refreeze frozen foods which have thawed
completely.
• Ahvays cleml the CustomCooF' Tray after
thawing food.
li DANGER." tUSK OF CHIIJ9 ENTRAPMENT
Child elatrapmelat and suflbcatiola are not
i)roblelns of tile past.,]unked or abandoned
reflJgeratoi_ are soil dangerous...exen if they
will sit tot" ust a tew days " If you are ,etOn ,
rid of yore" old refi'igeratm; please fi_llow the
instructions below to hel I) prevent accidents.
Before You Throw Away Your Old
Refrigerator or Freezer:
• Take offthe dooi_.
• I,eave tile shelves in place so that children
ulav not easily clilnb inside.
REFRIGI 2RANT S
_M1refligeraOon products contain refligerants,
which under tederal law uulst be rein oxed prior
to product disposal.
If you a re oetOng rid (ff an (_1(1refl_igerafion
product, check with tile comi)anv, handling
tile disposal about what to do.

MESURES DE St CURITt IMPORTANTES
LIt 2 ET CONSERVER CES INSTRUCTIONS
AVERTISSEMENT :
vous ulili,_< 1_"*_fi'i,qFralelo; o/:,_e*_:¢zt01(iolo:s_e*'taine,_
prdmutio_:,s de bas*; _:olamme,H :
•N'ufilisez le r&frig&rateur que pour son usage
pr&vu, c()mme dg_crit dans le prg_sent manuel.
• h_tallez le r_frig&rateur conform_meut aux
directives d'hlstaJlation avmat de l'ufiliser.
• Ne laissez pas les enfmats grhuper, s'asseoir,
se te_fir debout _fise pendxe attx clayettes du
r_frig_rateur. Ils pourraient endommager le
r6flJg6rateur et se blesser gravement.
• Uue fois le rOfrigOrateur eu maxche, ne touchez
pas les surfaces froides du cong&lateur, surtout
si vous avez les mains humides ou mouill_es :
la peau risque d'adh&'er a ces SUll'hces trOs
ti'oides.
N'eutreposez et n'utilisez pas d'esseuce ou
autres vapeurs et liquides hlflmnmables
proximit& de cet appaxeil ou de tout autre
appaxeil _leclrom_nager.
Pour les r_frigOrateurs dot_s d'mm machine
hgla_ons automatique, &'itez le contact avec
les pi_ces mobiles du mg_canisme _jectem;
ou avec l'(_l(_ment chattflimt situ(_ fi la pattie
int>rieure de la machine fi glaqons. Ne posez
pas les doigts ou les mains sur le m_canisme
de la machine 5 glaqons pendant que le
rg_ti_ig_rateur est branch(_.
• _71oignez les doigts des parties du r&frig8rateur
off l'on peut facilemeut se pincer : les espaces
entre les portes et entre les portes et les placards
sont tot!iom_ (_troits. Soyez prudent lo_que
w)us tbm_ez les portes de l'appareil en prg_sence
des entimts.
• D&brm_chez votre rSfrig&rateur avm_t de le
nettoyer et de le r&parer. REMARQUE : Nous
VO/IS i'ecoi//ill[lil(loiis viveI//eIlt de coillier to/Ite
rg_paration fi un technicien qualifi_.
• Avm_t de remplacer mm mnpotde grill&e,
le r6ti_ig&'ateur dolt _)tre dg_branch(_ afin
d'&iter tout contact avec un fil sous tension.
(Ulae ampoule grillg_e peut se briser pendant
l'op(_ration).
REMAt_UE : Lo_:squev0us placcz &commamle
sur &:inl, l'alimer?tation dl_.(_glUe tie l'ampoulz: n )',_l
pa,_co.p&
• Ne faJtes PAS recongeler des aliments surgeb_s
qui out compl&temeut dOgel&
• Nettoyez toujours le couteumat CustomCool'"
apr&s avoir d6gel6 les aliments.
DANGER: RISQUES POUR IrES ENFANTS
i,es entimts pris au pi(_ge ou morts d'asph)xie sont
tot_jotu_ d'acmalit& I,es appareils de r_ti_ig&'ation
t aball(lolleS SOllt toujouI3 aussi dangereux, II/Ollle
si on n'attend que "quelquejou_" pour s'en
d_barasse_; Si xous ne ,gardez, i)as xotre ancien
appareil, xeuillez suix re les directixes ci-dessous
afin de pr&enir les accidents.
Avaunt de votts ddbarasser de vo_re vieux
appareil de r8frigdration :
• D_montez les portes.
• I,aissez les clavettes en place afin d'empOcher
les enlhnts de g_imper 5 l'intg_riem:
REFPdG1,;'P N7 S
Tousles appareils de r6li_ig&'ation confiennent
des reflJgerants qui, confl)m_(_ment aux lois
t>d(wales, doivent Otre enlev(_s a\m_t toute
_limination de l'appareil.
Si vous vous d_barrassez de vieux appareils de
r(qiJg(_ration, v&ifiez, aupr_s de la soci(_t_ qui
s'occupe de leur _limination, ce que vous
devez taire.

IMPORTANT SAFETY INSTRUCTIONS
HOW TO CONNECT ELECTRI(;ITY
Do not, trader any circumstaalces, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grotmding) wall outlet
to minimize the possibility ot electric shock
ha/m'd fl'om this appliance.
Have the wall outlet and circuit checked bv
a qualified electrician to make sm'e the outlet
is properly gmtmded.
\._]_ere a standard 2-prong wall outlet is
encotmtered, it is yore" personal responsibility
and obligation to have it replaced with a
properly grotmded B-prong wall outlet.
The iefl_igerator should alwa):s be plugged into
its own individual electrical outlet which has
a voltage rating that matches the rating plate.
This provides the best perfimnance and also
prevents overloading house wiring drcuits which
could ca use a fire hazard fl'om overheated wires.
Never tml)lug yore" refrigerator by pulling on the
power cord. Mwa):s grip plug firefly and pull
straight out fl'om the outlet.
Repair or replace immediatelv ;ill i){m'er cords
that have become fl'ayed or otherwise damaged.
Do not use a cord that shcm:s cracks or abrasion
damage ahmg its length or ;it either end.
_]_en moving the refl_igerator away fl'om the
wall, be careful not to roll over or damage the
power cord.
USE OF ADAPTER PLUGS , ot <
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an adapter plug.
HoweveI; if you must use an adaptei; where local
codes pemfit, a temporaacy commction may be
made to a properly grotmded 2-prong wall outlet
by use of a UL-listed adapter available ;it most
h)cal hardware stores.
The lalger slot in the adapter inust be aligned with
the lalger slot in the wall outlet to provide proper
polafi U in the connection of the power cord.
_._]_en disconnecting the power cord fl'om the
adaptei; ahvavs hold the adapter in place with one
hand while pulling the power cord plug with the
other hand. If this is not done, the adapter grotmd
temfinal is \'ei_' likely to break with repeated use.
If the adapter grotmd temfinal breaks, DO NOT
USE the appliance tmtil a proper grotmd has been
established.
Attaching the adapter grotmd temfinal to a wall
outlet cover screw does not grotmd the appliance
tmless the cover screw is metal, and not insulated,
and the wall outlet is grotmded through the house
wiring. You should have the circuit checked bv
a qualified electrician to make sure the outlet is
properly grotmded.
Use of an adaptor plug will increase the clearance
needed fin" the back of the appliance.
USE OFEXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of ma extension cord.
Howe\'ei; if you must use an extension cord, it is
absolutely necessary that it be a UI=listed, 3-wire
grotmding type appliance extension cord having
a grotmding type plug and outlet and that the
electrical rating of the cord be 15 amperes
(minimum) and 120 volts.
SAFE THESE INS TR UC77ONS
6

MESURES DE St CURITt IMPORTANTES
RA CCORDEMENT ELE CTt Q UE
Ne coupez _firetirez en auctm cas la troisi&me
broche (raise h la terre) de la fiche du cordon
d'Mhnentation. Pour votre s_curitO, cet appaJceil
doit &tre correctement mis _la terre.
I,e cordon d'alimentafion de cet appareil est
muni d'une fiche 5 3 broches (raise 5 la terre)
qui se branche darts une prise mm'al ordinaire
5 3 alv(Xoles (raise 5 la terre) pore" r(Xduire au
minimmn les fisques du chocs _lectriques.
Fakes examiner la prise de com'ant et le circuit
par tm (_lectricien qualifi(_ pour vous assm'er
que la prise est correctement raise 5 la terre.
Si la prise tam'ale est du Q'pe standard 5
2 alvg_oles, il vous incombe de la flfire remplacer
par line prise 5 3 alv&)les correcmment raise
5 la terre.
I,a machine 5 glacons doit tot/join5 0tre
branch_ darts sa propre prise de courant,
dont la tension nominale est identique
5 celle indiqu_e sin" la plaque signal_tique.
Cette precaution est recommand_e pore" garantir
tm rendement opfilmUn et &'iter une sm'chalge
des circuits (_lectriques de la rg_sidence, ce qui
pomTait crier tm risque d'incendie par
sm_cha ufli _des ills.
Ne d_brai_chezjamais l'appareil en firant le
cordon d'alimentatiotL Saisissez ti_m_etnet_t
la fiche du cordon et tirez droit pour la retirer
de la prise.
R_parez ou remplacez imm_diatement tout
cordon efliloch_ ou endommag_. N'ufilisez
pas tm cordon tbndill_ ou pr_sentant des signes
d' tIS/lI'e.
I,m_que vous d_placez l'appareil du ram; fifites
attention de ne pas la fifire fouler sin" le cordon
d'alimentation afin de ne pas l'endommagei:
FICHE D 'ADAPTATION
Nous vous recommmado_ fortement de ne pas
ufiliser tree fiche d'adaptation _cattse des risques
potentiels qu'elle pr&sente dm_s certaJnes
drconstm_ces.
Toutetois, si vous d_ddez d'utiliser tout de m0me
tlne fiche d'adaptation, vous pouvez eflectuer tin
raccordement temporaJre, si les codes loca ux le
pem_ettent, darts tree prise de courant 5 2 alv&)les
ad&luatement raise 5 la terre en utilisant tree fiche
d'adaptation homologu_e Lri,, en vente darts la
plupart des quincaillefies.
I,a tenm la plus hmgue de la fiche doit 0tre
aligng_e avec la timte la plus longue de la prise
tam'ale afin d'assm'er la polarit_ appropri_e pore,
le branchement du cordon d'alimentation.
I,(nsque vous d_branchez le cordon
d'alimelmltion de la fiche d'adaptatiolL saisissez
toujoui_ la fiche d'une main pelMant que vous
firez sur la fiche du cordon d'alimentafion de
l'autre. Sinon, la borne de raise 5 la terre de la
fiche d'adaptation risque de casser avec le temps.
Si la borne de raise 5 la terre de la fiche casse,
N'UT1LISEZ PAS l'appareil rant qtl'tme raise
5 la terre adequate n'am'a pas _t(_ r_tablie.
I,e filit de fixer la borne de raise 5 la terre de la
fiche d'adaptation 5 la plaque de la prise de
co/lI'ilnt n'_lSSllI'e p_ls atltoillatiq/leillent la IIlise _'1
la terre de l'appareil. I1 flint que la vis soit en m_tal,
non isol_e, et que la prise de courant soit raise 5
la terre par l'entremise du cfiblage de r_sidence.
Faites vg_rifier le drcuit par tm (_lectriden qualifi(_
pour vous assm'er que la prise est ad_quatement
raise 5 la terre.
CORDONS PR OL ONGA TEURS
Nous vous recommm_dons fortement de ne pas
u61iser de cordons prolongateurs _cause des
risques potentiels qu'ils pr6sentent dm_ certaJnes
conditions,
Touteti)is si vous d_cidez d'utiliser tout de II_I/_e
t111 cordon prolongateui; il est absohunent
nOcessaire qu'il s'agisse (Ftm cordon 5 3 ills avec
Inise _'1la terre pour ap.pareils OlectrolnOnagei3
homologu(_/5i, (aux Etats-/_.rnis) ou homologu(_
CSA (a u (]anada), poulwu d' une fiche et d' une
prise inises 5 la terre de 15 amperes (nfilfinmm)
et de 120 volts.
CONSER VEZ C1"2SDIP 2C77Vl'?,S7

Operating Instructions
Stainless Steel IG(/}'igerator
7>mperature
controls

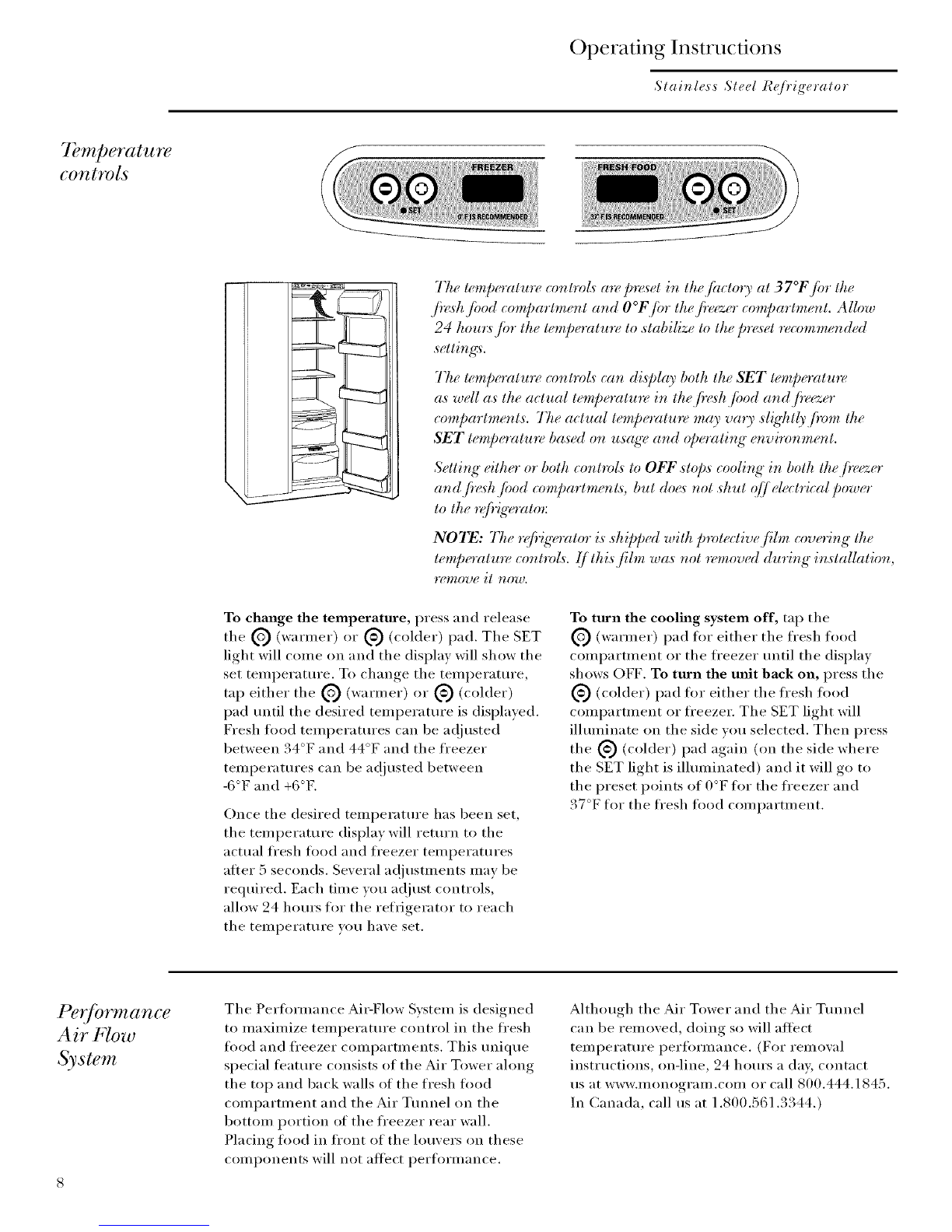

77_elempoature controh a'_z,p_z<_etin thejhcto U at 37°Fji, r lbe
l;,o l a.d O°F!;,,•t/..
24 hour:L/br the lempoature to stabilize to the p_>_etrecommended
settinffs.
77_eWmp_*ratu'r_,(-ont_v[_can dis],lay both the SET wmp_,ratm_
as well a._the actual temperatu'_z, in the,f!_<_hjood andjiz,ezer
compartm(n,t._. 77_eactual tem[,_,ratu_z_may va'r), ._ligbtlyjir, m lbe
SET tem/,eratu'_z, based on usage and o/wratiug eHvi'mnment.
Setti,lg either or both contro£ lo OFF.sto[,.s cooli,lg in both lbejiz,ezer
and,f!_h ji,od c,,mpartm_,n& but doe_ not shut qff elech@al pow_,r
to the *z_/i'igcrato*:
NOTE: 77_er@igerator is ,,hip[wd with protective fibv covowg the
tempoatmz, cont,_£. {/thi.Lf!lm was not _z'mow'd during installation,
r_,move it now.
To change the temperature, press and release
the ('_ (warmer) or _ (colder) pad. The SET
light will come on and the display will show the
set temperature. To change the temperature,
tap either tile @(warmer) or @(colder)
pad tmtil the desired temperature is displayed.
Fresh fl)od temperatures can be a(!justed
between 34°F and 44°F and the fl'eezer
temperatm'es can be a(!justed between
-6°F and +6°F.
Once the desired temperature has been set,
the temperature display will return to the
actual fl'esh fl)od and freezer temperatures
atter 5 seconds. Several a(!jUStlnents ill}iV be
required. Each time wm a({just controls,
allow 24 hours for the refrigerator to reach
the temperature you have set.
To turn the cooling system off, tap the
O (warmer) pad fin" either tile fl'esh food
compartment or the fl'eezer tmtil the display
shows OFF. To turn the refit back on, press the
@(colder) pad tor either tile fl'esh fi)od
compartment or fl'eezer. The SET light will
illmninate on the side you selected. Then press
the (_ (colder) pad again (on the side where
the SET light is illmninated) and it will go to
the preset points of O°F fi)r the fl'eezer and
37°F for the ti'esh food compartment.
I_ (?_7"OT_l'l (Ifl ("e
Air Flow
System
The Perfiwmance Ai>Flow System is designed
to maximize temperature control in the fl'esh
ti)o(1 and fl'eezer compartments. This tmique
special featm'e consists of the Air Tower along
the top and back walls of the fresh ti)od
compartment and the Air Tunnel on the
bottom portion of the fl'eezer rear wall.
Placing fl)od in fl'ont of the louvers on these
conq)oi_ents will not affect i)erfornmnce.
Although the Air Tower and the Air Tunnel
can be removed, doing so will affect
temperatm'e l)ertbrmance. (For remowd
instructions, on-line, 24 hours a day, contact
us at w_v.monogram.com or call 800.444.1845.
In Canada, call us at 1.800.561.3344.)

TurboCool""
Stall, less Steel R_/}'ig'erator
How it worhs TurboCool rapidly cools the
refi'igerator compartn/ent in
order to more quickly cool fi)ods.
ZurboCool Use TurboCool when adding
a large alilOllnt (If ti)od to the refrigerator
compartment, putting away ti)ods atter they
have been sitting out at i'ooi// temperature
or when putting away warm letiovers. It can
also be used if the reii'igerator has been
without power fi)r an extended period.
Once activated, the compressor will turn on
imm edia telv and the tans will cycle on and
off at high speed as needed ti)r 8 hours.
The compressor will continue to mn until
the refrigerator compartment cools to
approximately 34°F (1°C), then it will cycle
on and off to maintain this setting. Alter
8 hours, or if TurboCool is pressed again,
the refrigerator compartment will return to
the original setting,
Hozo to use 1 Press TurboCool. The refrigerator
temperature display will show TC.
2 Atter TurboCool is complete,
the reti'igerator coml)artn/ei_t
will return to the original setting.
NOTES:
•The _fi'iwmtor temperature car_ot be cha_g'ed
duri_g" TurboCool.
•TheJh:ezer temperature is not @clcd duri*:g"
TurboCool.
• 1,17_er_@eni_q" the @ig'emtor door duri_g"
TurboCool, the ]?lr_s will contirme to run !]
th_9' have O'cled o_z.

CllStOinCool :'1
Slainless Sled R¢(J)'ig'eralor
CUSTOM COOL
•SET
is0
•2.0 LBS
•3.0 LBS
ExpressThaw
•45 MIN
ExpressChill
C,rRus1
I_I•PRODUCE |
_b_a_ • MEAT /
SelectTemp
How it The CustomCool feature is a system of
&_mpers, a fan, a temperature thermistor
and a heater. Depending on the flmction
selected, a combination of these will be
used to quickly chill items, thaw items or
hold the pan at a specific temperatm'e.
The pan is tightly sealed to prevent the pan's
temperatm'e ti'om causing temperature
fluctuations in the rest of the refrigerator.
The controls fl)r this pan are located at the
top of the fresh fi)od compartment with the
[eilll)erattlre controls.
Hozo to _se 1 Empty the pan. Place the Chill/Thaw tray
in the pan. Place the items on the tray and
close the pan completely:
2 Select the ExpressThaw'," ExpressChill'"
or SelectTemp'" pad. The display and SET
light will come on. Tap the pad tmtil the light
appears next to the desired setting. Use the
chart to determine the best setting to use.
• To stop a teatm'e beii)re it is finished, tap that
feature's pad tmtil no options are selected
and the display is off.
• During ExpressThaw and ExpressChill,
the display on the controls will comat down
the time in the cycle.
After the I_NpressThaw cycle is complete,
the pan will reset to the MEAT setting (31 °F)
to help preserve thawed items tmtil they
are used.
The displayed actual temperatm'e of the
CustomCool pan may vary slightly ti'om
the SET temperatm'e based on usage and
operating environment,
NOTE: Forjbod s@(_' rea,wn,s; it i,s_,commended
thatjbo& be wrapped ir_plaslic w_r@ when usir_g"
ExpressThaw. This will he@ contain meat juice,_
arid improve thawit_g" [)e(Jbrmar_ce.
ExpressThawTM
10
ExpressChillTM

CllStOinCool F'I
Slainless Sled R¢(J)'ig'eralor
()!lstora Cool TM
chart NOTE: I¢(_ull.s may va U @eliding on pachaging, .starting tem/wratu_, and other f!)od trait._.
•• %,-/• %'-./•
ExpressThaw ExpressChill SelectTemp
0.5 Lb. (4 hours)
• Hambm'ger Patties (0.5 lb)
• Individually Wrapped
Filet Mignon (0.5 lb)
1.0 Lb. (6 hours)
• Chicken Breasts (1.0 lb)
• (h'otmd Beef (1.0 lb)
• Steak (1.0 lb)
2.0 Lbs. (10 hours)
• Chicken Breasts (2.0 lbs)
• (h'otmd Beef (2.0 lbs)
• Steak (2.0 lbs)
3.0 Lbs. (12 hours)
• Chicken Breasts (3.0 lbs)
• Groined Beef (3.0 lbs)
• Steak (3.0 lbs)
15 Minutes
• 1 Beverage Can (12 oz) •
• 2 Slnall,Iuice Boxes
({;-8 oz each)
30 Minutes
• 2 to 6 Beverage Cans
(12 oz each)
• 2 Plastic 20 oz Bottles
of Beverage
• 4 to 6 Small Juice Boxes
(6-8 oz each)
• 3 Foil Juice Packets
• Wine (750 ml bottle)
45 Minutes
• 2 i,iter of Bexerage •
• 1/2 Galhm of Juice
• Gelatin- 1 package
Citrus Setting (43°F)
Oranges, i,emons, i,imes,
Pineapple, Cantahmpe
Beans, Cucmnbers,
Tomatoes, Peppers,
Eggplant, Squash
Produce Setting (35°F)
• Strawberries, I?.aspberries,
Kiwifl uit, Pears, Cherries,
Blackberries, Grapes, Plmns,
Nectarines, Apples
• Asparagus, Broccoli, Corn,
Mushrooms, Spinach,
Cauliflowei; Kale, Green
Onion, Beets, Onions
Meat Setting (31°F)
Raw Meat, Fish and Poultry
HOWl) to r€'ozoT_&
and eDlace
the drawer
To remove:
1 Pull the drawer out to the stop position.
2I,itt the ti'ont of the drawer up and out
of the wire holder.
3 I,itt the back of the drawer up and out.
2
3
To replace:
1 Place the back of the drawer in the wire
holder, making sure the wire holder fits
into the grooves on the back of the pail
i,ower the fl'ont of the drawer into the wire
holder.
Pull the bottom of the wire holder fin'ward
until the wire pops into the groove located
on the bottoll_ of the drawer.
Popwire into groove
11

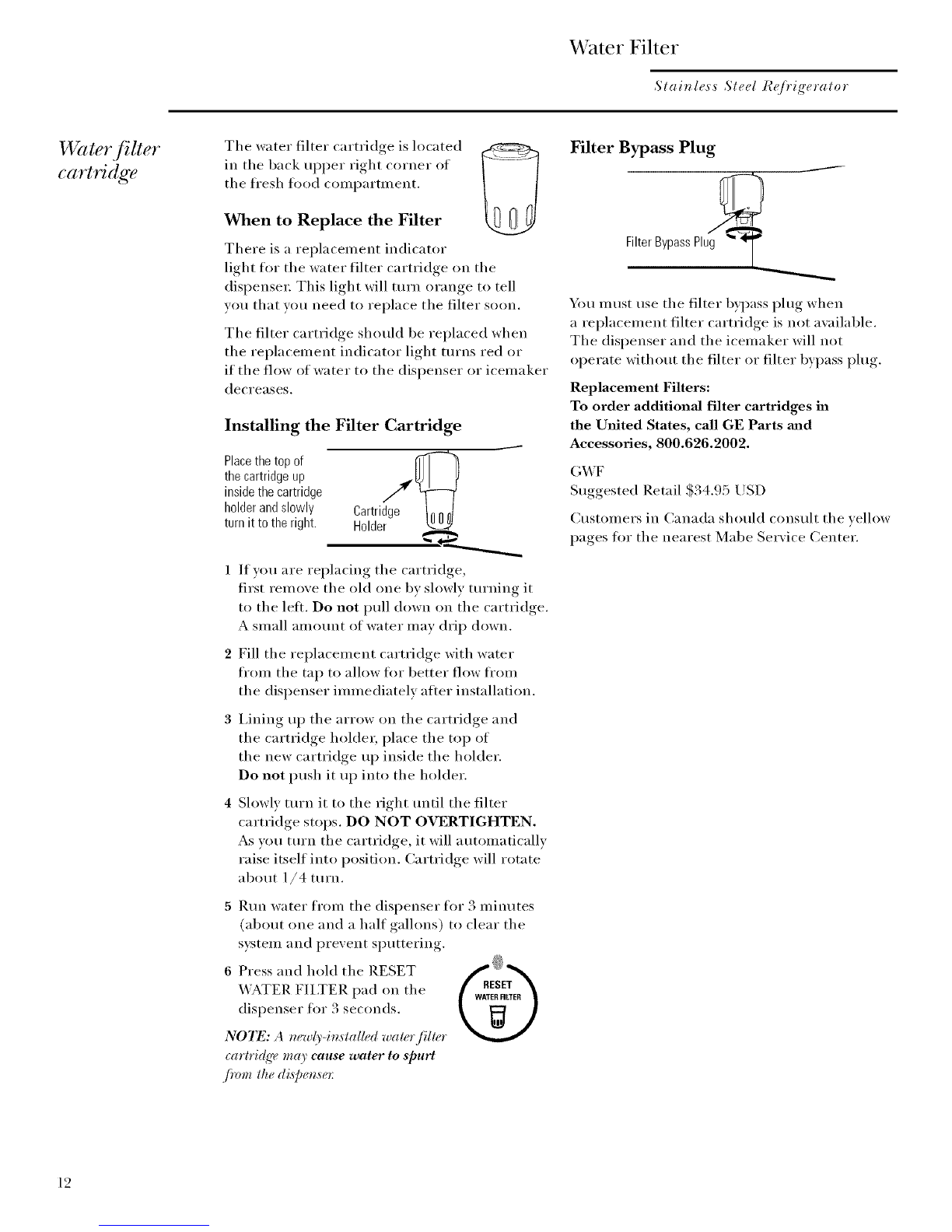

Water Filter
Stainless Steel IG(/}'igeralor
Waterfilter
cartridge
The water filter cartridge is located
in the back upper right corner of
the fl'esh fl)od conq)artment.
When to Replace the Filter
There is a replacement indicator
light for the water filter cartridge on the
dispense_: This light will turn orange to tell
vou that vou need to replace the filter soon.
The filter cartridge should be replaced when
the replacement indicator light tm'ns red or
if the flow of water to the dispenser or icemaker
decreases,
Installing the Filter Cartridge
Place the top of dge/l"_U
the cartridge up
inside the cartridge
holder and slowly Cartri
turn it to the right. Holder
l It you are replacing the cartridge,
first remove the old one by slowly turning it
to the left. Do not pull down on the cartridge.
A small alllOtlnt of water nlay drip down.
2 Fill the replacement cartridge with water
fl'om the tap to allow tot better flow fl'om
the dispenser immediately after installation,
3 I,ining up the arrow on the cartridge and
the cartridge holder, place the top of
the new cartridge up inside the holder,
Do not push it up into the holder,
4 Slowly tm'n it to the right tmtil the filter
cartridge stops, DO NOT OVERT1GHTEN,
As you turn the cartridge, it will automatically
raise itself into position. Cartridge will rotate
about 1/4 turn.
5 Rtm water from the dispenser for 3 minutes
(about one and a half gallons) to clear the
system and prevent sputtering.
6 Press and hold the RESET
WATER FII,TER pad on the
dispenser fin" 3 seconds.
NOTE: A ne'wly-i_,_talh,d rearer filter
cartridg'e may cause water to spurt
,fhmz the di@en,_e*:
Filter Bypass Plug
Filter Bypass Plug_
You must use the filter bypass plug when
a replacement filter cartridge is not awfilable.
The dispenser and the icemaker will not
operate without the filter or filter bypass plug.
Replacement Filters:
To order additional filter cartridges in
the United States, call GE Parts mad
Accessories, 800.626.2002.
(A,VF
Suggested Retail $34.95 USD
Customers in Canada should consult the vellow
pages fin" the nearest Mabe Service Center.
12

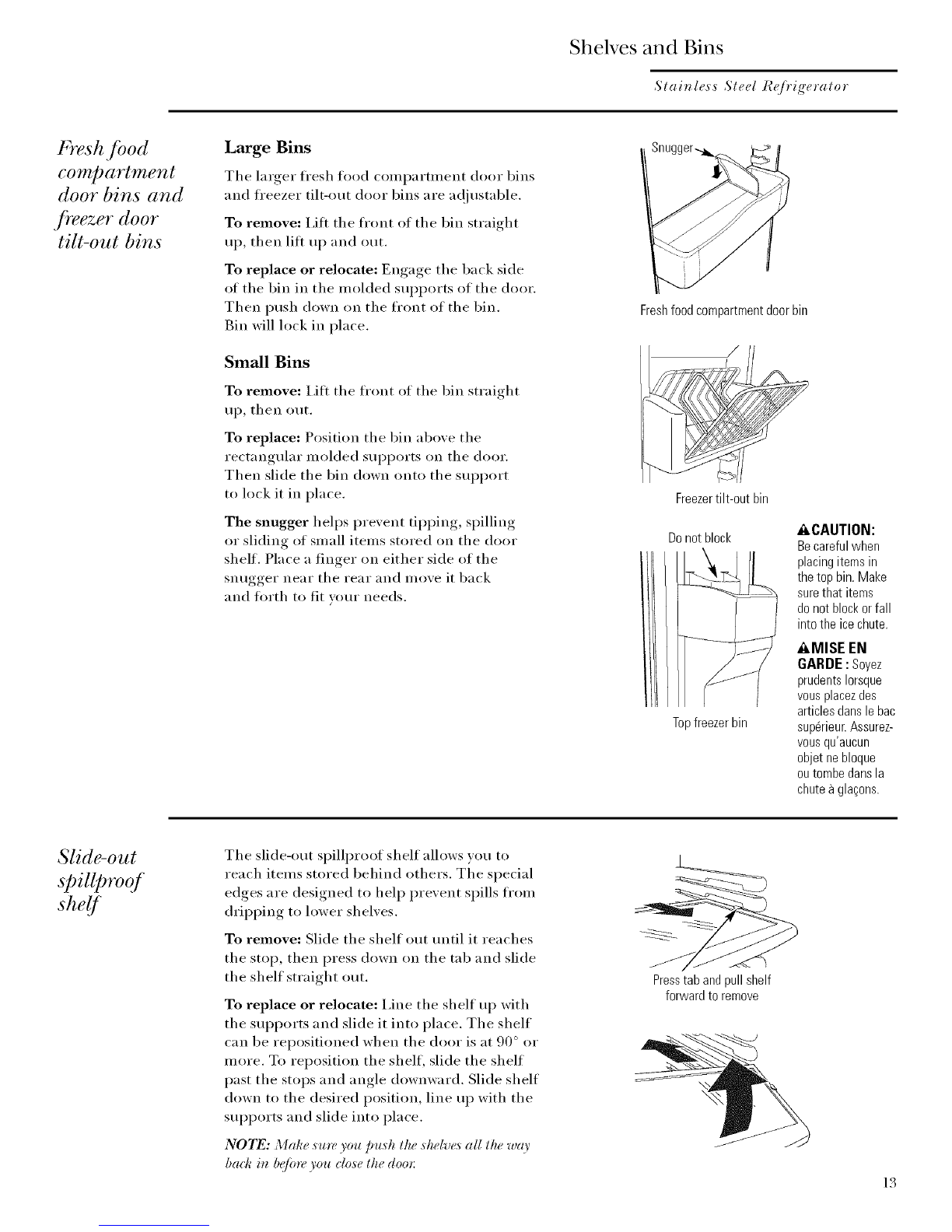

Shelves and Bins
Slainlcss Slcel I_(/}'ig'e*'alo*"
Freshjood
compartment
door bins and
freezer door
tilt-out bins
Large Bins
The larger fl'esh fl_od conq)artment door bins
and freezer tilt-out door bins are a(!justable.
To remove: I,ili the fl'ont of the bin straight
up, then lilt up and out.
To replace or relocate: Engage the back side
of the bin in the molded sui)ports of the door.
Then push down on the fl'ont of the bin.
Bin will lock in place.
Small Bins
To remove: I,ift the fl'ont of the bin straight
up, then out.
To replace: Position the bin above the
rectangular molded supports on the door.
Then slide the bin down onto the support
to lock it in place.
The snugger helps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
snugger near the rear and move it back
and torth to fit wmr needs.
Freshfoodcompartmentdoorbin
Freezertilt-out bin
Do not block
Topfreezer bin
_IiCAUIIOR:
Becarefulwhen
placingitemsin
thetop bin.Make
surethatitems
donot blockor fall
intothe icechute.
_ii,MISE EN
GARDE :S0yez
prudentsIorsque
vousplacezdes
articlesdanslebac
sup_rieur.Assurez-
vousqu'aucun
objetnebloque
outombedansla
chuteagla%ns.
Slide-out
spillproof
shelf
The slide-out spillproof shelf allows you to
reach items stored behind others. The special
edges are designed to hel I) prevent spills fl'om
dripping to lower shelves.
To remove: Slide the shelf out until it reaches
the stop, then press down on the tab and slide
the shelf straight out.
To replace or relocate: i,ine the shelf up with
the supports and slide it into place. The shelf
can be repositioned when the door is at 90 ° or
more. To reposition the shelf, slide the shelf
past the stops and angle downward. Slide shelf
down to the desired position, line up with the
supports and slide into place.
NOTE: Make sure you push the sheh_e,_ all the w( O'
back in b@m" you close the doo_:
Presstab andpull shelf
forwardtoremove
13

Shelves and Bins
Stainless Steel IG(/}'igeralor
QuickSDace TM
shelf This shelf splits in half and slides under itself
ti)r storage of tall items on the shelf below.
This shelf can be removed and replaced or
relocated just like Slide-Out Si)illproof Shelves.
On some models, this shelf can not be used
in the lowest position.
P) ezer baskets To remove, push the basket all the way to the
back of the fl'eezer, i,ilt up until the back pins
are disengaged, i,ilt the entire basket up and
pull out.
NOTE: Make su*_<you push the ba,skels all the way
back in b@m<,you close the doo*:
Slide-out
freezer shelves
To remove, slide ()tit to the stop position, lift
the front past the stop position, and slide ()tit.
NOTE: Make sure you push the sheh_e,_ all the way
back in b@m" you close the doo_:
l ixedfreezer
shelves
To remove, lilt the shelf up at the left side
and then bring the shelf out.
Door wine/
beverage rack
14
This rack holds up to 5 cans, one bottle of wine
or one E-liter bottle of soda.
The rack hangs fl'om the sides of the dairy bin.
To remove:
1 Eml)ty the wine/beverage rack.
2 Holding the bottoin of the daii T bin, lilt the
fl'ont straight up, then lilt up and out.
3 To detach the rack fl'Oln the dairy bin,
pull the rack's side wires ()tit of the holes
on each side of the dairy bin.
To replace:
1Reattach the rack to the sides of the bin.
2Engage the back side of the bin in the
molded supports on the door. Then push
down on the front of the bin. The bin will
lock into place.

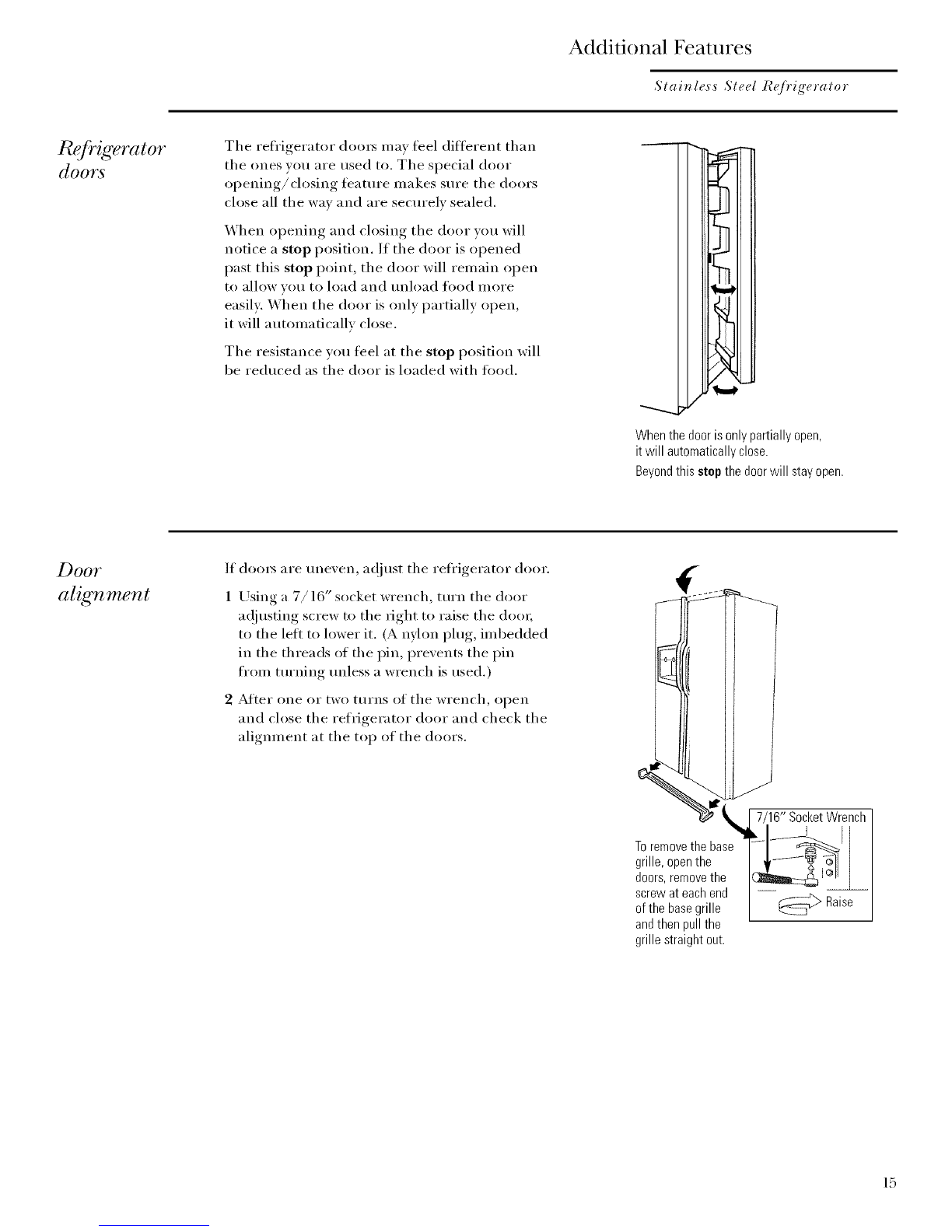

Additional Features
Stainless Steel IG(/}'igeralor
t frigerator
door6
The refl'igerator (loot_ may feel different than
the ones you are used to. The special door
opening/closing ti_ature makes sure the doors
close all the way and are securely sealed.
When opening and closing the door you will
notice a stop position. If the door is opened
past this stop point, the door will remain open
to allow vou to load and unload food more
easily. When the door is only partially open,
it will automatically close.
The resistance you teel at the stop position will
be reduced as the door is loaded with food.
I
7
Whenthe doorisonlypartiallyopen,
it will automaticallyclose.
Beyondthisstep the doorwill stayopen.
Door
alignment
If (loot_ are uneven, at!just the refl'igerator door.
1 Using a 7/16" socket wrench, turn the door
a(!iusting screw to the right to raise the do(m
to the lett to lower it. (A nylon I)lug, imbedded
in the threads of the pin, prevents the pin
fl'om turning unless a wrench is used.)
2 After one or two turns of the wrench, open
and close the refrigerator door and check the
alignment at the top of the doors.
\
Toremovethe base
grille,openthe
doors,removethe
screwat eachend
ofthe basegrille
andthenpullthe
grillestraightout.
7/16" SocketWrench
Raise
15

Crispers and Pans
Slainl¢,s,s Steel I_(/}'ig'eralor
Fruit and
vegetable
crispers
Excess water that may accmnulate in tile bottom
of tile drawers should be wiped d_T.
Tile bottom drawer has a cover that slides back
as the drawer is opened. This allows flfll access
to the drawer. As the drawer is closed, the cover
will slide torward into its original position.
kc{iustable
humidity
crispers
Slide tile control all tile wav to tile HI setting
to provide high hmniditv recommended for
most vegetables.
Slide the control all the way to the LO setting
to provide lower hmniditv levels recommended
fl)r most fl uits.
HI _ LO
__Q__ °
Convertible
meat pan
Tile convertible meat pan has its own cold air
duct to allow a stream of cold air fl'om the
fl'eezer compartment to flow to the pan.
The variable temperature control regulates
tile air flow fl'om tile Climate Keeper.
Set the control to the coldest setting to store
fl'esh meats.
Set tile control to cold to convert tile pan to
normal refl'igerator temperature and provide
extra vegetable storage space. Tile cold air duct
is tin'ned off. Variable settings between these
extremes can be selected.
Oo
o°, "%
Cris]aer
removal
(_rispers can easily be removed by pulling tile
drawer straight out and lilting the drawer up
and over the stop location.
If the door prevents you fl'om taking out the
drawers, first try to remove tile door bins.
If this does not offer enough clearance, the
refl'igerator will need to be rolled torward
tmtil the door opens enough to slide the
(lI'aweFs ()/It, ]n soine cases, when you roll tile
refl'igerator out, you will need to move the
refl'igerator to tile leti or right as you roll it out.
16

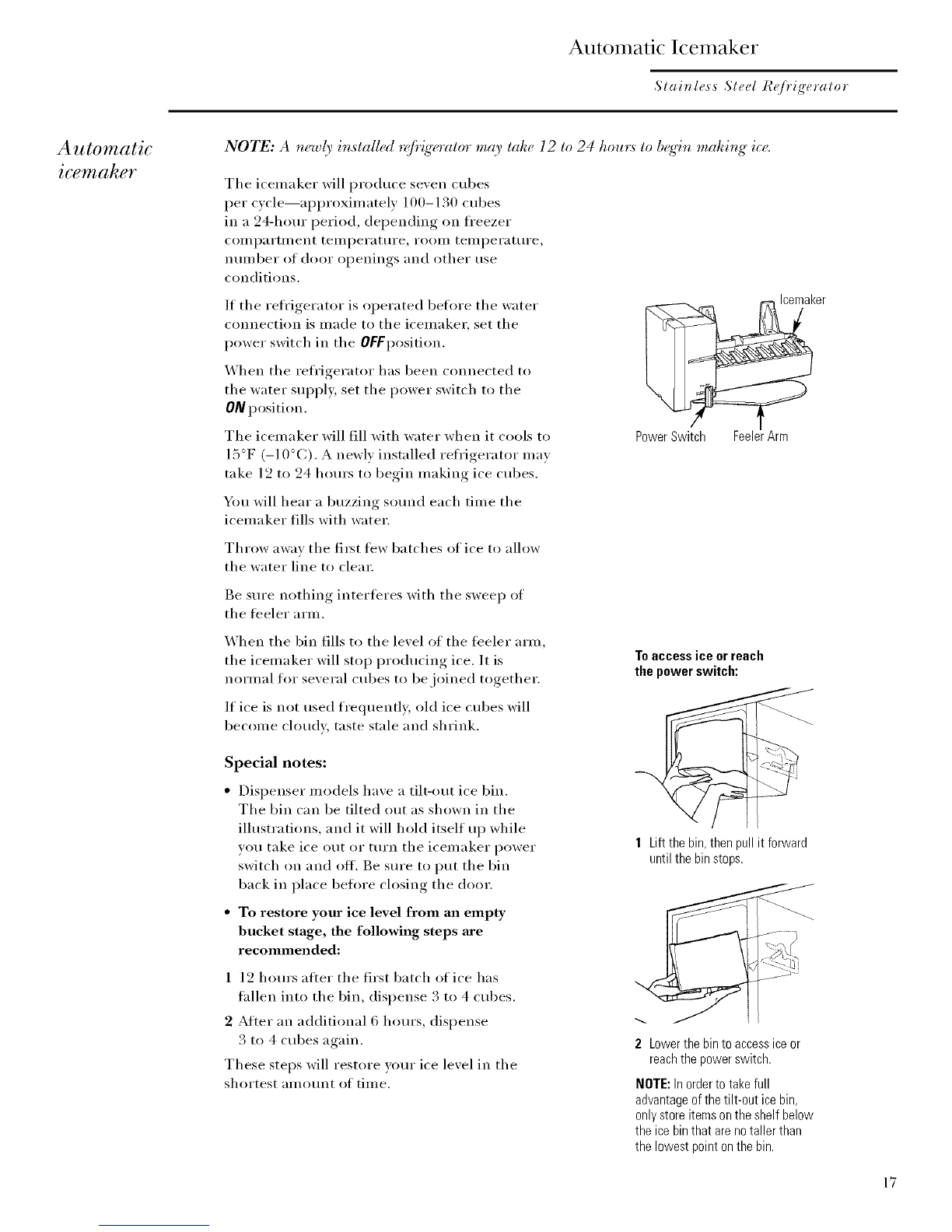

Automatic Icemaker
Stainless Steel R_/}'ig'eralor
Automatic
icemaher NOTE: A newly installed _z[f!igerator may take 12 to 24 hours to begin making ice.
The icemaker will produce seven cubes
per cycle--approximately 100-130 cubes
in a 24-horn" period, depending on freezer
COil/l)ai'til/ent teilll)ei'attli'e _ i'OOil/ teilll)ei'attlYe _
nmnber of door openings and other use
conditions.
If the refl'igerator is operated betore the water
connection is made to the icemakei; set the
power switch in the 0FFposition.
When the refrigerator has been connected to
the water sui)ply; set the power switch to the
0/7 position.
The icemaker will fill with water when it cools to
15°F (-10°C). A newly installed refl'igerator may
take 12 to 24 hours to begin nmking ice cubes.
You will hear a buzzing sound each tilne the
icelnaker fills with water.
Icemaker
PowerSwitch FeelerArm
Throw awav the first few batches of ice to allow
the water line to cleai:
Be sure nothing interteres with the sweep of
the libeler arm.
When the bin fills to the level of the teeler arm,
the icemaker will stop producing ice. It is
normal ti)r several cubes to be joined together.
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
Toaccessice orreach
the power switch:
Special notes:
• Dispenser models have a tilt-out ice bill
The bin can be tilted Otlt as shown in the
illustrations, and it will hold itself up while
w)u take ice Otlt or ttlrn the icemaker power
switch on and off. Be sure to put the bin
back in place beflwe closing tile door.
• To restore your ice level from an empty
bucket stage, the following steps axe
recommended:
1 19 hours after the first batch of ice has
fallen into the bill dispense 3 to 4 cubes.
2After an additional 6 hours, disl)ense
3 to 4ctlbes again.
These steps will restore yore" ice level in the
shortest amotmt of time.
ILiftthe bin,thenpull it forward
untilthe binstops.
2 Lowerthebinto accessiceor
reachthepowerswitch.
NOTE:Inorderto takefull
advantageofthe tilt-out icebin,
onlystoreitemsontheshelfbelow
the icebinthat arenotallerthan
the lowestpointonthebin.
17

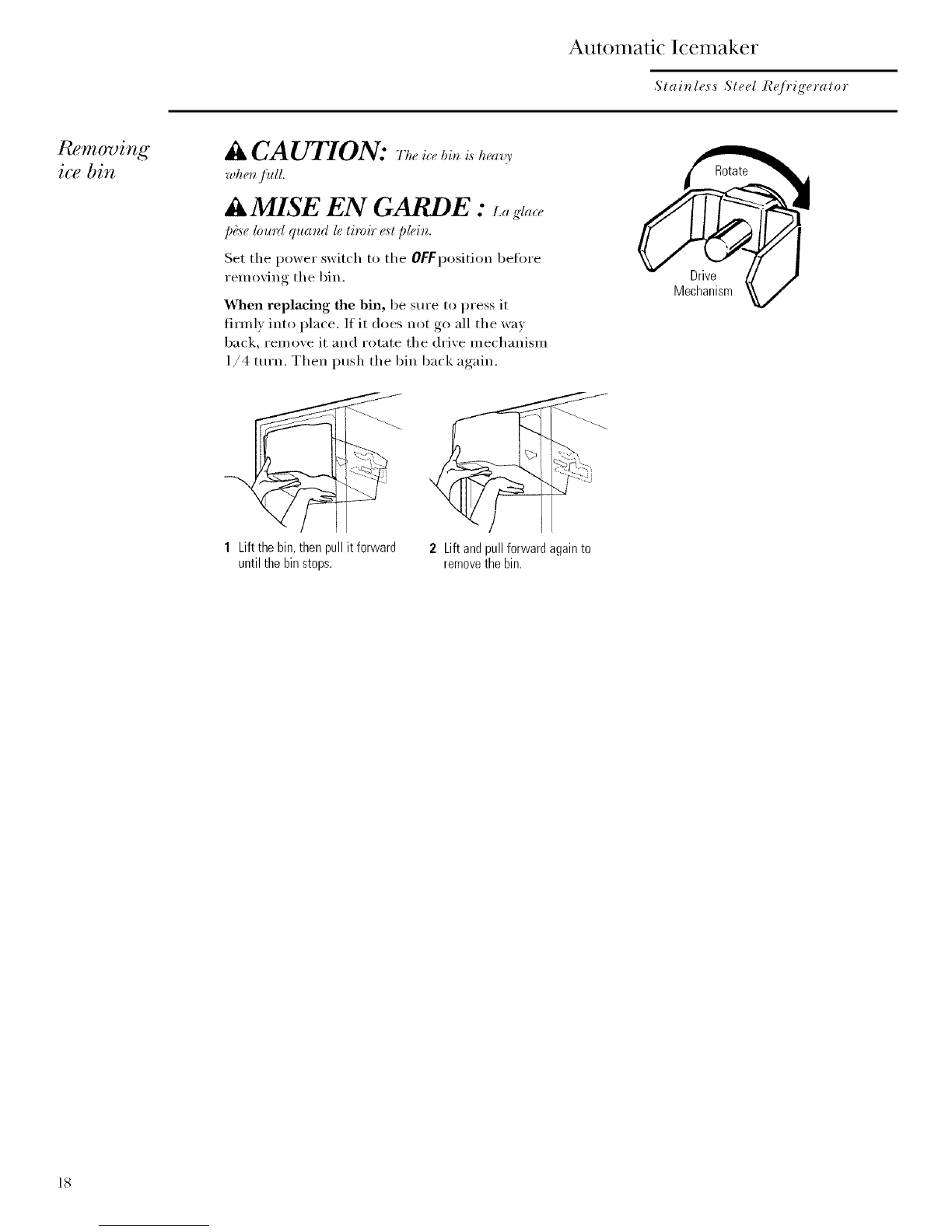

Automatic Icemaker
Stait_less ,Steel I_eJ}'igerator
Pu?moving
ice bin CAUTION: theiceI,i.i.,he_.,,,
wher_,fidl.
&MISE EN GARDE :L,,gl,.e
/)_?,_eh>m'd quar_d le timiv e_t /)lei_z.
Set the power switch to the OFFposition before
removing the bin.
When replacing the bin, be sure to press it
firmly into place. If it does not go all the way
back, remove it and rotate the drive mechanism
1/4 turn. Then push the bin back again.
1 Liftthe bin,then pullit forward
untilthe binstops. 2 Liftandpull forwardagainto
removethe bin.
18

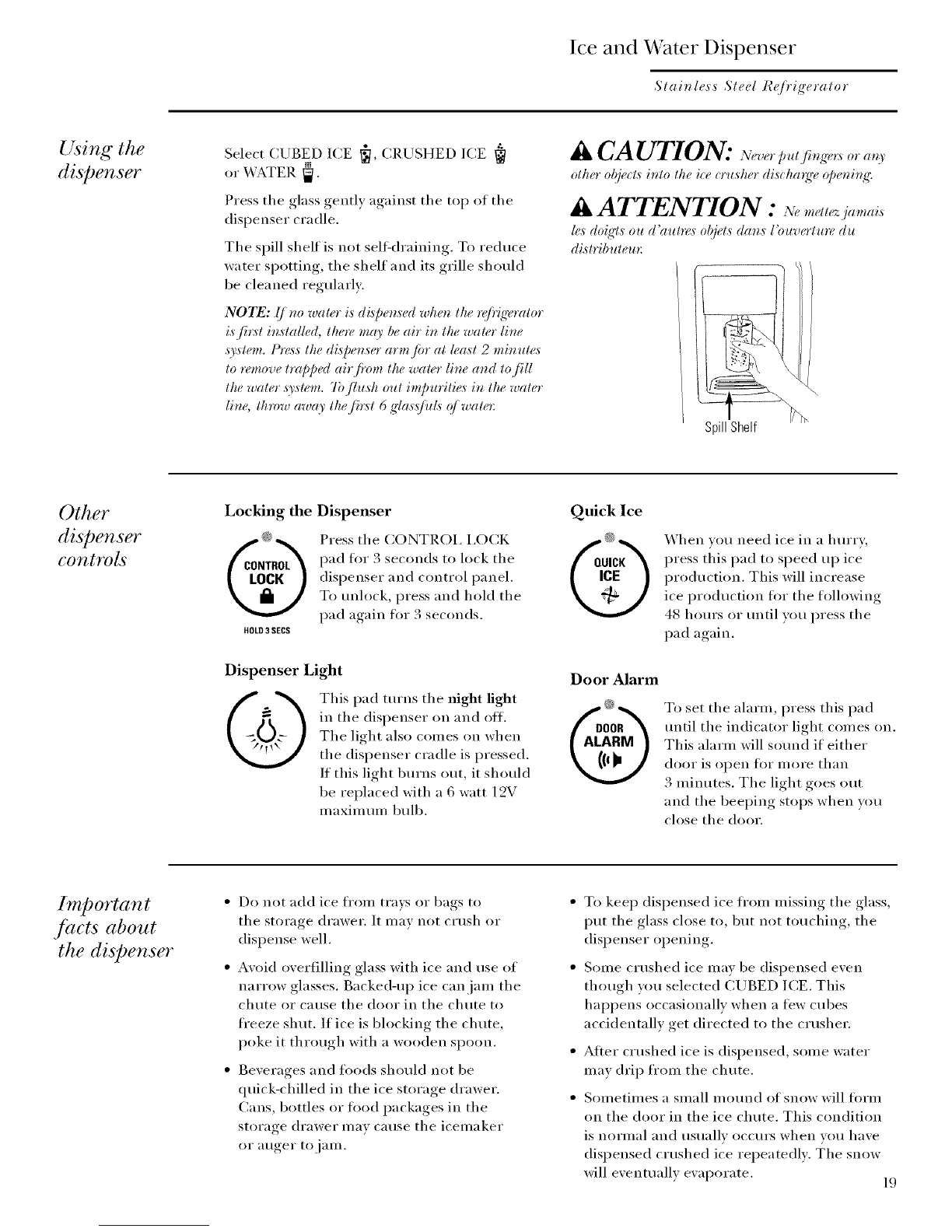

Ice and Water Dispenser
Slainless Sled H_/}'igeralor
Using the
dispenso Select CUBED ICE _, CRUSHED ICE (7i"WATER _.
Press the glass gently against the top of the
dispenser cradle.
The spill shelf is not sel6draining. To reduce
water spotting, the shelf and its grille should
be cleaned regularly:
NO_I_: (/no wa/er is di@en,v<d wken the n_4wrator
is fil:st in,stalled, there mrO' be air in the water line
O'stem. 15"e,_sthe dispenser arm fin' at leasl 2 minute,_
to n<move trapped air f_>m the "wa#r line and to fig
lhe water s3'slem. 7bflush oul impurilim in the waler
lint,, throw away the fi*:sl 6 g'las_d,s q/ wa#*:
&CA UTION: >,,el of.,,>
olker o[_jecl,sinlo lke it e (rusker, dis( kalg'e, o[)eninq',
ATTENTION :
les doig'ls ou d'aulre,_ ol{jels dan,_ l'ouverhcre du
dish'ibuleul:
\
Spill Shelf
Other
dispenso
controls
Locking the Dispenser
T
HOLD3 SECS
Press tile CONTROI, I,OCK
pad ti)r 3 seconds to lock tile
dispenser and control panel.
To unlock, press and hold tile
pad again ti)r 3 seconds.
Dispenser Light
This pad turns tile night light
in tile dispenser on and off.
Tile light also Colnes on when
the dispenser cradle is pressed.
If this light burns out, it should
be replaced with a 6 watt 12V
nmxinl uin bulb.
Quick Ice
Door Marm
00R \
nM I
When vou need ice in a hurry;
press this pad to speed up ice
ITroduction. This will increase
ice production tor the following
48 hours or until vou press tile
pad again.
To set tile alarm, press this pad
until the indicator light comes on.
This alarm will sound if either
door is opell for ll/Oi'e thall
3 minutes. The light goes out
and the beeping stops when you
close the door.
hnp orta n t
fitcts about
the dispenso
• Do not add ice fl'Oln ti'ax:s (7I"bags to
tile storage drawer. It may not ciush or
dispense well.
• Avoid overfilling glass with ice and use of
narrow glasses. Backed-up ice can jam the
chute or Catlse the door in tile chute to
ti'eeze shut. If ice is blocking the chute,
poke it through with a wooden spoon.
• Beverages and foods should not be
quick-chilled in the ice storage drawer.
Cans, bottles or food packages in tile
storage drawer may cause the icemaker
(7I" atlger tojaln.
• To keep dispensed ice fl'om missing tile glass,
put tile glass close to, but not touching, tile
dispenser opening.
• Sonle cIushed ice nlav be dispensed even
though you selected CUBED ICE. This
hai)i)ens occasionally when a few cubes
accidentally get directed to the ci usher.
• After Clushed ice is dispensed, SOlne water
may drip fl'om tile chute.
• Sonmtimes a slnall inound of snow will fOrln
on tile door in tile ice chute. This condition
is i_ornml and usually occtlrs when you have
dispensed ciushed ice repeatedly. The snow
will eventually ewqTorate. 19

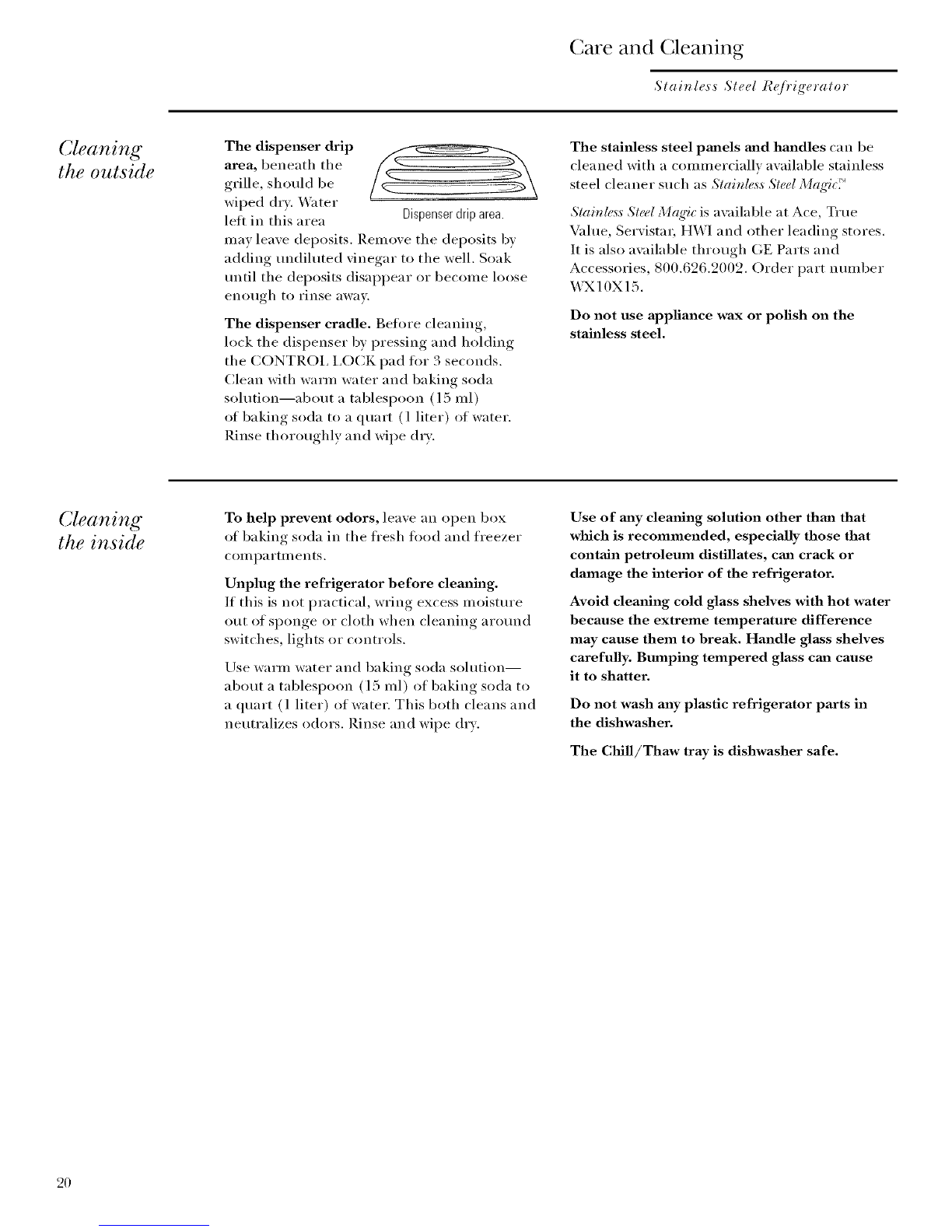

re and (;leaning
Slainless Sleel I_(/}'ig'e*'alo*"
Cleaning
the outside
The dispenser drip
area, beneath tile
grille, should be
wiped dry. _.V_ter
leti in this area Dispenserdriparea.
may leave deposits. ]_emove tile deposits by
adding undiluted vinegar to the well. Soak
until tile deposits disappear or become loose
enotlgh to rinse _l_V_lV.
The dispenser cradle. Betore cleaning,
lock the dispenser by pressing and holding
the CONTROl, I,OCK pad fin" 3 seconds.
Clean with warm water and baking soda
solution--about a tablespoon (l 5 ml)
of baking soda to a (lUalt (l liter) of water.
Rinse thoroughly and wipe dry.
The stainless steel pmmls mad handles ca n be
cleaned with a commercially awfilable stainless
steel cleaner such as Stainle,ss St¢¢1Alag'i(_"
Stainless Steel Maq4_ is awfilable at Ace, Tree
Value, Servistar, HWI and other leading stores.
It is also awfilable through GE Parts and
Accessories, 800.626.2002. Order part number
X._3X10X15.
Do not use appliance wax or polish on the
stainless steel.
Cleaning
the inside To help prevent odors, leave an open box
of baking soda in tile fl'esh tood and freezer
COU/l)_l I'tU/en is.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture
otlt of sponge or cloth when cleaning arotlnd
switches, lights or controls.
Use warm water and baking soda solution--
about a tablespoon (l 5 ml) of baking soda to
a quart (l liter) of water. This both cleans and
neutralizes odors. Rinse and wipe (hw.
Use of any cleaning solution other than that
which is recommended, especially those that
contain petroleum distillates, can crack or
damage the interior of the refrigerator.
Avoid cleaning cold glass shelves with hot water
because the extreme temperature difference
may cause them to break. Handle glass shelves
carefully. Bumping tempered glass can cause
it to shatter.
Do not wash any plastic refrigerator parts in
the dishwasher.
The Chill/Thaw tray is dishwasher safe.
2O
