GEARUP F-172 User manual

1
F-172 Transmitter (MP3 Player) USER MANUAL
F-172 Feature
•Supply SD card, USB input and audio jack to connect with MP3/MP4.
•Supply MP3 and WMA format.
•Read USB and SD card directly.
•LED display – shows frequency information.
•Full frequencies closeable (88.1 – 107.9 MHz).
•Frequency and song memory function.
•Save transmitting frequency and broadcast.
•Use of rotating shaft: convenient use.
•Fashion and attractive appearance.
•Restored last frequency, track number and volume by restart.
Operation
1. Insert transmitter to 12V car cigarette socket power.
2. USB/SD card insert to USB/SD card jack; or using audio-line end to connect to
transmitter; the other end connect to other equipment’s audio output jack (e.g.:
MP3, CD)
3. When connected, transmitter plays music automatically and display shows the
frequency. About 30 seconds the screen will turn off automatically.
By pressing any key display is recovered. By pressing the LED flashes.
4. “CH” key switchs between emission frequency and selected song. Press key
while music plays: display shows current frequency. Press key: 
frequency moves to the next point. Press key: frequency moves to previous
point.
5. By pressing button: broadcasting music pauses; pressing again resumes
playing.
6. By pressing key: previous program plays. By pressing the key for some
seconds, volume is reduced.
7. By pressing key: broadcast of next program. By pressing the key for some
seconds, volume is increased.
8. No audio signal: device shut down automatically after 55 seconds.

2
Declaration of Conformity
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation of the device.
Modification Statatement
changes or modifications not expressly approved by the party responsible for
compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

3
20 Key Remote Control
Play / Pause Start / Stop the music
CH ( -- ) Frequency down
CH ( + ) Frequency up
EQ Changes sound characteristic:
Normal (default) ÆRock ÆPop Æ
Classic ÆJazz ÆBlues ÆHall Æ
Bass ÆSoft ÆCountry ÆOpera
Volume ( -- ) Volume down
Volume ( + ) Volume up
PREV Previous track
NEXT Next track
0123456789 Number keys for setting the
frequency and picking songs
Pick Song Confirms picking a song after
selection with the number keys
CH Set Confims setting the frequency after
selection with the number keys
Operation Illustration:
1. The FM Transmitter has 206 frequencies (88.1 – 107.9 MHz) to use.
Usage of the number keys (0-9) to select a frequency.
Then press CH SET key to confirm and save the frequency.
2. Usage of the number keys (0-9) to select the music track number.
Then press PICK SONG key to confirm.
3. Every time EQ is pressed the sound characteristics are changed:
NORMAL (default setting) ÆROCK ÆPOP ÆCLASSIC ÆJAZZ ÆBLUES
ÆHALL ÆBASS ÆSOFT ÆCOUNTRY ÆOPERA.
Press long EQ key and the system returns back to NORMAL.

4
4. Last settings for volume, FM-transmission-frequency and music track are
stored when the device is powered off.
5. USB and SD-card can both be connected to the device. The first medium
connected, either USB or SD-card, is played. To select the other medium, the
first one must be disconnected.
6. When an external audio device is connected to the audio-in jack, the playback
from USB or SD-card stopps automatically and cannot be started or paused by
pressing the PLAY/PAUSE button.
Replacing the Remote Control Battery

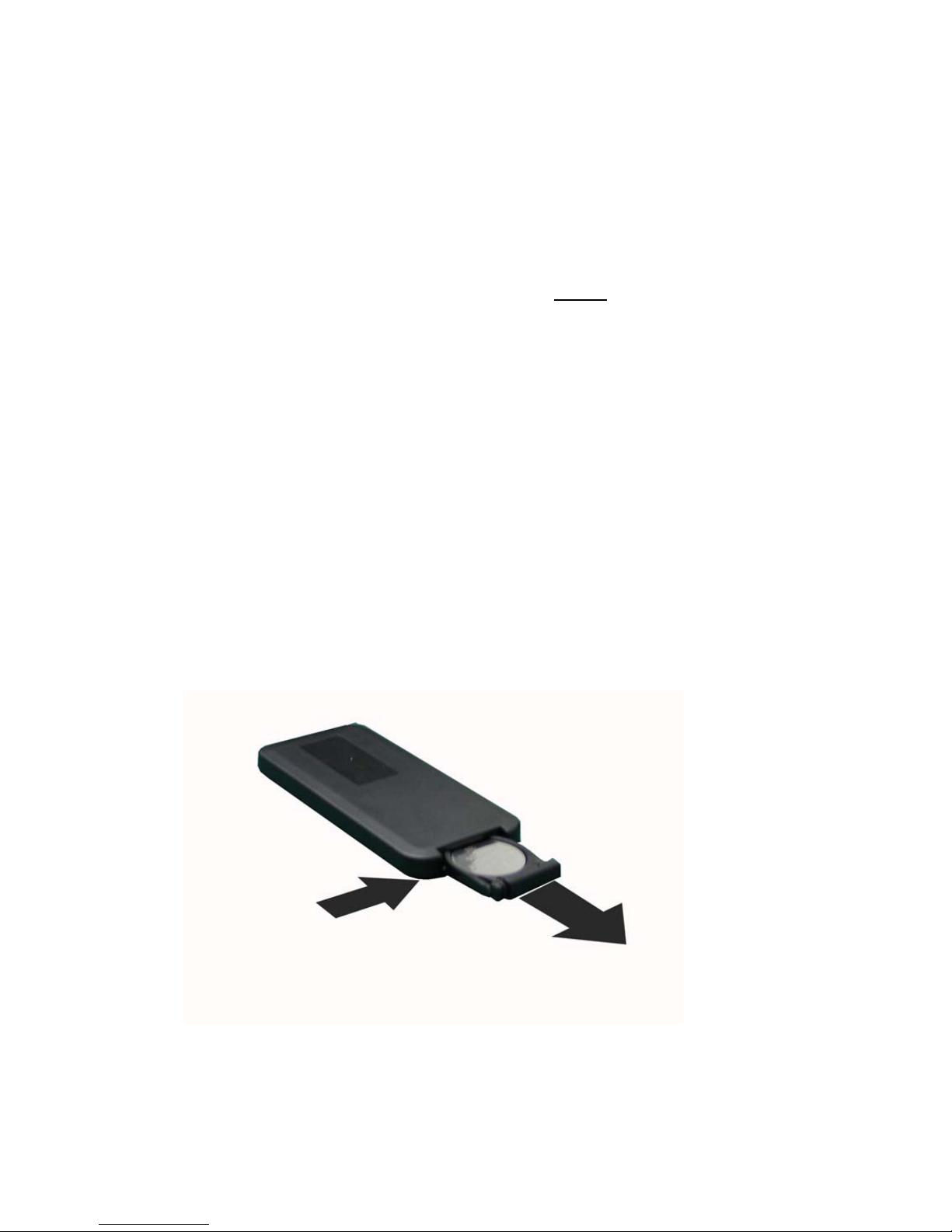

1) Remove the battery compartment cover by pulling the cover in the direction of
the arrow.
2) Remove the battery.
3) Insert the replacement battery.
Keep attention on the direction of the correct polarization (+/-).
4) Put the cover back to the battery compartment.

5
Technical Parameters
◆ Storage temperature: -5℃up to +45℃
◆ Working conditions temperature: 0℃up to +40℃
◆ Operation relative humidity: 20% - 90% (40℃)
◆ Storage relative humidity: 20% - 93% (40℃)
◆ EMI standard: FCC (class B)
◆ Supply voltage: 12V DC power
◆ Electric current: 12V (normal working)＜100mA
◆ Bit rate: 32Kbps – 256Kbps
◆ FM transmitting frequency: 88.1 – 107.9 MHz
◆ Transmitting frequency options: Press CH key to switch channels
(can be stored in advance).
◆ Frequency response: 30 – 15 KHz ± 3db
◆ SNR (Signal to Noise Ratio): 30db
◆ Harmonic distortion: ≤1%
◆ Transmitting distance: 3 – 5 m
◆ For continuing broadcast: Programme starts broadcast again from
last stop.
