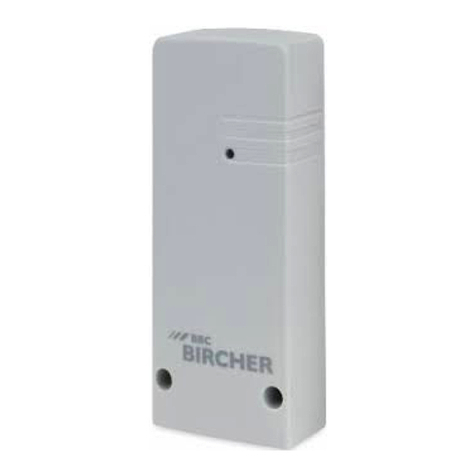

BBC Bircher XRF-T.2 Operating instructions

1
XRF-T.2
1 2
ON
1 2
ON
1 2
ON
1 2
ON
IN1 IN2 *
IN1 IN2 *
8k2 8k2
IN1 IN2 *
8k2
8k2
IN1 IN2 *
8k2
LED
i
50
121
23
5
i
  
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
50
121
23
5
50
121
23
4.2
5.7 4.2
22
106
50
125
23
106
22
ON
1 2
Transmitter to wireless signal transmisssion system for safety edges
Supplementary sheet to the original operating instructions
Intended use: Monitoring safety edges on doors and gates, in combination with the XRF-Rx receiver
1Installation
ENGLISH
404300C
07/20
Transmitter (Tx) Option with connector for
external antenna
Battery
CR2450N
DIP-
switch
Push
button
= safety edge(factory setting) = switch (NO or NC: see 2.2)
DIP switch setting according to sensors (safety edge, switch)
2.1 DIP switch setting
*IN2 is only active when used with dual channel application (see receiver manual)
2Wiring / set-up
Conductor cross section 0.25 – 0.75 mm2
Space
to open cover
1.1 Cable routing, strain relief
Determine the cable routing
Break out the respective part of the cover if necessary
 Punch hole into the grommet
 Insert cable
… or use holes
in the base plate
Break out …
Hint:
1.2 Space to open cover
Cable Ø: 3.1 – 5.2 mm

2
 a a
 b b
3 V
LITHIUM
CR2450N
+
 
2x
Designed in Switzerland / Made in China
BBC Bircher Smart Access, BBC Bircher AG, Wiesengasse 20, CH-8222 Beringen, www.bircher.com

2x = NC
2x = NC
4x = NO
4x = NO
NC NO
OK?
3x
3Pairing
Put on the cover (slide, then push down)
Attach the screws
System test mandatory!
Dispose battery according to local regulations
 Loosen the two screws
Open housing (lift, then slide)
 Remove battery
 Insert new battery (take polarity into account)
4Trouble shooting
3.1.a Pairing at open state 3.1.b Pairing in mounted state
4.2 Battery change
After initating pairing on Rx:
Press button
(see receiver manual)
After initiating pairing on Rx,
press the edge two times
within 2 sec.
5Technical data
Transmitter
Battery power 1x Lithium 3 V Type (CR2450N)
Battery life Typ. 1.2 years *
Operating frequency 868.3 MHz
6EU Declaration of Conformity
8Contact
7WEEE
See attachment
Pairing is possible with open cover or later in mounted situation.
Devices with this symbol must be treated separately du-
ring disposal. This must be done in accordance with the
laws of the respective countries for environmentally
sound disposal, processing and recycling of electrical and
electronic equipment.
2.2 How to change inputs from NC to NO (factory setting = NC) / not for 8k2 applications
1.
Insert
battery
2.
Status
3.
Change
4.
Change stored
Press button on
transmitter
Status
changes
LED ashes
LED ashes
1.5 sec.
Wait
10 sec.
4.1 Warning indicator for low battery voltage
To nd out which transmitter
has low battery voltage:
Press each edge.
Every minute Battery good Battery bad
Beep
3.2 System check
Check the system by pressing the safety edge
* Recommendation: Change battery every year.
Beep
Note:
When using the NC inputs the wiring with
the sensor must be permanently installed
and protected against external damage
according to EN ISO 13849-2 Tab. D.4.
