INTRODUCTION
INTRODUCTION
The GECKO® PASSION MP 311S cardioid dynamic microphone sets the highest professional standards and
offers the most natural performances for both vocal and instrument miking applications.
Equipped with a low noise neodymium magnet for high output, and a multi-stage grille design for excellent
protection against plosives, this super-durable microphone is built to stand up to demands on the road. Its
cardioid polar pattern reduces pickup of sounds from the sides and rear, maximizing isolation from other
sound sources and minimizing feedback.
* designed for smooth, natural vocal and instrumental reproduction;
* rugged, all-metal design and construction for years of trouble-free use;
* tailored for professional live and studio applications;
* excellent off-axis rejection for minimum feedback.
______________________________________________________________________________________
1
1
© GECKO MUSIC GROUP. All Rights Reserved.

MICROPHONE ELEMENTS
MICROPHONE ELEMENTS

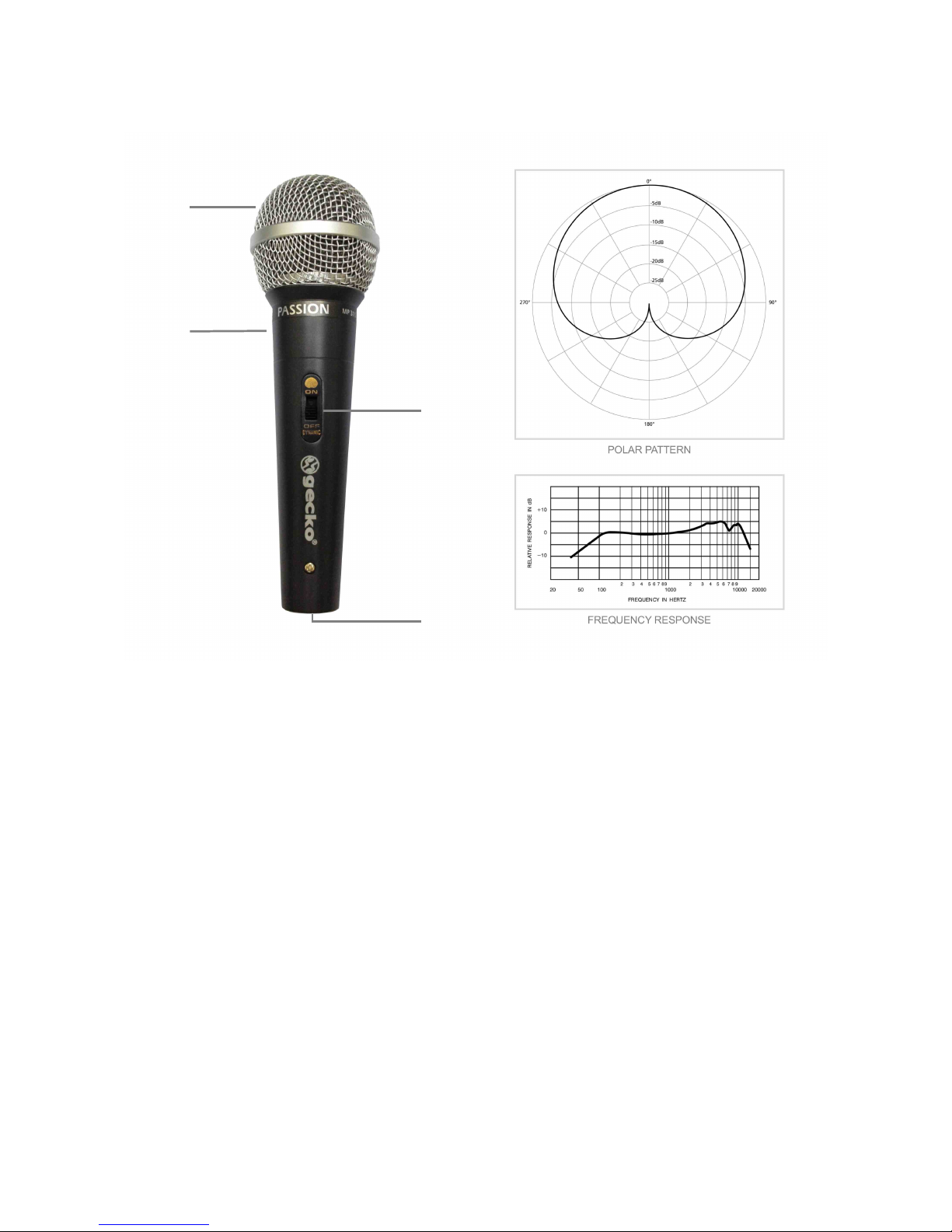

1. SPHERICAL METAL MESH GRILLE
To protect the microphone capsule from possible damage caused by external factors. It is also pop-filtered
from the inside to reduce the plosive effects.
2. DIECAST METAL BODY
This diecast metal body is designed to withstand on-the-road abuses for years of trouble-free use.
3. NOISELESS ON / OFF SWITCH
To power ON / power OFF the microphone.
4. INTEGRAL XLR MALE CONNECTOR
The GECKO® PASSION MP 311S has a balanced XLR (male) output. Positive pressure on diaphragm
produces positive voltage on Pin 2 with regards to Pin 3. See the next section “CONNECTING AND
DISCONNECTING THE MICROPHONE”.
______________________________________________________________________________________
2
2
© GECKO MUSIC GROUP. All Rights Reserved.
2
1
2
3
4

CONNECTING AND DISCONNECTING THE MICROPHONE
CONNECTING AND DISCONNECTING THE MICROPHONE

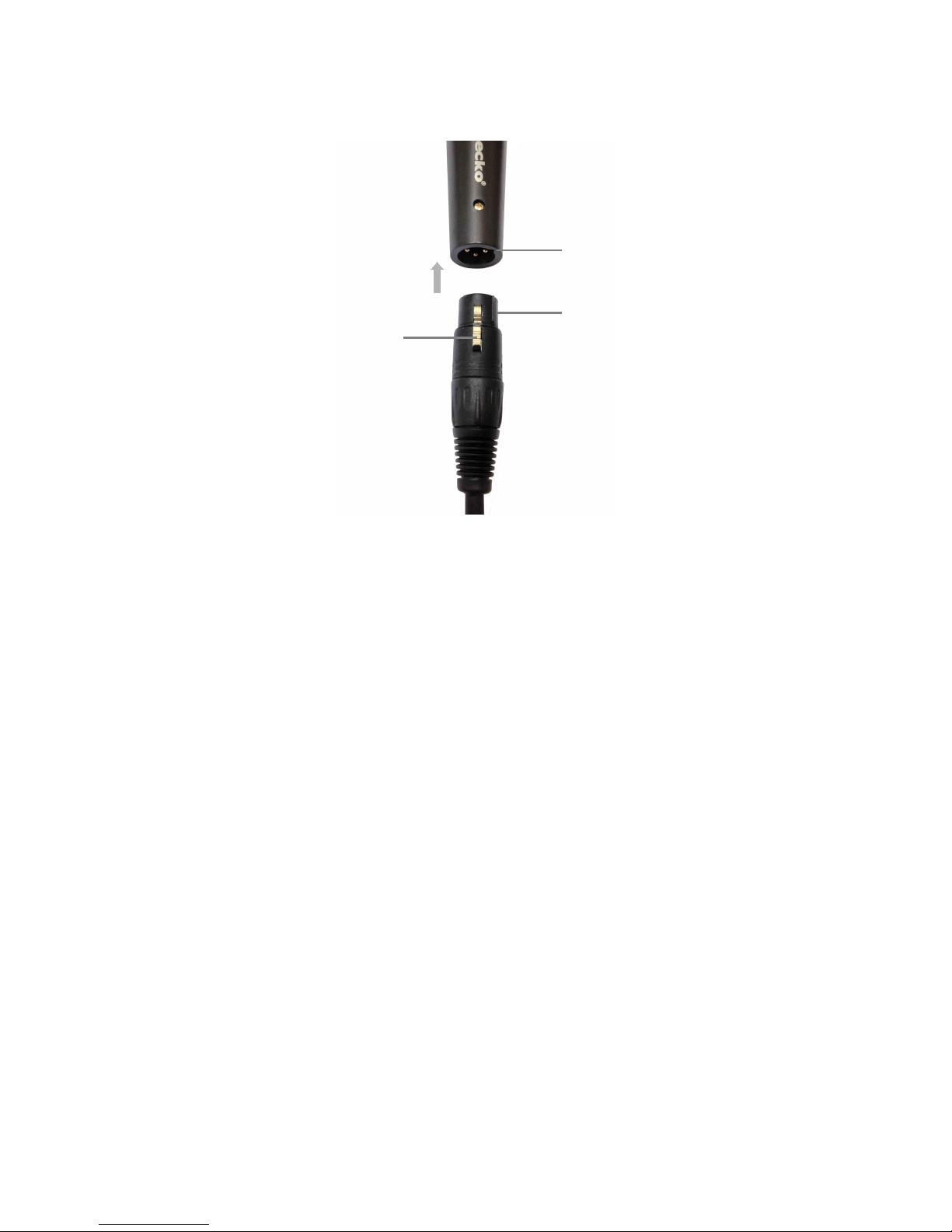

1. Insert the XLR (female) connector into the microphone as shown above. If necessary, rotate the
connector to align the key on the connector and the groove in the microphone. Push the connector
into the microphone until it clicks.
2. If you are connecting to a balanced audio device, be sure to use balanced configuration on the XLR
and TRS type connectors. Pin 1 (Shield) = Ground, Pin 2 (Tip) = Positive (Hot), Pin 3 (Ring) =
Negative (Cold). If you are connecting to an unbalanced audio device, make sure you bridge Pin 1
and Pin 3 on the connectors.
3. To unplug the connector from the microphone, press the tab before pulling the connector out from
the microphone.
______________________________________________________________________________________
3
3
© GECKO MUSIC GROUP. All Rights Reserved.
Groove
Key
Tab

MICROPHONE USE
MICROPHONE USE
1. Turn ON the microphone by sliding the switch to “ON”. Turn OFF the microphone by sliding the
switch to “OFF”. Keep the switch in the “OFF” position while connecting or disconnecting the
microphone from your audio device.
2. For vocal use, hold the microphone by its handle. Avoid holding the microphone grille. See pictures
above.
3. Position the microphone grille one to two inches (2cm - 5cm) away from the mouth. Move farther
away from the microphone to produce a more balanced, natural sound. Move closer to the
microphone to enhance low frequency (bass) response.
4. To minimize the chance of feedback (a loud howling or squealing noise), position the microphone
beside or behind loudspeakers.
5. The GECKO® PASSION MP 311S can be also used for instrument miking, i.e. strings, woodwinds,
brasses, percussions, and also backline amplifiers miking.
______________________________________________________________________________________
4
4
© GECKO MUSIC GROUP. All Rights Reserved.
CORRECT HANDLING WRONG HANDLING

SPECIFICATIONS
SPECIFICATIONS
Element:
Dynamic
Polar Pattern:
Cardioid
Frequency Response:
50Hz ~ 15kHz
Sensitivity:
2.5mV/Pa
Output Impedance:
600Ω
Switch:
Noiseless 2-Position ON / OFF
Output Connector:
Integral XLR Male
Accessories:
Microphone Bag
Physical Properties:
Finish: Diecast Metal Body, Spherical Steel Mesh Grille (Pop-Filtered)
Color: Metallic Grey (Body), Silver (Spherical Steel Mesh Grille)
Net Weight: 233g
Dimension: (L) 170mm x (∅) 53.50mm
Specifications subject to change without prior notice. Manufactured under ISO9000 certified management
system.
______________________________________________________________________________________
5
5
© GECKO MUSIC GROUP. All Rights Reserved.

GECKO
GECKO® ® TERMS OF WARRANTY TERMS OF WARRANTY
WARRANTY:
GECKO MUSIC GROUP warrants its GECKO® products for a period of one (1) year from the original date of
purchase, in accordance to the warranty regulations described below.
WHAT IS COVERED:
During the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in
materials and workmanship and against malfunctions. GECKO MUSIC GROUP will remedy all such defects
and malfunctions without charge for parts or labour if the warranty applies. In the case that other parts are
used which constitutes an improvement, GECKO MUSIC GROUP may, at its discretion, charge the customer
for the additional cost of these parts. Final determination of warranty coverage lies solely with GECKO
MUSIC GROUP.
WHAT IS NOT COVERED:
1. If the product needs to be modified or adapted in order to comply with applicable technical or safety
standards on a national or local level, in any country which is not the country where the product was
originally developed and manufactured, this modification/adaptation shall not be considered a defect in
material or workmanship.
2. Normal wear and tear, in particular, of faders, cross faders, potentiometers, keys/buttons, valves,
guitar/bass strings, machine heads, pick-up covers, vinyl covers, illuminants, and similar parts are not
covered by this warranty.
3. Improper handling, neglect or failure to operate the unit in compliance with the instructions given in the
user or service manuals.
4. Connection or operation of the unit in any way that does not comply with the technical or safety
regulations applicable in the country where the product is used.
5. Damages/defects caused by force of nature or any other condition that is beyond the control of GECKO
MUSIC GROUP.
6. Any repair or opening of the unit carried out by unauthorized personnel (user included) will void the
warranty.
7. Modification or removal of serial numbers.
OBTAINING WARRANTY SERVICE:
To return a GECKO® product for warranty service, first fill out the Product Defect Report on the
www.geckomusic.net website and submit for an authorization/service number. Write the
authorization/service number so that it is prominently displayed on the outside of the shipping carton. Any
products received without an authorization/service number that is clearly visible upon arrival at the factory
will be refused. Enclose proof of the original delivery date or a copy of the original sales receipt/invoice.
Enclose a description of the suspected defect or malfunction and the condition, if any, which caused the
problem. Return the product to GECKO MUSIC GROUP.
WARRANTY SHIPPING:
You are responsible for prepaying shipping costs F.O.B. GECKO MUSIC GROUP, Melaka, Malaysia.
Shipped product(s) must be properly packaged. Use original shipping cartons and packing materials where
possible. GECKO MUSIC GROUP is not responsible for damages resulting from inadequate and or improper
packing. Products received with damages due to improper packaging will be deemed out of warranty.
______________________________________________________________________________________
6
6
© GECKO MUSIC GROUP. All Rights Reserved.

Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense.
GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written
repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O.D. with a
separate invoice for freight and packing. Such costs will also be invoiced separately when the buyer has sent
in a written repair order.
WARRANTY RIGHTS:
This warranty is exclusive and extended to the original buyer and is not transferable to anyone who may
subsequently purchase this product. No other person (apart from authorized GECKO® Music Stores) shall
be entitled to give any warranty promise on behalf of GECKO MUSIC GROUP.
______________________________________________________________________________________
7
7
© GECKO MUSIC GROUP. All Rights Reserved.
