Gehl Z17 GEN:2 User manual

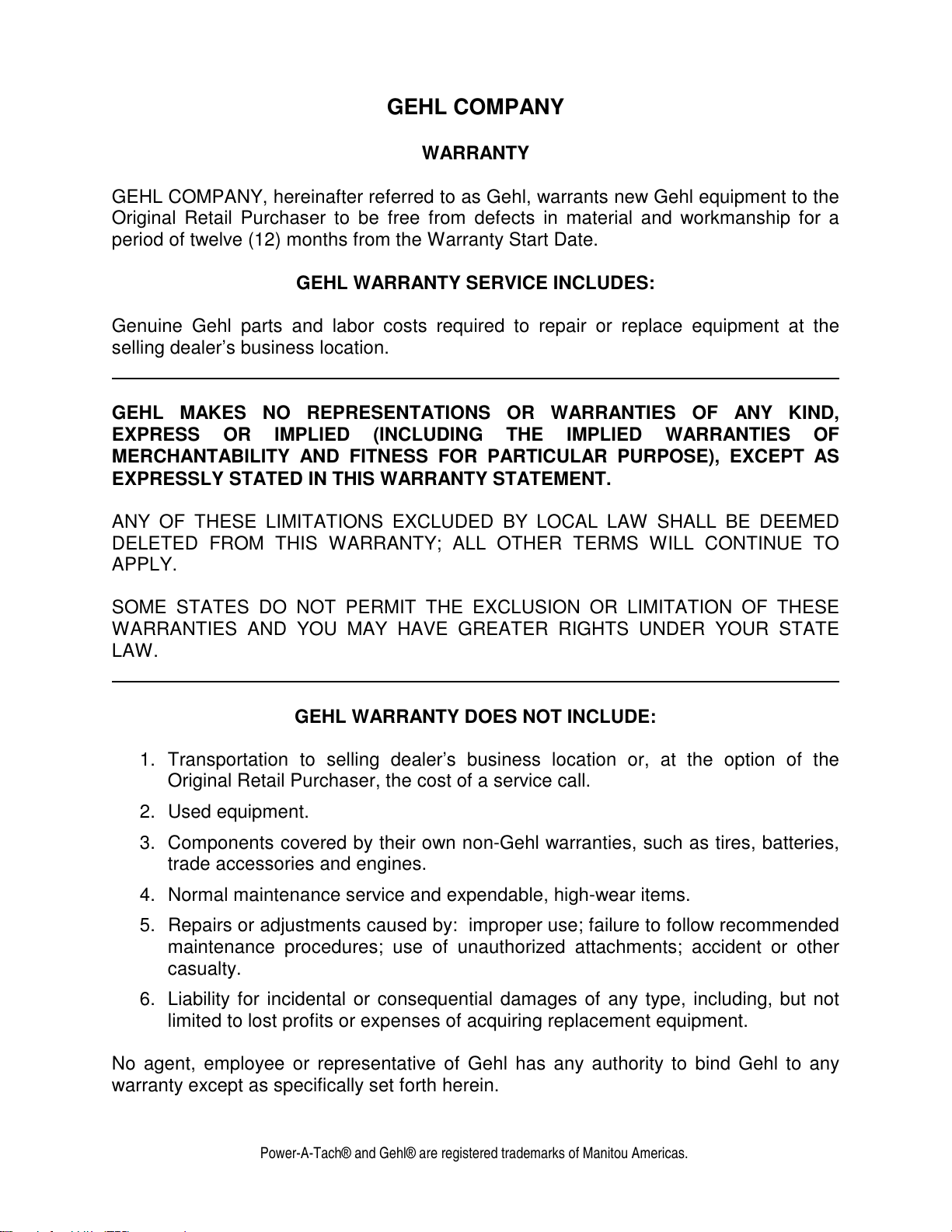

GEHL COMPANY
WARRANTY
GEHL COMPANY, hereinafter referred to as Gehl, warrants new Gehl equipment to the
Original Retail Purchaser to be free from defects in material and workmanship for a
period of twelve (12) months from the Warranty Start Date.
GEHL WARRANTY SERVICE INCLUDES:
Genuine Gehl parts and labor costs required to repair or replace equipment at the
selling dealer’s business location.
GEHL MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND,
EXPRESS OR IMPLIED (INCLUDING THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE), EXCEPT AS
EXPRESSLY STATED IN THIS WARRANTY STATEMENT.
ANY OF THESE LIMITATIONS EXCLUDED BY LOCAL LAW SHALL BE DEEMED
DELETED FROM THIS WARRANTY; ALL OTHER TERMS WILL CONTINUE TO
APPLY.
SOME STATES DO NOT PERMIT THE EXCLUSION OR LIMITATION OF THESE
WARRANTIES AND YOU MAY HAVE GREATER RIGHTS UNDER YOUR STATE
LAW.
GEHL WARRANTY DOES NOT INCLUDE:
1. Transportation to selling dealer’s business location or, at the option of the
Original Retail Purchaser, the cost of a service call.
2. Used equipment.
3. Components covered by their own non-Gehl warranties, such as tires, batteries,
trade accessories and engines.
4. Normal maintenance service and expendable, high-wear items.
5. Repairs or adjustments caused by: improper use; failure to follow recommended
maintenance procedures; use of unauthorized attachments; accident or other
casualty.
6. Liability for incidental or consequential damages of any type, including, but not
limited to lost profits or expenses of acquiring replacement equipment.
No agent, employee or representative of Gehl has any authority to bind Gehl to any
warranty except as specifically set forth herein.
Power-A-Tach® and Gehl® are registered trademarks of Manitou Americas.
Courtesy of Machine.Market
0-1

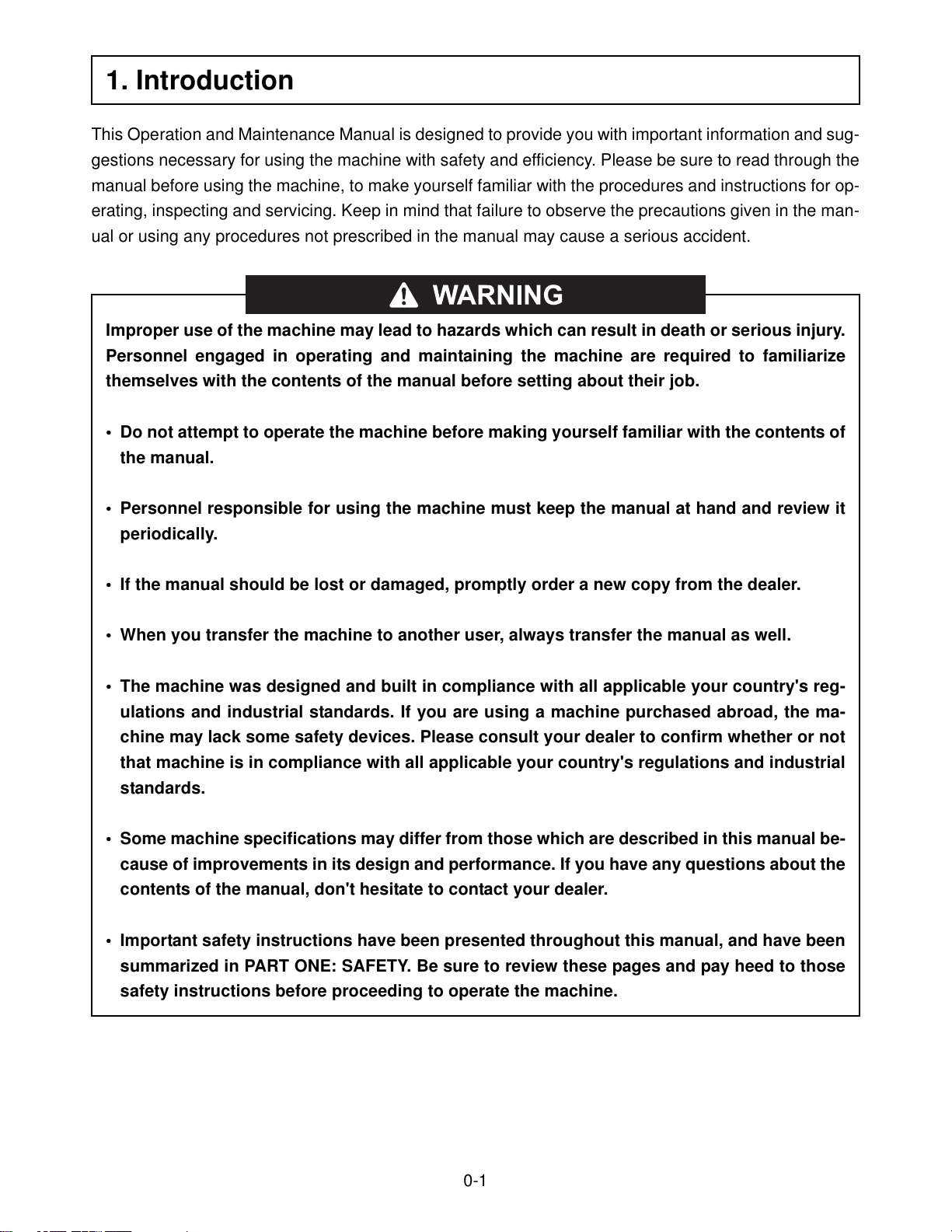

1. Introduction
This Operation and Maintenance Manual is designed to provide you with important information and sug-
gestions necessary for using the machine with safety and efficiency. Please be sure to read through the
manual before using the machine, to make yourself familiar with the procedures and instructions for op-
erating, inspecting and servicing. Keep in mind that failure to observe the precautions given in the man-
ual or using any procedures not prescribed in the manual may cause a serious accident.
Improper use of the machine may lead to hazards which can result in death or serious injury.
Personnel engaged in operating and maintaining the machine are required to familiarize
themselves with the contents of the manual before setting about their job.
• Do not attempt to operate the machine before making yourself familiar with the contents of
the manual.
• Personnel responsible for using the machine must keep the manual at hand and review it
periodically.
• If the manual should be lost or damaged, promptly order a new copy from the dealer.
• When you transfer the machine to another user, always transfer the manual as well.
• The machine was designed and built in compliance with all applicable your country's reg-
ulations and industrial standards. If you are using a machine purchased abroad, the ma-
chine may lack some safety devices. Please consult your dealer to confirm whether or not
that machine is in compliance with all applicable your country's regulations and industrial
standards.
• Some machine specifications may differ from those which are described in this manual be-
cause of improvements in its design and performance. If you have any questions about the
contents of the manual, don't hesitate to contact your dealer.
• Important safety instructions have been presented throughout this manual, and have been
summarized in PART ONE: SAFETY. Be sure to review these pages and pay heed to those
safety instructions before proceeding to operate the machine.
Courtesy of Machine.Market
0-2

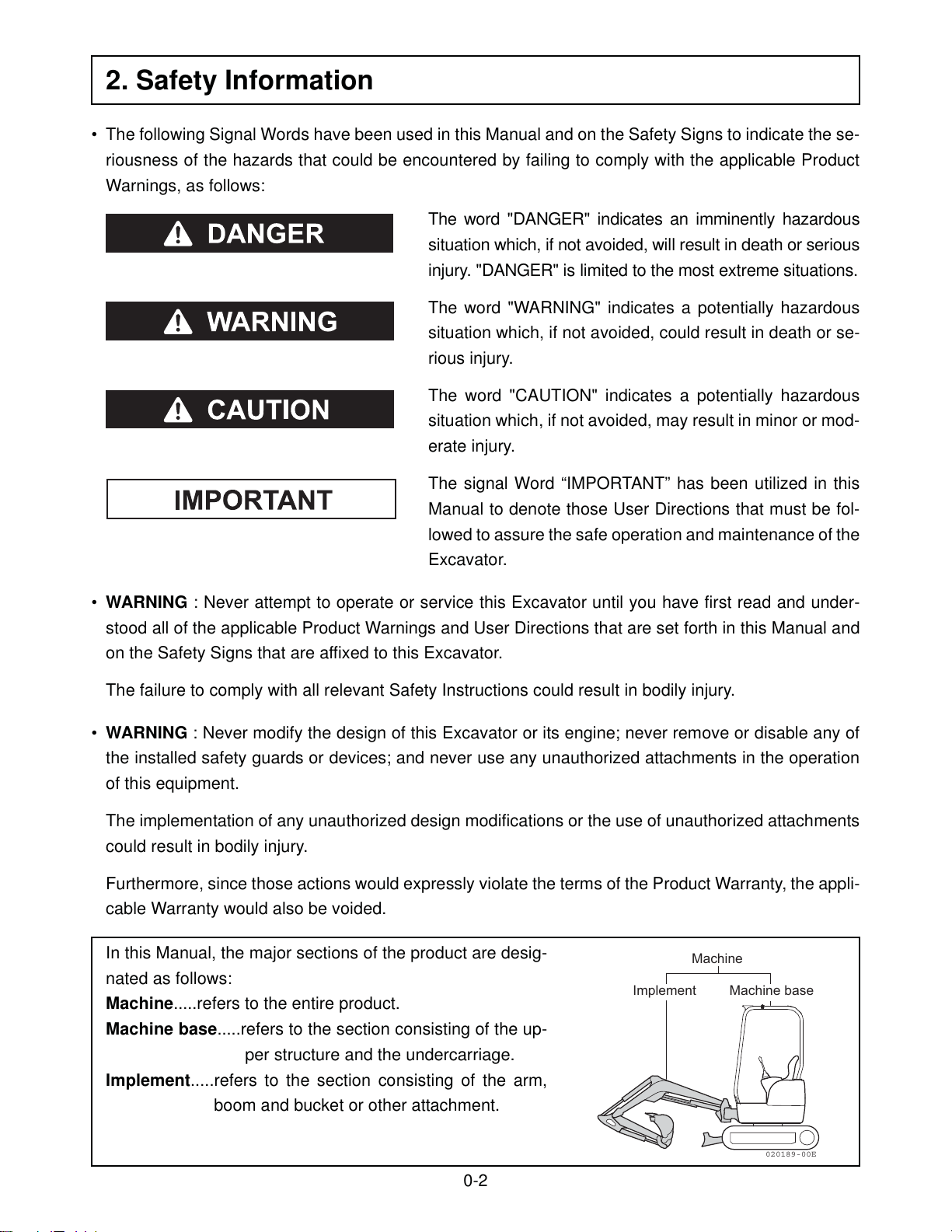

2. Safety Information
• The following Signal Words have been used in this Manual and on the Safety Signs to indicate the se-
riousness of the hazards that could be encountered by failing to comply with the applicable Product
Warnings, as follows:
The word "DANGER" indicates an imminently hazardous
situation which, if not avoided, will result in death or serious
injury. "DANGER" is limited to the most extreme situations.
The word "WARNING" indicates a potentially hazardous
situation which, if not avoided, could result in death or se-
rious injury.
The word "CAUTION" indicates a potentially hazardous
situation which, if not avoided, may result in minor or mod-
erate injury.
The signal Word “IMPORTANT” has been utilized in this
Manual to denote those User Directions that must be fol-
lowed to assure the safe operation and maintenance of the
Excavator.
•WARNING : Never attempt to operate or service this Excavator until you have first read and under-
stood all of the applicable Product Warnings and User Directions that are set forth in this Manual and
on the Safety Signs that are affixed to this Excavator.
The failure to comply with all relevant Safety Instructions could result in bodily injury.
•WARNING : Never modify the design of this Excavator or its engine; never remove or disable any of
the installed safety guards or devices; and never use any unauthorized attachments in the operation
of this equipment.
The implementation of any unauthorized design modifications or the use of unauthorized attachments
could result in bodily injury.
Furthermore, since those actions would expressly violate the terms of the Product Warranty, the appli-
cable Warranty would also be voided.
In this Manual, the major sections of the product are desig-
nated as follows:
Machine.....refers to the entire product.
Machine base.....refers to the section consisting of the up-
per structure and the undercarriage.
Implement.....refers to the section consisting of the arm,
boom and bucket or other attachment.
Machine
Implement Machine base
020189-00E
Courtesy of Machine.Market
0-3

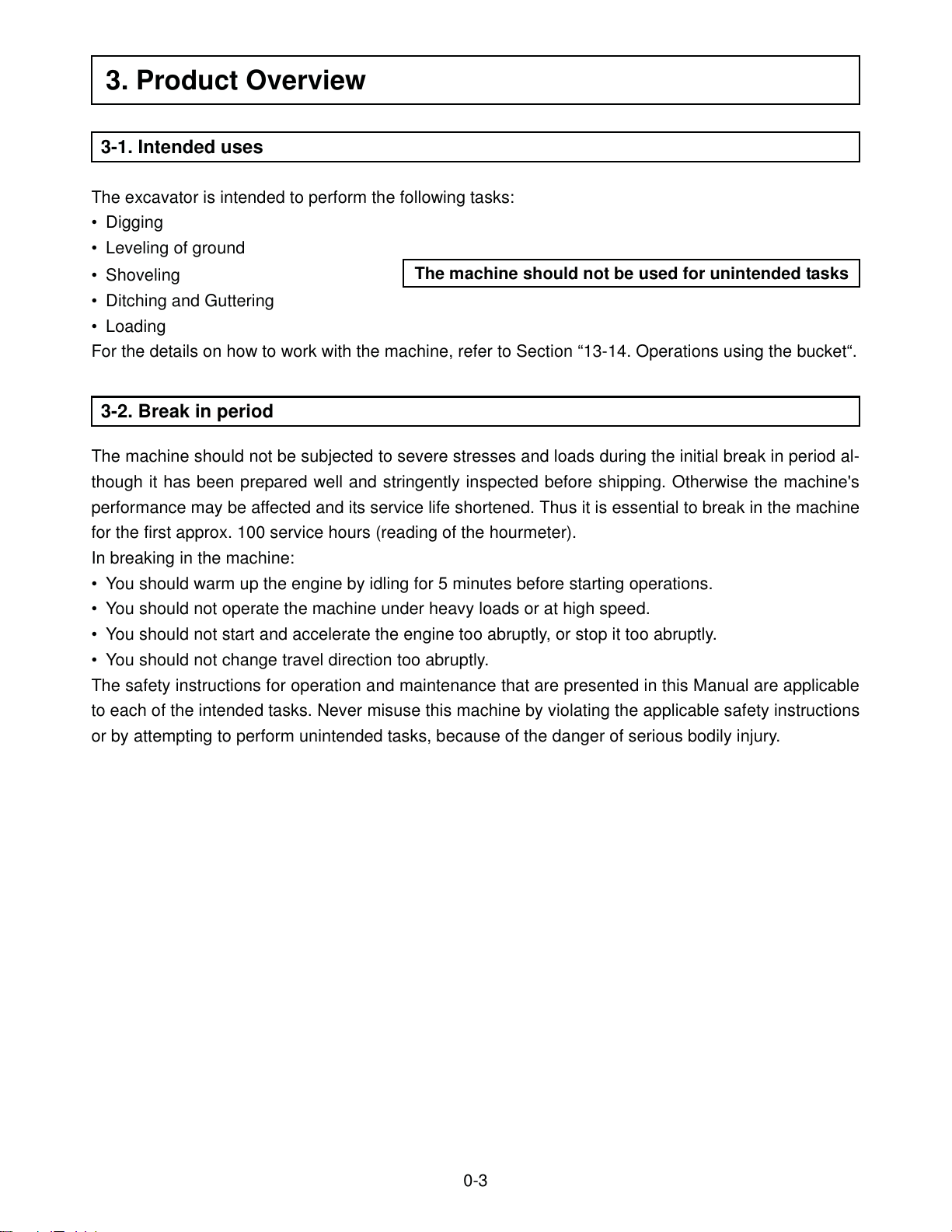

3. Product Overview
The excavator is intended to perform the following tasks:
• Digging
• Leveling of ground
• Shoveling
• Ditching and Guttering
• Loading
For the details on how to work with the machine, refer to Section “13-14. Operations using the bucket“.
The machine should not be subjected to severe stresses and loads during the initial break in period al-
though it has been prepared well and stringently inspected before shipping. Otherwise the machine's
performance may be affected and its service life shortened. Thus it is essential to break in the machine
for the first approx. 100 service hours (reading of the hourmeter).
In breaking in the machine:
• You should warm up the engine by idling for 5 minutes before starting operations.
• You should not operate the machine under heavy loads or at high speed.
• You should not start and accelerate the engine too abruptly, or stop it too abruptly.
• You should not change travel direction too abruptly.
The safety instructions for operation and maintenance that are presented in this Manual are applicable
to each of the intended tasks. Never misuse this machine by violating the applicable safety instructions
or by attempting to perform unintended tasks, because of the danger of serious bodily injury.
3-1. Intended uses
The machine should not be used for unintended tasks
3-2. Break in period
Courtesy of Machine.Market
3. Product Overview
0-4
An EPA approved engine has been mounted on this machine. The following are the conditions that must be
met in order to insure that the emission during operation meets the EPA standards. Be sure to follow these.
• The surrounding conditions should be as follows.
(1) Ambient temperature : -4 to 104°F (-20 to 40°C)
(2) Relative humidity : 80% or lower
• The fuel and lube oil used should be as follows.
(1) Fuel : Diesel light oil ASTM D975 No.1D S15, S500 or No.2D S15, S500 (ISO 8217 DMX)
• The fuel cetane number should be equal to 45 or higher.
• The sulfur content must not exceed 0.5% by volume. Less than 0.05% is preferred.
In general, using a high sulfur fuel may possible result in corrosion inside the cylinder.
Especially in U.S.A. and Canada, Ultra Low Sulfur fuel should be used.
• The water and sediment in the fuel should not exceed 0.05% by volume.
(2) Lube oil : Type API, class CD
• Do not remove the seals limiting the amount of fuel injected and the speed.
• Be sure to carry out inspections.
Follow the basic guidelines outlined in Section "24. Maintenance Table" of this manual, and keep a re-
cord of the results. Pay particular attention to these important points: replacing the lube oil and lube oil
filter, cleaning the air cleaning the air cleaner element and the radiator fins.
Un moteur thermique agréé EPA est installé sur cette machine. A la suite figurent les conditions
d
’
utilisation permettant de satisfaire au standard EPA; il est impératif de les respecter.
• Environnement extérieur:
(1) Température ambiante : -4 à 104°F (-20 à 40°C)
(2) Humidité relative : 80 % au moins
• Carburant et huiles à utiliser
(1) Carburant : Diesel léger ASTM D975 N° 1D S15, S500 ou N° 2D S15, S500 (ISO 8217 DMX)
• L'indice de cétane du carburant doit être égal ou supérieur à 45
.
• La teneur en souffre ne doit pas dépasser 0,5% par volume. Moins de 0,05% est préférable.
En général, l'utilisation d'un carburant à teneur élevée en souffre peut entraîner une corrosion à
l'intérieur du vérin.
Aux U.S.A. et au Canada notamment, l'utilisation d'un carburant à très basse teneur en souffre
est recommandée.
• L'eau et les sédiments présents dans le carburant ne doivent pas dépasser 0,05% par volume.
(2) Huiles : type API, classe CD
• Ne pas retirer les joints limitant la quantité de carburant injecté et la vitesse
• Respecter les inspections périodiques
Suivre les indications figurant dans ce manuel (Table de maintenance 24) et garder une trace des
résultats. Faire très attention aux points importants suivant: remplacer l
’
huile et le filtre à huile,
nettoyer l
’
élément de filtre à air et le radiateur.
3-3. Conditions to insure compliance with EPA emission standards
Conditions de conformité avec les standards d’émission EPA
Courtesy of Machine.Market
0-6
5. Ordering Replacement Parts and Service Calls
The machine serial number plate is located on the turning
frame as illustrated at the right. Never remove the plate for
any reason.
The engine serial number plate is located on the top of the
cylinder head cover. Never remove the plate for any rea-
son.
The EPA emission control plates are located on the engine
and engine hood as illustrated at right.
Never remove the plates for any reason.
La plaque signalétique est fixée sur le moteur (voir il-
lustration à droite).
En aucun cas ne retirer cette plaque.
5-1. Location of machine serial number plate
5-2. Location of engine serial number plate
5-3. Location of EPA emission control plates
Localisation de la plaque signalétique EPA
020190-00X
Operator's seat
020191-00E
EPA emission
control plate
Viewed from side
020192-00E
EPA emission
control plate
Inside of engine hood
Courtesy of Machine.Market
5. Ordering Replacement Parts and Service Calls
0-7
When ordering replacement parts or calling for service, let
your dealer know the model designation, the machine se-
rial number, and the engine serial number as well as the
reading of the hourmeter.
• Machine serial number plate • Hourmeter
5-4. Ordering replacement parts and service calls
R
Hourmeter
020193-01E
Courtesy of Machine.Market
0-8

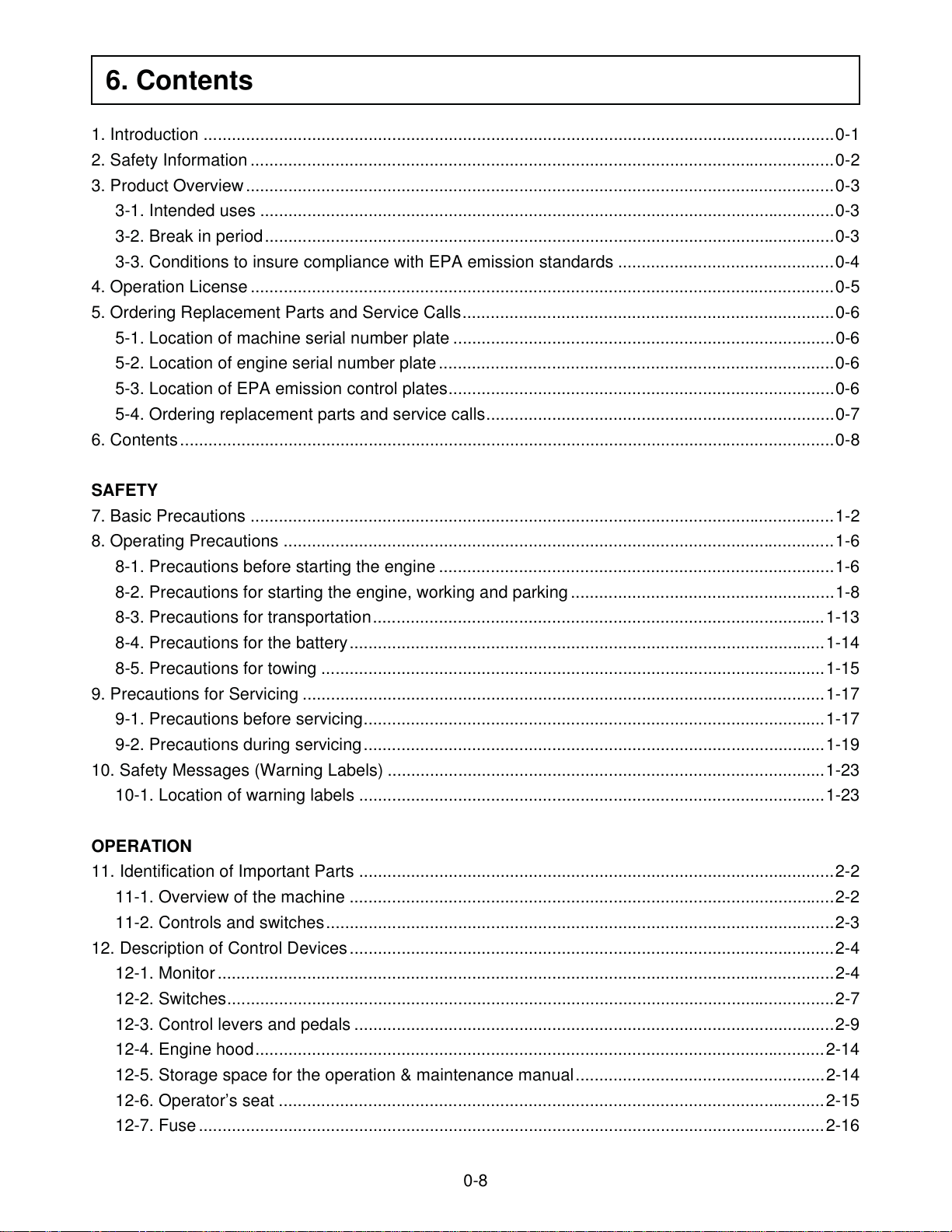

6. Contents
1. Introduction ......................................................................................................................................0-1
2. Safety Information ............................................................................................................................0-2
3. Product Overview .............................................................................................................................0-3
3-1. Intended uses ..........................................................................................................................0-3
3-2. Break in period.........................................................................................................................0-3
3-3. Conditions to insure compliance with EPA emission standards ..............................................0-4
4. Operation License ............................................................................................................................0-5
5. Ordering Replacement Parts and Service Calls...............................................................................0-6
5-1. Location of machine serial number plate .................................................................................0-6
5-2. Location of engine serial number plate ....................................................................................0-6
5-3. Location of EPA emission control plates..................................................................................0-6
5-4. Ordering replacement parts and service calls..........................................................................0-7
6. Contents ...........................................................................................................................................0-8
SAFETY
7. Basic Precautions ............................................................................................................................1-2
8. Operating Precautions .....................................................................................................................1-6

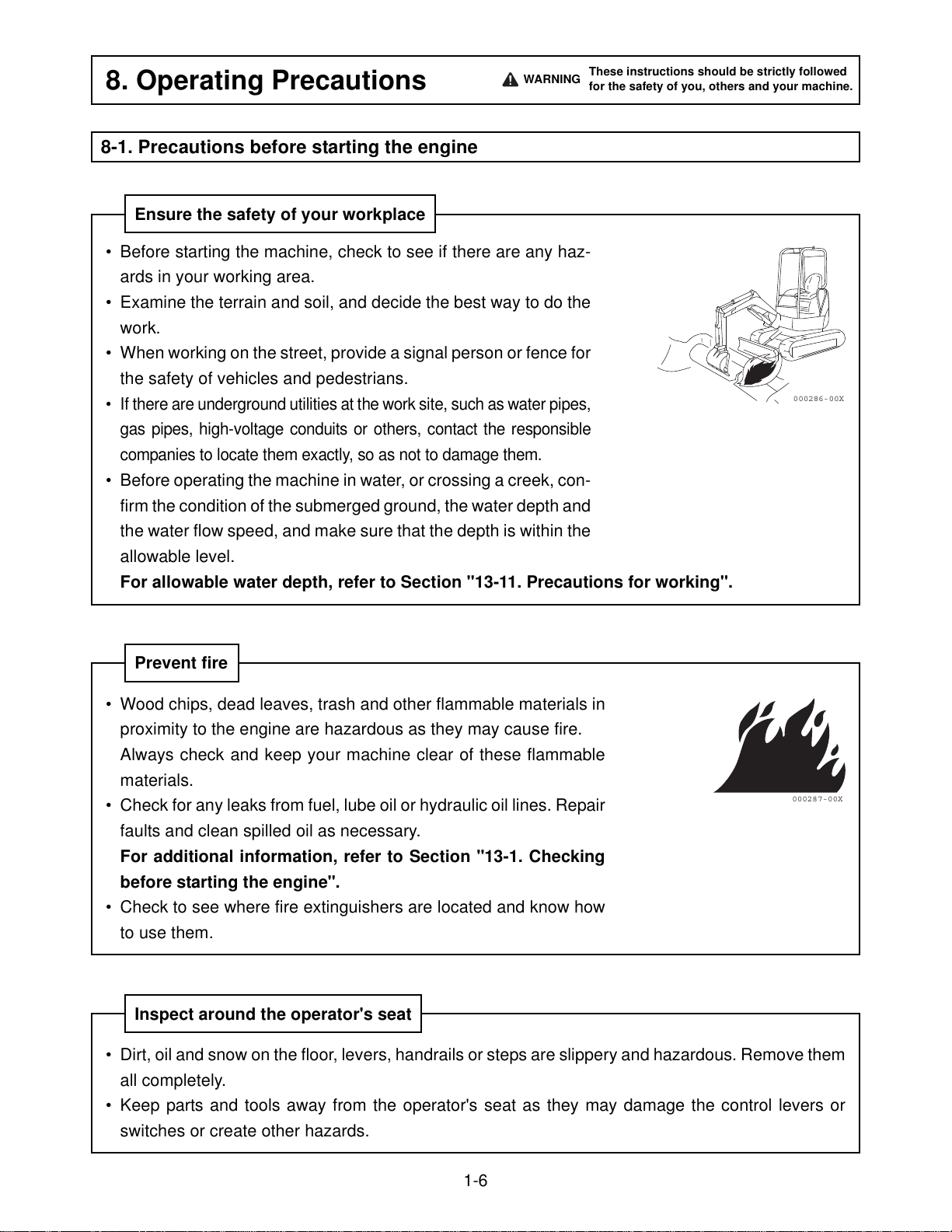

8-1. Precautions before starting the engine ....................................................................................1-6

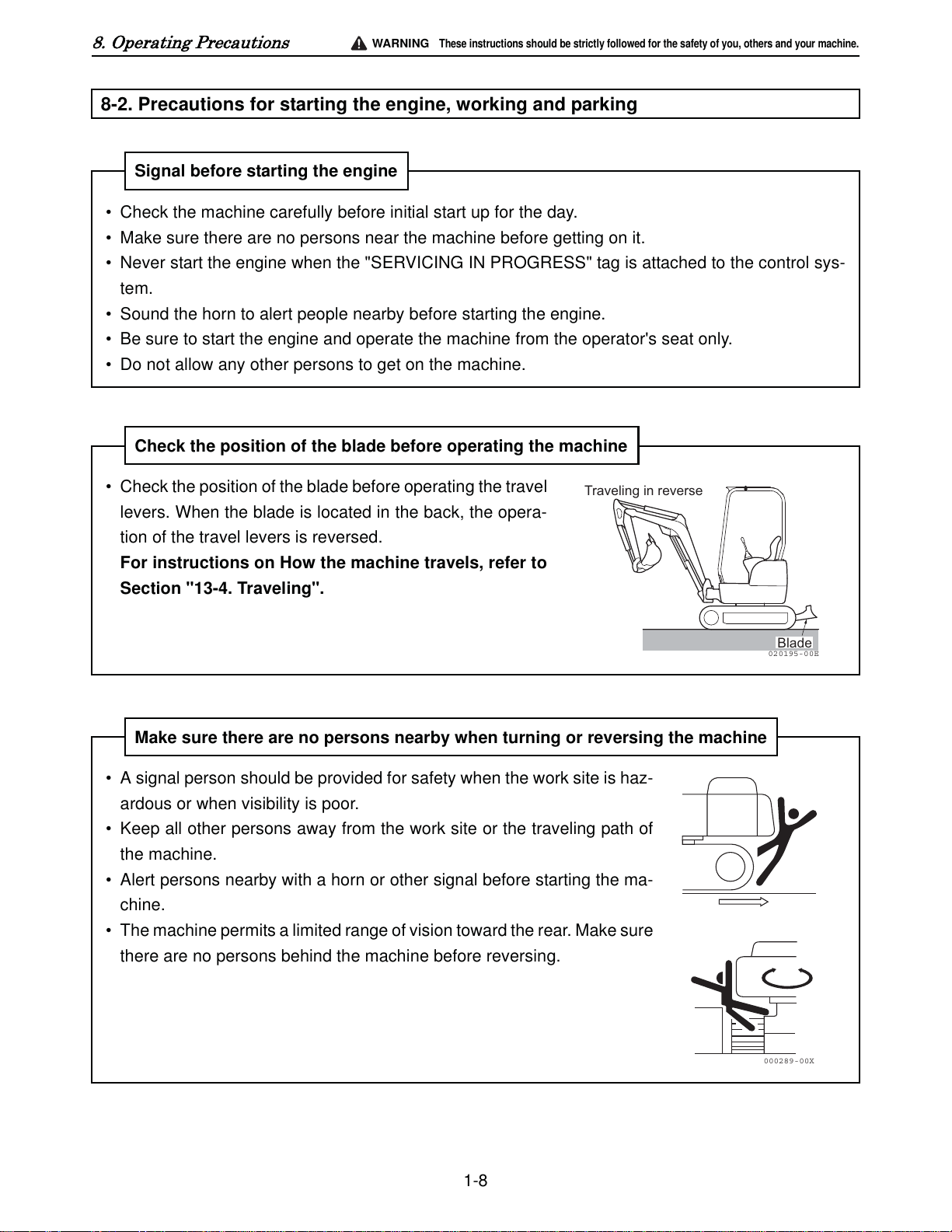

8-2. Precautions for starting the engine, working and parking ........................................................1-8
8-3. Precautions for transportation................................................................................................1-13
8-4. Precautions for the battery.....................................................................................................1-14
8-5. Precautions for towing ...........................................................................................................1-15
9. Precautions for Servicing ...............................................................................................................1-17
9-1. Precautions before servicing..................................................................................................1-17
9-2. Precautions during servicing..................................................................................................1-19
10. Safety Messages (Warning Labels) .............................................................................................1-23
10-1. Location of warning labels ...................................................................................................1-23
OPERATION
11. Identification of Important Parts .....................................................................................................2-2
11-1. Overview of the machine .......................................................................................................2-2
11-2. Controls and switches............................................................................................................2-3
12. Description of Control Devices .......................................................................................................2-4
12-1. Monitor ...................................................................................................................................2-4
12-2. Switches.................................................................................................................................2-7
12-3. Control levers and pedals ......................................................................................................2-9
12-4. Engine hood.........................................................................................................................2-14
12-5. Storage space for the operation & maintenance manual.....................................................2-14
12-6. Operator’s seat ....................................................................................................................2-15
12-7. Fuse .....................................................................................................................................2-16
Courtesy of Machine.Market
6. Contents
0-9
13. Operating Instructions ..................................................................................................................2-18
13-1. Checking before starting the engine ....................................................................................2-18
13-2. Starting up the engine..........................................................................................................2-28
13-3. Operating and checking instructions after starting the engine .............................................2-31
13-4. Traveling ..............................................................................................................................2-33
13-5. Steering................................................................................................................................2-37
13-6. Stopping the machine ..........................................................................................................2-39
13-7. Swinging the upper structure ...............................................................................................2-40
13-8. Operating the implement......................................................................................................2-41
13-9. Operating the track gauge change.......................................................................................2-42
13-10. Precautions for operating the implement ...........................................................................2-44
13-11. Precautions for working .....................................................................................................2-47
13-12. Precautions for going up and down a slope.......................................................................2-48
13-13. Escaping from the mud ......................................................................................................2-50
13-14. Operations using the bucket ..............................................................................................2-51
13-15. Reversing the bucket .........................................................................................................2-52
13-16. Parking the machine ..........................................................................................................2-54
13-17. Inspection requirements after completing operation ..........................................................2-55
13-18. Stopping the engine ...........................................................................................................2-56
13-19. Inspection requirements after stopping the engine ............................................................2-57
13-20. Locking...............................................................................................................................2-57
13-21. Handling the rubber crawlers .............................................................................................2-58
13-22. Handling hydraulic P.T.O. ..................................................................................................2-63
14. Transportation ..............................................................................................................................2-68
14-1. Loading and unloading the machine ....................................................................................2-68
14-2. Precautions for loading the machine....................................................................................2-70
14-3. Precautions for transporting the machine ............................................................................2-71
14-4. Suspending the machine .....................................................................................................2-72
15. Care and Service in Cold Weather...............................................................................................2-74
15-1. Preparing for cold weather...................................................................................................2-74
15-2. Precautions after a day's work .............................................................................................2-76
15-3. After cold weather ends .......................................................................................................2-76
16. Long-term Storage .......................................................................................................................2-77
16-1. Before storing.......................................................................................................................2-77
16-2. Storing..................................................................................................................................2-78
16-3. Using the machine again .....................................................................................................2-78
17. Troubleshooting ...........................................................................................................................2-79
17-1. Phenomena that do not constitute faults..............................................................................2-79
17-2. Towing .................................................................................................................................2-80
17-3. If the battery is overdischarged............................................................................................2-81
17-4. Troubleshooting ...................................................................................................................2-86
Courtesy of Machine.Market
6. Contents
0-10
MAINTENANCE
18. Precautions for Servicing ...............................................................................................................3-2
19. Basic Servicing Practices ...............................................................................................................3-5
19-1. Oils, fuel, and cooling water...................................................................................................3-6
19-2. Electrical equipment...............................................................................................................3-9
19-3. Hydraulic system..................................................................................................................3-10
20. Consumables ...............................................................................................................................3-11
21. Fueling, Oiling and Greasing Based on Temperature Range ......................................................3-12
21-1. Fuel and oil ..........................................................................................................................3-12
21-2. Cooling water .......................................................................................................................3-12
22. Standard Tightening Torque for Bolts and Nuts ...........................................................................3-13
22-1. Required tools......................................................................................................................3-13
22-2. Torque table.........................................................................................................................3-14
23. Replacing Essential Parts Periodically .........................................................................................3-15
24. Maintenance Table.......................................................................................................................3-17
24-1. Table of service time intervals .............................................................................................3-17
24-2. Service intervals when using the hydraulic breaker.............................................................3-21
25. Procedures for Maintenance ........................................................................................................3-22
25-1. First services........................................................................................................................3-22
25-2. Non-periodic services ..........................................................................................................3-23
25-3. Checking before start-up......................................................................................................3-35
25-4. Maintenance every 50 service hours ...................................................................................3-43
25-5. Maintenance every 100 service hours .................................................................................3-45
25-6. Maintenance every 200 service hours .................................................................................3-46
25-7. Maintenance every 250 service hours .................................................................................3-51
25-8. Maintenance every 400 service hours .................................................................................3-52
25-9. Maintenance every 500 service hours .................................................................................3-55
25-10. Maintenance every 1000 service hours .............................................................................3-56
25-11. Maintenance every 2000 service hours .............................................................................3-59
SPECIFICATIONS AND DIMENSIONAL DIAGRAMS
26. Specifications and Dimensional Diagrams .....................................................................................4-2
OPTIONAL PARTS AND ATTACHMENTS
27. General Precautions ......................................................................................................................5-2
27-1. Safety precautions .................................................................................................................5-2
27-2. Precautions for mounting an attachment (implement) ...........................................................5-3
NOTES
28. Maintenance Log............................................................................................................................6-2
29. Notes..............................................................................................................................................6-6
Courtesy of Machine.Market
1-2
These instructions should be strictly followed
for the safety of you, others and your machine.
WARNING
7. Basic Precautions
• The operation and servicing of this machine is restricted to qualified persons.
• When operating or servicing the machine, follow all the safety rules, precautions and procedures.
• Any work performed by a team or with a signal person should be conducted in accordance with
signals agreed on beforehand.
• Make sure that all guards and covers are installed in their correct position. If any of them are dam-
aged, repair them immediately.
• The proper use of all safety devices, such as lock levers, should be well understood by the ma-
chine operator.
• Never remove the safety devices. Always make sure that they operate properly.
For lock levers, refer to Section "12-3. Control levers and pedals".
• Incorrect operation of the safety devices could cause serious bodily injury.
• Do not wear loose clothing or jewelry that can be caught on the
control levers and other machine parts. Also avoid wearing
working clothes stained with oil as they can ignite.
• Be sure to wear a helmet, safety goggles, safety shoes, a
mask, gloves and other protective items, as appropriate.
Take particular precautions when generating metal debris,
when striking metal objects with a hammer or when cleaning
components with compressed air.
Also make sure there are no persons near the machine.
For cleaning the fuel, oil and air filter elements, refer to Section "25-2. Non-periodic services"
.
• Never operate the machine after consuming alcoholic beverages, or while you are under the influ-
ence of alcohol or if you feel ill or unwell, as that could result in accidental bodily injury to yourself
or others.
Follow safety rules at your workplace
Install safety devices
Wear proper clothing and safety items
Alcohol
000278-00X
Courtesy of Machine.Market
7. Basic Precautions

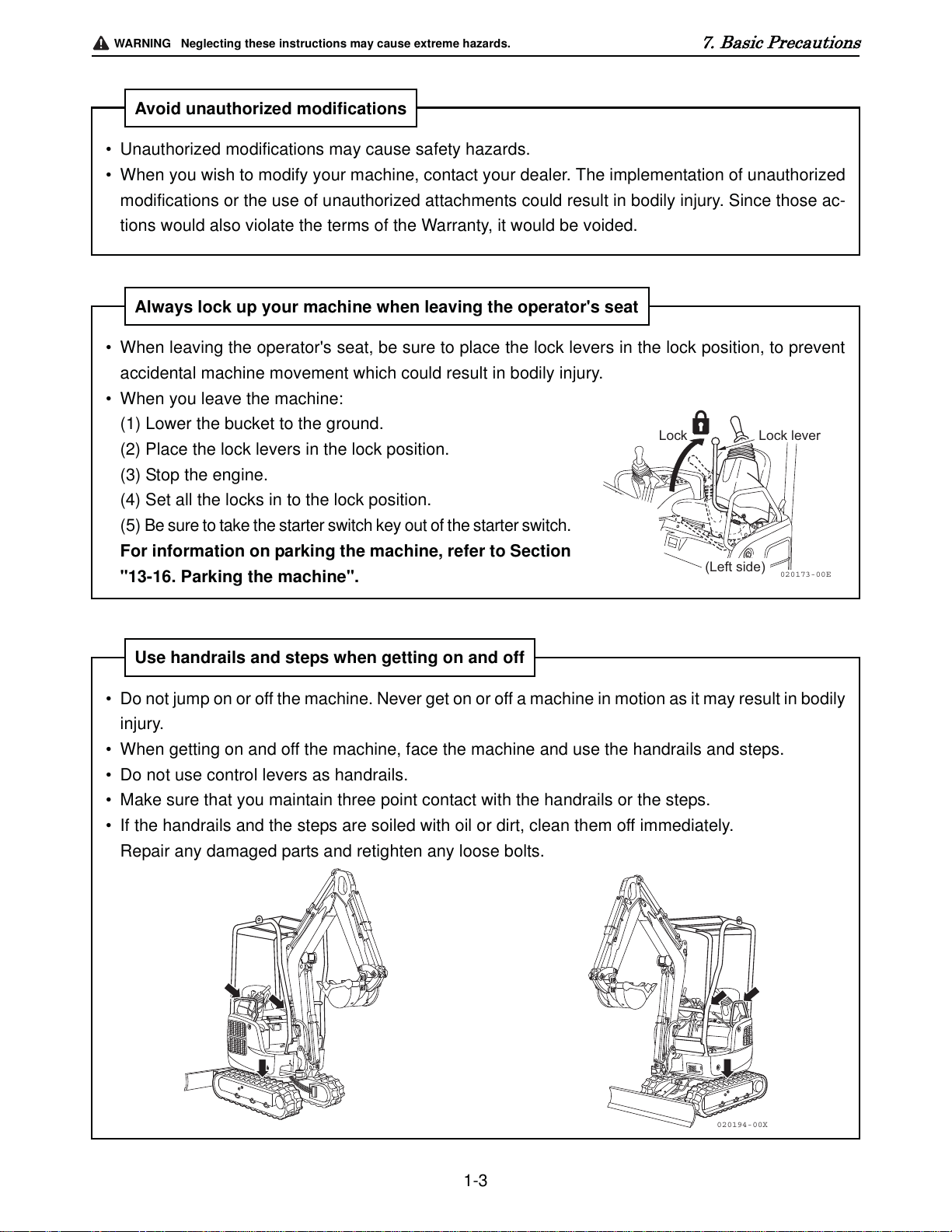

1-3
WARNING Neglecting these instructions may cause extreme hazards.
• Unauthorized modifications may cause safety hazards.
• When you wish to modify your machine, contact your dealer. The implementation of unauthorized
modifications or the use of unauthorized attachments could result in bodily injury. Since those ac-
tions would also violate the terms of the Warranty, it would be voided.
• When leaving the operator's seat, be sure to place the lock levers in the lock position, to prevent
accidental machine movement which could result in bodily injury.
• When you leave the machine:
(1) Lower the bucket to the ground.
(2) Place the lock levers in the lock position.
(3) Stop the engine.
(4) Set all the locks in to the lock position.
(5)
Be sure to take the starter switch key out of the starter switch.
For information on parking the machine, refer to Section
"13-16. Parking the machine".
• Do not jump on or off the machine. Never get on or off a machine in motion as it may result in bodily
injury.
• When getting on and off the machine, face the machine and use the handrails and steps.
• Do not use control levers as handrails.
• Make sure that you maintain three point contact with the handrails or the steps.
• If the handrails and the steps are soiled with oil or dirt, clean them off immediately.
Repair any damaged parts and retighten any loose bolts.
Avoid unauthorized modifications
Always lock up your machine when leaving the operator's seat
Use handrails and steps when getting on and off
Lock
(Left side)
Lock lever
020173-00E
020194-00X
Courtesy of Machine.Market
7. Basic Precautions

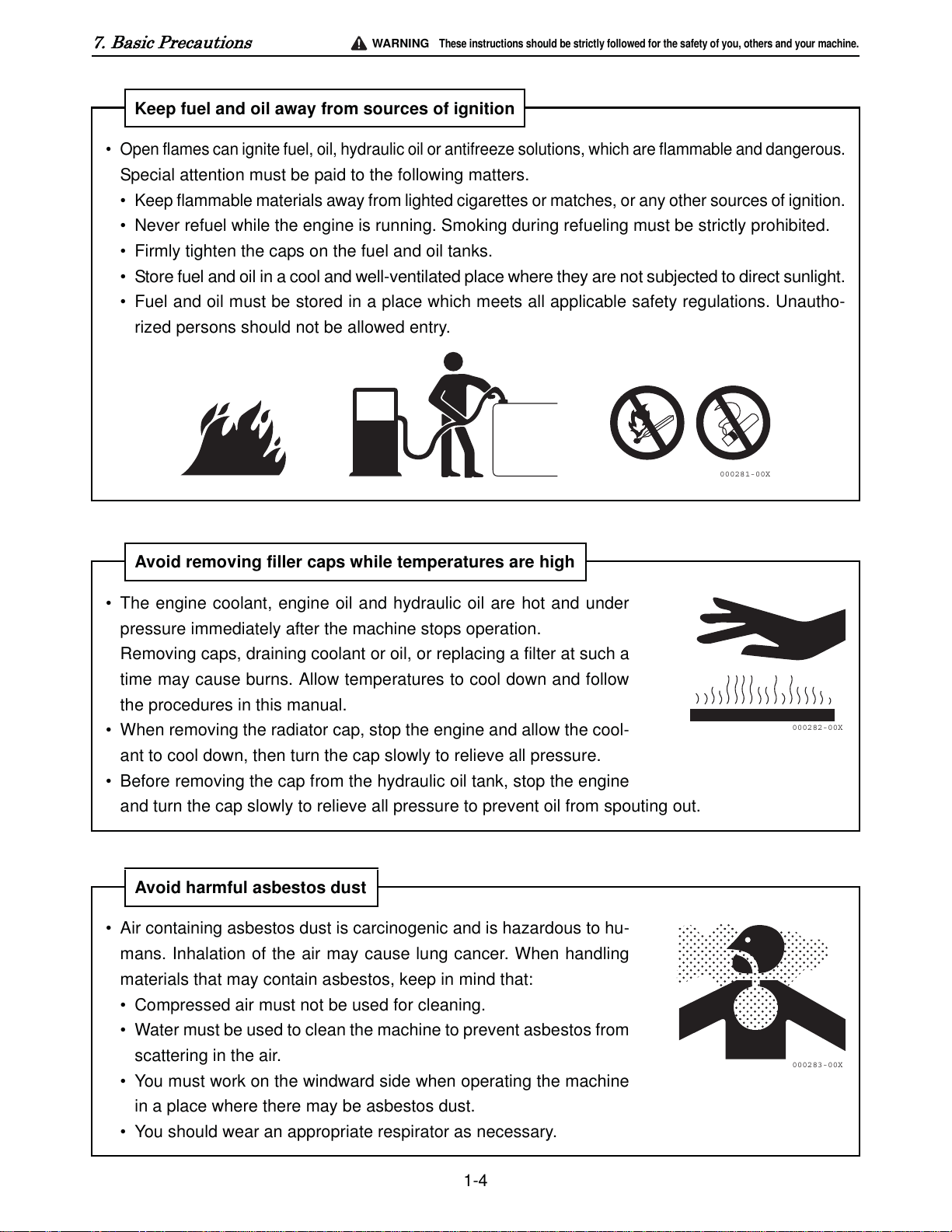

1-4
WARNING
These instructions should be strictly followed for the safety of you, others and your machine.
• Open flames can ignite fuel, oil, hydraulic oil or antifreeze solutions, which are flammable and dangerous.
Special attention must be paid to the following matters.
• Keep flammable materials away from lighted cigarettes or matches, or any other sources of ignition.
• Never refuel while the engine is running. Smoking during refueling must be strictly prohibited.
• Firmly tighten the caps on the fuel and oil tanks.
• Store fuel and oil in a cool and well-ventilated place where they are not subjected to direct sunlight.
• Fuel and oil must be stored in a place which meets all applicable safety regulations. Unautho-
rized persons should not be allowed entry.
• The engine coolant, engine oil and hydraulic oil are hot and under
pressure immediately after the machine stops operation.
Removing caps, draining coolant or oil, or replacing a filter at such a
time may cause burns. Allow temperatures to cool down and follow
the procedures in this manual.
• When removing the radiator cap, stop the engine and allow the cool-
ant to cool down, then turn the cap slowly to relieve all pressure.
• Before removing the cap from the hydraulic oil tank, stop the engine
and turn the cap slowly to relieve all pressure to prevent oil from spouting out.
• Air containing asbestos dust is carcinogenic and is hazardous to hu-
mans. Inhalation of the air may cause lung cancer. When handling
materials that may contain asbestos, keep in mind that:
• Compressed air must not be used for cleaning.
• Water must be used to clean the machine to prevent asbestos from
scattering in the air.
• You must work on the windward side when operating the machine
in a place where there may be asbestos dust.
• You should wear an appropriate respirator as necessary.
Keep fuel and oil away from sources of ignition
Avoid removing filler caps while temperatures are high
Avoid harmful asbestos dust
000281-00X
000282-00X
000283-00X
Courtesy of Machine.Market
7. Basic Precautions
1-5
WARNING Neglecting these instructions may cause extreme hazards.
• Keep hands, arms and all other parts of your body away from all the
moving parts, particularly between the implements and the machine
and between the hydraulic cylinder and the implements, as pinch
points are created in those areas.
• The workplace must be provided with a fire extinguisher. Read in-
structions on the label to familiarize yourself with how to use it.
• Keep a first aid kit in a prescribed place.
• Know what to do in the event of a fire or an accident.
• Know who to contact in an emergency and keep emergency tele-
phone numbers in a prominent place.
• When installing or using optional attachments, read the operating instructions for the attachments
and the Manual Sections relating to the installation of attachments.
• Use only authorized attachments. The use of unauthorized attachments may affect not only the
safety of the machine but also the proper operation and life of the machine.
• The use of unauthorized attachments would also violate the terms of the Warranty, so that it would
be voided.
Prevent crush injuries by the implements
Keep a fire extinguisher and first aid kit handy
Precautions for installing optional parts and attachments
000284-00X
000285-00X
Courtesy of Machine.Market
1-6
These instructions should be strictly followed
for the safety of you, others and your machine.
WARNING
8. Operating Precautions
• Before starting the machine, check to see if there are any haz-
ards in your working area.
• Examine the terrain and soil, and decide the best way to do the
work.
• When working on the street, provide a signal person or fence for
the safety of vehicles and pedestrians.
• If there are underground utilities at the work site, such as water pipes,
gas pipes, high-voltage conduits or others, contact the responsible
companies to locate them exactly, so as not to damage them.
• Before operating the machine in water, or crossing a creek, con-
firm the condition of the submerged ground, the water depth and
the water flow speed, and make sure that the depth is within the
allowable level.
For allowable water depth, refer to Section "13-11. Precautions for working".
• Wood chips, dead leaves, trash and other flammable materials in
proximity to the engine are hazardous as they may cause fire.
Always check and keep your machine clear of these flammable
materials.
• Check for any leaks from fuel, lube oil or hydraulic oil lines. Repair
faults and clean spilled oil as necessary.
For additional information, refer to Section "13-1. Checking
before starting the engine".
• Check to see where fire extinguishers are located and know how
to use them.
• Dirt, oil and snow on the floor, levers, handrails or steps are slippery and hazardous. Remove them
all completely.
• Keep parts and tools away from the operator's seat as they may damage the control levers or
switches or create other hazards.
8-1. Precautions before starting the engine
Ensure the safety of your workplace
Prevent fire
Inspect around the operator's seat
000286-00X
000287-00X
Courtesy of Machine.Market
8. Operating Precautions
1-7
WARNING Neglecting these instructions may cause extreme hazards.
Engine exhaust fumes are harmful to the human body and their in-
halation is extremely hazardous. When starting the engine in an en-
closed area, open the windows and doors for ventilation. Also do not
idle the engine unnecessarily or leave the engine running while the
machine is not in use.
• For your safety, ROPS (Roll Over Protective Structure)/FOPS (Falling Objects Protective Struc-
tures) and a seatbelt have been provided.
• Always fasten the seatbelt across the pelvic region and adjust it snugly before you operate the ma-
chine.
• The seatbelt must be replaced if the machine is involved in an accident.
• In addition, the seat and the seat mounting must also be checked by your dealer after an accident
has occurred.
• If the seat and the seat mounting are damaged, they must be replaced immediately.
• Never modify a structural member of the ROPS/FOPS.
• If the ROPS/FOPS is damaged, replace it immediately to prevent bodily injury.
Never repair or modify it.
The wind and exhaust gases from the radiator and the muffler respectively are very hot.
Plants directly exposed to hot wind or exhaust gases may die.
Erect a barrier to protect plants from hot wind and exhaust gases when working near them.
Provide adequate ventilation when working in an enclosed area
Fasten the seatbelt
ROPS/FOPS
Caution for the protection of plants from hot wind and exhaust gases
000283-00X
Courtesy of Machine.Market
8. Operating Precautions
1-8
WARNING
These instructions should be strictly followed for the safety of you, others and your machine.
• Check the machine carefully before initial start up for the day.
• Make sure there are no persons near the machine before getting on it.
• Never start the engine when the "SERVICING IN PROGRESS" tag is attached to the control sys-
tem.
• Sound the horn to alert people nearby before starting the engine.
• Be sure to start the engine and operate the machine from the operator's seat only.
• Do not allow any other persons to get on the machine.
• Check the position of the blade before operating the travel
levers. When the blade is located in the back, the opera-
tion of the travel levers is reversed.
For instructions on How the machine travels, refer to
Section "13-4. Traveling".
• A signal person should be provided for safety when the work site is haz-
ardous or when visibility is poor.
• Keep all other persons away from the work site or the traveling path of
the machine.
• Alert persons nearby with a horn or other signal before starting the ma-
chine.
• The machine permits a limited range of vision toward the rear. Make sure
there are no persons behind the machine before reversing.
8-2. Precautions for starting the engine, working and parking
Signal before starting the engine
Check the position of the blade before operating the machine
Make sure there are no persons nearby when turning or reversing the machine
Blade
Traveling in reverse
020195-00E
000289-00X
Courtesy of Machine.Market
Table of contents
Other Gehl Compact Excavator manuals
