GEIGER GF0040 User manual
EN
GEIGER RADIO SYSTEMS
Sunshade controls
Radio remote controls
for rolling shutters and
sunshade controls
3-channel GF0040
6-channel GF0041
12-channel GF0042
Comfort handheld transmitter
with graphic display
Operating instructions
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
EN
2Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
Contents
1. Introduction .........................................................................................................................................3
2. Safety instructions ...............................................................................................................................3
3. Intended use ........................................................................................................................................3
4. Transmitter types ................................................................................................................................3
4.1 Comfort 3-channel display handheld transmitter GF0040 ...........................................................3
4.2 Comfort 6-channel display handheld transmitter GF0041 ...........................................................3
4.3 Comfort 12-channel display handheld transmitter GF0042 .........................................................4
5. Operating conditions ..........................................................................................................................4
5.1 Operational mode ........................................................................................................................4
5.2 Sleep mode ..................................................................................................................................4
6. Operating instructions.........................................................................................................................5
6.1 Multifunction keys.........................................................................................................................5
6.2 Navigation keys............................................................................................................................5
6.3 Turning on the display transmitters GF0040 / 41 / 42............................................................................6
6.4 Selection of the actuator / receiver ..............................................................................................6
6.5 Send a radio command ................................................................................................................6
7. Programming and coding instructions .............................................................................................7
7.1 Select the language ....................................................................................................................7
7.2 Enter areas, devices, actuators and codings ..............................................................................7
7.3 Transfer set codings on actuators / receivers ...........................................................................12
7.4 Selection of various actuators / receivers .................................................................................12
7.5 Delete or modify areas, actuators and codings..........................................................................13
7.4.1 Delete individual actuators ..............................................................................................13
7.4.2 Reset to factory setting ...................................................................................................14
8. Care and Maintenance ......................................................................................................................15
9. Notes on waste disposal ...................................................................................................................15
10.Technical data ....................................................................................................................................15
11.Declaration of conformity..................................................................................................................15
3
www.geiger-antriebstechnik.de
EN
1. Introduction
The purchase of a comfort handheld transmitter with graphic display was a good decision.
You have acquired a high-quality product from the house of GEIGER.
The comfort handheld transmitters allow you to send three, six or twelve different codings to
control a range of different actuators (receivers). The control can be either
• Individual
• Grouped or
• Centralized .
No labour-intensive and time-consuming laying of control lines is needed as all switching signals
are transmitted via radio.
The following actuators (radio receiver with integrated control) can be controlled with the GEIGER
comfort handheld transmitters:
• all GEIGER motors with built-in radio receivers
• all external GEIGER radio receivers
2. Safety instructions
The operation of the actuators and the electrical products shall only take place when you are sure
that there is no risk to people, animals or property.
• The radio remote control should be kept out of reach of children
• If service work or adaptations are necessary, the device is to be immediately taken out of
service and secured against inadvertent use.
3. Intended use
The comfort handheld transmitter is only to be used for its intended purpose as described under
Section 1 of the operating instructions.
Changesormodicationstothetransmittervoidanyrightstoclaimsundertheguarantee.After
unpacking the device, check it right away for any damage. Transport damage is to be reported to
the supplier immediately.
4. Transmitter types
4.1 Comfort 3-channel display handheld transmitter GF0040
• One area for the selection of three different codings (actuators).
• Labelling of the actuators with library terms
• Anynumberofreceiverscanbeassignedtothethreedifferentcodings
• Large keys for easy navigation and intuitive operation
• Multifunction keys to perform the functions shown on the transmitter display, for example
sun automatic on / off.
4.2 Comfort 6-channel display handheld transmitter GF0041
• One area for the selection of six different codings (actuators).
• Labelling of the actuators with library terms
• Anynumberofreceiverscanbeassignedtothethreedifferentcodings
• Large keys for easy navigation and intuitive operation
• Multifunction keys to perform the functions shown on the transmitter display, for example
sun automatic on / off.
4Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
4.3 Comfort 12-channel display handheld transmitter GF0042
• Two areas for the selection of six different codings (actuators).
• Labelling of the actuators with library terms
• Anynumberofreceiverscanbeassignedtothethreedifferentcodings
• Large keys for easy navigation and intuitive operation
• Multifunction keys to perform the functions shown on the transmitter display, for example
sun automatic on / off.
5. Operating conditions
In order to maximize battery lifetime, three different energy modes are available.
The power-saving mode is also equipped with a key lock, for avoidance of unintentional switching,
such as the closing of a shutter.
5.1 Operational mode
PressOKkeytoturnonthetransmitter(wakeupprocessfromthepowersavingmode)therst
locationshowsonthedisplay.Allkeysareactiveandthedisplayisilluminated.
5.2 Sleep mode
If no action takes place within 10 seconds, the transmitter goes into sleep mode. The display light
shuts off but all keys keep active. When actuating a key again the display light turns on.
You get the transmitter to enter the deep sleep mode when all keys are not actuated for 1 minute.
The display shuts down. The OK key keeps active.
To wake the transmitter back up, simply press the OK key.
5
www.geiger-antriebstechnik.de
EN

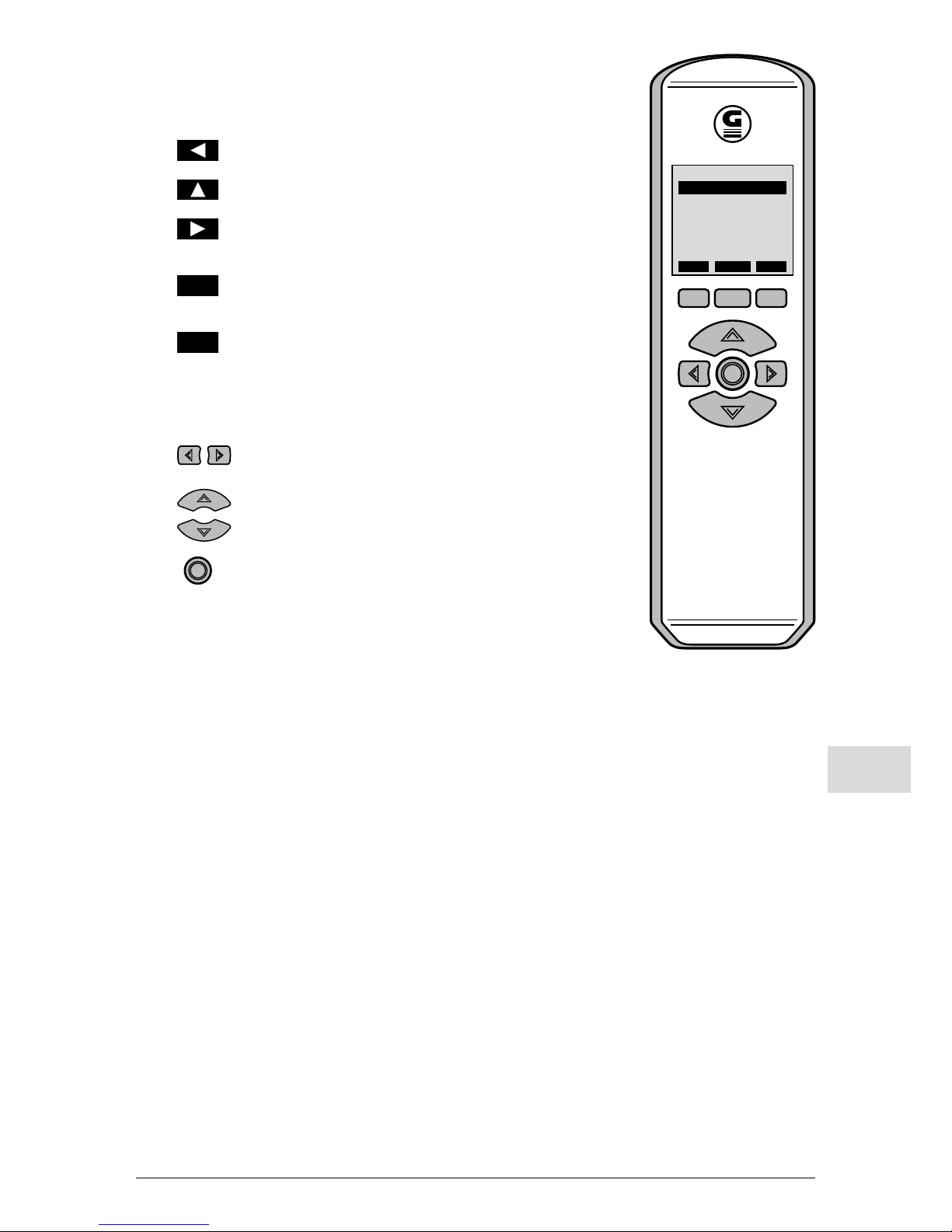

6. Operating instructions
6.1 Multifunction keys
The functions of the keys appear on the display above each key:
„ML“ multifunction key on the left side
Exit selected menu item
„MO“ multifunction key top
Change to menu level “settings”
„MR“ multifunction key on the right side
Attention:thiskeyconrmsinmenuitem“factory
setting” the return to “factory setting”
„ED“ multifunction key EDIT
opens the programming mode press key
4 seconds
„OK“ multifunction key OK
toconrmsettings
6.2 Navigation keys
These keys have several functions:
Exit or change the menu items
Vertical change of the menu items or send the selected
radio command
“OK” navigation key
toACTIVATEthedevice
to SEND (one-channel) and
to CONFIRM several functions.
EDIT
OK
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
6Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
6.3 Turning on the display transmitters GF0040 / 41 / 42
Press “OK” key
The device turns out when no keys are activated.
After 10 seconds the display light turns off, after
60 seconds, the device enters the deep sleep mode.
6.4 Selection of the actuator / receiver
To select «Blind 2» activate navigation key 3 times:
6.5 Send a radio command
Press “OK” key:
With the navigation keys, select the required direction and
press key to send command. The blind can be stopped with
the opposite key.
With the multifunction key in the middle, return to actuator
selection area 1 living room
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
BLIND 2
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
7
www.geiger-antriebstechnik.de
EN
7. Programming and coding instructions
7.1 Select the language
Press OK key to activate the comfort handheld transmitter
The GEIGER logo shows for 3 seconds
Press key „EDIT“ for > 4 seconds till an arrow displays
on the left side
EDIT > 4 sec.
Press the multifunction key when the arrow appears
Display goes to „setting“.
Press 1x navigation key „DOWN“ to select the menu item
„Language“ and press the „OK“ key to get to the language
selection. Select the desired language, press again the OK
keytoconrmtheselection.
To return to the starting point, press 2 x the multifunction
key „ML“
7.2 Enter areas, devices, actuators and codings
The comfort handheld transmitters are free encoded.
You can assign yourself the corresponding actuators
(awnings, Venetian blinds, yard gates, garage doors, etc.)
as well as different codings.
Activate the key symbols listed in the middle to get to the
display indications.
Note:Actuator=device/receiver
1 Press OK key to activate the comfort handheld transmitter.
The GEIGER logo appears for 3 seconds.
2 YouarenowinAREA1.
The 3-channel and 6- channel transmitters have
only one area.
12-channel transmitter: you can switch between area 1
and 2 using the horizontal navigation keys.
SETTINGS
AREANAME
LANGUAGE
RESET
OK
LANGUAGE
DEUTSCH
ENGLISH
FRANCAIS
NEDERLANDS
POLSKI
OK
AREA 1
MARKISE 1
EDIT
8Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
3 Press key „EDIT“ for > 4 seconds till an arrow shows
on the left side
EDIT > 4 Sek.
Press the multifunction key when the arrow appears
Display changes to „SETTING“.
4 An„AREANAME“cannowbeselectedfromthelibrary
Press „OK“ key
12-channel transmitter: you can now select area 1 or 2 using
the vertical navigation keys UP/DOWN
Now press again the „OK“ key
Youarenowonthenextdisplayforthe„AREANAME“,the
so-called library.
5 ActivatetheverticalnavigationkeysUP/DOWNtoselectthe
name for your area. You can use the horizontal navigation keys
toscrollpagebypageandselectthenameswithUP/DOWN.
UP/DOWNpagebypage
6 Example: in order to select the area name „LIVING ROOM“
proceed as follows:
To take over the new area name „LIVING ROOM“ press x 2 the
multifunction key „ML“
AREA 1
MARKISE 1
EDIT
SETTINGS
AREANAME
LANGUAGE
RESET
OK
AREANAME
BATHROOM
OFFICE
ROOFSHADE
ROOF WIND. 1
ROOF WIND. 2
ROOF WIND. 3
OK
AREANAME
LIVINGROOM
EDIT
LIVINGROOM
EDIT
9
www.geiger-antriebstechnik.de
EN

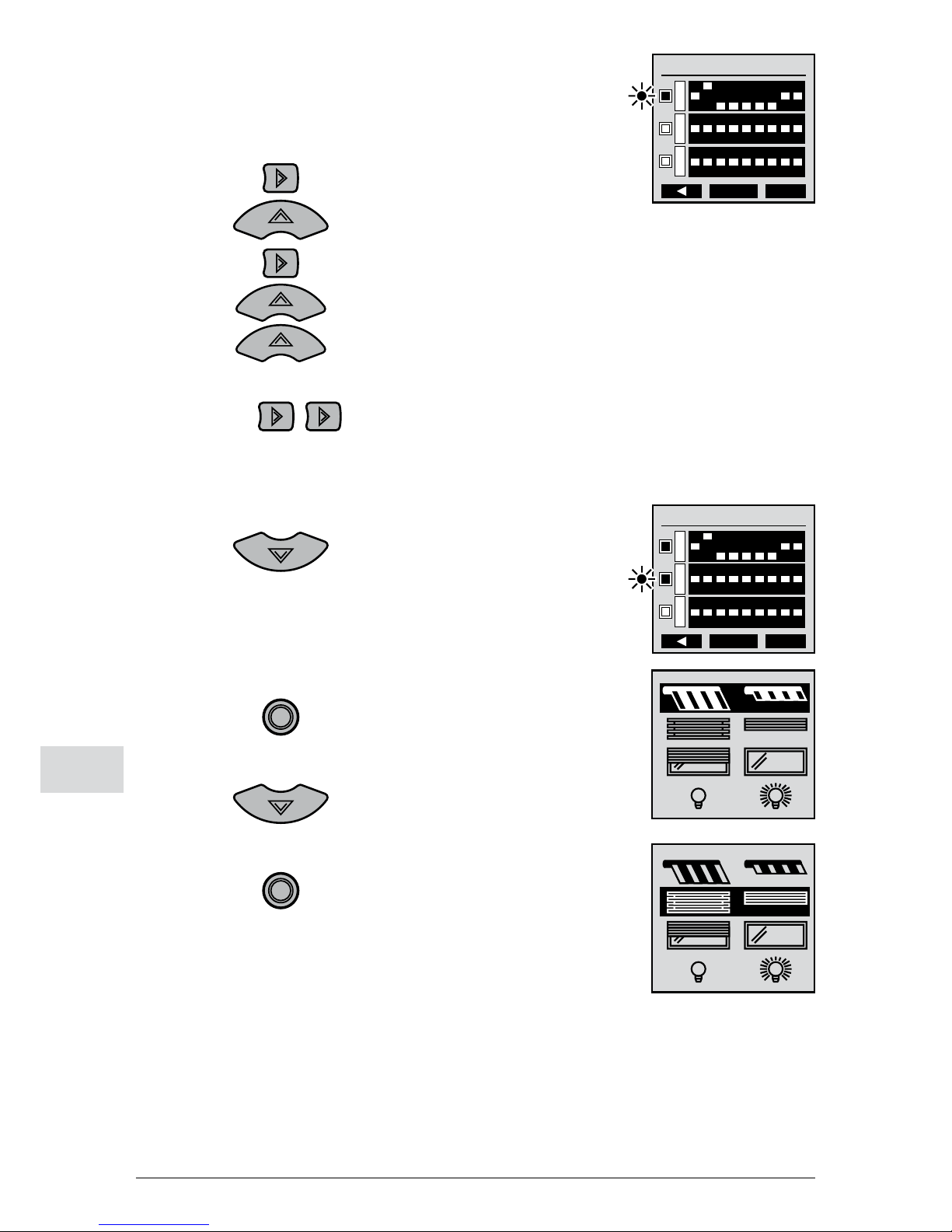

7 In order to set up an actuator (receiver):
Press the „EDIT“ key
EDIT
Displaychangesto„SETTINGS“/„NAME“
8 Intheopeneld„NAME“youcannowsetadevice(receiver)
Press „OK“ key
OK
Select the device name from the library.
9 If you wish to start with Venetian blind 1 in the living room:
Pressvetimestherighthorizontalnavigationkey
Andthentwicetheverticalnavigationkeydownwards
10 Press the „OK“ key to select the name BLIND 1

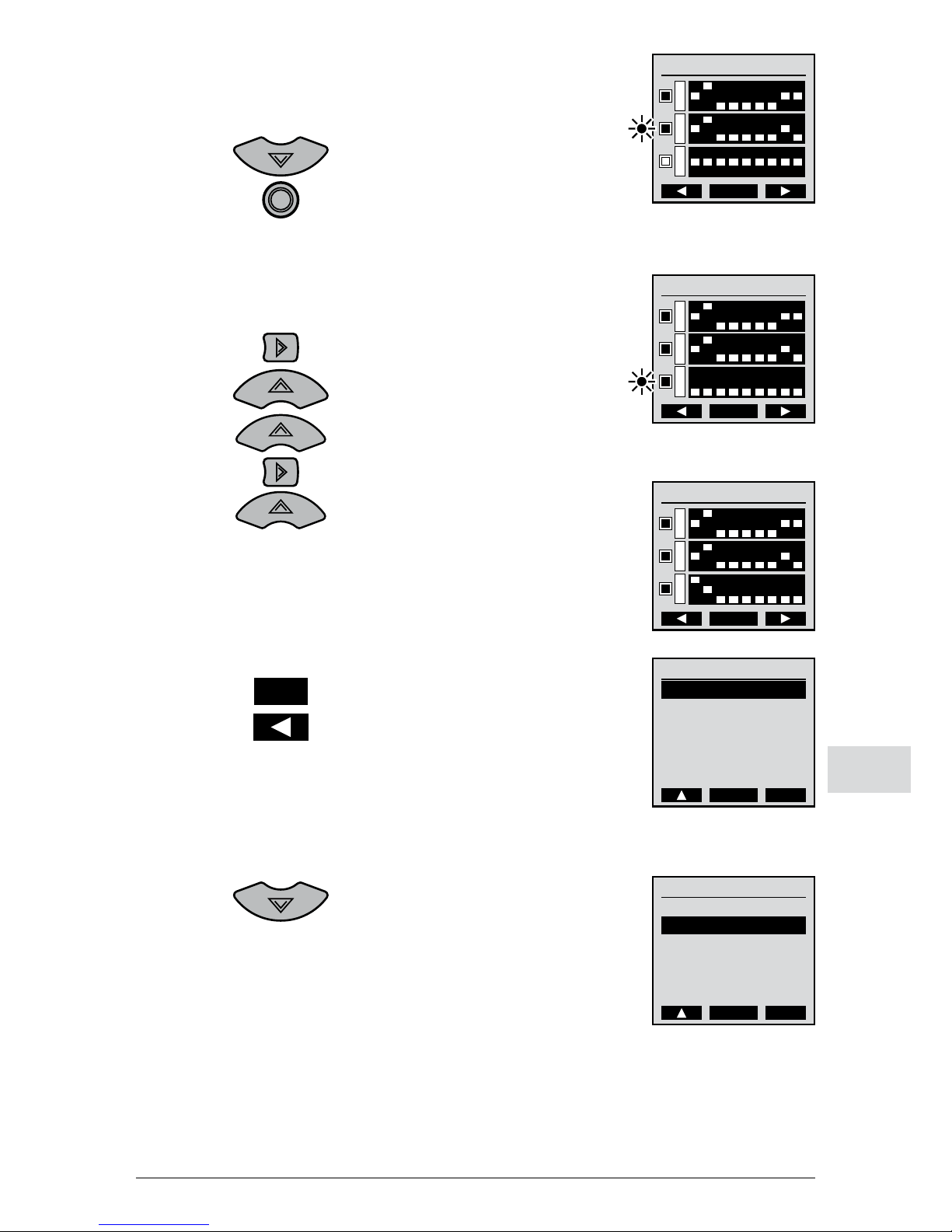

11 Now enter coding and actuator type.
Note:Actuator=device/receiver
Press once the navigation key „DOWN“ and then „OK“.
The display now shows three code switches.
Depending on the actuator type one, two or three codings are
required. For actuators that are operated with two channels,
the second coding is automatically generated.
SETTINGS
NAME
CODE
DELETE
EDIT
DEVICENAME
BATHROOM
OFFICE
ROOFSHADE
ROOF WIND. 1
ROOF WIND. 2
ROOF WIND. 3
OK
DEVICENAME
KORRIDOR
KITCHEN
BLIND 1
BLIND 2
BLIND 3
BLIND 4
OK
BLIND 1
NAME
CODE
DELETE
OK
CODES
OK
+
0
-
+
0
-
+
0
-
If handheld transmitters GJ..01
- ..06 are already programmed
on actuators / receivers, the
DIP switches
8 +9 should be set as follows:
Keypair1 UP:00DOWN:0–
Key pair 2
UP
:–0
DOWN
:––
Key pair 3
UP
: 0 +
DOWN
: + 0
10 Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
12 Activatethehorizontalnavigationkeyrighttoenterthecoding
switchofDIPswitch1.Activateverticalnavigationkeytochange
DIP switch from position „-“ to „0“ or „+“.
The DIP switches 8 and 9 should only be changed in case of a
specicchannelapplication.
Leavetherstcodingswitchtoselecttheactuatortype
…
...untilyouchangeovertotheashingtopbox.
13 Activatenavigationkeytogettothesecondcodingswitch.
The actuator can be selected with the next operation.
14 Press„OK“keytoenter„ACTUATORSSELECTION”
Select the Venetian blind symbol with the navigation key DOWN
Press the „OK“ key to save the actuator selection
The display changes to show „coding switch 2“ back.
The DIP switch settings 1-7 are saved, the DIP switches 8 and 9
are set on the next channel.
If the selected actuator „Venetian blind 1“ is not controlled
by a sensor, then continue straight to step 17.
CODES
OK
+
0
-
+
0
-
+
0
-
CODES
OK
+
0
-
+
0
-
+
0
-
11
www.geiger-antriebstechnik.de
EN
15 To set a sensor coding, you can select any of the DIP switches
1 to 6. The coding of the DIP switches 7 to 9 is automatically
generated by the sensor.
Activatekeysequence
to get to the display „Setting of sensor coding“
16 Activatethenavigationkeytosetthedesiredcodingforexample
with key sequence
17 With key sequence
OK
the set codings are saved and you leave the programming level.
You are now back in service menu.
Should another actuator be added, press the navigation
key DOWN
and start again at point 7
CODES
OK
+
0
-
+
0
-
+
0
-
CODES
OK
+
0
-
+
0
-
+
0
-
CODES
OK
+
0
-
+
0
-
+
0
-
LIVINGROOM
BLIND 1
EDIT
LIVINGROOM
BLIND 1
EDIT
12 Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
7.3 Transfer set codings on actuators / receivers
In order to transfer the set codings on the various actuators /
receivers, please refer to the operating instructions of the
respective devices and to the instruction manuals of the GEIGER
motors with integrated and external radio receivers.

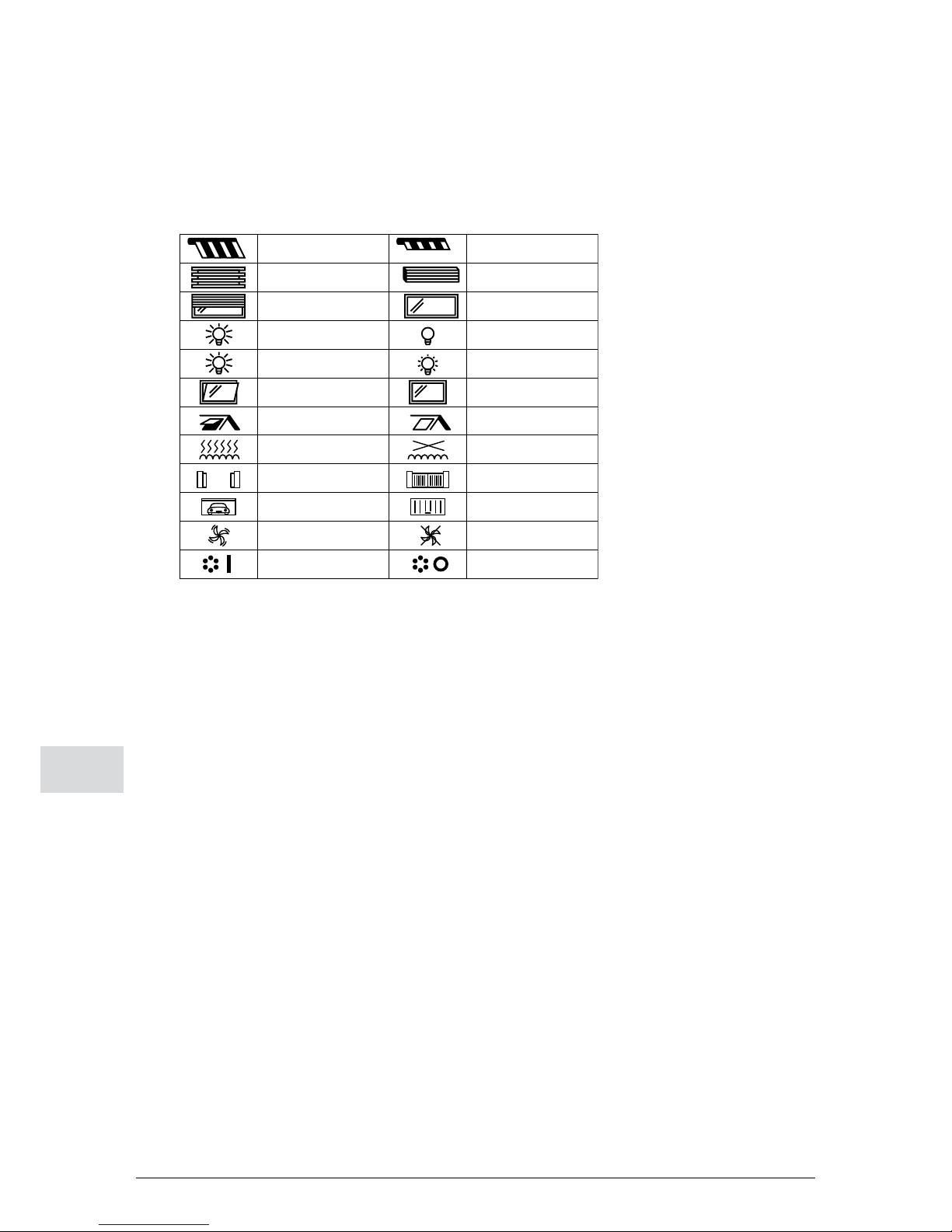

7.4 Selection of various actuators / receivers
+-
Awning DOWN Awning UP
Blind DOWN
Roll. shutter DOWN
Light ON
Dimmer +
Window UP
Roof light OPEN
Heating ON
Gate OPEN
Garage OPEN
Fan ON
Group ON
Blind UP
Roll. shutter UP
Light OFF
Dimmer -
Window SHUT
Roof light SHUT
Heating OFF
Gate CLOSED
Garage CLOSED
Fan OFF
Group OFF
13
www.geiger-antriebstechnik.de
EN

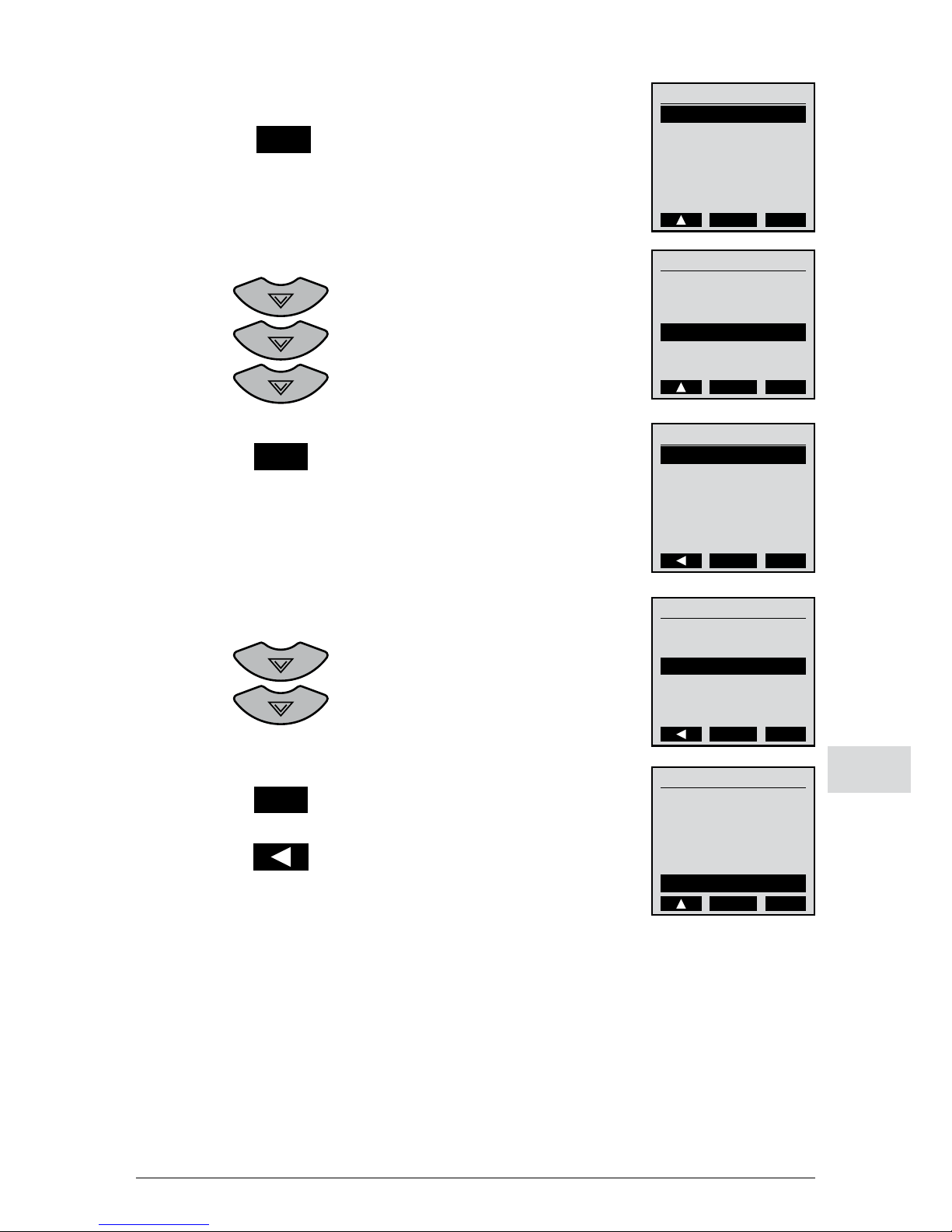

7.5 Delete or modify areas, actuators and codings
7.4.1 Delete individual actuators
Press key „EDIT“ for > 4 seconds
EDIT > 4 sec.
till an arrow shows on the left side.
ActivatenavigationkeyDOWNtoselecttheactuator.
Activatethemultifunctionkey„EDIT“todisplaytheactuator
EDIT
ActivatenavigationkeyDOWNandgoto„DELETE“ifyou
want to delete Blind 2
Now delete with multifunction key „OK“
EDIT
and return to operating mode with multifunction key left „ML“
The actuator (receiver) „Blind 2“ is deleted..
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
BLIND 2
NAME
CODE
DELETE
OK
BLIND 2
NAME
CODE
DELETE
OK
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
LIGHT 1
EDIT
14 Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
7.4.2 Reset to factory setting
Delete all settings:
Press key „EDIT“ for > 4 seconds
EDIT > 4 sec.
Anarrowshowsontheleftside
Activatemultifunctionkey
ActivatenavigationkeyDOWNtogoto„RESET“
Now press the „OK“ key
WARNING!
CLEAR ALL?
IF YOU NOW PRESS THE MULTI-FUNCTION KEY ALL
SETTINGS ARE DELETED!
With the multi-function key „left arrow“ you exit this point
without making any changes
LIVINGROOM
AWNING 1
AWNING 2
BLIND 1
BLIND 2
BLIND 3
LIGHT 1
EDIT
SETTINGS
AREANAME
LANGUAGE
RESET
OK
SETTINGS
AREANAME
LANGUAGE
RESET
OK
RESET
DELETE
ALL
CHANGES ?
CANCEL
DELETE
15
www.geiger-antriebstechnik.de
EN
8. Care and Maintenance
Like any electronic device, the comfort display handheld transmitters GF0040, 41 and 42 should
betreatedwithcare.Thesuggestionsbelowwillhelpyoufullguaranteeobligationsandenjoythis
product for many years to come.
If operated normally, the life of the battery inserted in the device comes to approx. 2 years.
Do not expose to direct sunlight for extended periods.
Clean the transmitter with a damp cloth or an anti-static cloth. If very dirty, clean the unit with dilu-
ted neutral detergent such as dishwashing detergent. Remove cleaner residue with a damp cloth.
Do not use alcohol-based or corrosive cleaners and no scouring powder!
9. Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please contact your local government’s recycling or
solid waste management department to learn more about the services it provides.
10. Technical data
Transmitted Frequency 434 MHz
Batteries 3xMicro1,5V,TypAAAoderLR03A
Power saving mode If no key is actuated within a 10 second time the light is switched off .
If no key is actuated within a 60 second time the device powers off.
Protection class IP40
11. Declaration of conformity
This product complies with the essential requirements of the directive 1999/5/EC.
It is authorised for use in all EC member states and in Switzerland without any need of prior
registration. The Declaration of Conformity concerning this product is available on our website:
www.geiger-antriebstechnik.de.
Gerhard Geiger GmbH & Co.
Schleifmühle 6
D-74321 Bietigheim-Bissingen
Telephone: +49 (0) 7142 938-0
Telefax: +49 (0) 7142 938-230
www.geiger-antriebstechnik.de
info@geiger-antriebstechnik.de
For technical questions, please call our service team at: +49 (0) 7142 938-300.
They will be happy to assist you.
16 Gerhard Geiger GmbH & Co. | 100W0624 0311en
EN
This manual suits for next models
2
Table of contents
Other GEIGER Receiver manuals
