GEISMAR STUMEC MC3 User manual

MC.
3
FROG AND SWITCH
GRINDER
Type
MC.3
ANGLAIS

In accordance with our environmental safety policy, this manual has been printed on recycled paper.
INT_Gb_00002_070525
GEISMAR, the quality choice !
You have just acquired a machine for laying and servicing railway lines. We thank you for choosing equipment developed and constructed by
GEISMAR / STUMEC, the fruit of over eighty years’ experience.
Every day since 1924, the GEISMAR Group has been investing in research and state-of-the-art construction to offer you the quality and
reliability so essential to the requirements of the world of railways.
This machine, built entirely in France from design through to delivery, has been subjected to continuous, extremely strict controls. Formed of
different mechanical elements assembled by highly qualified fitters, your machine has been tested, calibrated and controlled at every stage of its
production.
We are convinced that it will give you every satisfaction and are, of course, at your service to offer you any recommendations you may require
for its use or its maintenance.
We thank you for the confidence you have shown in us and, in the hope that we will remain one of your privileged partners, we would like to
confirm that we are totally available for any comments or recommendations you may care to make.

MC3_Gb_00767_101020
LIST OF CONTENTS
CHAPTER 1 - SAFETY
1.1 Foreword
1.2 Safety and general operating instructions
1.3 General safety regulations
1.4 Special safety instructions
1.4.1 Risks liable to be caused by using an “MC3” type grinder
1.4.2 Safety rules to be followed before and during use of the
“MC3” type grinder
1.4.3 Personal protective equipment
1.4.4 Pictograms and safety instructions
CHAPTER 2 – MACHINE DESCRIPTION
2.1 General

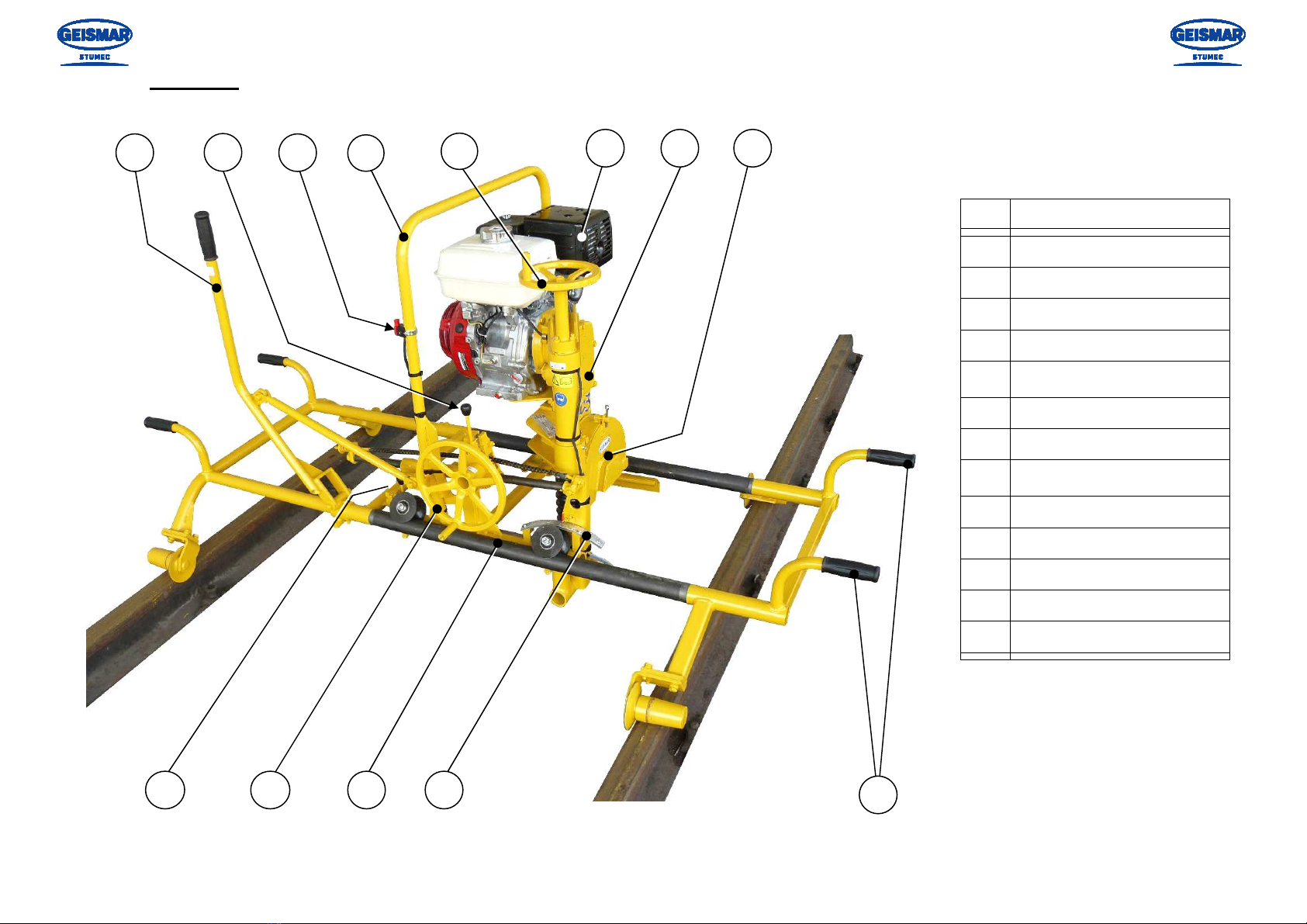

2.2 Overview
2.3 Technical characteristics
2.4 Allocation of load

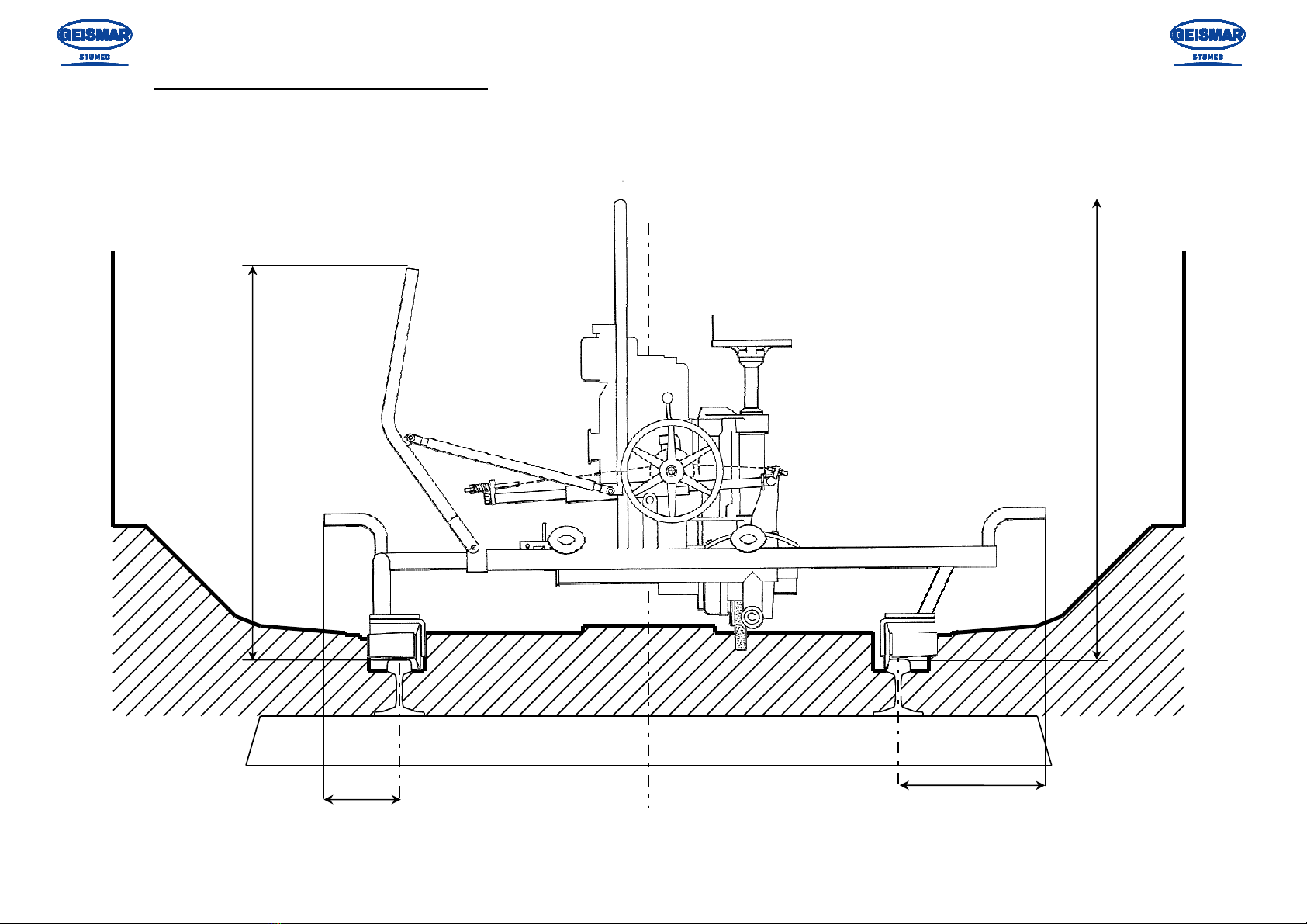

2.5 Position of the machine in the gauge
CHAPTER 3 – INSTALLATION – SET-UP
3.1 Installing the grinding wheel
3.2 Initial assembly
3.3 Putting the machine on the rails
3.4 Fuel
3.5 Machine inspection
CHAPTER 4 - OPERATION
4.1 Operating conditions
4.1.1 The operator’s work area
4.1.2 Starting and stopping the machine
4.1.3 Machine operation
4.1.4 Taking the machine off the rails
4.2 Storage
4.2.1 General storage instructions
4.2.2 Special storage instructions
CHAPTER 5 – SERVICING / MAINTENANCE
5.1 Servicing
5.1.1 Engine
5.1.2 List of equipment and accessories required for servicing
5.1.3 Cleaning
5.1.4 Greasing
5.1.5 Tilt brake
5.1.6 Drive belt
5.1.7 Engine speed
5.2 Maintenance
5.2.1 Preventive maintenance schedule
5.2.2 List of normal wear parts
CHAPTER 6 – MODIFICATIONS & OPTIONS
6.1 Optional equipment
6.1.1 Anti-vibration handles
6.1.2 Braking system
6.1.3 Lighting system
6.1.4 System for transport by inflatable wheel
6.1.5 Rollers for buried grooved rails
6.1.6 Power take-off
6.1.7 Bearing ring for use on shallow-buried grooved rails
6.1.8 Consumables
CHAPTER 7 – SPARE PARTS CATALOGUE
7.1 Drawings and parts’ lists

1.1 SECT_Gb_00003_070426 1.2
CHAPTER 1 – SAFETY
1.1 Foreword
The following set of rules has been drawn up to ensure the application of precautionary principles that help to preserve the safety of persons and property
when the machine is in use. Any failure to comply with these rules can have serious repercussions (bodily injury, etc.), and can even be fatal, so we must draw
your attention to the fact that all persons involved in the use, maintenance, storage or custody of the machine covered by the present manual must be familiar
with these rules.
Any users who cause an accident through failure to comply with these rules will be held personally responsible for the results of their actions.
1.2 Instructions for safety and general use
All persons using, servicing or repairing this equipment must have undergone the training, possess the skills, and have at their disposal the tools necessary to
carry out any such operations.
Before using the equipment, even in a maintenance context, it is necessary to read the corresponding instruction manual, together with its appendices, and the
safety rules in force in the workplace.
Comply carefully with the general safety instructions drawn up for the site by the person in charge of the site, especially if the work is carried out without
stopping or diverting traffic.
The equipment can only be used, serviced or repaired by competent personnel who have undergone thorough specialized training beforehand. The technical
documentation and the instructions are useful in completing the knowledge acquired during the training courses, but they can in no way replace theoretical and
practical qualifying training, provided in accordance with good professional practice.
If the operating company is not in a position to carry out the necessary training for its staff, at a satisfactory level, the GEISMAR/STUMEC Company is able
to provide advice concerning the training programme to be implemented.
The training must include an explanation of the various equipment functions, the instructions for use and maintenance, and the safety rules applicable, together
with practical exercises.
IMPORTANT! All persons using the machine must comply with the labour regulations in force
The GEISMAR/STUMEC Company cannot be held responsible for any modifications made without its
written approval, or for any assembly work not in conformity with its recommendations, especially in the
case of use of parts other than original manufacturer’s parts.

1.3 SECT_Gb_00004_090619 1.3
1.3 General safety instructions
•The operator and the working environment
To avoid all risks of accident or injury, it is essential to wear:
-Sturdy, non-flammable clothing that is suitably close-fitting
-Strong, non-slip gloves
-Safety shoes
-Protective eyewear
-Safety helmet
-All other equipment necessary on the site or when using the machine
In the case of use of ear defenders, the safety instructions in force on the site must be complied with at all times.
Make sure that the machine vibrations do not lead to a loss of sensitivity in the hands. Adapt the working periods to the level of vibration caused by
the machine, which is shown within the framework of normal use.
Do not work with the machine if you are not sure that you can control it correctly. Do not start working with the machine until you are sure that you
can do so in full safety, for yourself (good conditions of visibility and lighting) and for other people (work calmly and carefully). Take care to ensure
you have a firm, stable footing; all unstable working positions must be prohibited.
The user must be in a physical and mental condition enabling work to be carried out without danger.
The work area must be free of all obstacles. The work area (and the surrounding areas) must be free of all flammable substances.
If anything does not seem clear to you, whether it concerns the machine or the work to be carried out, ask a qualified person for information. Do not
base your work on assumptions.
For underground use (tunnel or gallery), or in a closed area, make sure there is sufficient ventilation or extraction to avoid the risks generated by
inhaling exhaust gases or by their build-up.
This equipment must not be used in an explosive atmosphere.
Avoid working positions in which exhaust gases could come into contact with parts of the body, whether protected or not.
In a general way, take all necessary precautions to prevent flammable products from coming into contact with fire hazards.
The operator must ensure that no one else is within the working area. In particular, it is necessary to make sure that in the direction in which the
machine is travelling, no one can be hit. If someone is nonetheless in the path of the machine, the operator must stop and warn the person of his
passage.
When the machine is installed on the track, it must be handled only by the number of operators strictly necessary for its normal use.
As the overall size of the machines does not enable extinguishers to be carried on them, we strongly recommend placing extinguishers of an
appropriate type to deal with the fire hazards close to the machine.
The user must comply with all the regulatory environmental instructions applicable to the machine in use.

1.3 SECT_Gb_00005_110202 1.3
•The operator and the machine
Before putting the machine into service each time, check that its condition and its operation are in compliance with the instructions.
In particular, make sure that the controls are free and in good working order, and that they are in the “stop” or “neutral” position. Never make any
modifications that could affect correct operation of the control systems.
All the protective elements must be kept carefully in place and in good condition.
Always keep the machine clean and remove any accumulated dust, especially if it could absorb flammable products.
Always move forwards when working.
When working, always hold the machine with both hands to ensure control at all times, and to be able to use it in full safety.
Never bring a machine close to a flame or a source of heat.
The machine must never be positioned close to hot or protruding elements that could damage some parts (tanks, exhaust, housings...).
Never move away from a machine while the engine is running, even when it is idling. Stop the engine immediately if the machine is not in use. After
stopping the engine, wait until all moving parts have come to a complete stop.
Work on the electrical installations on the machine can only be carried out by suitably qualified persons.
Read and make sure you fully understand all the signs placed on the machine, and always comply with all the instructions.
The signs placed on the machine include pictograms, manufacturer’s plates, and instruction labels. Make sure they are kept clean and replaced if
they have been damaged, or if they are missing or illegible. If one of these elements is on a part that is to be replaced, a new element must be present
on the replacement part. Please contact us on this subject.
When using a lifting device, the lifting operations of the machine must be done only using the lifting points indicated on the instruction manual.
When possible, the lifting of the machine is to be done only when the machine needs to be set in or out of the track. If the machine has to stay lifted
(for a maintenance operation for example), the hazardous area must be signaled/marked, so that no one can stay below the machine or walk close by.
THE MACHINE MUST NEVER BE USED FOR A PURPOSE OTHER THAN THAT FOR WHICH IT IS INTENDED
NEVER TOUCH A MOVING PART WITH A TOOL , OR WITH THE HAND , OR WITH ANY OTHER PART OF THE BODY
IT IS E ES SS SE EN NT TI IA AL L T TO O S ST TO OP P T TH HE E E EN NG GI IN NE EAND SET THE CONTROL TO THE STOP POSITION BEFORE CARRYING OUT :
- ANY HANDLING WORK
- ANY WORK TO CHANGE TOOLS OR SOCKETS
- ANY WORK INVOLVING FUEL OR OIL ( FILLING , TOPPING UP , CHECKING LEVELS , ETC .)
- ANY REPAIR , MAINTENANCE OR CLEANING WORK

1.3 SECT_Gb_00006_110202 1.3
•Using and handling fuel and oil
It is essential to stop the engine and set the control to the stop position before carrying out any work involving fuel (filling up, checking
the level, draining, etc.).
Always keep suitable extinguishers ready for use in all areas where fuel is handled (storage, filling up, etc.).
Always store fuel and oil in separate cans specially designed for the purpose and bearing the labels required by regulations. They must be stored in a
safe place, well away from all types of fire hazard.
Each time a machine is started up, and while it is running, make sure that there are no fuel leaks from any part of the machine. If a leak is suspected,
stop the engine immediately and do not restart the machine until the leak has been repaired.
Never carry out any work on a fuel tank or handle fuel to fill a tank, or for any other reason, in an area where there could be a fire hazard (such as a
burning cigarette, a blowtorch, sparks, etc.) or substances that are incandescent or at a high temperature (such as welding spatters, slag, clinker, etc.).
All such work must always be carried out outdoors or in a well-ventilated area.
Always turn all mobile phones off while filling a tank with fuel or handling fuel.
Carefully tighten the fuel filler cap each time, and check that no fuel leaks from it.
Always remove a filler cap slowly, to enable any internal pressure to be released without spraying any fuel out. Take special care if the surrounding
temperature is high.
When putting fuel in a machine that has heated up, never fill the tank completely. Do not put in more than three-quarters of the tank capacity.
If fuel starts to boil in the tank when putting fuel in a machine that has heated up, screw the cap on again immediately and leave the machine to cool
down.
Make sure the fuel used is suitable for the type of engine on the machine. See the user manual for the engine.
Do not inhale fuel vapour.
If it is necessary to drain the fuel tank, pour the fuel into a container designed for the purpose and bearing the labels required by regulations. Always
close them tightly, even if they only contain a small quantity. Never use a glass container.
Never use fuel for cleaning work. Use only non-flammable, non-toxic products that are harmless for the user, the equipment and environment.
If fuel has been spilt near the filling area for any reason, clean it up immediately. Clean straightaway any spillage of fuel on the skin. Make sure no
fuel has been spilt on your clothes; otherwise, change clothes immediately. Remove all rags or other materials used to wipe fuel, and store them in a
safe place well away from all sources of heat or combustion. Move the machine well clear of any spilt fuel before starting it up (at least 6 metres
away), and do not move any closer to the area while the engine is running.
I N CERTAIN CASES HANDLING OIL CAN GIVE RISE TO THE SAME TYPE OF RISKS AS HANDLING FUEL . I T IS THEN ESSENTIAL TO TAKE THE
SAME PRECAUTIONS WITH OIL AS THOSE SET OUT ABOVE FOR FUEL .

1.3 SECT_Gb_00007_120724 1.3
•Tools to be used on the machine
Use only the types of tools intended for normal use of the machine.
Measure the speed of all rotating tools at regular intervals.
Never use tools at speeds greater than the maximum speed for which they have been designed and approved.
Never use damaged tools or tools that have reached their maximum level of wear.
•The engine on the machine
Never touch the hot parts of the engine, and especially the exhaust pipe. If it is necessary to work on the engine, wait until it has cooled down.
Check the engine rotation speed at regular intervals, and especially after fitting tools or reassembling the machine. Adjust if necessary.
Never exceed the speed shown in the technical specifications.
After starting with the choke, remember to return the choke to the normal running position.
Never wind the starter rope around your hand, and never release it suddenly.
If the machine does not operate correctly after the engine has been started, stop the engine and inform the head of maintenance.

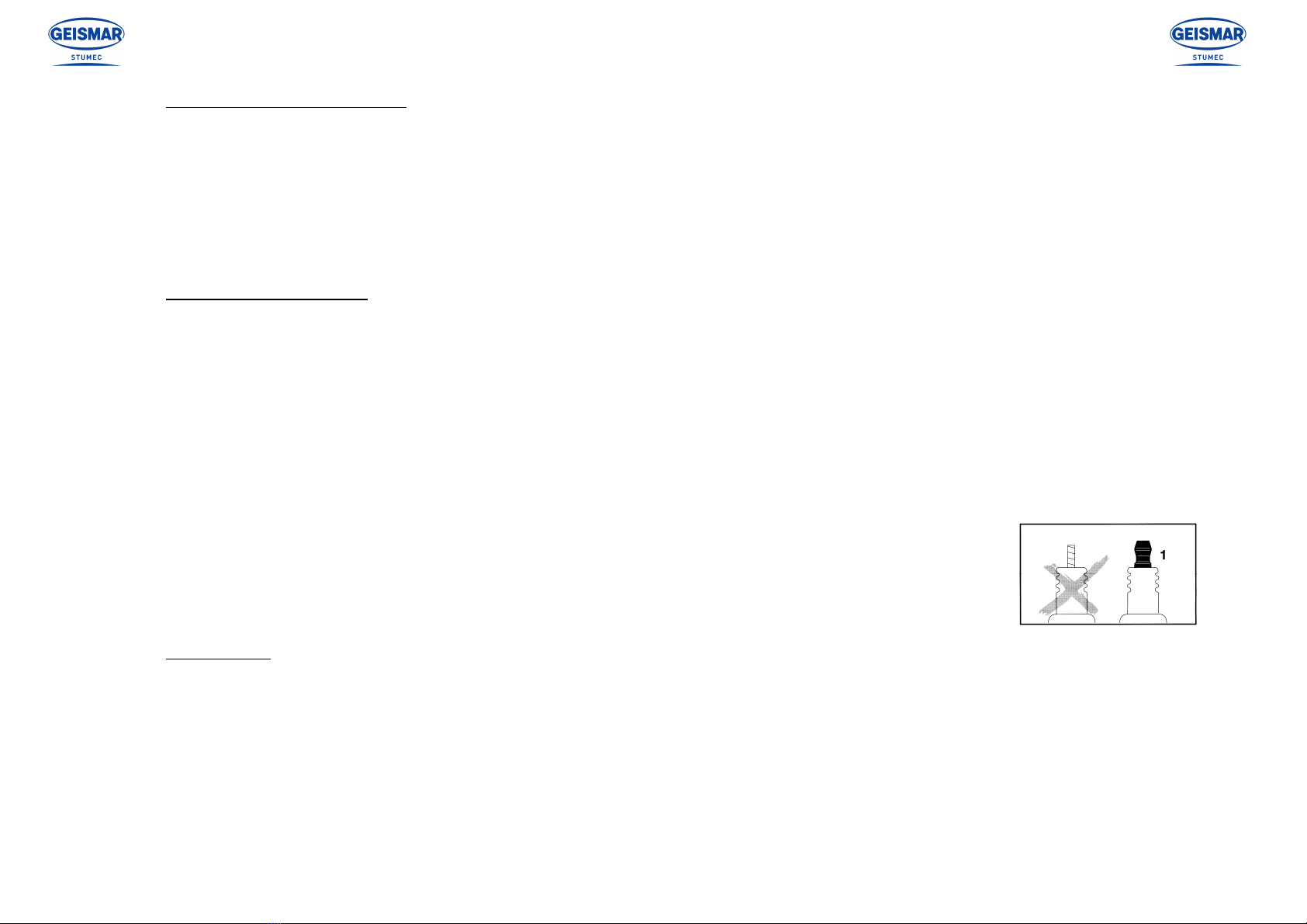

For petrol engines, use only spark plugs whose tops are as shown in drawing 1 opposite. If the plug is fitted with a
screw top, make sure the top is fully tightened. After fitting the spark plug, make sure that the plug cap is in good
condition and that it stays firmly on the plug. Carefully check the fastening system to make sure that no sparks can
be formed.
•Using trolleys (If applicable)
A machine designed to work on a trolley must not be used without the trolley. The trolley is thus an integral part of the machine. The machine and
the trolley must not be used separately.
Trolleys whose use is dedicated to a machine must never be used to transport equipment or personnel, or attached to a vehicle.
Before fitting the machine on its trolley, it must be placed correctly on the track to ensure that it can run freely. If it is on a sloping section of
track, make sure the trolley is kept immobile while the machine is being put on the track or taken off it.
Attention, the trolley takes up the full width of the track and can cause injuries to the legs if it hits someone.

1.4 MC3_Gb_00768_101020 1.4
1.4 Special safety instructions
1.4.1 Risks liable to be caused by using an “MC3” type grinder
The main risks liable to be caused by “MC3” type frog and switch point grinders for the operator and other persons close by, are:
-Fires resulting from fuel handling
-Fires caused by sparks encountering inflammable material.
-Grinding wheels bursting during use under non-standard conditions
-Injuries or burns caused by sparks or grinding wheel debris being projected (particular must be taken to protect eyes).
-Severe injury if any part of the body comes into contact with the grinding wheel when it is turning.
-Inhalation of particles caused by grinding (use protective equipment to avoid inhaling any particles).
IMPORTANT
Due to the possibility of positioning the engine at an angle whilst working, the following rules MUST be systematically obeyed:
Always bring the grinding wheel back to vertical, stop all grinding operations and stop the engine before opening the fuel cap.
Never fill the fuel tank over ¾ full (to avoid any seepage when the engine is working at an angle.)
Never work on a fuel tank, or handle fuel for filling or for any other reason in any zone where the following may be present: An ignition source (for
example: Lit cigarettes, blow-lamps, sparks, etc.) or materials that are incandescent or at high temperatures (for example: welding flash, various types of
slag, etc.). Always carry out this type of operation in the open air in a well ventilated area.
Lock the fuel tank cap after use and check that no fuel can escape.
Refer to §1.2 “Safety and general operating instructions” and §1.3 “General safety regulations”

1.4 MC3_Gb_00769_101020 1.4
1.4.2 Safety rules to be followed before and during use of the “MC3” type grinder
Besides the clothing specified in paragraph §1.3 “General safety regulations / the operator and his environment”, any personnel using this equipment
must also use protective equipment such as: masks or glasses, an apron, gaiters or boots in fireproof material
Wearing a protective mask for avoiding any inhalation of grinding dust is also recommended.
Do not use any damaged, cracked or split grinding wheels.
Rotate any new or refitted grinding wheel for 30 seconds without any load on it. All personnel should be kept at a distance during the test, except for
the operator who must stay at the controls of his machine, but outside the grinding wheel’s plane of rotation and ready to stop the engine if necessary.
When grinding, never stand in direct line with the sparks. If necessary, set up a screen for stopping sparks and prevent them from encountering any
dangerous areas (dangers of brush fires in summer).
Do not let the grinding wheel hit anything when in operation as this may cause it to burst.
Make sure that the grinding wheel is never in contact with a sleeper, ballast or any other foreign body.
Before starting the machine, check that the grinding wheel protective cover is in good condition and correctly attached. Never make any modifications
to it.
Install a new protective cover if ever a grinding wheel has burst and every time the cover appears to be in poor condition.
Regularly check rotation speeds especially after reassembling the machine and correct them if necessary.
Only use the types of grinding-wheel allowed, as far as both dimensions and composition characteristics are concerned.
Never use grinding wheels at speeds higher than the maximum speed recommended by their manufacturer, which should be marked on every wheel.
Stop the engine systematically before taking the machine off the rails or between two grinding operations where the machine has to be moved from
one point to another.
ONLY USE GRINDING WHEELS:
Whose maximum operating speed is higher than the maximum speed of the grinding wheel arbor, indicated
on the machine.
Whose outside diameter is smaller than or equal to the maximum diameter allowed as indicated on the machine.
Authorized by regulations in force for this type of machine.

1.4 MC3_Gb_00770_101020 1.4
1.4.3 Personal protective equipment
•Personnel using this equipment must wear the clothing specified in paragraph §1.3 “General safety regulations / the operator and his environment”. He
must also be equipped with equipment to protect him against sparks, such as: masks or glasses, an apron, solid non-slip gloves, and gaiters or boots in
fireproof material
•Wearing a protective mask for avoiding any inhalation of grinding dust is also recommended.
•Besides using the personal protective equipment described in §1.3 “General safety regulations / the operator and his environment”, we
also recommend the use of ear muffs. However, railway regulations in force and applicable to the worksite must be referred to, in
order to see whether muffs may be used or not.

1.4 MC3_Gb_00771_101020 1.4
1.4.4 Pictograms and safety instructions
The presence of pictograms and safety instructions is compulsory on the profile grinder in the positions indicated.
If any of them are missing or deteriorated, replacements MUST be ordered immediately and installed in the position provided for.
If any part with a label on it has been replaced, make sure that a new label has been fixed to the new part.
Reference: N° 12528 (yellow background)
Position: Glued to the grinding height adjustment
barrel.
Reference: N° 12670
Position: Riveted onto the machine’s grinding
wheel cover.
Reference: N° 12569 (blue background)
Position: Glued to each of the machine’s
carrying arms (if supplied)
.
Reference: N° 12412
Position: Riveted onto the machine’s grinding
wheel cover.
Reference: N° HZM (blue background)
Position: Glued to the grinding height
adjustment barrel.
Reference: N° 12632 (white background)
Position: Glued to the fuel tank beside the filling
cap.

2.1 MC3_Gb_00776_101020 2.1
CHAPTER 2 – MACHINE DESCRIPTION
2.1 General
Manufacturer: SOCIETE TURRIPINOISE DE MECANIQUE
Route d’Italie
38110 LA TOUR DU PIN
Name of equipment Frog and switch point grinder
Type: MC.3
The MC3 type frog and switch point grinding machine is designed for grinding switch blades, frogs and wheel-guides on all types of points
and crossings
The tilt angle of the grinding head up to ±30° from vertical (with angle readout on a graduated rule) also enables certain number of fillet
radii to be ground.
Its exceptional performance, its sturdiness and its firm, accurate and ergonomic controls offer optimal ease of operation.
It has been totally designed by calling on the latest techniques used in the machine tool industry.
The combination of movement provided by its two carriages, which move in two perpendicular directions, gives access to a very wide zone
of action.
•Along the track (4-wheel trolley)
•Perpendicular to the track (carriage holding the machine’s grinding wheel mechanism).
The grinding wheel moves both horizontally and vertically.

2.2 MC3_Gb_00779_101020 2.2
2.2 Overview
Ref. Description
A Operating lever
B Wheel tilt locking catch
C Remote motor stop button
D Work bar
E Wheel raising & lowering hand-
wheel
F Engine
G Grinding head
H Grinding wheel protective
housing
J Cross-traverse locking catch
K Wheel tilt hand-wheel
L Guiding column
M Graduated scale
N Lifting handles (x4)
B
N
A H
J
F
M LK
C
D
E
G

2.3 MC3_Gb_00783_101020 2.3
2.3 Technical characteristics
(1) Measurements taken under load as per NF EN ISO 11204. (2) Measurements taken under load as per NF EN ISO 3746. (3) Vibration readings taken under load as per NF EN ISO 5349.
* The engine power given in this document corresponds to the net power produced tested on a standard motor and measured to SAE J1349 standards at a given engine speed. This power value may vary on other standard motors. The net power produced by
the engine mounted on the machine may vary for numerous reasons, such as, for example, engine speeds used for a specific application, environmental conditions, etc.
TYPE OF ENGINE (4-stroke) HONDA GX 160 HONDA GX 200 HONDA GX 270 BRIGS&STRATTON
19H132
Machine dimensions
Length / width / height ……..……………………. mm 2160 / 1100 / 1030 2160 / 1100 / 1030 2160 / 1100 / 1030 2160 / 1100 / 1030
Weight
Machine (empty)……………...………………….. kg 95 107 107 94
Machine (ready-to-run) ……….....………………. kg 103 115 115 102
Noise
Acoustic pressure level (La eq )
(1)
…............………. dB (A) 85 (±2) 86 (±2) 86 (±2) 78 (±2)
Acoustic power level (Lwa)
(2)
…............................ dB (A) 92 (±2) 94 (±2) 94 (±2) 91 (±2)
Vibrations
Vibration level (A eq )
(3)
………….......……………
ms
-
2
1.1
(operating lever) (±2%)
1.3 (lifting arm) (±2%) 1,1
(operating lever) (±2%)
1,3 (lifting arm) (±2%)
1.5 (operating lever) (±2%)
1.8 (lifting arm) (±2%)
3,2 (operating lever) (±2%)
3,7 (lifting arm) (±2%)
Motor
Power (at 3600 rpm) ……………….......………... kW 3.6 (= 4.8hp)* 4.1 (= 5.5hp)* 6 (= 8hp)* 4.8 (= 6.5hp)
Fuel tank capacity ……………………….………. litre 3,1 3,1 5,3 3,8
Fuel consumption ................................................... Liters/hour 1,4 1,7 2,5 1,9
Fuel ……………………………………….........… …… Unleaded petrol
Start-up …………………………………….......… …… Pull-rope start with auto return
Machine For grinding wheel Ø ≤254mm For grinding wheel Ø 260mm
Preset engine speed (maximum speed) …….......... rpm 3600
3570
254
3300
3270
260
Grinding wheel rotation speed …………............... rpm
Maximum grinding wheel diameter ……………... mm
Grinding wheel
Outside diameter …………………………..…….. mm 230 or 250 or 254 or 260 (depending on machine)
50 or 80 (depending on machine)
Resinoid grinding wheel (wheel made with synthetic binder)
65
Maximum permitted peripheral speed ........……... m/sec
Wheel composition …........…………………….... ……
Vertical movement of the wheel..………………... mm

2.4 MC3_Gb_00788_101020 2.4
2.4 Allocation of loads
The diagram below shows how loads are allocated as a percentage of the machine’s weight.
Refer to §3.3 “Putting the machine on the rails” for determining the number of persons required for transport operations.
53
%
47
%

2.5 MC3_Gb_00792_101020 2.5
2.5 Position of the machine in the gauge
The following diagram gives the machine’s dimensions compared with low track gauge UIC 505-1 (track with a nominal gauge of 1435).
345
178
863 1020

3.1 MC3_Gb_00793_101020 3.1
CHAPTER 3 – INSTALLATION – SET-UP
3.1 Fitting the grinding wheel
The grinding wheel MUST ALWAYS be fitted with the engine or motor switched off, with the machine placed on the ground and the grinding head in a
vertical position and raised as high as possible.
Removing the grinding wheel:
1→Unscrew the 4 nuts Ref. ①using a 13 mm spanner and then remove the protective cover Ref. ②(See fig.1).
2→Separate the grinding wheel Ref. ④from the wheel-holder plate Ref. ③:
- Assembly fig.2 >> unscrew nut Ref. ⑤with a 36 mm spanner, holding the pulley shaft Ref. ⑥in position with the 17 mm box spanner.
- Assembly fig.3 >> Unscrew the four screws Ref. ⑧with a 13 mm spanner, holding the pulley shaft Ref. ⑥in position with the 17 mm box spanner.
3 →Remove the back plate Ref. ⑦and then remove the grinding wheel fitted to the machine.
Fitting the grinding wheel (with the grinding wheel protective cover already removed):
4→- Assembly fig.2 >> Position the wheel Ref. ④ so that its inside diameter bears on the shoulder of the wheel-holder flange plate Ref. ③. Place the back
plate Ref. ⑦on the pulley shaft Ref. ⑥and tighten the unit together using nut Ref.⑤and a 36 mm spanner, continuing to hold the pulley shaft
Ref. ⑥in position with the 17 mm box spanner.
-Assembly fig.3 >> Position the wheel Ref. ④ so that its inside
diameter bears on the shoulder of the wheel-holder flange
plate Ref. ③. Place the back plate Ref. ⑦in contact with the
wheel and maintain it in position with the four holding screws
Ref. ⑧. Bring the screws into contact and then tighten them
with a 13 mm spanner.
Do not overtighten nut Ref. ⑤
⑤⑤
⑤or screws Ref. ⑧
⑧⑧
⑧.
5 →Position the protective housing Ref. ②and fix in place by
tightening the 4 nuts Ref. ①using a 13 mm spanner.
Grinding wheels are marked with a use-before date. Check that the date has not been overrun.
Please contact us should you wish to use a grinding wheel other than the original supply or to adapt
different grinding wheels.
G
RINDING WHEELS TO BE USED MUST COMPLY WITH THE TECHNICAL CHARACTERISTICS
DEFINED IN
§
2.3
“T
ECHNICAL
C
HARACTERISTICS
/
G
RINDING
W
HEEL
”.
4
3
5
6
7
Fig.2
4
6
7
3
8
5
Fig.3
Fig.1
2
1

3.2 MC3_Gb_00794_101020 3.3
3.2 Initial assembly
To reduce the overall size of the unit before packaging, its rear roller support Ref. ①may have
been dismantled.
Should this be the case on the machine in question, it must be re-assembled before use.
To re-assembly the machine, proceed as follows:
•Insert the rear roller support unit Ref. ①into the chassis of the machine Ref. ②.
•Insert the 2 holding screws Ref. ③in the sockets provided for this purpose (holes passing
through the 2 tubes).
•Screw in and tighten the 2 holding screws (13 mm spanner).
3.3 Putting the machine on the rails
Before any handling operation, the mobile part of the machine must be prevented from making any crossways movement by engaging the catch Ref. ④.
The frog and switch point grinder may be positioned on or close to railway lines using a crane or any other type of lifting equipment with a capacity of over
2000N and the lifting rings Ref. ⑤(x4) (if supplied) located at the four corners of the machine (between the chassis and the lifting arms).
The “MC3” frog and switch point grinder can also be put into position by hand using the 4 lifting arms Ref. ⑥located on either side of the machine. The
positioning operation can be carried out by two persons. Nevertheless, if access to the work area proves to be difficult, provide for a sufficient number of
persons so that transport operations can be carried out under satisfactory safety conditions.
Once the machine has been positioned on the rails, it must be immobilized to prevent it
from moving by itself and hitting and injuring anybody. If the machine is fitted with a
roller brake (See Chap.6 “Optional equipment”), check that the brake is on. Otherwise
chock the machine if necessary.
ALL MACHINE-MOVING OPERATIONS ON AND OFF THE RAILS MUST BE CARRIED OUT WITH THE ENGINE SWITCHED OFF
5
4
6
6
3
1
2
