GEMAR Lumitec BEAM 330 IP54 User manual

BEAM 330 IP54
USER MANUAL
CODE TP112266
Weight 20KG
Color
Temperature 8000K
Power
Consumption 470W

2
CONTENT
Statement : ............................................................................................................................... 3
1.Brief Introduction ................................................................................................................. 3
2.Dimension .............................................................................................................................. 3
3.Components Info .................................................................................................................. 4
4.Safety and Warning Info ...................................................................................................... 5
5.DMX512 Connection ............................................................................................................ 7
6.Package Info .......................................................................................................................... 8
7.AC Input Power .................................................................................................................... 8
8. Lamp Info ............................................................................................................................. 9
9.Color and Gobo Wheels Info ............................................................................................... 9
10.LCD ...................................................................................................................................... 9
11.LCD Menu ......................................................................................................................... 10
12.Chanel function description....................................................................................13
13.Channel Data .................................................................................................................... 13
14.Drive Board Illustration .................................................................................................. 18
15.Lamp Changing Method .................................................................................................. 20
16.Body Covers Disassembling Method .............................................................................. 21
17.Base part Info and Installation ....................................................................................... 22
18.X Belt Changing Method ................................................................................................. 23
19.Attention Items ................................................................................................................. 24
20.Common Faults ................................................................................................................. 24

3
Statement :
The device is well packed and function well before delivery .Any user should follow the manual instructions and avoid the
warnings detailed in the manual.Damages and problems caused by overlooking and incorrect operation are beyond the
dealer and factory responsibilities .Users will not be further noticed if the manual is updated in the future possibly .Thanks
for understanding .
1.Brief Introduction
Thanks for choosing BEAM 330 IP54 which is our patent brand new high tech products with international advanced
electronic control technology and excellent user-friendly industrial design , fully complying with CE standard, accepted
international standard DMX512 signal mode.
Equipped with the Phoenix MSD 330 15R short focus lamp and multi-layer lens ,it can cast bright beam and clear gobos as
well as fresh colors thanks to the high brand color wheel .Two DMX channels mode and Chinese and English language
versions for you to choose .And the digits can cast upside-down ,convenient to hang them on the truss .Pan scans 540°and
Tilt runs 270°.There are 14 different colors plus open and 16 gobos plus open too .There are two prisms,one 16facet and
one 6facet column which can controlled separately or synchronously .Aside of the linear dimmer and adjustable strobe
functions ,the light is also equipped with the software fan speed cooling monitoring system.With these super features ,
BEAM 330 IP54 are widely welcomed by TV ,DISCO ,Ballroom ,Nightclub ,and other indoor and outdoor big events .

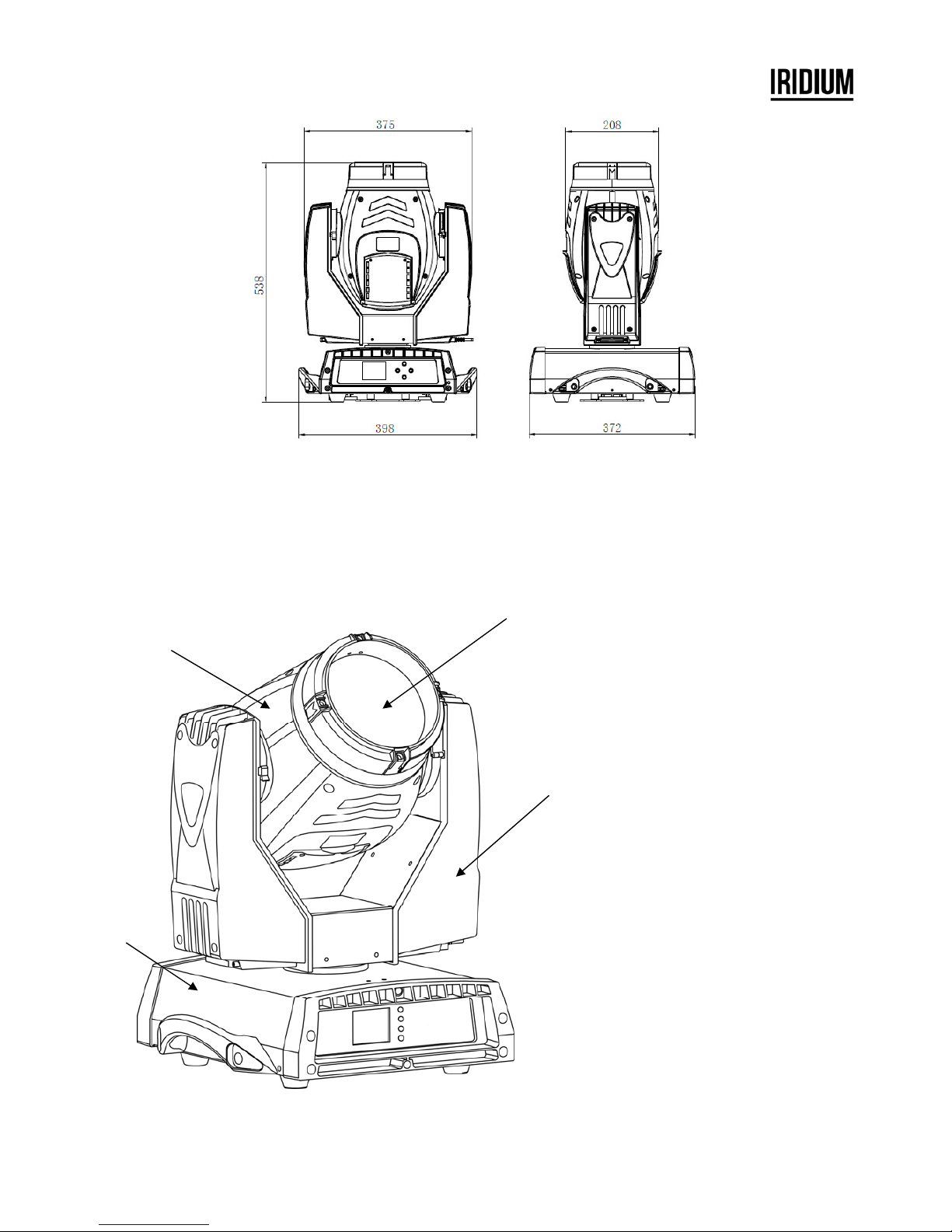

2.Dimension
Size :375(length )×372(width )×538(height )mm

4
3. Components Info
02
03
05
01 — Lens
02 — Body
03 — Arm
04 — Base
01

5
Attached components info above for your better understanding of the BEAM 330 IP54
4.Safety and Warning Info
This device is only suitable for professional purpose .When you receive the light, Check if it is broken caused by delivery .If
it’s broken ,contact the local dealer or factory as soon as possible .
The IP rate is 54,suitable for indoor and outdoor performance .The devices should be kept dry and avoid using it in
moist ,overheating,dusty environment .To steer clear of the damages caused by electric shock ,fire ,UV ,lamp burst and
device falling etc ,please read the manual through before charging and installation.Be aware of all the danger notices and
abide by the instructions are necessary during the operation .More questions ,contact the local agency or the factory .
4.1 Anti-overheating
ta =40°C
Switch off the device immediately once the surrounding temperature is over 40℃.
4.2 Prevention of burst
Change the lens if there are cracks or dent on it .
Only the original brand lens is suitable to change .
Lens Dimension :￠156×28 mm
4.3 Prevention of falling accidents
Do not carry the device alone .
Make sure the facility can withstand ten times of the light before hanging .
Please make sure the mounting hardware is strong enough without any damage, and using the safety chain together for

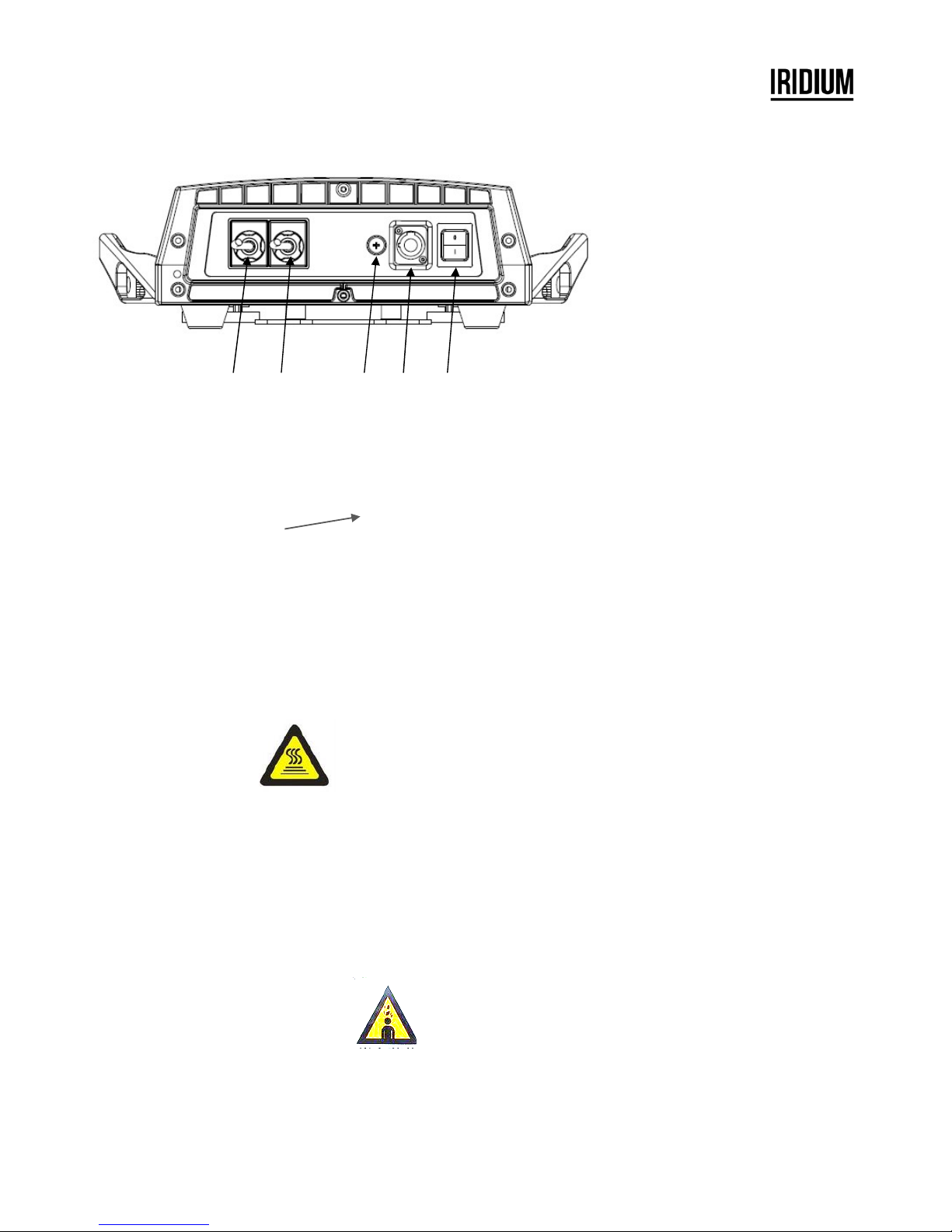

01 — 3Pin dmx In
02 — 3Pin dmx Out
03 — Fuse
04 — Power Socket
05 — Power Switch
01 02 03 04 05

6
secure .Let the pulley below the working place when installing or removing the device .
4.4 Anti UV
Staring at the casting beam is definitely forbidden .
Do not use the device without lens or covers .
Change the lens and covers if them broken .
4.5Prevention of electric shock
Only qualified electricians can connect the electric power .
Before connecting ,make sure all the voltage comply with the specified type and equipped with overload and leakage
protection .
Each device must be grounded correctly .
Switch off the power before replacing and installing the lamp .
4.6Prevention of fire and burning
Do not install the device on flammable material surface directly .
Do not short circuit the temperature protection terminal or fuse .Use the standard fuse .
Stay away of the inflammable material .
Do not project the light within 12 M and the material projected temperature should not be over projected range of 3
meters away objects and60℃. 12m
There should not be stuffs within 0.5m from the fan or ventilation .
Do not put stuff over the lens .
Cooling the device at least 20minutes before package and delivery .
Do not change with the unoriginal brand spare parts .
Attention
In order to fix the device securely ,using 2 omega holders and 4 quick lock fasteners correctly into the quick lock hole
turned 90 clockwise is necessary .Adding a safety chain to the base hole not the handle is extra and necessary safety
method .
Clamp
F

7

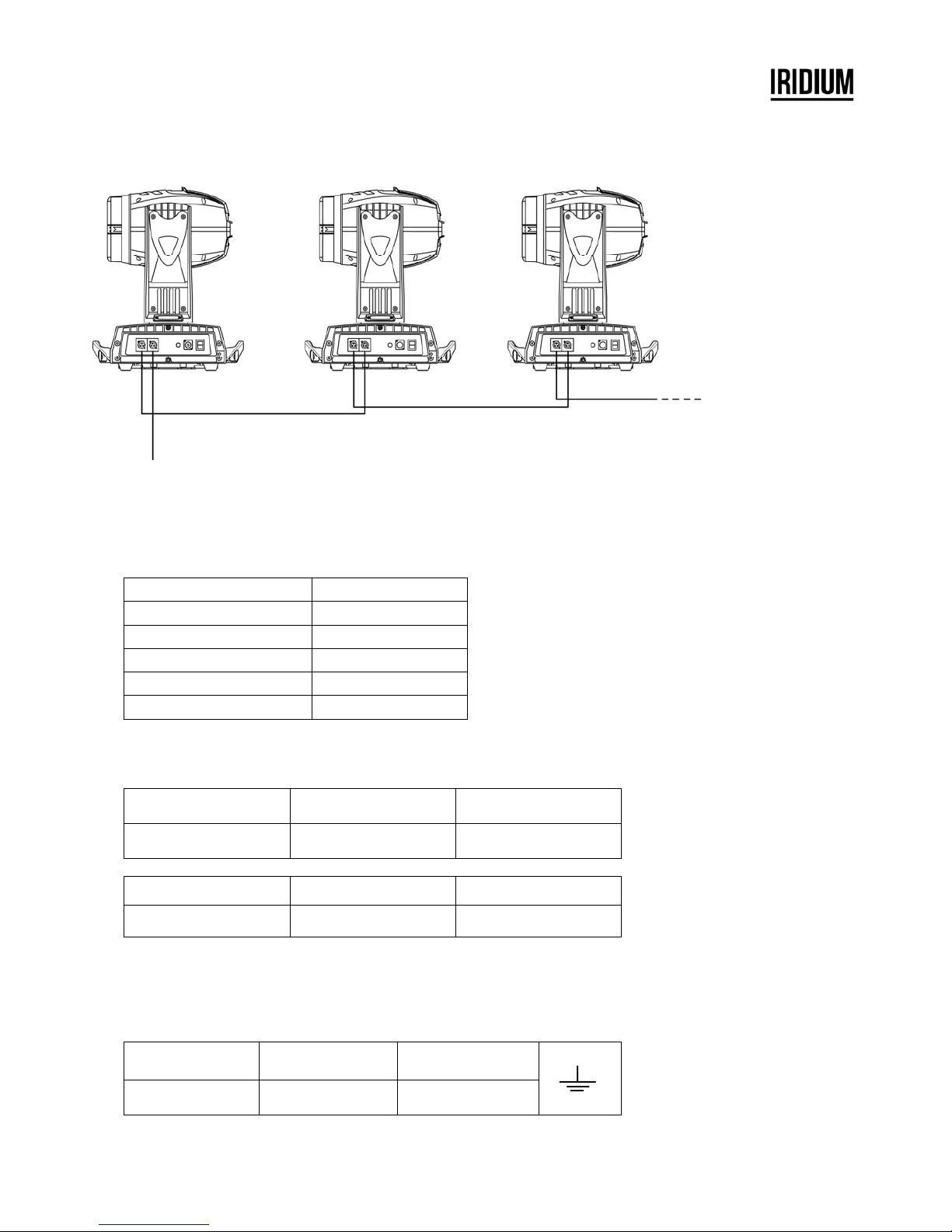

5．DMX512 Connection
DMX512 cable must use the professional shielded twisted pair cable.The standard loudspeaker cable is not reliable to
control the long-range data. 24AWG cable is suitable for more than 300 meters long-distance signal transmission and must
add the DMX 512 signal amplifier.
Do not use two outputs to separate the connection. if separate ,a DMX512 splitter is necessary.
If use the DMX512 splitter ,at first connect DMX512 Splitter input terminal to controller and then connected from the
splitter output terminal to next device.
Do as above to connect other devices, and finally coupled with a 120 Ω loop resistance terminal insertion.
DMX-512 loop resistance terminal
If the dmx line is too long or placed in some noisy electric signals places like disco ,nightclub ,ballroom etc ,using dmx loop
resistance terminal is necessary .Welding a 120Ω resistor terminal between the pin 2 and pin 3 as below and plug it into
the last light XLR output terminal .
Omega bridge
Safety chain

8
6.Package Info
BEAM 330 IP54 are packed in 1in1 or 2in1 flight case or carton with accessories inside .
Accessories accompanied with one light
Item Quantity
Manual 1
Safety chain 1
Omega clamp 2
DMX cable 1
Power wire 1
7.AC Input Power
BEAM 330 IP54 input voltage ,power consumption ,and fuse standard
Input Voltage Power Consumption Frequency
110~240V 550W 50/60HZ
Fuse Voltage Fuse Current Size
250V 5A 5×20
Attention :Only qualified electrician can operate the power related work .Make sure the voltage input comply with the
specified standard as well as grounded and equipped with overload and leakage protection .
Live Neutral Earth
Red Blue Yellow-green
Controller
N

9
8. Lamp Info
BEAM 330 IP54 Lamp Info
Brand Power Consumption Lifespan Color Temperature
Phoenix MSD 330 15R 330w 1800hrs 7200K
Warning ! In case of the extra potential damages caused by lamp burst ,change the lamp before it’s over 125% specified
lifespan.
9.Color and Gobo Wheels Info
BEAM 330 IP54 is equipped with 14 colors plus open ,pure color ,excellent effect .
BEAM 330 IP54 is equipped with 16fixed gobos plus open .Better effects with 16 facet prism .
10.Display Panel

10
Touch screen display：Display the data information and control operation
DMX Address SYSTEM INFO FEATURES SETTING
MANUAL AUTOMATIC MODE CALIBRATIONS
LAMP SETTING LANGUAGE SETTING 180°REVERSE DISPLAY AVAILABLE
Function Key ：
1: Return function 2: Up/Digit increase/Next function
3: Down/Digit decrease/Last function 4: Mode choosing/Confirm function

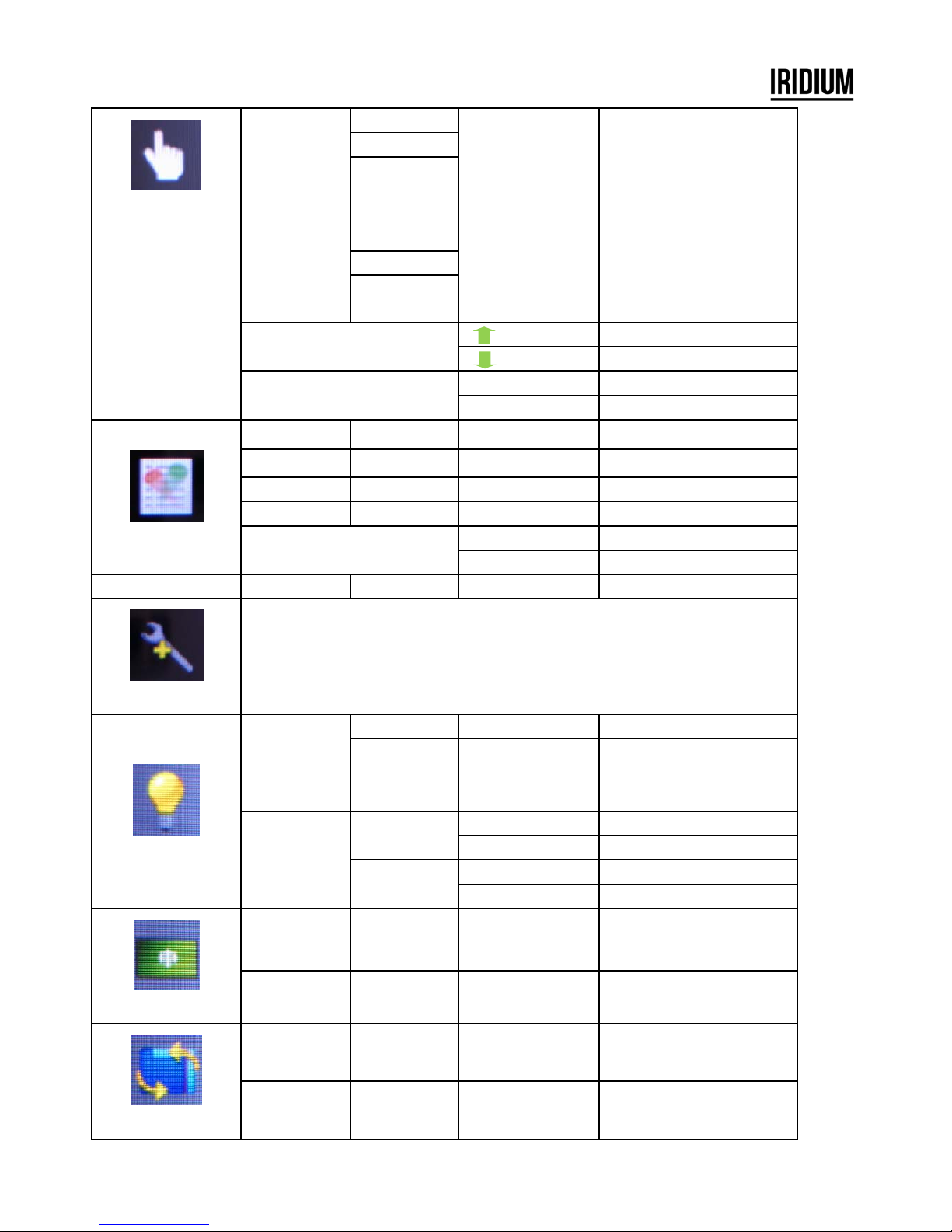

11.LCD Menu
Main Menu Submenu 1 Submenu2 Function SET Function description
Touch Screen
Dis
p
la
y
Function
Key
1
2
3
4

11
DMX Address <<
1-512
to address 1
< address up
> address down
>> to address 512
√ save and back
× back
SYSTEM INFO
Fixture times
Power On Times xxh
Power On Number xx
Lamp On Times xxh
Lamp On Number xx
Versions
Holder Control xx
Pan/Tilt Control xx
Display System xx
View Logs
1/5
ZOOM Status OK/Er
Focus Status OK/Er
Prism1 Status OK/Er
2/5
Prism1R Status OK/Er
Prism2 Status OK/Er
Prism2R Status OK/Er
3/5
Color Status OK/Er
Sta Gobo Status OK/Er
Rot Gobo Status OK/Er
4/5
Rot.R Status OK/Er
Pan Status OK/Er
Tilt Status OK/Er
5/5 Fan1 Speed Light body cooling fan
Fan2 Speed Blower
Page up
Page down
× back
FEATURES SETTING
Control mode
DMX Console mode
Auto Built-in program mode
Sound Reserved
Display
intensity
<<
0-500
to address 0
< address up
> address down
>> to address 500
√ save and back
× back
Display Saver
Delay
<< 0-600 to address 0
< address up

12
> address down
>> to address 600
√ save and back
× back
Pan Reverse
Off
On
√ save and back
× back
Tilt Reverse
Off
On
√ save and back
× back
Default
Settings
Load
Default
Set？
√ save and back
× back
Channel Mode
16 CH Mode
17 CH Mode
18 CH Mode
20 CH Mode
MANUAL
Reset
Total System Reset
Pan/Tilt Reset
Color System Reset
Gobo System Reset
Strobe Reset
Optics Reset
√ save and back
× back
Manual
Control
Manual
Control
Focus
<<
<
>
>>
<<
<
>
>>
to address 0
address up
address down
to address 255
save and back
back
to address 0
address up
address down
to address 255
save and back
Pan
Pan Fine
Tilt
Prism
Prism
Rotation
Prism ZOOM
Frost
Color
Shutter
Dimmer
Static Gobo
Tilt Fine
Functions

13
MANUAL
RESET
back
Lamp
Pan/Tilt
Speed
Color
Functions
Prism 2
Prism 2
Rotations
Page up
Page down
√ save and back
× back
AUTOMATIC MODE
Auto Mode 1 Built-in program
Auto Mode 2 NULL
Auto Mode 3 NULL
Auto Mode 4 NULL
√ save and back
× back
CALIBRATIONS
Used in factory
LAMP SETTING
Lamp status
Off
On
√ save and back
× back
Settings
Lamp On Power
Off
On
√ save and back
× back
LANGUAGE
English
Chinese
180°REVERSE
Forward side
Reverse side

14
DISPLAY AVAILABLE
12.Chanel function description
Chanel
Channel function description
Mode 1 Mode 2 Mode 3 Mode 4
Language
English English English English
1 Color Color Color Color
2 Shutter Shutter Shutter Shutter
3 Dimmer Dimmer Dimmer Dimmer
4 Static Gobo Static Gobo Static Gobo Static Gobo
5 Prism 1 Prism 1 Prism 1 Prism 1
6 Prism 1 Rotation Prism 1 Rotation Prism 1 Rotation Prism 1 Rotation
7 Prism 1 ZOOM Prism 1 ZOOM Prism 1 ZOOM Prism 1 ZOOM
8 Frost Frost Frost Prism 2
9 Focus Focus Focus Prism 2 Rotation
10 Pan Pan Pan Frost
11 Pan Fine Pan Fine Pan Fine Focus
12 Tilt Tilt Tilt Pan
13 Tilt Fine Tilt Fine Tilt Fine Pan Fine
14 Function Function Function Tilt
15 RESET RESET RESET Tilt Fine
16 Lamp control Lamp control Lamp control Function

15
17 Pan/Tilt Speed Pan/Tilt Speed RESET
18 Color Functions Lamp control
19 Pan/Tilt Speed
20 Color Functions
13.Channel Data
Mode 1
Mode 2
Mode 3
Mode 4
DMX Value
Details Description
1
1
1
1
1
1
1
1
0 - 4 Open
5 - 8 Open + Color 1
9 - 12 Color 1
13 - 17 Color 1 + Color 2
18 - 21 Color 2
22 - 25 Color 2 + Color 3
26 - 29 Color 3
30 - 34 Color 3 + Color 4
35 - 38 Color 4
39 - 42 Color 4 + Color 5
43 - 46 Color 5
47 - 51 Color 5 + Color 6
52 - 55 Color 6
56 - 59 Color 6 + Color 7
60 - 63 Color 7
64 - 68 Color 7 + Color 8
69 - 72 Color 8
73 - 76 Color 8 + Color 9
77 - 81 Color 9
82 - 85 Color 9 + Color 10
86 - 89 Color 10
90 - 93 Color 10 + Color 11
94 - 98 Color 11
99 - 102 Color 11 + Color 12
103 - 106
Color 12
107 - 110
Color 12 + Color 13
111 - 115
Color 13
116 - 119
Color 13 + Color 14

16
120 - 123
Color 14
124 - 127
Color 14+ Open
128 - 187
Color rotation (clockwise)
fast ->slow
188 - 195
Rotation Halt
196 - 255
Color rotation
(anticlockwise) slow ->fast
2 2 2 2
0 - 1 Close
2 - 7 Open
8 - 63 Strobe ,Slow ->Fast
64 - 71 Open
72 - 127 Pulse strobe ,Slow ->Fast
128 - 135
Open
136 - 160
Fade strobe ,Slow ->Fast
161 - 166
Open
167 - 191
Lightening strobe ,
Slow ->Fast
192 - 199
Open
200 - 209
Strobe mode 1
210 - 219
Strobe mode 2
220 - 229
Random slow strobe
230 - 239
Random medium speed strobe
240 - 249
Random fast peed
250 - 255
Open
3 3 3 3 0 - 255 Brightness ,Dark ->Bright
4
4
4
4
0 - 3 Open
4 - 7 Gobo1
8 - 11 Gobo2
12 - 15 Gobo3
16 - 19 Gobo4
20 - 23 Gobo5
24 - 27 Gobo6
28 - 31 Gobo7
32 - 35 Gobo8
36 - 39 Gobo9
40 - 43 Gobo10
44 - 47 Gobo11
48 - 51 Gobo12
52 - 55 Gobo13
56 - 59 Gobo14

17
4
4
4
4
60 - 63 Gobo15
64 - 67 Gobo16
68 - 112 Clockwise rotation
Fast ->Slow
113 - 114
Halt
115 - 159
Anticlockwise Slow ->Fast
160 - 166
Gobo2 shake ,Slow ->Fast
167 - 172
Gobo3 shake ,Slow ->Fast
173 - 179
Gobo4 shake ,Slow ->Fast
180 - 185
Gobo5 shake ,Slow ->Fast
186 - 191
Gobo6 shake ,Slow ->Fast
192 - 198
Gobo7 shake ,Slow ->Fast
199 - 204
Gobo8 shake ,Slow ->Fast
205 - 211
Gobo9 shake ,Slow ->Fast
212 - 217
Gobo10 shake ,Slow ->Fast
218 - 223
Gobo11 shake ,Slow ->Fast
224 - 230
Gobo12 shake ,Slow ->Fast
231 - 236
Gobo13 shake ,Slow ->Fast
237 - 243
Gobo14 shake ,Slow ->Fast
244 - 349
Gobo15 shake ,Slow ->Fast
250 - 255
Gobo16 shake ,Slow ->Fast
5 5 5 5
0 - 127 Prism 1 Out
128 - 255
Prism 1 In
6 6 6 6
0 - 127 0°-> 360°
128 - 187
Clockwise rotation,
Fast ->Slow
188 - 197
Halt
198 - 255
Anticlockwise rotation
slow ->fast
7 7 7 7
0 - 255 Prism zoom out
0 - 255 Prism zoom in
8
0 - 127 Prism 2 Out
128 - 255
Prism 2 In
9
9
0 - 127 0°-> 360°
128 - 187
Clockwise rotation,
Fast ->Slow
189 - 197
Halt
198 - 255
Anticlockwise rotation
slow ->fast

18
8 8 8 10 0 - 255 Linear dimmer 0-100%
9 9 9 11 0 - 255 Linear focus 0-100%
10 10 10 12 0 - 255 X 0°-> 540°
11 11 11 13 0 - 255 X Fine tune 2° >117°
12 12 12 14 0 - 255 Y 0°-> 270°
13 13 13 15 0 - 255 Y Fine tune 2° >117°
14 14 14 16
0 - 149 Empty
150 - 159
Built-in program 1
160 - 169
Built-in program2
170 - 179
Testing program
180 - 255
Empty
15 15 15 17
0 - 69 Empty
70 - 79 Effect motors reset
(wait 5 s)
80 - 89 XY motors reset (wait 5 s)
90 - 99 All motors reset (wait 5 s)
100 - 255
Empty
16 16 16 18
0 - 49 Empty
50 - 59 Turn on the lamp (wait 5 s)
60 - 69 Turn off the lamp (wait 5 s)
70 - 255 Empty
17 17 19 0-255 X Y speed
18 20
0 - 63 half color function on
64 - 127 Half color function off
128 - 191
Color wheel slide mode
(linear slide )
192 - 255
Block light mode
(Blocking the light during
changing color)
14.Drive Board Illustration

19

20

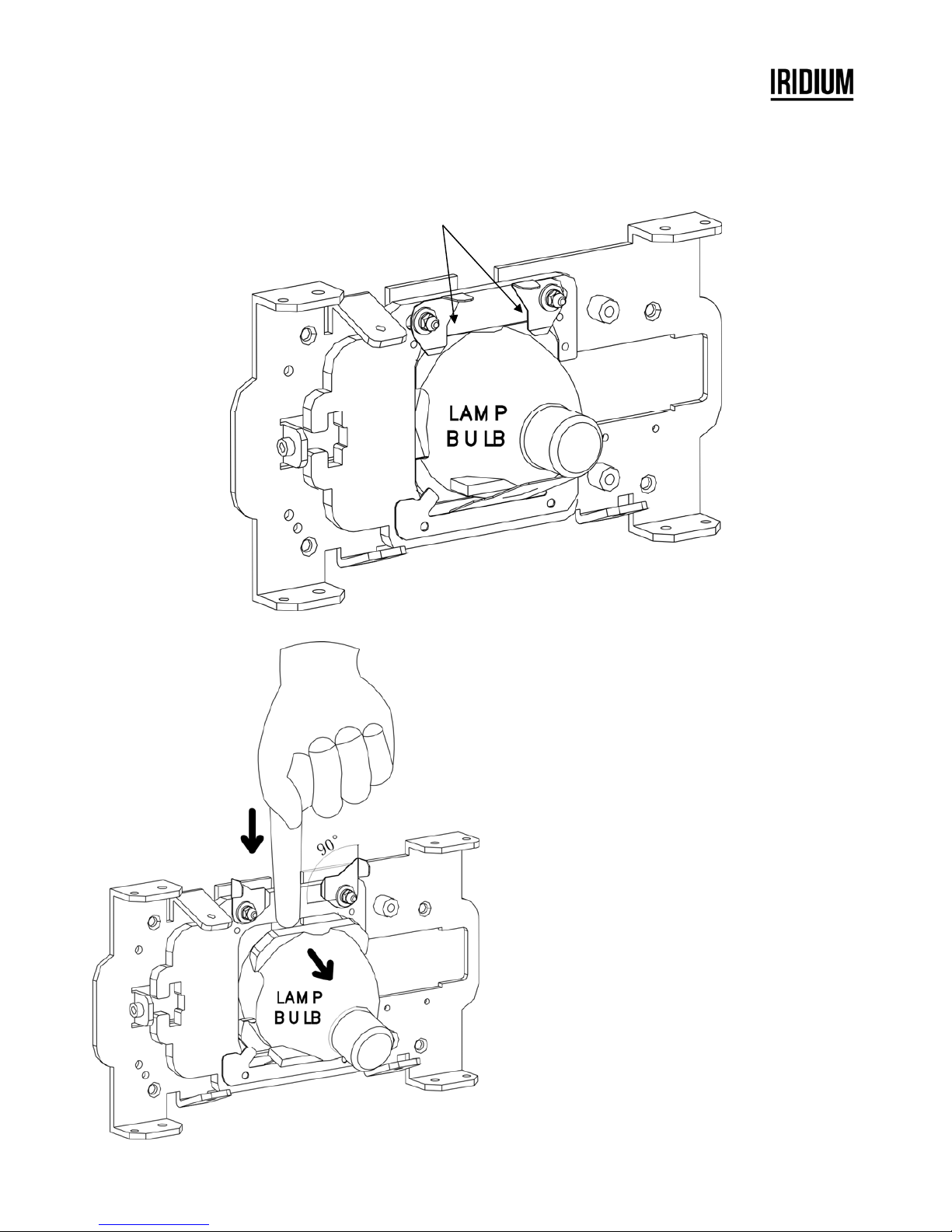

15.Lamp Changing Method
① Theory
Rotate loc
k
p
ieces 90°
b
efore o
p
en the bulb
Press the bulb to make it leave the fixed
position then tilt it out.(When you take out the
bulb you need to rotate it to the right Angle to
avoid the metal collision,
