GEMAR Lumitec IRIDIUM Stage Studio Manual Zoom Fresnel User manual

IRIDIUM Stage Studio
Manual Zoom Fresnel
USER MANUAL

For safety, please read this user manual carefully before initially start-up

1
CONTENTS
1. Introduction ..................................................................................... 2
2. Safety instructions............................................................................ 3
3. Description....................................................................................... 4
Products features ...............................................................................4
Overview............................................................................................4
4. Installtion......................................................................................... 5
Overhead rigging................................................................................5
DMX512 connection...........................................................................5
Power Input .......................................................................................6
5. Operation...................................................................................... 6-8
Control board.....................................................................................7
DMX modes .......................................................................................8

2
6. Replacing the fuse ............................................................................ 8
7. Technical specification...................................................................... 9
1. Introduction
Thank you for purchasing our product. Before carrying out any
operations with the product, carefully read this instruction manual and
keep it with cure for future reference. It contains important information
about the installation, usage and maintenance of the unit. Please strictly
follow it.
The product conforms to the international standard DMX512
agreement. The products can be controlled in signal use and also can be
controlled in many units. Sleek and stylish, precise and accurate optical
system design, bring and clear light effects. All above makes our products
applicable to be used within the scope of film and television, theater, live

3
events, trade show exhibits, educational facilities, retail environments,
and corporate shows, etc.
* The product is compliance with the CE & ROHS Standard.
* The product belongs to our company. The intellectual property is
exclusively reserved. We will file a lawsuit on condition that it is illegally
copied and imitated.
2. Safety instructions
WARNING
•Do not open this device, there is no user-serviceable parts inside.
Risk of electric shock.

4
•Do not look at the light source when the device is on.
•CAUTION: This unit's housing may be hot during and after operation.
•Install this device in a location with adequate ventilation, at least 20
inch (50 cm) from adjacent surfaces.
•Do not leave any flammable material within 50 cm of this unit while
operating or connected to power.
•Use a safety chain when mounting this device overhead.
•Do not operate this device outdoors or in any location where dust,
excessive heat, water, or humidity may affect it.
•Do not operate this device if the housing, lenses, or cables appear
damaged.
•Do not connect this device to a dimmer or rheostat.
•ONLY connect this device to a grounded and protected circuit.
•ONLY use the hanging bracket to carry this device.
•In case of a serious operating problem, stop using immediately.
•The maximum ambient temperature is 104° F (40° C). Do not operate
this device at higher temperatures.

5
3. Description
Product features
•Made by fire-resistant Nylon material and Aluminum which makes
the lamp more lighter
•Good performance of cooling system with the quiet fan
•DMX controlled operation, possible work with any commercial
DMX512 controller
•Rail-type hanging bracket, bracket position can be adjusted
•
•Different dimmer curves and dimmer speed adjustable
•Flicker free projection
•Rotatable barn doors, color filter optional
•Ready for connection with power cord with safety-plug

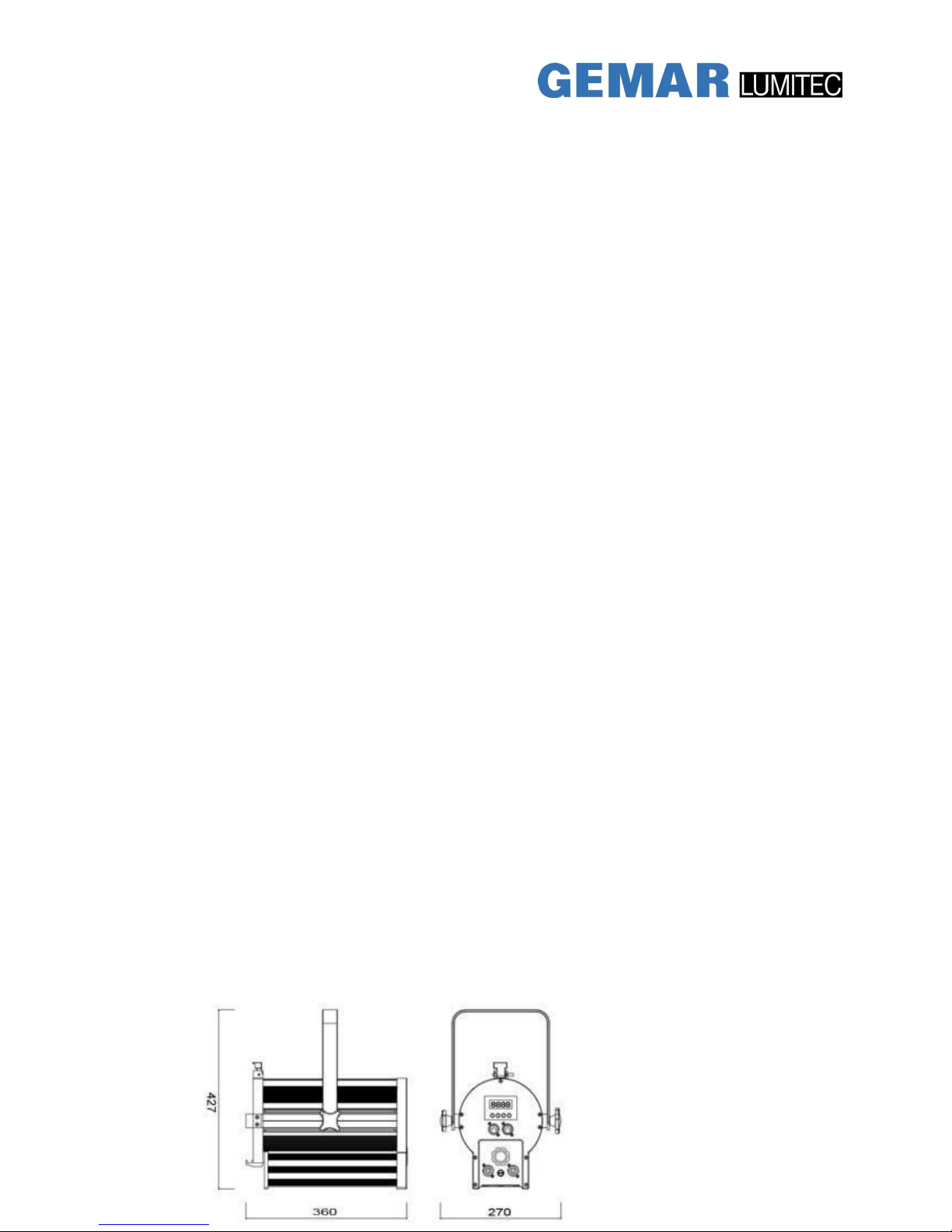

Overview

6
4. Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Overhead rigging
The installation of the device has to be built and constructed in a way
that it can hold 10 times the weight for 1hour without any harming
deformation.
The installation must always be secured with a secondary safety
attachment. This secondary safety attachment must be constructed in a
way that no part of the installation can fall down if the main

7
attachment fails.
The operator has to make sure that safety-relating and
machine-technical installations are approved by an expert and before
taking into operation for the first time and after changes .
Please note: for overhead rigging in public or industrial areas, a series
of safety instructions have to be followed that this manual can only give
in part.
DMX512 connection
Please use xlr-xlr signal cable connect the DMX output of the controller
with the DMX input of the first device, and connect the DMX output of
the first device with the DMX input of the second device, always connect
one output with the input of the next device untill all devices are
connected.
For better signal receival, a signal amplifier suggest to be used for each
20 fixtures.
Power input

8
This device has an auto-switching power supply work with input voltage
range of 100-240V AC, 50/60Hz. Link up to the maximum 8A, Do not
exceed this.
5. Operation

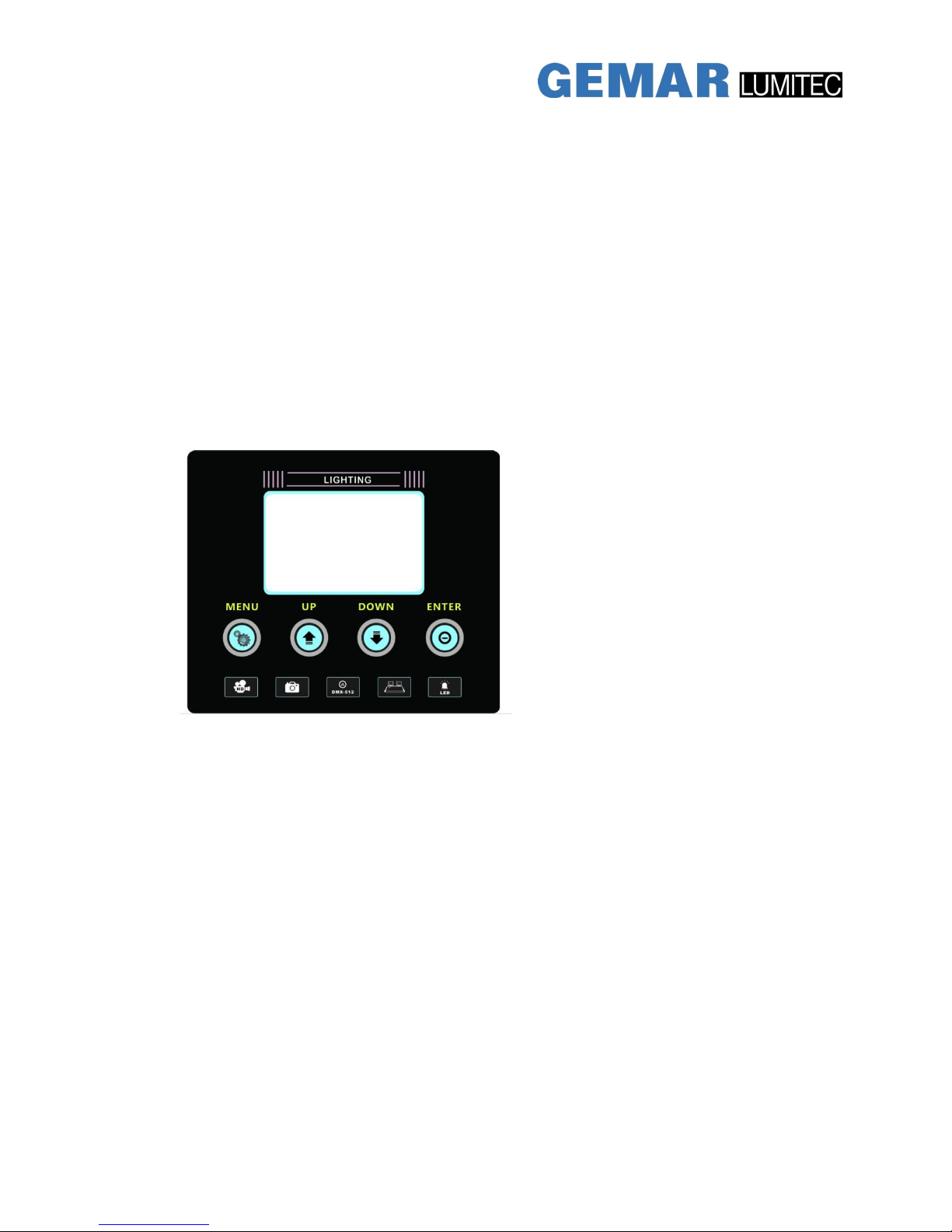

Control board
