Gemini PMX-1100 User manual

Page 1
SERVICE MANUAL
PMX-1100
Stereo Preamp Mixer
Gemini Sound Products Corp.
120 Clover Place P.O. Box 6928
Edison, NJ 08818-6928
732-738-9003 (Phone) • 732-738-9006 (Fax)
CONTENT’S:
Connections & Operations:.......................................................Page 2-4
Specifications:..............................................................................Page 4
Parts Lists:....................................................................................Page 4

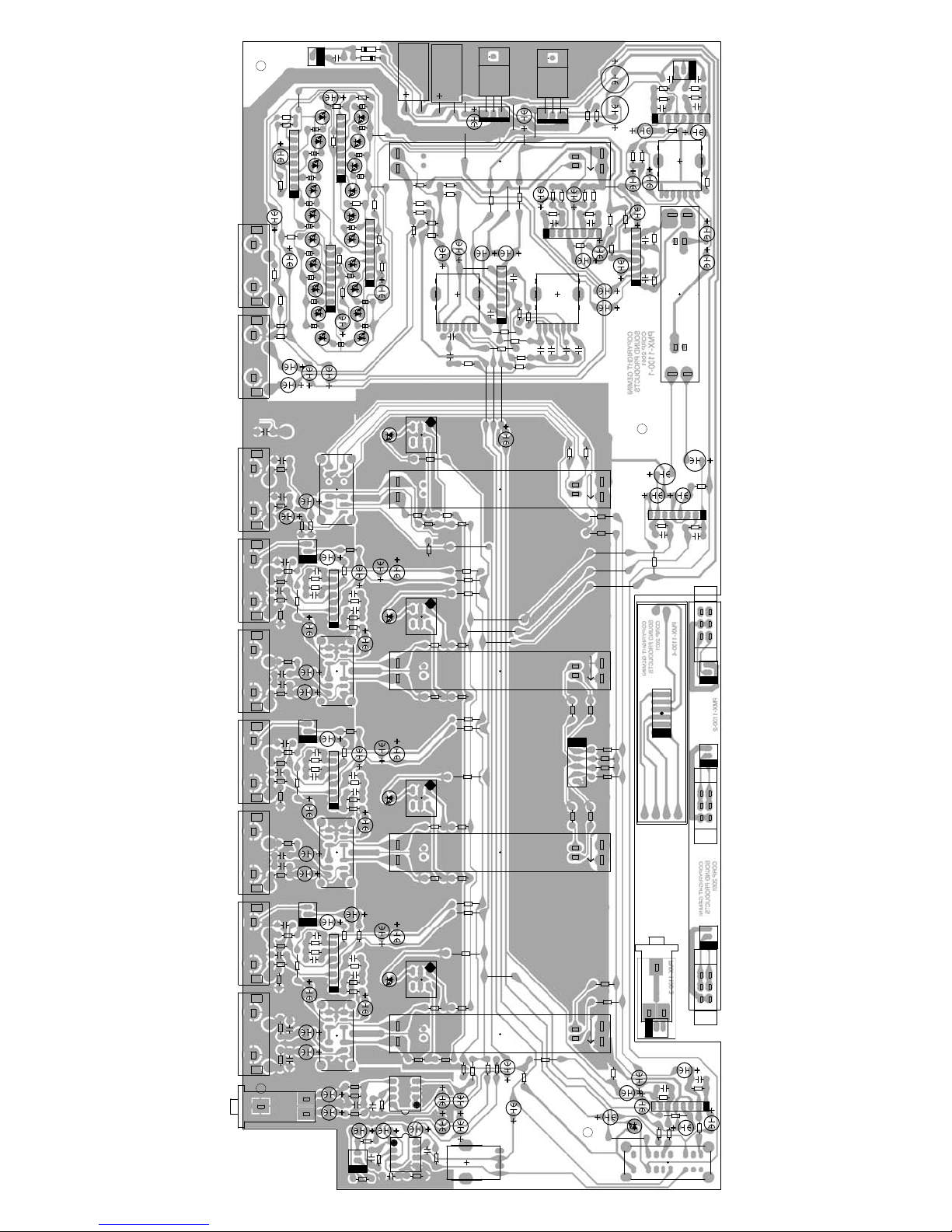

PCBs:.............................................................................................Page 5
Schematics....................................................................................Page 6

Page 2

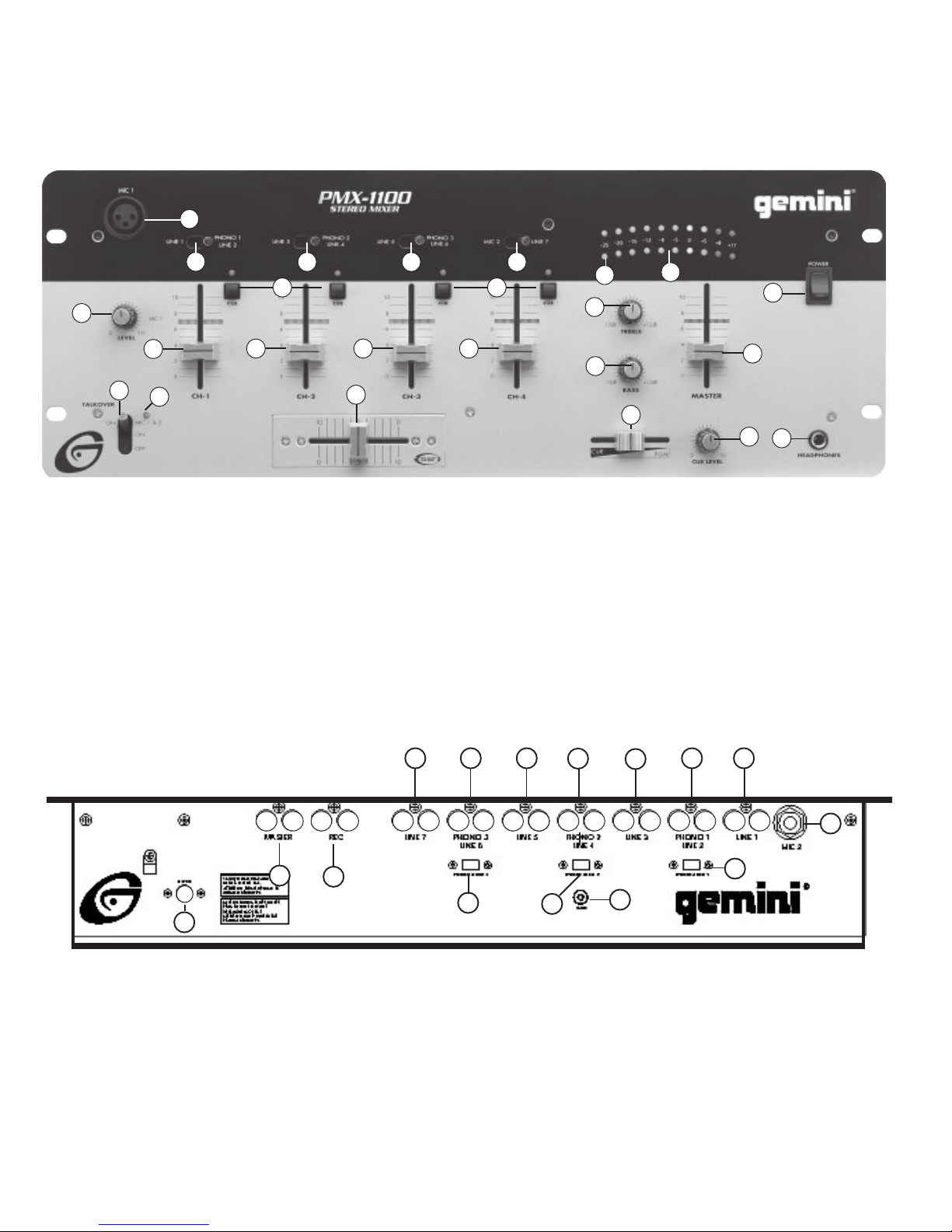

1
7911 13
810 12 14
2
3
4
56
18 18
24
22
23
20
21
15
31 32
34 38
35
36
42
39 45
37
43
40
37 41
33
17 19

Page 3
6. Headphones can be plugged into the front panel mounted
HEADPHONE (4) jack.
Operation
1. POWER ON: Once you have made all the equipment connections to
your mixer, press the POWER SWITCH (1). The power will turn on
and the POWER LEDS (17) will glow.
2. CHANNEL 1: Switch # (7) allows you to select the PHONO 1/LINE 2
(41) or the LINE 1 (43) input. The CHANNEL SLIDE (8) controls the
input level of this channel.
3. CHANNEL 2: Switch # (9) allows you to select the PHONO 2/LINE 4
(38) or the LINE 3 (40) input. The CHANNEL SLIDE (10) controls the
input level of this channel.
4. CHANNEL 3: Switch # (11) allows you to select the PHONO 3/LINE 6
(35) or the LINE 5 (37) input. The CHANNEL SLIDE (12) controls the
input level of this channel.
5. CHANNEL 4: Switch # (13) allows you to select the LINE 7 (34) or
the MIC 2 (33) input. The CHANNEL SLIDE (14) controls the input
level of this channel.
6. CROSSFADER SECTION: The CROSSFADER (2) allows the mixing of
one source from CHANNEL 2 into another source from CHANNEL 3.
The CROSSFADER (2) in your unit is removable and if the need
arises can be easily replaced. Crossfader units are available in
three varieties. Part # RF-45 (which is identical to the crossfader
supplied with the mixer) has a 45 mm travel from side to side. Part #
RF-30 is available with a 30 mm travel distance. Also available is the
PSF-45 with a special curve designed for scratch mixing. Just
purchase one of these crossfader units from your Gemini dealer
and follow these instructions:
Introduction
Congratulations on purchasing the Gemini PMX-1100 mixer. This state-of-
the-art mixer is backed by a three year warranty, excluding crossfader
and channel slides. Prior to use, we suggest that you carefully read all the
instructions.
Features
• 4 Stereo Channels
• State of the Art Cue Section
• 3 Phono/Line Convertible, 4 Line, and 2 Mic Inputs
• Talkover
• Master and Record outputs
• Master Treble and Bass Controls
Cautions
1. All operating instructions should be read before using this equipment.
2. To reduce the risk of electrical shock, do not open the unit. There are
NO USER REPLACEABLE PARTS INSIDE. Please refer servicing to a
qualified service technician.
In the U.S.A., if you have any problems with this unit,
call 1-732-738-9003 for customer service. Do not return
equipment to your dealer.
3. Do not expose this unit to direct sunlight or to a heat source such as a
radiator or stove.
4. This unit should be cleaned only with a damp cloth. Avoid solvents or
other cleaning detergents.
5. When moving this equipment, it should be placed in its original carton
and packaging. This will reduce the risk of damage during transit.
6. DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
7. DO NOT USE ANY SPRAY CLEANER OR LUBRICANT ON ANY
CONTROLS OR SWITCHES.
Connections
1. Plug in the 15V AC Adapter (37).
2. Make sure that the POWER (1) switch is in the off position. The
POWER LEDS (17) will be off.
3. The PMX-1100 is supplied with 2 sets of output jacks. The MAIN
OUTPUT (31) jacks are unbalanced and used to connect to your main
amplifier. The REC OUTPUT (32) jacks can be used to connect the
mixer to the record input of your recorder enabling you to record your
mix.
4. The MIC 1 (3) input (found on the front panel) accepts an XLR
connector, and accepts balanced & unbalanced microphones. The
MIC 2 (33) accepts a 1/4” connector and balanced & unbalanced
microphones.
5. On the rear panel are 3 stereo PHONO/LINE (35, 38, 41) inputs and 4
stereo LINE (34, 37, 40, 41) inputs. The PHONO/LINE SWITCH (36)
enables you to set the (35) input to Phono or Line. The PHONO/LINE
SWITCH (39) enables you to set the (38) input to Phono or Line. The
PHONO/LINE SWITCH (42) enables you to set the (41) input to Phono
or Line. The phono inputs will accept only turntables with a magnetic
cartridge. A GROUND SCREW (45) for you to ground your turntables
is located on the rear panel. The stereo line inputs will accept any line
level input such as a CD player, a cassette player, etc.
1. Unscrew the outside FADER PLATE SCREWS (B).
Do not touch the INSIDE SCREWS (C).
2. Carefully lift the fader and unplug the CABLE (D).
3. Plug the new fader into the cable and place it back in the
mixer.
4. Screw the fader to the mixer.
7. OUTPUT CONTROL SECTION: The level of the AMP OUT (31) is
controlled by the MASTER (23) slide. The Master TREBLE (20) and
BASS (21) controls allow you to adjust the output of channels 1 - 4.
NOTENOTE
NOTENOTE
NOTE: The RECORD OUT (32)RECORD OUT (32)
RECORD OUT (32)RECORD OUT (32)
RECORD OUT (32) has no level control.
The level is set by the channel slides of the selected
channel.
8. TALKOVER SECTION: The purpose of the talkover section is to allow
the program playing to be muted so that the MIC can be heard above
the music. The MIC/TALKOVER SWITCH (5) controls MIC 1 and
has three settings. When the MIC/TALKOVER SWITCH (5) is in the
bottom position, the MIC and talkover are off. When the MIC/
TALKOVER SWITCH (5) is in the center position MIC 1 is on, the
MIC INDICATOR (6) will glow, but talkover is off. When the MIC/
TALKOVER SWITCH (5) is in the top position, MIC 1 and talkover
will be on and the volume of all sources except the MIC input are
lowered by 16dB. The MIC LEVEL (15) controls the level of MIC 1.

Page 4
PARTS LIST:
INTEGRATED CIRCUIT NJM2068LD
INTEGRATED CIRCUIT NJM4556L
INTEGRATED CIRCUIT NJM4558LD
(M5218AL,BA4558N)
INTEGRATED CIRCUIT NJM4558DD
INTEGRATED CIRCUIT NJM7812FA
INTEGRATED CIRCUIT NJM7912FA
INTEGRATED CIRCUIT LB1403N (BA6124)
ICs
IC7, IC2, IC6, IC5, IC4
IC15
IC12, IC11, IC8
IC3, IC1
IC16
IC17
IC10, IC14, IC13, IC9
1
2
3
4
5
6
7
074-145
074-113
074-104
074-163
074-107
074-114
074-022
Item Designators Description Part #
RECTIFIER DIODE 1N4002 (1N4003, 1N4004)
LIGHT EMITTING DIODE (GREEN) 3.15
LIGHT EMITTING DIODE (RED) 3.15
LIGHT EMITTING DIODE (YELLOW) 3.15
Diodes
D26, D27
D6, D7, D8, D9, D10,
D11, D12, D13, D14,
D15, D16, D17
D1,D2,D3,D4,D5, D22,
D23, D24, D25
D18, D19, D20, D21
1
2
3
4
079-027
080-104
080-091
080-103
Item Designators Description Part #
Item Description Part #
DC JACK 2.5
POWER SWITCH UL
PHONE JACK XLR DJ MIC
Other
1
2
3
092-074
083-099
092-108
Item Description Part #
Mechanical Parts
PANEL CONTROL
PANEL REAR
COVER BOTTOM
SWING LEVEL
KNOB PUSH (SMALL)
BUSHING FOR KNOB (SMALL)
KNOB SLIDE (SMALL)
KNOB SLIDE (BIG)
KNOB ROTARY (A)
KNOB INLAY (SILVER)
TRIMVR
PAD FOOT
GIFT BOX
OWNER’S MANUAL
POLYFORM
POLYFOAM PLATE 140mm×180mm×58mm
WARRANTY CARD
GND SCREW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
FACEPPMX1100
034-124
032-123
023-674
002-531
002-532
002-726
002-724
003-109
148-312
003-736
049-206
255-230
257-016
153-224
153-223
156-089
146-710
LEVER SW 4P2C P=18
PUSH SWITCH 2P2C L=12.5
PHONE JACK 6.3
LEVER SW 4P3C P=24
RAILGLIDE VR 45mm X-FADER 100KB×2
SLIDE VR 30mm L=15 CUE FADER 20KB×2
ROTARY VR 14 (F) L=22.5 CH-TONE 20KW×2 CC
ROTARY VR 11 (F) L=22.5 BOOTH CUE VOL 50KA
ROTARY VR 14 (F) L=22.5 CUE 50KA×2
SLIDE SWITCH 2P2C
SLIDE VR 45mm L=20 CH VOL MASTER 50KA×2
2P RCA JACK P=14
Electrical Parts
SW8, SW6, SW4, SW2
SW9, SW7, SW5, SW3
J11, J1
SW1
X-FADER
VR8
VR7, VR6
VR1
VR9
SW10, SW11, SW12
VR3, VR2, VRV4, VR5, VR10
J2, J3, J4, J5, J6, J7, J8, J9, J10
1
2
3
4
5
6
7
8
9
10
11
12
082-019
083-080
092-078
082-022
072-113
072-092
071-230
071-114
071-166
081-004
072-035
161-160
Item Designators Description Part #
9. CUE SECTION: By connecting a set of headphones to the HEADPHONE
(4) jack, you can monitor any or all of the channels. Press the CUE
ASSIGN (18) buttons for channels 1 - 4 to select the channel or
channels to be monitored and their respective LED indicators will glow.
Use the CUE LEVEL (24) control to adjust the cue volume without
effecting the overall mix. By moving the CUE PGM PAN (22) control to
the left you will be able to monitor the assigned cue signal. Moving the
control to the right will monitor the PGM (program) output. Rotating to
the right will monitor the PGM (program) output.
10. DISPLAY: The DISPLAY (19) indicates the MASTER output left and
right levels.
Specifications
INPUTS:
MIC 1..........................................................1.5mV 2kOhm balanced
MIC 2 ..........................................................1.5mV 2KOhm balanced
Phono @ 1kHz..................................................................2mV 47kOhm
Line..............................................................................100 mV 27kOhm
OUTPUTS:
Amp/Booth..............................................................0 dB 1V 400Ohm
Max..............................20V Peak to Peak
Rec..................................................................................225mV 5kOhm
GENERAL:
Bass.............................................................................................± 12dB
High...............................................................................................± 12dB
Frequency Response............................................20Hz - 20KHz +/- 2dB
Distortion..........................................................................less than 0.02%
S/N Ratio.........................................................................better than 80dB
Talkover Attenuation..........................................................................16dB
Power Source.................................................adapter - 115V/15V AC 0.5A
.......................................................................................230V/15V AC 0.5A
Dimensions.......................................19”w x 3”d x 7”h (483 x 76 x 178 mm)
Weight........................................................................6.25lbs (2.84 kg)
