Gemini Speakerphone User manual

1
This Interquartz telephone has been manufactured to very high standards
and is very easy to use. Please read this manual carefully to find out how to
use the features.
Contents
1. Important Notes .............................................................................. 2
Intended use ....................................................................................... 2
Telephone facilities .............................................................................. 2
RE number ........................................................................................ 3
Emergency calls................................................................................... 3
2. Installation ...................................................................................... 4
Connection ......................................................................................... 4
Wall mounting ..................................................................................... 4
3. Telephone Features ....................................................................... 6
Store Button ....................................................................................... 6
Handsfree button ................................................................................. 6
Ringer Indicator ................................................................................... 7
Ringer Volume Switch .......................................................................... 7
Recall Button....................................................................................... 7
Memory Stores .................................................................................... 7
Speaker Volume Control ....................................................................... 7
Mute Button........................................................................................ 7
Redial / Pause Button ........................................................................... 8
4. Operation ........................................................................................ 9
5. PAB & System Usage ................................................................ 11
6. Maintenance and Problem Solving ............................................. 13
7. Warranty and Service .................................................................. 14
Figure 1 Wall Mounting......................................................................... 4
Figure 2 Handset Retainer for Wall Mount ............................................... 5
Figure 3 General Appearance ................................................................. 6
Figure 4 Bottom View........................................................................... 8
Figure 5 Recall Switch ........................................................................ 11

2
1. Important Notes
Intended use
This apparatus is intended for use on 2 wire analogue PST and PABX
circuits within Europe.
Declaration of Conformity
Interquartz (UK) Limited declares under its sole responsibility that
this product Model : GEMI I Speakerphone
Is in conformity with the following relevant harmonized standards
Health & Safety E 60950 : 1992
Electromagnetic CompatibilityE 55022 : 1998 & E 55024 : 1998
Telecoms E 301437 : 1999 & TBR38 : 1998
Following the provisions of Council Directive on radio equipment and
telecommunications terminal equipment. January 2001
Telephone facilities
This telephone has been designed for the use of the following facilities :
 manual dialling
 recall (earth or timed break selectable)
 MF signalling
 ringer volume control
 ringing indicator
 last number re-dial
 pause function
 mute function
 speakerphone function

3
 line powered
 10 memory buttons
 inductive loop hearing aid compatible
REN number
The RE number of this telephone is 1.
If you wish to connect any other equipment to the line, simply add the
RE numbers of each device together and ensure that the total does
not exceed 4. If too many phones are connected to the line, the
circuit may be overloaded and your telephone may not ring.
ot all telephones have the same RE .
If a British Telecom phone is supplied unmarked, you can assume that
it has a RE of 1.
Emergency calls
Calls can be made on this telephone to contact the emergency services. The
European code for emergency services is 112, however, you can still use 999
in the UK. An access code may also be required, if the phone is connected
to a PABX.

4
Figure 1 Wall Mounting
2. Installation
This telephone is designed to plug straight into a modular style socket. If you
do not have one of these sockets, they can be obtained from your etwork
Supplier.
Connection
Insert the line cord into the socket. Set the ringer volume control, as desired.
all mounting
Using the template supplied, position the telephone where you want to wall
mount. Drill two holes and fix roundheaded screws, leaving them slightly
proud of the surface. Position the telephone over the screws and slide
downwards into place.
S1 S2 N
TBR ER
.
.
.
FOR WALL
MOU T

5
To enable the handset to be supported in the cradle when the phone is
mounted on the wall, follow the procedure shown in Figure 2 to reserve the
HA DSET RETAI ER.
1. Use your thumb to press the
HA DSET RETAI ER 2. Push the HA DSET RETAI ER out of the slot
4. Insert the HA DSET RETAI ER
back into it's slot
3. Turn the HA DSET
RETAI ER 180°
Figure 2 Handset Retainer for Wall Mounting

6
3. Telephone Features
To help you find your way round the telephone, various features and buttons
are briefly described below. You should refer to the relevant section of this
user guide to learn how to use the features available.
Store Button
Used to store numbers into the direct access memory buttons.
Figure 3 General Appearance

7
Handsfree button
Pressing the handsfree button switches the speakerphone on or off. The LED
above the button glows when the speakerphone is on. (See Figure 3)
Ringer Indicator
Flashes when the telephone rings with an incoming call or with a message
waiting signal (See PABX section).
Ringer Volume Switch
Located on the base of the unit (see Figure 4). Move switch to select ringer
volume, ringer off (OFF), ringer low (LOW) or ringer high (HIGH) for ringing
on incoming call.
Recall Button
For PABX use, to carry out call transfers and access other PABX facilities.
Memory Stores
There are 10 buttons able to retrieve 10 memory locations, each able to store
32 digits.
Speaker Volume Control
Allows the volume of the incoming caller to be adjusted, in handsfree
operation. Simply move the slider switch to give a satisfactory level.

8
Mute Button
Pressing and releasing this button mutes the microphone so that the caller
cannot hear your conversation. The red LED will light indicating that the mute
is on. Pressing and releasing the button a second time will cancel the mute
and return to normal conversation.
If the telephone handset is replaced on the cradle with the mute on, the
mute will automatically be released when the handset is next lifted.
Redial / Pause Button
-If pressed once the dial tone is heard, the last number dialled will be redialled.
Otherwise, it serves as a pause button inserting a 3.6 second pause in the
number sequence.

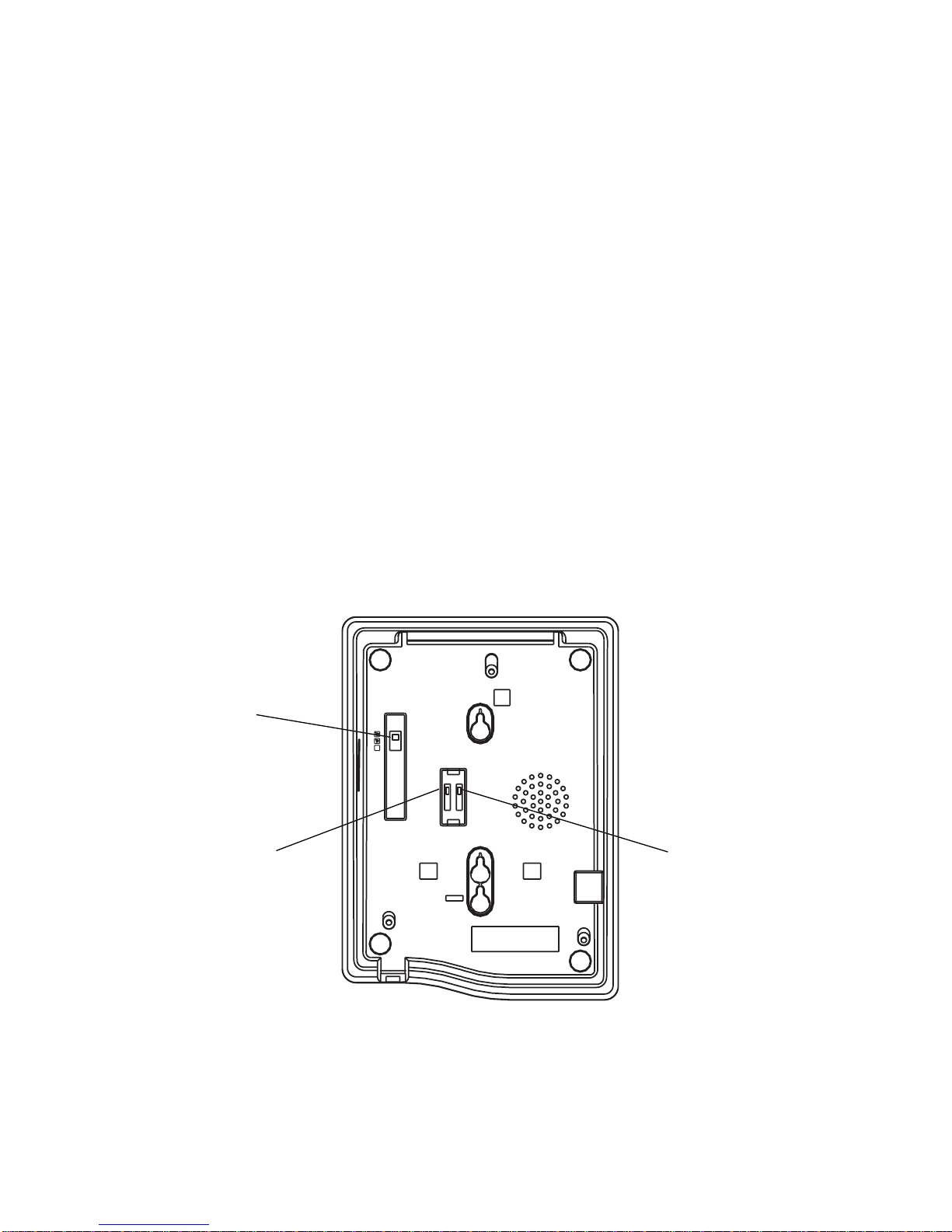

Figure 4 Bottom View
RI GER
HI / LO / OFF
SWITCH
TIMED BREAK /
EARTH RECALL
SWITCH
VOICE MESSAGI G
( / S2 / S1 )
SWITCH
S1 S2 N
TBR ER
.
.
.

9
4. Operation
To dial a number, either lift the handset or press the handsfree button, wait
for the dial tone and then key in the number required.
Answering a call
You may answer a call by simply lifting the handset.
To answer in handsfree mode, you press the handsfree button, the call will
automatically be answered in full handsfree.
Manual Dialling
Lift the handset, listen for the dial tone and then dial the required number
using the keypad.
Handsfree Dialling
 Press the handsfree button firmly and the dial tone will be heard in the
speaker.
 Dial the required number on the keypad.
 When the called party answers the phone, continue to speak using the
microphone in the telephone or pick up the handset. With the handset
in use it is possible to revert to speakerphone by pressing the
handsfree button BEFORE replacing the handset.
Memory Storage / Dialling
This telephone can store ten memories. The numbers are stored in Flash
memory which means that they will never be lost.
To store numbers, ensure that the telephone is connected to the line.
 either lift the handset or press the handsfree button
 press the store button
 dial the number to be stored using the keypad

10
 press the store button again
 press the memory button where you want to save the number
 replace the handset or press the handsfree button to clear the line.
To dial numbers from memory
 either lift the handset or press the handsfree button
 once dial tone is present press the required memory button, the stored
number will then be dialled automatically.
Redial / Pause Function
Redial
If the number dialled is busy,
 hang-up and obtain a new line by either lifting the handset or pressing
the handsfree button.
 press the button labelled redial/pause and the last number (up to 32
digits) that you dialled will automatically be redialled.
Pause
The Pause command may be needed if the phone is connected to certain types
of PABX or to any network where a pause is required.
Lift handset
ial any digits required before the pause
Press Pause button
ial remaining digits

5. PABX & System Usage
This telephone can be used behind a PABX or on a network that utilises the
recall function. There are many such systems and whilst it is likely that no
problems will be encountered, it cannot be guaranteed that the telephone will
operate correctly under all circumstances. Any difficulties should be referred
to your supplier.
Recall
Before you attempt to change the recall switch, labelled TBR ER, see (Figure
4&5), you should disconnect the phone from the network.
You will need a screwdriver, or similar tool to remove the cover plate over
the switch. Simply slide the Switch marked TBR ER to the appropriate setting
( the factory default is TBR ). If you are unsure which setting is applicable,
please consult your PABX manager or supplier. Do not adjust the switch
marked , S2, S1.
Replace the cover, plug the phone back into the socket and it is ready for use.
PABX access
Where a PABX access digit is required to obtain a direct outside line, it may
be necessary to insert a pause after dialling the access digit (see page 8
Redial and Pause function of this manual).
.ECKHA#Recall Switch
S1 S2 N
TBR ER
.
.
.
S1 S2 N
TBR ER
11

12
Voice messaging
This telephone will respond to voice messaging systems on many PABX
types, giving a visual signal of a message waiting. Your telephone manager
will be aware of which system is relevant to your organisation and will adjust
or advise you on the adjustment of your telephone accordingly.
This adjustment is carried out by means of a switch, labelled /S2/S1,
located next to the recall switch, mentioned above.
As supplied, the telephone is set to the (normal) position. Under no
circumstances should this Voice messaging switch (Figure 4) be set at the
S1 or S2 without the approval of your telecoms manager. In either of the S
positions, the telephone must OT be connected directly the public network.
(Technical note : S1 and S2 are for reverse polarity messaging systems. With
such a system in use, if the telephone does not respond in the S1 position,
switch it to the S2 position and it should then respond.
Some P BXs require a certain level of software and/or hardware within the
switch. If your telephone appears not to work, make sure that you have the
correct software/hardware installed.

13
6. Maintenance and Problem Solving
Your telephone is a precision electronic instrument. Avoid rough handling and
extreme temperatures. Use a mild detergent and a damp cloth when cleaning.
ever use a stronger cleaner.
If your telephone does not appear to be working correctly, please check the
following :
o Dial tone - Is phone cord properly connected to the wall
socket?
Will not ring - ringer switch is set to off?
- RE number may exceed 4, disconnect a phone
until the number is below 4.
If there are still problems, and you have more than one telephone:
Remove the problem phone. Insert another phone and check that it works.
If yes then the problem phone is possibly faulty. If not, then you may
have a faulty line. Try using the other socket and see which phones work.
If you do have a faulty line then you should contact your etwork Supplier.
You should however be aware that if you request them to carry out a repair
that is found not to be their fault, then they are entitled to charge you for a
visit.
In the event that you still have problems then you should consult your
supplier.

14
7. arranty and Service
This product is guaranteed, by Interquartz (UK) Limited, for six years from
the date of manufacture.
Every Interquartz telephone has a unique serial number and part of that
number refers to the date of manufacture. A label, similar to that shown
below is affixed to each telephone
0111 030852
(model no)
The figure 0111 means that the telephone was made during week 11 (12
March) 2001. The six year warranty, cover will apply until 12 March 2007.
A warranty is designed to cover either manufacturing faults or component
defects. It is not designed to cover fair wear and tear. The Interquartz
warranty is no exception.
We look to you, our customer, to be reasonable and sensible over the
warranty. We will endeavour to repair any telephone sent in to us within the
warranty period but we reserve the right to charge for items that we consider
replaceable under wear and tear. For example, if a handset cord splits within
a few months, it will be replaced. If a phone is returned after, say, four years
of heavy use with a similar problem, we might take a different view and wish
to charge.
If you have a genuine warranty problem and provided that the warranty seal
has not been broken, we will either repair your telephone, or, at our sole
discretion, replace it with a similar telephone. In the event that a model may
have been discontinued, any replacement would have similar or enhanced
features.
If you need to return a faulty unit to us, send it to:
Interquartz (UK) Limited
Pennine House
Salford Street
Bury
BL9 6YA

15
3C933301-12B
Distributed in the United Kingdom
by Interquartz (UK) Limited
Manufactured by
International Quartz Limited
A Subsidiary of Chiaphua Industries Ltd.
©Copyright INTERNATIONAL QUARTZ LT . 2002
This telephone is approved to
EEC directive 1999/5/EC
Make sure that you tell us what is wrong with the phone.
DO NOT FORGET TO INCLUDE YOUR O N NAME AND ADDRESS.
We ask that you bear the cost of returning the telephone to us. We will return
it to you, at our expense.
This warranty is in addition to any statutory rights.
For further advice visit our Website
www.interquartz.co.uk

OPERATING INSTRUCTIONS
Gemini Speakerphone
