The SpectroLED Essential Bi-Color LED and Daylight LED
lights have a sturdy housing that’s designed for use in the
studio or on location. They produce bright, consistent light
powered by DC power or by two Sony-style NP-F batteries.
The panels each contain LEDs in two variations: Daylight
and Bi-Color. The Daylight version generates a 5600 K daylight-balanced light. The
Bi-Color version has a variable color temperature that allows you to choose from 3200
to 5600 K. A built-in dimmer allows you to change the light output from 100% to 0%.
Additionally, a removable diffusion filter is included to help soften and spread the light.
LED lights produce very little heat, so the SpectroLED can be used for extended
periods without overheating.
The Essential LED-series lights are excellent lightweight fixtures that provide a
high-powered lighting solution for in-studio or on location illumination.
Thank you for
choosing Genaray.

SpectroLED ESSENTIAL LIGHT - USER MANUAL
2SpectroLED ESSENTIAL LIGHT - USER MANUAL 3
· Portable, lightweight LED light
· Dimming from 100% to 0%
· Daylight version produces 5600 K
light
· Bi-Color version has adjustable
color temperature from 3200 to
5600 K
· AC/DC power
· Optional Sony NP-F battery power
· Yoke and 1/4 in. mounting options
· Ability to stack up to three units
· Offset diffuser
KEY FEATURES
FEATURES

SpectroLED ESSENTIAL LIGHT - USER MANUAL
4SpectroLED ESSENTIAL LIGHT - USER MANUAL 5
CONTENTS
INCLUDE

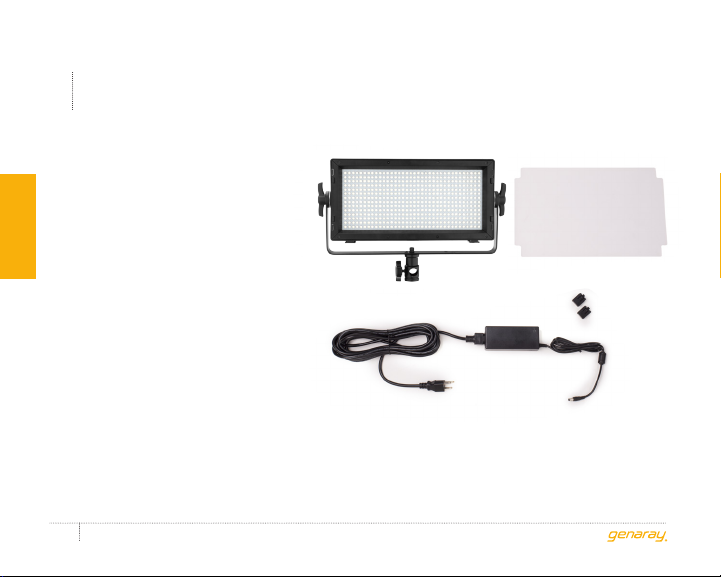

· Light Panel
· Yoke
· AC to DC adapter
· AC power cord
· Diffuser
· Stacking clips (×2)
CONTENTS

SpectroLED ESSENTIAL LIGHT - USER MANUAL
4SpectroLED ESSENTIAL LIGHT - USER MANUAL 5
PRECAUTIONS
· Please read and follow these
instructions and keep this manual in
a safe place.
· Keep this unit away from water and
all flammable gases or liquids.
· Use only the recommended batteries.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with a soft, dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
PRECAUTIONS

SpectroLED ESSENTIAL LIGHT - USER MANUAL
6SpectroLED ESSENTIAL LIGHT - USER MANUAL 7
PRODUCT
OVERVIEW
Diffusion
notches
(4)
LED
array
Mounting
knuckle
Yoke mounts
and adjustment
knobs (2)
Tightening
knob

SpectroLED ESSENTIAL LIGHT - USER MANUAL
6SpectroLED ESSENTIAL LIGHT - USER MANUAL 7

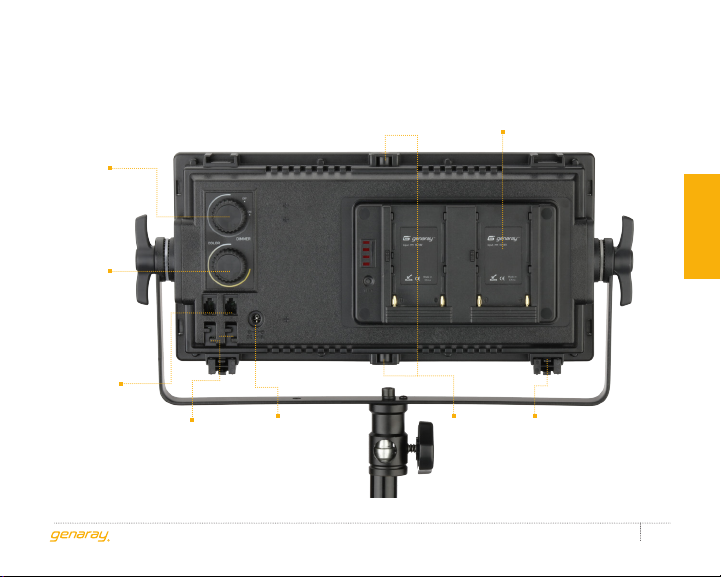

Power
Dimming
knob
Stacking
mounts
(4)
NP-F battery
mount
1/4 in.
threaded
sockets
(2)
Multi Link
cable ports
Multi Link
cable
guides
DC input
Color
Temperature
knob
(SP-E-365/500B
only)
PRODUCT OVERVIEW

SpectroLED ESSENTIAL LIGHT - USER MANUAL
8SpectroLED ESSENTIAL LIGHT - USER MANUAL 9
MOUNTING THE
SpectroLED
ESSENTIAL LIGHTS
· The SpectroLED Essential LED
lights come with a preinstalled yoke,
allowing you to easily balance and
adjust the tilt of the light. The yoke
can be mounted horizontally or
vertically on a light stand, allowing the
user to position the device in a way
that the yoke doesn’t block the light.
· The yoke has a standard 5/8-inch
mount to fit most light stands.
Additionally, there are 1/4-inch
sockets on the top and bottom
of the lights, allowing for fully
customizable light mounting.
INSTRUCTIONS
Horizontally
mounted
Vertically
mounted

SpectroLED ESSENTIAL LIGHT - USER MANUAL
8SpectroLED ESSENTIAL LIGHT - USER MANUAL 9
· To remove the yoke, unscrew the
two adjustment knobs from the
sides.

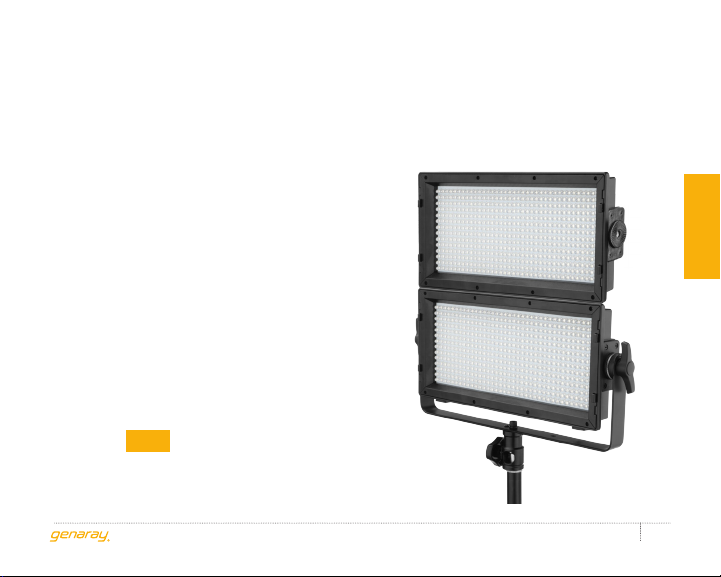

· The Essential-series LED lights are
also equipped with stacking mounts,
allowing you to connect up to
three units to create a vast array of
additional lighting options. To stack
your units, slide the stacking clips
into the stacking mounts on one of
the devices. Then slide the second
light to the first unit’s stacking clips.
Make sure it locks in place. Repeat
these steps to mount a third light.
Do not stack more than
three units at one time.
INSTRUCTIONS
Note

SpectroLED ESSENTIAL LIGHT - USER MANUAL
10 SpectroLED ESSENTIAL LIGHT - USER MANUAL 11
INSTRUCTIONS
POWERING THE
LIGHTS
· The SpectroLED Essential LED
lights come with an included
AC/DC cable, allowing for a nearly
limitless power supply from a
standard electrical outlet. To power
your light, plug the AC/DC adapter
into a power outlet, and the other
end into your device’s DC input port
on the back of the unit.
· Additionally, the Essential-series
light units can be powered
with Sony NP-F batteries (sold
separately), allowing you to avoid
cable clutter or work in a location
without electrical outlets.

SpectroLED ESSENTIAL LIGHT - USER MANUAL
10 SpectroLED ESSENTIAL LIGHT - USER MANUAL 11
· The SpectroLED Essential LED
lights’ power output is controlled
with the Power/Dimming knob
on the back of the device. With
the device in the off position
(with the knob turned all the way
counterclockwise), turn the knob
clockwise to power on the light
and adjust the brightness output
from 0% to 100%. Turn the knob
counterclockwise to dim or turn off
the light.
· The Bi-Color version also includes
a color temperature knob, allowing
you to change the color temperature
from daylight (5600 K) to tungsten
(3200 K). Turning the knob clockwise
will adjust the color temperature
towards daylight, while turning the
knob counterclockwise will give the
lights a warmer, tungsten light color
temperature.
ADJUSTING THE
LIGHT OUTPUT
INSTRUCTIONS

SpectroLED ESSENTIAL LIGHT - USER MANUAL
12 SpectroLED ESSENTIAL LIGHT - USER MANUAL 13
INSTRUCTIONS
· The Essential-series LED lights
come with an offset diffuser which is
perfect for dispersing and softening
the light output.
· To install the diffuser, insert the its
notches into the mounting clips on
the sides of the light panel.

SpectroLED ESSENTIAL LIGHT - USER MANUAL
12 SpectroLED ESSENTIAL LIGHT - USER MANUAL 13
INSTRUCTIONS
An Essential Bi-Color
light cannot adjust the
color temperature of
an Essential Daylight
light unit. Similarly,
an Essential Daylight
light cannot adjust the
color temperature of an
Essential Bi-Color light.
· The Essential-series LED lights
come with two Multi Link cable
ports. With the use of the optional
SP-E-MLC Multi Link cable, you
can control the light output of
any compatible lights using the
adjustment dial on the first unit in
the chain.
· For example, you can adjust the
dimming and color temperature of
multiple Essential Bi-Color lights
by adjusting the dials on only the
first unit. The same applies to the
dimming for multiple Essential
Daylight lights.
DAISY CHAINING
MULTIPLE LIGHTS
Note

SpectroLED ESSENTIAL LIGHT - USER MANUAL
14 SpectroLED ESSENTIAL LIGHT - USER MANUAL 15
SPECIFICATIONS
LED count: 360
Color temperature: 3200 to 5600 K / 5600 K
Dimming: 100% to 0%
Watts: 40
Lux (@ 1 m): 1445 to 1524 / 1524
Coverage: 60°
Bulb life: 30,000 hr.
Weight (without yoke): 1.6 lb. (0.7 kg)
Weight (with yoke): 2.5 lb. (1.1 kg)
Dimensions: 9.25 × 13.6 × 2.2 in.
(23.5 × 34.5 × 5.5 cm)
LED count: 504
Color temperature: 3200 to 5600 K / 5600 K
Dimming: 100% to 0%
Watts: 40
Lux (@ 1 m): 4060 to 4280 / 4280
Coverage: 60°
Bulb life: 30,000 hr.
Weight (without yoke): 1.6 lb. (0.7 kg)
Weight (with yoke): 2.5 lb. (1.1 kg)
Dimensions: 9.25 × 13.6 × 2.2 in.
(23.5 × 34.5 × 5.5 cm)
PRODUCT
SPECIFICATIONS
SP-E-365B (Bi-Color)/SP-E-365D (Daylight) SP-E-500B (Bi-Color)/SP-E-500D (Daylight)
(H×W×D) (H×W×D)

SpectroLED ESSENTIAL LIGHT - USER MANUAL
14 SpectroLED ESSENTIAL LIGHT - USER MANUAL 15
