GENASYS LRAD 100X Technical Document

LRAD 100X GENASYS INC.
LRAD 100X
EQUIPMENT MANUAL
16262 West Bernardo Drive
San Diego, CA 92127
www.genasys.com
Catalog: LRAD-100X-MANUAL
CAGE: 1K3W7
Part No.: 106457-00 Rev. E
Revised: Sep. 2020
Copyright, 2020, Genasys Inc.
100X

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
i
Contents
1.0 Important Safety Precautions .................................................................................................. 1
2.0 System Description .................................................................................................................. 2
3.0 System Setup............................................................................................................................ 3
3.1 Charging the Battery ............................................................................................................ 4
3.2 Installing the Battery............................................................................................................ 4
3.3 Audio Connections ............................................................................................................... 5
3.4 Playing Audio Files ............................................................................................................... 6
3.5 Using the Alert Tone ............................................................................................................ 7
3.6 Aiming the LRAD-100X ......................................................................................................... 7
4.0 Operation: Hailing and Warning .............................................................................................. 8
4.1 LRAD-100X Operation Zones................................................................................................ 9
5.0 MP3 Player Controls and Connectors .................................................................................... 10
6.0 Button Functions.................................................................................................................... 11
7.0 LCD Display............................................................................................................................. 11
7.1 Power Up Screen................................................................................................................. 12
8.0 MP3 Player Connections ........................................................................................................ 12
9.0 Using the MP3 Player............................................................................................................. 13
10.0 Downloading Files................................................................................................................ 13
11.0 Changing the Alert Tone ...................................................................................................... 14
12.0 Audio File Playback .............................................................................................................. 14
13.0 LCD and Button Brightness Level......................................................................................... 14
14.0 Recording MP3, WAV or WMA Files .................................................................................... 15
15.0 The Recording Microphone ................................................................................................. 15
15.1 Feedback .......................................................................................................................... 15
15.2 Recording Audio............................................................................................................... 16
16.0 Accessories........................................................................................................................... 18
16.1 Accessory Mounting......................................................................................................... 18
16.2 Optional Accessories........................................................................................................ 19
17.0 Troubleshooting................................................................................................................... 20
18.0 Specifications ....................................................................................................................... 21
19.0 Technical Support ................................................................................................................ 22
Figures and Tables
Figure 1 – System Components ...................................................................................................... 3
Figure 2 – LRAD-100X Battery Compartment ................................................................................. 4
Figure 3 – Audio Cable attached to MP3 Player ............................................................................. 5
Figure 4 – Microphone attached to MP3 Player............................................................................. 6
Figure 5 – LRAD-100X Zones of Operation ..................................................................................... 9
Figure 6 – LRAD-100X MP3 Player ................................................................................................ 10

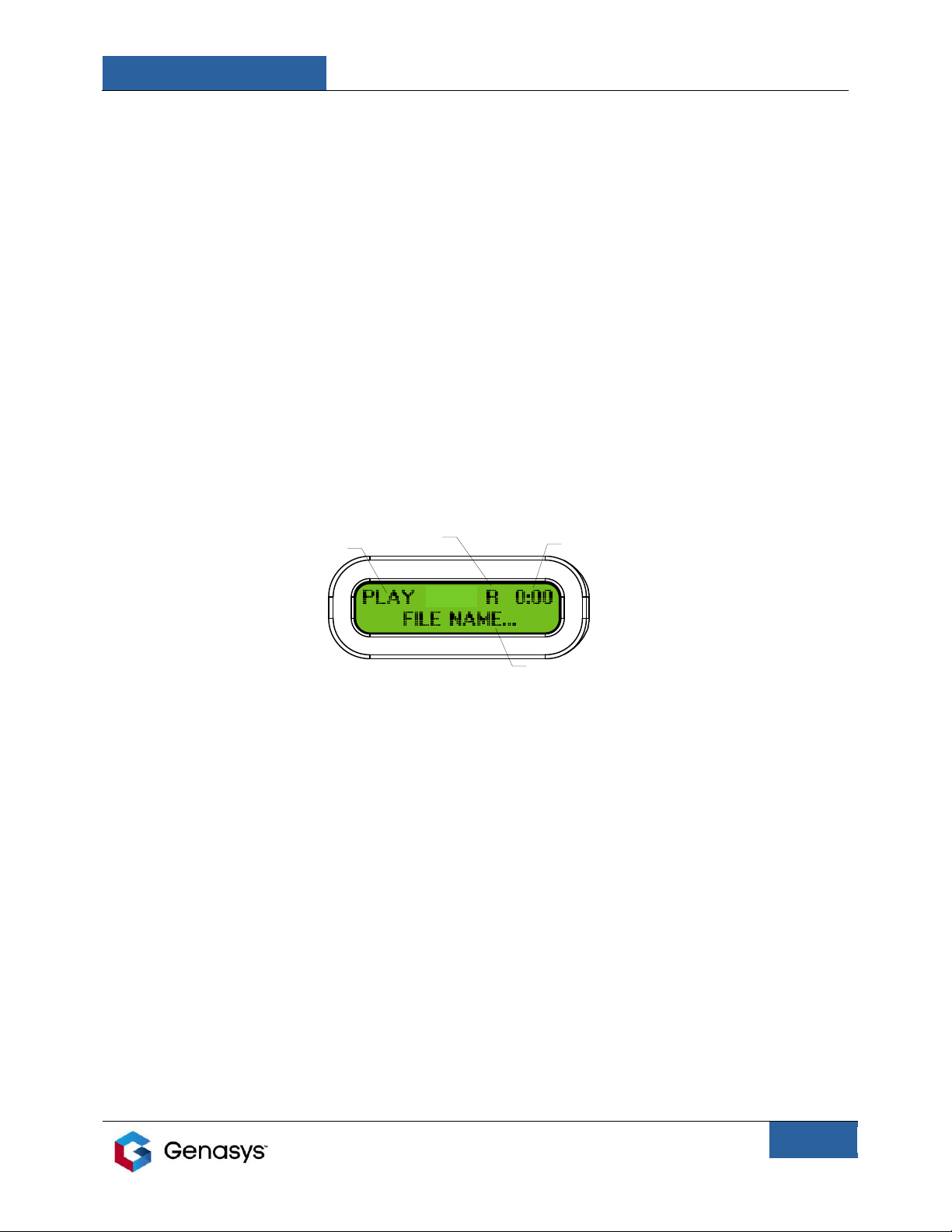

Figure 7 – LCD Display Elements................................................................................................... 11

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
ii
Figure 8 - MP3 Player Splash Screen............................................................................................. 12
Figure 9 - MP3 Player Mass Storage Screen ................................................................................. 13
Figure 10 - Recording Microphone Features and Controls........................................................... 17
Figure 11 – Accessory Mounting: Top Option (left) and Rear Option (right) ............................... 18
Figure 12 – Optional Accessories: Front Carry Pack (left) and Tripod (right)............................... 19
Table 1: System Components ......................................................................................................... 3
Table 2: MP3 Player Controls and Connectors ............................................................................. 10

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
1
1.0 Important Safety Precautions
The LRAD-100X is capable of producing sound pressure levels (SPLs) that have the potential to
cause temporary or permanent hearing damage.
Always follow the safety precautions described in this manual as well as on the unit’s interfaces.
The following safety conventions appear throughout this manual. Please heed these warnings
and take the appropriate actions to ensure safe operation of the unit.
Important Safety Instructions
Risk of Electric Shock
Hearing Protection Required
Before operating the LRAD-100X, do the following:
1. Read these instructions.
2. Keep these instructions in a place known to and accessible by the potential operators
of the LRAD-100X.
3. Heed all warnings contained in this document.
4. Follow all instructions detailed in this document.
5. Install in accordance with the instructions contained in this document.
6. Do not expose yourself or others to high volume levels for prolonged periods of time.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatuses (including some electronics) that produce heat.
8. Only use attachments or accessories specified by the manufacturer.
9. Refer all servicing to qualified service personnel. Servicing is required when the LRAD-
100X has been noticeably or substantially damaged in any way, including cord or plug
damage, seriously dented or breached housings, or if liquid has penetrated the
interior of the device or any of its accessories.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
2
2.0 System Description
The LRAD-100X is a self-contained, lightweight, and compact battery-powered hailer that
communicates with great intelligibility up to 600 meters.
Unlike handheld bullhorn devices, the LRAD-100X emits acoustic sound pressure levels up to
140 dB that result in clear, intelligible communications and unmistakable, stunning alert tones.
In addition to broadcasting alert tones, the LRAD-100X is also capable of playing prerecorded
messages and audio files stored in its MP3 player, and broadcasting live speech through its
handheld microphone.
The LRAD-100X’s rugged construction makes the device impact-resistant and completely
waterproof. Such construction allows the LRAD-100X to perform reliably in the harshest
conditions, whether on land or at sea.
The LRAD-100X’s rechargeable Lithium Iron Phosphate (LiFePO4) battery combines the power
density of a traditional lithium ion battery with a rugged design. Constructed with a cathode
material, this battery is far more resistant to thermal runaways than traditional lithium ion
batteries. This results in a high-powered battery that is safe to use in harsh environments.
The LRAD-100X is highly customizable. There are several different accessories and
configurations available, giving it the ability to function effectively in any environment.
The LRAD-100X is the smallest, most portable LRAD available, making it the ideal product for
law enforcement, emergency responders, and many other users.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
3
3.0 System Setup
Table 1: System Components
#
System Component
1
LRAD-100X Head Unit
2
MP3 Player
3
Recording Microphone
4
Rechargeable LiFePO4 Battery
5
AC Battery Charger, 100-240 VAC
6
Audio Cable, 20 Feet
7
USB Download Cable, 48 Inches
8
External Audio Cable with 3.5 Millimeter Plug, 39 Inches
9
Normalizer Software, CD
N/A
User Manual (Not Pictured)
Figure 1 – System Components
4
5
1
7
8
9
3
6
2

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
4
3.1 Charging the Battery
Prior to powering up the LRAD-100X, the battery must be fully charged. To charge the system
battery, perform the following steps:
1. Connect the battery’s male-end circular cable connector to its female counterpart on
the AC battery charger.
2. Plug the charger into an AC wall outlet. The charger can draw power from wall outlet
voltages rated between 100 and 240 VAC.
3. Allow the battery to charge until the indicator LED on the charger shows that charging is
complete. The LED will glow red when the battery is charging and will turn green when
the battery is fully charged.
3.2 Installing the Battery
Figure 2 – LRAD-100X Battery Compartment
1. Disconnect the battery from its charger.
2. Loosen the thumb screws on both battery retainers (item 1 in Figure 2) and rotate the
retainers so that the battery can be inserted into the base compartment.
3. Slide the battery into the base compartment.
4. Rotate the battery retainers so that the retainers hold the battery in its compartment
and tighten the thumbscrews.
5. Connect the battery cable connector to the rear power input connector on the bottom-
right of the LRAD-100X (item 2 in Figure 2).
1
2
1

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
5
3.3 Audio Connections
The handheld MP3 player contains the power and audio controls for the LRAD-100X.
To install the audio cable, connect the cable between the MP3 player’s top-right AUDIO OUT
connector and the matching audio in connector on the bottom-left of the LRAD-100X (see
Figure 3).
The audio cable can be wrapped around the LRAD-100X’s rear plate for ease of transportation.
Figure 3 – Audio Cable attached to MP3 Player
When it is necessary to broadcast live speech, connect the included microphone to the MP3
player. Install the microphone by connecting the microphone’s cable to the MIC/USB connector
located on the top-left of the MP3 player (see Figure 4 on the following page).

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
6
Figure 4 – Microphone attached to MP3 Player
3.4 Playing Audio Files
To broadcast audio files using the LRAD-100X, perform the following steps:
1. Power on the LRAD-100X by turning the MP3 player’s PWR/VOL knob (item 2 in Figure
6) clockwise from the OFF position. The PWR/VOL knob will click on and the unit will
power up.
2. Select the desired audio file by cycling through the files on the MP3 player. Use the SKIP
FORWARD and SKIP REVERSE buttons (items 6 and 7 in Figure 6) to cycle files.
Warning:
Avoid Exposure to Excessive Sound Levels.
Always initiate audio playback with the volume on
a low setting.
3. Press the PLAY/PAUSE button (item 4 in Figure 6) to start playing an audio file from the
MP3 player, slowly adjusting the PWR/VOL knob until the desired volume is reached.
NOTE: The LRAD-100X’s on-board power converter features capacitive filtering on its input to
minimize noise levels. These capacitors will require 3 to 5 seconds to fully discharge after
powering off the LRAD. Cycling the power on and off repeatedly within less than one second
will result in a popping sound from the LRAD-100X. To prevent this popping sound, allow at
least 5 seconds to pass before turning the unit back on.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
7
3.5 Using the Alert Tone
Press the ALERT TONE button (item 8 in Figure 6) to activate a pre-recorded alert sound. Press
once for activation, press again for deactivation. The pre-installed alert tone is an intense,
pulsating warning tone that is designed to be clearly heard at long distances.
It is recommended that the tone be used in 2-5 second bursts for maximum effectiveness when
hailing. Pressing the ALERT TONE button will interrupt playback of any other audio being
broadcast through the MP3 player.
Warning:
Avoid Exposure to Excessive Sound Levels.
The Alert Tone produces the loudest output from the LRAD-100X.
Qualified personnel must ensure the area in front of the LRAD-100X is
clear for 10 meters before activating the alert tone when the volume
control is in the RED zone of the PWR/VOL knob’s scale.
3.6 Aiming the LRAD-100X
The LRAD-100X is a highly directional audio device. The majority of the acoustic output power is
concentrated in a 30-degree cone in front of the device. This means that the sound directly in
front of the LRAD-100X is significantly louder than the sound behind and to the sides of the
device.
For optimal results, aim the device directly at the intended target.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
8
4.0 Operation: Hailing and Warning
The LRAD-100X’s exceptional sound output and directionality can be used to hail, warn, and
notify clearly and intelligibly at distances up to 600 meters. Aim the LRAD-100X at your target
and broadcast sound from an audio file on the MP3 player, or speak directly to your target
using the handheld microphone. You can also attach an external audio device to the MP3 player
and use this device to playback and broadcast audio.
Warning:
Avoid Prolonged Exposure to Excessive Sound Levels.
Operator Hearing Protection is Required.
The LRAD-100X can produce acoustic sound pressure levels that OSHA
considers hazardous. As with any high-energy acoustic device, proper usage
of earplugs will minimize risk of hearing loss to the operator and personnel in
the immediate vicinity. Hearing protection is required when operating the
device at maximum volume from less than one meter away.
Warning:
Aim the LRAD-100X with Extreme Care.
Qualified LRAD-100X operators must ensure the device is positioned, aimed, and
operated in a manner that avoids exposing nearby personnel and bystanders to
excessive sound pressure levels. Follow these guidelines in conjunction with sound
judgment:
•Never operate the LRAD-100X at maximum volume when personnel are within
10 meters of the front of the device, or when the reflected distance between
personnel and an acoustically reflective object (i.e., a building, a wall, or a
bulkhead) is less than 10 meters.
•Never point LRAD-100X directly at personnel in the immediate vicinity of its
operating position.
•Note that the output power of the warning tone is slightly higher than the
output power of live broadcasts or other audio files.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
9
4.1 LRAD-100X Operation Zones
Figure 5 – LRAD-100X Zones of Operation
•The LRAD-100X should have an unobstructed transmission path to its target. Even small
mast antennas may reflect some sound energy, thereby decreasing the LRAD-100X’s
effectiveness and increasing the reflected noise levels that will be felt by the operator
and others nearby.
•Avoid placing the LRAD-100X in a position where it will transmit sound over areas where
personnel may be located.
•For shipboard operation, place the LRAD-100X as close to the ship’s sides, bow, or stern
as possible.
Warning:
Hearing Protection Required
The LRAD-100X has very directional sound projection. Operators standing behind the
unit hear only a small fraction of the sound energy being transmitted. This can lead the
operator to falsely think that the LRAD-100X is not producing the required output.
OPERATORS SHOULD NOT ATTEMPT TO LISTEN TO THE OUTPUT FROM THE FRONT OF
THE DEVICE! HEARING DAMAGE MAY RESULT FROM SUCH ACTION.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
10
5.0 MP3 Player Controls and Connectors
Figure 6 – LRAD-100X MP3 Player
Table 2: MP3 Player Controls and Connectors
_#_ Symbol Name Function
1
MIC/USB
Connector
Connection point: Microphone and USB cables.
2 PWR/VOL Knob Controls power and volume level.
3
AUDIO OUT
Connector
Connection point: Audio out to LRAD-100X head unit.
4 PLAY/PAUSE Button Plays and pauses playback of selected file.
5 STOP Button Stops playback of selected file.
6
SKIP FORWARD
Button
When playing, starts playback of next track. When
stopped, indexes to the start of the next track.
7
SKIP REVERSE
Button
When playing, starts playback of selected file or previous
file. When stopped, indexes to start of previous track.
8 ALERT TONE Button Immediately toggles playback of the built-in alert tone.
9 Backlit LCD Displays MP3 player’s status and other information.
10 REPEAT Button Toggles repeat mode.
11
BRIGHTNESS LEVEL
Button
Cycles the LCD and button backlight intensity.
1
3
4
5
6
7
9
2
8
10
11

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
11
6.0 Button Functions
The MP3 player’s buttons are environmentally sealed, backlit, and are sized to allow sufficient
tactile feeling through gloved hands.
These raised-edge buttons allow the user to:
•Scroll through available audio tracks.
•Control audio playback.
•Adjust the brightness level of the MP3 player’s display and the buttons themselves.
•Toggle repeat mode of the audio file.
•Activate the LRAD-100X’s high-intensity alert tone.
7.0 LCD Display
The LCD display (Figure 7) shows: current status of the audio file, time elapsed, audio file name,
and whether or not the audio file is playing on repeat mode.
STATUS
REPEAT MODE TIME ELAPSED
AUDIO FILE NAME
Figure 7 – LCD Display Elements
Status: This is the current state of the player. One of the following statuses will be displayed:
•PLAY – This status indicates the selected audio file is being played through the LRAD.
•PAUSE – This status indicates the selected audio file is paused. Upon pressing the
PLAY/PAUSE button, playback will resume from where it was paused.
•STOP – This status indicates the selected audio file is stopped. Upon pressing the
PLAY/PAUSE button, playback will restart at the beginning of the file.
•ALERT – This status indicates the alert tone is playing through the LRAD.
•ERROR – This status indicates the on-board memory is not formatted in the MP3 player.
Time Elapsed: The player’s display will show a digital timer that represents the current elapsed
playback time of the selected file. The timer will reset to 0:00 when the file restarts playing in
Repeat Mode.
Audio File Name: The player’s display will show the selected file name in this position. When
the file name exceeds the width of this field, the display will continuously scroll the file name
from right to left.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
12
Repeat Mode: When the player displays an ‘R’ in this position repeat mode is enabled on the
MP3 player. In repeat mode, the selected file will play to the end and then loop back to the
beginning, continuously playing the same file until the STOP button is pressed. If the REPEAT
button is pressed again during file playback, the R in the display will be cleared, the file playing
will play to the end, and playback will stop.
7.1 Power Up Screen
At power up, the MP3 player displays a splash screen (Figure 8) that shows the current
firmware version (i.e., VERSION X.X.X, where X is an alphanumeric value). When needed, check
the current version by cycling the connection between the MP3 player and the LRAD-100X.
After cycling the connection, review the firmware version displayed on the splash screen.
Figure 8 - MP3 Player Splash Screen
8.0 MP3 Player Connectors
The MP3 player has two top connectors: MIC/USB and AUDIO OUT (see Figure 6 and Table 2).
MIC/USB Connector:
•Allows the microphone or an external audio device (Phraselator, CD player, etc.) to
connect to the MP3 player. To connect an external audio device, use the included external
audio cable.
oNOTE: Audio played through this connection will mix with any audio file being
played on the MP3 Player itself if audio is coming from both sources at once.
•Acts as the USB cable connector for downloading prerecorded audio files onto the MP3
player from a computer with a USB connection. This connection can also be used to
update the firmware in the MP3 player. To connect, use the included USB download
cable.
Audio Out Connector:
•Allows the MP3 player to transmit audio to the LRAD-100X using the audio cable. This
connection also delivers power to the MP3 player from the LRAD’s battery and allows the
MP3 player to control the volume and power of the LRAD.
LRAD Audio Player
VERSION X.X.X

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
13
9.0 Using the MP3 Player
The use of prerecorded messages is recommended whenever possible. Prerecording ensures
that messages are appropriately worded and clearly broadcasted to maximize the effectiveness
of communications.
The LRAD-100X’s MP3 player allows operators to utilize prerecorded messages in the field.
Some operators have found it useful to record a message in several different languages to meet
their communication needs.
If professionally produced voice recordings in multiple languages are needed, please contact
your Genasys sales representative.
The MP3 player is preloaded with a number of warning and test messages that may be freely
used or deleted as needed. The MP3 player is capable of playing MP3, WAV, and WMA file
formats.
10.0 Downloading Files
Additional audio files can be downloaded onto the MP3 player by connecting to a USB-enabled
computer. First connect the USB download cable (item 7 in Figure 1) to the MIC/USB connector
on the MP3 player, then connect the USB download cable to the computer’s USB port.
NOTE:
If the order of the cable connection is not followed as described above, the MP3
player may not be recognized by the USB-enabled computer.
Upon connecting the MP3 player’s USB interface to the computer, the MP3 player’s display will
change from the initial splash screen to the MP3 player’s mass storage screen as seen in the
figure below.
Figure 9 - MP3 Player Mass Storage Screen
The computer will automatically install its USB mass storage drivers and then display two new
removable mass storage drives in the computer’s file management display. For example, on a
Windows™ based machine upon opening “My Computer” you will find two new sequential
drive letters.
LRAD Audio Player
USB MASS STORAGE

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
14
The first installed drive (i.e., the first new drive letter) will be inaccessible. This drive is locked
and reserved for system memory.
The second installed drive (i.e., the second new drive letter) is available to read and to write
files. To move files to this second drive, drag and drop the desired files following your operating
system’s normal file copying procedures.
11.0 Changing the Alert Tone
The MP3 player contains a file named “ALERT.ATC”. This is an MP3 file of the alert tone
emitted after pressing the ALERT TONE button. This file may be replaced with any digital
recording in MP3 format. Simply save the new audio file with the name “ALERT.ATC”, then
replace the one on the MP3 player with the new file. When pressed, the ALERT TONE button
will play this new file.
12.0 Audio File Playback
When an audio file on the MP3 player begins playback, any audio input being played through
the MIC/USB connector will be mixed and broadcast with the MP3 player’s audio file.
13.0 LCD and Button Brightness Level
The MP3 player’s BRIGHTNESS LEVEL button (item 11 in Figure 6) allows the user to cycle the
backlight of the buttons and the LCD screen through four levels: off, low, medium, and high.
Adjusting the brightness level helps to compensate for glare and to avoid light signature when
necessary.
NOTE:
Files copied to the MP3 player will be listed on the MP3 player’s LCD interface
in the same order they were dragged and dropped onto the MP3 player’s mass
storage drive. Cycle through these files by pressing the SKIP FORWARD or SKIP
REVERSE buttons on the MP3 player.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
15
14.0 Recording MP3, WAV or WMA Files
The LRAD-Normalizer software CD included with this kit is provided to optimize audio files for
use with the LRAD.
Recordings for playback on the LRAD can be created on any computer with a microphone. The
file formats that can be played back on the LRAD’s MP3 player include:
•MP3: MPEG Layer-3 compression, all bit rates, stereo or mono.
•WAV: Uncompressed PCM (Pulse Code Modulation), all bit rates, stereo or mono.
•WMA: Windows Media Audio compression, all bit rates, stereo or mono.
15.0 The Recording Microphone
The LRAD-100X system includes a rugged microphone with an integrated digital recording chip.
This microphone can record and store approximately one minute of audio and is also capable of
broadcasting live speech. To broadcast live speech, simply press and hold the PUSH TO TALK
(PTT) button (item 1 in Figure 10) and speak into the microphone.
In certain situations, the user may prefer to record a message instead of broadcasting live
speech. The recording feature is extremely useful when a message needs to be quickly recorded
for repeated continuous use, or when feedback cannot be avoided when broadcasting live
speech through the microphone.
15.1 Feedback
About microphone feedback:
Microphone feedback is caused when the microphone picks up the LRAD’s audio output,
causing a loud harmonic hum through the device. Placing the microphone directly in the sound
projection path of the LRAD and keying the PUSH TO TALK button will result in the worst-case
feedback scenario. This is because the sound being produced by the LRAD is being fed back into
itself, causing a reverberation and resulting in a loud screech from the device. When operating
the LRAD, the user should always be vigilant about limiting feedback.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
16
How to Limit Feedback:
•Adjust the volume: Lower the LRAD’s volume until feedback is negated.
•Avoid reflections: If the output from the LRAD is bouncing off a solid object such as a
building and making its way back to the microphone, feedback will occur. Try
repositioning the LRAD or the microphone to prevent feedback.
•Maintain your distance: The farther away the microphone is from the LRAD, the less
feedback you will experience. Only use the microphone behind the LRAD, keeping it out
of the main acoustic beam.
•Shield the microphone: If possible, shield the microphone and the microphone operator
from the LRAD’s acoustic output to reduce feedback. Stand behind a physical barrier, or
inside a guard house or ship’s bridge. You may also use your free hand to cover the area
surrounding the microphone to attempt to limit feedback.
•Use the PUSH TO TALK button to your advantage: Releasing the PTT button on the
microphone immediately after speaking will limit feedback. Pressing and holding the
PTT button for longer than necessary may lead to feedback.
15.2 Recording Audio
When necessary, the microphone can be used to record, store, and playback a message of
approximately one minute in duration.
To record and playback audio with the microphone, reference Figure 10 on the following page
and perform these steps:
1. Press and hold the RECORD button (item 2 in Figure 10).
2. While holding the RECORD button, press and hold the PLAY button (item 3 in Figure 10).
3. The recording/playback indicator LED (item 4 in Figure 10) will light green to indicate that
the unit is recording.
•The unit will record as long as the RECORD and PLAY buttons are held down and as
long as there is available storage space in the internal memory.
4. Speak your message into the microphone element (item 5 in Figure 10) and release the
RECORD and PLAY buttons when done speaking.
5. Press and release the PLAY button to initiate playback of the recording. The
recording/playback indicator LED will flash once when the recording has finished playback.
6. Press and release the PLAY button again to halt playback of the recording.

LRAD-100X
GENASYS INC.
Manual Part No.: 106457-00 Rev E
17
•The recording will be stored on non-volatile memory, so the recording will persist even after
the LRAD is powered down.
•The microphone will only store one recording at a time.
•Repeating this record sequence will overwrite the recording on the microphone.
Figure 10 - Recording Microphone Features and Controls
PUSH TO TALK (PTT)
RECORD (REC)
PLAY
RECORDING/
PLAYBACK INDICATOR
LED
MICROPHONE
ELEMENT
1
2
3
4
5
