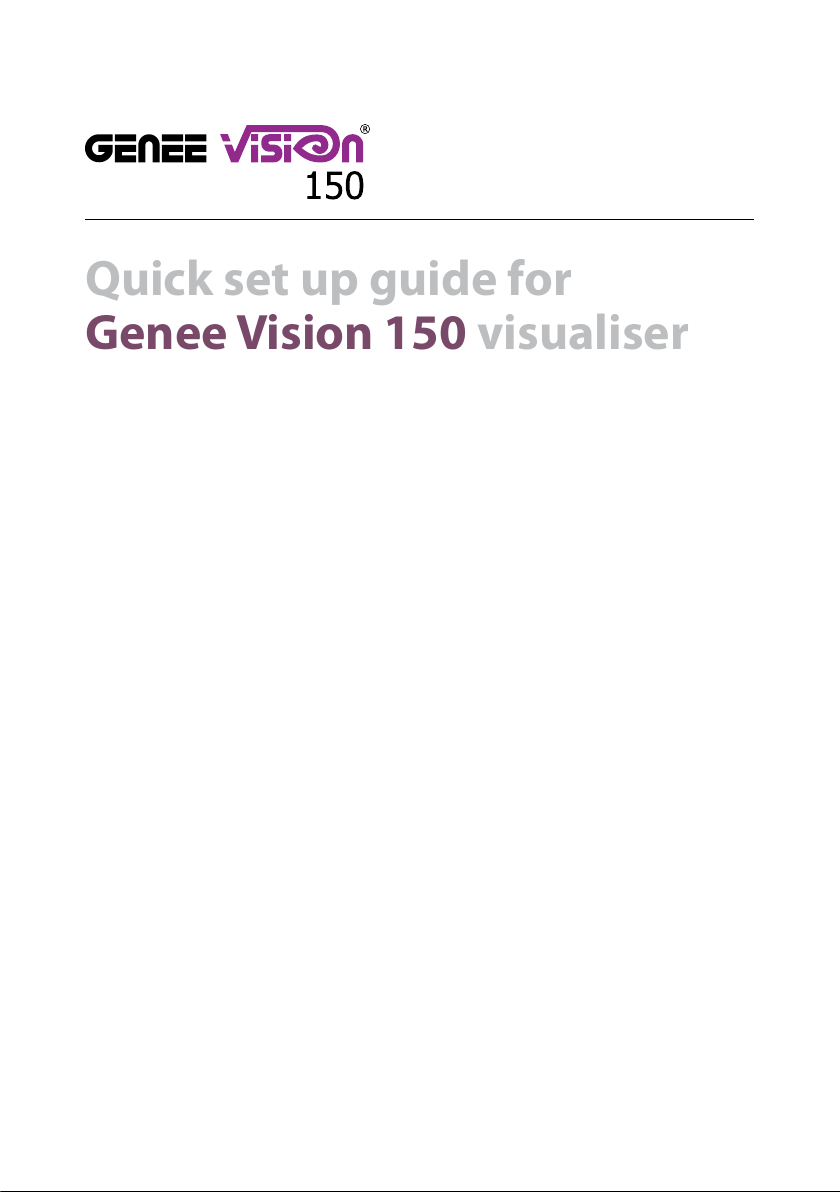

Quick set up guide for
Genee Vision 150 visualiser
All manuals and user guides at all-guides.com

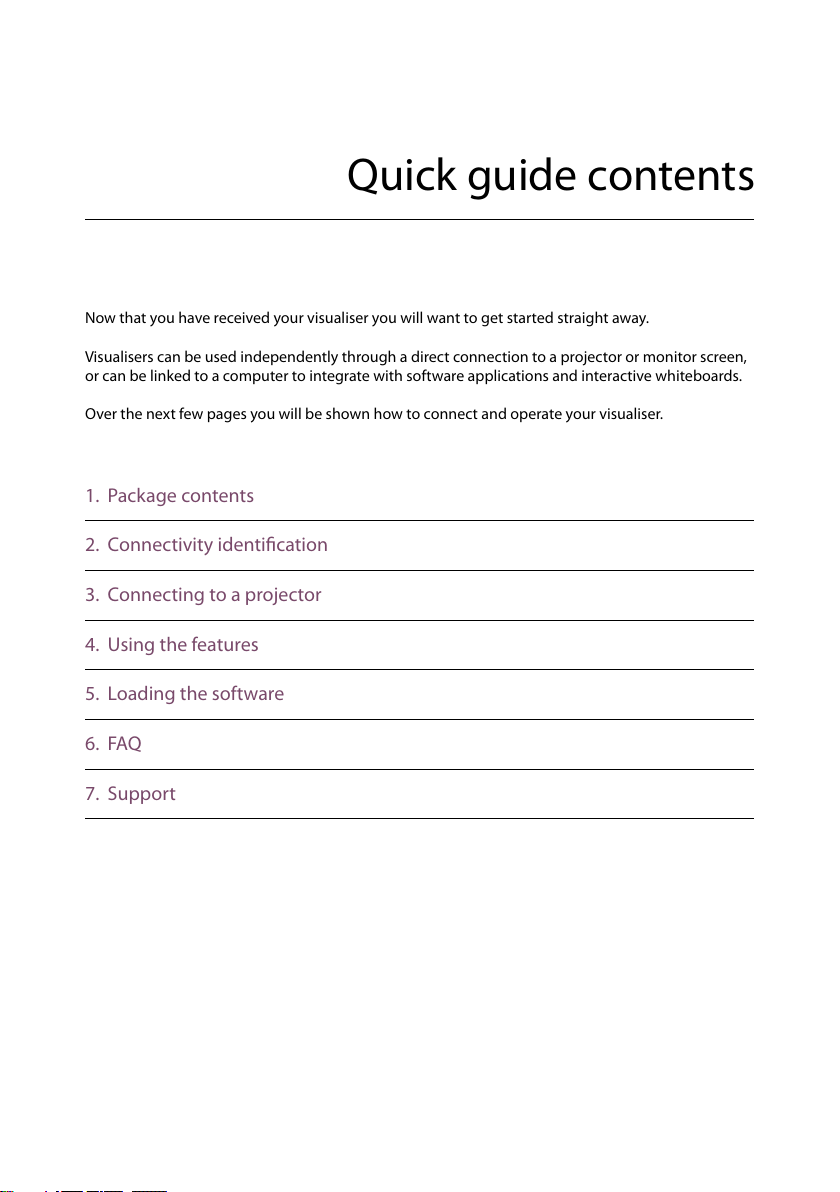

Quick guide contents
Now that you have received your visualiser you will want to get started straight away.
Visualisers can be used independently through a direct connection to a projector or monitor screen,
or can be linked to a computer to integrate with software applications and interactive whiteboards.
Over the next few pages you will be shown how to connect and operate your visualiser.
1. Package contents
2. Connectivity identication
3. Connecting to a projector
4. Using the features
5. Loading the software
6. FAQ
7. Support
All manuals and user guides at all-guides.com

Package contents
1
Visualiser unit Remote control Software CD
IEC mains
cable
Power supply
adapter
USB
A-A lead
VGA
male-male
All manuals and user guides at all-guides.com

Connectivity identication
Package contents
2
Connection ports
DC-12V RGB OUT 1USB
DC-12V External 12V power adapter input connector
USB Computer image capture and video recording for both PC and Mac
RGB OUT 1 RGB output
All manuals and user guides at all-guides.com

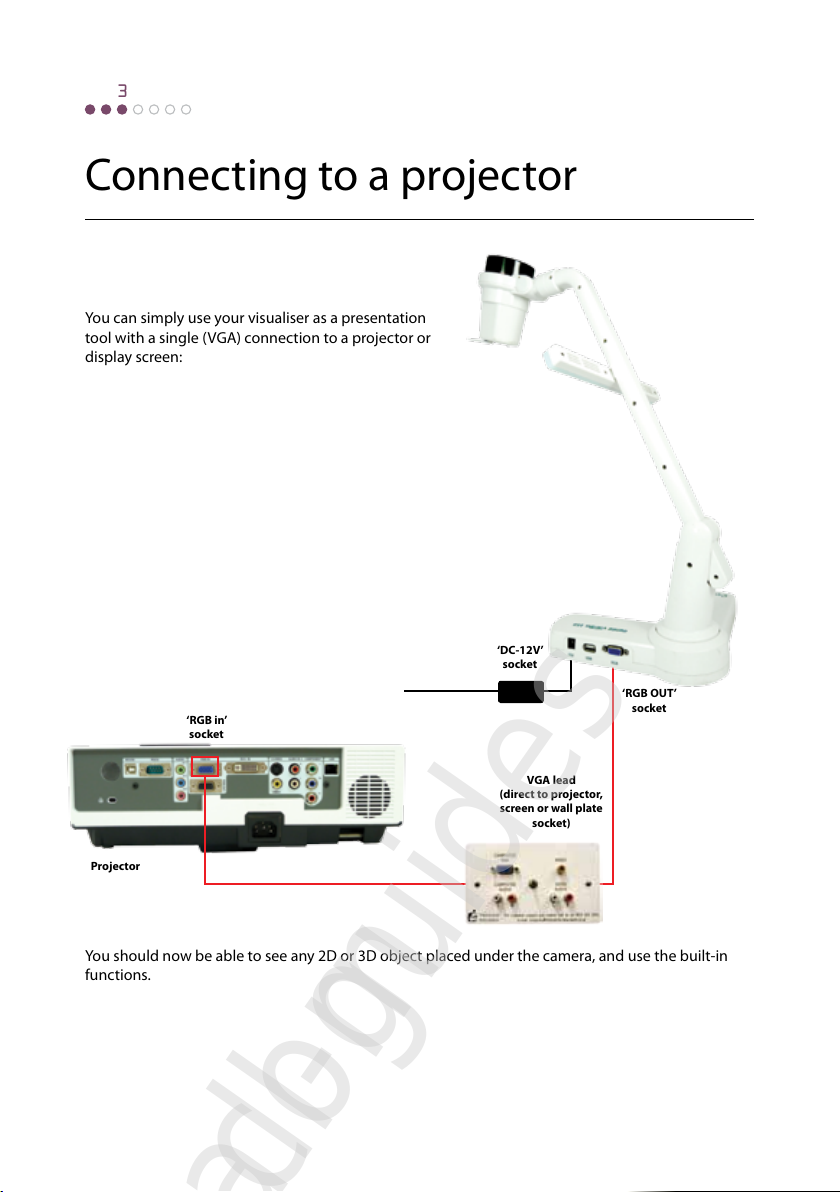

You can simply use your visualiser as a presentation
tool with a single (VGA) connection to a projector or
display screen:
Connecting to a projector
3
You should now be able to see any 2D or 3D object placed under the camera, and use the built-in
functions.
Projector
VGA lead
(direct to projector,
screen or wall plate
socket)
‘RGB in’
socket
‘DC-12V’
socket
‘RGB OUT’
socket
All manuals and user guides at all-guides.com
all-guides.com

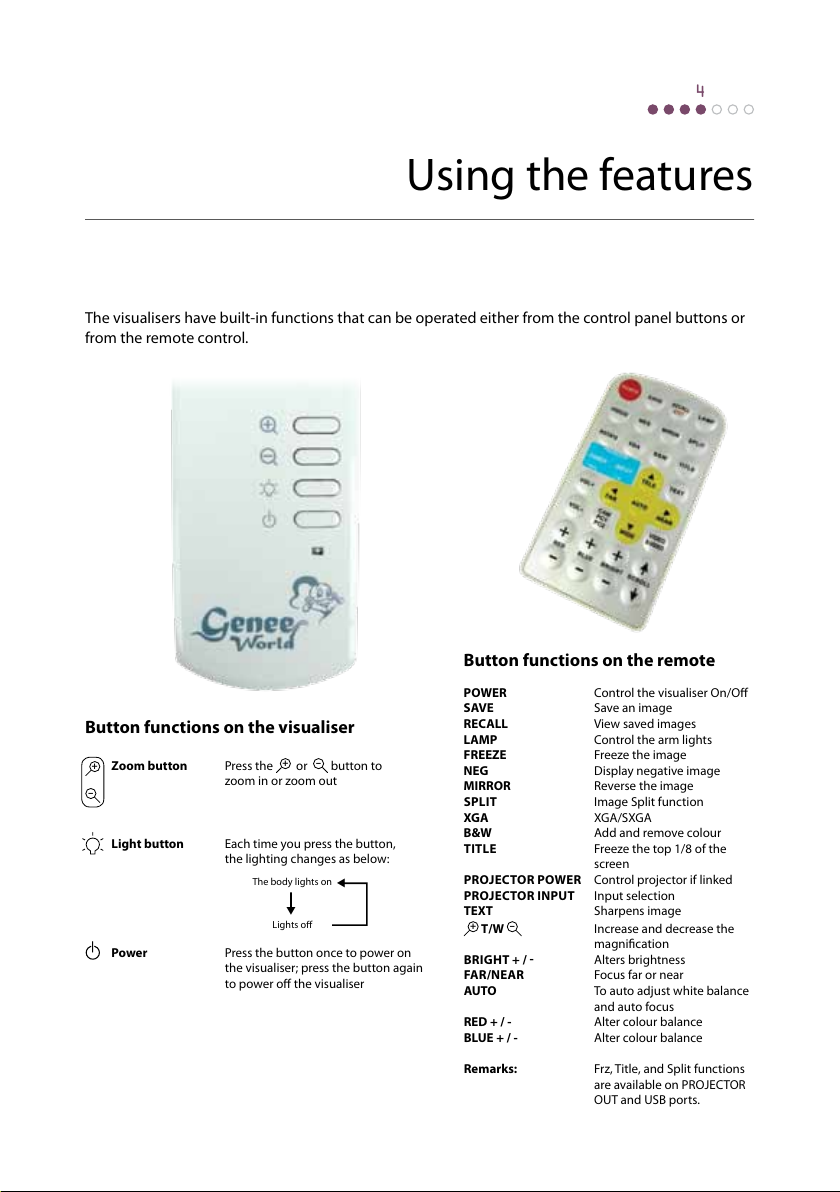

Using the features
The visualisers have built-in functions that can be operated either from the control panel buttons or
from the remote control.
4
Button functions on the remote
POWER Control the visualiser On/O
SAVE Save an image
RECALL View saved images
LAMP Control the arm lights
FREEZE Freeze the image
NEG Display negative image
MIRROR Reverse the image
SPLIT Image Split function
XGA XGA/SXGA
B&W Add and remove colour
TITLE Freeze the top 1/8 of the
screen
PROJECTOR POWER Control projector if linked
PROJECTOR INPUT Input selection
TEXT Sharpens image
+T/W
–
Increase and decrease the
magnication
BRIGHT + /  Alters brightness
FAR/NEAR Focus far or near
AUTO To auto adjust white balance
and auto focus
RED + / - Alter colour balance
BLUE + / - Alter colour balance
Remarks: Frz, Title, and Split functions
are available on PROJECTOR
OUT and USB ports.
Button functions on the visualiser
Zoom button Press the +or
–
button to
zoom in or zoom out
Light button Each time you press the button,
the lighting changes as below:
Power Press the button once to power on
the visualiser; press the button again
to power o the visualiser
+
–
The body lights on
Lights o
s
s
All manuals and user guides at all-guides.com

5
Loading the software
The accompanying disk has essential software
for enabling your computer to recognise the
visualiser and capture images, both still and
moving. This will be done through the USB
connecting lead.
The driver for your operating system must
be installed before connecting the USB lead.
The set-up wizard will take you through the
process.
VideoCap and Genee Toolbar are programs
that will give you live camera windows and
whiteboard tools on your desktop, allowing
you to annotate over them or capture in
common image and video formats that can
be incorporated into dierent applications.
The disk also contains additional information, including user guides and training videos.
‘USB’ socket
USB
lead
All manuals and user guides at all-guides.com

1I cannot get an image through the projector
i. Is the power connected and switched on (see step 3)?
ii. Is the lens cover open?
iii. Is the VGA lead connection from the projector plugged into the visualiser?
2How do I switch to my desktop image on my board?
Swap the VGA projector lead from the visualiser to your computer.
3How do I annotate over my visualiser images?
i. Check that the supplied VideoCap and/or Genee Toolbar has been installed.
ii. Check that the supplied USB lead is connecting the visualiser to your computer.
iii. Open either the VideoCap or Genee Toolbar software to get a live video window (you may
have to select the USB 2861 camera if there is a choice).
iv. You can now use your IWB tools or the Genee Toolbar tools to annotate over.
4Will this work with any board?
Yes.
5Can I save these images?
VideoCap and Genee Toolbar will save both still images and video images. You can also use
generic programs such as Microsoft MovieMaker or insert images directly onto Word pages, for
example, by going to the‘insert from camera or scanner’command.
Please contact [e-mail] if the problem persists.
FAQ
6
All manuals and user guides at all-guides.com

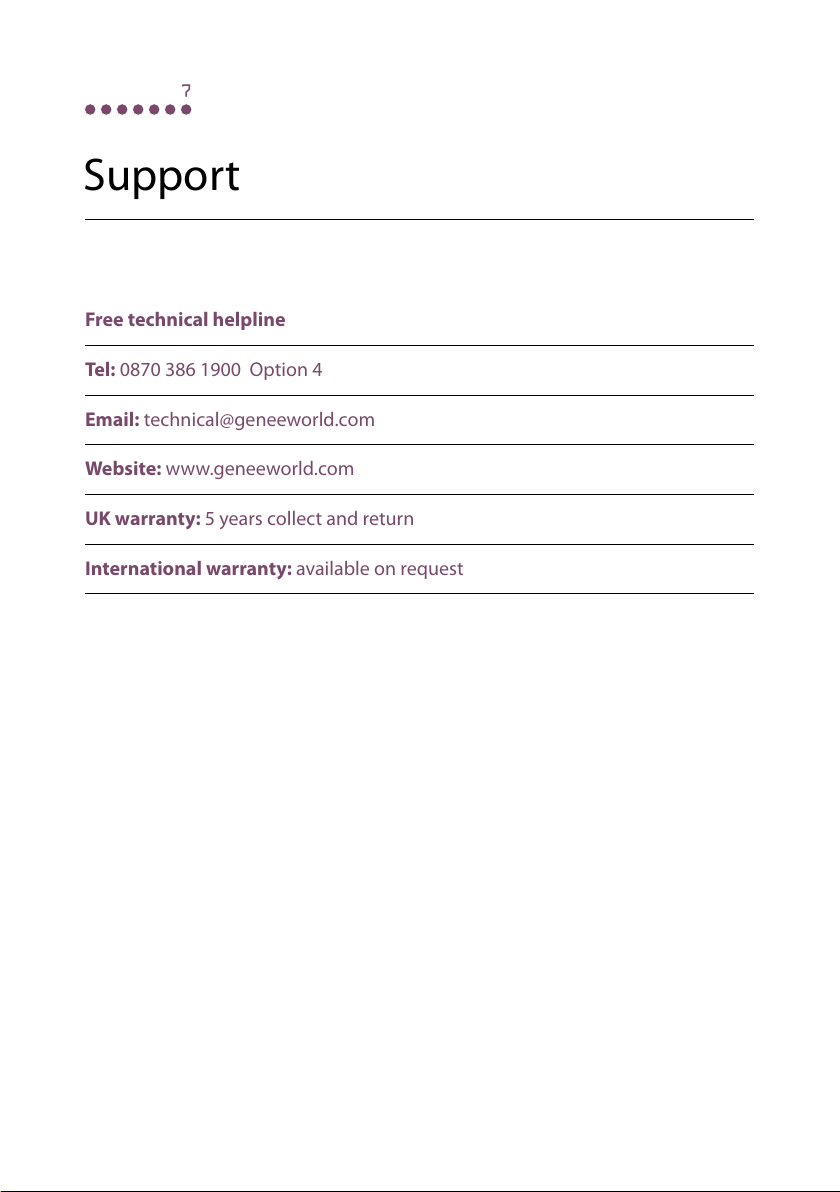

Support
Free technical helpline
Tel: [phone] Option 4
Email: [e-mail]
Website: www.geneeworld.com
UK warranty: 5 years collect and return
International warranty: available on request
