PRECAUTIONS
Please follow these precautions:
To prevent re or shock hazard, do not expose the unit
to rain or moisture.
To prevent electrical shock, do not open the cabinet.
Refer to qualied personnel for service only.
Do not use the unit continuously for more than 24
hours with camera auto focus on. It may cause
damage to the camera lens.
Be careful not to spill water or other liquids onto the
unit, or allow combustible or metallic objects to get
inside the cabinet.
Unplug the visualiser from the wall outlet when it is not
being used for a long period of time.
Clean the cabinet with a soft cloth lightly moistened
with a mild
detergent solution.
Clean the lens carefully with an air spray or soft dry
cloth to avoid
scratching it.
When the lamps ash or become dark, they should be
replaced with new ones.
Avoid switching arm lights and back light frequently.
Remove the camera lens cap before power the unit on.

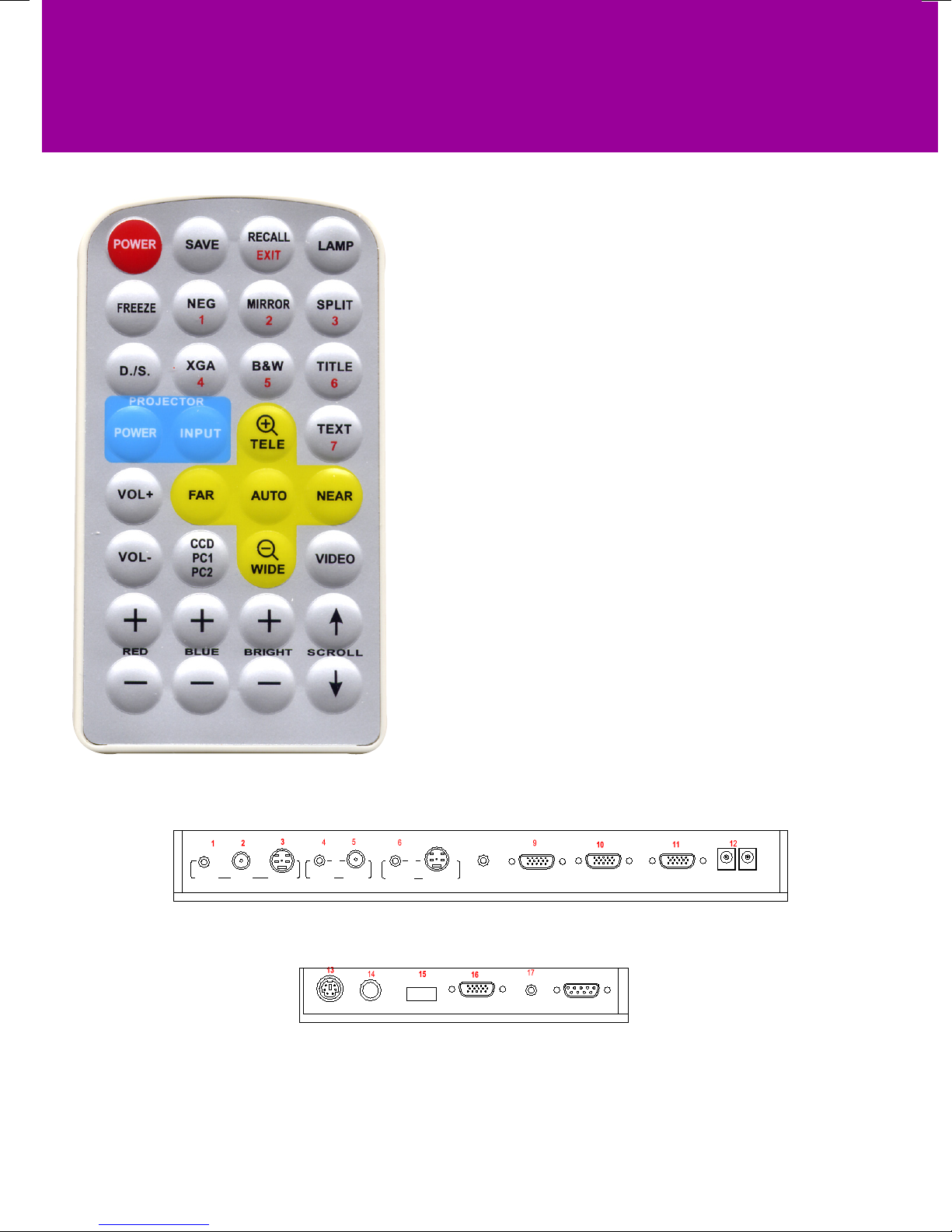

POWER (Control the visualiser On/Off)
SAVE (Save captured images)
RECALL (Display saved images)
EXIT (Exit RECALL mode)
LAMP (Control the arm lights and back light)
FREEZE (Freeze the image)
NEG (Display lm negatives)
MIRROR (V-Reverse the image)
SPLIT (Image split function)
D./S. (Switch between static mode and dynamic mode)
XGA (Switch between XGA (1024 x 768) and SVGA (800 x 600) mode)
B&W (Switch between color mode and B&W mode)
TITLE (Freeze the top 1/8 of the screen)
PROJECTOR POWER (Control the projector On/Standby)
PROJECTOR INPUT (Projector input signal selection)
TEXT (Switch between image/text mode)
AUTO (To auto white balance and auto focus)
TELE/ IDE (Increase and decrease the magnication)
FAR/NEAR (Focus near or far)
VOL+/VOL- (Increase or decrease the volume)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (Video input signal selection)
RED +/- (Increase/decrease the red hue)
BLUE +/- (Increase/decrease the blue hue)
BRIGHT +/- (Increase/decrease the brightness)
SCROLL / (Move the image up/down)
NOTE: FREEZE, TITLE, D./S. and SPLIT functions
are only available on PROJECTOR OUT port.
1) AUDIO OUT 2) VIDEO OUT 3) S-VIDEO OUT
4) VIDEO AUDIO IN 5) VIDEO IN 6) S-VIDEO AUDIO IN
7) S-VIDEO IN 8) PC AUDIO IN 9) PROJECTOR Connector
10) COMPUTER OUT 11) COMPUTER IN 12) POWER OUT/IN
13) PROJECTOR RS232 Connector 14) MIC IN
15) USB Connector 16) RGB IN 17) RGB AUDIO IN
18) COMPUTER RS-232 Connector
USB
PROJECTOR MIC
VIDEO
OUT
AUDIO AUDIO
OUT
S-VIDEO
IN
VIDEO
RGB IN AUDIO IN RS232
Side Panel
8
PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
AUDIO IN
S-VIDEO
7
AUDIO
IN
18
REAR PANEL
SIDE PANEL
REMOTE CONTROL & CONNECTIONS

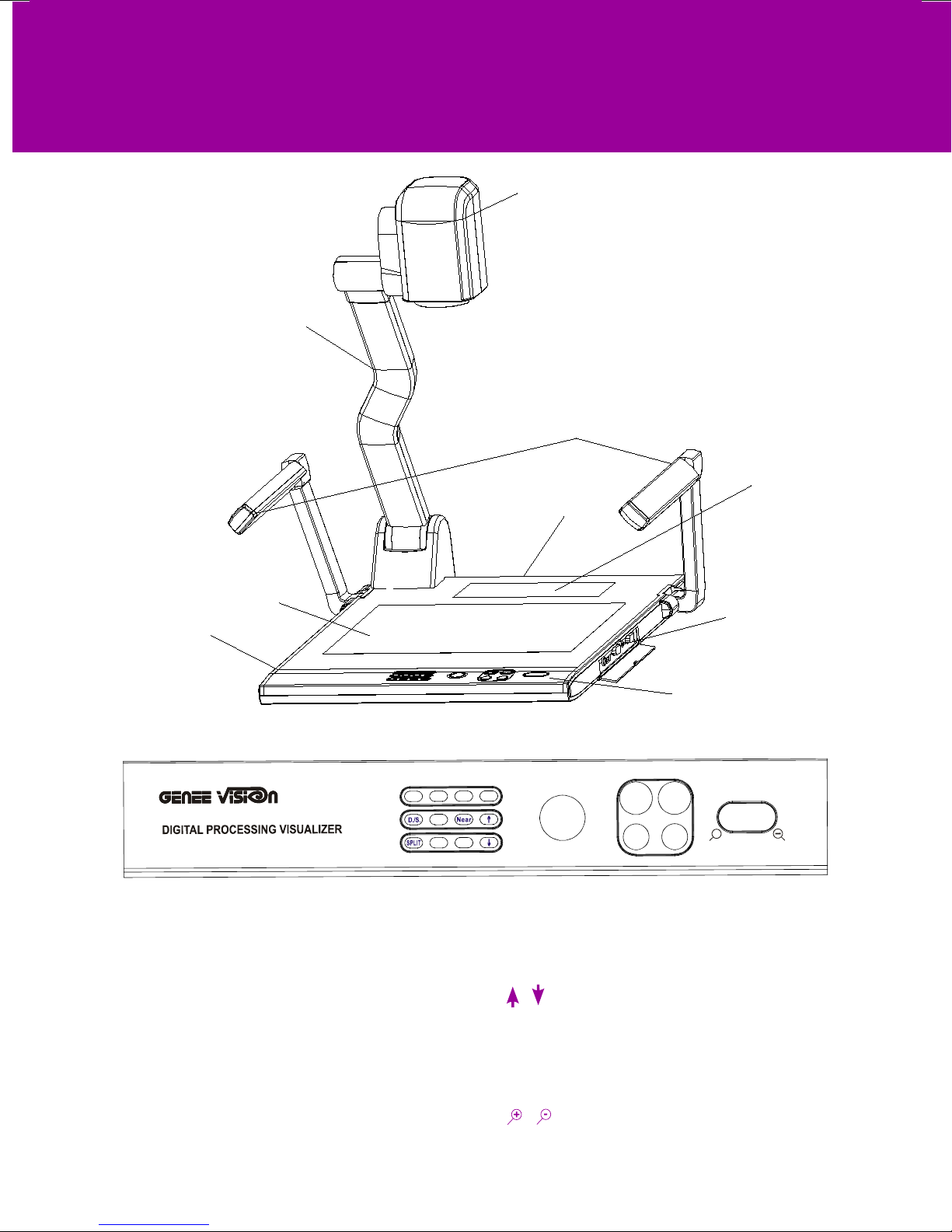

Arm lights
Camera
Camera stand
Back light
Remote control slot
Operation panel
Stage
Connectors
Connectors
Button instruction
PARTS IDENTIFICATION
T
+
POWER
LAMP AUTO
CCD/PC1/PC2 VIDEO
Mir Frz Neg Title
Far
Ppw Pin
W
61006100
6100
POWER (Control the visualiser On/Off)
Mir (V-Reverse the image)
Frz (Freeze the image)
Neg (Display lm negatives)
Title (Freeze the top 1/8 of the screen)
D./S. (Switch between static mode and dynamic mode)
Far/Near (Focus far or near)
Split (Image Split function)
Ppw (Control the projector On/Standby)
Pin (Projector input signal selection)
/ (Move the image up/down) (Optional)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (VIDEO input signal selection)
LAMP (Control the arm lights and back light)
AUTO (To auto adjust white balance and auto focus)
T/ (Increase and decrease the magnication)
Remarks: Frz, Title, D./S. and Split functions are only available on PROJECTOR OUT.

Arm lights
Camera
Camera stand
Back light
Remote control slot
Operation panel
Stage
Connectors
Connectors
Button instruction
Ppw (Control the projector On/Standby)
Pin (Projector input signal selection)
/ (Move the image up/down) (Optional)
CCD/PC1/PC2 (CCD/RGB input signal selection)
VIDEO (VIDEO input signal selection)
LAMP (Control the arm lights and back light)
AUTO (To auto adjust white balance and auto focus)
T/ (Increase and decrease the magnication)
BASIC PREPARATIONS
1. Use one hand to hold the base of the visualiser, use the other
hand to carefully lift up the camera stand of the unit.

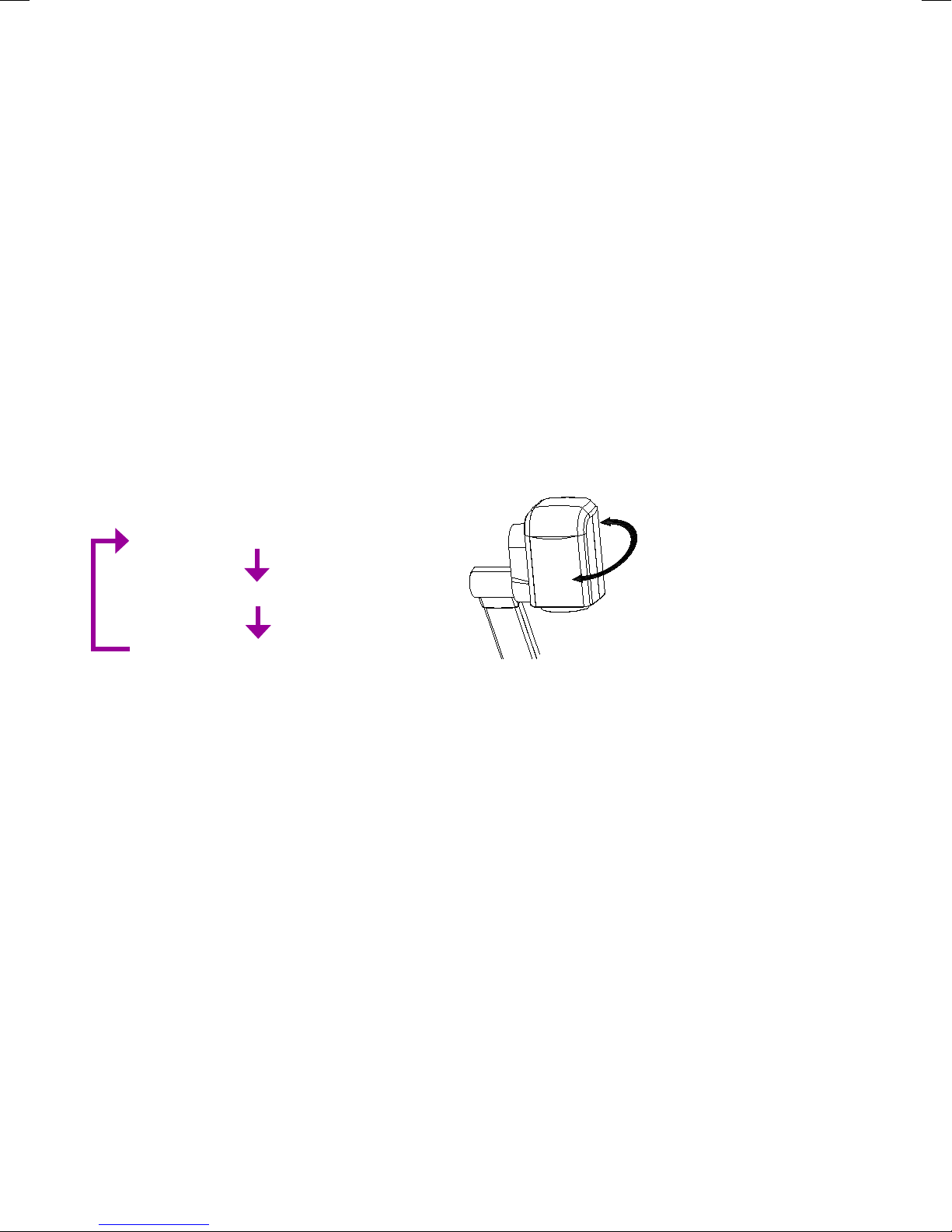

2. Open the arm lights and rotate the camera head until they
are in proper positions.
3. Making connections:
Before making any connection, turn off all the power, including
power of the visualiser and the equipment to be connected.
Step 1: Connect power source.
First connect the power cord to the 12V IN connector.
Arm lights

Projector
RGB Input
Screen
RS232 Cable
Side Panel
MIC
PROJECTOR USB RGB IN AUDIO IN RS232
PROJECTOR
Rear Panel
S-VIDEO
OUT
AUDIO VIDEO
OUT
AUDIO
AUDIO VIDEO
IN
S-VIDEO
IN
AUDIO IN OUT -COMPUTER- IN OUT-12V- IN
Connect visualiser’s PROJECTOR port to the RGB IN port of the projector port with the RGB cable
provided together the visualiser.
If you need control a projector with the visualiser, please use the projector RS232 cable (6-pin to
9-pin) to make the connection between the projector and the visualiser. Some projector models
may require a converter cable in addition to this standard RS232 cable to connect to the projector
control port, for the pin locations and shape of some projectors’ control port connector may be
different from the connector of a standard RS232 cable. After the visualiser is connected to the
projector, you can control projector’s power on, standby and input selection with the visualiser.

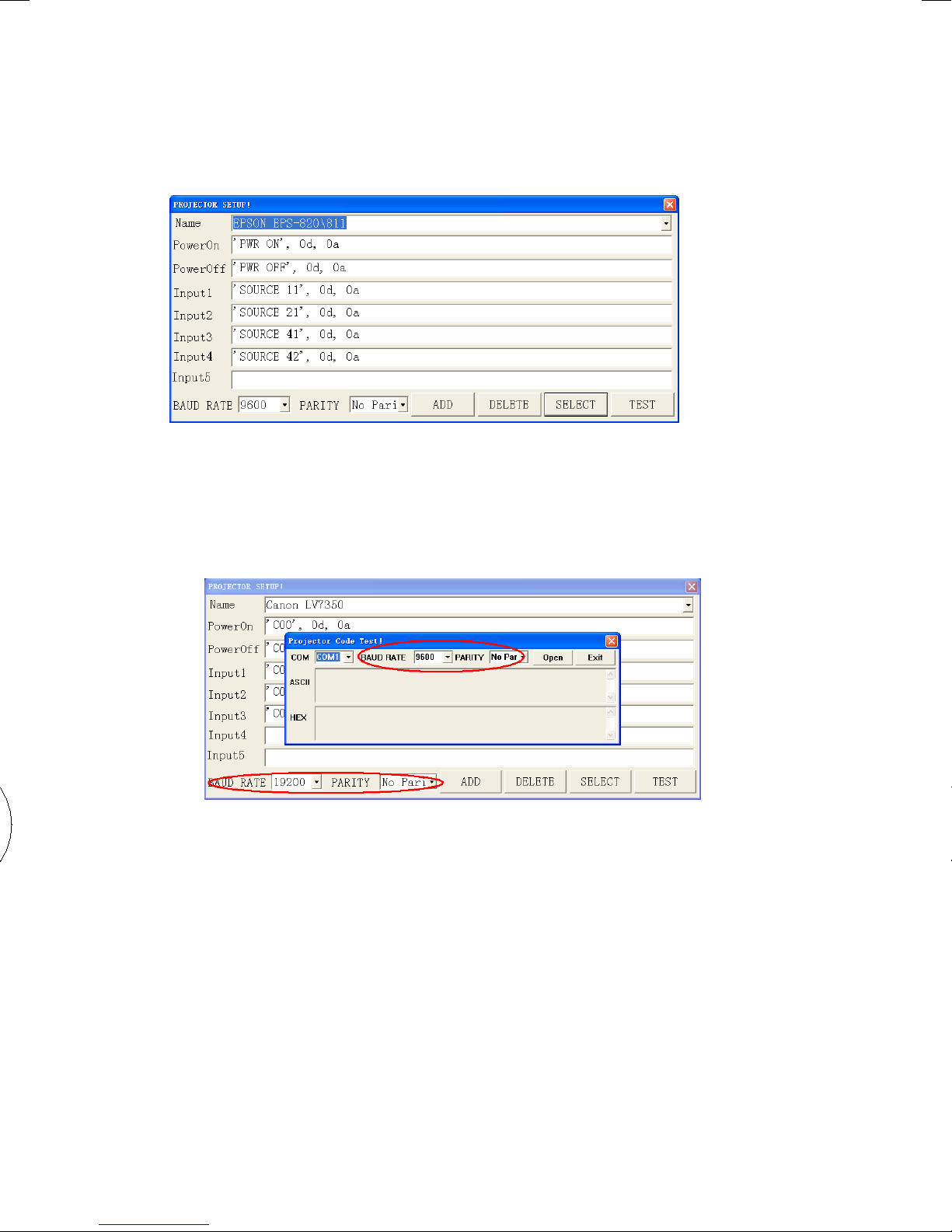

(For projectors other than Hitachi, the Code Writing program that comes with the visualiser is
required for this function.)

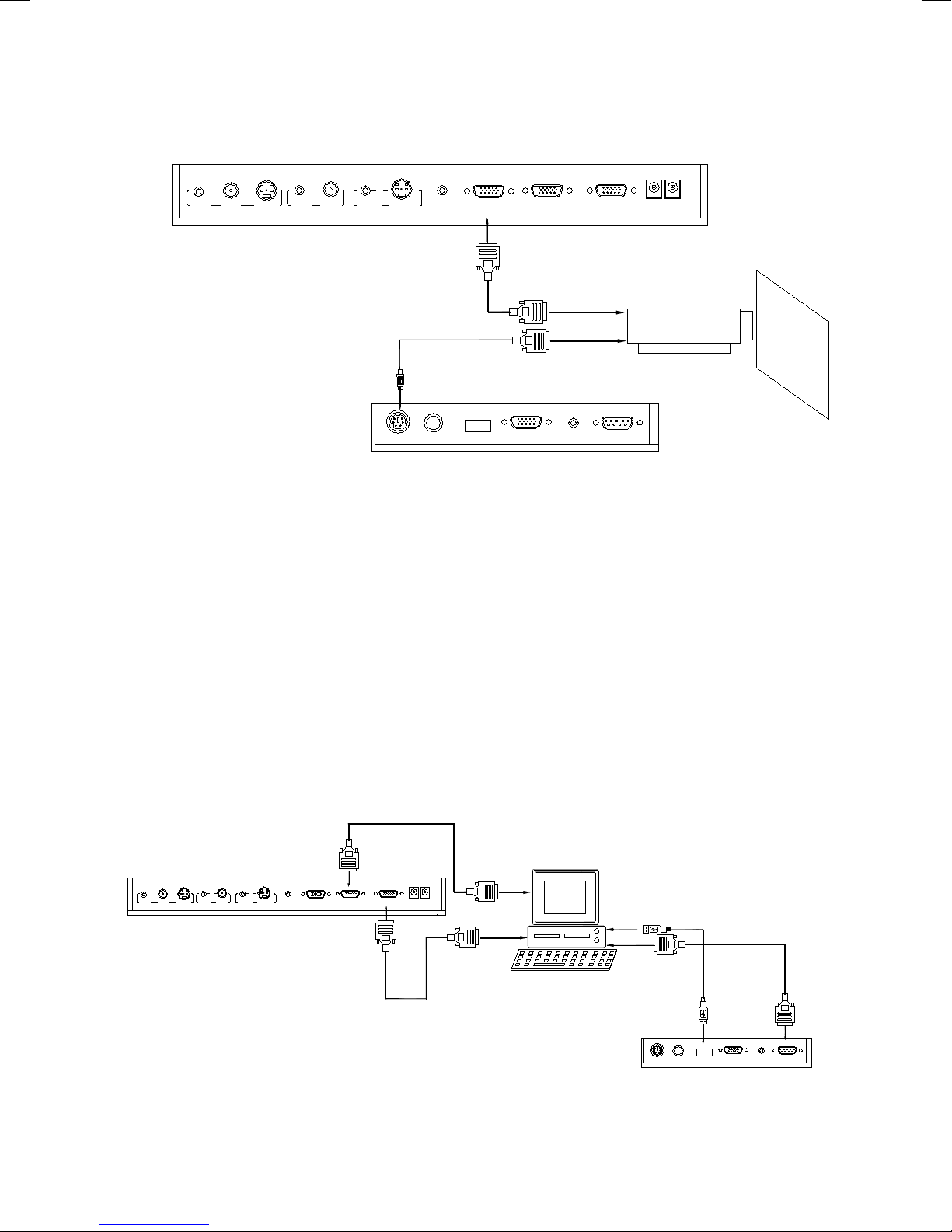

5: Connect to a desktop computer.
4: Connect to the projector.
AUDIO
IN
S-VIDEO
OUTOUT
VIDEO AUDIO VIDEO
Video equipment
S-Video out
Audio out
Audio input
(or amplifier/speaker equipment)
Projector
S-Video Cable
S-VIDEO
AUDIO
IN
PROJECTOR
Rear Panel
AUDIO IN OUT-12V- IN
OUT -COMPUTER- IN
RS232
Cable
MIC
PROJECTOR
Computer
USB RGB IN AUDIO IN RS232
Side Panel
RGB Output
To the
Monitor
USB Connector
AUDIO IN
OUT
AUDIO VIDEO
OUT
VIDEOAUDIOS-VIDEO
IN
S-VIDEO
AUDIO
IN
PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Rear Panel
Note: You can connect a laptop computer to the
RGB IN port of side panel with a RGB cable.

Connect visualiser’s PROJECTOR port to the RGB IN port of the projector port with the RGB cable
provided together the visualiser.
If you need control a projector with the visualiser, please use the projector RS232 cable (6-pin to
9-pin) to make the connection between the projector and the visualiser. Some projector models
may require a converter cable in addition to this standard RS232 cable to connect to the projector
control port, for the pin locations and shape of some projectors’ control port connector may be
different from the connector of a standard RS232 cable. After the visualiser is connected to the
projector, you can control projector’s power on, standby and input selection with the visualiser.
(For projectors other than Hitachi, the Code Writing program that comes with the visualiser is
required for this function.)
5: Connect to a desktop computer.
AUDIO
IN
S-VIDEO
OUTOUT
VIDEO AUDIO VIDEO
Video equipment
S-Video out
Audio out
Audio input
(or amplifier/speaker equipment)
Projector
S-Video Cable
S-VIDEO
AUDIO
IN
PROJECTOR
Rear Panel
AUDIO IN OUT-12V- IN
OUT -COMPUTER- IN
RS232
Cable
MIC
PROJECTOR
Computer
USB RGB IN AUDIO IN RS232
Side Panel
RGB Output
To the
Monitor
USB Connector
AUDIO IN
OUT
AUDIO VIDEO
OUT
VIDEOAUDIOS-VIDEO
IN
S-VIDEO
AUDIO
IN
PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Rear Panel

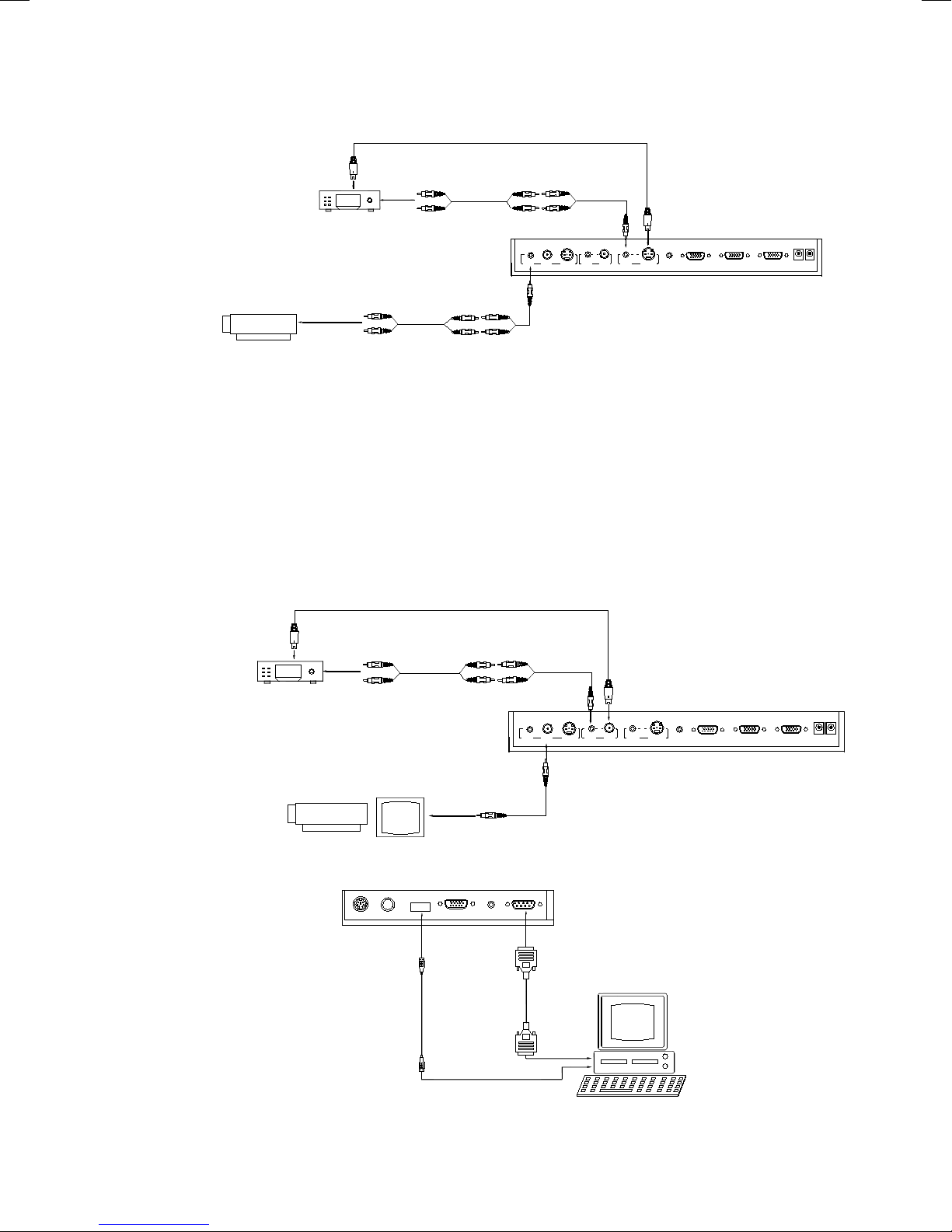

6: Connect to the rst video equipment with S-Video input.
Output of the S-Video signal from the visualiser to the projector is already done in the step
2, where the RGB cable comes out from the visualiser and goes to the projector. After the
connections as steps 2, 3, 4 are made, input signals from the computer visualiser CCD and
S-Video are going to the RGB1 input on the projector and will be displayed on the projector
screen as RGB1. These signals can be seen in turn when pressing “CCD/PC1/PC2” and
“VIDEO” on the control panel of the visualiser.
Remarks: RGB IN signal can not go to S-VIDEO OUT or VIDEO OUT port to be
displayed on the screen.
RS 232 connector
USB connector
of the computer
of the computer
USB cable
RS-232 cable
Side Panel
USB
PROJECTOR MIC RGB IN AUDIO IN RS232
Video in
Projector Color monitor
S-VIDEO
AUDIO
OUTOUT
AUDIO VIDEO S-VIDEO VIDEO
IN IN
AUDIO
Rear Panel
AUDIO IN PROJECTOR OUT -COMPUTER- IN OUT-12V- IN
Video equipment
Audio out
Video Cable
Video out
RS 232 connector
USB connector
of the computer
of the computer
USB cable
RS-232 cable
Side Panel
USB
PROJECTOR MIC RGB IN AUDIO IN RS232
Video in
Projector Color monitor
S-VIDEO
AUDIO
OUTOUT
AUDIO VIDEO S-VIDEO VIDEO
IN IN
AUDIO
Rear Panel
AUDIO IN PRO JECTOR OUT -COMPUTER- IN OUT-12V- IN
Video equipment
Audio out
Video Cable
Video out
7: Connect to the second video equipment with video input.

Use the computer RS232 cable (9-pin to 9-pin) to make the connections shown below
to control the visualiser from an external computer.
USB connection enables capturing still images / video streams
from the visualiser to the computer. Special software is required for this operation.
8. Turn on the power by pressing the “POWER” button.

Plug in here Plug monitor/pc in here
SETUP GUIDE

This set-up allows you to
toggle between the Visualiser,
the PC / laptop running
the interactive whiteboard
and an optional, second
(non-interactive) computer
input. The USB lead can be
connected to either computer
depending on which one you
wish to capture Visualiser
images on to.
This set-up allows you toggle between the Visualiser and the
interactive desktop, using the CCD/PC1/PC2 button (no input
on PC2). Any Visualiser still-image can be captured to the
desktop using the ‘VideoCap’ software (on the Genee Vision
disk), or moving image using programs such as ‘Movie Maker’
which comes with Windows XP.
LAPTOP 2
PROJECTOR MAIN PC/
LAPTOP
connected to
interactive board
projector comp in
RGB in
USB
USB
RGB
USB RGB
?
projector comp in
USB
(front)
PROJECTOR
USB RGB
PC/LAPTOP
Set up 3
Set up 2
Set up 2
Set up 3
The simplest set-up, using
the RGB lead, to project
images on to a screen.
projector comp in
RGB in
USB
PROJECTOR
Set up 1
Set up 1
SET UP GUIDE
