General International 15-150 MI Parts list manual

Steel frame and heavy duty base for
greater stability.
High quality conveyor belt for longer
service life.
Large hand wheel adjusts conveyor table
height.
Graduated depth scale in both inches and
metric to indicate sanding thickness.
Magnetic safety switch.
Two (2) 4” dust outlets.
Conveyor belt equipped with removable
key safety switch.
Variable speed conveyor belt.
MAXIMUM SANDING WIDTH
24» (610 mm)
MAXIMUM SANDING THICKNESS
5” (127 mm)
MINIMUM SANDING THICKNESS
1⁄4” (6 mm)
DRUM DIAMETER
5” (127 mm)
DRUM SPEED
1550 RPM
FEEDING SPEED
3 to 20 FPM (0.93 – 6.2 M/MIN) Variable
MAIN MOTOR
2 HP, 220V, 1 Ph, 9 A
CONVEYOR MOTOR
1/6 HP, 180V, 1A
WEIGHT
495 LBS (225 kg)
REVISION 2 - APRIL 4, 2014
© COPYRIGHT GENERAL INTERNATIONAL

THANK YOU for choosing this General® International model 15-150 M1
orizontal Drum Sander. This machine has been carefully tested and inspected before ship-
ment and if properly used and maintained, will provide you with years of reliable service. To
ensure optimum performance and trouble-free operation, and to get the most from your
investment, please take the time to read this manual before assembling, installing and oper-
ating the unit.
The manual’s purpose is to familiarize you with the safe operation, basic function, and features
of this horizontal drum sander as well as the set-up, maintenance and identification of its parts
and components. This manual is not intended as a substitute for formal woodworking instruc-
tion, nor to offer the user instruction in the craft of woodworking. If you are not sure about the
safety of performing a certain operation or procedure, do not proceed until you can confirm,
from knowledgeable and qualified sources, that it is safe to do so.
Once you’ve read through these instructions, keep this manual handy for future reference.
All component parts of General® International machinery are carefully tested and inspected during all stages of
production, and each machine is thoroughly inspected upon completion of assembly. Because of our commit-
ment to uality and customer satisfaction, General® International agrees to repair or replace, within a period of 24
months from date of purchase, any genuine part or parts which, upon examination, prove to be defective in work-
manship or material. In order to obtain this warranty, all defective parts must be returned freight pre-paid to
General® International Mfg. Co., Ltd. Repairs attempted without our written authorization will void this warranty.
GENERAL ® INTERNATIONAL WARRANTY
Disclaimer: The information and specifications in this manual pertain to
the unit as it was supplied from the factory at the time of printing.
Because we are committed to making constant improvements, General
International reserves the right to make changes to components, parts
or features of this unit as deemed necessary, without prior notice and
without obligation to install any such changes on previously delivered
units. Reasonable care is taken at the factory to ensure that the specifi-
cations and information in this manual corresponds with that of the unit
with which it was supplied. owever, special orders and “after factory”
modifications may render some or all information in this manual
inapplicable to your machine. Further, as several generations of this hor-
izontal drum sander and several versions of this manual may be in cir-
culation, if you own an earlier or later version of this unit, this manual
may not depict your machine exactly. If you have any doubts or ques-
tions contact your retailer or our support line with the model and serial
number of your unit for clarification.
GE ERAL® I TER ATIO AL
8360 Champ-d’Eau, Montreal (Quebec) Canada 1P 1Y3
Telephone [phone] • Fax [phone]
www.general.ca

1. Do not operate the sander when tired, distracted, or
under the effects of drugs, alcohol or any medica-
tion that impairs reflexes or alertness.
2. The working area should be well lit, clean and free
of debris.
3. Keep children and visitors at a safe distance when
the sander is in operation; do not permit them to
operate the sander.
4. Childproof and tamper proof your shop and all
machinery with locks, master electrical switches
and switch keys, to prevent unauthorized or unsu-
pervised use.
5. Stay alert! Give your work your undivided attention.
Even a momentary distraction can lead to serious
injury.
6. Fine particulate dust is a carcinogen that can be
hazardous to health. Work in a well-ventilated area
and whenever possible use a dust collector and
wear eye, ear and respiratory protection devices.
7. Do not wear loose clothing, gloves, bracelets,
necklaces or other jewelry while the sander is in
operation.
8. Be sure that adjusting wrenches, tools, drinks and
other clutter are removed from the machine and/or
the feed table surface before operating.
9. Keep hands well away from the sanding drum and
all moving parts. Use a brush, not hands, to clear
away chips and dust.
10. Be sure sanding belts are securely installed in the
machine.
11. Do not operate the sander if the sand paper is
damaged or badly worn.
12. Do not push or force the workpiece into the sander.
The machine will perform better and more safely
when working at the feed rate for which it was
designed.
13. Avoid working from awkward or off balance posi-
tions. Do not overreach and keep both feet on floor.
14. Keep guards in place and in working order. If a
guard must be removed for maintenance or clean-
ing, be sure it is properly re-attached before using
the tool again.
15. Never leave the machine unattended while it is run-
ning or with the power on.
16. Use of parts and accessories NOT recommended
by General®International may result in equipment
malfunction or risk of injury.
17. Never stand on the machine. Serious injury could
occur if the sander is tipped over or if the sanding
drum is unintentionally contacted.
18. Always disconnect the tool from the power source
before servicing, changing accessories or sanding
belts, or before performing any maintenance or
cleaning, or if the machine will be left unattended.
19. Make sure that switch is in "OFF" position before
plugging in the power cord.
20. Make sure the tool is properly grounded. If equip-
ped with a 3-prong plug it should be used with a
three-pole receptacle. Never remove the third
prong.
21. Do not use this sander for other than its inten-
ded use. If used for other purposes, General®Inter-
national disclaims any real implied warranty and
holds itself harmless for any injury, which may result
from that use.
Rules for Safe Operation
To help e sure safe operatio , please take a mome t to lear the machi e’s applicatio s a d limita-
tio s, as well as pote tial hazards. Ge eral® I ter atio al disclaims a y real or implied warra ty a d
hold itself harmless for a y i jury that may result from the improper use of it’s equipme t.

Before connecting the machine to the power source, verify that the voltage of your power supply corresponds with
the voltage specified on the I.D. nameplate located on the back of the machine. A power source with greater volt-
age than needed can result in serious injury to the user as well as damage to the machine. If in doubt, contact a
qualified electrician before connecting to the power source.
This tool is for indoor use only. Do not expose to rain or use in wet or damp locations.
EELLEECCTTRRIICCAALL RREEQQUUIIRREEMMEENNTTSS
4

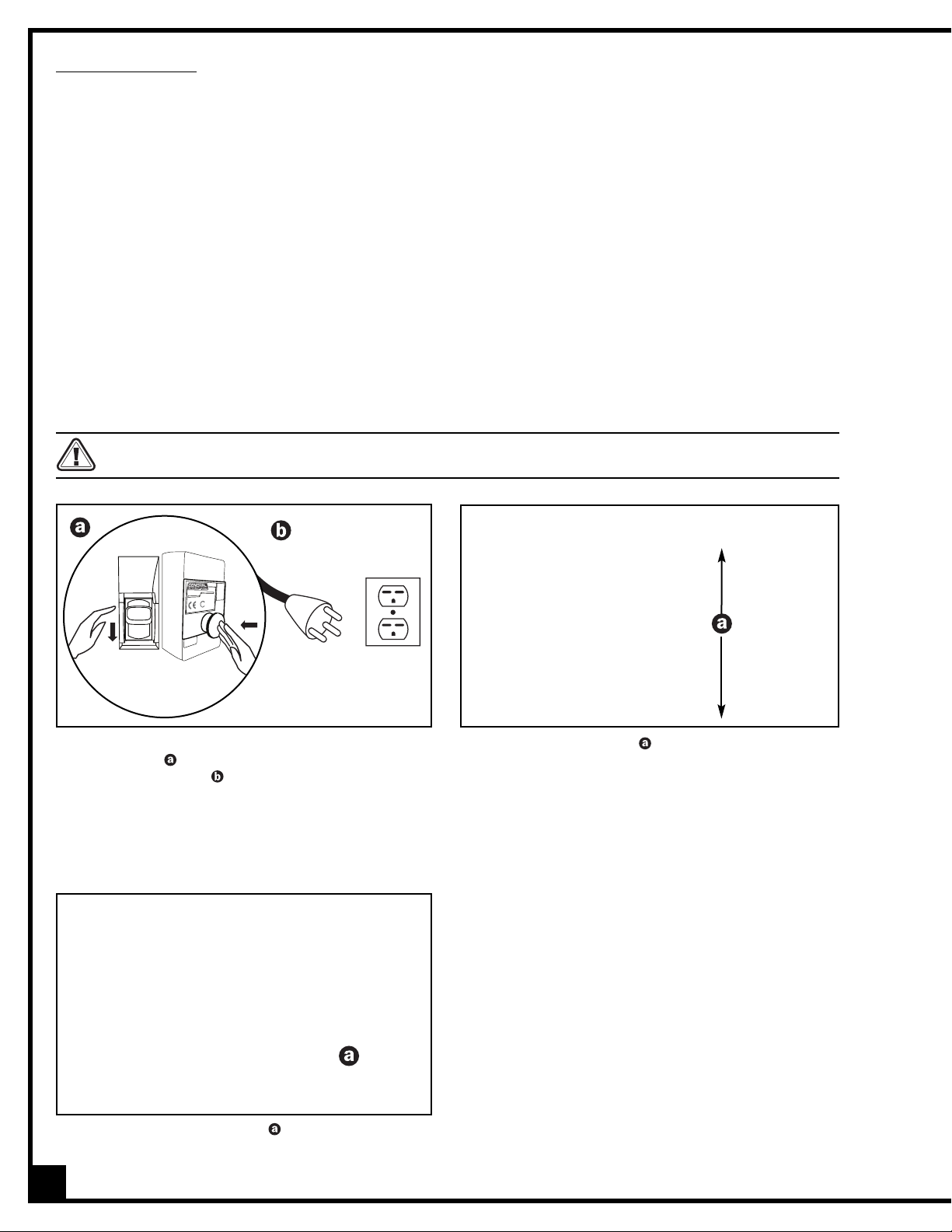

GROUNDING INSTRUCTIONS
In the event of an electrical malfunction or short circuit, grounding
reduces the risk of electric shock to the operator. The motor of this
machine is wired for 220V single phase operation and is equipped with
a 3-conductor cord and a 3-prong grounded plug to fit a matching
grounded type receptacle, .
DO NOT MODIFY THE PLUG PROVIDED
If it will not fit your receptacle, have the proper receptacle installed
by a qualified electrician.
Check with a qualified electrician or service person if you do not com-
pletely understand these grounding instructions, or if you are not sure
the tool is properly grounded.
CIRCUIT CAPACITY
Make sure that the wires in your circuit are capable of handling the amperage draw from your machine, as well as
any other machines that could be operating on the same circuit. If you are unsure, consult a qualified electrician.
If the circuit breaker trips or the fuse blows regularly, your machine may be operating on a circuit that is close to its
amperage draw capacity. owever, if an unusual amperage draw does not exist and a power failure still occurs,
contact a qualified technician or our service department.
EXTENSION CORDS
The use of an extension cord is not generally recommended for 220V. If you find it necessary, use only 3-wire
extension cords that have 3-prong grounding plug and a matching 3-pole receptacle that accepts the tool’s
plug. Repair or replace a damaged extension cord or plug immediately.
If you find it necessary to use an extension cord with your machine make sure the cord rating is suitable for the
amperage listed on the motor I.D. plate. An undersized cord will cause a drop in line voltage resulting in loss of
power and overheating. The accompanying chart shows the correct size extension cord to be used based on cord
length and motor I.D. plate amp rating. If in doubt, use the next heavier gauge. The smaller the number, the heavier
the gauge.
TABLE - MINIMUM GAUGE FOR CORD
VOLTS
110 V
MORE
THAN
18
18
16
14
220 V
AMPERE
RATING
NOT
MORE
THAN
0
6
10
12
6
10
12
16
16
16
16
12
16
14
14
-
14
12
12
-
25 ft.
50 ft.
50 ft.
100 ft.
100 ft.
200 ft.
150 ft.
300 ft.
TOTAL LENGTH OF CORD IN FEET
AWG

24” HORIZONTAL DRUM SANDER
15-150 M1
IDENTIFICATION OF MAIN PARTS AND COMPONENTS
OFF
ON
CRANK ANDLE
DUST OUTLET
CONVEYOR MOTOR START/STOP SWITC WIT SAFETY KEY
CONVEYOR BELT SPEED ADJUSTING KNOB
SANDING DRUM MOTOR MAGNETIC POWER SWITC
CONVEYOR BELT
DEPT GAUGE
DRUM (UNDER DRUM COVER)
CON VEYOR TABLE
5
