Genesis CCTV VDC-700VIR User manual

Product Manual

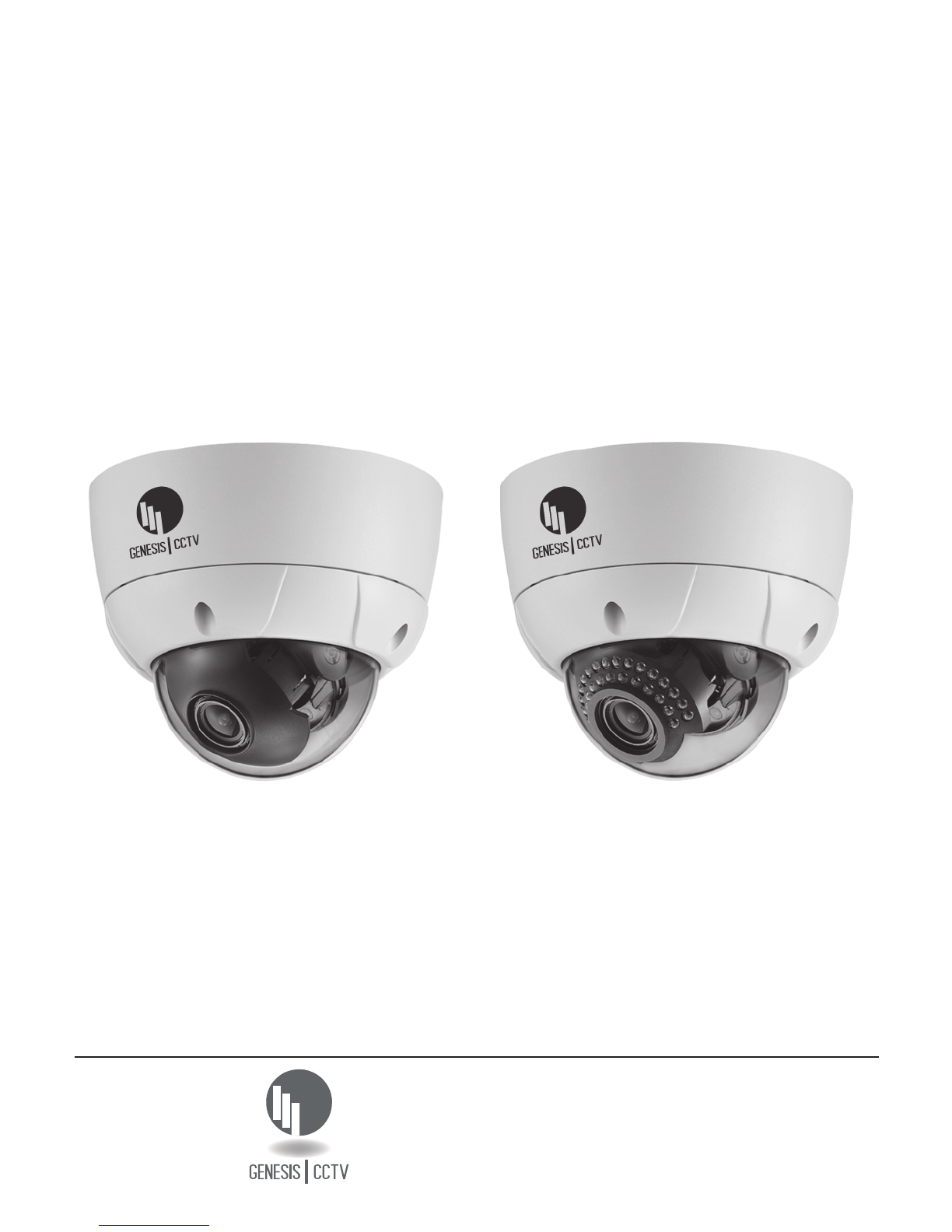

VDC-700VIR & VDC-700VDN

HIGH RESOLUTION
3-AXIS VANDAL DOME CAMERA
OPERATION MANUAL
VDC-700 Series Dome-001
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these
instructions.
GENESIS CCTV www.genesiscctv.com Phone: [phone]

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTION
3. FEATURES
4. OVERVIEW AND FUNCTION
5. INSTALLATION
6. CONNECTION
7. DIMENSIONS
8. SPECIFICATION
9. OSD MENU STRUCTUR
3

1. CAUTIONS
4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note
This equipment has been tested and found to comply with limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / tv technician for help.
Caution
Any changes or modications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV quality
75 video impedance level.
If your monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal componets.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light, which may
cause smear on the picture and possible damage to the CCD.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.

1. CAUTIONS
5
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2. IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
6

2.Features
• 1/3 960H SONY EXview HAD CCD II
• High Resolution of 700TV Lines
• OSD Function
• Multi Language
(ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN / PORTUGUESE / SPANISH / CHINESE)
• 2DNR
• Privacy Zone
• Motion Detect
• DC12V / AC24V Dual Voltage
• ATR(Adaptive Tone-curve Reproduction / Digital WDR)
The function provides gradation compensation to improve the contrast of subjects both
low-luminance areas and high luminance areas exist in the same picture
• 3-Axis Gimbal
Pan Rotation Horizontal RotationTilt Rotation
CAUTION panning the bracket in excess of 3 rotations in one direction maycause damage to the cable.
• Service Video connector
The Service Video Connector also provides the installer with an easy way of conguring the
camera.
7

3.Package
1 VANDAL DOME CAMERA
2 SURFACE MOUNT
3 VIDEO OUTPUT TEST CABLE
4 OPERATION MANUAL
5
SCREW(M4x10) - 4ea
SCREW(5x30) - 4ea
SCREW(M4x40.SUS) - 4ea
L WRENCH - T20
6 MOUNT GUIDE
8

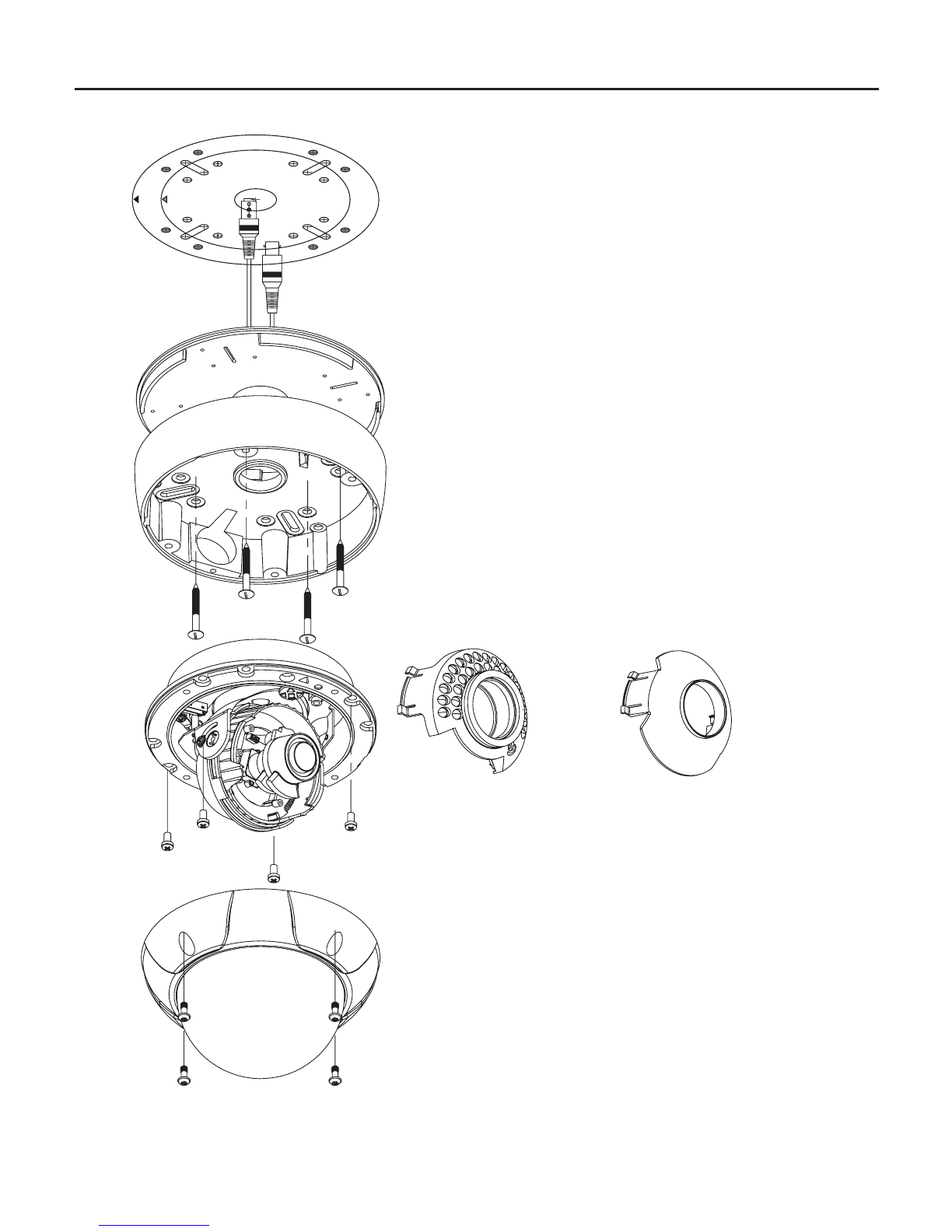

4.Overview and function
9
• CONTROL FUNCTION
(OSD JOYSTICK)
LEFT
UP
RIGHT
DOWN
MENU
• Name (LED Type)
• Name (Standard)

Standard TypeLED Type
Mount Guide

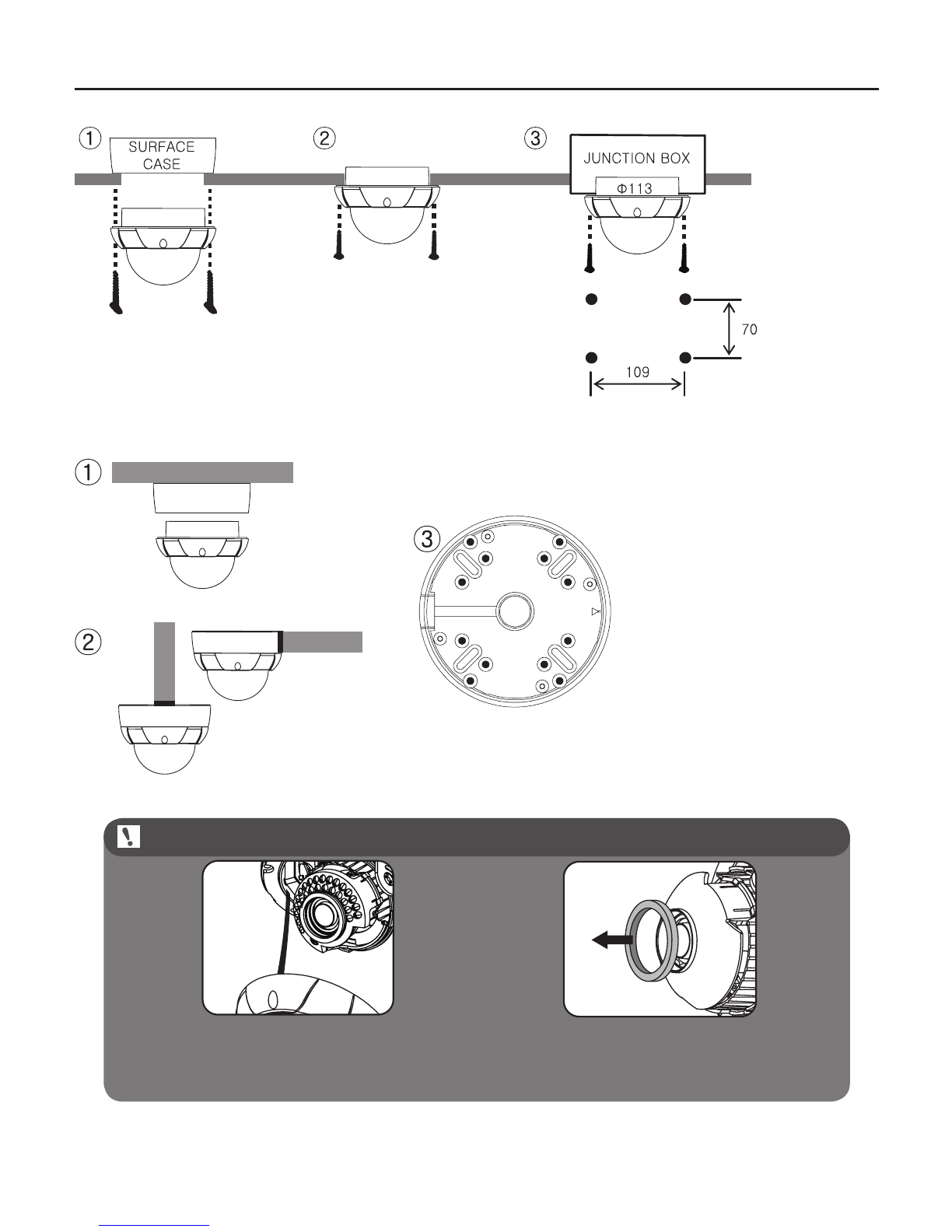

5. Installation
10

① Installation of the camera with SURFACE
CASE(using M4x40)
② Installation of the camera with SCREWS
③ Installation of the camera with JUNCTION BOX
① Installation of the camera on the wall
② Installation of the camera on the 3/4” NPT PIPE
③ Installation of the camera on the JUNCTION BOX
Check the safe wire which
should be entirely inserted into camera
housing during locking the dome cover to
maintain Waterproof condition.
When using the camera
without LED take off the rubber.
NOTE
5. Installation
1. Installation of Flush Mount
2. Installation of Surface Mount
PIPE
PIPE
11

Surface Mount Type Flush Mount Type
6.Connection
• DUAL(DC 12V/AC24V)
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
12
BNC FEMALE
VIDEO
VIDEO IN
DC 12V / AC 24V
DUAL POWER SUPPLY
7.Dimensions
Unit : mm
45
˚
70
˚
Standard Type LED Type
When you x the focus around 22.0mm in f9.0-22.0mm Varifocal lens, please
set short distance focus approximately 3M and do not set long distance focus

8.Specifications
Signal Format NTSC PAL
Image Device 1/3˝ 960H SONY EXview HAD CCD II
Scanning System 2:1 Interlace
H.Resolution 700TV Lines
Scanning Frequency H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz
Total Pixels 1020(H) X 508(V) 1020(H) X 596(V)
Effective Pixels 976(H) X 494(V) 976(H) X 582(V)
Electronic Shutter Speed 1/60 sec 1/50 sec
S/N Ratio More than 50dB(AGC Off)
Gamma r=0.45
Min. Illumination COLOR : 0.05Lux/F1.2, BW : 0.02 Lux/F1.2
Sync System Internal
Video Output 1.0 Vp-p Composite(75Ω)
OSD Built in (Inner Key / Joystick)
BLC OFF / BLC / HLC
White Balance ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK
2DNR OFF / ON (Level adjustable)
ATR OFF / ON (Level adjustable)
Function MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN
Privacy Masking 4 Zones
Motion Detection 4 Zones
Day & Night AUTO
Language ENGLISH / JAPANESE / GERMAN / FRENCH / RUSSIAN/
PORTUGUESE / SPANISH / CHINESE
IP Rating IP66 (Weatherproof)
Power Consumption DC 12V (±10%) Max.150mA , AC 24V (±10%) Max. 2.3W
Operating Temperature -10℃~ +50℃
Storage Temperature -20℃~ +60℃
Operating Humidity Less than 80%
Weight • Surface Mount type: Approx. 1.38kg
• Flush type: Approx. 730g
Dimension(mm) 143.0(Φ) x 104.0(mm)
LED TYPE
Power Consumption DC 12V (±10%) Max 430mA , AC 24V (±10%) Max. 5.2W
Min. Illumination 0 Lux (IR LED ON)
IR LED 850nm, 30ea
IR Beam Range Up to 30M
IR LED Operation On : 1 Lux, Off : 3 Lux
Specifications and designs are subject to change for improving the functionality of this product without notice.
13

9. OSD MENU STRUCTURE
MAIN
MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
LENS
MANUAL
AUTO
TYPE DC
MODE AUTO,OPEN,CLOSE
SPEED (000 ~ 255)
RETURN
SHUTTER
/ AGC
AUTO
HIGH LUMINANCE MODE SHUT,AUTO IRIS, SHUT+AUTO IRIS
BRIGHTNESS (000 ~ 255)
LOW LUMINANCE MODE AGC,OFF
BRIGHTNESS x0.25,x0.50,x0.75,x1.00
RETURN
MANUAL
MODE SHUT+AGC
SHUTTER
1/50(PAL),1/100(NTSC)
1/60(NTSC),1/120(PAL)
1/250,1/500,1/1000
1/2000,1/4000,1/10000
AGC 6,12,18,24,30,36,42,44.8
RETURN
WHITE
BAL
ATW
SPEED (000 ~ 255)
DELAY CNT (000 ~ 255)
ATW FRAME x0.50,x1.00,x1.50,x2.00
ENVIRONMENT INDOOR,OUTDOOR
RETURN
PUSH
USER1
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
USER2
B-GAIN (000 ~ 255)
R-GAIN (000 ~ 255)
RETURN
ANTI CR
MANUAL LEVEL 24 ~ 103
RETURN
PUSH LOCK
BACK LIGHT OFF,BLC,HLC
PIC
ADJUST
MIRROR OFF,ON
BRIGHTNESS (000 ~ 255)
CONTRAST (000 ~ 255)
SHARPNESS (000 ~ 255)
HUE (000 ~ 255)
GAIN (000 ~ 255)
RETURN
ATR ON
LUMINANCE LOW,MID,HIGH
CONTRAST LOW,MIDLOW,MID,MIDHIGH,HIGH
RETURN
OFF
*SHUT+IRIS:Both the Shutter and the Mechanical Iris are automatically adjusted according to brightness.
*Auto Iris(Default): The Shutter stays at the manually selected value and only the Mechanical Iris adjusts to brightness.
14

9. OSD MENU STRUCTURE
MAIN
MENU 1st Sub MENU 2nd Sub MENU 3rd Sub MENU 4th Sub MENU
MOTION
DET
ON
DETECT SENSE (000 ~ 127)
BLOCK DISP OFF,ON,ENABLE (CONTROLER)
MONITOR AREA ON,OFF
AREA SEL
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RETURN
OFF
NEXT
EXIT
SAVE ALL
PRIVACY ON
AREA SEL
1/4, 2/4, 3/4, 4/4
TOP NTSC:(000 ~ 244) / PAL: (000 ~ 288)
BOTTOM NTSC:(000 ~ 244) / PAL: (000 ~ 288)
LEFT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
RIGHT NTSC:(000 ~ 474) / PAL: (000 ~ 468)
COLOR (1 ~ 8)
TRANSP 0.00, 0.50, 0.75, 1.00
MOSAIC OFF,ON
RETURN
OFF
NR
NR MODE OFF,Y,C,Y/C
C LEVEL (000 ~ 015)
Y LEVEL (000 ~ 015)
RETURN
CAMERA
ID
ON EDIT MODE
RETURN
OFF
LANGUAGE ENGLISH, 日本語, DEUTSCH, FRANCAIS, Русский, PORTUGUÊS, ESPAÑOL, 中文
CAMERA
RESET
BACK
EXIT
SAVE ALL
*Important Note :
- Any changes made to the camera settings must be saved prior to exiting the OSD menu.
Else all changes will be discarded.
- By changing the lens option in the OSD from MANUAL to AUTO will automatically change the
SHUTTER/AGC setting from AUTO IRIS to SHUT+AUTO IRIS.(Default:AUTO IRIS)
15

Vision with Integrity
6923 Narcoossee Rd. Unit: 610; Orlando, FL 32822
Phone:[phone] / Fax:[phone]
Email: [email protected]
www.gennesiscctv.com
