VGA to Composite Converter
GVGA-COM

Quick Start Guide VGA to Composite Converter
2
The Genie GVGA-COM is a video converter designed to convert VGA to CVBS
signal with an additional VGA output. It’s a convenient and cost-effective solution
to replace PC monitors and projectors to watch playback using a TV monitor.
Features
• Supports VGA, CVBS (NTSC-EIAJ / PAL / PAL-M / PAL-N video formats
• Resolutions up to 1024 × 768 @ 75Hz
• Built-in VGA loop-out port for an extra VGA display
• Supports OSD (On Screen Display)
• Image size (horizontal and vertical), brightness, contrast, hue, saturation,
sharpness adjustable
• Windows and iOS operation system compatible
Specifications
Dimensions
Supports Maximum Video Resolution VGA at 1024 × 768 @ 75Hz, CVBS at NTSC/ PAL
Ports &
Interfaces
Video Input 1 × 15-pin D Female
Video Output 1 x BNC
Video Loop-out 1 × 15-pin D Female
Others
Power Connector DC5V 1A Regulated
Power Supply 500mA
Temperature
Operation: 0 to 55°C
Storage: -20 to 85°C
Humidity: Up to 95%
Dimensions 125 × 95 × 30mm
Weight 265g

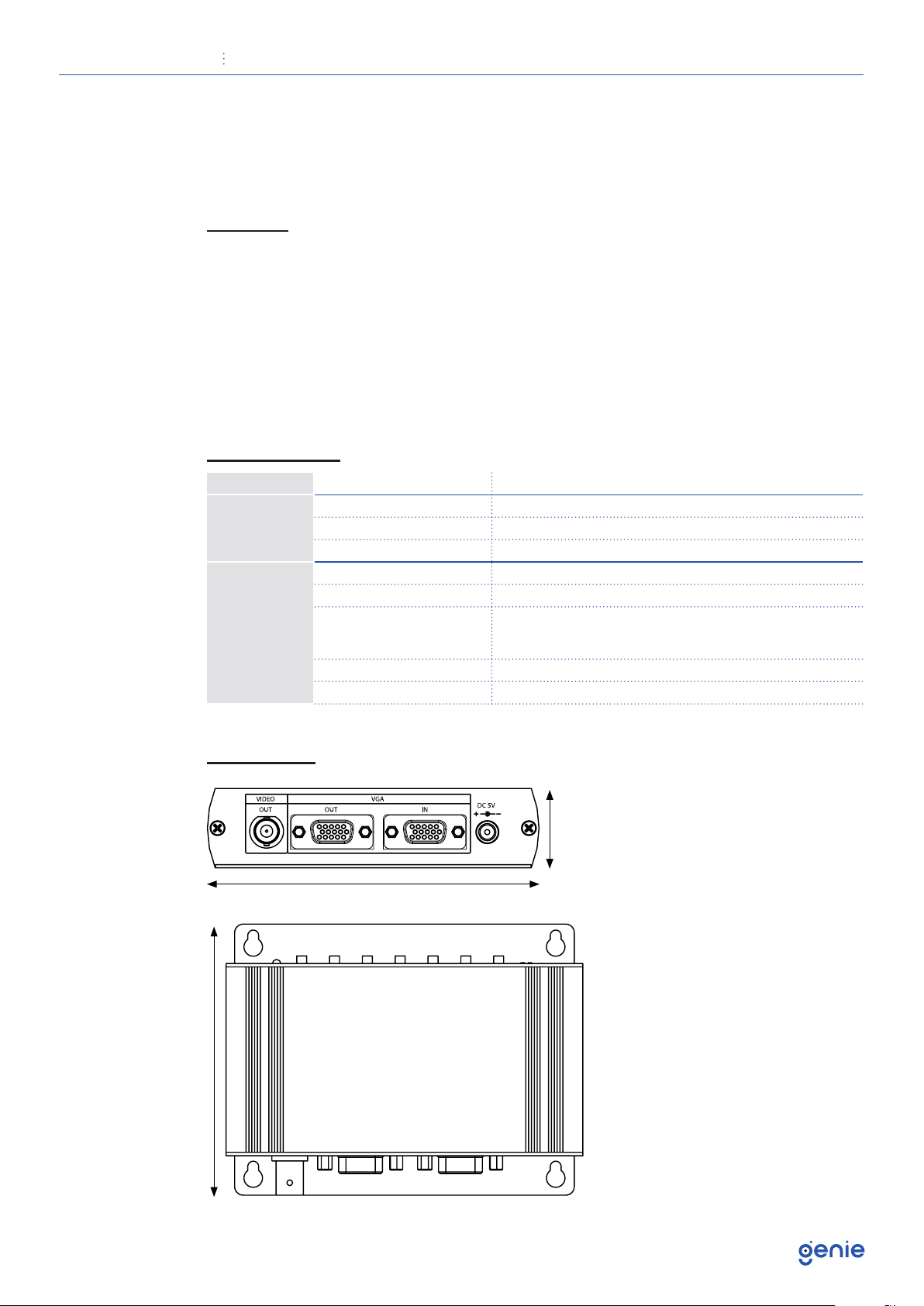

125mm
95mm
30mm

Quick Start Guide VGA to Composite Converter
3
Application
Panel View
Resolution Menu

Quick Start Guide VGA to Composite Converter
4
On Screen Display Function
HSIZE
VSIZE
BRIGHTNESS
CONTRAST
HUE (This function with NTSC system only)
SATURATION
FLICK
SHARPNESS
OSD (on screen display) BACKGROUND
